Computer Vision Segmentation Marc Pollefeys COMP 256 Some slides and illustrations from D. Forsyth, T. Darrel, . . .
Computer Vision Should have been last week ; -) Sequential structure from motion • Initialize motion from two images • Initialize structure • For each additional view – Determine pose of camera – Refine and extend structure • Refine structure and motion 2
Computer Vision Initial projective camera motion • Choose P and P´compatible with F (reference plane; arbitrary) Reconstruction up to projective ambiguity Same for more views? different projective basis 3 • Initialize motion • Initialize structure • For each additional view • Determine pose of camera • Refine and extend structure • Refine structure and motion
Computer Vision Initializing projective structure • Reconstruct matches in projective frame by minimizing the reprojection error Non-iterative optimal solution 4 • Initialize motion • Initialize structure • For each additional view • Determine pose of camera • Refine and extend structure • Refine structure and motion
Computer Vision Projective pose estimation • Infere 2 D-3 D matches from 2 D-2 D matches • Compute pose from (RANSAC, 6 pts) X F x Inliers: 5 • Initialize motion • Initialize structure • For each additional view • Determine pose of camera • Refine and extend structure • Refine structure and motion
Computer Vision Refining and extending structure • Refining structure (Iterative linear) • Extending structure 2 -view triangulation • Initialize motion • Initialize structure • For each additional view 6 • Determine pose of camera • Refine and extend structure • Refine structure and motion
Computer Vision Refining structure and motion • use bundle adjustment Also model radial distortion to avoid bias! 7
Computer Vision 8
Computer Vision 9 Application: video augmentation

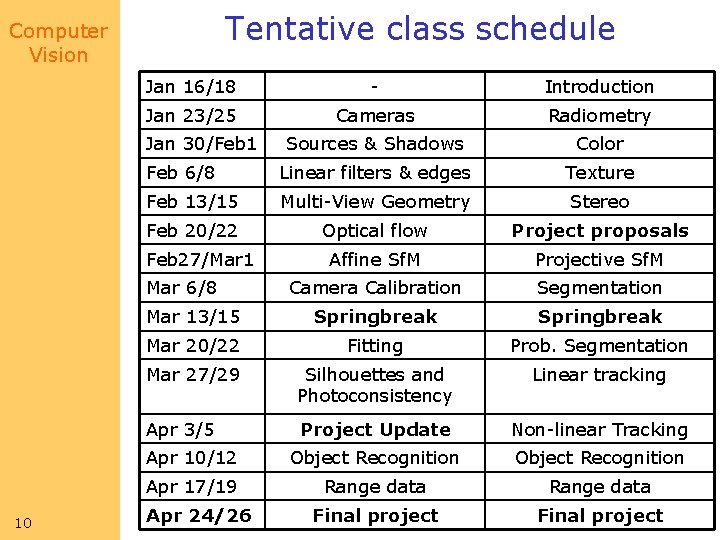

Tentative class schedule Computer Vision Jan 16/18 - Introduction Jan 23/25 Cameras Radiometry Sources & Shadows Color Feb 6/8 Linear filters & edges Texture Feb 13/15 Multi-View Geometry Stereo Feb 20/22 Optical flow Project proposals Affine Sf. M Projective Sf. M Camera Calibration Segmentation Mar 13/15 Springbreak Mar 20/22 Fitting Prob. Segmentation Mar 27/29 Silhouettes and Photoconsistency Linear tracking Apr 3/5 Project Update Non-linear Tracking Apr 10/12 Object Recognition Apr 17/19 Range data Final project Jan 30/Feb 1 Feb 27/Mar 1 Mar 6/8 10 Apr 24/26

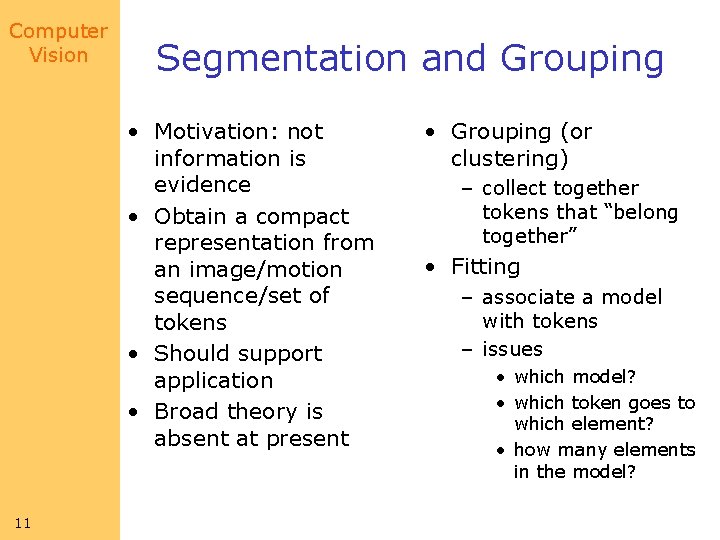

Computer Vision Segmentation and Grouping • Motivation: not information is evidence • Obtain a compact representation from an image/motion sequence/set of tokens • Should support application • Broad theory is absent at present 11 • Grouping (or clustering) – collect together tokens that “belong together” • Fitting – associate a model with tokens – issues • which model? • which token goes to which element? • how many elements in the model?
Computer Vision General ideas • tokens • bottom up segmentation – whatever we need to group (pixels, points, surface elements, etc. ) • top down segmentation – tokens belong together because they lie on the same object 12 – tokens belong together because they are locally coherent • These two are not mutually exclusive

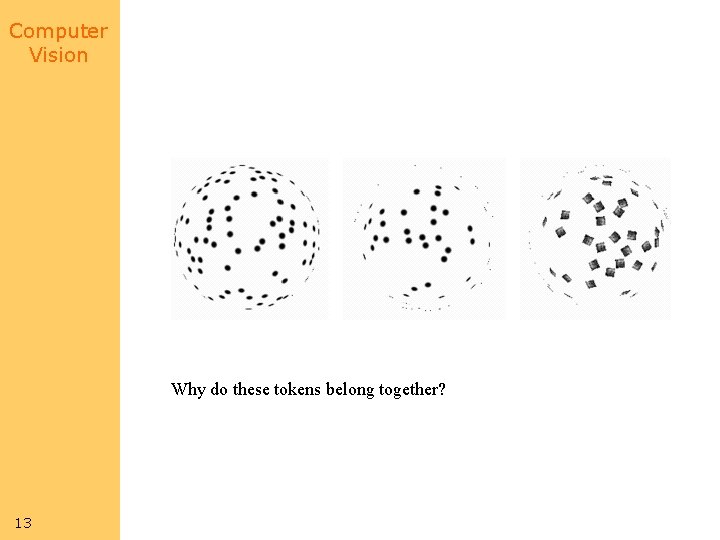

Computer Vision Why do these tokens belong together? 13

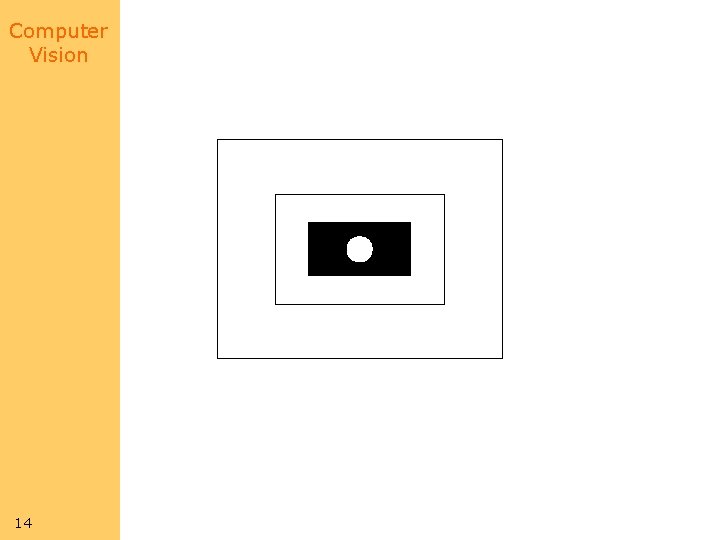

Computer Vision 14

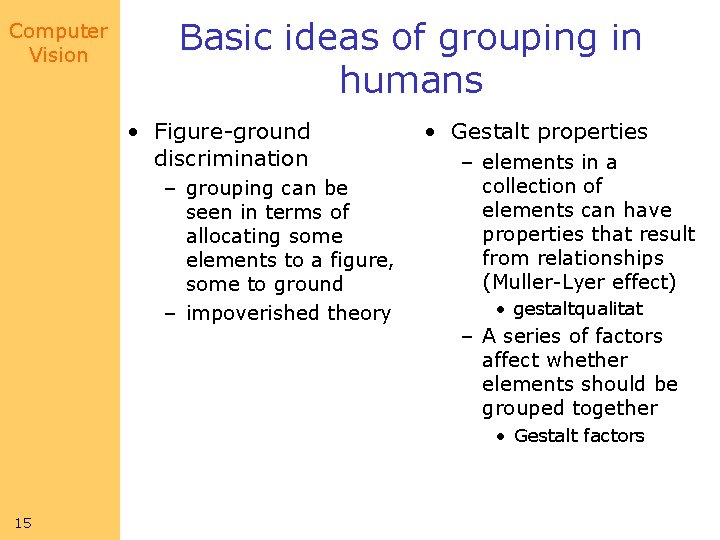

Computer Vision Basic ideas of grouping in humans • Figure-ground discrimination – grouping can be seen in terms of allocating some elements to a figure, some to ground – impoverished theory • Gestalt properties – elements in a collection of elements can have properties that result from relationships (Muller-Lyer effect) • gestaltqualitat – A series of factors affect whether elements should be grouped together • Gestalt factors 15

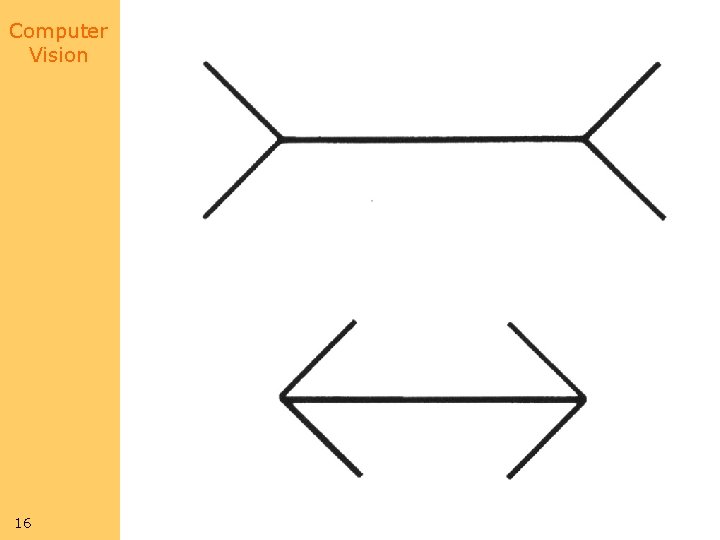

Computer Vision 16

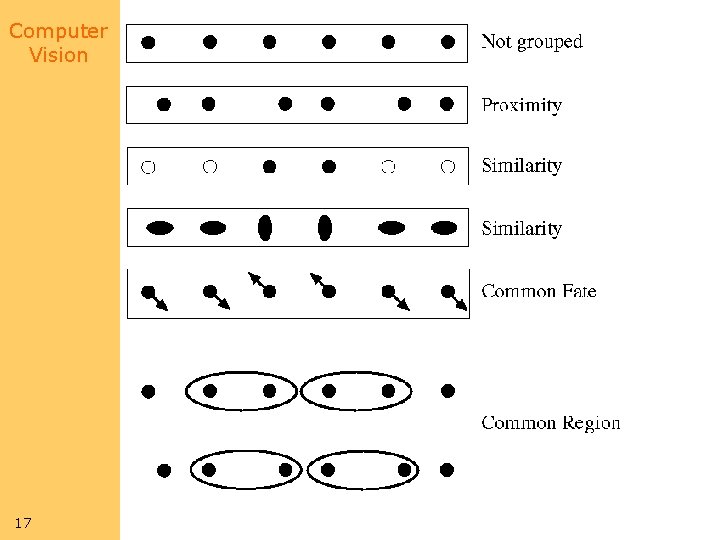

Computer Vision 17
Computer Vision 18

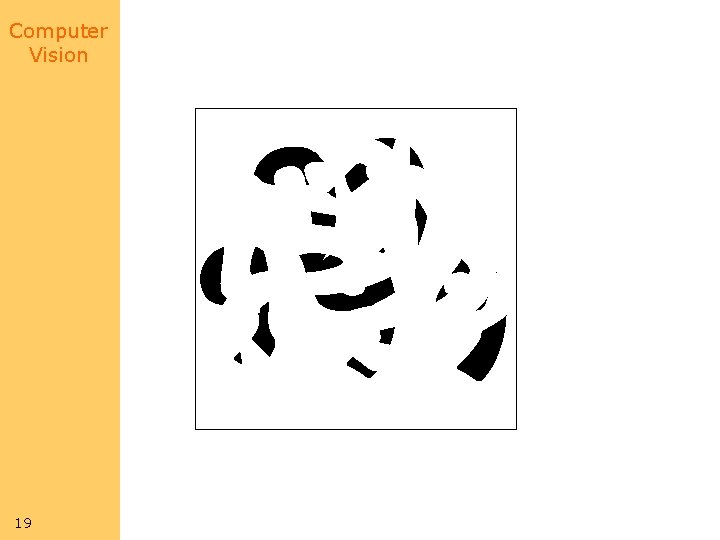

Computer Vision 19

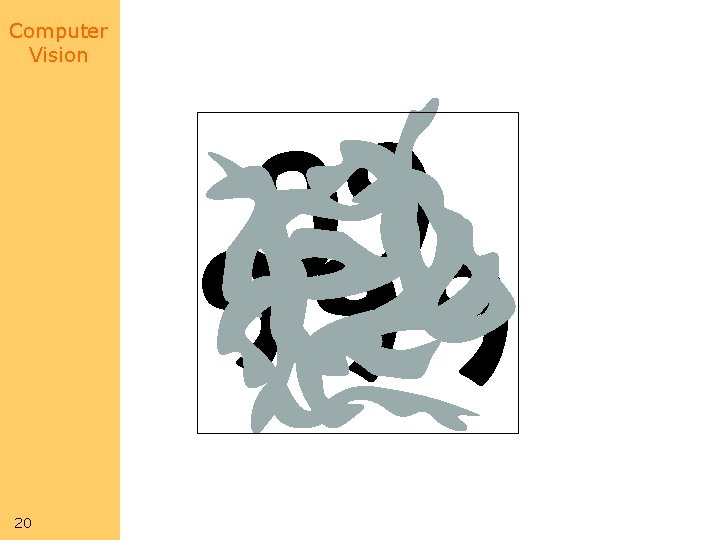

Computer Vision 20

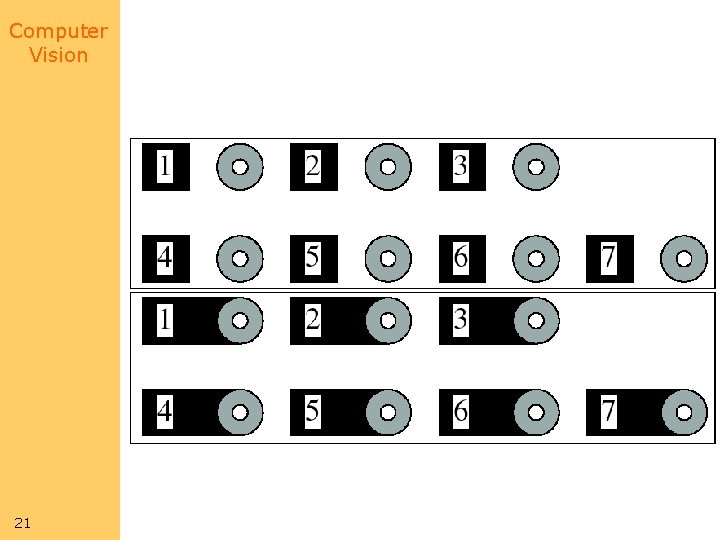

Computer Vision 21
Computer Vision 22

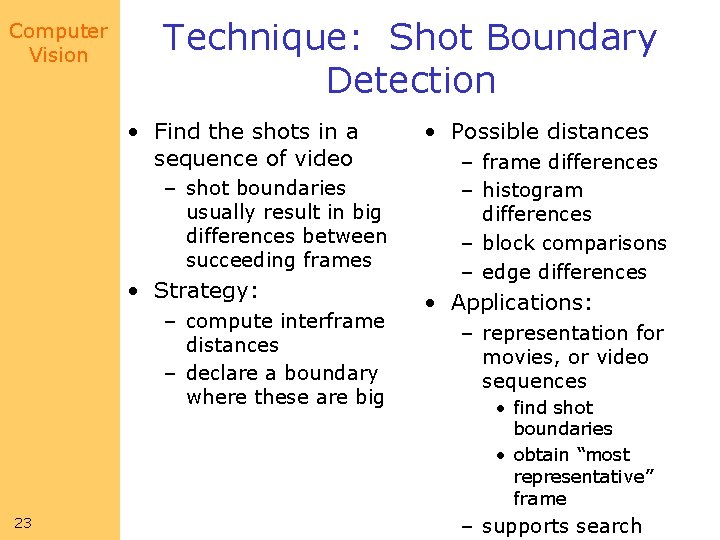

Computer Vision Technique: Shot Boundary Detection • Find the shots in a sequence of video – shot boundaries usually result in big differences between succeeding frames • Strategy: – compute interframe distances – declare a boundary where these are big 23 • Possible distances – frame differences – histogram differences – block comparisons – edge differences • Applications: – representation for movies, or video sequences • find shot boundaries • obtain “most representative” frame – supports search
Computer Vision Technique: Background Subtraction • If we know what the background looks like, it is easy to identify “interesting bits” • Applications – Person in an office – Tracking cars on a road – surveillance 24 • Approach: – use a moving average to estimate background image – subtract from current frame – large absolute values are interesting pixels • trick: use morphological operations to clean up pixels
Computer Vision 25
Computer Vision 26

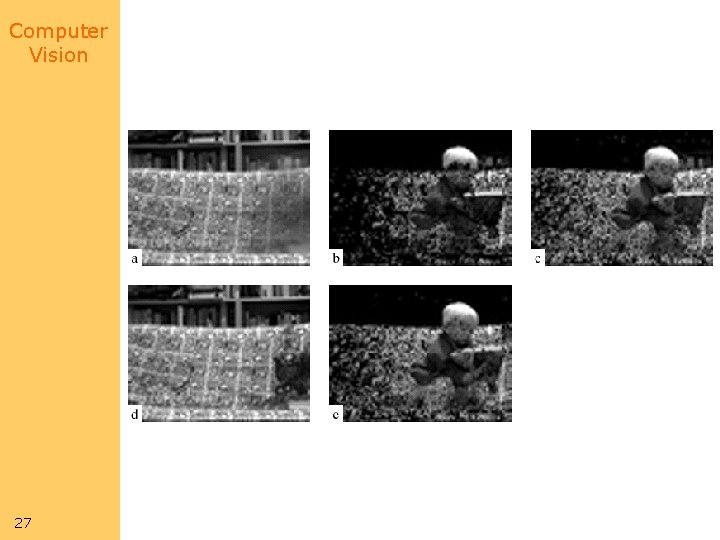

Computer Vision 27

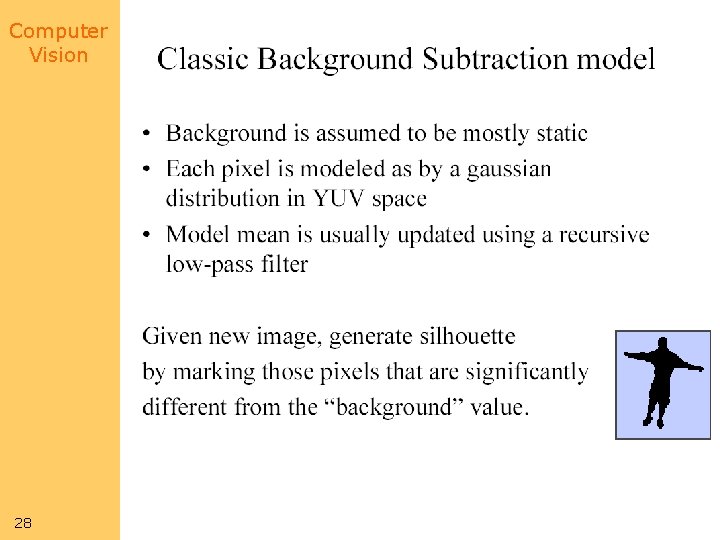

Computer Vision 28
Computer Vision 29

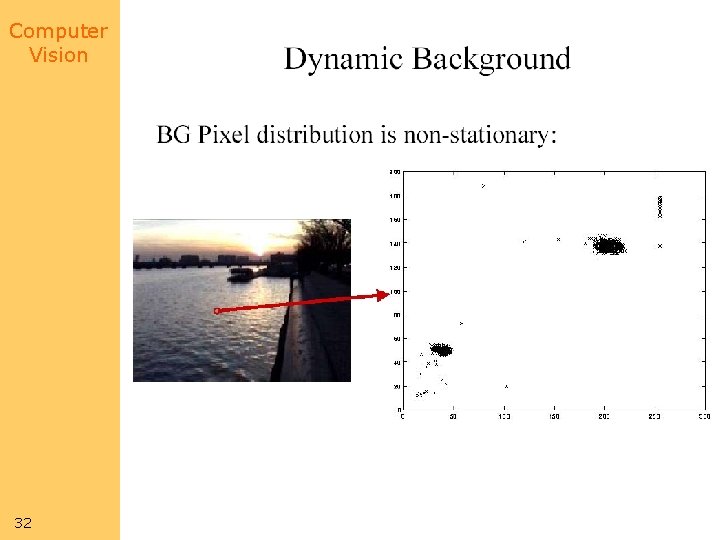

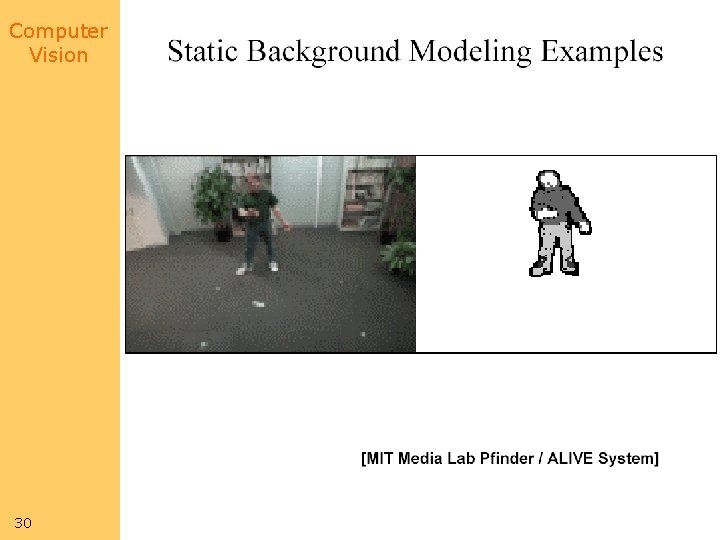

Computer Vision 30

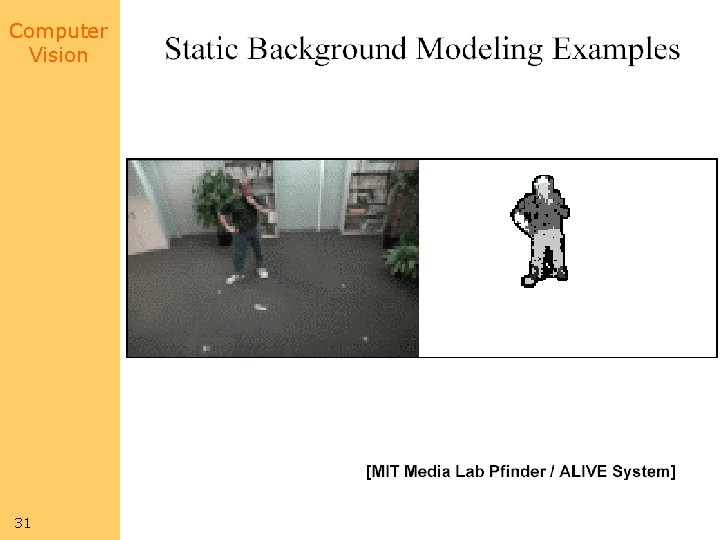

Computer Vision 31
Computer Vision 32
Computer Vision 33
Computer Vision Segmentation as clustering • Cluster together (pixels, • Point-Cluster distance tokens, etc. ) that – single-link clustering belong together – complete-link clustering • Agglomerative – group-average clustering – attach closest to cluster it is closest to – repeat • Divisive clustering – split cluster along best boundary – repeat 34 clustering • Dendrograms – yield a picture of output as clustering process continues
Computer Vision 35 Simple clustering algorithms
Computer Vision 36
Computer Vision K-Means • Choose a fixed number of clusters • Choose cluster centers and point-cluster allocations to minimize error • can’t do this by search, because there are too many possible allocations. 37
Computer Vision Image Clusters on intensity Clusters on color K-means clustering using intensity alone and color alone 38
Computer Vision Image Clusters on color K-means using color alone, 11 segments 39
Computer Vision K-means using color alone, 11 segments. 40
Computer Vision K-means using colour and position, 20 segments 41

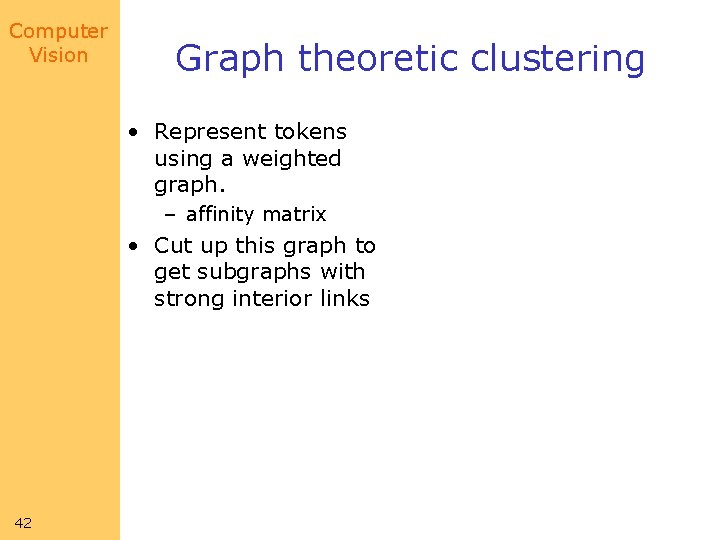

Computer Vision Graph theoretic clustering • Represent tokens using a weighted graph. – affinity matrix • Cut up this graph to get subgraphs with strong interior links 42
Computer Vision 43
Computer Vision 44
Computer Vision 45
Computer Vision 46
Computer Vision 47

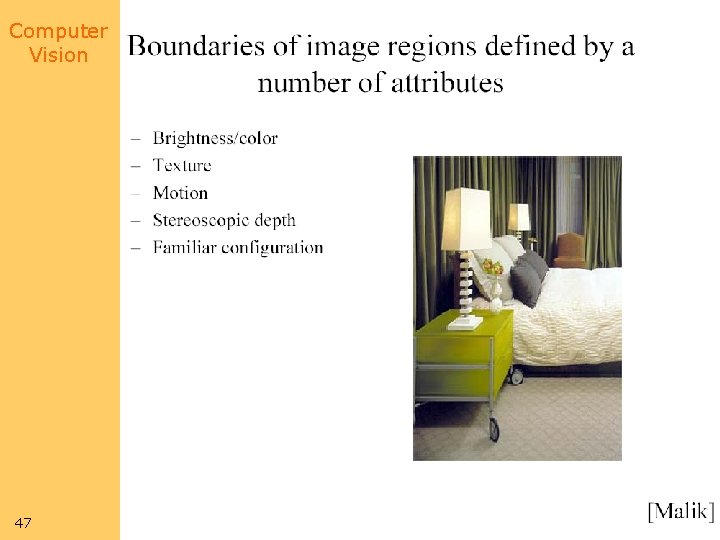

Computer Vision Measuring Affinity Intensity Distance Texture 48

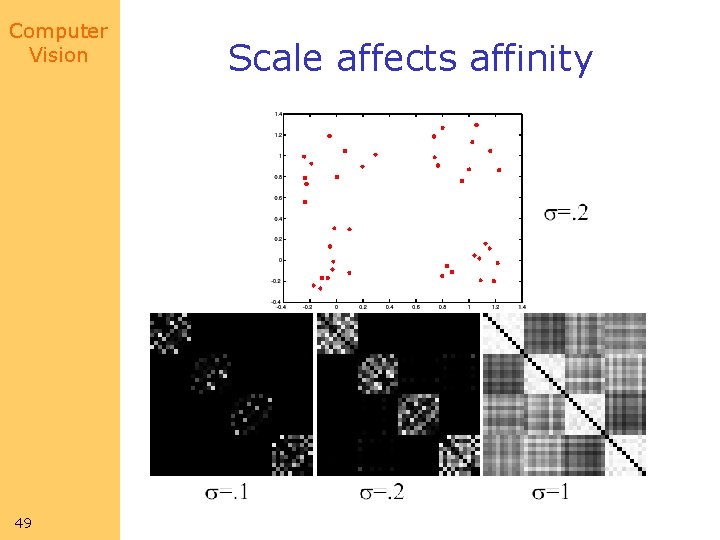

Computer Vision 49 Scale affects affinity
Computer Vision Eigenvectors and cuts • Simplest idea: we want a vector a giving the association between each element and a cluster • We want elements within this cluster to, on the whole, have strong affinity with one another • We could maximize • But need the constraint • This is an eigenvalue problem - choose the eigenvector of A with largest eigenvalue 50
Computer Vision Example eigenvector points eigenvector matrix 51
Computer Vision 52
Computer Vision More than two segments • Two options – Recursively split each side to get a tree, continuing till the eigenvalues are too small – Use the other eigenvectors 53
Computer Vision 54 More than two segments

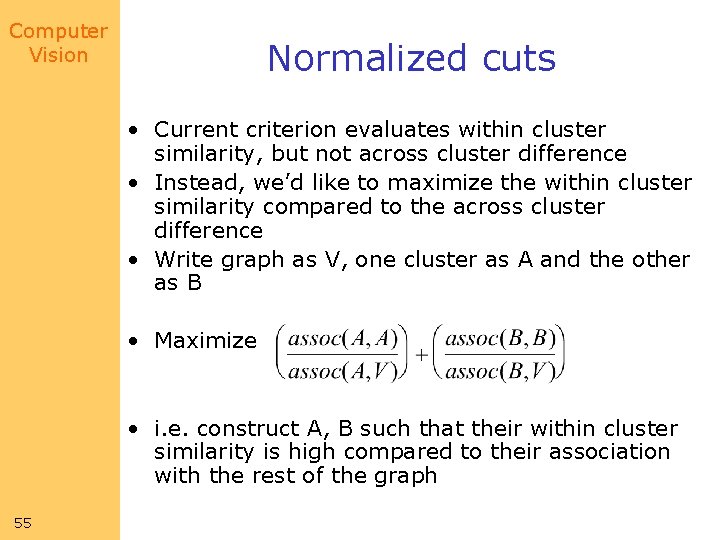

Computer Vision Normalized cuts • Current criterion evaluates within cluster similarity, but not across cluster difference • Instead, we’d like to maximize the within cluster similarity compared to the across cluster difference • Write graph as V, one cluster as A and the other as B • Maximize • i. e. construct A, B such that their within cluster similarity is high compared to their association with the rest of the graph 55
Computer Vision 56
Computer Vision 57

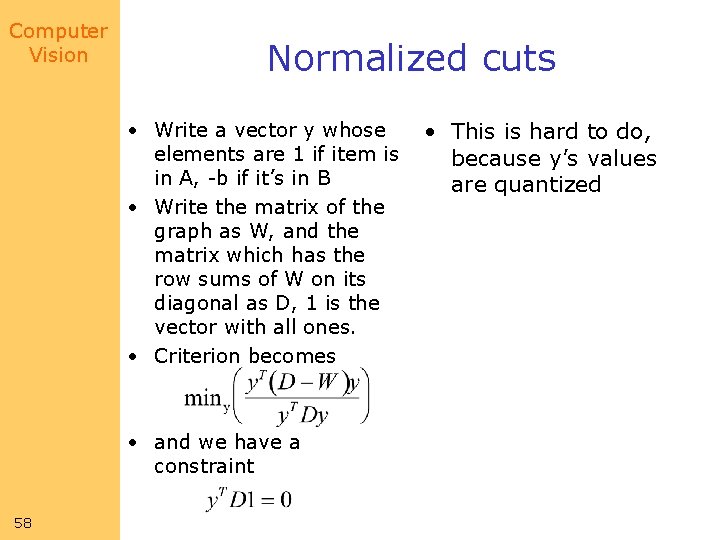

Computer Vision Normalized cuts • Write a vector y whose • This is hard to do, elements are 1 if item is because y’s values in A, -b if it’s in B are quantized • Write the matrix of the graph as W, and the matrix which has the row sums of W on its diagonal as D, 1 is the vector with all ones. • Criterion becomes • and we have a constraint 58
Computer Vision 59

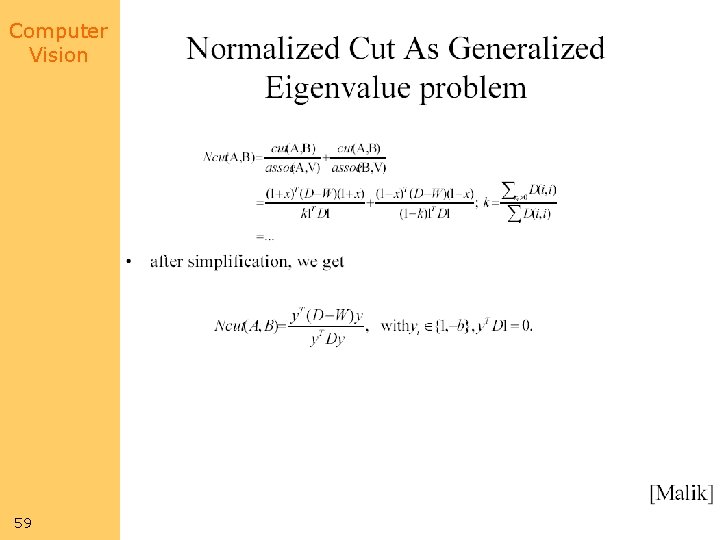

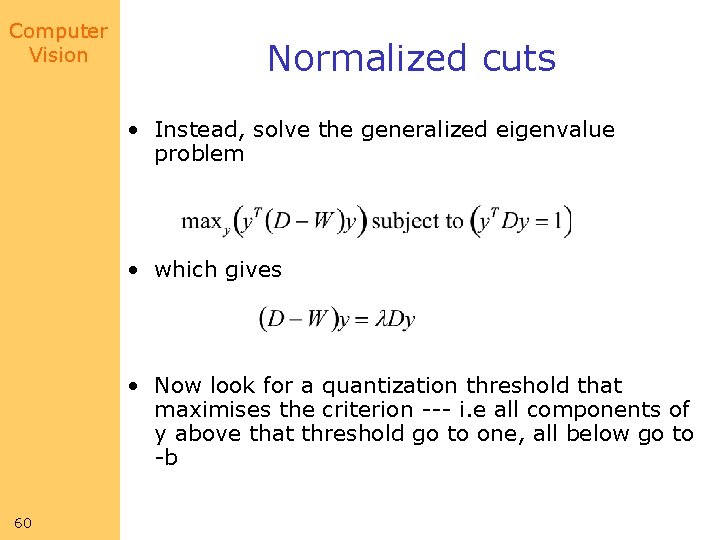

Computer Vision Normalized cuts • Instead, solve the generalized eigenvalue problem • which gives • Now look for a quantization threshold that maximises the criterion --- i. e all components of y above that threshold go to one, all below go to -b 60
Computer Vision Figure from “Image and video segmentation: the normalised cut framework”, by Shi and Malik, copyright IEEE, 1998 61
Computer Vision Figure from “Normalized cuts and image segmentation, ” Shi and Malik, copyright IEEE, 2000 62

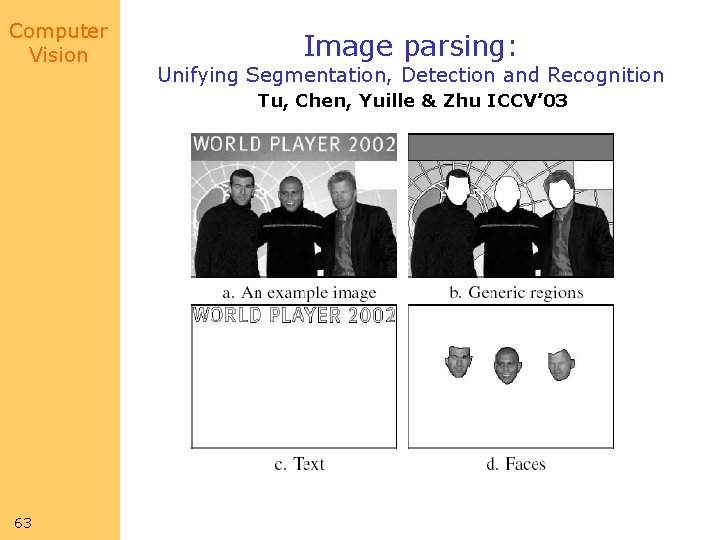

Computer Vision Image parsing: Unifying Segmentation, Detection and Recognition Tu, Chen, Yuille & Zhu ICCV’ 03 63
Computer Vision Image parsing • Generative models for each class some random samples for 5 and H some random face samples (PCA model) 64

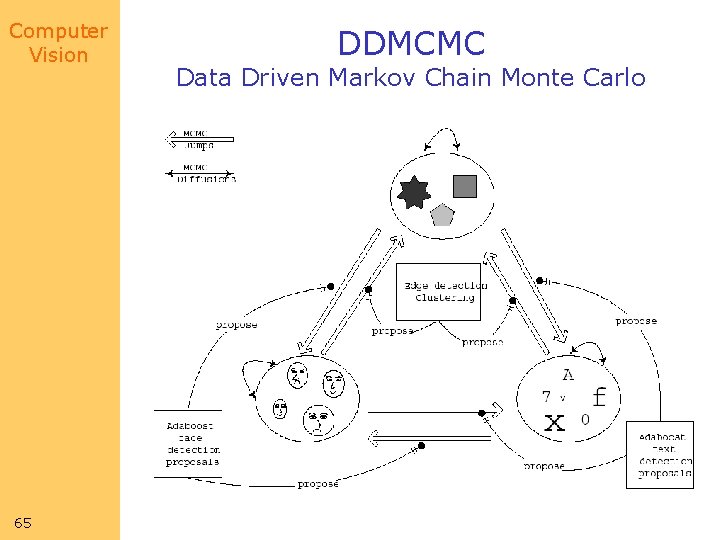

Computer Vision 65 DDMCMC Data Driven Markov Chain Monte Carlo
Computer Vision 66 Image parsing
Computer Vision 67 Image parsing
Computer Vision 68 Next class: Fitting Reading: Chapter 15
