Computer vision models learning and inference Chapter 9

Structure • • • Logistic regression Bayesian logistic regression Non-linear logistic regression Kernelization and

Models for machine vision Computer vision: models, learning and inference. © 2011 Simon J.

Example application: Gender Classification Computer vision: models, learning and inference. © 2011 Simon J.

Type 1: Model Pr(w|x) Discriminative How to model Pr(w|x)? – Choose an appropriate form

Logistic Regression Consider two class problem. • Choose Bernoulli distribution over world. • Make

Two parameters Learning by standard methods (ML, MAP, Bayesian) Inference: Just evaluate Pr(w|x) Computer

Neater Notation To make notation easier to handle, we • Attach a 1 to

Logistic regression Computer vision: models, learning and inference. © 2011 Simon J. D. Prince

Maximum Likelihood Take Logarithm Take derivative: Computer vision: models, learning and inference. © 2011

Derivatives Unfortunately, there is no closed form solution– we cannot get and expression for

Optimization Goal: How can we find the minimum? Cost function or Objective function Basic

Local Minima Computer vision: models, learning and inference. © 2011 Simon J. D. Prince

Convexity If a function is convex, then it has only a single minimum Can

Gradient Based Optimization • Choose a search direction s based on the local properties

Gradient Descent Consider standing on a hillside Look at gradient where you are standing

Finite differences What if we can’t compute the gradient? Compute finite difference approximation: where

Steepest Descent Problems Close up Computer vision: models, learning and inference. © 2011 Simon

Second Derivatives In higher dimensions, 2 nd derivatives change how much we should move

Newton’s Method Approximate function with Taylor expansion Take derivative Re-arrange Adding line search Computer

Newton’s Method Matrix of second derivatives is called the Hessian. Expensive to compute via

Newton vs. Steepest Descent Computer vision: models, learning and inference. © 2011 Simon J.

Optimization for Logistic Regression Derivatives of log likelihood: • The contribution of each data

Computer vision: models, learning and inference. © 2011 Simon J. D. Prince 25

Maximum likelihood fits Computer vision: models, learning and inference. © 2011 Simon J. D.

Computer vision: models, learning and inference. © 2011 Simon J. D. Prince 28

Bayesian Logistic Regression Likelihood: Prior (not conjugate): Apply Bayes’ rule: • The prior is

Laplace Approximation Approximate posterior distribution with normal • Set mean to MAP estimate for

Laplace Approximation Find MAP solution by optimizing log likelihood Approximate with normal where Computer

Laplace Approximation Prior Actual posterior Computer vision: models, learning and inference. © 2011 Simon

Inference • The integral cannot be computed in closed form. • We note that

Approximation of Integral Predict w* using x* and μ and Σ from the Laplace

Bayesian Solution Less confident (less crisp) than ML in both 1 D and 2

ML vs Bayesian Solution Isoprobability contours are curved in the Bayesian solution Computer vision:

Computer vision: models, learning and inference. © 2011 Simon J. D. Prince 38

Non-linear logistic regression Same idea as for regression. • Apply non-linear transformation • Build

Non-linear logistic regression Example transformations: Fit using optimization (also for the function parameters): Computer

Non-linear logistic regression in 1 D a) b) c) d) Transformation of 1 D

Non-linear logistic regression in 2 D Transformation of 2 D to 2 D space

Computer vision: models, learning and inference. © 2011 Simon J. D. Prince 44

Dual Logistic Regression KEY IDEA: Gradient F is just a vector in the data

Maximum Likelihood Derivatives Depend only depend on inner products! We may employ the kernel

Kernel Logistic Regression Does not interpolate well between samples. Random classification over a large

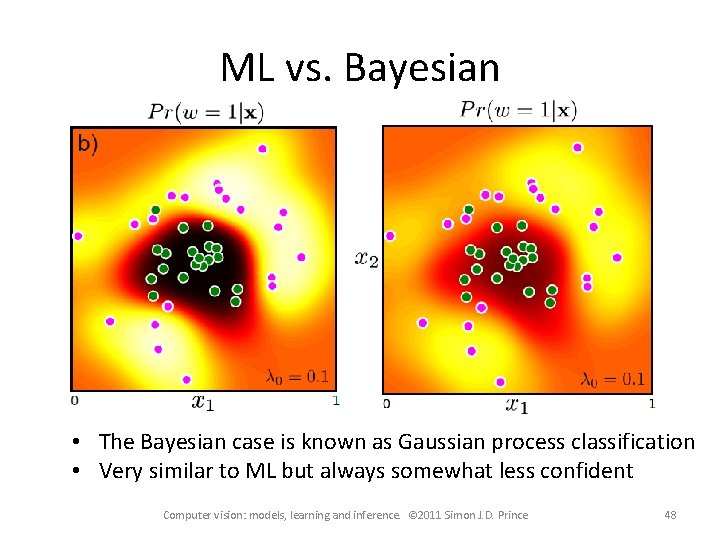

ML vs. Bayesian • The Bayesian case is known as Gaussian process classification •

Relevance vector classification Apply sparse prior to dual variables: As before, write as marginalization

Relevance vector classification Apply sparse prior to dual variables: Gives likelihood: We now make

Relevance vector classification 1) Use Laplace approximation: to describe the first two terms Computer

Relevance vector classification Previous result: 2) Maximize over the hidden variables rather than integrate

Relevance vector classification Most hidden variables increase to larger values This means prior over

Sparsity through incremental fitting Computer vision: models, learning and inference. © 2011 Simon J.

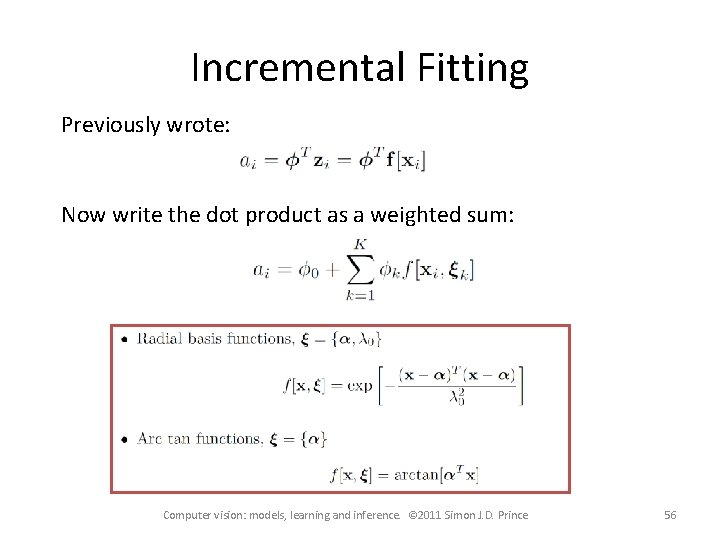

Incremental Fitting Previously wrote: Now write the dot product as a weighted sum: Computer

Incremental Fitting Greedily add terms one at a time and learn them through ML.

Incremental Fitting • The procedure is suboptimal as we do not learn all the

Incremental Fitting Property 2: • It is practical for both high dimensional data and

Incremental Fitting Property 3: • Learning is inexpensive as we optimize only a few

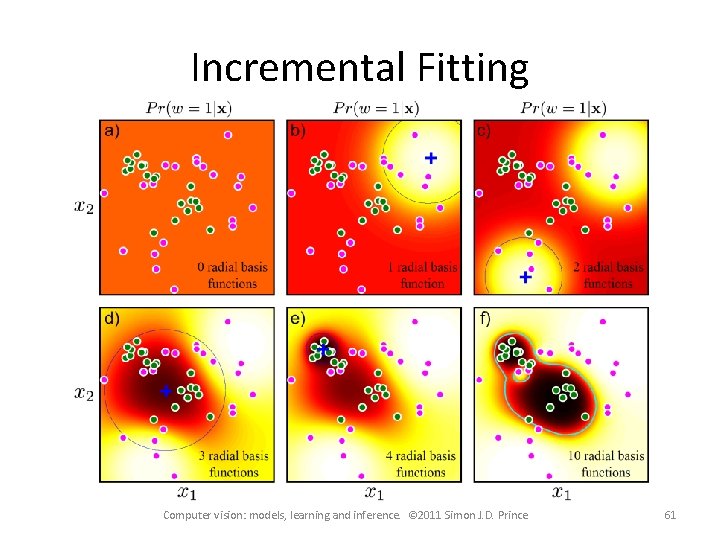

Incremental Fitting Computer vision: models, learning and inference. © 2011 Simon J. D. Prince

Boosting Incremental fitting with step functions • Each step function is a weak classifier

Boosting • Incremental learning • Learn α by exhaustive search • Use non linear

Boosting • After each classifier is added the relative importance of each data point

Boosting • Does not interpolate smoothly. Arctan functions have superior generalization and they employ

Branching Logistic Regression • A different way to define non-linear decision boundaries • Partition

Branching Logistic Regression • The gating function depends on the data and induces a

Branching Logistic Regression Expert for the right hand side Expert for the left hand

Logistic Classification Trees • Extension of the idea to create hierarchical trees Computer vision:

Logistic Classification Trees • Learning may be done incrementally beginning at the top, then

Multiclass Logistic Regression For multiclass recognition, choose distribution over w and then make the

Multiclass Logistic Regression Softmax function maps activations which can take any value to parameters

Multiclass Logistic Regression To learn model, maximize log likelihood No closed from solution, learn

Random classification tree • • • Binary tree for multiclass problems Randomly chosen function

Random classification tree For given threshold, we can compute parameters in closed form: Computer

Random classification tree • The process is repeated recursively • Very fast to train

Random classification tree Related models: Fern: • A tree where all of the functions

Non-probabilistic classifiers Most people use non-probabilistic classification methods such as neural networks, adaboost, support

Non-probabilistic classifiers Multi-layer perceptron (neural network) • Non-linear logistic regression with sigmoid functions •

Gender Classification Incremental logistic regression 300 arc tan basis functions: Results: 87. 5% (humans=95%)

Fast Face Detection (Viola and Jones 2001) • Adaboost Computer vision: models, learning and

Computing Haar Features • Integral images Computer vision: models, learning and inference. © 2011

Pedestrian Detection Computer vision: models, learning and inference. © 2011 Simon J. D. Prince

Semantic segmentation • Logitboost with textons Computer vision: models, learning and inference. © 2011

Recovering surface layout • Logitboost classification tree Computer vision: models, learning and inference. ©

Recovering body pose • • • Depth images from Kinect Random forest. Input: Differences
