Computer Organization CS 345 David Monismith Based upon notes by Dr. Bill Siever and notes from the Patternson and Hennessy Text

Last Time • Reviewed arrays • Discussed the lw (load word) and sw (store word) instructions • Discussed the li (load immediate) instruction • We saw that there are different ways to store arrays

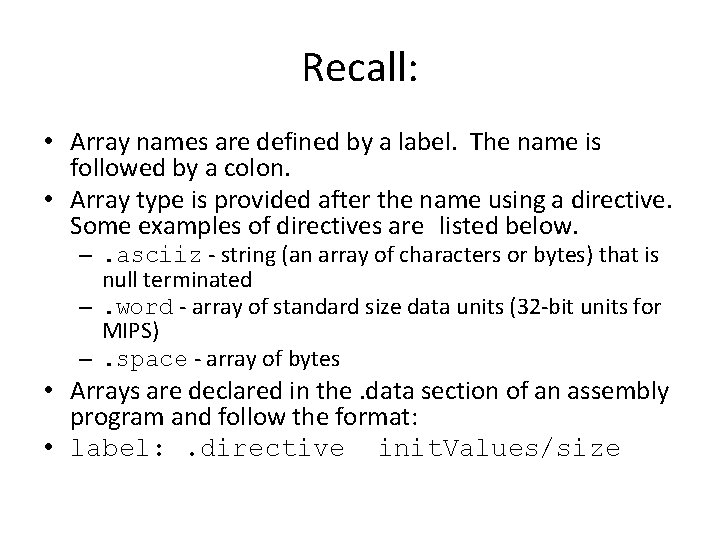

Recall: • Array names are defined by a label. The name is followed by a colon. • Array type is provided after the name using a directive. Some examples of directives are listed below. –. asciiz - string (an array of characters or bytes) that is null terminated –. word - array of standard size data units (32 -bit units for MIPS) –. space - array of bytes • Arrays are declared in the. data section of an assembly program and follow the format: • label: . directive init. Values/size

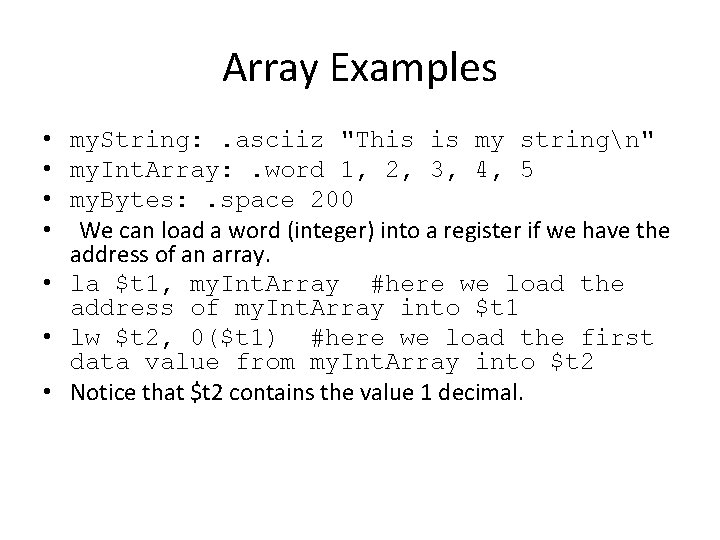

Array Examples • my. String: . asciiz "This is my stringn" • my. Int. Array: . word 1, 2, 3, 4, 5 • my. Bytes: . space 200 • We can load a word (integer) into a register if we have the address of an array. • la $t 1, my. Int. Array #here we load the address of my. Int. Array into $t 1 • lw $t 2, 0($t 1) #here we load the first data value from my. Int. Array into $t 2 • Notice that $t 2 contains the value 1 decimal.

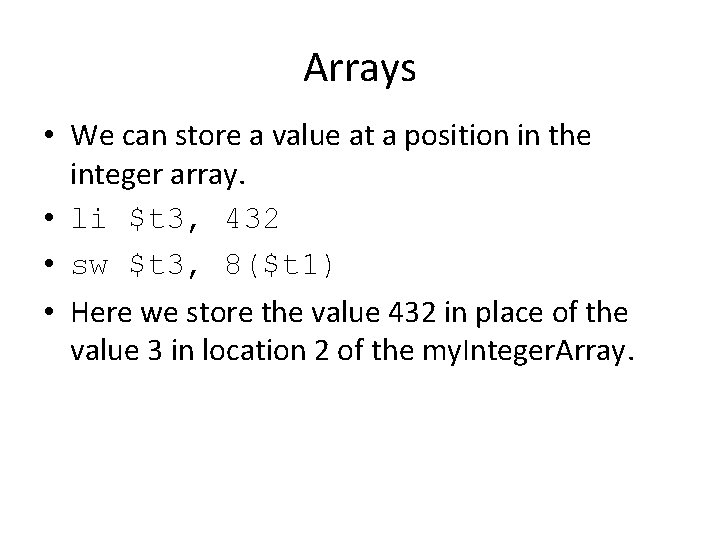

Arrays • We can store a value at a position in the integer array. • li $t 3, 432 • sw $t 3, 8($t 1) • Here we store the value 432 in place of the value 3 in location 2 of the my. Integer. Array.

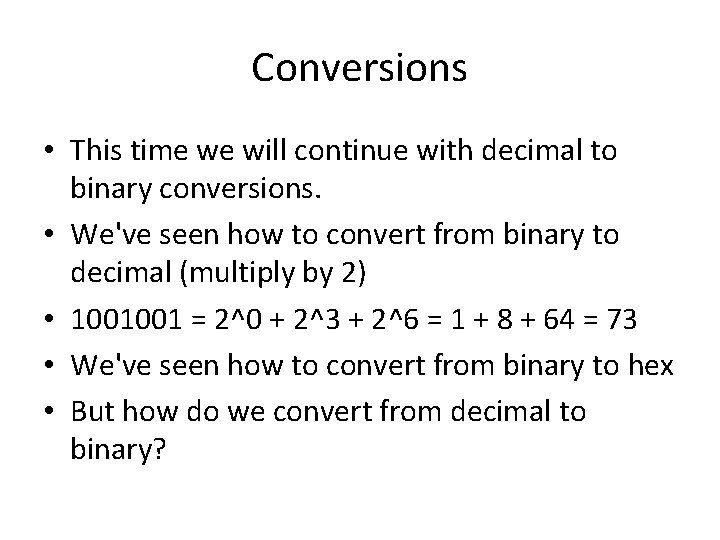

Conversions • This time we will continue with decimal to binary conversions. • We've seen how to convert from binary to decimal (multiply by 2) • 1001001 = 2^0 + 2^3 + 2^6 = 1 + 8 + 64 = 73 • We've seen how to convert from binary to hex • But how do we convert from decimal to binary?

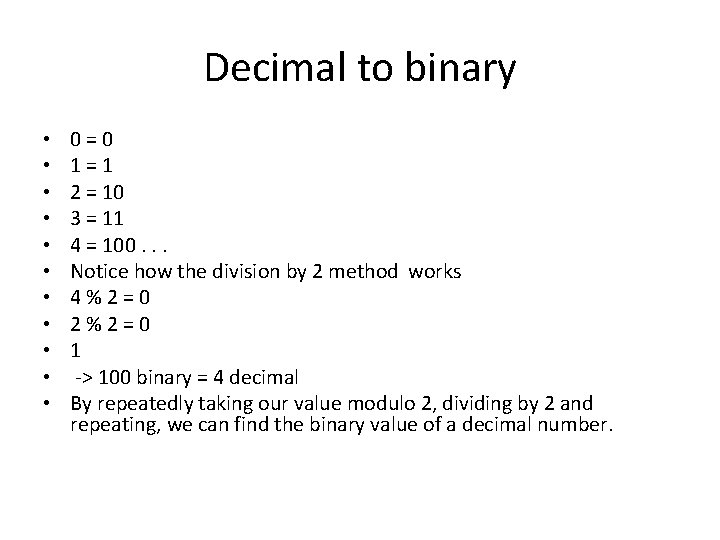

Decimal to binary • • • 0=0 1=1 2 = 10 3 = 11 4 = 100. . . Notice how the division by 2 method works 4%2=0 2%2=0 1 -> 100 binary = 4 decimal By repeatedly taking our value modulo 2, dividing by 2 and repeating, we can find the binary value of a decimal number.

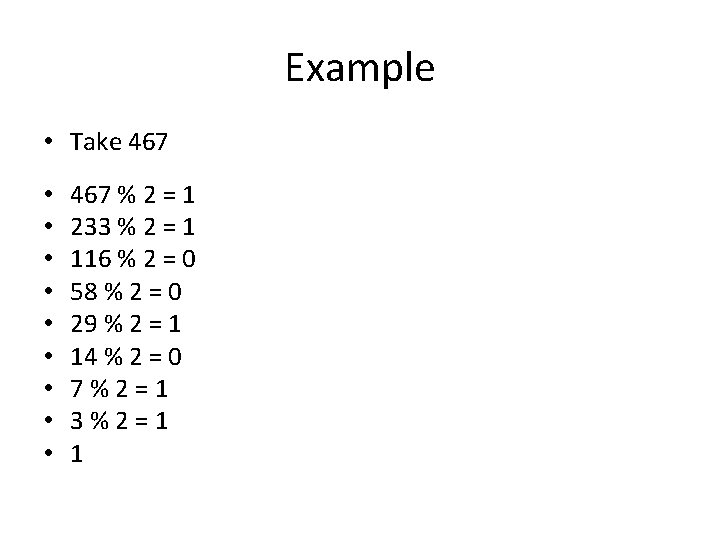

Example • Take 467 • • • 467 % 2 = 1 233 % 2 = 1 116 % 2 = 0 58 % 2 = 0 29 % 2 = 1 14 % 2 = 0 7%2=1 3%2=1 1

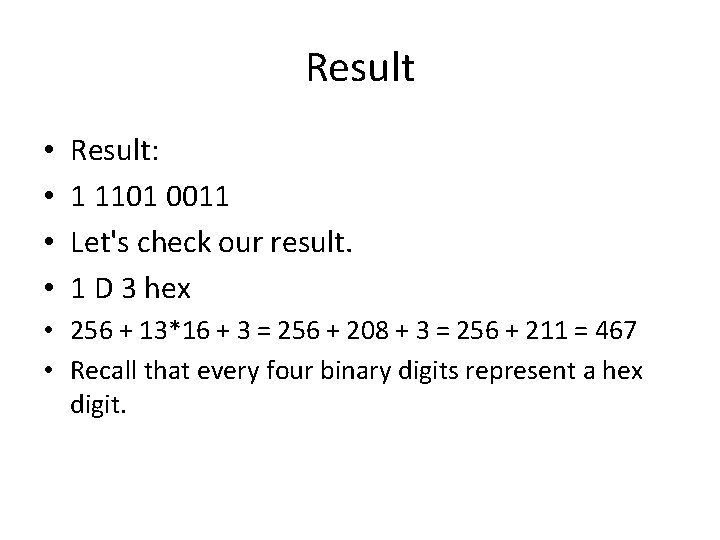

Result • • Result: 1 1101 0011 Let's check our result. 1 D 3 hex • 256 + 13*16 + 3 = 256 + 208 + 3 = 256 + 211 = 467 • Recall that every four binary digits represent a hex digit.

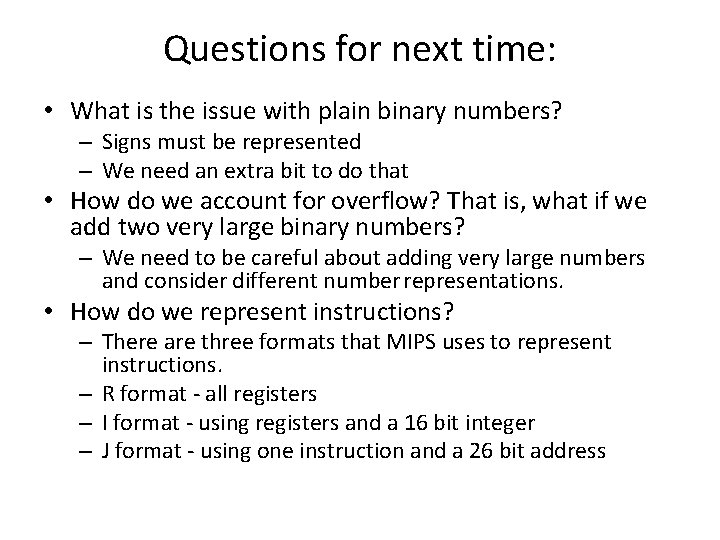

Questions for next time: • What is the issue with plain binary numbers? – Signs must be represented – We need an extra bit to do that • How do we account for overflow? That is, what if we add two very large binary numbers? – We need to be careful about adding very large numbers and consider different number representations. • How do we represent instructions? – There are three formats that MIPS uses to represent instructions. – R format - all registers – I format - using registers and a 16 bit integer – J format - using one instruction and a 26 bit address
