TOPOLOGY 1. bus topology The network consists of a transmission line bus master. To send the information within the network. Individual computers connected to the data cable through the access point ��������� �� ����������������
Bus topology line bus master
TOPOLOGY star topology 2. Star topology network. The computer must have a network connection in the control center of the computer or hub to communicate between computers. To communicate through the hub before sending data to the other computer. ���������������������� �������
Star topology
TOPOLOGY 3. Ring topology network. With connections between computers, each connected to a circular motion. Data transmission within the network, it is a circle. ���������� ����������
Ring topology

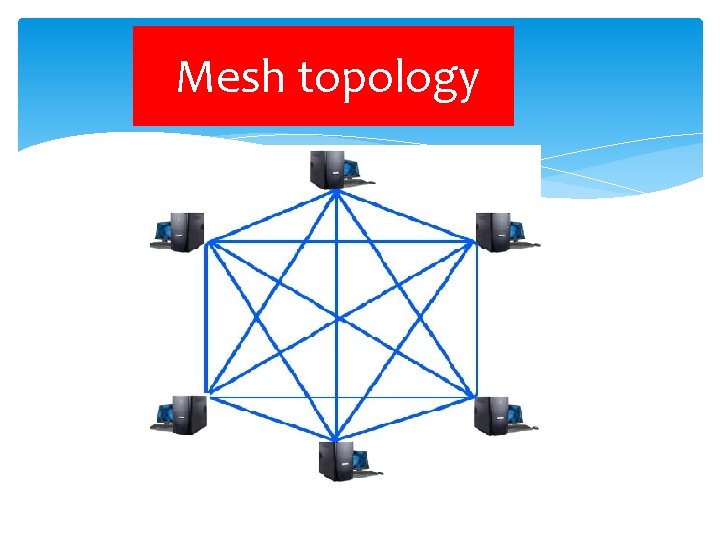

TOPOLOGY 4. Mesh topology network. Work by each computer must have a large number of signal channels to connect to other computers all. ��������� ���������������
Mesh topology
TOPOLOGY Bus topology Star topology

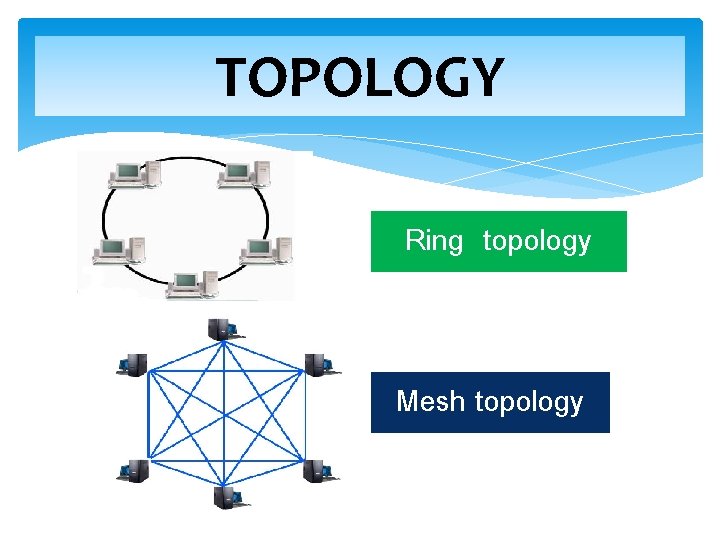

TOPOLOGY Ring topology Mesh topology
