The Memory Component • The memory stores the instructions and data for an executing program. • At this level, we are considering memory as a unit without structure. Cache memory will be covered fully in a future lecture.

Memory Addressability • Memory is characterized by the smallest addressable unit: Byte addressable the smallest unit is an 8–bit byte. Word addressable the smallest unit is a word, usually 16 or 32 bits. • Almost all modern computers use byte addressability to simplifies processing of character data.

Memory Control • The CPU has 2 registers dedicated to handling memory. • The MAR (Memory Address Register) holds the address being accessed. • The MBR (Memory Buffer Register) holds the data being written to the memory or being read from the memory. This is sometimes called the Memory Data Register.

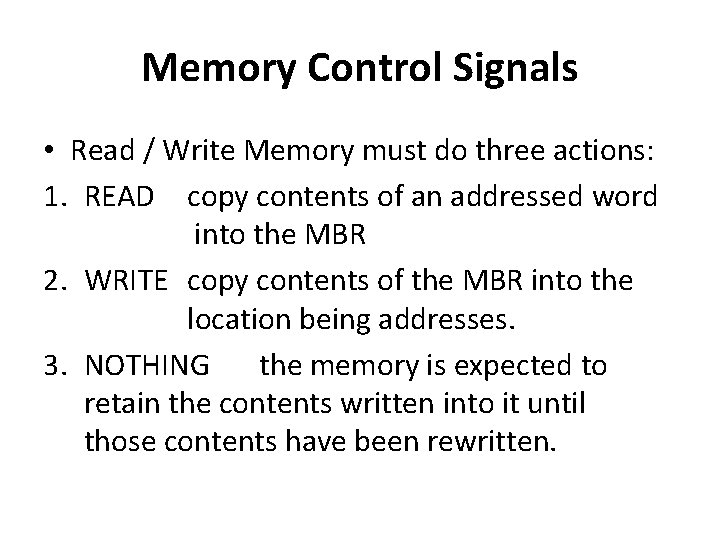

Memory Control Signals • Read / Write Memory must do three actions: 1. READ copy contents of an addressed word into the MBR 2. WRITE copy contents of the MBR into the location being addresses. 3. NOTHING the memory is expected to retain the contents written into it until those contents have been rewritten.

One Option for Memory Control • The CPU can issue one of two control signals. These are usually asserted high. • READ WRIT Action E 0 0 Nothing. The memory is not active. 0 1 The CPU writes to memory 1 0 The CPU reads from memory 1 1 This is a problem, which must be solved by a design decision.

Asserting Control Signals • A control signal is a binary signal with only two values: 0 (logic low) and 1 (logic high). • When a control signal is to activate some circuit element, it is said to be asserted. • An active high signal is asserted when its value is 1. It is denoted by the signal name. • An active low signal is asserted when its value is 0. It is denoted by appending a “#” to its name, as in Select#.

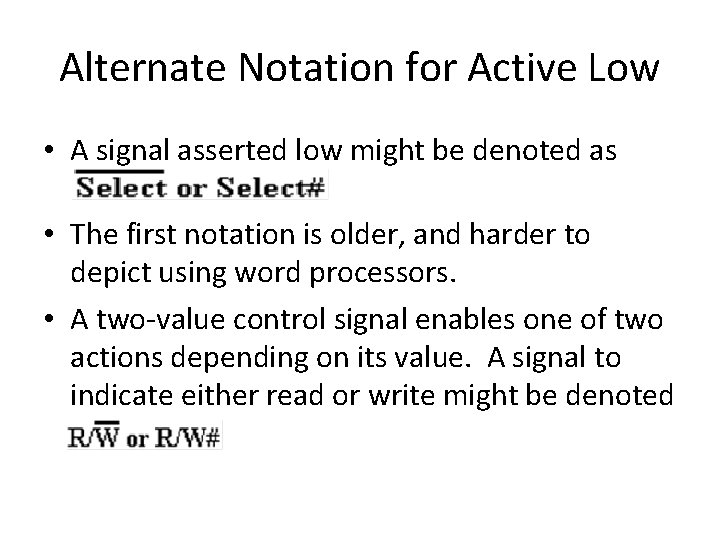

Alternate Notation for Active Low • A signal asserted low might be denoted as • The first notation is older, and harder to depict using word processors. • A two-value control signal enables one of two actions depending on its value. A signal to indicate either read or write might be denoted

Modern Memory Control • Most modern designs avoid the READ and WRITE control signals, using Select# and R/W# • If R/W# = 0, a memory write is called for. If R/W# = 1, a memory read is called for. Select# 1 R/W# 0 Action Memory contents are not changed. 1 1 Memory contents are not changed. 0 0 CPU writes data to the memory. 0 1 CPU reads data from the memory.

(Classical) Memory Timings Memory Access Time is defined in terms of reading from memory. It is the time between the address becoming stable in the MAR and the data becoming available in the MBR. Memory cycle time is the minimum time interval between two independent memory accesses.

Synchronous Memory Timings • Synchronous memory, typically SDRAM, is rated by the speed of the memory bus. • The speed is normally quoted in megahertz, as in 166 MHz or 250 MHz, or some other value. • A 250 MHz memory can be attached to a 250 MHz synchronous memory bus, and transfer data at the rate of 250 million transfers/sec. • This is one transfer every 4 nanoseconds. • The data transfer rate depends on the width of the data bus, often as high as 64 bits.

RAM and ROM • Technically, the term “RAM” stands for “random access memory” with no further connotations. • In common usage, the term RAM refers to memory that is “read/write”; the CPU can both read from and write to RAM. • The term “ROM” stands for “read only memory”. In standard operations, the CPU cannot change the values stored in ROM.

Varieties of ROM 1. “Plain ROM” The contents of the memory are set at manufacture and cannot be changed without destroying the chip. 2. PROM The contents of the chip are set by a special device called a “PROM Programmer”. Once programmed the contents are fixed. 3. EPROM is same as a PROM, but that the contents can be erased and reprogrammed by the PROM Programmer device.

Memory Mapped Input / Output • The old PDP– 11/20 supported a 16–bit address space. This supported addresses in the range 0 through 65, 535 or 0 through 0177777 in octal. • Addresses 0 though 61, 439 were reserved for physical memory. In octal these addresses are given by 0 through 167, 777. • Addresses 61, 440 through 65, 535 (octal 170, 000 through 177, 777) were reserved for registers associated with Input / Output devices. • Examples: CR 11 Card Reader 177, 160 Control & Status Register 177, 162 Data buffer 1 177, 164 Data buffer 2 • Reading from address 0177162 would access the card reader data buffer.

Memory Mapped I/O in the MIPS

The Linear View of Memory • This logical view is not easily implemented.

Standard Memory Organization • Modern computer memory is organized as a collection of modules connected to a bus. • Each module comprises 8 or 9 data chips.

Module Organization • A standard module will have 8 data chips, one for each bit in the Memory Buffer. • Assigning one bit per chip is more efficient.

Memory Chip Organization • As an example, here is a 4 megabit chip. It is organized as a 2 -D array.

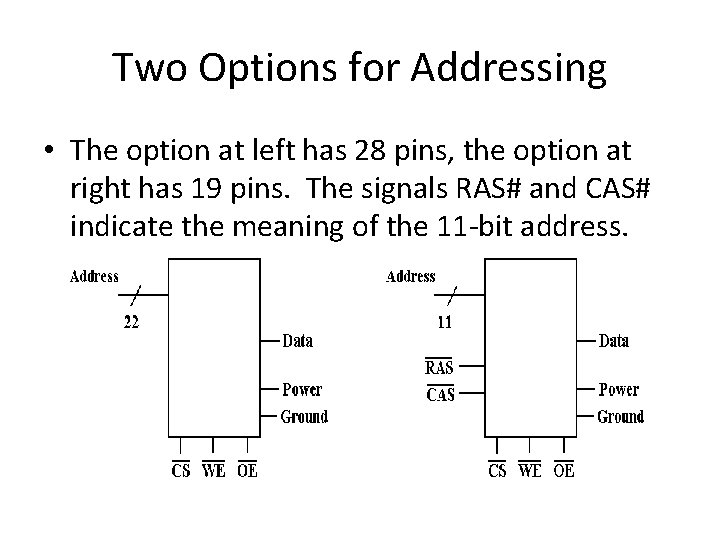

Two Options for Addressing • The option at left has 28 pins, the option at right has 19 pins. The signals RAS# and CAS# indicate the meaning of the 11 -bit address.

Memory Interleaving • Suppose a 64 MB memory made up of the 4 Mb chips discussed above. • We organize the memory into 4 MB banks. • The memory thus has 16 banks, each of 4 MB. • 16 = 24 4 bits to select the bank 4 M = 222 22 bits address to each chip • Not surprisingly, 64 M = 226.

Two Interleaving Options • The type of interleaving dictates how the memory address is divided. • Low-order interleaving Bits Use 25 – 4 Address to the chip 3– 0 Bank Select • High-order interleaving (banking) Bits 25 – 22 21 – 0 Use Bank Select Address to the chip

Speed Up Access by Interleaving Memory • Suppose an 8–way low–order interleaved memory. The chip timings are: 80 nanosecond cycle time, and 40 nanosecond access time. • Each chip has the following timing diagram.

Timings for the Interleaved Memory

Faster Memory Chips • After the row address is asserted, a number of column reads may proceed.

SDRAM • SDRAM is synchronous dynamic RAM. • In SDRAM, the memory transfers take place on a timing dictated by the memory bus clock rate. In “plain” SDRAM, the transfers all take place on the rising edge of the bus clock. • In DDR SDRAM (Double Data Rate), the transfers take place on both the rising and falling clock edges.

A Synchronous Bus Timing Diagram

SDRAM with a Wide Bus • DDR–SDRAM makes two transfers for every cycle of the memory bus, 1 on the rising edge of the clock cycle 1 on the falling edge of the clock cycle. • For a 100 MHz memory bus, DDR–SDRAM would have 200 million transfers per second. • Now consider a 64–bit data bus, which can transfer 64 bits (8 bytes) at a time. • Thus our sample DDR–SDRAM bus would transfer 1, 600 million bytes per second. • This is 1. 49 GB / second, as 1 GB = 232 bytes.

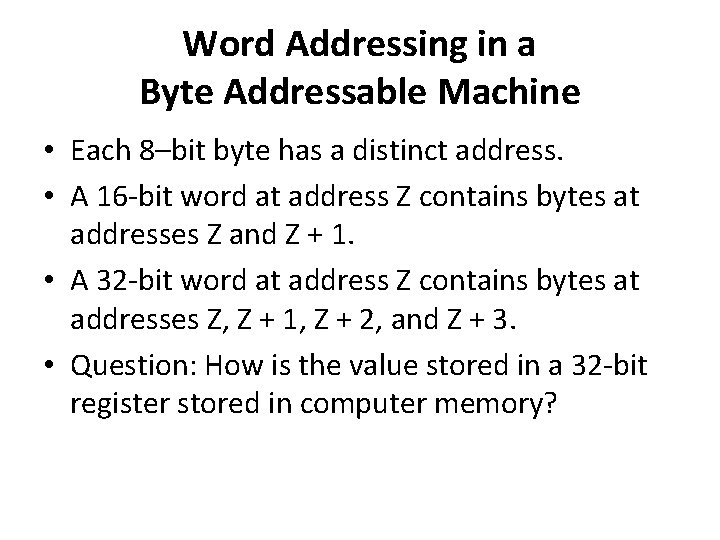

Word Addressing in a Byte Addressable Machine • Each 8–bit byte has a distinct address. • A 16 -bit word at address Z contains bytes at addresses Z and Z + 1. • A 32 -bit word at address Z contains bytes at addresses Z, Z + 1, Z + 2, and Z + 3. • Question: How is the value stored in a 32 -bit register stored in computer memory?

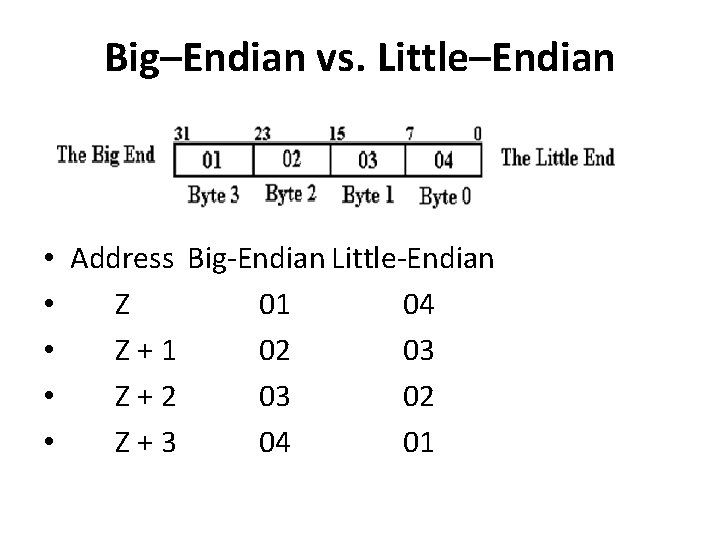

Big–Endian vs. Little–Endian • Address Big-Endian Little-Endian • Z 01 04 • Z+1 02 03 • Z+2 03 02 • Z+3 04 01

Big–Endian vs. Little–Endian

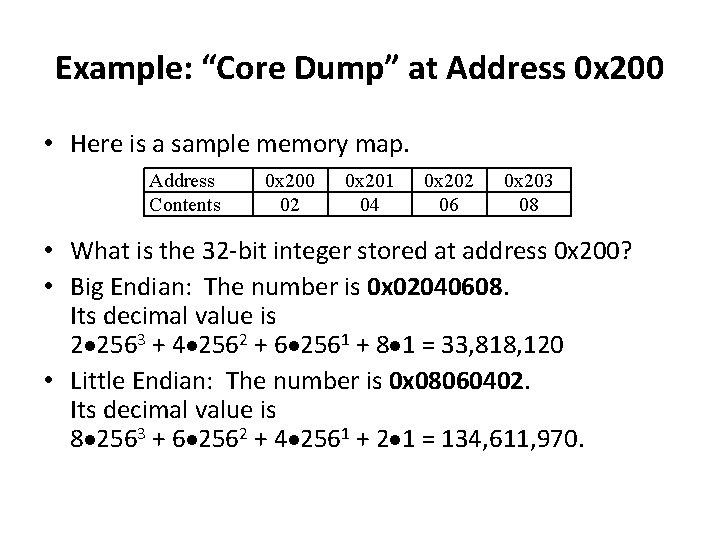

Example: “Core Dump” at Address 0 x 200 • Here is a sample memory map. Address Contents 0 x 200 02 0 x 201 04 0 x 202 06 0 x 203 08 • What is the 32 -bit integer stored at address 0 x 200? • Big Endian: The number is 0 x 02040608. Its decimal value is 2 2563 + 4 2562 + 6 2561 + 8 1 = 33, 818, 120 • Little Endian: The number is 0 x 08060402. Its decimal value is 8 2563 + 6 2562 + 4 2561 + 2 1 = 134, 611, 970.

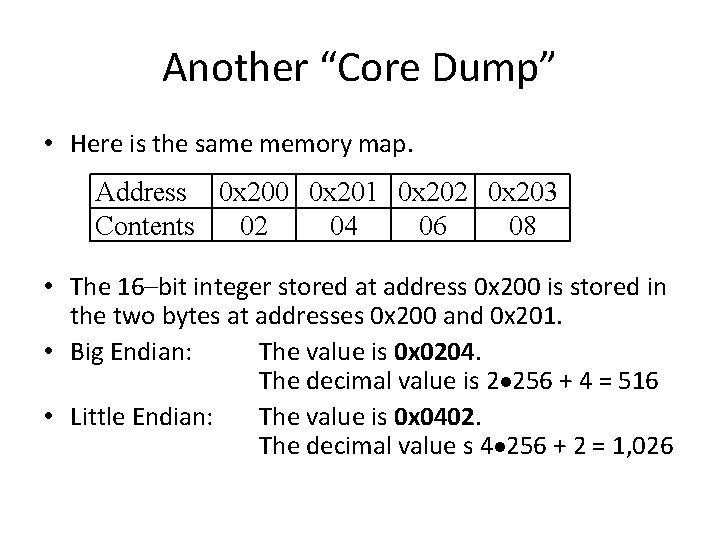

Another “Core Dump” • Here is the same memory map. Address 0 x 200 0 x 201 0 x 202 0 x 203 Contents 02 04 06 08 • The 16–bit integer stored at address 0 x 200 is stored in the two bytes at addresses 0 x 200 and 0 x 201. • Big Endian: The value is 0 x 0204. The decimal value is 2 256 + 4 = 516 • Little Endian: The value is 0 x 0402. The decimal value s 4 256 + 2 = 1, 026

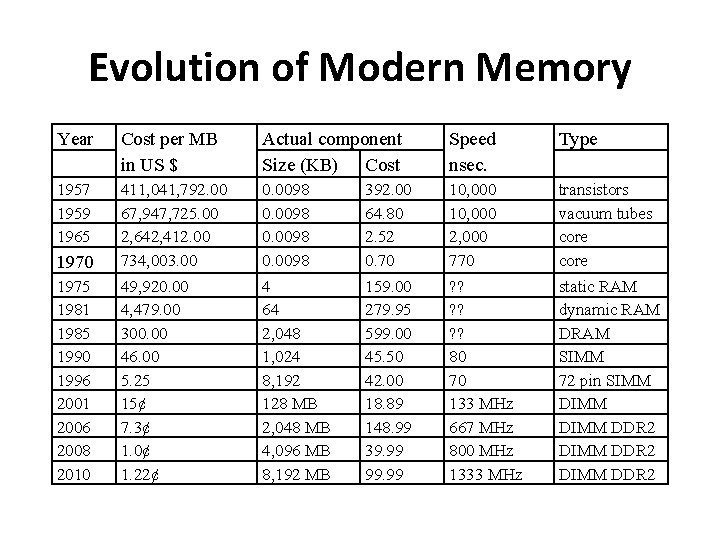

Evolution of Modern Memory Year Cost per MB in US $ Actual component Size (KB) Cost Speed nsec. Type 1957 1959 1965 1970 411, 041, 792. 00 67, 947, 725. 00 2, 642, 412. 00 734, 003. 00 0. 0098 392. 00 64. 80 2. 52 0. 70 10, 000 2, 000 770 transistors vacuum tubes core 1975 1981 1985 1990 1996 2001 2006 2008 2010 49, 920. 00 4, 479. 00 300. 00 46. 00 5. 25 15¢ 7. 3¢ 1. 0¢ 1. 22¢ 4 64 2, 048 1, 024 8, 192 128 MB 2, 048 MB 4, 096 MB 8, 192 MB 159. 00 279. 95 599. 00 45. 50 42. 00 18. 89 148. 99 39. 99 99. 99 ? ? ? 80 70 133 MHz 667 MHz 800 MHz 1333 MHz static RAM dynamic RAM DRAM SIMM 72 pin SIMM DIMM DDR 2
