COMPUTER GRAPHICS BASIC MATHS FOR GRAPHICS IN C

COMPUTER GRAPHICS BASIC MATHS FOR GRAPHICS IN C++ CO 2409 Week 4

TODAY’S LECTURE 1. Numbers 2. Numeric Functions 3. Math Functions 4. Vectors & Vector Operations

NUMBERS Mathematics distinguishes between several types of number: Whole numbers (called the natural numbers) 0, 1, 2…, only positive numbers Integers 0, 1, -1, 2, -2, 3, -3…, +ve or -ve whole numbers Real numbers 0. 02, -3. 455, 124. 0, 0. 33333, any number written with a decimal point (possibly infinitely long) As well as others… A number (in any form) is called a scalar .

NUMBERS IN C++ Equivalent types of number in C++: int - integers (+ve or –ve) unsigned int - whole numbers (+ve only) float or double - real numbers Each type has finite storage, e. g. 4 -bytes for int Exact size depends on compiler So they have limitations not present in maths: Maximum and minimum values E. g. typical int (4 -bytes) has max/min of approximately ± 2 billion float can’t represent all possible real numbers E. g. float can’t hold 0. 1, value may be 0. 0999999977648258

MORE NUMBERS IN C++ There are different sizes of these types: long int (or long) / short int (or short) More / less precision than int (maybe…) unsigned versions of these too char, unsigned char Used for characters, but really a 1 -byte integer double and long double Have more precision than float Exact sizes of these also depend on compiler Don’t assume the size or accuracy of a type in C++ Unless you use compiler-specific code Possible exception of char (1 -byte)

GUIDELINES FOR C++ NUMBERS Large values may be out of range for an int E. g. Astronomical distances float / double rarely hold exactly the numbers you tell them to – there is usually a small approximation error Except for a small range of integers So never use == on floats or doubles Unless you can guarantee that the value will be an exact small integer (e. g. f == 0. 0), this situation is rare Repeated float calculations can cause the error to magnify The approximation error will be greater for larger values Normally int / float = 4 bytes, double = 8 bytes Some compilers/platforms use larger values now (int = 8 bytes)

NUMBER CONVERSIONS IN C++ can automatically convert number types But doesn’t always: 5 / 10 = 0, Correct: 5. 0 / 10. 0 The compiler usually issues a warning when it does perform a conversion E. g. int i = 9. 0/10. 0; // Warning likely (i = 0) Don’t ignore warnings – ensure it is what you want float / double are always rounded down to int Down. Int = 3. 7 f; // Down. Int = 3 If you want to round to the nearest int: int Near. Int = My. Float + 0. 5 f; N. B. 0. 5 is a double, 0. 5 f is a float

NUMBER CONVERSIONS IN C++ Casting is explicitly requesting a conversion The modern C++ casting style is: float f = static_cast<float>(my. Integer); The older style should be avoided in new code (less safe): float f = (float)my. Integer; Casting will remove warnings about conversions However, use of casting sometimes implies poorly designed code Ensure that the casting is necessary Maybe you just need to reconsider the variable types that you are using

BASIC FUNCTIONS: MAX & MIN We frequently need the maximum or minimum of a pair of numbers Don’t repeatedly write if statements in your code Instead, the STL contains a max function int max. Size = std: : max( size 1, size 2 ); This is a template function that works with any type Include the <algorithm> header file You may see code examples with min/max in a macro A line using the keyword #define Avoid this approach as it won’t check your types

BASIC FUNCTIONS: REMAINDERS Finding remainders is also common E. g. the remainder of 15 after dividing by 6, is 3 Can use C operators or standard library functions: A % B = remainder of A / B where A and B are int fmod( A, B ) for double and float E. g. 18 % 7 = 4, fmod( 5. 4, 2. 0 ) = 1. 4 All C++ functions in this lecture are in <math. h>

MATH FUNCTIONS: ABSOLUTE VALUE The absolute value or modulus of a scalar, written |x|, is mathematically defined like this: Simply removes any minus sign, e. g. |5| = 5, |-23| = 23 Roughly speaking |x| means “the size of x” We will see it used for vectors later with this meaning Use abs functions in C++: int i = abs( My. Integer ); float f = abs( My. Float ); Use modulus to find the “distance” between two values int Dist = abs( X 2 – X 1 ) Same result even if we swap X 1 & X 2

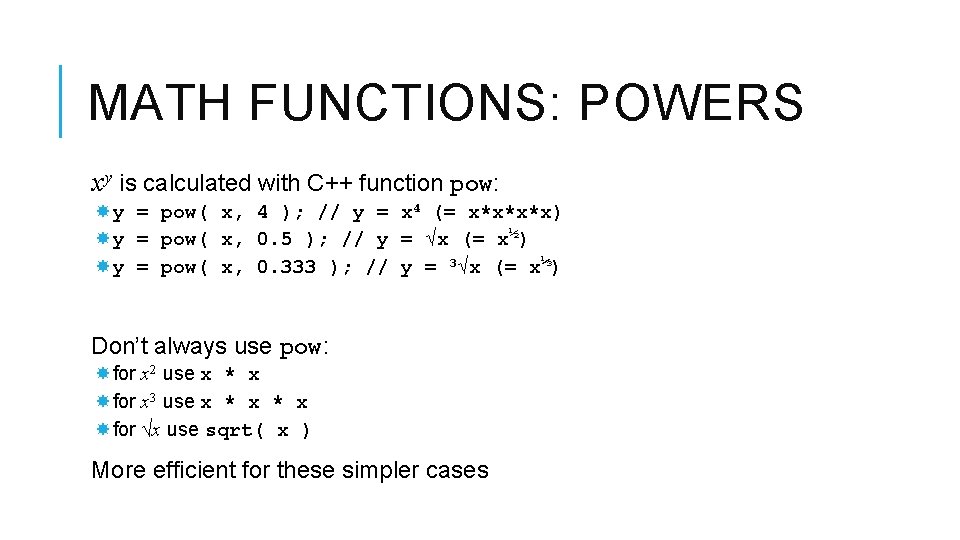

MATH FUNCTIONS: POWERS xy is calculated with C++ function pow: y = pow( x, 4 ); // y = x 4 (= x*x*x*x) y = pow( x, 0. 5 ); // y = √x (= x½) y = pow( x, 0. 333 ); // y = 3√x (= x⅓) Don’t always use pow: for x 2 use x * x for x 3 use x * x for √x use sqrt( x ) More efficient for these simpler cases

MATH FUNCTIONS: COSINE AND SINE Given a right angled triangle: cos θ = AC / AB sin θ = BC / AB There are many other properties of cos and sin E. g. Circle equations earlier In the C library, angles (i. e. θ) are measured in radians 360º = 2π radians, so aº = a * π/180 radians E. g. 90 degrees = 90 * π /180 = π / 2 radians (about 1. 57) So in C++: float f = cos( a * 3. 14 f/180. 0 f ); Where a is an angle in degrees

VECTORS A vector can be a directed edge joining two points But a vector can be defined without reference to points E. g. the velocity of an aircraft Vectors are often used to represent a translation (movement) or a velocity The length of vector v(x, y) is: Note the reuse of the modulus symbol (“size of”) This is the distance travelled for a translation, or the speed for a velocity

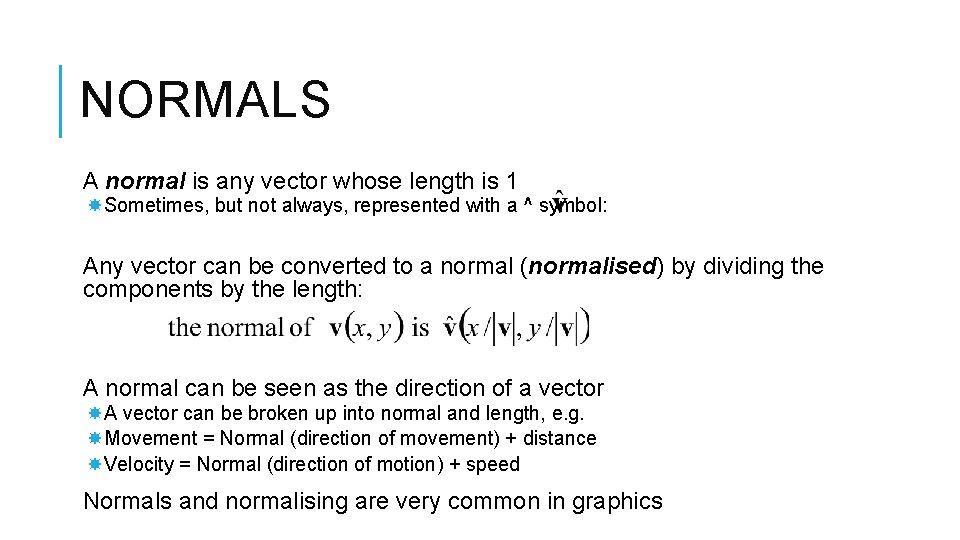

NORMALS A normal is any vector whose length is 1 Sometimes, but not always, represented with a ^ symbol: Any vector can be converted to a normal (normalised) by dividing the components by the length: A normal can be seen as the direction of a vector A vector can be broken up into normal and length, e. g. Movement = Normal (direction of movement) + distance Velocity = Normal (direction of motion) + speed Normals and normalising are very common in graphics

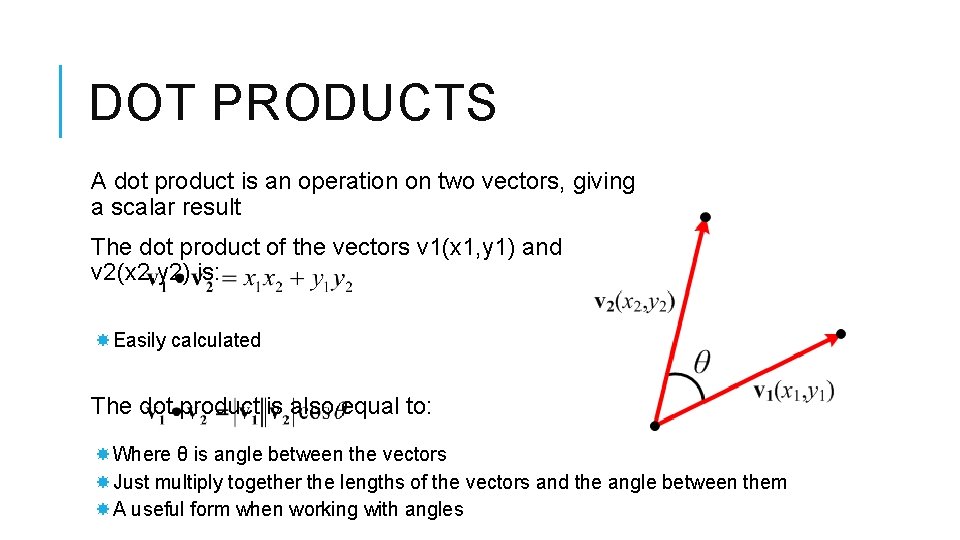

DOT PRODUCTS A dot product is an operation on two vectors, giving a scalar result The dot product of the vectors v 1(x 1, y 1) and v 2(x 2, y 2) is: Easily calculated The dot product is also equal to: Where θ is angle between the vectors Just multiply together the lengths of the vectors and the angle between them A useful form when working with angles

DOT PRODUCTS Dot products become important when the vectors are normalised : |v 1| = |v 2| = 1 Using the formulas from last slide: v 1 • v 2 = cos θ => θ = cos-1(v 1 • v 2) => θ = cos-1( x 1 x 2 + y 1 y 2 ) Allows us can calculate the angle between two vectors: Need the vector components And cos-1 (in C++ use function acos)
