Computer architecture and assembly language lab 2 Printing

Computer architecture and assembly language lab 2

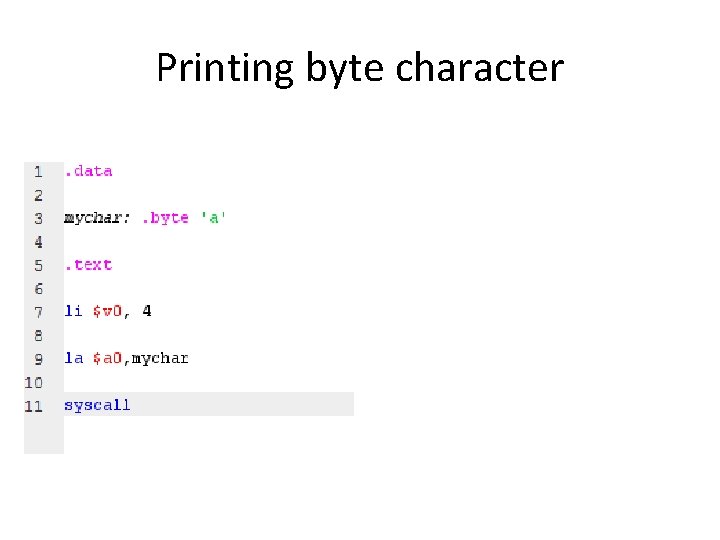

Printing byte character

Printing byte integer

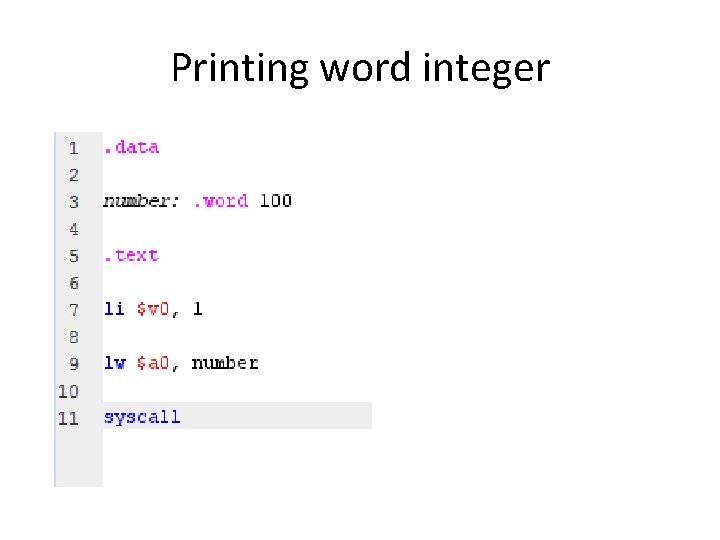

Printing word integer

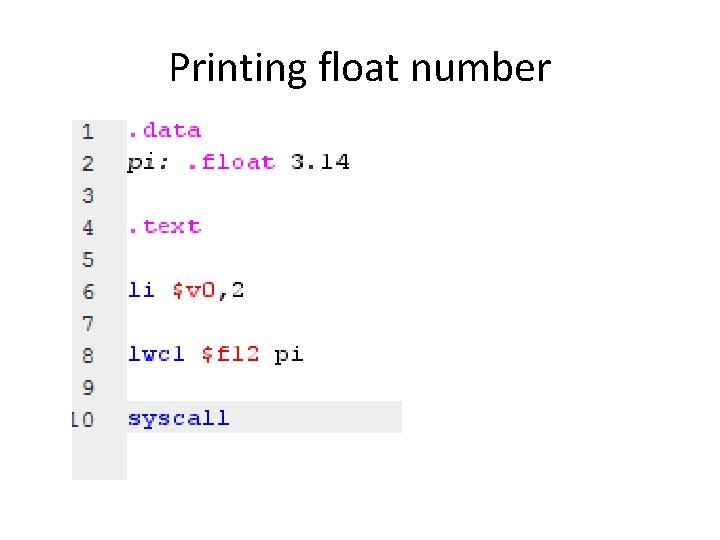

Printing float number

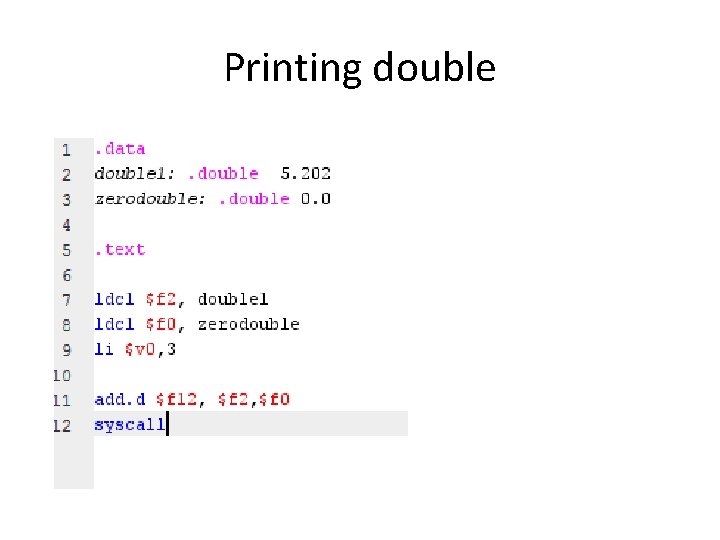

Printing double

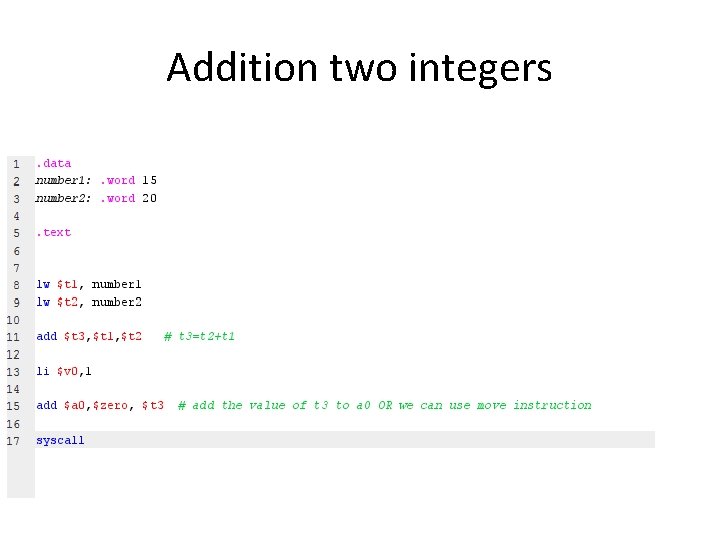

Addition two integers

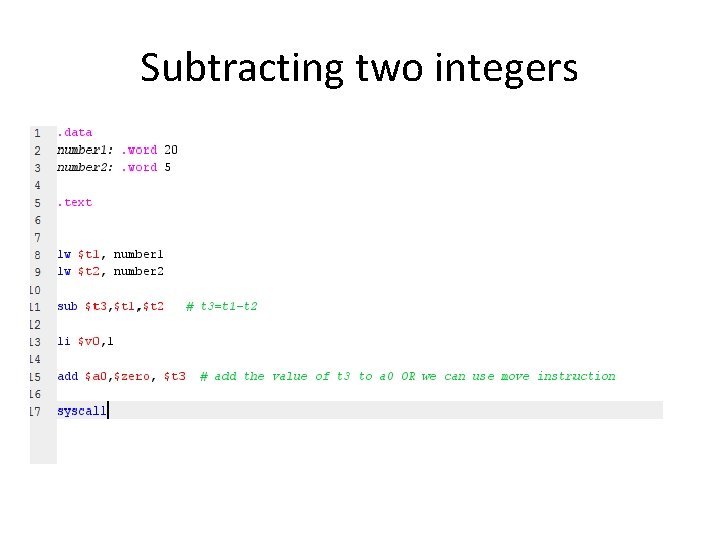

Subtracting two integers

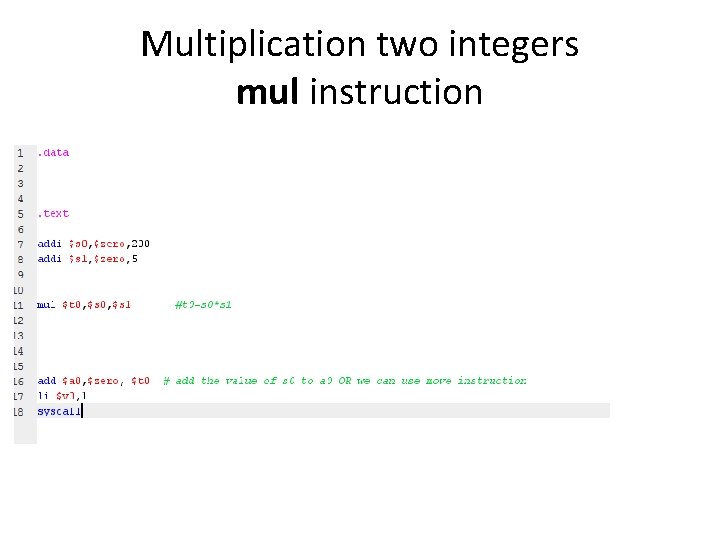

Multiplication two integers mul instruction

Multiplication tow integers mult instruction

Reading and Printing an Integer ######### Code segment ###########. text. globl main: # main program entry li $v 0, 5 # Read integer syscall # $v 0 = value read move $a 0, $v 0 li $v 0, 1 syscall # $a 0 = value to print # Print integer li $v 0, 10 syscall # Exit program

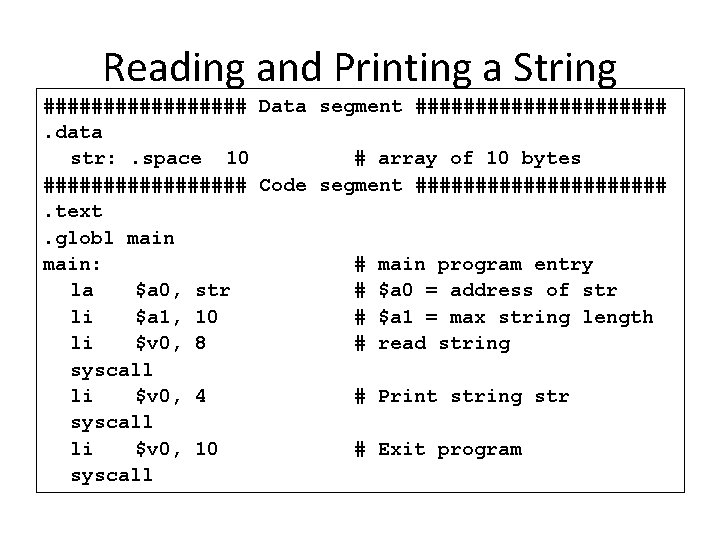

Reading and Printing a String ######### Data segment ###########. data str: . space 10 # array of 10 bytes ######### Code segment ###########. text. globl main: # main program entry la $a 0, str # $a 0 = address of str li $a 1, 10 # $a 1 = max string length li $v 0, 8 # read string syscall li $v 0, 4 # Print string str syscall li $v 0, 10 # Exit program syscall

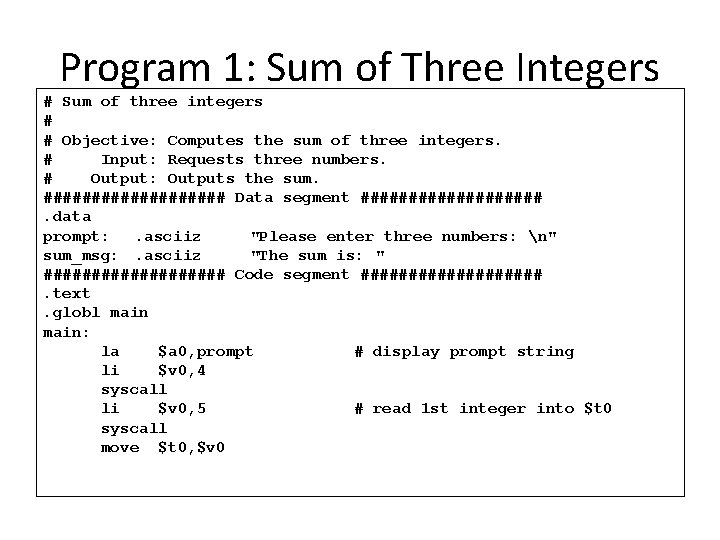

Program 1: Sum of Three Integers # Sum of three integers # # Objective: Computes the sum of three integers. # Input: Requests three numbers. # Output: Outputs the sum. ########## Data segment ##########. data prompt: . asciiz "Please enter three numbers: n" sum_msg: . asciiz "The sum is: " ########## Code segment ##########. text. globl main: la $a 0, prompt # display prompt string li $v 0, 4 syscall li $v 0, 5 # read 1 st integer into $t 0 syscall move $t 0, $v 0

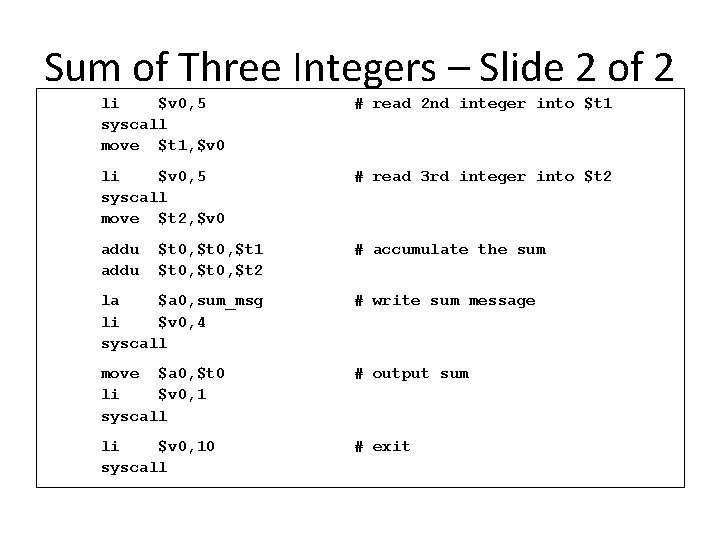

Sum of Three Integers – Slide 2 of 2 li $v 0, 5 syscall move $t 1, $v 0 # read 2 nd integer into $t 1 li $v 0, 5 syscall move $t 2, $v 0 # read 3 rd integer into $t 2 addu # accumulate the sum $t 0, $t 1 $t 0, $t 2 la $a 0, sum_msg li $v 0, 4 syscall # write sum message move $a 0, $t 0 li $v 0, 1 syscall # output sum li $v 0, 10 syscall # exit

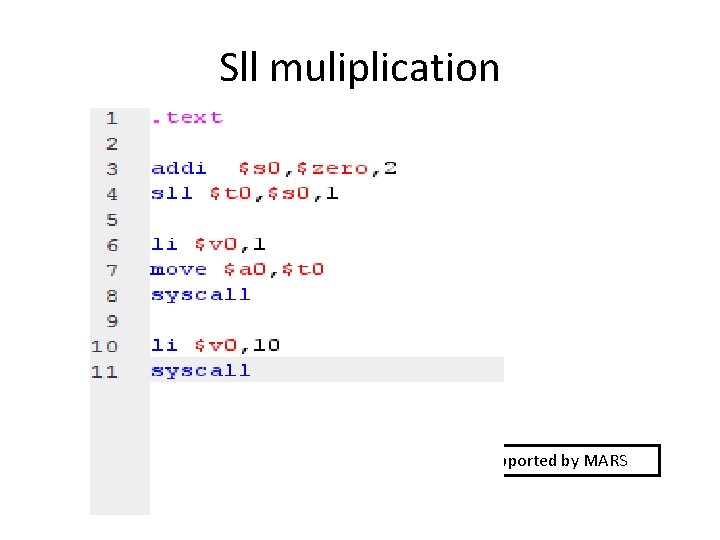

Sll muliplication Supported by MARS

Integer division

Branching instruction. data message: . asciiz " the numbers are different" message 1: . asciiz " numbers are equal". text main: addi $t 0, $zero, 61 addi $t 1, $zero , 61 bne $t 0, $t 1, numbersdifferent beq $t 0, $t 1, numbersequal li $v 0, 10 syscall

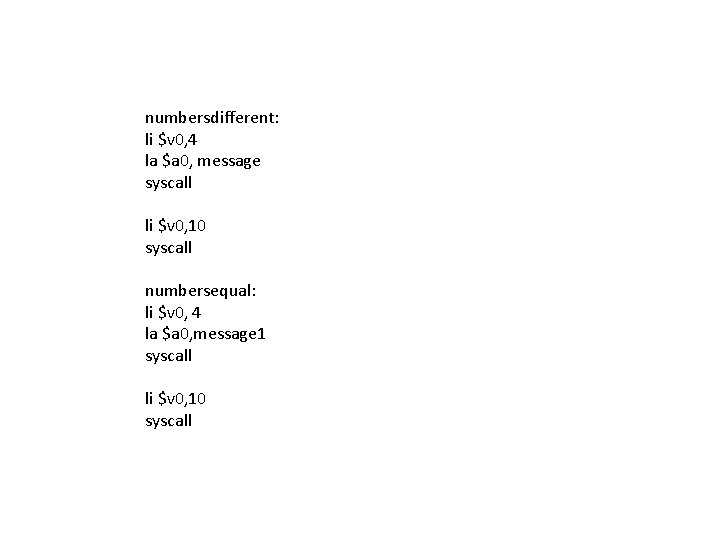

numbersdifferent: li $v 0, 4 la $a 0, message syscall li $v 0, 10 syscall numbersequal: li $v 0, 4 la $a 0, message 1 syscall li $v 0, 10 syscall

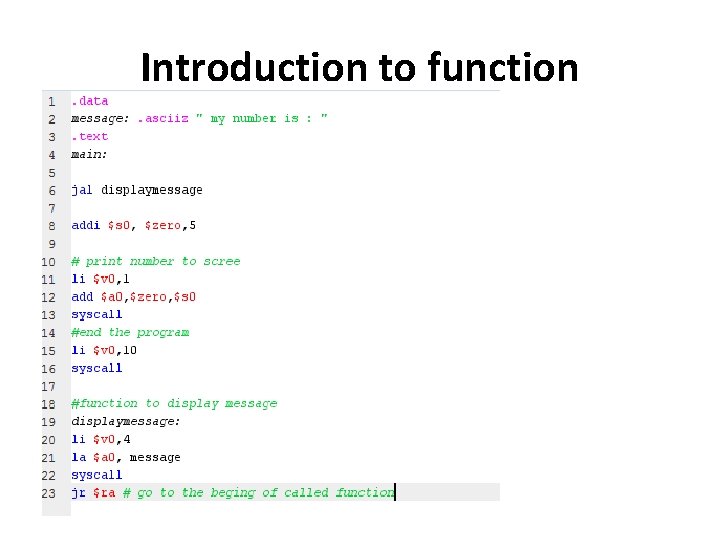

Introduction to function

OUTLINES • If statement • Function pass value • While loop

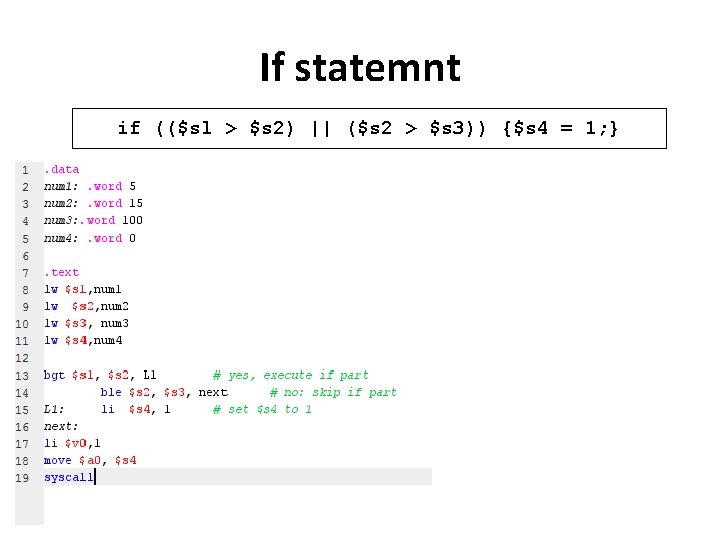

If statemnt if (($sl > $s 2) || ($s 2 > $s 3)) {$s 4 = 1; }

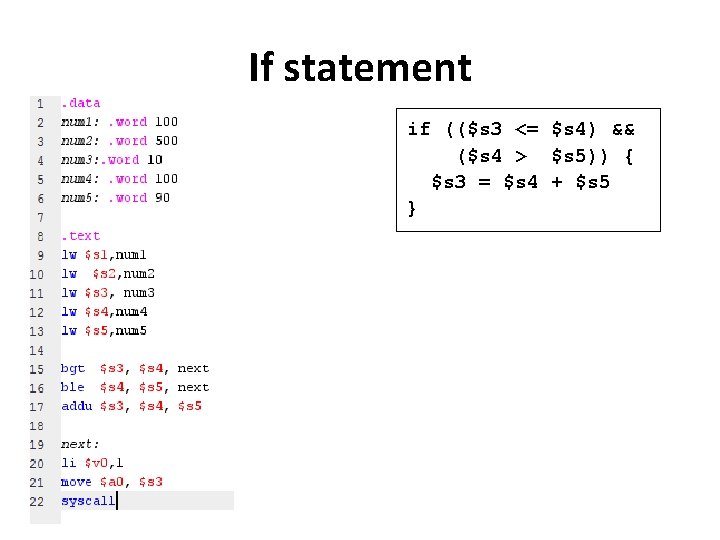

If statement if (($s 3 <= $s 4) && ($s 4 > $s 5)) { $s 3 = $s 4 + $s 5 }

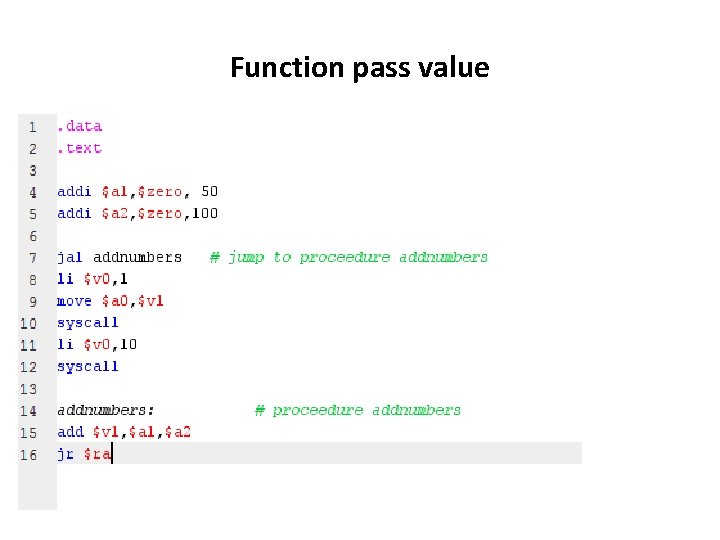

Function pass value

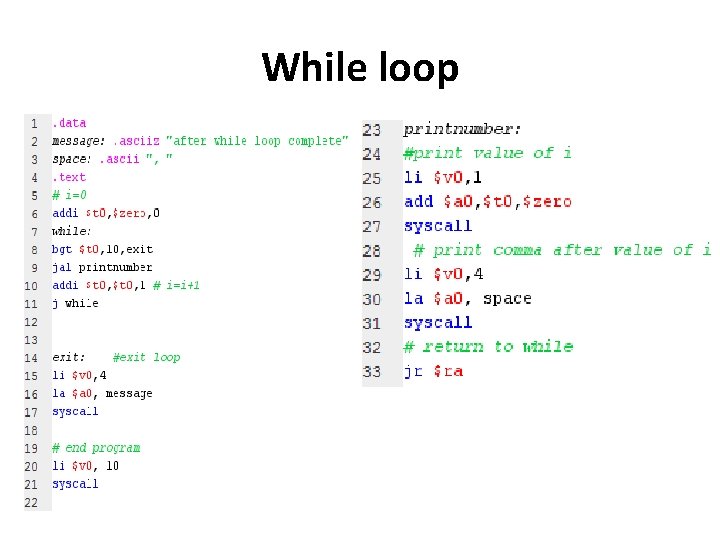

While loop

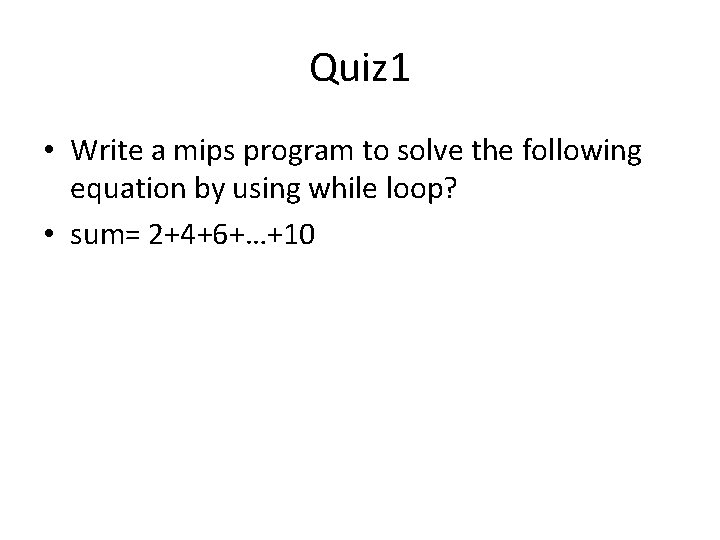

Quiz 1 • Write a mips program to solve the following equation by using while loop? • sum= 2+4+6+…+10
