Computer Aided Manufacturing BIM Curriculum 10 Topics Definitions

Computer Aided Manufacturing BIM Curriculum 10

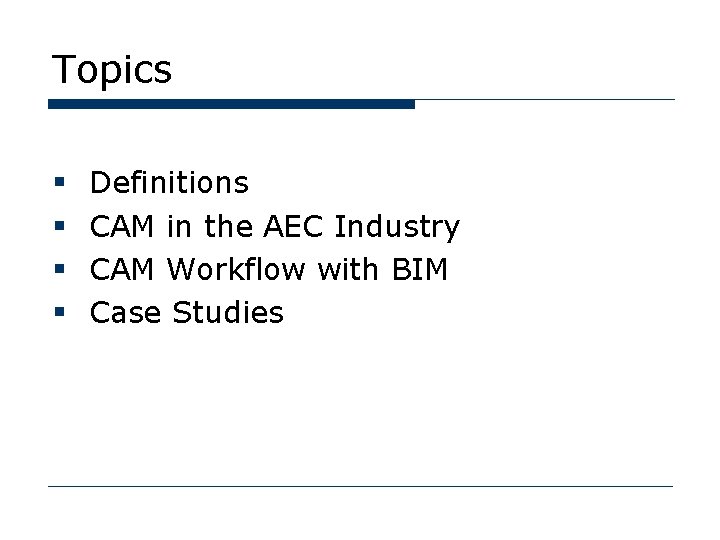

Topics § § Definitions CAM in the AEC Industry CAM Workflow with BIM Case Studies

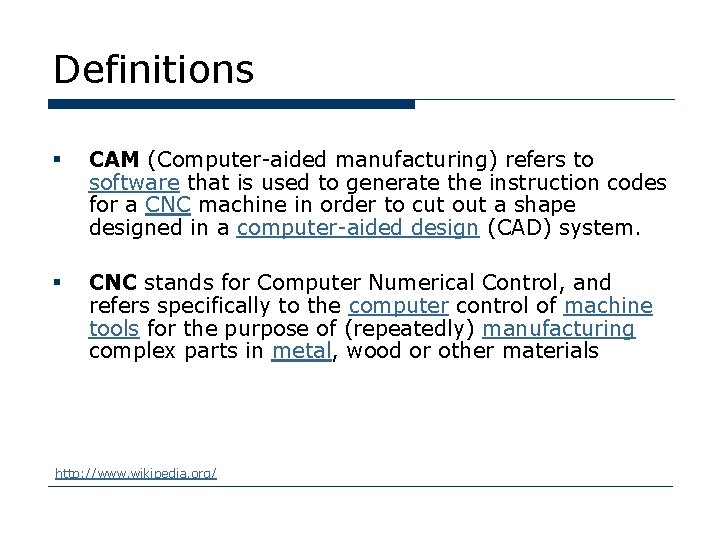

Definitions § CAM (Computer-aided manufacturing) refers to software that is used to generate the instruction codes for a CNC machine in order to cut out a shape designed in a computer-aided design (CAD) system. § CNC stands for Computer Numerical Control, and refers specifically to the computer control of machine tools for the purpose of (repeatedly) manufacturing complex parts in metal, wood or other materials http: //www. wikipedia. org/

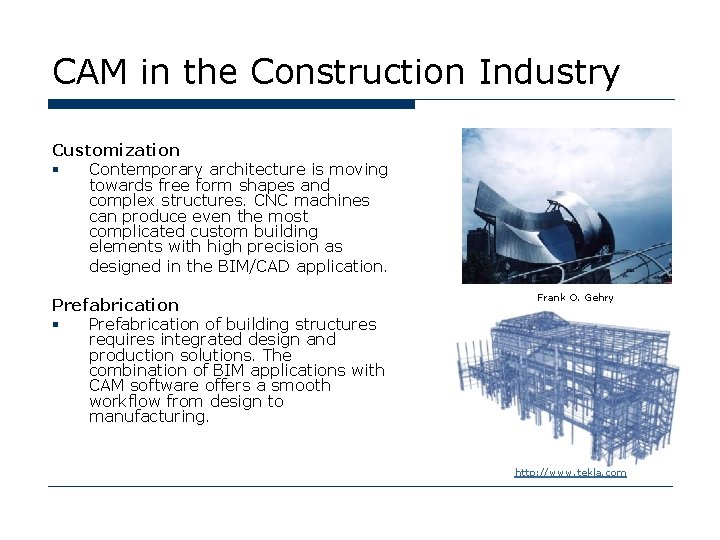

CAM in the Construction Industry Customization § Contemporary architecture is moving towards free form shapes and complex structures. CNC machines can produce even the most complicated custom building elements with high precision as designed in the BIM/CAD application. Prefabrication § Prefabrication of building structures requires integrated design and production solutions. The combination of BIM applications with CAM software offers a smooth workflow from design to manufacturing. Frank O. Gehry http: //www. tekla. com

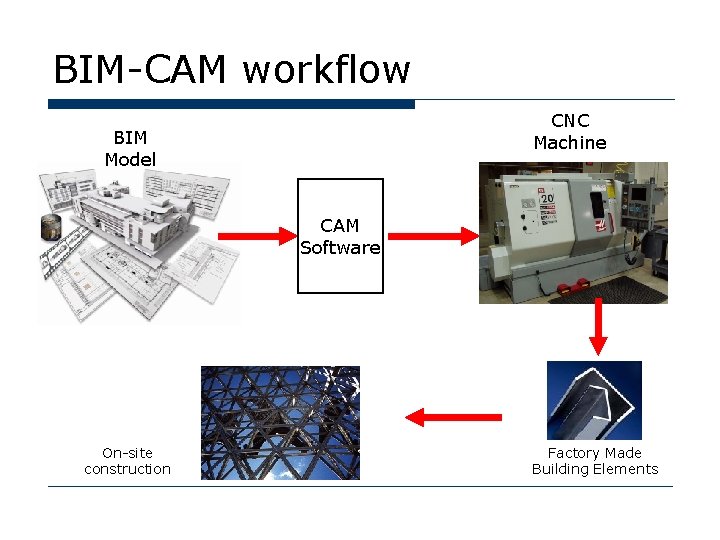

BIM-CAM workflow CNC Machine BIM Model CAM Software On-site construction Factory Made Building Elements

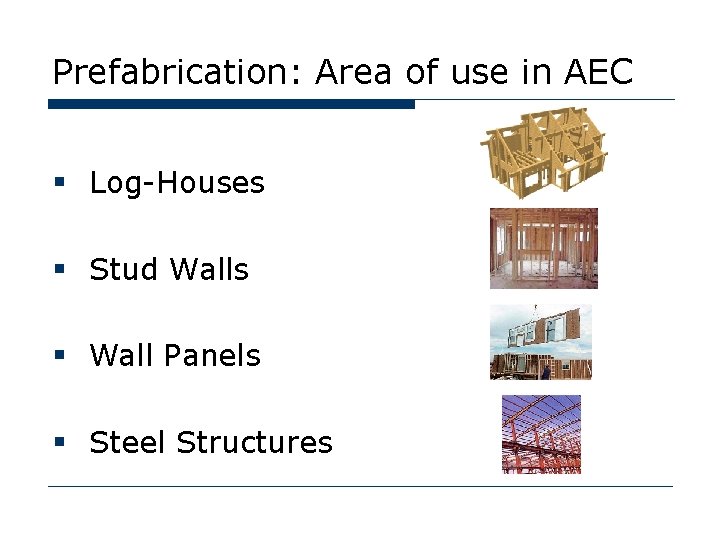

Prefabrication: Area of use in AEC § Log-Houses § Stud Walls § Wall Panels § Steel Structures

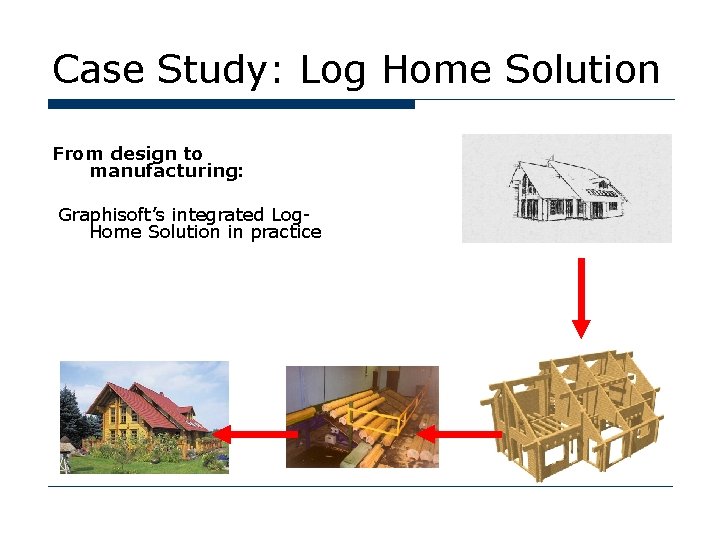

Case Study: Log Home Solution From design to manufacturing: Graphisoft’s integrated Log. Home Solution in practice

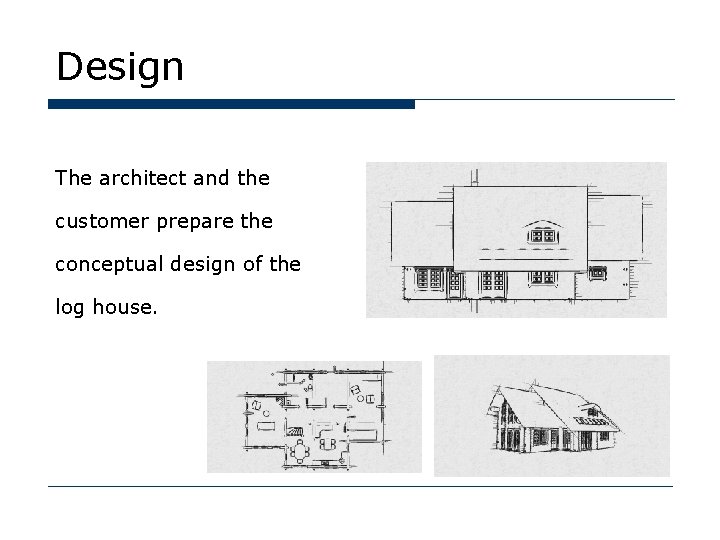

Design The architect and the customer prepare the conceptual design of the log house.

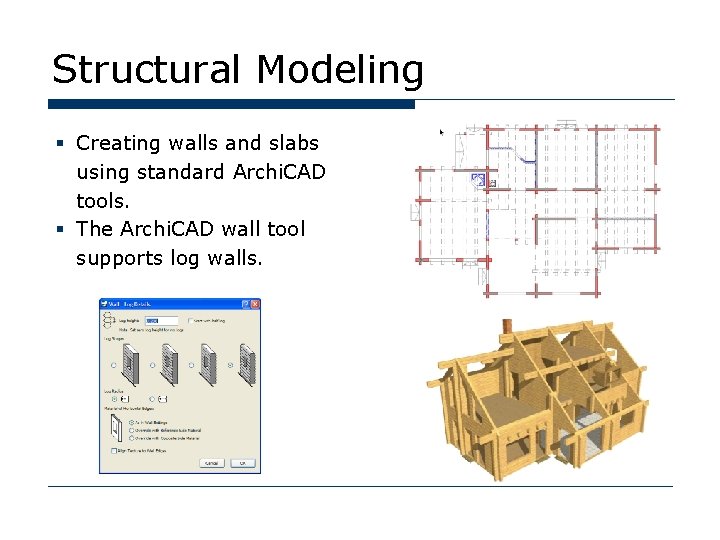

Structural Modeling § Creating walls and slabs using standard Archi. CAD tools. § The Archi. CAD wall tool supports log walls.

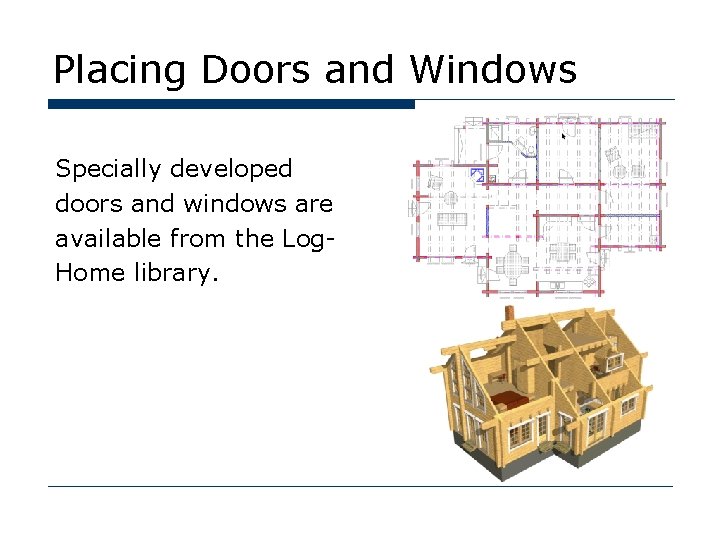

Placing Doors and Windows Specially developed doors and windows are available from the Log. Home library.

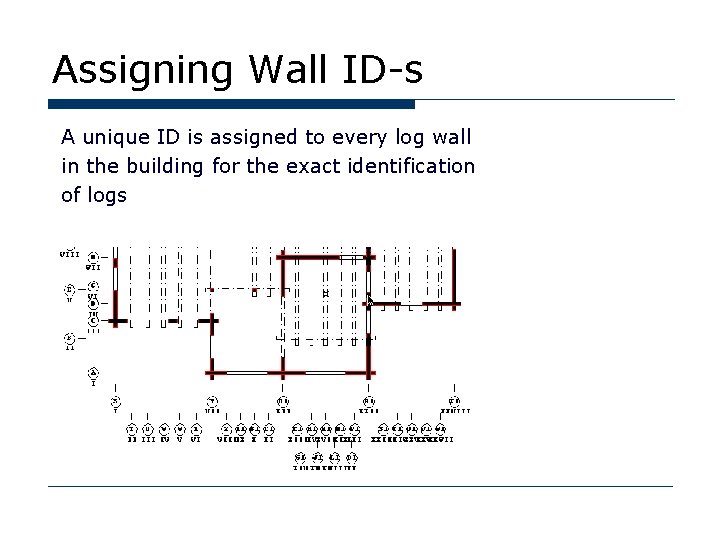

Assigning Wall ID-s A unique ID is assigned to every log wall in the building for the exact identification of logs

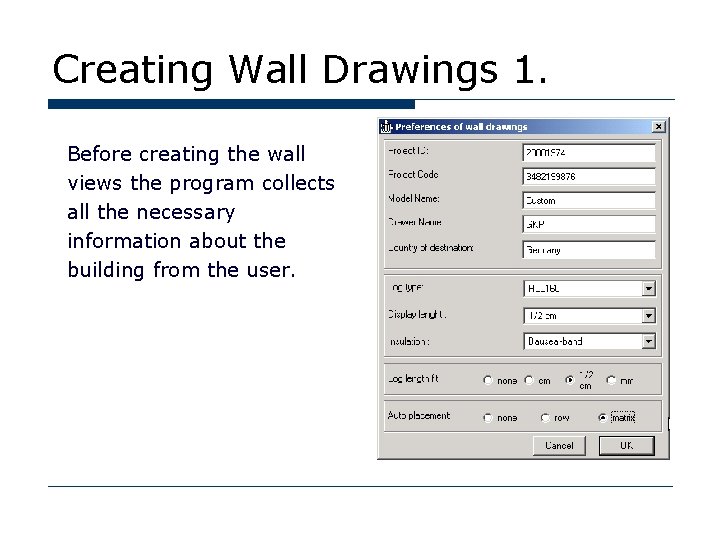

Creating Wall Drawings 1. Before creating the wall views the program collects all the necessary information about the building from the user.

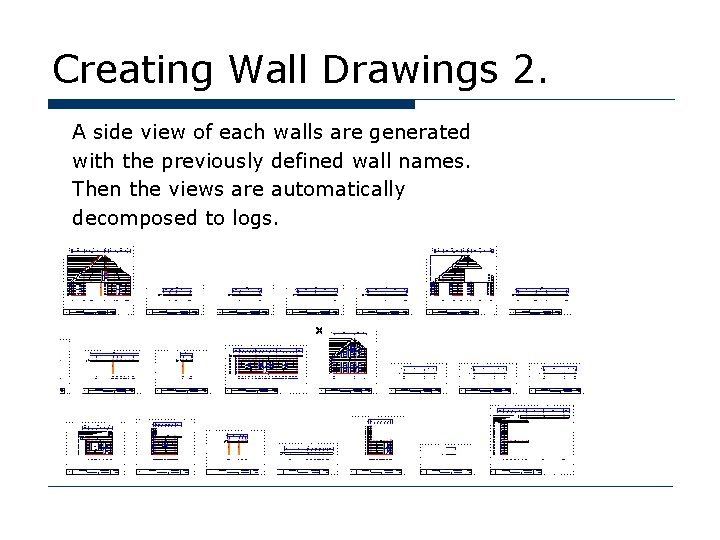

Creating Wall Drawings 2. A side view of each walls are generated with the previously defined wall names. Then the views are automatically decomposed to logs.

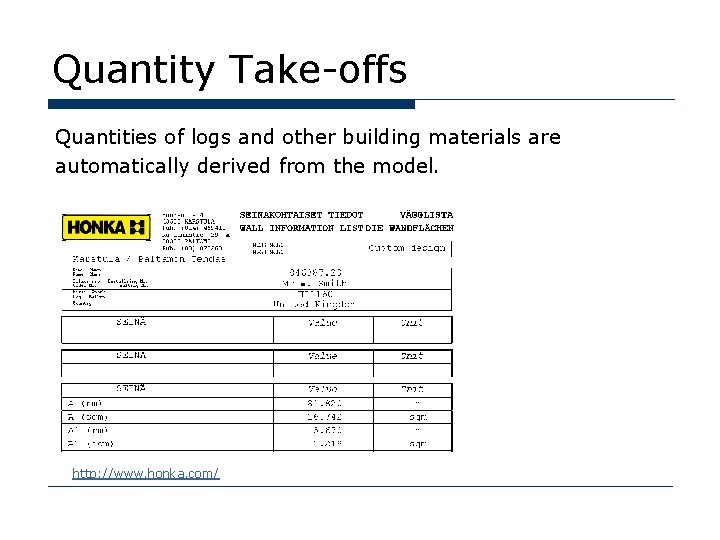

Quantity Take-offs Quantities of logs and other building materials are automatically derived from the model. http: //www. honka. com/

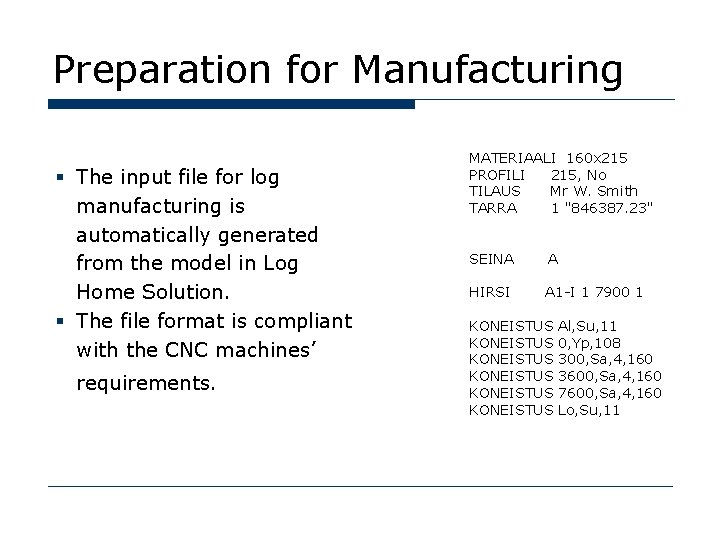

Preparation for Manufacturing § The input file for log manufacturing is automatically generated from the model in Log Home Solution. § The file format is compliant with the CNC machines’ requirements. MATERIAALI 160 x 215 PROFILI 215, No TILAUS Mr W. Smith TARRA 1 "846387. 23" SEINA A HIRSI A 1 -I 1 7900 1 KONEISTUS KONEISTUS Al, Su, 11 0, Yp, 108 300, Sa, 4, 160 3600, Sa, 4, 160 7600, Sa, 4, 160 Lo, Su, 11

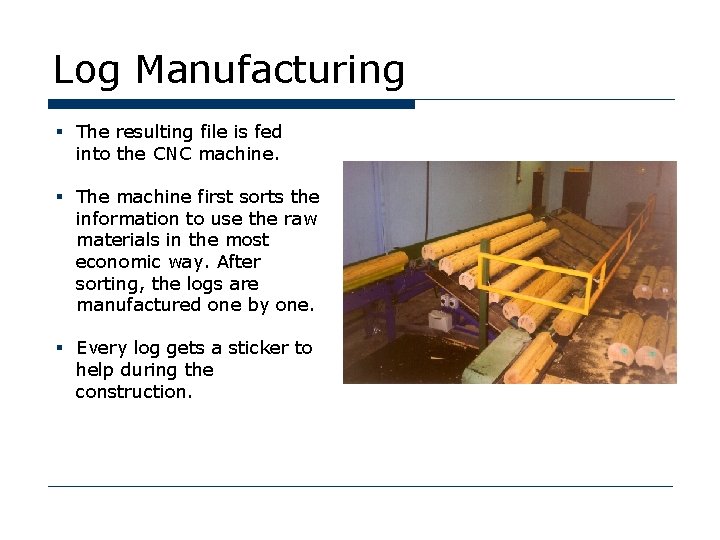

Log Manufacturing § The resulting file is fed into the CNC machine. § The machine first sorts the information to use the raw materials in the most economic way. After sorting, the logs are manufactured one by one. § Every log gets a sticker to help during the construction.

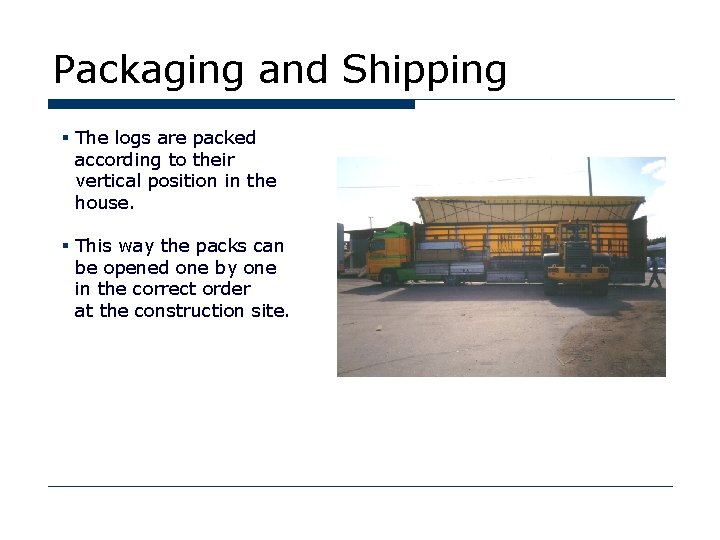

Packaging and Shipping § The logs are packed according to their vertical position in the house. § This way the packs can be opened one by one in the correct order at the construction site.

On-site Construction § The logs are assembled according to the construction documentation created in Log Home Solution § The stickers placed on logs helps to minimize the moving of materials on the construction site http: //www. honka. com/

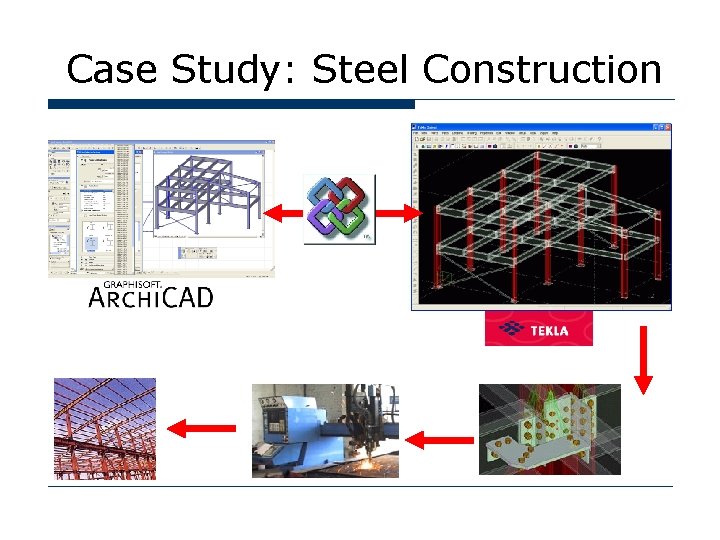

Case Study: Steel Construction
