Computer Aided Design (CAD) Engineering Drawing Standards - BS 308

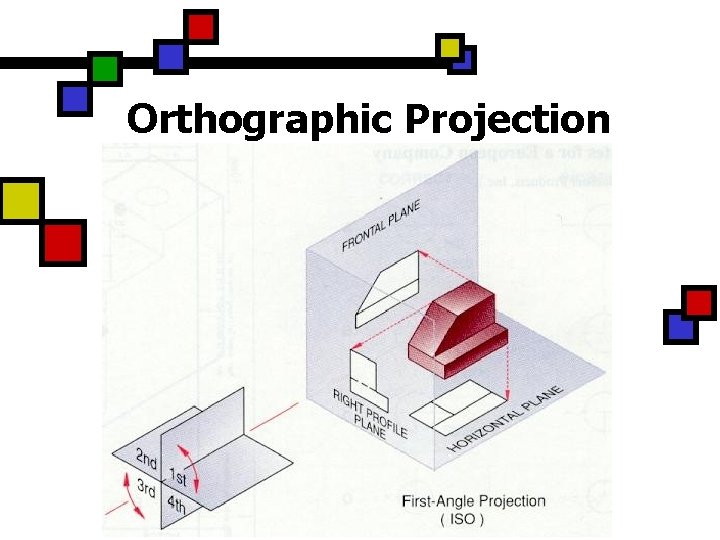

Orthographic Projection
Orthographic Projection

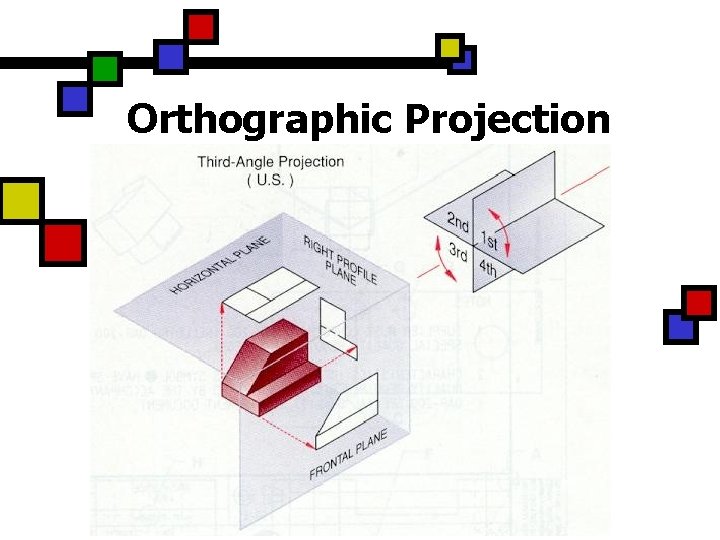

Orthographic Projection
SOME TECHNICAL TERMS (page 1) Bush Web Bore Boss Collar Spoke Rim Hub Shoulder Shaft Pulley Taper Rib Bracket base Keyway Fillet Keyway Table Flange Spigot Slot Spotface Dowel Lug Counterbore Recess Chamfer Tee slot Blind hole Countersink

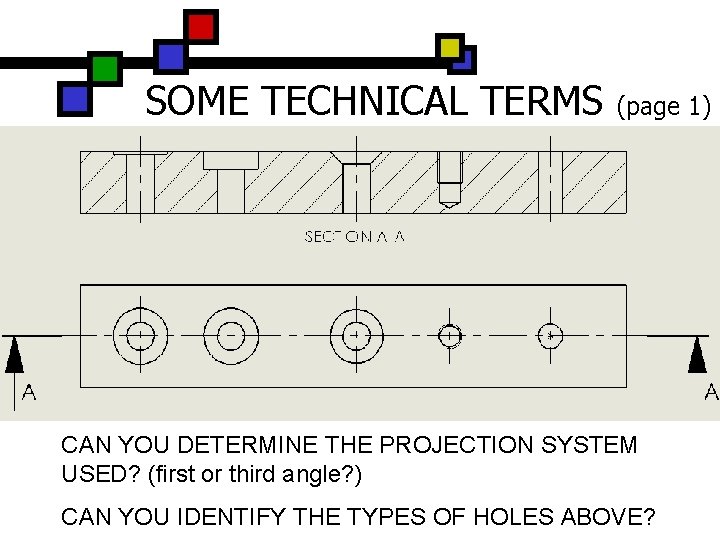

SOME TECHNICAL TERMS (page 1) CAN YOU DETERMINE THE PROJECTION SYSTEM USED? (first or third angle? ) CAN YOU IDENTIFY THE TYPES OF HOLES ABOVE?
Projection Symbol – How to Draw

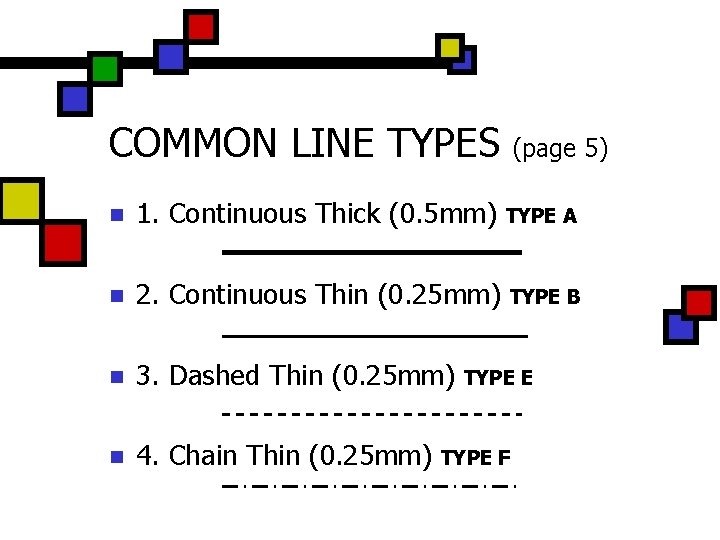

COMMON LINE TYPES (page 5) n 1. Continuous Thick (0. 5 mm) TYPE A n 2. Continuous Thin (0. 25 mm) TYPE B n 3. Dashed Thin (0. 25 mm) n 4. Chain Thin (0. 25 mm) TYPE E TYPE F
LINETYPES n Hidden n Center n Hatch n Outlines n Text n Dimension Lines n Leader Lines
Leader Lines n n To show where dimensions or notes apply. Always end in arrowheads or dots. n n n Arrowheads touch and stop on a line Dots should be within the outline of the object. Long or intersecting leader lines should not be used.

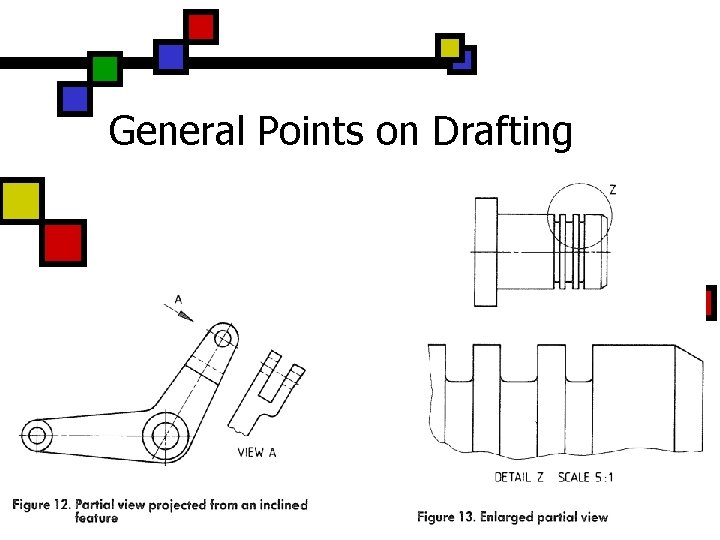

General Points on Drafting n Arrows: n n n n Triangular and Solid Length = 3 x width Arrows on Dimensions -> 3 -5 mm Long Arrows showing direction of view -> 7 -10 mm Long Text Height = Not less than 3 mm. Underlining of text is not recommended. Notes of a general character to be grouped together.
General Points on Drafting

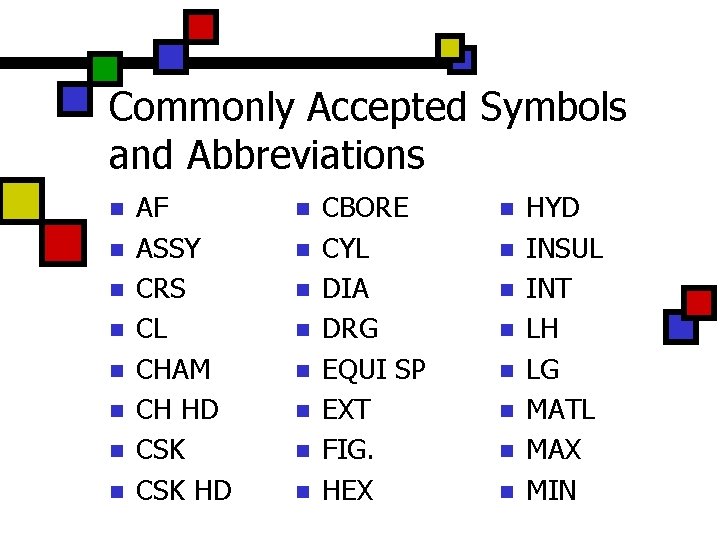

Commonly Accepted Symbols and Abbreviations n n n n AF ASSY CRS CL CHAM CH HD CSK HD n n n n CBORE CYL DIA DRG EQUI SP EXT FIG. HEX n n n n HYD INSUL INT LH LG MATL MAX MIN
Commonly Accepted Symbols and Abbreviations n n n n NO. O/D PATT NO. PCD RAD R REQD RH n n n n RD HD SCR SH SK SPEC SR SFACE SQ n n n STD THD TYP UCUT VOL WT
SCREW THREAD - TERMS
SCREW THREAD - TYPES

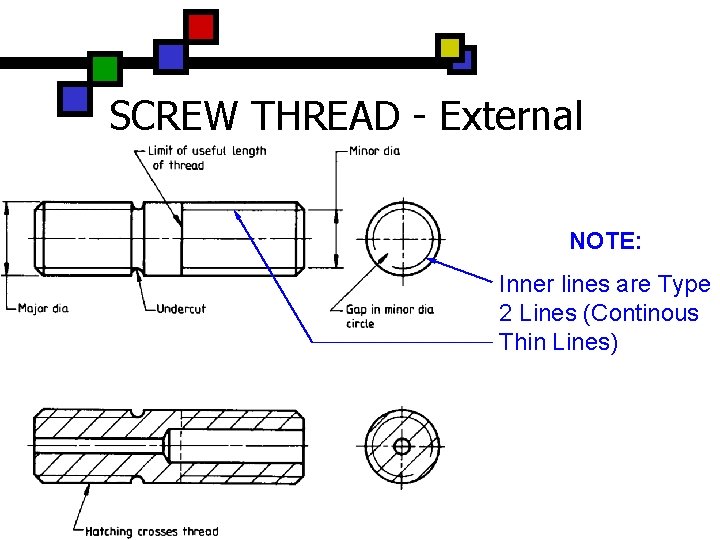

SCREW THREAD - External NOTE: Inner lines are Type 2 Lines (Continous Thin Lines)

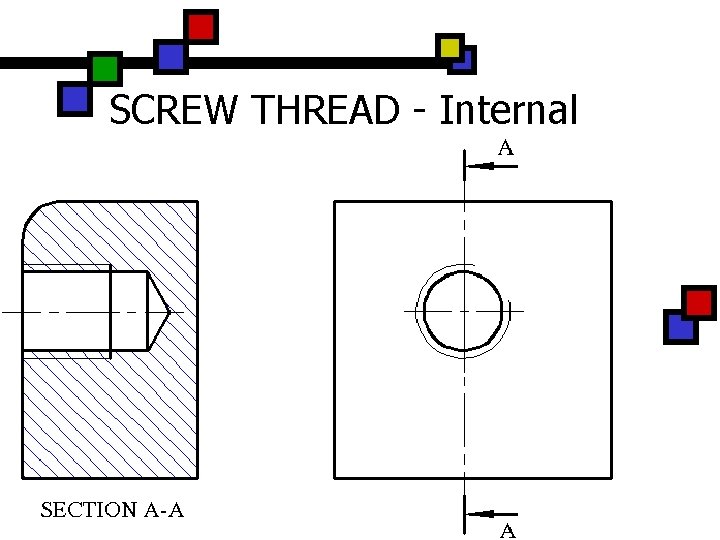

SCREW THREAD - Internal NOTE: Inner lines are Type 2 Lines (Continous Thin Lines)
SCREW THREAD - Internal

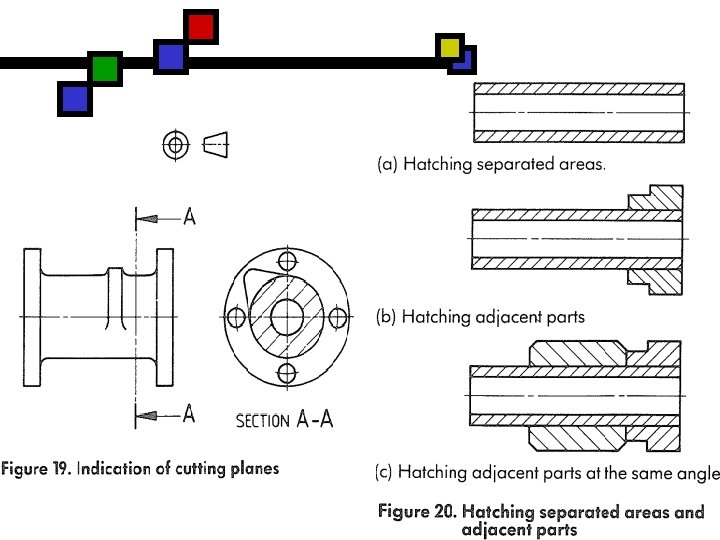

SECTIONS AND SECTIONAL VIEWS (page 12 BS 308) n n n Hatching is Drawn with Type B (Continuous Thin) Lines, equally spaced at 45º. Preferably not less than 4 mm Apart With very small parts, never less than 1 mm On adjacent parts, alternate the direction of Hatching. Correct Section Line – Type F (Chain Thin)
SECTIONS AND SECTIONAL VIEWS
SECTIONS AND SECTIONAL VIEWS
SECTIONS AND SECTIONAL VIEWS
SECTIONS AND SECTIONAL VIEWS
SECTIONS AND SECTIONAL VIEWS (page 15 BS 308) n PARTS NOT NORMALLY SECTIONED WHEN THE CUTTING PLANE PASSES LONGITUDINALLY THROUGH: FASTNERS (bolts, nuts) SHAFTS, RIBS, WEBS, SPOKES of WHEELS etc.

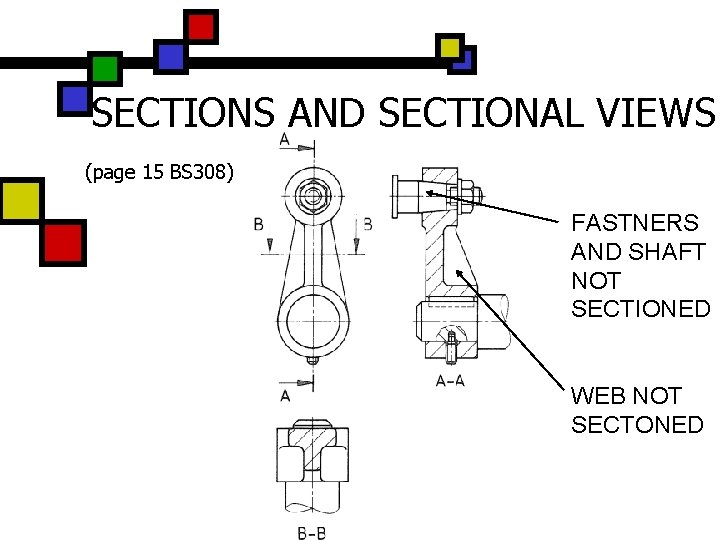

SECTIONS AND SECTIONAL VIEWS (page 15 BS 308) FASTNERS AND SHAFT NOT SECTIONED WEB NOT SECTONED
OFFSET SECTION IN MORE THAN 1 PLANE
EXTRA RESOURCE INFORMATION n De. Garmo, E. P. , et al. , Materials and Processes in Manufacturing, 8 th Ed. , Maxwell Macmillan, 1997
