Computed Tomography Data Acquisition Data Collection Basics Xray

Computed Tomography Data Acquisition

Data Collection Basics X-ray source & detector must be in & stay in alignment Beam moves (scans) around patient many transmission measurements Patient X-Ray beams

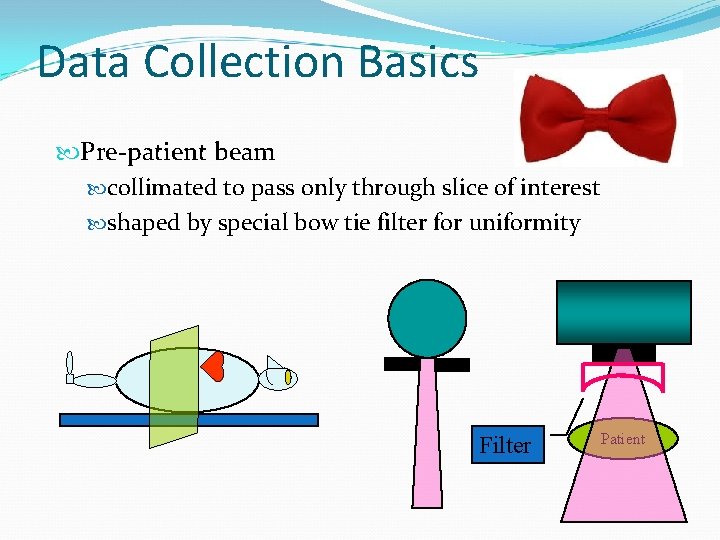

Data Collection Basics Pre-patient beam collimated to pass only through slice of interest shaped by special bow tie filter for uniformity Filter Patient

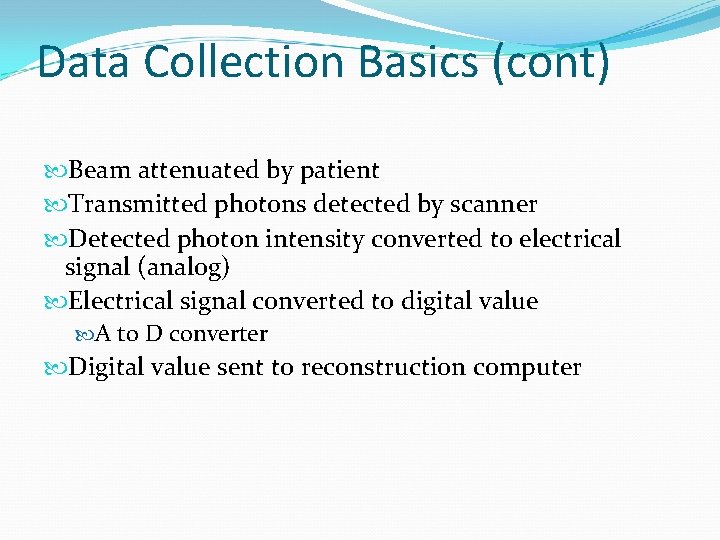

Data Collection Basics (cont) Beam attenuated by patient Transmitted photons detected by scanner Detected photon intensity converted to electrical signal (analog) Electrical signal converted to digital value A to D converter Digital value sent to reconstruction computer

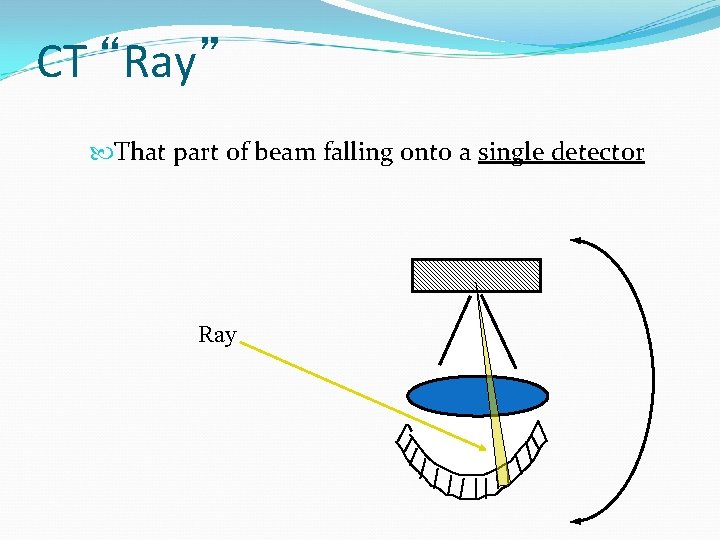

CT “Ray” That part of beam falling onto a single detector Ray

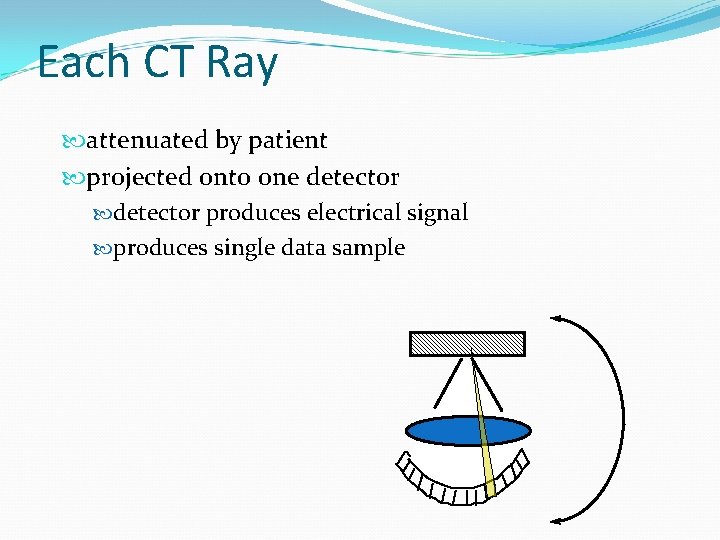

Each CT Ray attenuated by patient projected onto one detector produces electrical signal produces single data sample

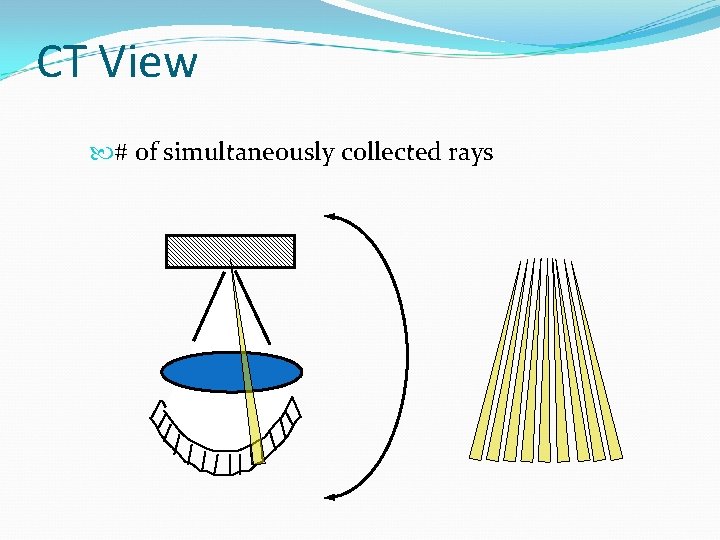

CT View # of simultaneously collected rays

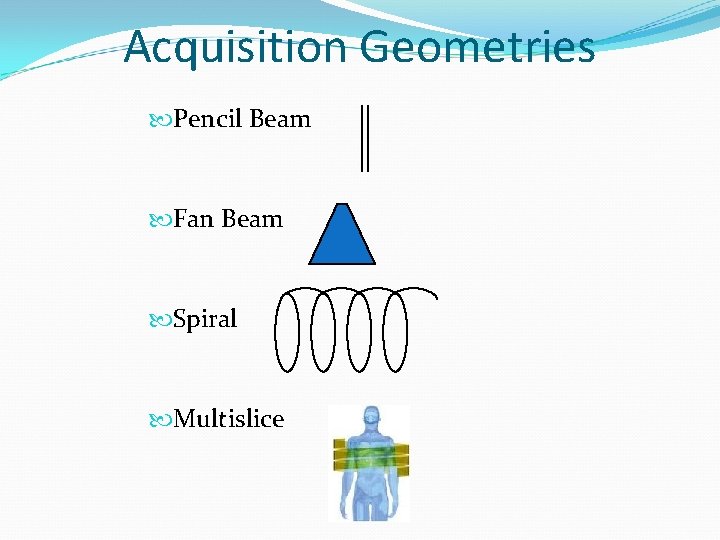

Acquisition Geometries Pencil Beam Fan Beam Spiral Multislice

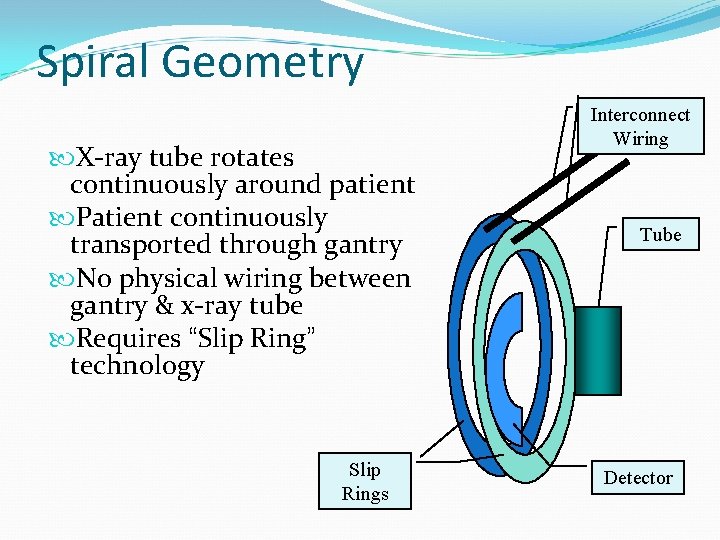

Spiral Geometry X-ray tube rotates continuously around patient Patient continuously transported through gantry No physical wiring between gantry & x-ray tube Requires “Slip Ring” technology Slip Rings Interconnect Wiring Tube Detector

What’s a Slip Ring?

Rotating Generator Primary Voltage Incoming AC Power X-Ray Generator Secondary Voltage High Voltage Transformer X-Ray Tube

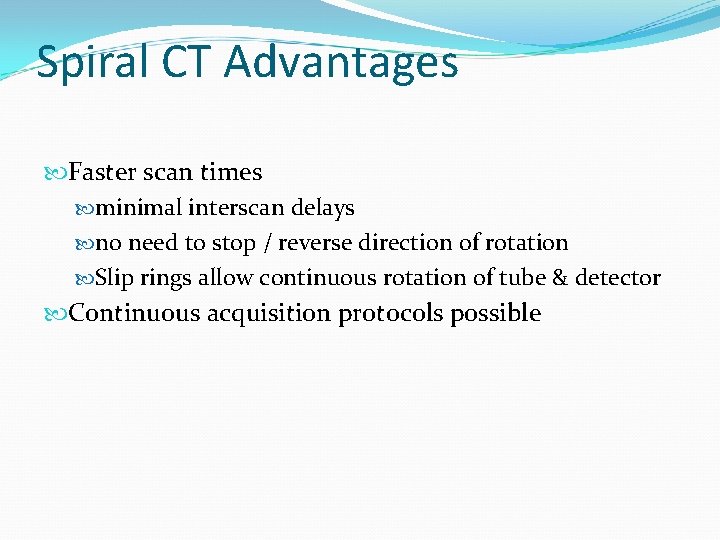

Spiral CT Advantages Faster scan times minimal interscan delays no need to stop / reverse direction of rotation Slip rings allow continuous rotation of tube & detector Continuous acquisition protocols possible

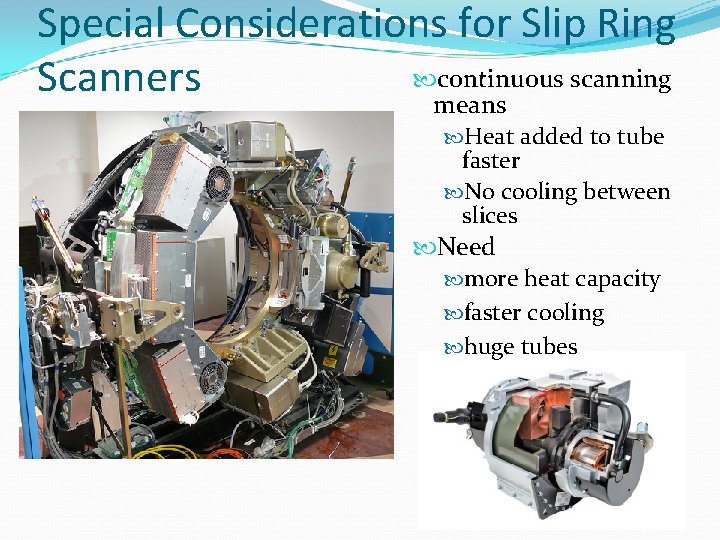

Special Considerations for Slip Ring continuous scanning Scanners means Heat added to tube faster No cooling between slices Need more heat capacity faster cooling huge tubes

CT Beam Filtration Hardens beam preferentially removes low-energy radiation Removes greater fraction of lowenergy photons than high energy photons reduces patient exposure Attempts to produce uniform intensity & beam hardening across beam cross section Filter Patient

CT Detector Technology: Desirable Characteristics High efficiency Quick response time High dynamic range Stability

CT Detector Efficiency Ability to absorb & convert x-ray photons to electrical signals

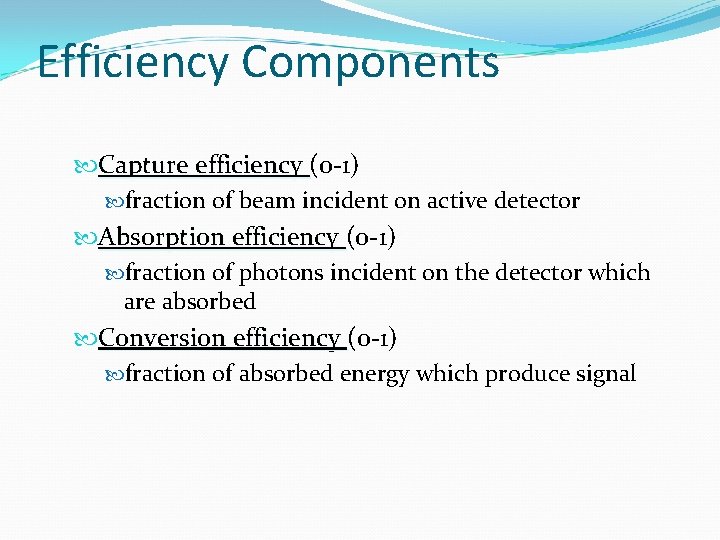

Efficiency Components Capture efficiency (0 -1) fraction of beam incident on active detector Absorption efficiency (0 -1) fraction of photons incident on the detector which are absorbed Conversion efficiency (0 -1) fraction of absorbed energy which produce signal

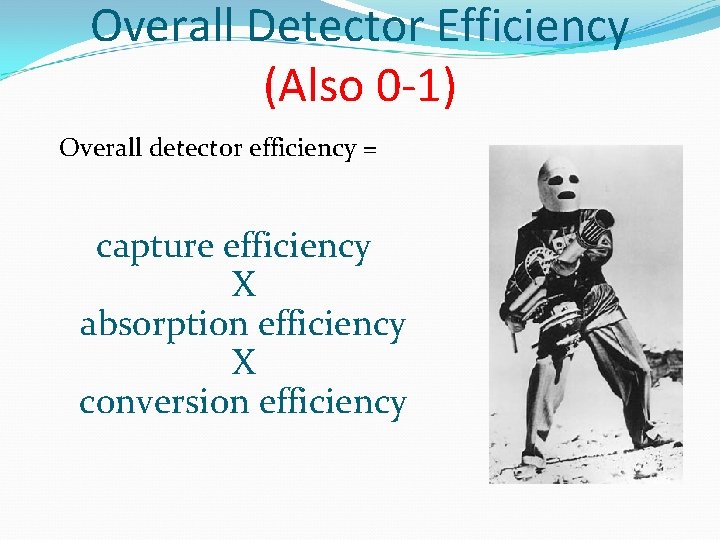

Overall Detector Efficiency (Also 0 -1) Overall detector efficiency = capture efficiency X absorption efficiency X conversion efficiency

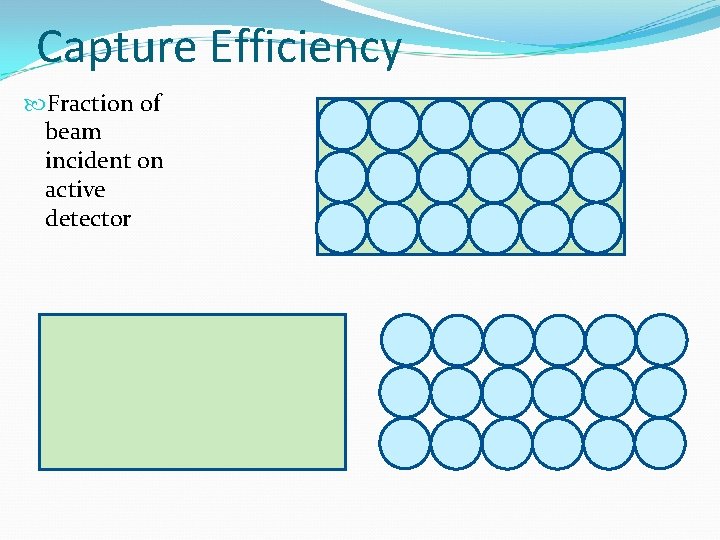

Capture Efficiency Fraction of beam incident on active detector

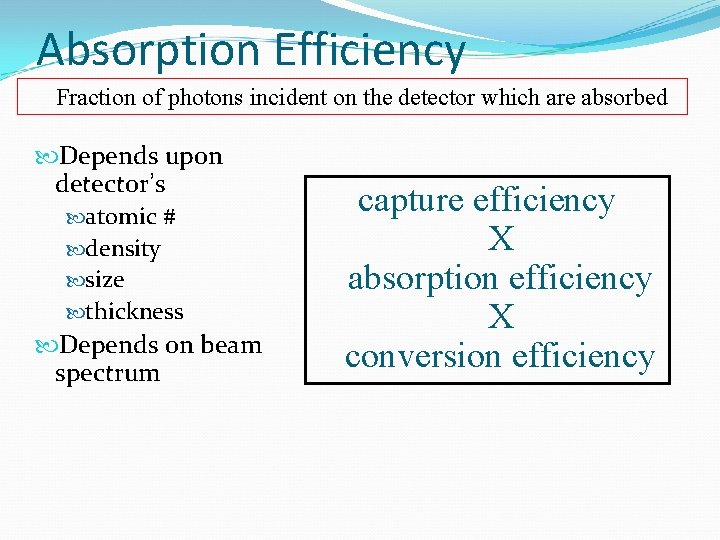

Absorption Efficiency Fraction of photons incident on the detector which are absorbed Depends upon detector’s atomic # density size thickness Depends on beam spectrum capture efficiency X absorption efficiency X conversion efficiency

Conversion Efficiency Ability to convert x-ray energy to light GE “Gemstone Detector” made of garnet

Conversion Efficiency Ability to convert x-ray energy to light Siemens Ultra. Fast. Ceramic (UFC) CT Detector • Proprietary • Fast afterglow decay UFC Material UFC Plate

Response Time Minimum time after detection of 1 st event until detector can detect 2 nd event If time between events < response time, 2 nd event may not be detected Shorter response time better

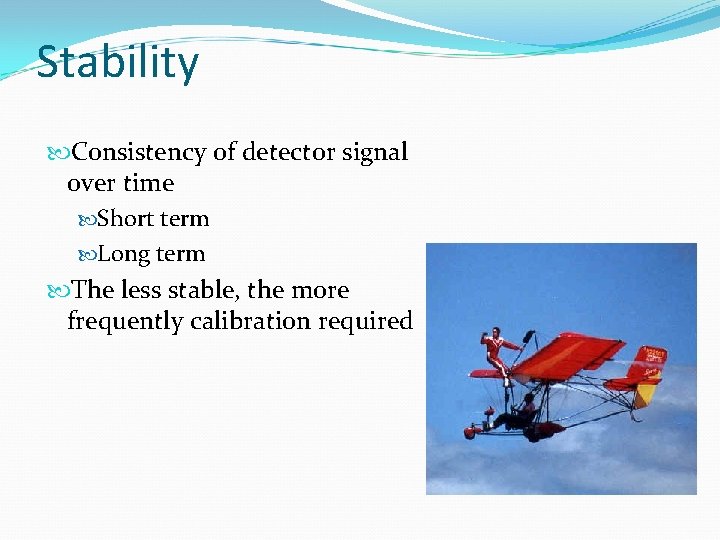

Stability Consistency of detector signal over time Short term Long term The less stable, the more frequently calibration required

Dynamic Range Ratio of largest to smallest signal which can be faithfully detected Ability to faithfully detect large range of intensities Typical dynamic range: 1, 000: 1 much better than film

Solid State Detectors Crystal converts incident x-rays to light Photodiode semiconductor current proportional to light Photodiode Semiconductor X-Rays Light Electrical Signal

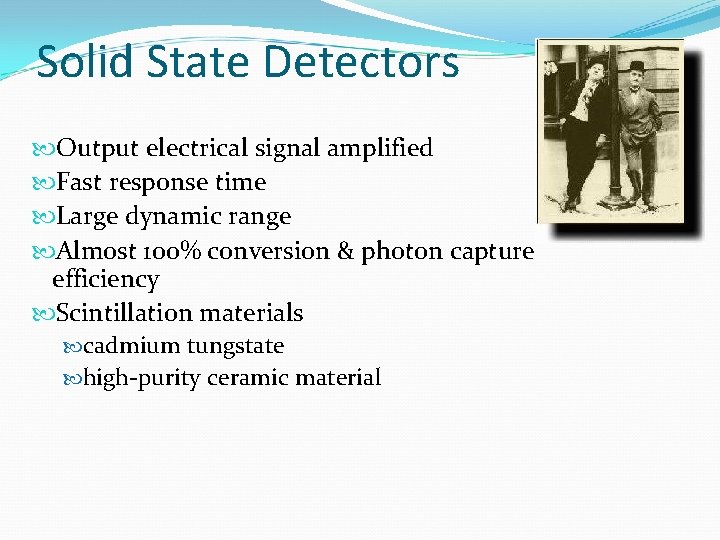

Solid State Detectors Output electrical signal amplified Fast response time Large dynamic range Almost 100% conversion & photon capture efficiency Scintillation materials cadmium tungstate high-purity ceramic material

Detector Electronics From Detector Pre-Amplifier Logarithmic Amplifier Analog to Digital Converter To Computer Increases signal strength for later processing Compresses dynamic range; Converts transmission intensity into attenuation data

Logarithms Log 10 x = ? means 10? = x? logarithms are exponents log 10 x is exponent to which 10 is raised to get x log 10100 =2 because 102=100

Logarithms Input Logarithm 100, 000 1, 000 10 1 5 4 3 2 1 0 Using logarithms the difference between 10, 000 and 100, 000 is the same as the difference between 10 and 100

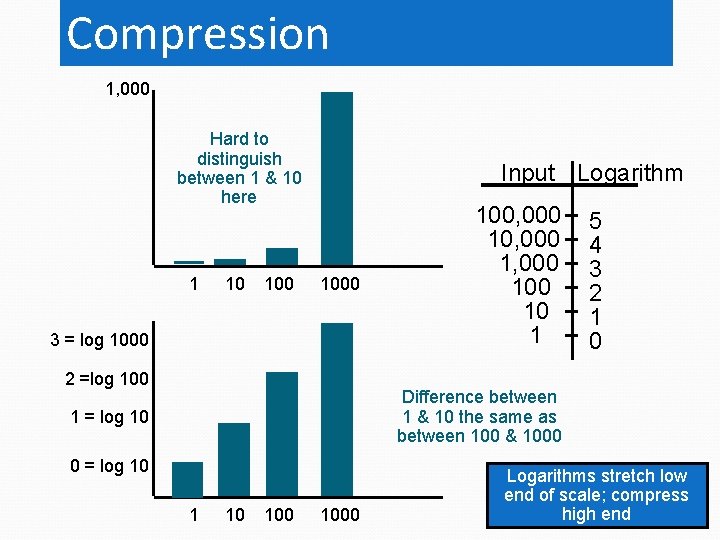

Compression 1, 000 Hard to distinguish between 1 & 10 here 1 10 100 Input Logarithm 1000 3 = log 1000 2 =log 100, 000 10, 000 100 10 1 5 4 3 2 1 0 Difference between 1 & 10 the same as between 100 & 1000 1 = log 10 0 = log 10 100 1000 Logarithms stretch low end of scale; compress high end

Logarithmic Amplifier accepts widely varying input takes logarithm of input amplifies logarithm output dynamic range now appropriate for A/D conversion Input 100, 000 1, 000 10 1 Logarithm 5 4 3 2 1 0

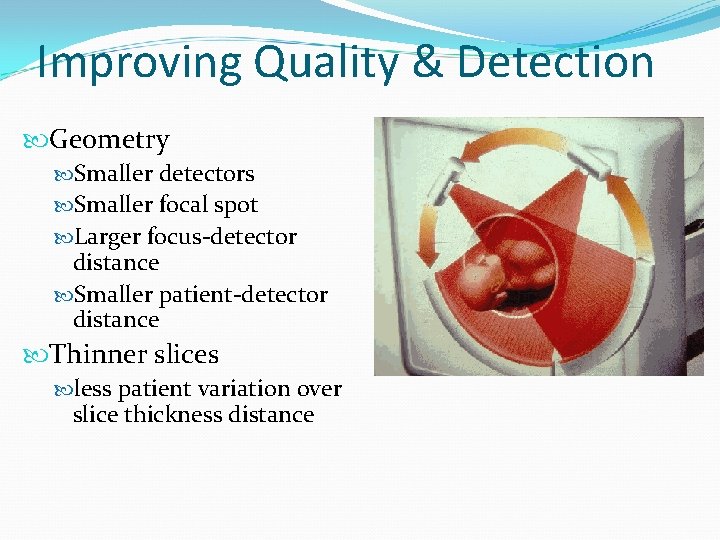

Improving Quality & Detection Geometry Smaller detectors Smaller focal spot Larger focus-detector distance Smaller patient-detector distance Thinner slices less patient variation over slice thickness distance
