Computational Geometry Piyush Kumar Lecture 4 Planar Graphs
- Slides: 73
Computational Geometry Piyush Kumar (Lecture 4: Planar Graphs, Polygons and Art Gallery) Welcome to CIS 5930
Definitions Planar Straight Line Graph § No two edges intersect except at endpoints Every planar graph can be drawn in the plane with straight edges Courtesy Lovasz Fáry-Wagner
PSLG A graph is called planar if it can be drawn in the plane in such a way that no two edges intersect except possibly at endpoints. The clique of size 4
PSLG : Definitions • A plane graph cuts the plane into regions called faces. 4 faces! 6 edges 4 vertices v–e +f=?
PSLG What about K 3, 3 ?
PSLG Another example v–e +f=?
Euler 1752 For any connected planar graph G, § vertices – edges + faces = 2 Let v = # of vertices e = # of edges f = # of faces
Why study PSLGs?
PSLG Any planar graph can be triangulated § Draw the planar graph with straight edges § For every face with more than 3 edges o Insert new edges
PSLG Any planar graph can be embedded on the sphere with ‘straight line’ edges § Stereographic projection o Wrapping the plane on a sphere
Courtesy Hopf Euler’s Formula: Proof Sum of angles of a triangle? What about a triangle on a sphere?
Formula for the spherical excess Area of a 2 -gon = ? Formula for spherical excess?
Euler’s Formula Proof 2 v –f = 4; 3 f = 2 e; and hence v-e+f = 2 Note that f = O(v) and e=O(v)
Food for thought Prove that on a torus § V–e+f=0 In general for g handles § V-e + f = 2 -2 g
Euler’s formula extensions In 3 D, a polyhedral subdivision can already have e in O(v 2) Dehn-Sommerville relations relate the maximum number of edges vertices and faces of various dimensions.
Kuratowski’s Theorem [1930] A graph is planar if and only if it contains no subgraph obtainable from K 5 or K 3, 3 by replacing edges with paths.
Graph Coloring A coloring of a graph is an assignment of colors to the vertices of the graph such that the endpoints of every edge has different colors.
Four-Color Theorem [1976] The vertices of any planar graph can be 4 -colored in such a way that no two adjacent vertices receive the same color. Appel-Haken
Representing PSLGs Doubly connected edge list Winged Edge Quad Edge Facet edge Split edge, Corner edge obj file format ; )
Obj file format Drawback: How do you find which all vertices a vertex connects to? What if you wanted to jump from a face to an adjacent one?
Half Edges (DCEL) Vertex List § Knows its coordinates § Knows one of its incident edges Face List § Pointer to one of its edges Edges § Split the edge into two records
DCEL: Edge record
Quad Edge Considers the PSLG and its dual
Quad Edge Record § Two vertices , two faces Vertex § A circular list of adjacent edges Face § A circular list of adjacent edges
Quad Edge example

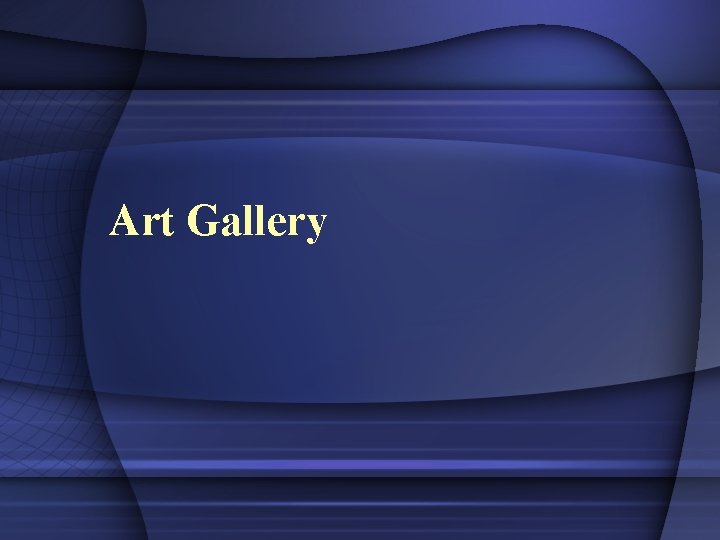

Art Gallery
Visibility inside polygons When is x visible to y if both x and y are inside a polygon P?
Art gallery problem Art Gallery Problem § § Art gallery room is a polygon P. A guard can see all around (360 degrees) Place G(n) guards such that they cover P. What is minimum G(n) that is occasionally necessary and always sufficient?
Theorem Every simple polygon admits a triangulation with n-2 triangles. Proof: § Lemma: Every polygon has a diagonal § For a triangle theorem is true. § Use MI now.
G(n) from previous theorem Every n vertex polygon can be guarded using n-2 cameras. (Why? ) What if we place the cameras on the diagonals? (n-3 diagonals / 2) What about vertices? § If we place a guard on a vertex, it can cover all the triangles incident on the vertex.
3 -colorablity of polygon triangulations If T be a triangulation of a polygon P, then the vertices of P can be 3 -colored.
Why can we do 3 -coloring? Look at the dual graph of the polygon triangulation. What is the maximum degree of the dual? Each edge of the dual is associated with a diagonal of the polygon. Removal of each edge of the dual splits the dual into two connected components
Why can we do 3 -coloring The dual is a free tree § No cycles § Every free tree has a leaf (An EAR) Proof of 3 -colorability § Use MI § For a triangle its trivial § For a polygon P, color and remove an ear, by induction, we are done!
The Art Gallery Theorem Given a simple polygon with n vertices there exists a set of g(n) = floor(n/3) guards that can cover it. Proof: Use vertex guards: the minimum cardinality vertex set of same color in the 3 -coloring of the polygon triangulation.
Art Gallery theorem In the following example you would use red.
Art Gallery Theorem Let r <= g <= b be the number of nodes colored with red, green and blue colors (w. l. o. g) Can r > n/3? If not, then r <= n/3 But r has to be an integer So r must be <= floor(n/3) For what kind of Polygon is r = floor(n/3)?
Polygon Triangulation of a polygon refers to the decomposition of P into triangles using non-intersecting diagonals such that no more diagonals can be further added. § A maximal set of non-intersecting diagonals.
Polygon Triangulation Naïve algorithm? § Find diagonal, add it, recurse § T(n) = T(n-1) + O(n 2)*n = O(n 3) Less Naïve? § Find diagonal using existence theorem § T(n) = T(n-1) + O(n) = O(n 2) What about O(n) or O(nlogn)?
History O(nlogn) Monotone pieces 1978 O(nlogn) D&C 1982 O(nlogn) Plane Sweep 1985 O(nlog*n) Randomized 1991 O(n) Polygon cutting, 1991 O(n) Randomized 2000 O(n) implementable with small constants? ? ?
What about point set triangulation? A triangulation T of V is a set of triangles such that § Each t in T is incident on 3 vertices of V and does not contain any other vertex § If t 1, t 2 in T => t 1 does not intersect t 2 § T is a decomposition of the convex hull of V.
Point Set Triangulation
Point Set triangulation Can be built using one vertex at a time. Three cases § New point outside current convex hull § New point inside triangle § New point on an edge of the current triangulation
Back to Polygon Triangulations Courtesy Martin Held
Polygon Triangulation Partition the polygon into monotone pieces O(nlogn) Triangulate them in O(n) time
Monotone polygons A polygon is x-monotone if the intersection of P with a vertical line is connected ( a point, a line segment or O ).
Monotonicity in x Implies you can sort all the xcoordinates of the vertices in O(n) implies that there are no “cusps”. § A reflex vertex is a vertex with internal angle >π § A reflex vertex is a cusp if its neighbors both lie to the left or to the right of the vertical line.
Monotone polygons => no cusps Th: Any polygon that contains no cusps is monotone. Proof: We will prove that any polygon that is non-monotone has a cusp. Lets assume that P’ is a non-monotone polygon due to its upper chain. Let v 1, v 2…vk be its upper chain and vi be the first vertex such that v(i+1) lies left to vi.
Monotone polygons => no cusps The vertex leftmost from vi…in the chain vi to vk…. has to be a cusp.
Polygon Triangulation First we partition the polygon into polygons without cusps. (Remove all cusps). O(nlogn) Then we triangulate all the monotone polygons. O(n)
Polygon Triangulation Sweep from left to right. § Remove leftward pointing cusps Sweep right to left § Remove rightward pointing cusps Triangulate all monotone polygons
Regularization Remove all cusps that point in the same direction
Regularization Regularize from left to right removing all leftward pointing cusps Exactly in the same way, Regularize from right to left removing all rightward pointing cusps

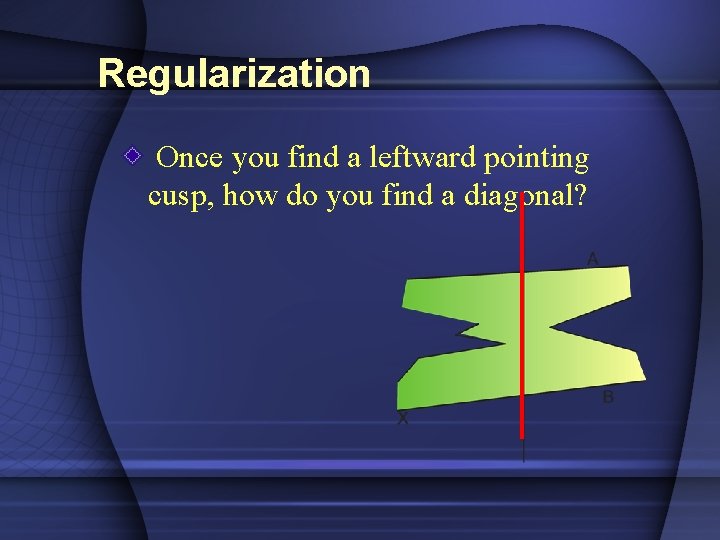

Regularization Once you find a leftward pointing cusp, how do you find a diagonal?
Regularization Once you find a leftward pointing cusp, how do you find a diagonal?
Monotone Polygon Triangulation Greedy Algorithm § Sweep from left to right adding diagonals whenever you can.
Greedy plane sweep Sort vertices from left to right in O(n) Process vertices from left to right Stack keeps vertices that have been encountered but not yet used in a diagonal. When a vertex is encountered add as many diagonals as you can § Each diagonal removes a triangle and a vertex from the stack
Vertices on Stack: A Funnel • One boundary is chain of reflex vertices except for rightmost vertex (top of stack). • Other boundary is (partial) edge. (We have not seen bottom endpoint yet). • Sweepline Invariant: Vertices on the stack conform to this funnel structure. Courtesy Nancy Amato
Vertices on Stack: A Funnel Reflex chain 10 8 3 Last encountered vertex Funnel 9 4 11 5 2 6 12 1 7 Split off triangle Partial Edge
What happens when we encounter a new vertex? Case 1: Vj is on the side opposite the reflex chain on the stack § Easy case: Can add diagonals from Vj to all vertices on reflex chain except Vi 7 6 12 1 5 2 11 Vi 9 4 Stack pop all push vj, vk 10 8 3 Vk Vj
What happens when we encounter a new vertex? Case 2: Vj is on the same side as the reflex chain on the stack Popped and pushed Vj The only interesting case in this case, If Vj extends the reflex chain, we just need to push it on the stack

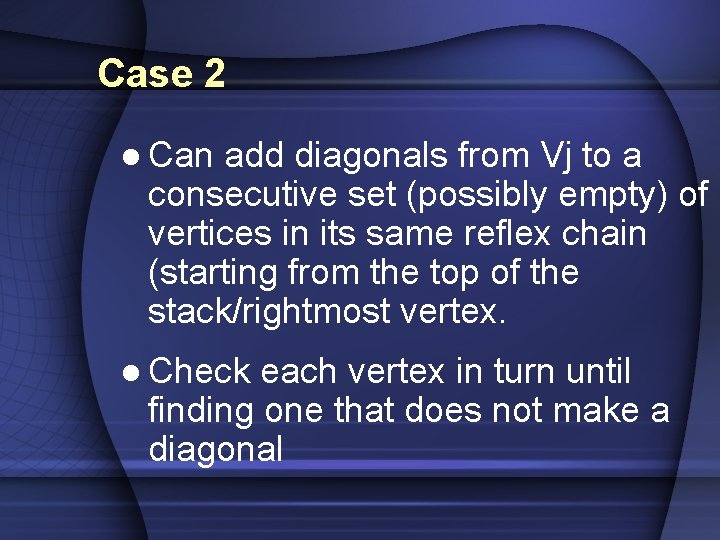

Case 2 l Can add diagonals from Vj to a consecutive set (possibly empty) of vertices in its same reflex chain (starting from the top of the stack/rightmost vertex. l Check each vertex in turn until finding one that does not make a diagonal
Homework Textbook question 3. 11
New Problem Given a set of half-planes, compute their intersection in O(nlogn) time. § How can we do it using what we know?
Projective Geometry Basic Elements: § Points , Lines and Planes Studies properties of geometric figures that remain unchanged under projection Lengths and ratios of lengths are NOT invariant under projection Asserts parallel lines meets at infinity
Duality The most remarkable concept in projective geometry The terms point and line are dual and can be interchanged in any valid statement to yield another valid statement
Example A line contains at least 3 collinear points of the plane. A point contains at least 3 coincident lines of the plane. Point Line Join Intersection Collinear Coincident
Duality in higher dimensions? In space, the terms plane, line, and point are interchanged with point, line, and plane, respectively, to yield dual statements
Point Line Duality is usually denoted by a * in the superscript. A point and line are uniquely determined by two parameters. Ø p = (a, b) is mapped to p*: y = ax– b Ø l: y = ax - b is mapped to l* = (a, b) Characteristics ((p*)*) = p p lies above l iff l* lies above p* p = (px, py) lies on l: y = ax-b iff l* lies on p*
Characteristics of the duality transform Property : p lies above l iff l* lies above p* p = (px, py) l* = (a, b) l: y = ax-b p*: y = pxx - py (px, apx - b) p lies above l py > apx - b (a, pxa – py) l* lies above p* b > pxa – py iff py > pxa - b
Line Intersection: Duality
Line segment s=pq : Duality
Summary Observations: 1. Point p on straight line l iff point l * on straight line p * 2. p above/on/below l iff p* is low/on/above l * 3. Intersection Preservation: Line l 1 and l 2 intersect at p Iff p* passes thru l 1* and l 2*. 4. Collinearity: Three points are collinear iff ?
New Problem Given n lines, compute the lower envelope of these lines in O(nlogn) time.
