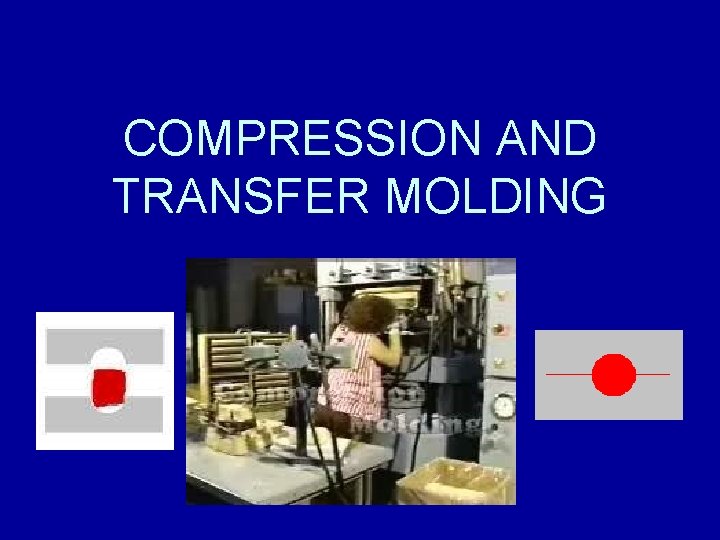

COMPRESSION AND TRANSFER MOLDING

COMPRESSION AND TRANSFER MOLDING

Compression Molding • The process of molding a material in a confined shape by

Compression Molding • The process of molding a material in a confined shape by applying pressure and usually heat. • Almost exclusively for thermoset materials • Used to produce mainly electrical products

Compression Molding

Compression Molding

Background • One of the oldest known molding processes. • Widely used to produce

Background • One of the oldest known molding processes. • Widely used to produce articles from thermosetting and thermoplastic materials. • The plastic material is placed in a mold cavity and formed by heat & pressure. • Most compression-molding equipment is typically sold by the press or platen rating. • A force of 2900 psi is usually required for moldings up to 1 inch (25 mm) thick. An added 725 psi should be provided for each 1 inch (25 mm) increase.

In terms of processing, the past begins with the manufacturing process known as “compression

In terms of processing, the past begins with the manufacturing process known as “compression molding” The very first plastic products included items such as, buttons, brush and mirror handles that were compression molded. All were relatively small and had relatively simple geometries. Hand made compression mold for a hand held mirror (c. 1870).

The items shown below were compression molded from a shellac based thermoplastic molding compound

The items shown below were compression molded from a shellac based thermoplastic molding compound known as Florence compound. Its inventor, Alfred Critchlow, founded the Pro Corporation, Florence MA in 1847. Pro is said to be the very first plastics molding company. Hand held mirror frames (c. 1866). Daguerreotype case (c. 1856).

Over the years, compression molding (and transfer molding) press capacities (size) increase so that

Over the years, compression molding (and transfer molding) press capacities (size) increase so that larger thermoplastic and thermoset plastic parts, such as this radio housing, could be molded. Large scale compression molding press (c. 1935). Trimming flash from Ekco radio cabinets (c. 1934).

PROCESS

PROCESS

Compression Molding a Composite

Compression Molding a Composite

Stages in Compression molding cycle The various stages of the compression molding cycle time

Stages in Compression molding cycle The various stages of the compression molding cycle time can be represented as a function of the force required to close the mold at a constant rate. In the “plastication” stage (t<tf) the force increases rapidly as the polymer feed is compressed and heated. The second stage flow commences, once the yield stress of the elastomer is exceeded. tc is the point at which the mold fills and compression of the melt occurs. Ideally, to aid mold filling the majority of chemical reaction should take place after tc.

Transfer Molding • A process of forming articles by fusing a plastic material in

Transfer Molding • A process of forming articles by fusing a plastic material in a chamber then forcing the whole mass into a hot mold to solidify. • Used to make products such as electrical wall receptacles and circuit breakers

T M R O A N S L D F I E N R

T M R O A N S L D F I E N R G

T M R O A N S L D F I E N R

T M R O A N S L D F I E N R G

 • Injection Compression Process • CPI Process

• Injection Compression Process • CPI Process

MATERIALS • Thermoplastic • Thermoset • Composites

MATERIALS • Thermoplastic • Thermoset • Composites

PROCESS VARIABLES

PROCESS VARIABLES

Variables • • • Amount of charge Molding pressure Closing speed Mold temperature Charge

Variables • • • Amount of charge Molding pressure Closing speed Mold temperature Charge temperature Cycle time

Process Window There is an optimum process window for the filling stage, which can

Process Window There is an optimum process window for the filling stage, which can be represented by a Moulding Area Diagram (MAD).

EQUIPMENT

EQUIPMENT

C O M P M O L R D E I S N S

C O M P M O L R D E I S N S G I O N

Press calculations • Press capacity • Required force to press a part

Press calculations • Press capacity • Required force to press a part

MOLD

MOLD

 • Mold material • Mold closure types

• Mold material • Mold closure types

TROBLE SHOOTING

TROBLE SHOOTING

FLOW SIMULATION

FLOW SIMULATION

Advantages and Disadvantages • ADVANTAGES • Little waste (no gates, sprues, or runners in

Advantages and Disadvantages • ADVANTAGES • Little waste (no gates, sprues, or runners in many molds) • Lower tooling cost than injection molding • Good surface finish • Less damage to fibers • Process may be automated or hand-operated • Material flow is short, less chance of disturbing inserts, causing product stress, and/or eroding molds. • DISADVANTAGES • High initial capital investment • Labor intensive • Secondary operations maybe required • Long molding cycles may be needed.
