The QCD phase diagram Open questions: o Origin of mass? o Nature of confinement? o Role of condensates? o Lattice QCD Ø sign problem o Experiment Ø finite size and lifetime Courtesy of K. Fukushima & T. Hatsuda FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth May 17 -18, 2017 2

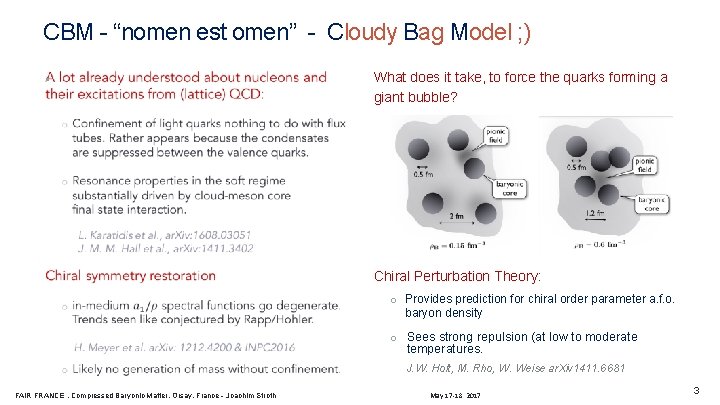

CBM - “nomen est omen” - Cloudy Bag Model ; ) • What does it take, to force the quarks forming a giant bubble? Chiral Perturbation Theory: o Provides prediction for chiral order parameter a. f. o. baryon density o Sees strong repulsion (at low to moderate temperatures. J. W. Holt, M. Rho, W. Weise ar. Xiv 1411. 6681 FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth May 17 -18, 2017 3

HADES contribution to the energy scan (+ FAIR Phase-0) VDM in radiative baryon-resonance decays π- p Regeneration of resonances! ρ γ* n “Thermal” production rates of strange hadrons. Higher moments of (net-)proton e-b-e multiplicity HADES preliminary FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth May 17 -18, 2017 4

Heavy-ion collisions at SIS 100 energies o Nearly complete stopping leads to baryon-rich matter in the overlap zone. 5 A Ge. V o Generally shorter lifetime and larger densities as beam energy goes from 1 to 10 A Ge. V. o Substantial ‘heating’ of the pion cloud. 10 A Ge. V I. C. Arsene et al. , Phys. Rev. C 75, 24902 (2007) FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth May 17 -18, 2017 5

Physics addressed by CBM The QCD Equation-of-State o o Collective behavior (flow) Multi-strange baryons Search for novel phases and 1 st order phase transition o o e-b-e observables (higher-moments) Excitation function of hadron multiplicities and virtual photons Path to restoration of chiral symmetry o High-precision invariant mass distributions low- and intermediate mass range Strange matter o o (Double-) lambda hyper-nuclei Meta-stable objects (e. g. strange di-baryons) Charm production (and propagation) at threshold o o Open-charm in pp, p. A Backward production in p. A (Rp. A) … and likely any new idea to come FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth May 17 -18, 2017 6

Virtual photons as diagnostic tool for the phase diagram Yield in low-mass window tracks fireball lifetime: CBM simulations Au+Au 20 A Ge. V o Measure excitation function of r spectral function. o Search for anomalous fireball lifetime around phase transition & CP. Intermediate mass slope: , o Measure Tslope (note, T slope < Tinitial) ”caloric curve” o Plateau around onset of deconfinement? (see e. g. M. D’Agostino et al. NPA 749 (2005) 5533) : If nature was kind! FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth May 17 -18, 2017 7

The CBM strategy … Modern CMOS camera. . . Galilei‘s telescope. . . and a picture you can take witht on any clear night‘s sky. . and his drawing of the moon. 8

…. [ CMOS in CBM ] …. CBM micro vertex detector (MVD) will use MAPS. o More than 10 years of joint R&D activity with Marc Winter’s group (ILC, STAR, ALICE, CBM). o Ø Ø Ø Background suppression for di-electron measurements Determination of secondary vertices of open charm decays (τ = 10 -12 -10 -13 s) Improved tracking for hyperon-ID FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth May 17 -18, 2017 9

… and the challenges. Ø needs extremely high rates and precision! high net-baryon densities AGS e+eμ+μ- FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth 10

The CBM strategy o o o o 105 - 107 Au+Au reactions/sec determination of displaced vertices (σ 50 m) identification of leptons and hadrons fast and radiation hard detectors and FEE free-streaming readout electronics high speed data acquisition and online event selection 4 -D event reconstruction

p+p, p+A A+A (low mult. ) Dipol Magnet Micro Vertex Detector Muon Detector DAQ/FLES HPC cluster Transition Radiation Detector Time of Flight Detector Projectile Spectator Detector Experimental requirements HADES Ring Silicon Imaging Tracking Cherenkov System

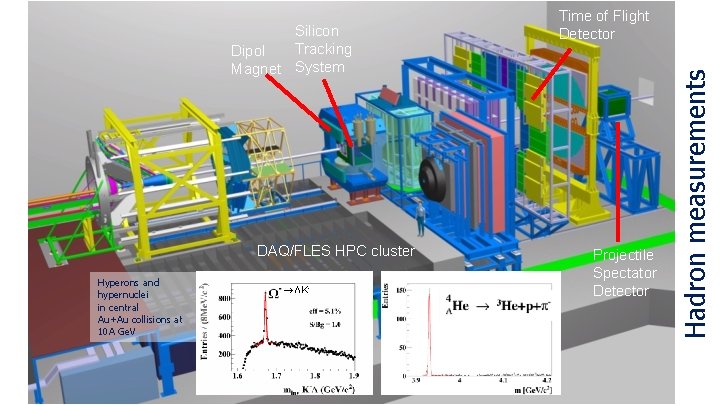

DAQ/FLES HPC cluster Hyperons and hypernuclei in central Au+Au collisions at 10 A Ge. V ΛK- Projectile Spectator Detector Hadron measurements Silicon Tracking Dipol Magnet System Time of Flight Detector

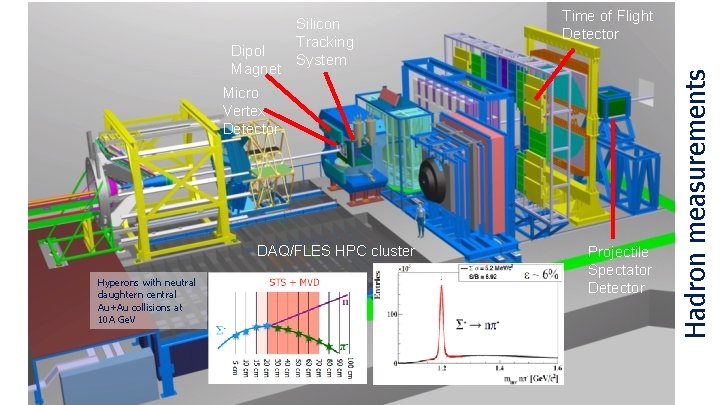

Time of Flight Detector Micro Vertex Detector DAQ/FLES HPC cluster Hyperons with neutral daughtern central Au+Au collisions at 10 A Ge. V Projectile Spectator Detector Hadron measurements Dipol Magnet Silicon Tracking System

Time of Flight Detector Micro Vertex Detector DAQ/FLES HPC cluster Open Charmn p+A 30 Ge. V and Ni+Ni 15 A Ge. V FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth Projectile Spectator Detector May 17 -18, 2017 Open charm measurements Silicon Tracking Dipol Magnet System 15

Transition Radiation Detector e+e. DAQ/FLES HPC cluster Dileptonsn central Au+Au collisions at 8 A Ge. V Time of Flight Detector Projectile Spectator Detector Di-electron measurements Silicon Tracking Ring Dipol Imaging Magnet System Cherenkov Micro Vertex Detector

Dipol Magnet Transition Radiation Detector Muon Detector DAQ/FLES HPC cluster Di-muonsn central Au+Au collisions at 8 A Ge. V and 10 A Ge. V (J/ψ) η ω Projectile Spectator Detector µ+µφ ρ Time of Flight Detector J/ψ µ+µ- Di-muon measurements Silicon Tracking System

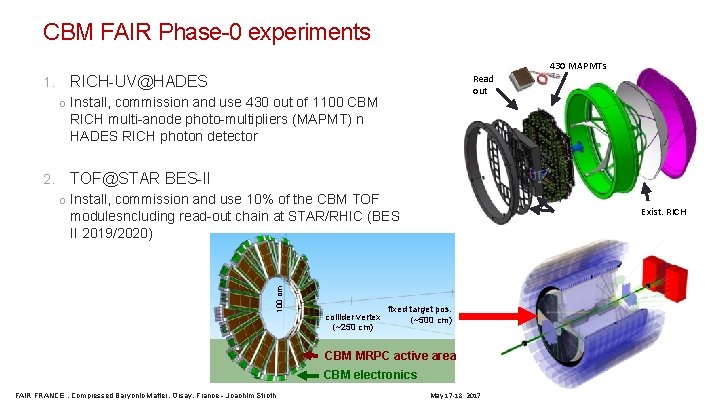

CBM FAIR Phase-0 experiments 1. Read out RICH-UV@HADES o Install, commission and use 430 out of 1100 CBM 430 MAPMTs RICH multi-anode photo-multipliers (MAPMT) n HADES RICH photon detector 2. TOF@STAR BES-II o Install, commission and use 10% of the CBM TOF Exist. RICH 100 cm modulesncluding read-out chain at STAR/RHIC (BES II 2019/2020) collider vertex (~250 cm) fixed target pos. (~500 cm) CBM MRPC active area CBM electronics FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth May 17 -18, 2017 18

CBM FAIR Phase-0 experiments 3. CBM AT JINR (BM@N) o Install, commission and use 4 Silicon tracking layers and the Project Spectator as forward detector Nuclotronn JINR/Dubna o (Au-beams up to 4. 5 A Ge. Vn 2018/19) 4. m. CBM at SIS 18 o Full system test with high-rate nucleus- nucleus collisions from 2017 – 2020 and no magnetic field, system test only o SIS 18 beams FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth May 17 -18, 2017 19

Upgrades until 2018 ECAL: Electromag. calorimeter replacing the pre-shower RICH-UV: MAPMT UV photon readout for the RICHn cooperation with CBM. STS: Forward straw trackers for exclusive reconstructionn cooperation with PANDA F-TOF: Time-of-flight behind the STS to provide momentum. MDC-FEE: Multi-hit high bandwidth driftchamber readout. DAQ-200 (2019) Readout with 200 k. Hz FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth May 17 -18, 2017 20

Mini-drift Chambers Upgrade Adapt the HADES tracking system to the expected intensities & occupancies at SIS 100 o Aging prevention: Inert gas mixture Ar/CO 2 o FEE upgrade: provide multi-hit TDC and increase bandwidth

HADES Program o Electromagnetic structure of baryonsn the time-like region o Strangenessn (baryonic, non-strange) resonances o Excitation spectrum of strange resonance SIS 18 o Microscopic structure of dense and hot matter o Signs for exotic properties of dense baryonic matter HADES High-rate, large acceptance spectrometer; Dileptons; Forward Detection System; EM calorimeter!

Next steps 2018 -2022 FAIR Phase-0 o Continuation of measurements with HADES o Contribution to the STAR BES-II (Emphasis on fixed target program) and BM@N o Start training First Level Event Selection at m. CBM in 2024 Start of CBM Operation o First SIS 100 beam on CBM Target o HADES at SIS 100 for reference measurements (mainly p. A) 2025 on Design Operation of FAIR FRANCE. Compressed Baryonic Matter, Orsay, France - Joachim Stroth May 17 -18, 2017 23
