Composite Shapes with Circular Parts T Madas T

A semicircle has a radius of 9 cm. • Calculate its area • Calculate

A quarter-circle has a radius of 16 cm. • Calculate its area • Calculate

Calculate the perimeter and area of the following composite shape. 4 cm P =

Calculate the perimeter and area of the following composite shape. A 2 4 cm

Calculate the perimeter & area of the grey region below. 6 cm © T

Calculate the perimeter & area of the grey region below. The perimeter of the

Calculate the perimeter & area of the grey region below. 6 cm The area

Calculate the perimeter & area of the following shape 10 cm 40 cm C

The figure below shows a pond made up of two squares and two identical

Calculate the perimeter & area of the following shape: 4 m 16 m The

Calculate the perimeter & area of the following shape: 7 cm 28 cm C

Find the area of the heart in terms of a Area of square: 2

Calculate in terms of π the area of the composite shape drawn below which

Find the area enclosed by the 4 circles in terms of a Area of

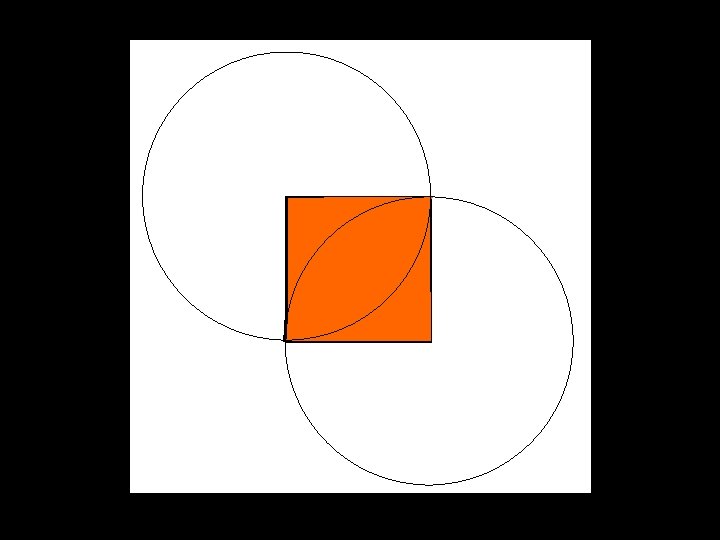

Find the exact area of the orange “petal” Billy wants a hint. . .

Find the exact area of the orange “petal” one of the blue regions: area

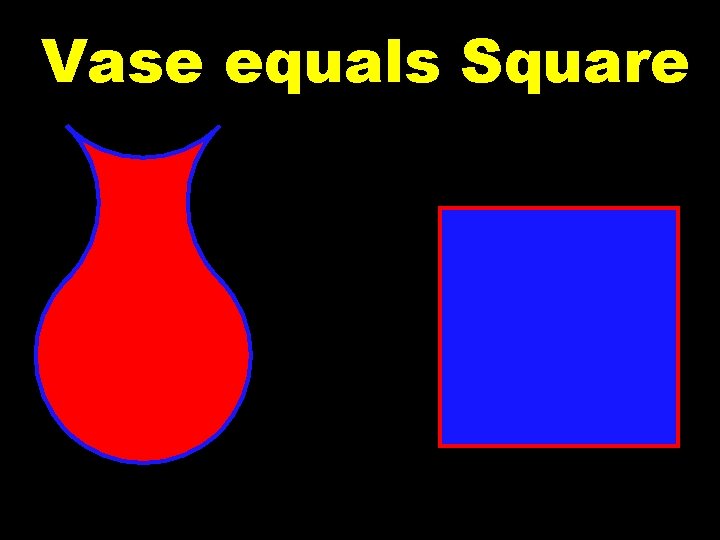

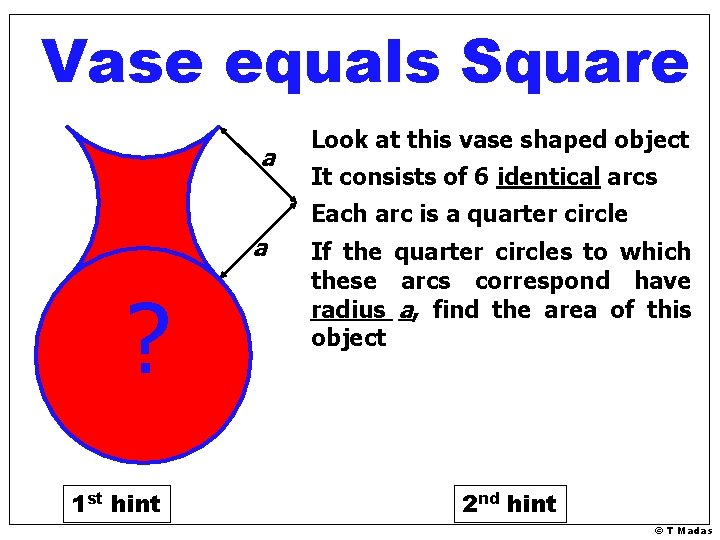

Vase equals Square a Look at this vase shaped object It consists of 6

Vase equals Square a a 1 st hint 2 nd hint © T Madas

The area of this object is equal to the area of the square on

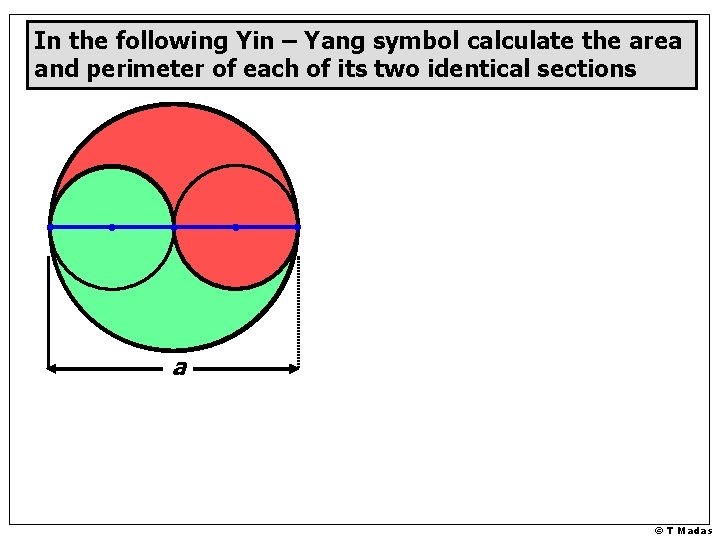

In the following Yin – Yang symbol calculate the area and perimeter of each

? Spiral Galaxies Comets Yin Yang Marbles © T Madas

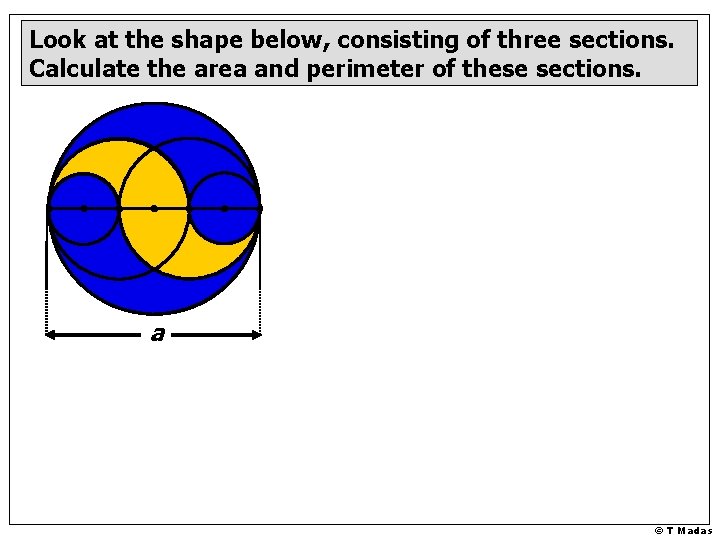

Look at the shape below, consisting of three sections. Calculate the area and perimeter

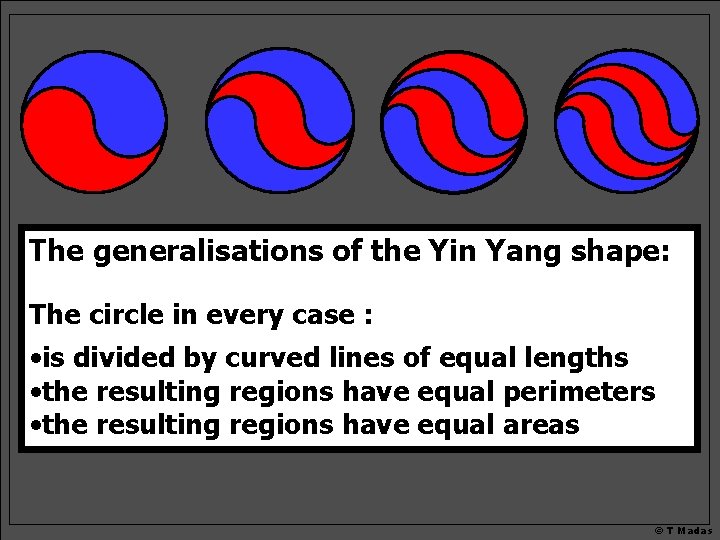

The generalisations of the Yin Yang shape: The circle in every case : •

Find the grey area enclosed by the 3 circles in terms of a a

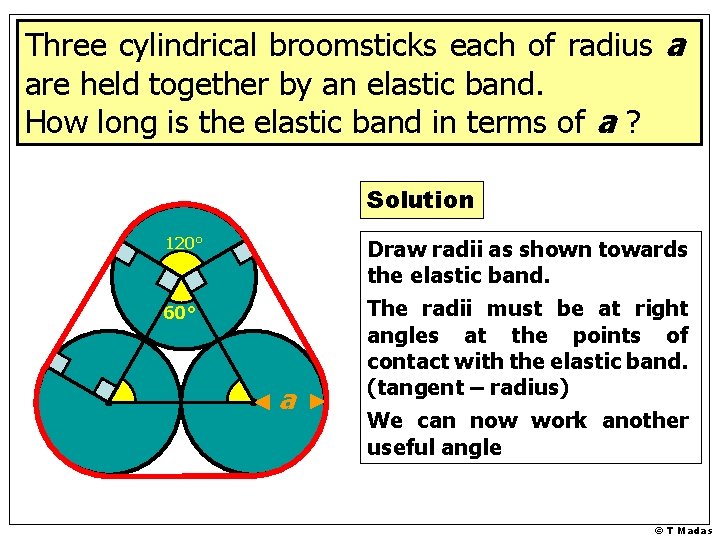

Three cylindrical broomsticks each of radius a are held together by an elastic band.

Three concentric circles have radii of 3, 4 and 5 units, as shown opposite.

D 2 1. 5 C Marcus has two circular railway lines, one with radius

D A circuit on the inner track: A circuit on the outer track: 2

Slides: 89

Download presentation

Composite Shapes with Circular Parts © T Madas

127 cm 2 9 cm A= π x r 2 A= π x 92 c c A semicircle has a radius of 9 cm. • Calculate its area • Calculate its perimeter A ≈ 254 cm 2 © T Madas

A semicircle has a radius of 9 cm. • Calculate its area • Calculate its perimeter 9 cm C= 2 x π x r C= 2 x π x 9 c c 28. 25 cm C ≈ 56. 5 cm P = 28. 25 + 18 = 46. 25 cm © T Madas

201 cm 2 A= π x r 2 16 cm A= π x 182 c c A quarter-circle has a radius of 16 cm. • Calculate its area • Calculate its perimeter A ≈ 804 cm 2 © T Madas

A quarter-circle has a radius of 16 cm. • Calculate its area • Calculate its perimeter 16 cm C= 2 x π x r C= 2 x π x 16 c c 25. 1 cm C ≈ 100. 53 cm P = 25. 1 + 16 = 57. 1 cm © T Madas

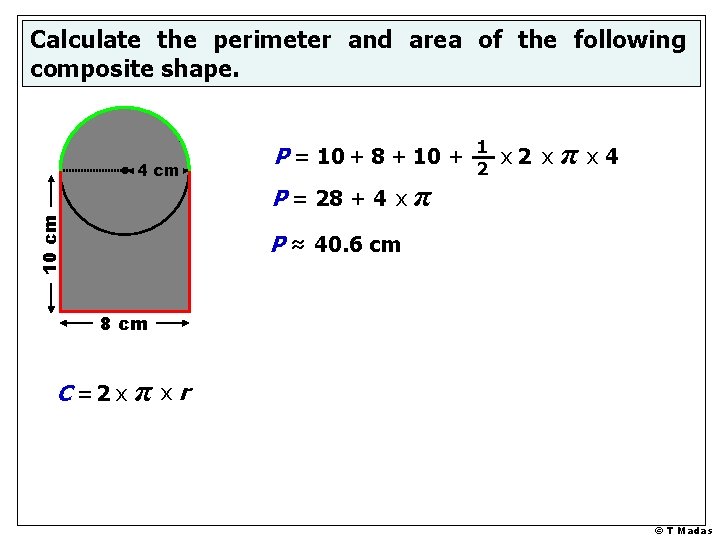

Calculate the perimeter and area of the following composite shape. 4 cm P = 10 + 8 + 10 cm P = 28 + 4 x π 1 2 x π x 4 P ≈ 40. 6 cm 8 cm C =2 x π xr © T Madas

Calculate the perimeter and area of the following composite shape. A 2 4 cm P = 10 + 8 + 10 cm P = 28 + 4 x A 1 8 cm C =2 x π xr π 1 2 x π x 4 P ≈ 40. 6 cm A = 10 x 8 + A = 80 + 8 x 1 2 x π x 42 π A ≈ 105 cm 2 A=π xr 2 © T Madas

Calculate the perimeter & area of the grey region below. 6 cm © T Madas

Calculate the perimeter & area of the grey region below. The perimeter of the grey area is equal to … … the circumference of a circle of radius … … 3 cm 6 cm C =2 x π xr P= 2 x π x 3 P ≈ 18. 8 cm A=π xr 2 © T Madas

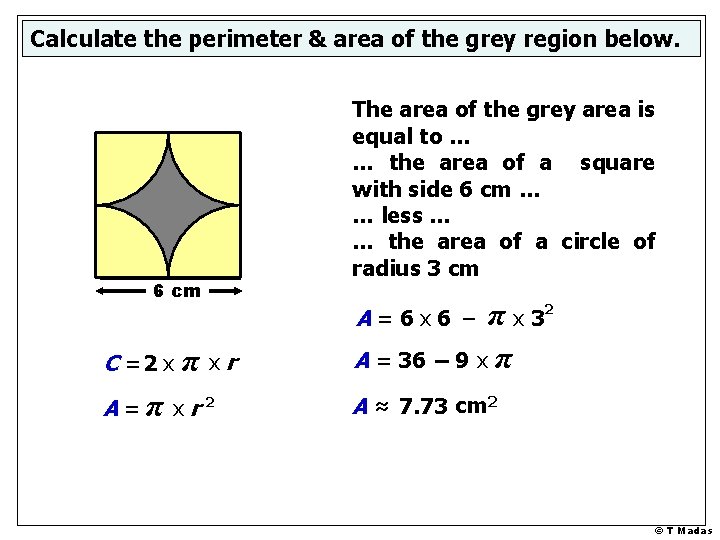

Calculate the perimeter & area of the grey region below. 6 cm The area of the grey area is equal to … … the area of a square with side 6 cm … … less … … the area of a circle of radius 3 cm π x 32 A = 36 – 9 x π A=6 x 6 – C =2 x π xr A=π xr 2 A ≈ 7. 73 cm 2 © T Madas
