CRD Innovation Compensators designed for Pipes For the Ship Owner Operational Advantages • Compensates for differential movement between hull and pipes: • Compensates for different coefficients of expansion: • Reduces noise and fatigue failure: Eliminates many “in service” failures For the Ship Builder Installation Advantages • Provides linear, angular and axial flexibility: • Delimits pipe run limitations: • Extends permissible dimensional tolerances: Speeds construction – Eliminates many budget overruns Classification Society Type Approvals for Marine and Offshore Use

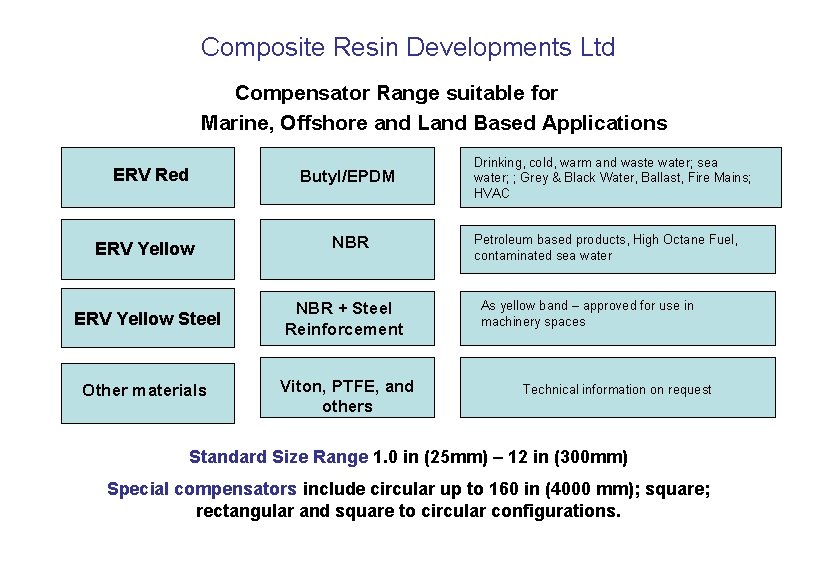

Composite Resin Developments Ltd Compensator Range suitable for Marine, Offshore and Land Based Applications ERVRed ERV Butyl/EPDM ERV Yellow NBR ERV Yellow Steel Other materials Other available NBR + Steel Reinforcement Viton, PTFE, and others Drinking, cold, warm and waste water; sea water; ; Grey & Black Water, Ballast, Fire Mains; HVAC Petroleum based products, High Octane Fuel, contaminated sea water As yellow band – approved for use in machinery spaces Technical information on request Standard Size Range 1. 0 in (25 mm) – 12 in (300 mm) Special compensators include circular up to 160 in (4000 mm); square; rectangular and square to circular configurations.

Composite Resin Developments Ltd Moulded Flanges Standards: ANSI; DIN; ISO, BS and JIS By Composite Resin Developments Limited Using Proven High Performance reinforced Isotropic Epoxy Resin Systems Outstanding Corrosion Resistance Significant Weight Savings Lower Costs

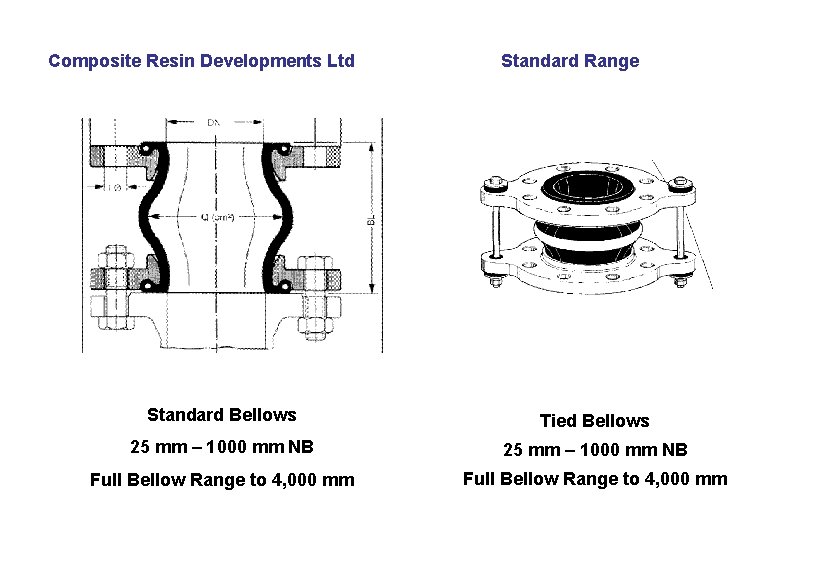

Composite Resin Developments Ltd Standard Range Standard Bellows Tied Bellows 25 mm – 1000 mm NB Full Bellow Range to 4, 000 mm

Composite Resin Developments Ltd Minimum Standard Range Maximum Lateral Offset Angular Rotation DN 25 -80 - 30 mm +/- 20 mm +/- 30° DN 100 -150 - 30 mm +/- 20° DN 200 -300 - 30 mm +/- 20 mm +/- 12° DN 350 -600 - 40 mm +35 mm +/- 20 mm +/- 8° - 40 mm +35 mm +/- 20 mm +/- 5° DN 700 -1000 Configurations are available to provide greater angular rotation if required.

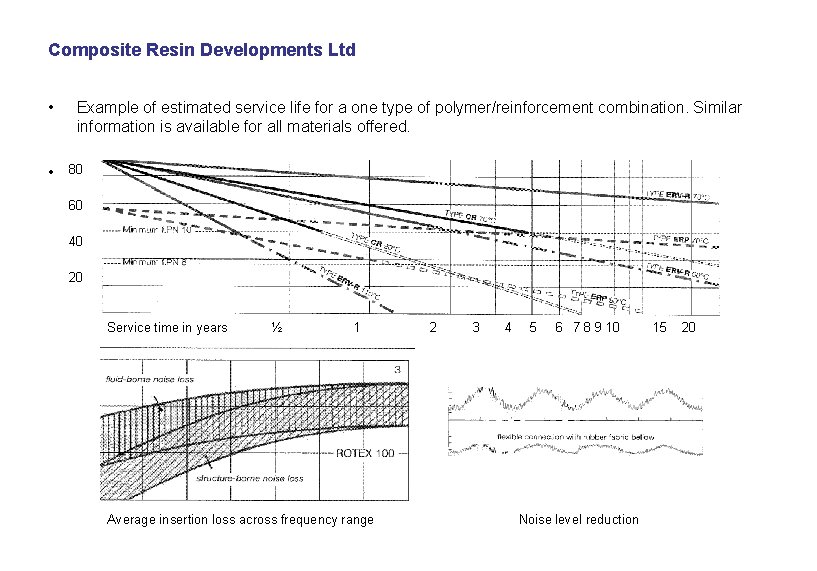

Composite Resin Developments Ltd • • Example of estimated service life for a one type of polymer/reinforcement combination. Similar information is available for all materials offered. 80 60 40 20 Service time in years ½ 1 Average insertion loss across frequency range 2 3 4 5 6 7 8 9 10 Noise level reduction 15 20

Composite Resin Developments Ltd Pipe Runs where required Cross Deck-head Compensator

Composite Resin Developments Ltd Special Developments Multi-arch compensators: For added linear; lateral offset and angular rotations. Composite Resin Developments Ltd Future Developments Stub Flanges for rapid pipe to flange connection

Composite Resin Developments Ltd Wherever corrosion resistance and weight savings at economic costs are issues The Components Division of Composite Resin Developments Limited can provide solutions – just contact Neil Huntley on +44. 1843. 223045 Unit J 1 G Channel Road, Westwood Industrial Estate Margate, CT 9 4 JS, England T; +44. 1843. 223045 e-mail: neil@compresdev. co. uk, Web: www. compresdev. co. uk
