Composant Le transformateur TS Sommaire Transformateur Symbole Notations
![Composant : Le transformateur TS Composant : Le transformateur TS](https://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-1.jpg)
Composant : Le transformateur TS
![Sommaire • • • Transformateur Symbole / Notations / Relations Transformateur parfait Réalisation / Sommaire • • • Transformateur Symbole / Notations / Relations Transformateur parfait Réalisation /](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-2.jpg)
Sommaire • • • Transformateur Symbole / Notations / Relations Transformateur parfait Réalisation / Imperfections Transformateur réel Différents transformateurs Transformateur d ’impulsions TS
![Symbole / Notations / Relations Bobine 1 U 2 U 1 Symbole Transformateur Bobine Symbole / Notations / Relations Bobine 1 U 2 U 1 Symbole Transformateur Bobine](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-3.jpg)

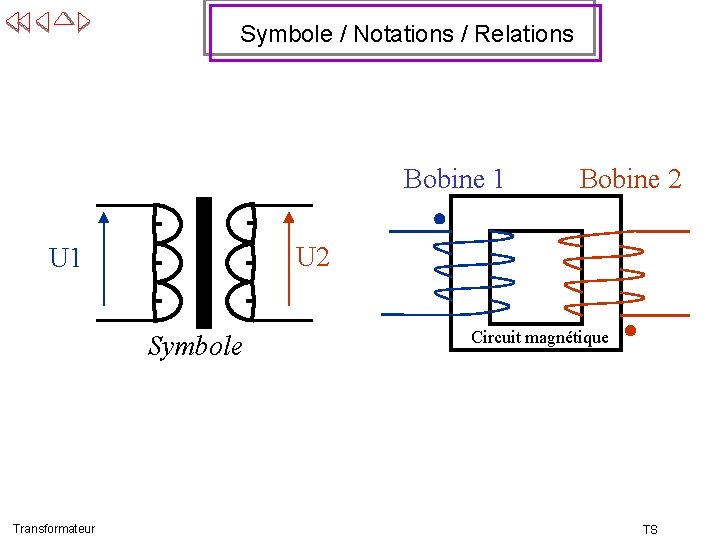

Symbole / Notations / Relations Bobine 1 U 2 U 1 Symbole Transformateur Bobine 2 Circuit magnétique TS
![Symbole / Notations / Relations 1 Transmission de puissance 2 Transformateur 1 2 TS Symbole / Notations / Relations 1 Transmission de puissance 2 Transformateur 1 2 TS](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-4.jpg)

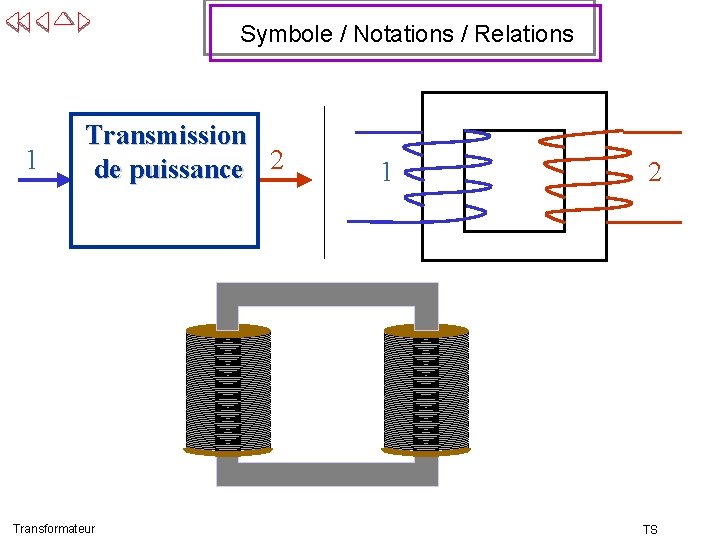

Symbole / Notations / Relations 1 Transmission de puissance 2 Transformateur 1 2 TS
![Symbole / Notations / Relations 1 Transmission de puissance 2 I 1 U 2 Symbole / Notations / Relations 1 Transmission de puissance 2 I 1 U 2](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-5.jpg)
Symbole / Notations / Relations 1 Transmission de puissance 2 I 1 U 2 U 1 I 2 1 : Puissance apparente d’entrée : P 1 = U 1 u 1(t) = U 1 i 1(t) = I 1 eff sin ( t+ )2) eff. I 12 eff sin ( t) u 2(t) = U 1 eff sin ( t+ 11)) i 2(t) = I 2 eff sin ( t+ 3)3) 2 : Puissance apparente de sortie : P 2 = U 2 1, 2, et 3 indiquant que les tensions et les courants ne sont pas eff. I 2 eff forcément en phase. : Flux induit dans le matériaux magnétique par les bobines Transformateur TS
![Symbole / Notations / Relations U 1 U 2 = N 1. d (t)/dt Symbole / Notations / Relations U 1 U 2 = N 1. d (t)/dt](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-6.jpg)

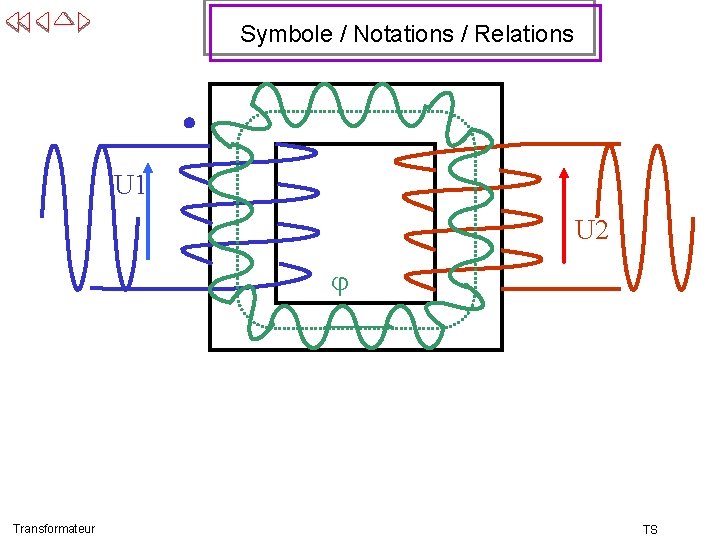

Symbole / Notations / Relations U 1 U 2 = N 1. d (t)/dt u 2(t) == e 2(t) == -- N 2. d (t)/dt Transformateur TS
![Symbole / Notations / Relations U 1 U 2 eff U 1 eff = Symbole / Notations / Relations U 1 U 2 eff U 1 eff =](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-7.jpg)

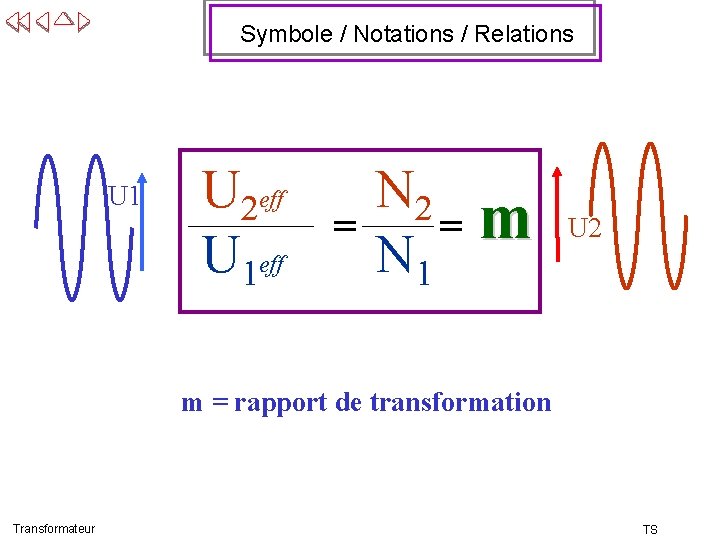

Symbole / Notations / Relations U 1 U 2 eff U 1 eff = N 2 =m N 1 U 2 m = rapport = N 1. d (t)/dtde transformation u 2(t) = e 2(t) = - N 2. d u 2(t) =(t)/dt e 2(t) = - N 2. d (t)/dt Transformateur TS
![Symbole / Notations / Relations U 1 I 2 I 1 eff = N Symbole / Notations / Relations U 1 I 2 I 1 eff = N](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-8.jpg)

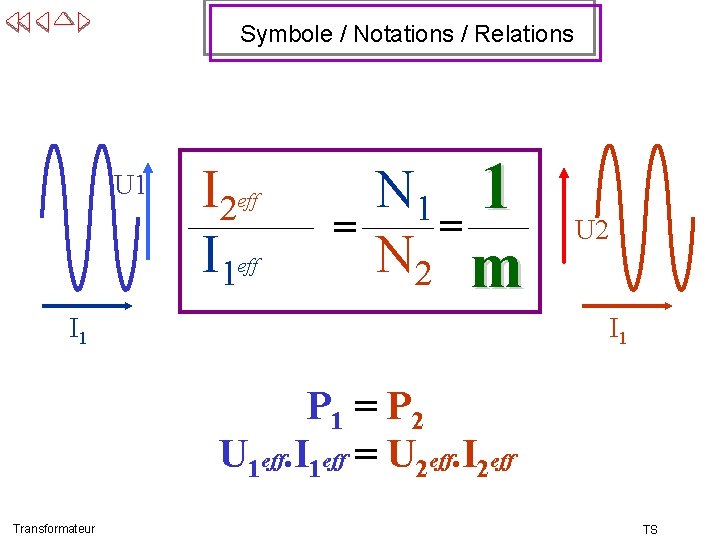

Symbole / Notations / Relations U 1 I 2 I 1 eff = N 1 1 = N 2 m I 1 U 2 I 1 P 1 = P 2 U 1 eff. I 1 eff = U 2 eff. I 2 eff Transformateur TS
![Transformateur parfait Relations parfait Transformateur TS Transformateur parfait Relations parfait Transformateur TS](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-9.jpg)
Transformateur parfait Relations parfait Transformateur TS
![Transformateur parfait U 1 U 2 I 1 Transformateur N 2 = N 1 Transformateur parfait U 1 U 2 I 1 Transformateur N 2 = N 1](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-10.jpg)
Transformateur parfait U 1 U 2 I 1 Transformateur N 2 = N 1 I 1 eff = I 2 eff U 1 eff = U 2 eff I 2 TS
![Transformateur parfait U 1 U 2 I 1 Transformateur N 2 = 2. N Transformateur parfait U 1 U 2 I 1 Transformateur N 2 = 2. N](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-11.jpg)
Transformateur parfait U 1 U 2 I 1 Transformateur N 2 = 2. N 1 U 2 eff = 2. U 1 eff I 1 eff = 2. I 2 eff I 2 TS
![Transformateur réel e 1 Transformateur Ls Rs Lp Rp U 2 U 1 e Transformateur réel e 1 Transformateur Ls Rs Lp Rp U 2 U 1 e](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-12.jpg)

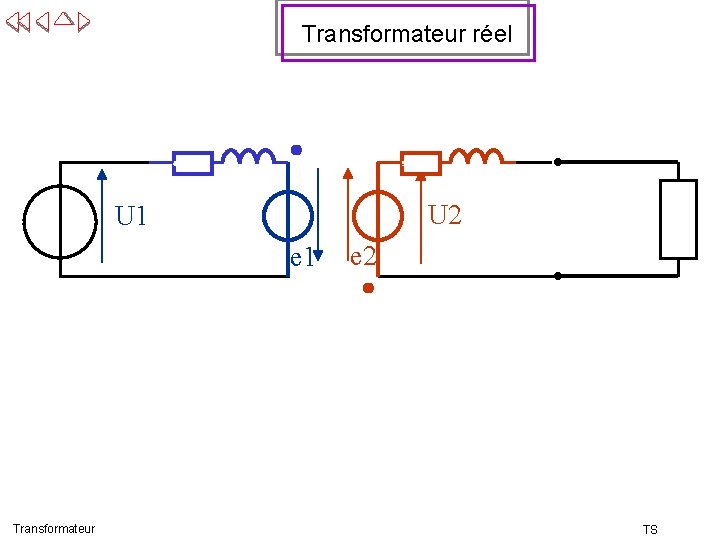

Transformateur réel e 1 Transformateur Ls Rs Lp Rp U 2 U 1 e 2 TS
![Transformateur réel Perte en puissance : Par effet Joule: Ls Rs Lp Rp U Transformateur réel Perte en puissance : Par effet Joule: Ls Rs Lp Rp U](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-13.jpg)

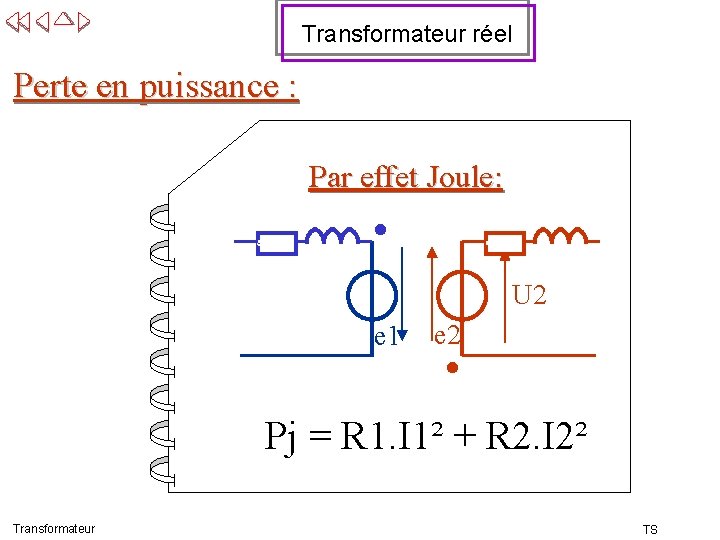

Transformateur réel Perte en puissance : Par effet Joule: Ls Rs Lp Rp U 2 e 1 e 2 Pj = R 1. I 1² + R 2. I 2² Transformateur TS
![Transformateur réel Perte en puissance : Dans le fer Par effet Joule: e 1 Transformateur réel Perte en puissance : Dans le fer Par effet Joule: e 1](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-14.jpg)

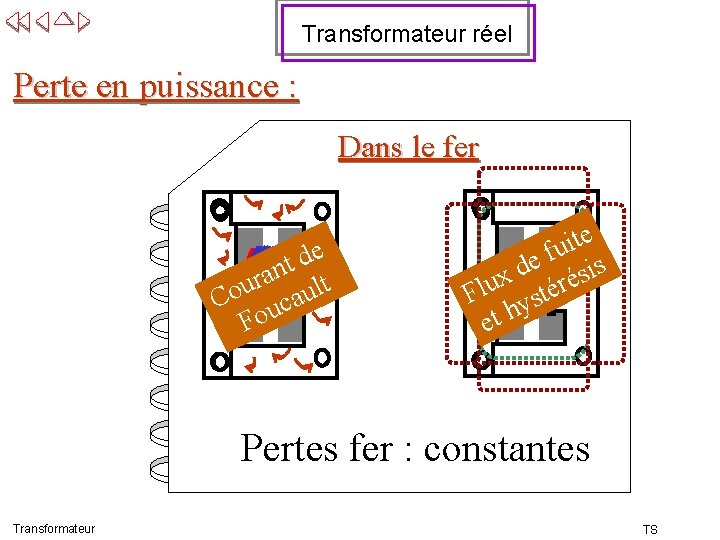

Transformateur réel Perte en puissance : Dans le fer Par effet Joule: e 1 Ls te i u f s e d ési x ér t Flu U 2 s y h t e 2 e Rs Lp Rp e d t n a lt r u Co ucau Fo Pj = R 1. I 1² + R 2. I 2² Pertes fer : constantes Transformateur TS
![Transformateur réel P 2 P 1 Pj Pf P 2 = P 2 + Transformateur réel P 2 P 1 Pj Pf P 2 = P 2 +](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-15.jpg)

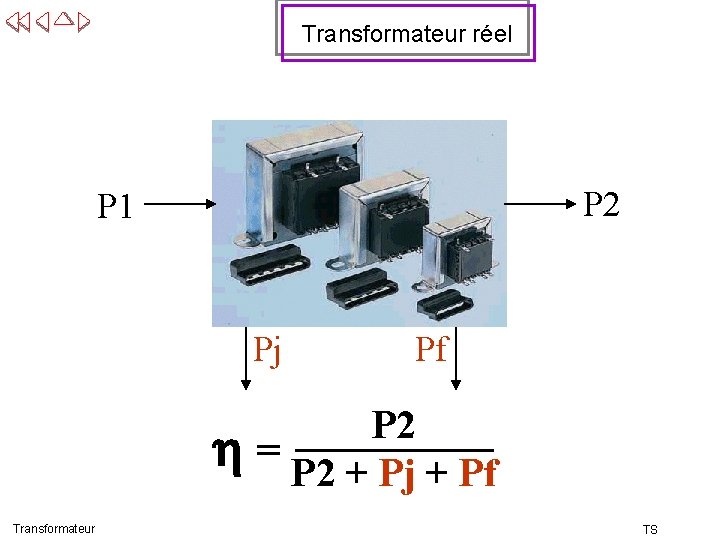

Transformateur réel P 2 P 1 Pj Pf P 2 = P 2 + Pj + Pf Transformateur TS
![Différents transformateurs Transformateur TS Différents transformateurs Transformateur TS](http://slidetodoc.com/presentation_image_h/738b272b2807749f65c4c5bc760963b4/image-16.jpg)

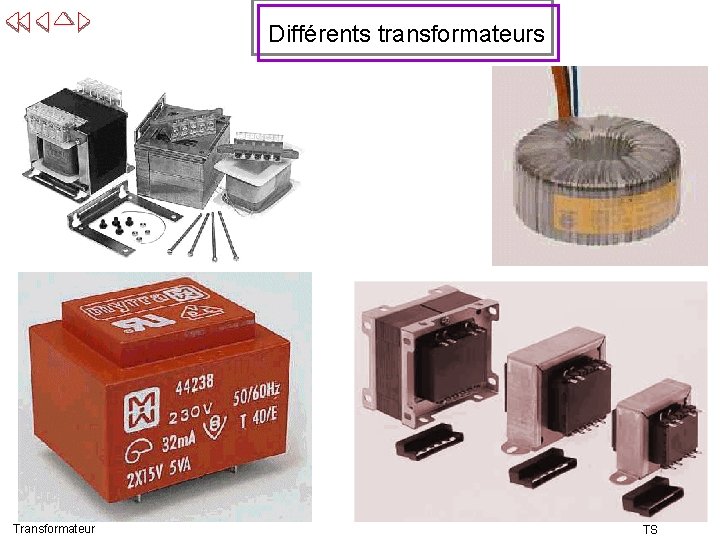

Différents transformateurs Transformateur TS
