Components of Computer Made by Polly Ho F

Components of Computer Made by: Polly Ho – F 1

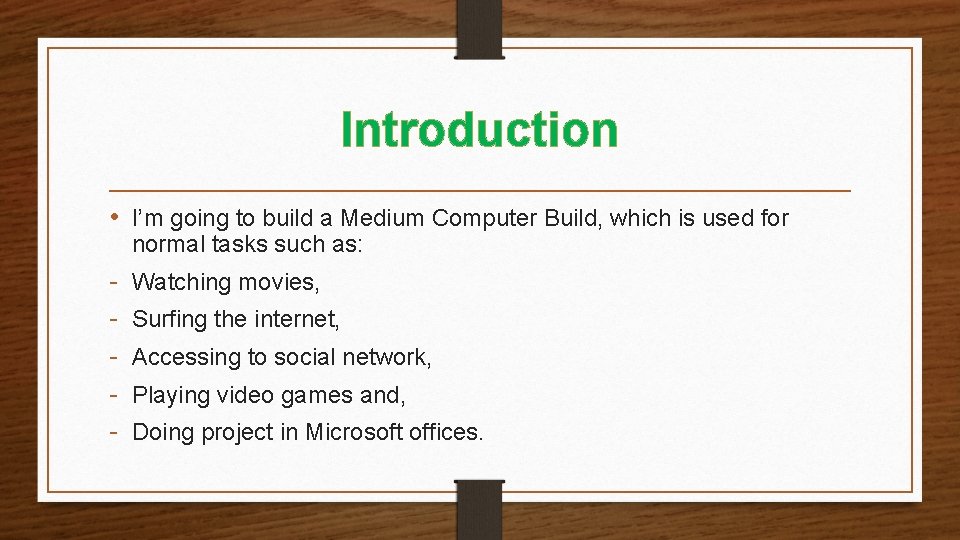

Introduction • I’m going to build a Medium Computer Build, which is used for normal tasks such as: - Watching movies, Surfing the internet, Accessing to social network, Playing video games and, Doing project in Microsoft offices.

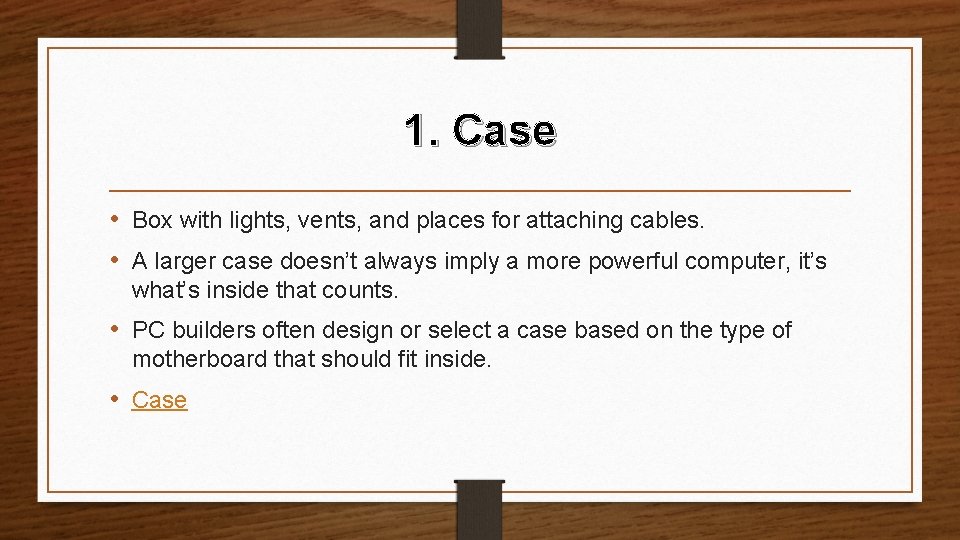

1. Case • Box with lights, vents, and places for attaching cables. • A larger case doesn’t always imply a more powerful computer, it’s what’s inside that counts. • PC builders often design or select a case based on the type of motherboard that should fit inside. • Case

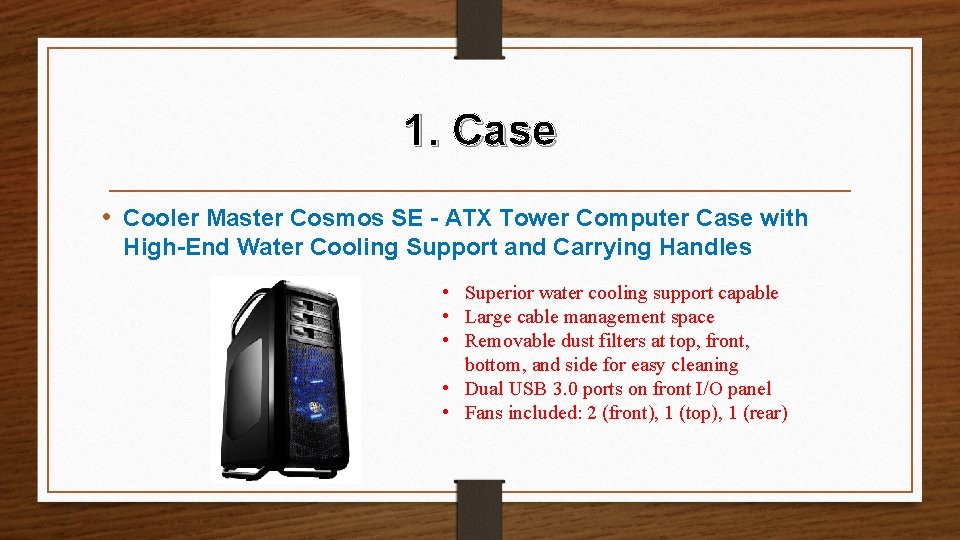

1. Case • Cooler Master Cosmos SE - ATX Tower Computer Case with High-End Water Cooling Support and Carrying Handles • Superior water cooling support capable • Large cable management space • Removable dust filters at top, front, bottom, and side for easy cleaning • Dual USB 3. 0 ports on front I/O panel • Fans included: 2 (front), 1 (top), 1 (rear)

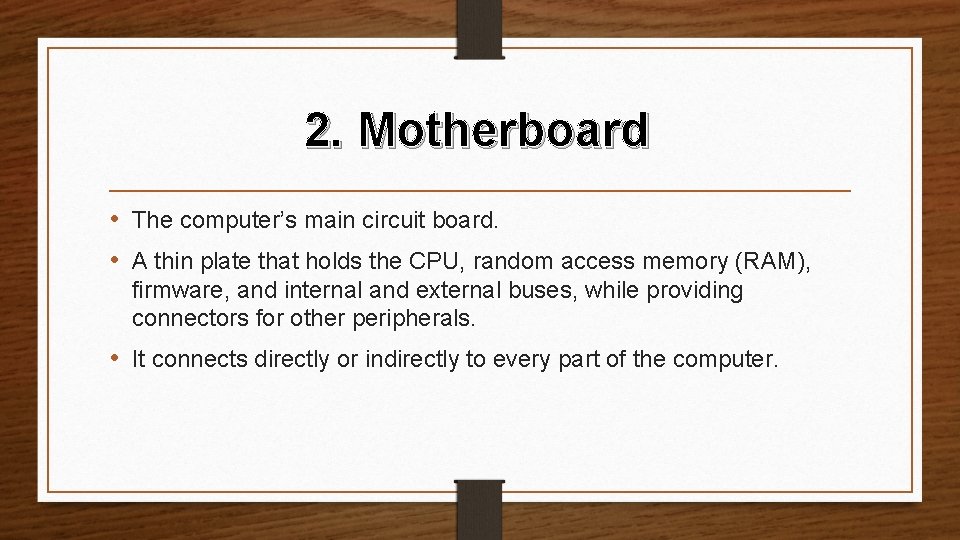

2. Motherboard • The computer’s main circuit board. • A thin plate that holds the CPU, random access memory (RAM), firmware, and internal and external buses, while providing connectors for other peripherals. • It connects directly or indirectly to every part of the computer.

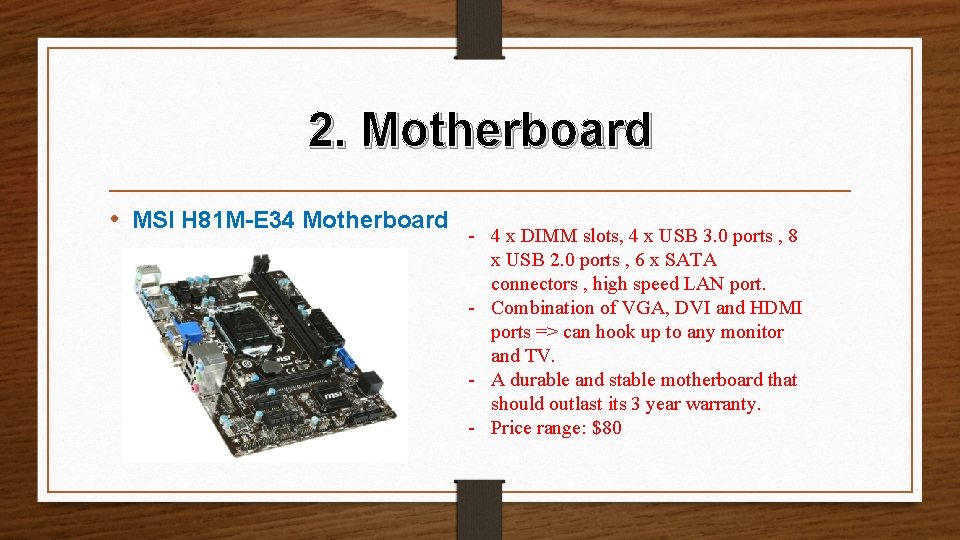

2. Motherboard • MSI H 81 M-E 34 Motherboard - 4 x DIMM slots, 4 x USB 3. 0 ports , 8 x USB 2. 0 ports , 6 x SATA connectors , high speed LAN port. - Combination of VGA, DVI and HDMI ports => can hook up to any monitor and TV. - A durable and stable motherboard that should outlast its 3 year warranty. - Price range: $80

3. Central processing unit (CPU) • Located inside the computer case on the motherboard. • It is the brain of the computer since its job is to execute computer programs. • It is a two-inch ceramic square with a silicon chip located inside. • It fits into the motherboard’s CPU socket, covered by the heat sink.

3. Central processing unit (CPU) • Intel Core i 7 -4770 Quad-Core Desktop Processor 3. 4 GHZ LGA 1150 8 MB Cache BX 80646 I 74770 • Excellent power efficiency, with cooler, quieter-running systems that consume less energy. • Built-in security helps keep data safe and protected 24/7 • Great visual performance

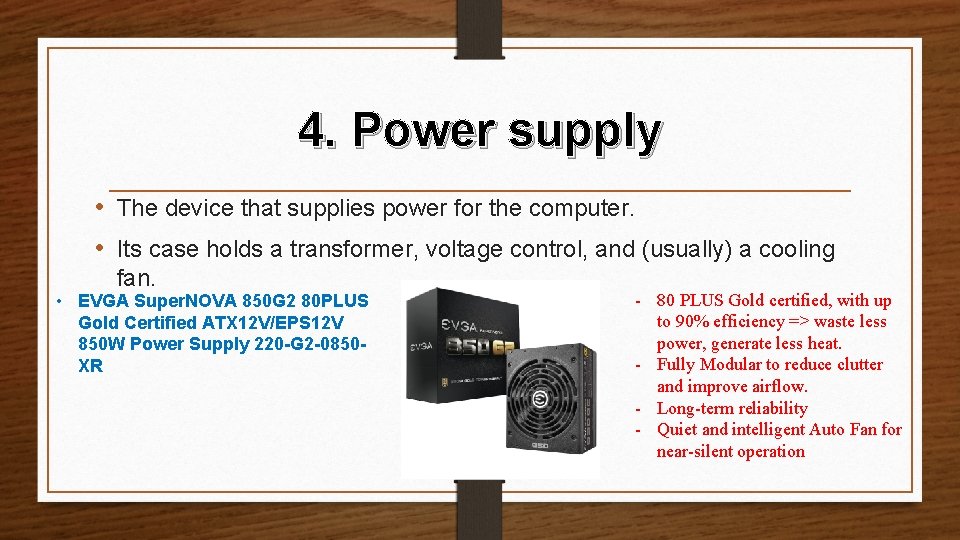

4. Power supply • The device that supplies power for the computer. • Its case holds a transformer, voltage control, and (usually) a cooling fan. • EVGA Super. NOVA 850 G 2 80 PLUS Gold Certified ATX 12 V/EPS 12 V 850 W Power Supply 220 -G 2 -0850 XR - 80 PLUS Gold certified, with up to 90% efficiency => waste less power, generate less heat. - Fully Modular to reduce clutter and improve airflow. - Long-term reliability - Quiet and intelligent Auto Fan for near-silent operation

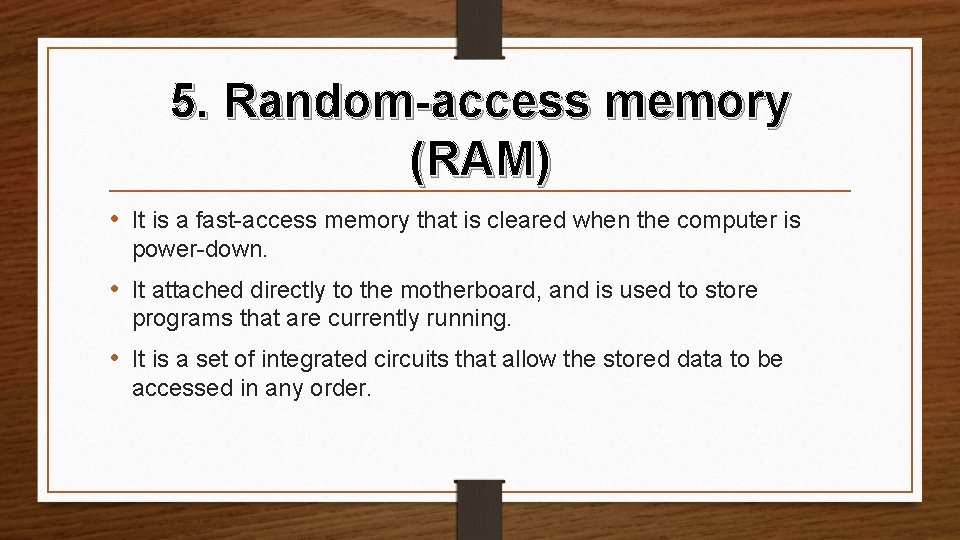

5. Random-access memory (RAM) • It is a fast-access memory that is cleared when the computer is power-down. • It attached directly to the motherboard, and is used to store programs that are currently running. • It is a set of integrated circuits that allow the stored data to be accessed in any order.

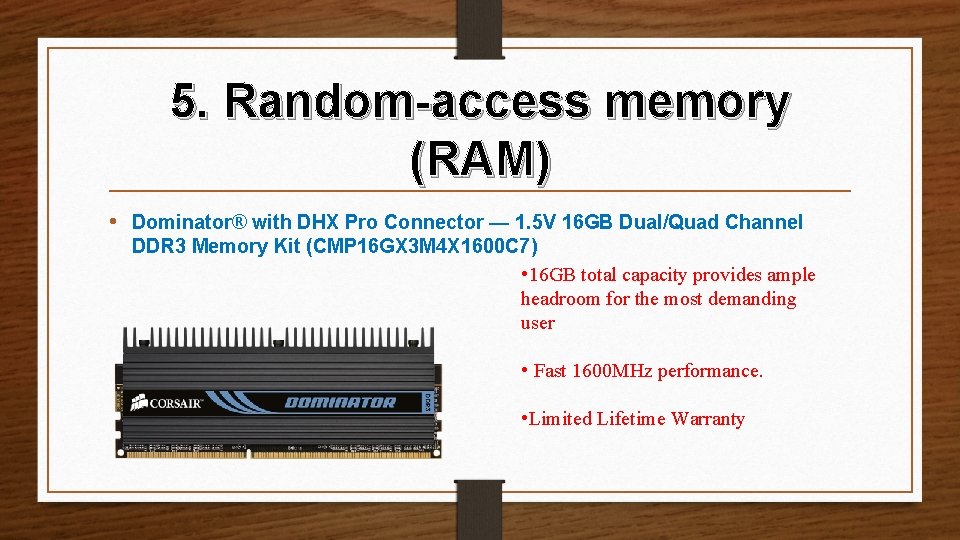

5. Random-access memory (RAM) • Dominator® with DHX Pro Connector — 1. 5 V 16 GB Dual/Quad Channel DDR 3 Memory Kit (CMP 16 GX 3 M 4 X 1600 C 7) • 16 GB total capacity provides ample headroom for the most demanding user • Fast 1600 MHz performance. • Limited Lifetime Warranty

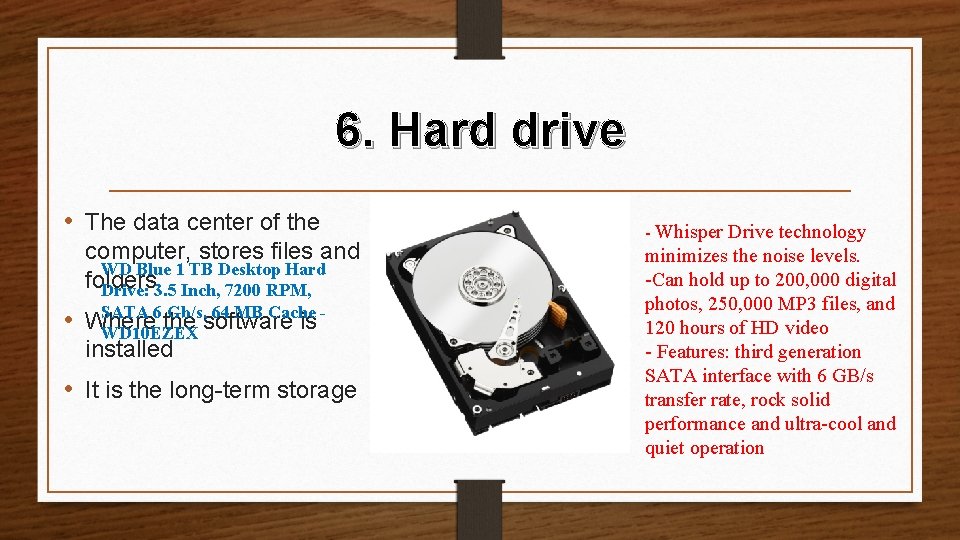

6. Hard drive • The data center of the computer, stores files and WD Blue 1 TB Desktop Hard folders Drive: 3. 5 Inch, 7200 RPM, SATA 6 Gb/s, 64 MB Cache • Where the software is WD 10 EZEX installed • It is the long-term storage - Whisper Drive technology minimizes the noise levels. -Can hold up to 200, 000 digital photos, 250, 000 MP 3 files, and 120 hours of HD video - Features: third generation SATA interface with 6 GB/s transfer rate, rock solid performance and ultra-cool and quiet operation

7. Cooling devices Performer • Thermaltake If a CPU isn’t. Water cooled 2. 0 properly, it can cause damage to its components and circuitry; fans are used to cool the PC. • The CPUperformance is covered by a heat sink, which draws heat away from - Good - CPU. Easy to install the - Cheap price - It’s a water-cooling device => more efficient

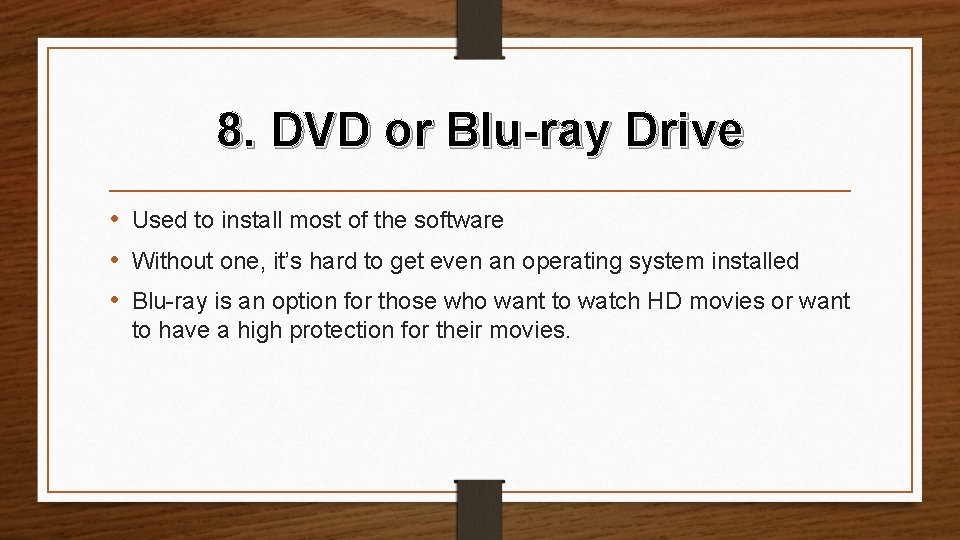

8. DVD or Blu-ray Drive • Used to install most of the software • Without one, it’s hard to get even an operating system installed • Blu-ray is an option for those who want to watch HD movies or want to have a high protection for their movies.

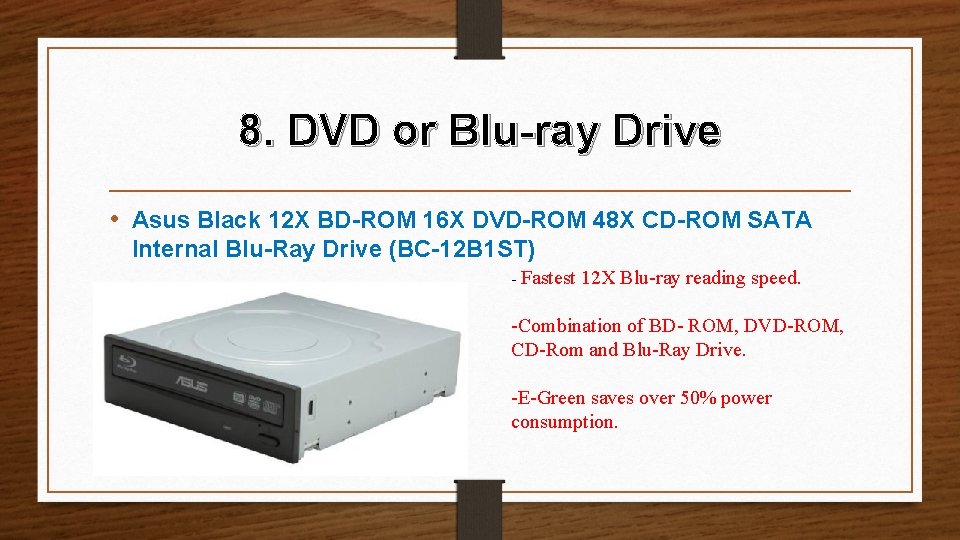

8. DVD or Blu-ray Drive • Asus Black 12 X BD-ROM 16 X DVD-ROM 48 X CD-ROM SATA Internal Blu-Ray Drive (BC-12 B 1 ST) - Fastest 12 X Blu-ray reading speed. -Combination of BD- ROM, DVD-ROM, CD-Rom and Blu-Ray Drive. -E-Green saves over 50% power consumption.

9. Expansion cards ASUS GT 610 -SL-1 GD 3 -L Silentand 1 GB DDR 3 images to a • Video card (graphic card): Generate output display Low Profile Graphics Card • Sound card: Facilitates the input andheatoutput of without audioany signals • Dissipates efficiently noise to/from a computer under control of computer program. • Results in a 15 % performance increase, 2. 5 times longer product lifespan and 350 C cooler operation • Price range: $50

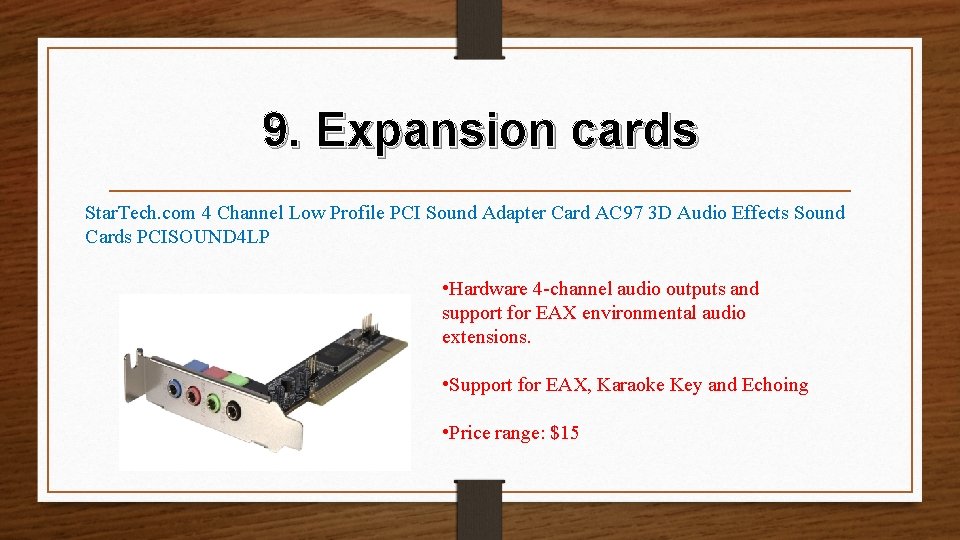

9. Expansion cards Star. Tech. com 4 Channel Low Profile PCI Sound Adapter Card AC 97 3 D Audio Effects Sound Cards PCISOUND 4 LP • Hardware 4 -channel audio outputs and support for EAX environmental audio extensions. • Support for EAX, Karaoke Key and Echoing • Price range: $15

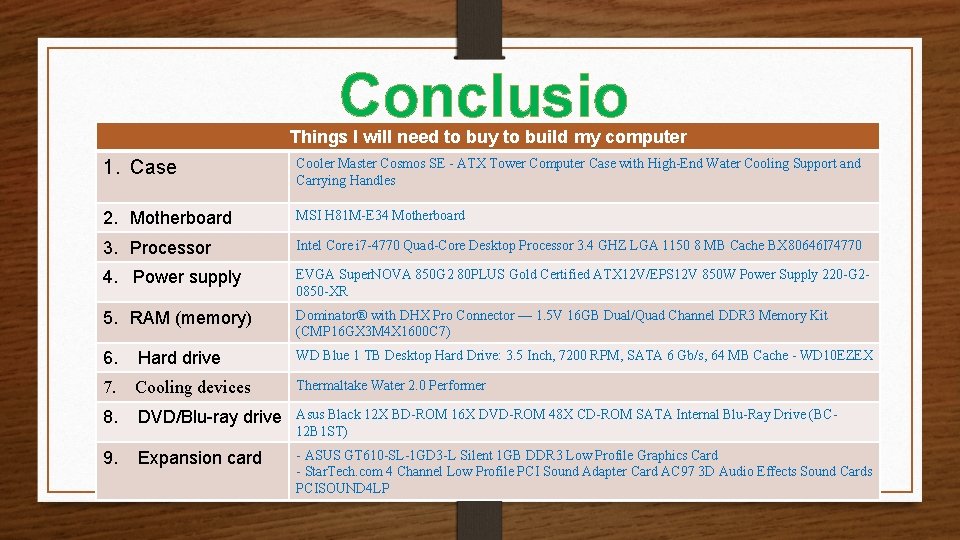

Conclusio n Things I will need to buy to build my computer 1. Case Cooler Master Cosmos SE - ATX Tower Computer Case with High-End Water Cooling Support and Carrying Handles 2. Motherboard MSI H 81 M-E 34 Motherboard 3. Processor Intel Core i 7 -4770 Quad-Core Desktop Processor 3. 4 GHZ LGA 1150 8 MB Cache BX 80646 I 74770 4. Power supply EVGA Super. NOVA 850 G 2 80 PLUS Gold Certified ATX 12 V/EPS 12 V 850 W Power Supply 220 -G 20850 -XR 5. RAM (memory) Dominator® with DHX Pro Connector — 1. 5 V 16 GB Dual/Quad Channel DDR 3 Memory Kit (CMP 16 GX 3 M 4 X 1600 C 7) 6. Hard drive WD Blue 1 TB Desktop Hard Drive: 3. 5 Inch, 7200 RPM, SATA 6 Gb/s, 64 MB Cache - WD 10 EZEX 7. Cooling devices Thermaltake Water 2. 0 Performer 8. DVD/Blu-ray drive Asus Black 12 X BD-ROM 16 X DVD-ROM 48 X CD-ROM SATA Internal Blu-Ray Drive (BC 12 B 1 ST) 9. Expansion card - ASUS GT 610 -SL-1 GD 3 -L Silent 1 GB DDR 3 Low Profile Graphics Card - Star. Tech. com 4 Channel Low Profile PCI Sound Adapter Card AC 97 3 D Audio Effects Sound Cards PCISOUND 4 LP

Thanks for your attention

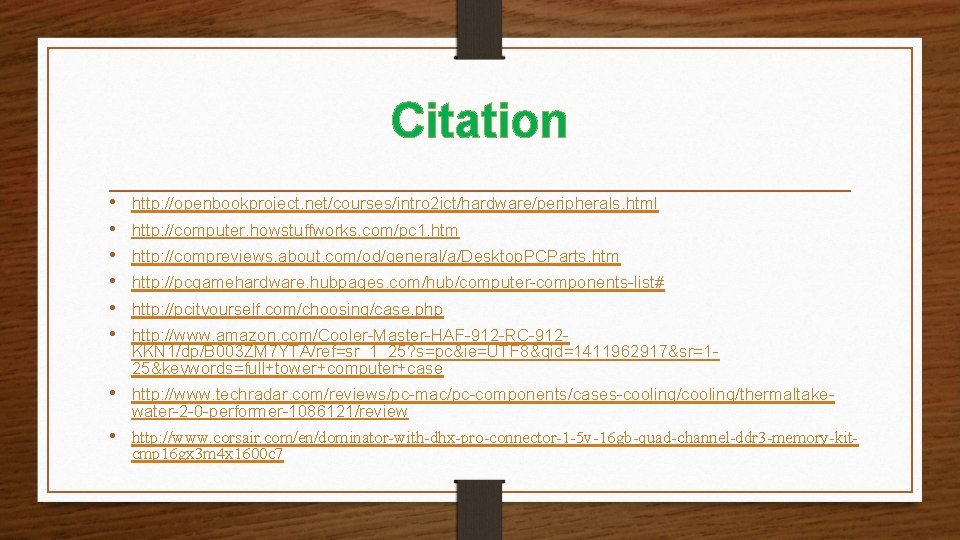

Citation • • • http: //openbookproject. net/courses/intro 2 ict/hardware/peripherals. html http: //computer. howstuffworks. com/pc 1. htm http: //compreviews. about. com/od/general/a/Desktop. PCParts. htm http: //pcgamehardware. hubpages. com/hub/computer-components-list# http: //pcityourself. com/choosing/case. php http: //www. amazon. com/Cooler-Master-HAF-912 -RC-912 KKN 1/dp/B 003 ZM 7 YTA/ref=sr_1_25? s=pc&ie=UTF 8&qid=1411962917&sr=125&keywords=full+tower+computer+case • http: //www. techradar. com/reviews/pc-mac/pc-components/cases-cooling/thermaltakewater-2 -0 -performer-1086121/review • http: //www. corsair. com/en/dominator-with-dhx-pro-connector-1 -5 v-16 gb-quad-channel-ddr 3 -memory-kitcmp 16 gx 3 m 4 x 1600 c 7

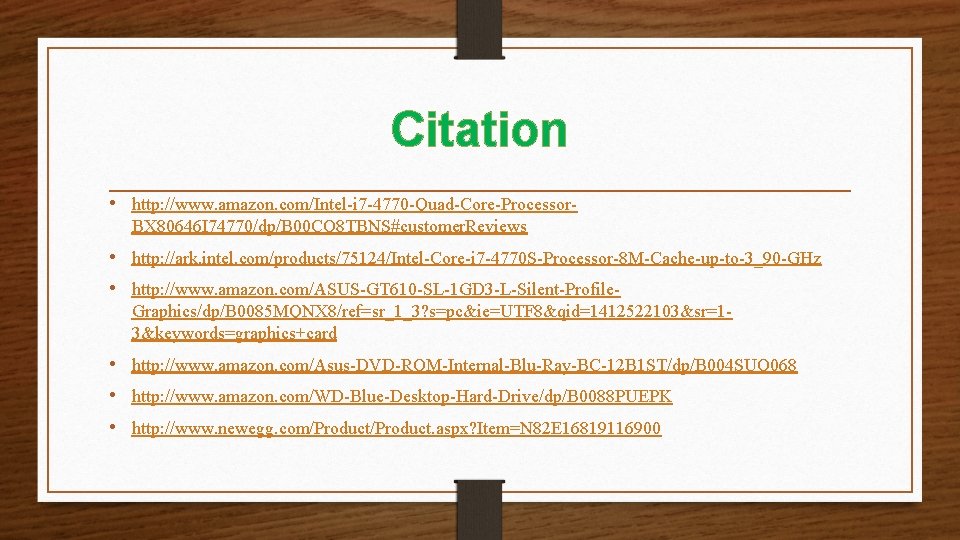

Citation • http: //www. amazon. com/Intel-i 7 -4770 -Quad-Core-Processor. BX 80646 I 74770/dp/B 00 CO 8 TBNS#customer. Reviews • http: //ark. intel. com/products/75124/Intel-Core-i 7 -4770 S-Processor-8 M-Cache-up-to-3_90 -GHz • http: //www. amazon. com/ASUS-GT 610 -SL-1 GD 3 -L-Silent-Profile. Graphics/dp/B 0085 MQNX 8/ref=sr_1_3? s=pc&ie=UTF 8&qid=1412522103&sr=13&keywords=graphics+card • http: //www. amazon. com/Asus-DVD-ROM-Internal-Blu-Ray-BC-12 B 1 ST/dp/B 004 SUO 068 • http: //www. amazon. com/WD-Blue-Desktop-Hard-Drive/dp/B 0088 PUEPK • http: //www. newegg. com/Product. aspx? Item=N 82 E 16819116900
