Complicated HTML Tables That Conform to the Section 508 Standards AND Work with Assistive Technology: Design Strategies that Work

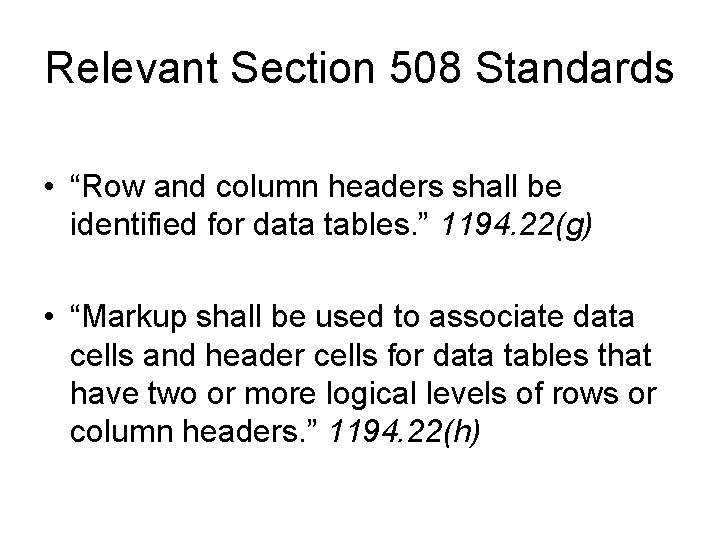

Relevant Section 508 Standards • “Row and column headers shall be identified for data tables. ” 1194. 22(g) • “Markup shall be used to associate data cells and header cells for data tables that have two or more logical levels of rows or column headers. ” 1194. 22(h)

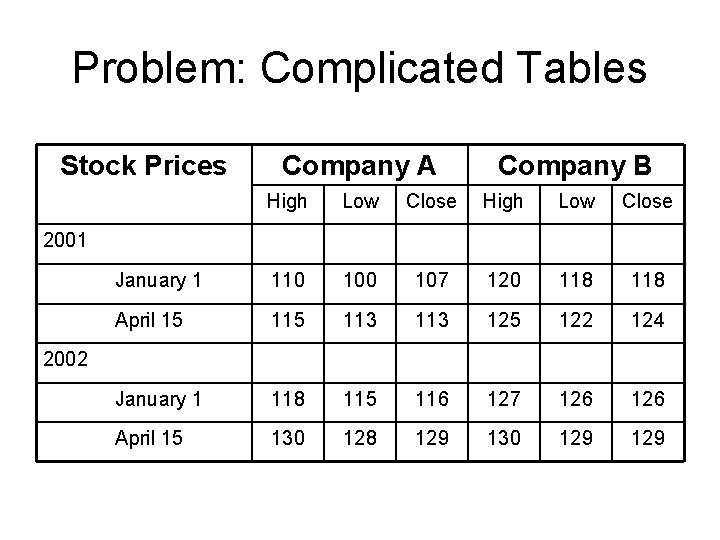

Problem: Complicated Tables Stock Prices Company A Company B High Low Close January 1 110 107 120 118 April 15 113 125 122 124 January 1 118 115 116 127 126 April 15 130 128 129 130 129 2001 2002

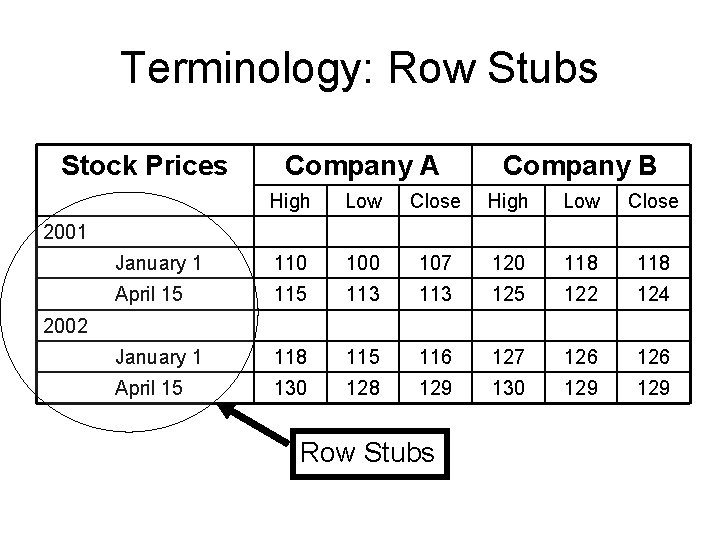

Terminology: Row Stubs Stock Prices Company A Company B High Low Close January 1 110 107 120 118 April 15 113 125 122 124 January 1 118 115 116 127 126 April 15 130 128 129 130 129 2001 2002 Row Stubs

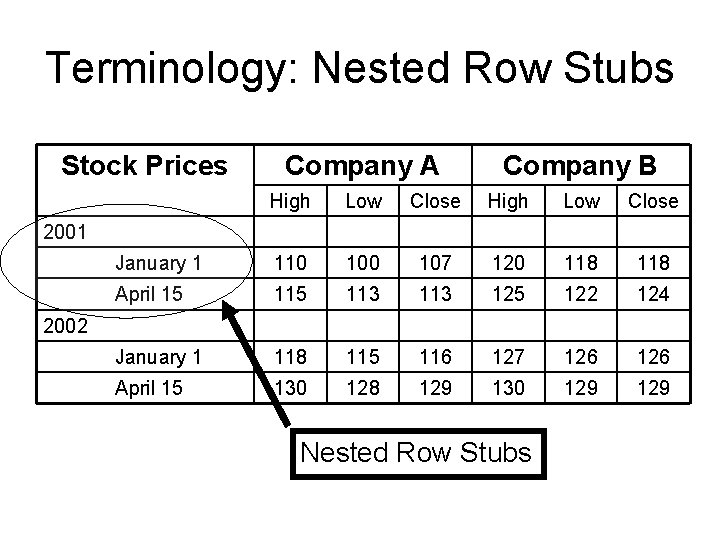

Terminology: Nested Row Stubs Stock Prices Company A Company B High Low Close January 1 110 107 120 118 April 15 113 125 122 124 January 1 118 115 116 127 126 April 15 130 128 129 130 129 2001 2002 Nested Row Stubs

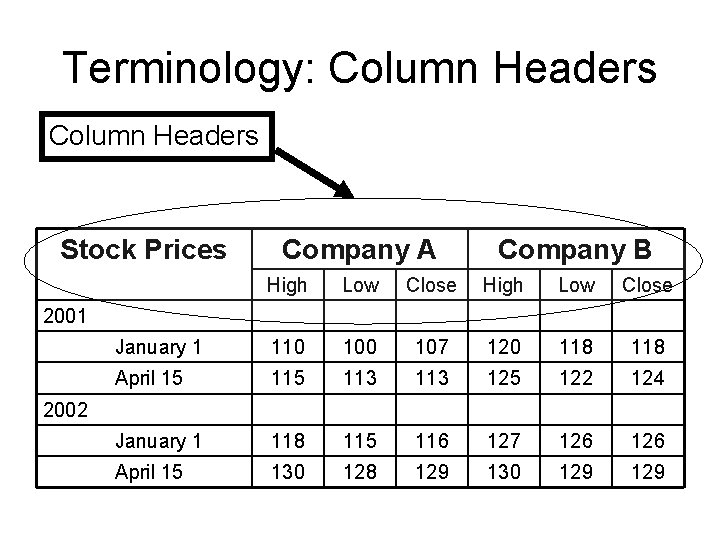

Terminology: Column Headers Stock Prices Company A Company B High Low Close January 1 110 107 120 118 April 15 113 125 122 124 January 1 118 115 116 127 126 April 15 130 128 129 130 129 2001 2002

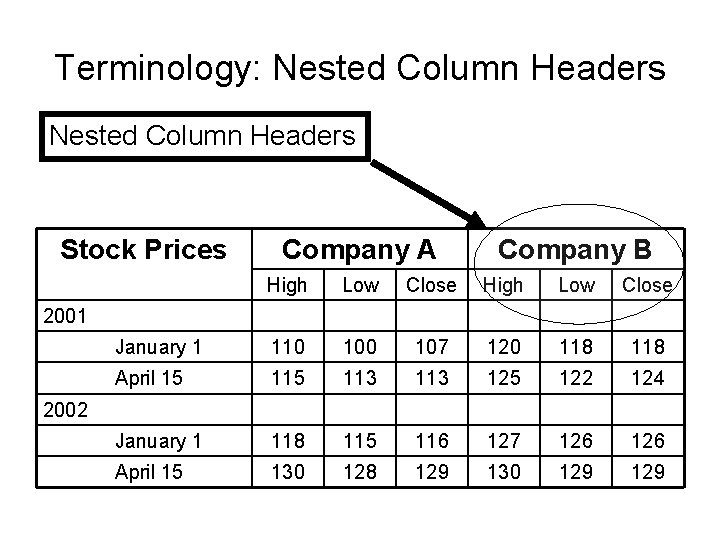

Terminology: Nested Column Headers Stock Prices Company A Company B High Low Close January 1 110 107 120 118 April 15 113 125 122 124 January 1 118 115 116 127 126 April 15 130 128 129 130 129 2001 2002

Terminology: “Diagonal Lookup” Stock Prices Company A Company B High Low Close January 1 110 107 120 118 April 15 113 125 122 124 January 1 118 115 116 127 126 April 15 130 128 129 130 129 2001 2002

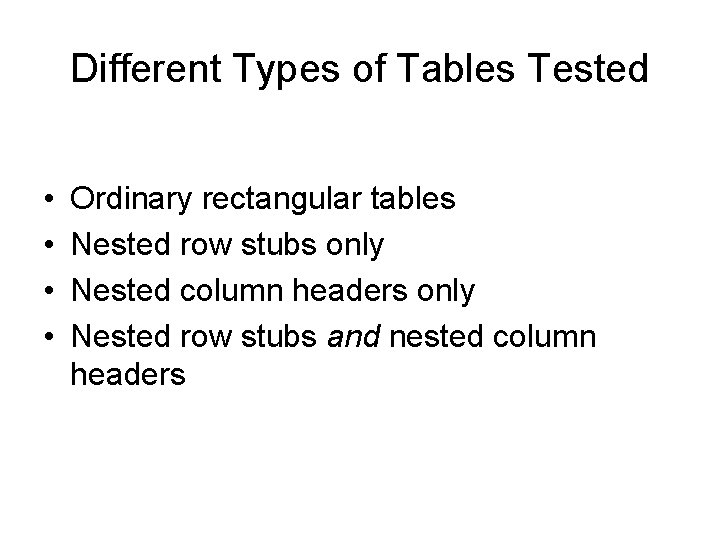

Different Types of Tables Tested • • Ordinary rectangular tables Nested row stubs only Nested column headers only Nested row stubs and nested column headers

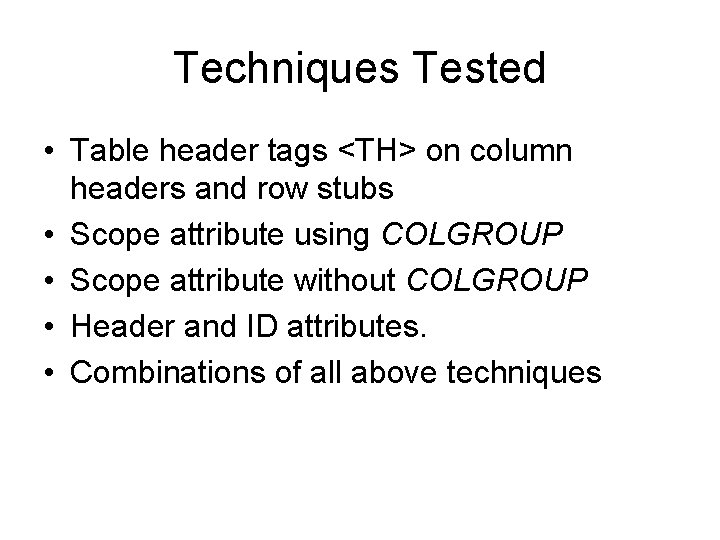

Techniques Tested • Table header tags <TH> on column headers and row stubs • Scope attribute using COLGROUP • Scope attribute without COLGROUP • Header and ID attributes. • Combinations of all above techniques

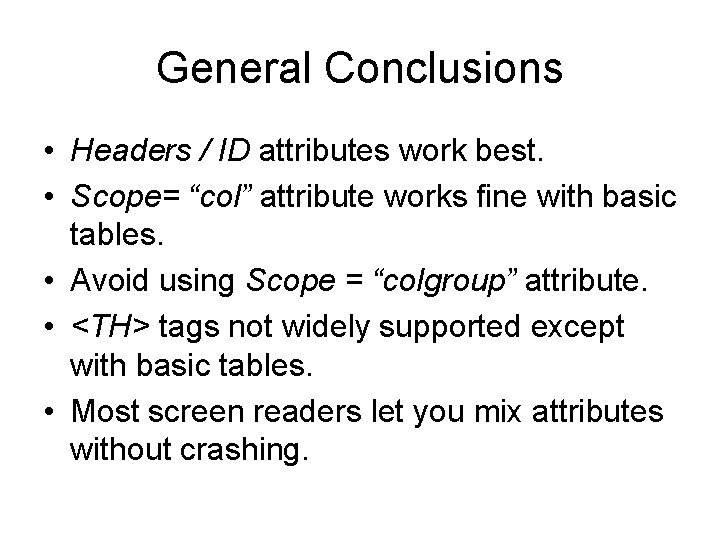

General Conclusions • Headers / ID attributes work best. • Scope= “col” attribute works fine with basic tables. • Avoid using Scope = “colgroup” attribute. • <TH> tags not widely supported except with basic tables. • Most screen readers let you mix attributes without crashing.

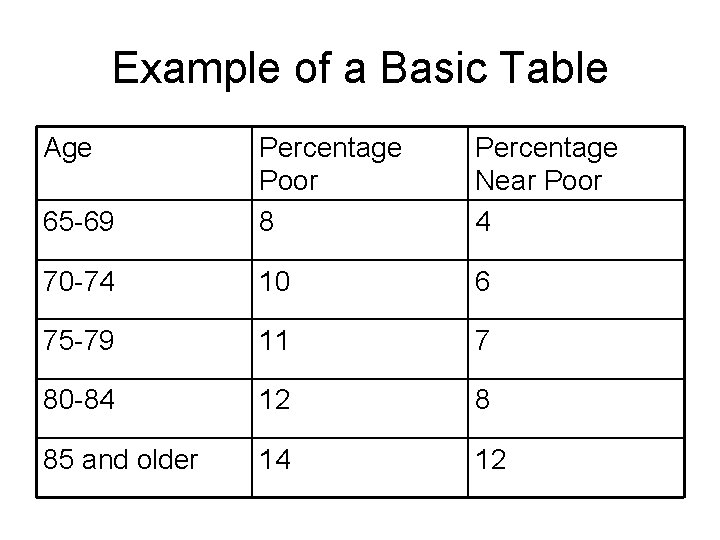

Example of a Basic Table Age 65 -69 Percentage Poor 8 Percentage Near Poor 4 70 -74 10 6 75 -79 11 7 80 -84 12 8 85 and older 14 12

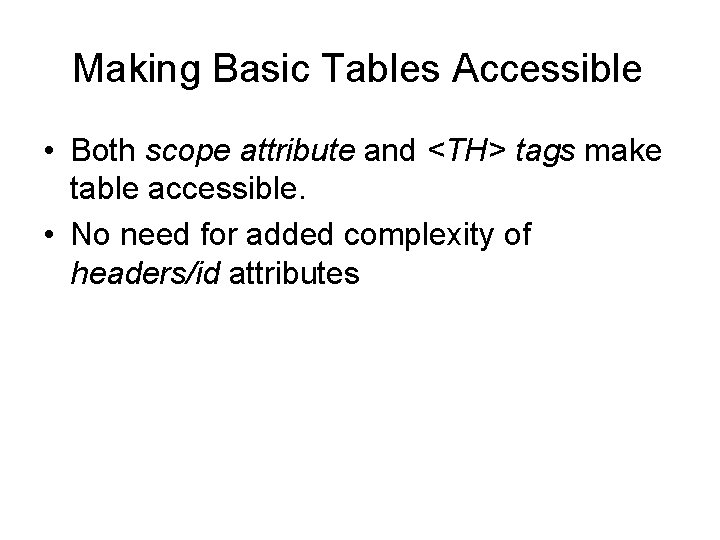

Making Basic Tables Accessible • Both scope attribute and <TH> tags make table accessible. • No need for added complexity of headers/id attributes

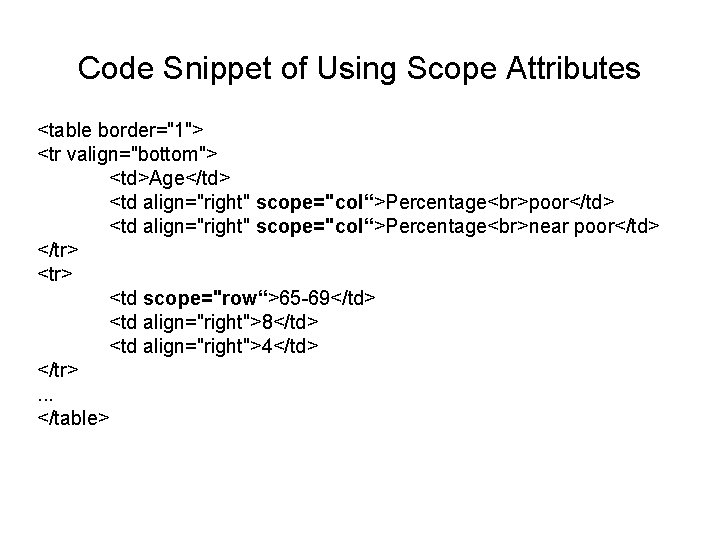

Code Snippet of Using Scope Attributes <table border="1"> <tr valign="bottom"> <td>Age</td> <td align="right" scope="col“>Percentage poor</td> <td align="right" scope="col“>Percentage near poor</td> </tr> <td scope="row“>65 -69</td> <td align="right">8</td> <td align="right">4</td> </tr>. . . </table>

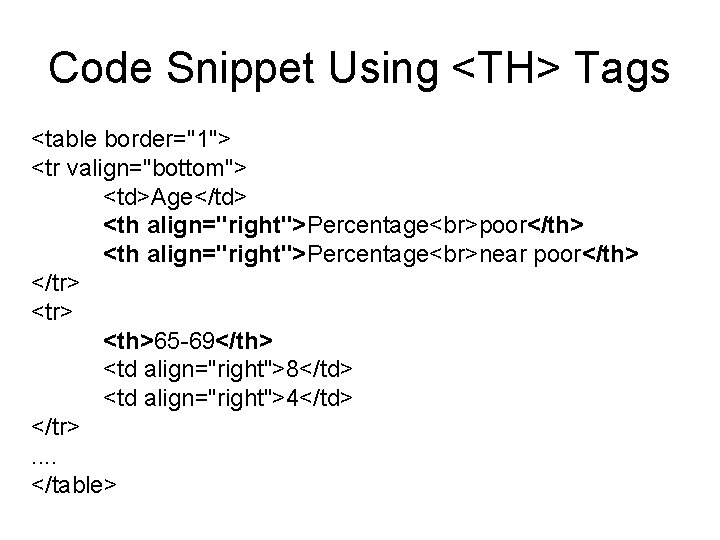

Code Snippet Using <TH> Tags <table border="1"> <tr valign="bottom"> <td>Age</td> <th align="right">Percentage poor</th> <th align="right">Percentage near poor</th> </tr> <th>65 -69</th> <td align="right">8</td> <td align="right">4</td> </tr>. . </table>

Nested Table Headers Stock Prices Company A Company B High Low Close January 1, 2002 105 95 102 110 105 107 January 15, 2002 110 107 120 118 February 1, 2002 115 113 125 122 124 February 15, 2002 117 114 115 126 125 March 1, 2002 118 115 116 127 126 March 15, 2002 130 128 129 130 129

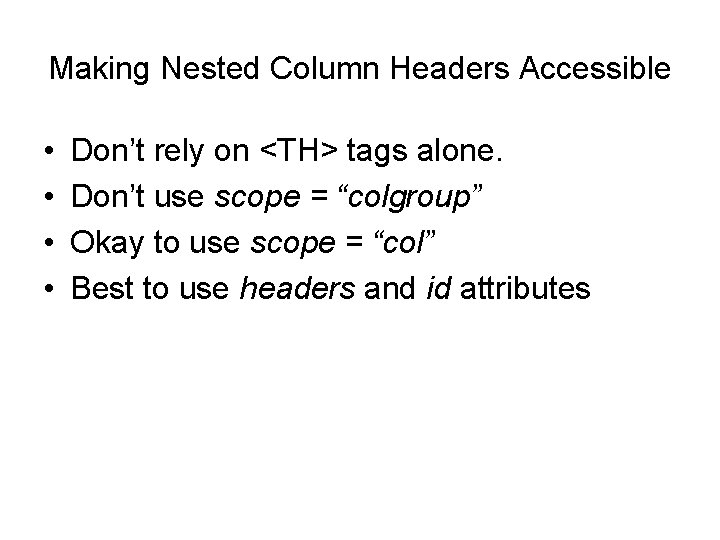

Making Nested Column Headers Accessible • • Don’t rely on <TH> tags alone. Don’t use scope = “colgroup” Okay to use scope = “col” Best to use headers and id attributes

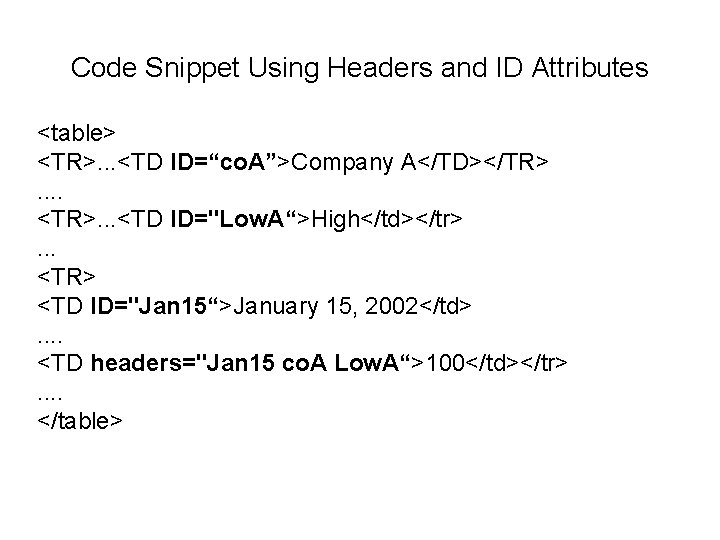

Code Snippet Using Headers and ID Attributes <table> <TR>. . . <TD ID=“co. A”>Company A</TD></TR>. . <TR>. . . <TD ID="Low. A“>High</td></tr>. . . <TR> <TD ID="Jan 15“>January 15, 2002</td>. . <TD headers="Jan 15 co. A Low. A“>100</td></tr>. . </table>

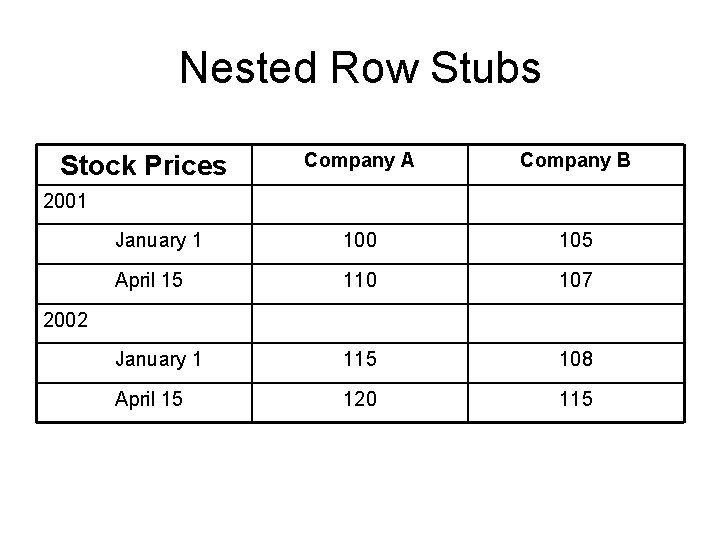

Nested Row Stubs Company A Company B January 1 100 105 April 15 110 107 January 1 115 108 April 15 120 115 Stock Prices 2001 2002

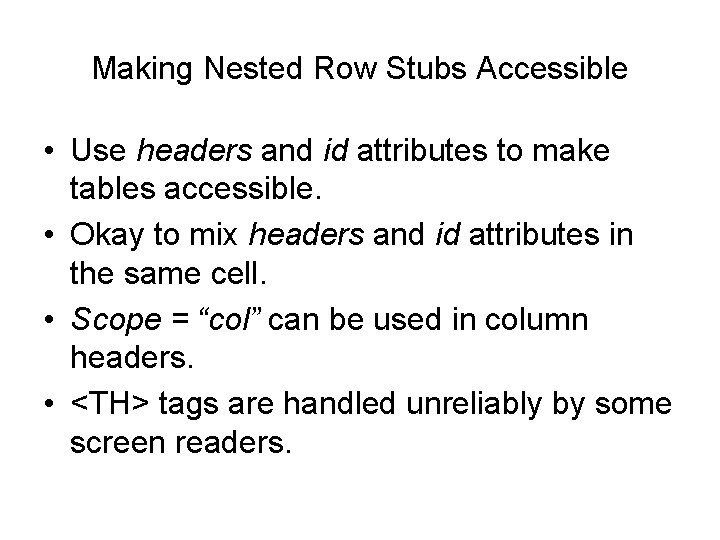

Making Nested Row Stubs Accessible • Use headers and id attributes to make tables accessible. • Okay to mix headers and id attributes in the same cell. • Scope = “col” can be used in column headers. • <TH> tags are handled unreliably by some screen readers.

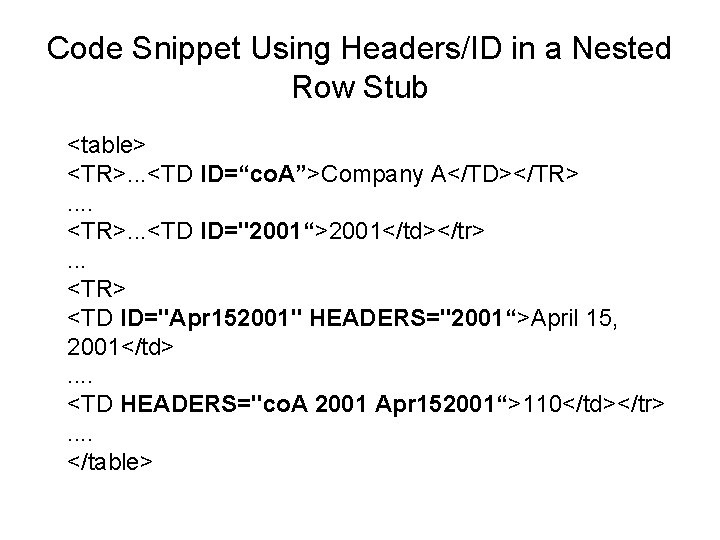

Code Snippet Using Headers/ID in a Nested Row Stub <table> <TR>. . . <TD ID=“co. A”>Company A</TD></TR>. . <TR>. . . <TD ID="2001“>2001</td></tr>. . . <TR> <TD ID="Apr 152001" HEADERS="2001“>April 15, 2001</td>. . <TD HEADERS="co. A 2001 Apr 152001“>110</td></tr>. . </table>

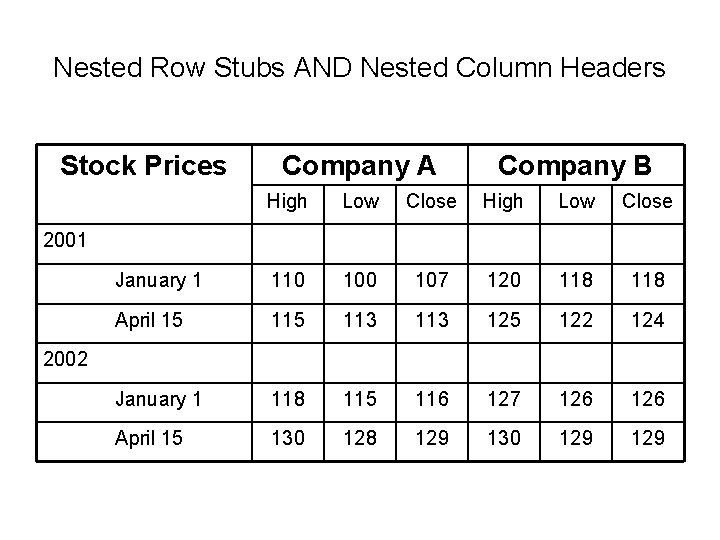

Nested Row Stubs AND Nested Column Headers Stock Prices Company A Company B High Low Close January 1 110 107 120 118 April 15 113 125 122 124 January 1 118 115 116 127 126 April 15 130 128 129 130 129 2001 2002

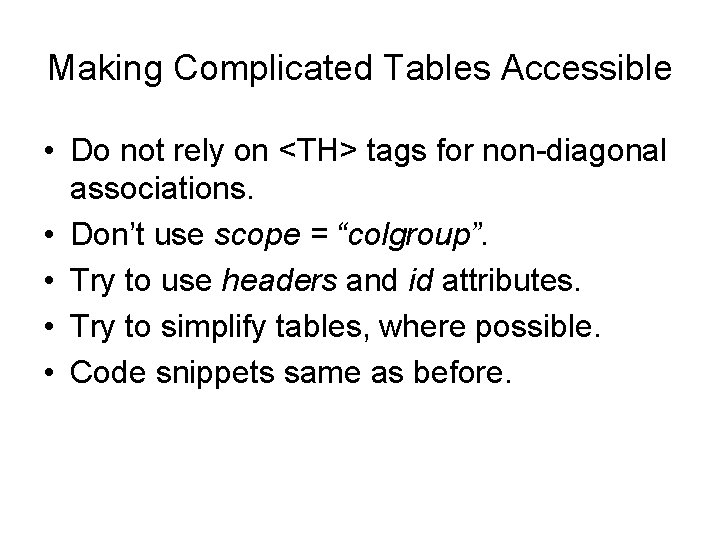

Making Complicated Tables Accessible • Do not rely on <TH> tags for non-diagonal associations. • Don’t use scope = “colgroup”. • Try to use headers and id attributes. • Try to simplify tables, where possible. • Code snippets same as before.

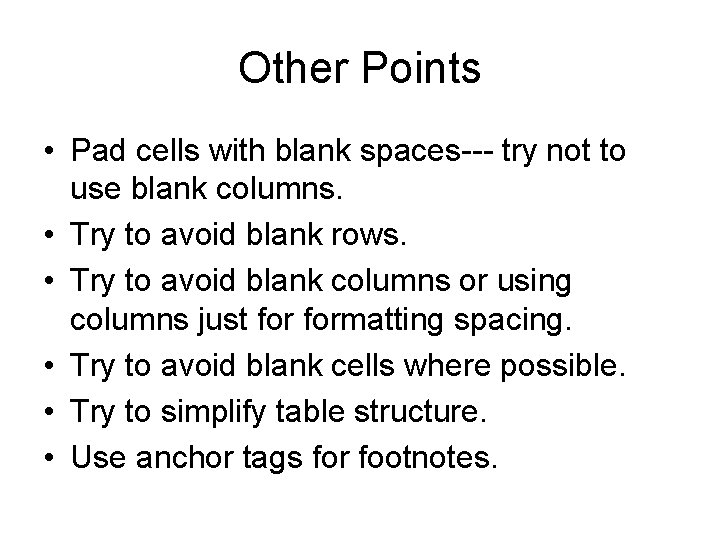

Other Points • Pad cells with blank spaces--- try not to use blank columns. • Try to avoid blank rows. • Try to avoid blank columns or using columns just formatting spacing. • Try to avoid blank cells where possible. • Try to simplify table structure. • Use anchor tags for footnotes.
