Complex Numbers and Phasors Reading Shen and Kong

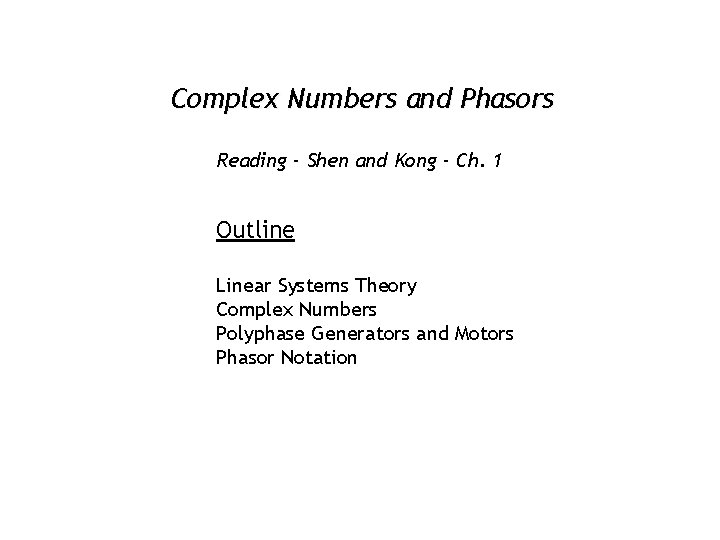

Complex Numbers and Phasors Reading - Shen and Kong - Ch. 1 Outline Linear Systems Theory Complex Numbers Polyphase Generators and Motors Phasor Notation

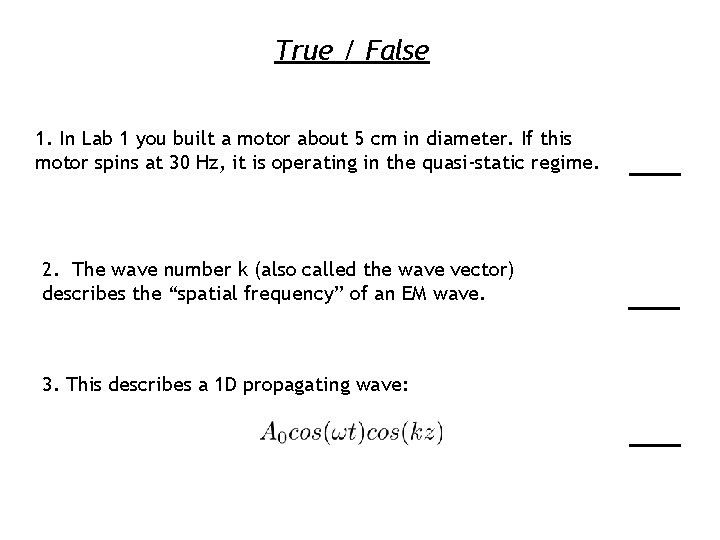

True / False 1. In Lab 1 you built a motor about 5 cm in diameter. If this motor spins at 30 Hz, it is operating in the quasi-static regime. 2. The wave number k (also called the wave vector) describes the “spatial frequency” of an EM wave. 3. This describes a 1 D propagating wave:

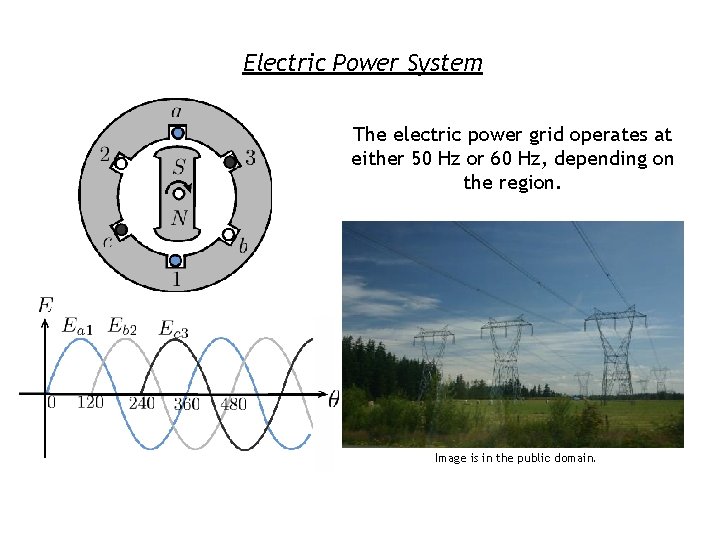

Electric Power System The electric power grid operates at either 50 Hz or 60 Hz, depending on the region. Image is in the public domain.

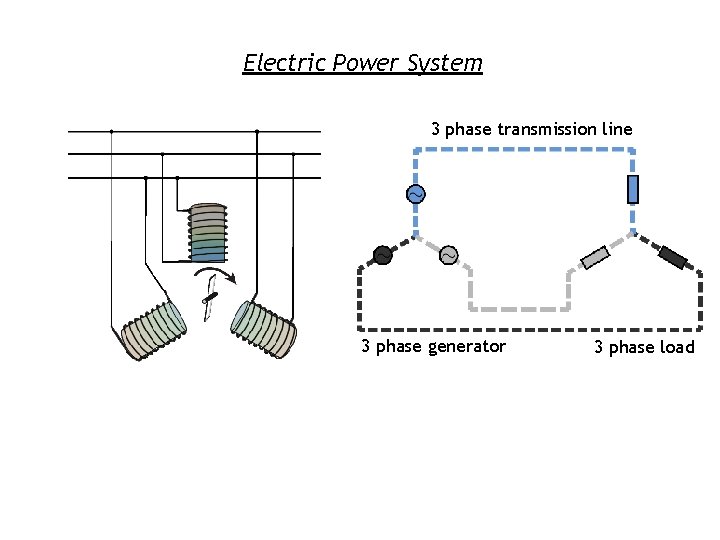

Electric Power System 3 phase transmission line 3 phase generator 3 phase load

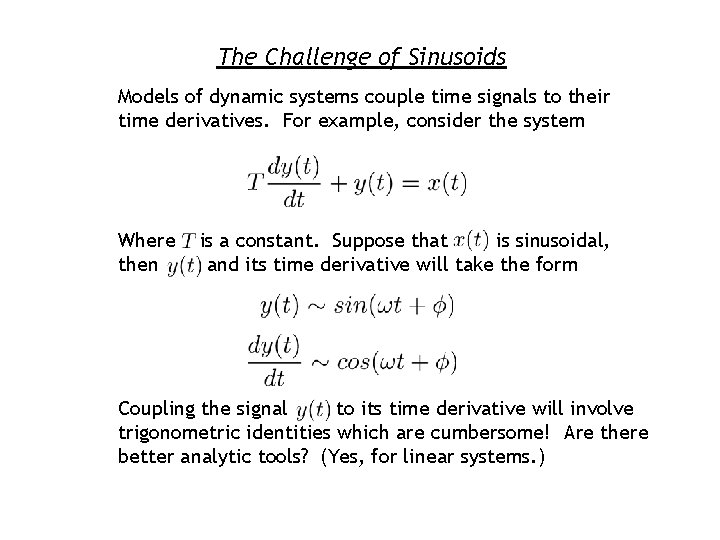

The Challenge of Sinusoids Models of dynamic systems couple time signals to their time derivatives. For example, consider the system Where then is a constant. Suppose that is sinusoidal, and its time derivative will take the form Coupling the signal to its time derivative will involve trigonometric identities which are cumbersome! Are there better analytic tools? (Yes, for linear systems. )

Linear Systems Homogeneity Superposition If If Linear System then Linear System

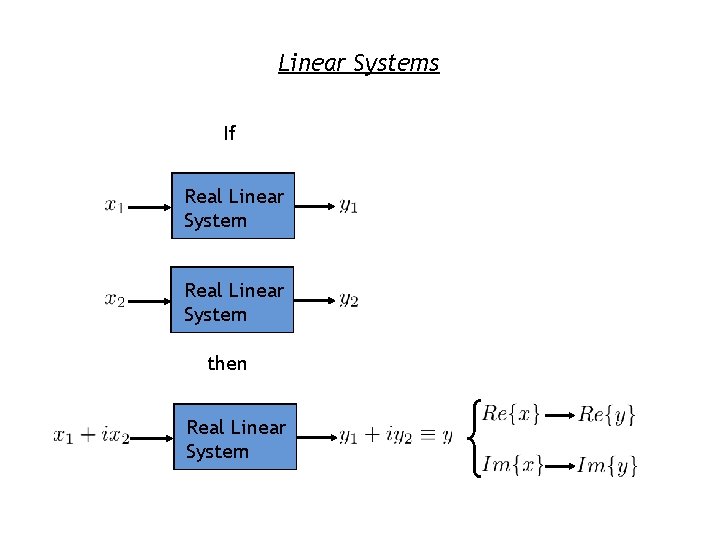

Linear Systems If Real Linear System then Real Linear System

Linear Systems If Linear System then Linear System

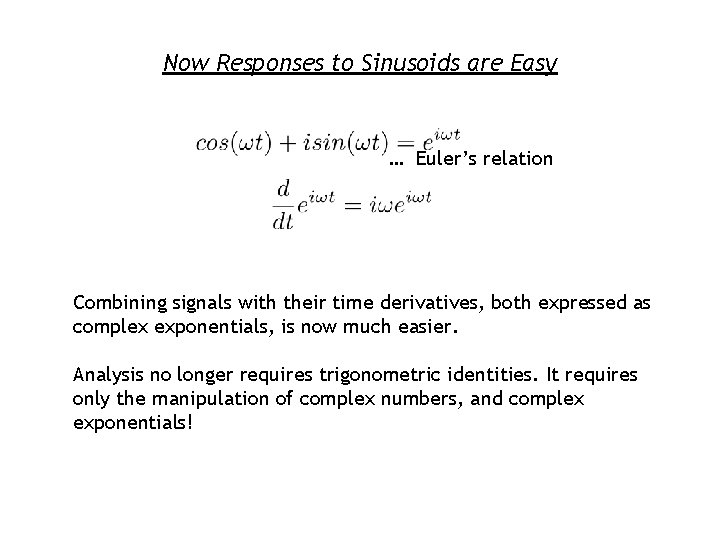

Now Responses to Sinusoids are Easy … Euler’s relation Combining signals with their time derivatives, both expressed as complex exponentials, is now much easier. Analysis no longer requires trigonometric identities. It requires only the manipulation of complex numbers, and complex exponentials!

Imaginary numbers • Trained initially in medicine • First to describe typhoid fever • Made contributions to algebra • 1545 book Ars Magna gave solutions for cubic and quartic equations (cubic solved by Tartaglia, quartic solved by his student Ferrari) Image is in the public domain. Gerolamo Cardano (1501 -1576) • First Acknowledgement of complex numbers

Descartes coined the term “imaginary” numbers in 1637 The work of Euler and Gauss made complex numbers more acceptable to mathematicians All images are in the public domain.

Notation Image is in the public domain. Complex numbers in mathematics Euler, 1777 Image is in the public domain. Analysis of alternating current in electrical engineering Steinmetz, 1893

Complex Numbers (Engineering convention) We define a complex number with the form Where , are real numbers. The real part of , written The imaginary part of z, written is . , is . • Notice that, confusingly, the imaginary part is a real number. So we may write as

Complex Plane and

Polar Coordinates In addition to the Cartesian form, a complex number represented in polar form: may also be Here, is a real number representing the magnitude of , and represents the angle of in the complex plane. Multiplication and division of complex numbers is easier in polar form: Addition and subtraction of complex numbers is easier in Cartesian form.

Converting Between Forms To convert from the Cartesian form note: to polar form,

Phasors A phasor, or phase vector, is a representation of a sinusoidal wave whose amplitude , phase , and frequency are time-invariant. The phasor spins around the complex plane as a function of time. Phasors of the same frequency can be added. This is an animation But it’s a known fact

Modern Version of Steinmetz’ Analysis 1. Begin with a time-dependent analysis problem posed in terms of real variables. 2. Replace the real variables with variables written in terms of complex exponentials; is an eigenfunction of linear time-invariant systems. 3. Solve the analysis problem in terms of complex exponentials. 4. Recover the real solution from the results of the complex analysis.

Example: RC Circuit Assume that the drive is sinusoidal: + + - - And solve for the current

Use Steinmetz AC method Sinusoidal voltage source expressed in terms of complex exponential Complex version of problem Recover real solution from complex problem

Natural Response / Homogeneous Solution Linear constant-coefficient ordinary differential equations of the form have solutions of the form where Can we always find the roots of such a (characteristic) polynomial?

Polynomial Roots Can we always find roots of a polynomial? The equation has no solution for in the set of real numbers. If we define, and then use, a number that satisfies the equation that is, or then we can always find the n roots of a polynomial of degree n. Complex roots of a characteristic polynomial are associated with an oscillatory (sinusoidal) natural response.

Single-phase Generator load Instantaneous power of phase A

Two-phase Generator Load on phase A Load on phase B Instantaneous power of phase A Instantaneous power of phase B Total Instantaneous power output

Patented two-phase electric motor Some people mark the introduction of Tesla’s two-phase motor as the beginning of the second industrial revolution (concept 1882, patent, 1888) Image is in the public domain. Nikola Tesla circa 1886 Image is in the public domain. AC generators used to light the Chicago Exposition in 1893

Electric Power System … Revisited 3 phase transmission line 3 phase generator 3 phase load

What about Space? Maxwell’s equations are partial differential equations, and hence involve “signals” that are functions of space and their spatial derivates. Correspondingly, we will find complex exponential functions of the form to be very useful in analyzing dynamic systems described with Maxwell’s equations.

What’s the Difference between i and j ? Engineering Physics Clipart images are in the public domain. Can go back and forth between physics and engineering literature If we adopt the convention We will ultimately use both notations in 6. 007
