COMPLEX BUILDING AUTOMATION PRODUCTS INTRODUCTION COMPLEX BEIJING TECHNOLOGY
COMPLEX BUILDING AUTOMATION PRODUCTS INTRODUCTION COMPLEX (BEIJING) TECHNOLOGY CO, . LTD ADD : No. 7 YANCHENGYUAN CHAOYANG PROVINCE BEIJING CHINA TEL :+86 10 81779551 FAX :+86 10 81779551 -803 MAIL:SEVER@COMPLEXAUTO. COM WEB :WWW. COMPLEXAUTO. COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
l l l BACnet Communications controllers Network Temperature controller and valves Temperature 、Humidity sensor and transmitter COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
BACnet Communications controllers l l FC controller BIMS software (BACnet Communications ) BACnet display BACnet router、Repeater and others COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
FC controller COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
FC-322 N Programmable View. Logic Controller ● Capable Eight 10 -bit universal inputs, eight binary inputs, six binary outputs, and six 8 -bit analogoutputs ● Interoperable BACnet-compliant on MS/TP lan at up to 76. 8 Kbps ● Versatile Fully programmable for central plant systems, air handing units , other control and process equipment. ● Reliable Extensive onboard filtering, with all program data backed up in nonvolatile flash memory. ● Ratings Listed Underwriters Laboratory for Open Energy Management Equipment (PAZX). under the. AU Standard for Safety 916. Listing includes both Australia and Asia certification. EMC Directive 89/336/EEC(European CE Mark) FCC Part 15, Subpart J, Class A. Applications and functions The COMPLEX FC-322 N is a versatile, high-performance BACnet-compliant field controller designed for of central plant systems, air handling units, large terminal units, and similar control and seamlessly with your BACnet system. It communicates at up to 76. 8 Kbps on a BACnet MS/TP LAN or can operate as a stand-alone controller. ALL FC-322 N control logic is programmed with COMPLEX’s easy-to-learn graphical programming language,View. Logic. This selfdocumenting software’s complete function library enables you to implement entirely flexible control strategies. A single FC-322 N can contain numerous algorithm loops that control various parts or multiple pieces of equipment. Programming and setup data is stored in non-volatile flash memory, and each FC-322 N contains its own software time schedule, ensuring stable and reliable operation. The FC-322 N supports the intelligent operation display panel, which offer convenient data display,setpoint adjustment, and technician to equipment setup parameters. The FC-322 N is built for high-speed processing , with an internal logical loop time of 100 msec. Programmable timers alsomaintain a resolution of 100 msec. High-resolution, 10 -bit analog inputs are field-adjustable for thermistor/dry contact, 0 -5 VDC, 4 -20 m. A or 0 -10 VDC. Analog outputs are switch- selectable for 4 -20 m. A or 0 -10 VDC. For equipment monitoring, and onboard LED for each binary output/input indicates ON/OFF status, and a separate LED indicates communication activity on the MS/TP LAN. CMOS circuitry, a four layer circuit board with separate ground plane, and extensive hardware software, and power-supply filtering ensure reliable and stable operatio. The CMOS processor uses an internal watchdog, and power supply voltage is monitored to provide automatic shutdown and data backup. COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
Technical Data l Power 24 VAC @ 20 VA. Utilizes a half-wave rectifier, which allows a single transformer to power Multiple VLCs. One leg of 24 VAC connects to earth (panel) ground. l Univeral Inputs 8 universal inputs with 10 -bit resolution. Inputs 0 -7 are jumper-selectable for thermistor/dry contact, 0 -5 VDC, 4 -20 m. A or 0 -10 VDC. l Binary inputs 8 binary inputs. Only dry contact input, and onboard LED for binary inputs l Binary Outputs 6 relay outputs, each contact rated at 277 VAC, 2 A. l Analog Outputs 6 analog outputs with 8 -bit resolution. Each is jumper-selectable for 0 -10 VDC or 4 -20 m. A outputs are sourced by the VLC. Connected loads must return to the VLC ground, 4 -20 m. A max. load resistance is 1, 000 ohms. 0 -10 VDC min. load resistance is 500 ohms. l 24 VDC Outputs Two terminals provide up to 350 m. A(total)of 24 VDC to power transducers. l Processor & memory AVR processor with onboard flash memory and RAM. l Terminations Removable header-type screw terminals accept 14 -24 AWG wire. l Environmental -17 -70℃. 0 -95%RH, non-condensing. l Communications BACnet MS/TP LAN up to 76. 8 Kbps. l BACnet conformance An application specific controller (ASC). tested and approved by BTL. See Protocol implementation Conformance Statement (PLCS). Dimension[mm] : MODEL Description FC-322 N controller 8 universal inputs; 8 binary inputs ; 6 binary outputsr: 6 analog outputs(0 -10 V or 4 -20 m. A). COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
FC controller PICTURE NAME controll er controll er Model FC-322 N Description 8 universal inputs(NTC 10 K,Dry contact,0 -10 V,4 -20 m. A,0 -5 V); 8 binary inputs (Dry contact); 6 binary outputs(Dry contact,contact rated at 250 VAC, 3 A) 6 analog outputs(0 -10 V or 4 -20 m. A). FC-321 N 8 universal inputs(NTC 10 K,Dry contact,0 -10 V,4 -20 m. A,05 V); 8 binary inputs (Dry contact); 12 binary outputs(BO 0 -BO 5 are Dry contact),contact rated at 250 VAC, 3 A. ; (BO 6 -BO 11) is DC 12 V voltage output. . need to connect the relay. (12 VDC) FC-312 N 8 universal inputs(NTC 10 K,Dry contact,0 -10 V,4 -20 m. A,0 -5 V); 4 binary outputs(Dry contact,contact rated at 250 VAC, 3 A) 3 analog outputs(0 -10 V or 4 -20 m. A). FC-301 N 8 universal inputs(NTC 10 K,Dry contact,0 -10 V,4 -20 m. A,0 -5 V); 6 binary outputs(BO 0 -BO 3 are Dry contact),contact rated at 250 VAC, 3 A. ; (BO 4 -BO 5) is DC 12 V voltage output. . need to connect the relay (12 VDC)1 analog outputs(0 -10 V) IBAC-304 N 4 universal inputs(NTC 10 K,Dry contact,0 -10 V,4 -20 m. A,0 -5 V); 4 binary outputs(Dry contact,contact rated at 250 VAC, 3 A) 2 analog outputs (0 -10 V) FC-302 D 4 universal inputs(NTC 10 K,Dry contact,0 -10 V,4 -20 m. A,0 -5 V); 6 binary outputs(Dry contact,contact rated at 250 VAC, 3 A) 2 analog outputs (0 -10 V) LED diaplay COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
BIMS softwar (BACnet Communications ) COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
BIMS software NAME Model Description BACView software BIMS-S 128 point,1 CD,1 softdog(USB port),1 operational manual BACView software BIMS-M 512 point,1 CD,1 softdog(USB port),1 operational manual BACView software BIMS-L 1 1024 point,1 CD,1 softdog(USB port),1 operational manual BACView software BIMS-L 2 4096 point,1 CD,1 softdog(USB port),1 operational manual BACView software BV-UNL 60000 point,1 CD,1 softdog(USB port),1 operational manual BACView software BIMS-Debug Development version: programming tools and display, that no historical data COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
BACnet display COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
Sim. View BACnet operation panel ● Capable Supports 40 BACnet values, include analog input, analog output , binary input , binary output , analog value and binary value. ● Interoperable BACnet-compliant on MS/TP lan at up to 76. 8 Kbps ● Reliable Extensive onboard filtering, with all program data backed up in nonvolatile flash memory. ● Fast Internal logic loop of 100 msec ● Ecomomical Simple, low cost solution for field-level integration of BACnet device. ● Ratings Listed Underwriters Laboratory for Open Energy Management Equipment (PAZX). under the AU Standard for Safety 916. Listing includes both Australia and Asia certification. EMC Directive 89/336/EEC(European CE Mark) FCC Part 15, Subpart J, Class A. Applications and functions The COMPLEX Simview is a versatile, high-performance BACnet-compliant field controller operation penal designed for of central plant systems, air handling units, large terminal units, and similar control and seamlessly with your BACnet system. The BACnet field opration panel (Simview) is the next-generation BACnet-compliant global controller from Hysine. Simview can connect to a BACnet MS/TP work or operate in a stand-alone capacity. each Simview supports field controllers on one BACnet MS/TP LANs. MS/TP is a simple twisted-pair bus with a configurable speed to 76. 8 Kbps. The Simview independently executes global direct digital control(DDC) algorithms to orchestrate the operation of field controllers o its MS/TP LANs. DDC is programmed at a BACview operator terminal with Hysine’s easy-to-use, Windows-based graphical programming environment , View. Logic. Revolutionary features like an extensive application library, drag-and-drop DDC edits, dynamic real-time data updates, and self-documentation save time and ease the setup process. The Simview can access available data as BACnet objects and properties from throughout BACnet internetwork, making its operational status and contrl data available to other BACnet devices in the same way. This enables an unmatched level of interoperability with other site systems. CMOS circuitry, a four layer circuit board with separate ground plane, and extensive hardware software, and power-supply filtering ensure reliable and stable operatio. The CMOS processor uses an internal watchdog, and power supply voltage is monitored to provide automatic shutdown and data backup. The VLCs supports the Simview intelligent operation display panel, which offer convenient data display,setpoint adjustment, and technician to equipment setup parameters. COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.

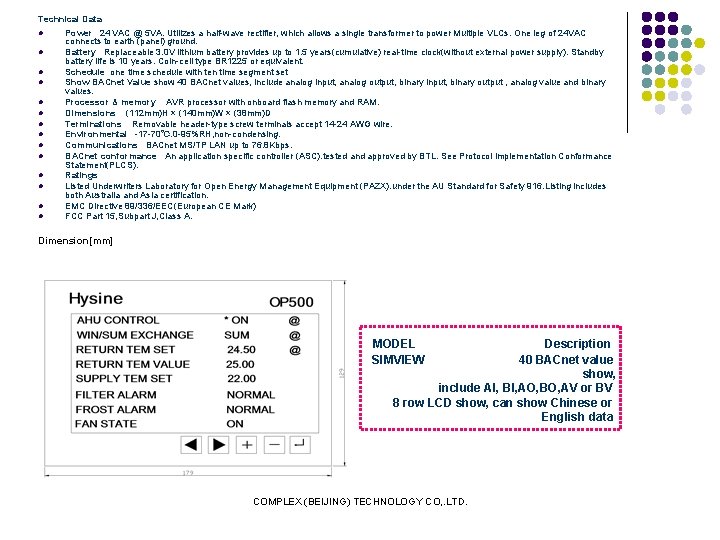

Technical Data l l l l Power 24 VAC @ 5 VA. Utilizes a half-wave rectifier, which allows a single transformer to power Multiple VLCs. One leg of 24 VAC connects to earth (panel) ground. Battery Replaceable 3. 0 V lithium battery provides up to 1. 5 years(cumulative) real-time clock(without external power supply). Standby battery life is 10 years. Coin-cell type BR 1225 or equivalent. Schedule one time schedule with ten time segment set Show BACnet Value show 40 BACnet values, include analog input, analog output, binary input, binary output , analog value and binary values. Processor & memory AVR processor with onboard flash memory and RAM. Dimensions (112 mm)H × (140 mm)W × (38 mm)D Terminations Removable header-type screw terminals accept 14 -24 AWG wire. Environmental -17 -70℃. 0 -95%RH, non-condensing. Communications BACnet MS/TP LAN up to 76. 8 Kbps. BACnet conformance An application specific controller (ASC). tested and approved by BTL. See Protocol implementation Conformance Statement(PLCS). Ratings Listed Underwriters Laboratory for Open Energy Management Equipment (PAZX). under the AU Standard for Safety 916. Listing includes both Australia and Asia certification. EMC Directive 89/336/EEC(European CE Mark) FCC Part 15, Subpart J, Class A. Dimension[mm] MODEL Description SIMVIEW 40 BACnet value show, include AI, BI, AO, BO, AV or BV 8 row LCD show, can show Chinese or English data COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.

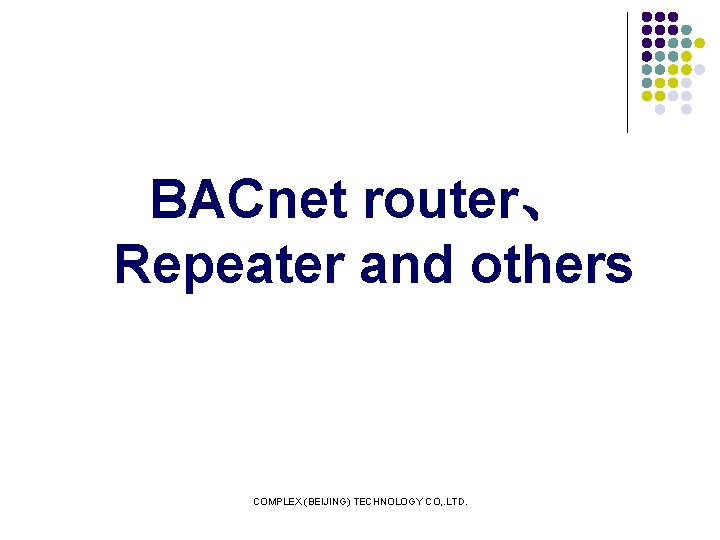

BACnet router、 Repeater and others COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.

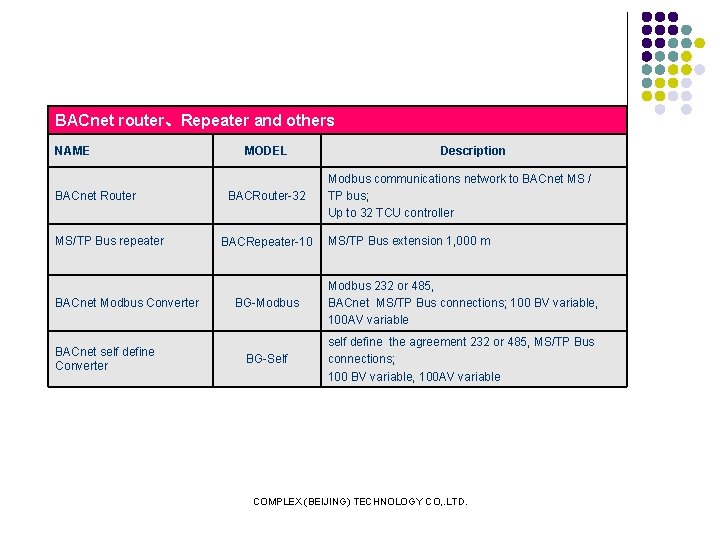

BACnet router、Repeater and others NAME BACnet Router MS/TP Bus repeater BACnet Modbus Converter BACnet self define Converter MODEL BACRouter-32 BACRepeater-10 Description Modbus communications network to BACnet MS / TP bus; Up to 32 TCU controller MS/TP Bus extension 1, 000 m BG-Modbus 232 or 485, BACnet MS/TP Bus connections; 100 BV variable, 100 AV variable BG-Self self define the agreement 232 or 485, MS/TP Bus connections; 100 BV variable, 100 AV variable COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.

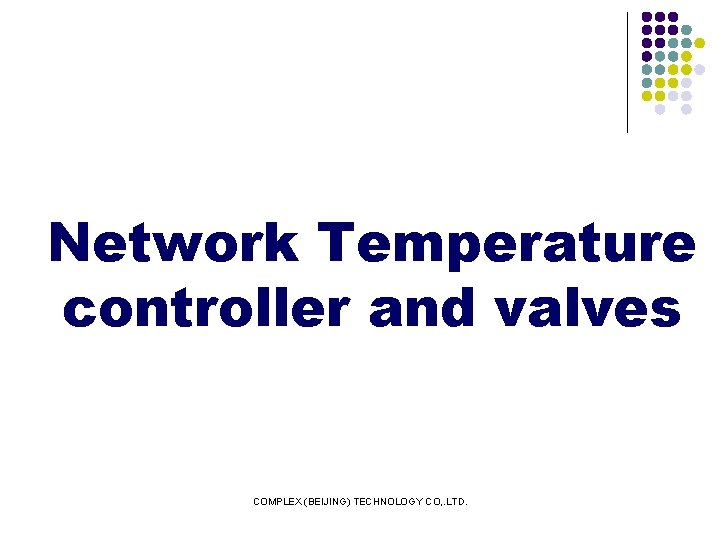

Network Temperature controller and valves COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
Network Temperature controller NO. MODEL NAME Description 1 ITEC 2 P/L/N Network fan coil controller 2 pipe, Modbusnetworking, LCD display 2 ITEC 4 P/L/N Network fan coil controller 4 pipe, Modbusnetworking, LCD display 3 ITECFM/BM Communications router Modbus communications network to BACnet MS / TP bus; Up to 16 TCU controller 4 VZ 4 -215 -x 2 -way spring reset switch DN 15, 1/2", 300 k. Pa, x=1, AC 220 V; x=2, AC 24 V 5 VZ 4 -220 -x 2 -way spring reset switch DN 20, 3/4", 150 k. Pa, x=1, AC 220 V; x=2, AC 24 V 6 VZ 4 -225 -x 2 -way spring reset switch DN 25, 1", 120 k. Pa, x=1, AC 220 V; x=2, AC 24 V 7 VZ 4 -315 -x 3 -way spring reset switch DN 15, 1/2", 300 k. Pa, x=1, AC 220 V; x=2, AC 24 V 8 VZ 4 -320 -x 3 -way spring reset switch DN 20, 3/4", 150 k. Pa, x=1, AC 220 V; x=2, AC 24 V 9 VZ 4 -325 -x 3 -way spring reset switch DN 25, 1", 120 k. Pa, x=1, AC 220 V; x=2, AC 24 V COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
10 VZ 5 -215 -x 2 -way spring reset switch DN 15, 1/2", 300 k. Pa, x=1, AC 220 V; x=2, AC 24 V 11 VZ 5 -220 -x 2 -way spring reset switch DN 20, 3/4", 300 k. Pa, x=1, AC 220 V; x=2, AC 24 V 12 VZ 5 -225 -x 2 -way spring reset switch DN 25, 1", 300 k. Pa, x=1, AC 220 V; x=2, AC 24 V 13 VZ 5 -315 -x 3 -way spring reset switch DN 15, 1/2", 300 k. Pa, x=1, AC 220 V; x=2, AC 24 V 14 VZ 5 -320 -x 3 -way spring reset switch DN 20, 3/4", 3050 k. Pa, x=1, AC 220 V; x=2, AC 24 V 15 VZ 5 -325 -x 3 -way spring reset switch DN 25, 1", 300 k. Pa, x=1, AC 220 V; x=2, AC 24 V COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
Temperature 、Humidity sensor and transmitter l l l Duct temperature / Humidity sensors / transmitters Walling temperature / Humidity sensors / transmitters Pipe temperature / Humidity sensors / transmitters COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
Duct temperature / Humidity sensors / transmitters COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
Duct temperature / Humidity sensors / transmitters PICTURE NAME MODEL Description Duct temperature sensors CTSD-NIP 2 NTC 10 K, probe 200 mm Duct temperature sensors CTSD-P 1 P 2 PT 100, probe 200 mm Duct temperature sensors CTSD-P 2 P 2 PT 1000, probe 200 mm Duct temperature transmitter CTSD-P 2 D 211/DC DC 24 V; 4 -20 m. A; 0 -50℃; 2 -wire ;PT 1000 Duct temperature transmitter CTSD-P 2 D 212/DC DC 24 V; 4 -20 m. A; 0 -100℃; 2 -wire ;PT 1000 Duct temperature transmitter CTSD-P 2 D 213/DC DC 24 V; 4 -20 m. A; 0 -200℃; 2 -wire ;PT 1000 Duct temperature transmitter CTSD-P 2 D 311/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; 0 -50℃; 3 -wire;PT 1000 Duct temperature transmitter CTSD-P 2 D 312/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; 0 -100℃; 3 -wire ; PT 1000 Duct temperature transmitter CTSD-P 2 D 313/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; 0 -200℃; 3 -wire ; PT 1000 Duct temperature transmitter CTSD-P 2 D 310/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; -20 -60℃; 3 -wire; PT 1000 Duct temperature transmitter CHSD-00 D 3/AC Duct temperature / Humidity transmitter CTHSD-N 1 D 311/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; 0 -50℃; Accuracy 5% ; 3 -wire CTHSD-N 1 D 310/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A;-20 -60℃; Accuracy 5% ; 3 -wire Duct temperature / Humidity transmitter AC or DC 24 V; 0 -10 V or 4 -20 m. A; Accuracy 5% ; 3 -wire COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
Walling temperature / Humidity sensors / transmitters COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
walling temperature / Humidity sensors / transmitters PICTURE NAME MODEL Description ROOM temperature sensors CTSW-N 1 P NTC 10 K thermistor ROOM temperature sensors CTSW-P 1 P PT 100 Platinum Resistance ROOM temperature transmitters CTSWP 2 D 3/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; 050℃; 3 -wire ;PT 1000 ROOM temperature transmitters CTSWP 2 D 1/DC DC 24 V; 4 -20 m. A; 0 -50℃; 2 -wire ; PT 1000 ROOM temperature transmitters CHSW 00 D 3/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; Accuracy 5% ; 2 -wire ; ROOM temperature /Humidity transmitters CTHSW 00 D 31/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; 0 -50℃; Accuracy 5% ; 3 -wire; ROOM temperature /Humidity transmitters CTHSW 00 D 30/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A;-2060℃; Accuracy 5% ; 3 -wire ; COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
Immersion temperature / Humidity sensors / transmitters COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.

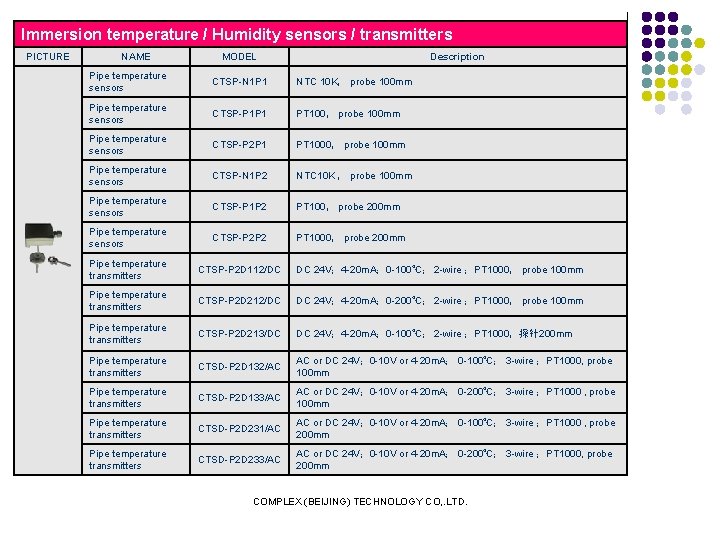

Immersion temperature / Humidity sensors / transmitters PICTURE NAME MODEL Description Pipe temperature sensors CTSP-N 1 P 1 NTC 10 K, probe 100 mm Pipe temperature sensors CTSP-P 1 P 1 PT 100, probe 100 mm Pipe temperature sensors CTSP-P 2 P 1 PT 1000, probe 100 mm Pipe temperature sensors CTSP-N 1 P 2 NTC 10 K , probe 100 mm Pipe temperature sensors CTSP-P 1 P 2 PT 100, probe 200 mm Pipe temperature sensors CTSP-P 2 P 2 PT 1000, probe 200 mm Pipe temperature transmitters CTSP-P 2 D 112/DC Pipe temperature transmitters CTSP-P 2 D 212/DC DC 24 V; 4 -20 m. A; 0 -200℃; 2 -wire ;PT 1000, probe 100 mm Pipe temperature transmitters CTSP-P 2 D 213/DC DC 24 V; 4 -20 m. A; 0 -100℃; 2 -wire ;PT 1000,探针200 mm Pipe temperature transmitters CTSD-P 2 D 132/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; 0 -100℃; 3 -wire ;PT 1000, probe 100 mm Pipe temperature transmitters CTSD-P 2 D 133/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; 0 -200℃; 3 -wire ;PT 1000 , probe 100 mm Pipe temperature transmitters CTSD-P 2 D 231/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; 0 -100℃; 3 -wire ;PT 1000 , probe 200 mm Pipe temperature transmitters CTSD-P 2 D 233/AC AC or DC 24 V; 0 -10 V or 4 -20 m. A; 0 -200℃; 3 -wire ;PT 1000, probe 200 mm DC 24 V; 4 -20 m. A; 0 -100℃; 2 -wire ;PT 1000, probe 100 mm COMPLEX (BEIJING) TECHNOLOGY CO, . LTD.
