Complete Power Solution ON LINE UPS ON LINE
- Slides: 32
Complete Power Solution
ON LINE UPS
ON LINE UPS
ON LINE UPS
OFF LINE UPS
OFF LINE UPS

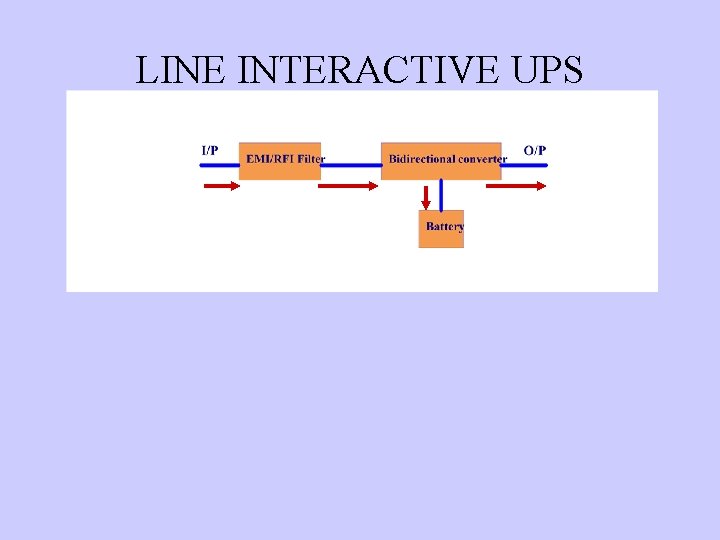

LINE INTERACTIVE UPS
LINE INTERACTIVE UPS
OFF LINE UPS
LINE INTERACTIVE UPS AVR
LINE INTERACTIVE UPS AVR
UPS Classification ON LINE OFF LINE INTERACTIVE ONL UPS KIN ONH KOF KIN-PRO ULT COM SMK BNT HOME

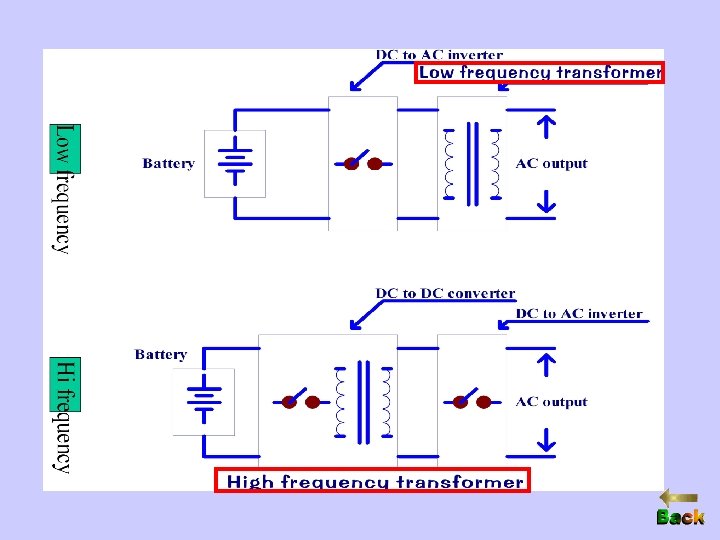

UPS classification (Depend on structure of the circuit) Low Frequency High Frequency UPS ONL KIN-PRO SMK BNT HOME ONH ULT KOF COM
SINE WAVE STEP WAVE
UPS STEP WAVE UPS KIN-PRO BNT HOME KOF COM SINE WAVE ONH ULT SMK ONL
Smart. King UPS introduction ⊙True sinewave output. ⊙Line interactive design. ⊙Boost and Buck AVR. ⊙Built in fast charger. ⊙Fully digitized microprocessor controlled. ⊙Smart RS-232 communication port. ⊙SNMP capability. ⊙LED/LCD display ⊙Short 、Overload、Lightning、and Surge protection.
Smart. King UPS A serial Tower SMK-600 A SMK-800 A SMK-1000 A SMK-1250 A SMK-1500 A SMK-2000 A SMK-2500 A SMK-3000 A SAL serial Rack mount Tower SMK-600 A RM SMK-800 A RM SMK-1000 A RM SMK-1250 A RM SMK-1500 A RM SMK-2000 A RM SMK-2500 A RM SAL-1000 A SAL-2000 A SAL-3000 A SXL serial Tower SXL-1000 A SXL-1500 A SXL-2000 A SXL-3000 A Rack mount SXL-1000 A RM SXL-1500 A RM SXL-2000 A RM SXL-3000 A RM
Front panel introduction Battery Meter Load Meter Over Load LED Backup Mode LED Buck AVR LED Line Mode LED Boost AVR LED Replace Battery LED OFF Button ON/TEST Button

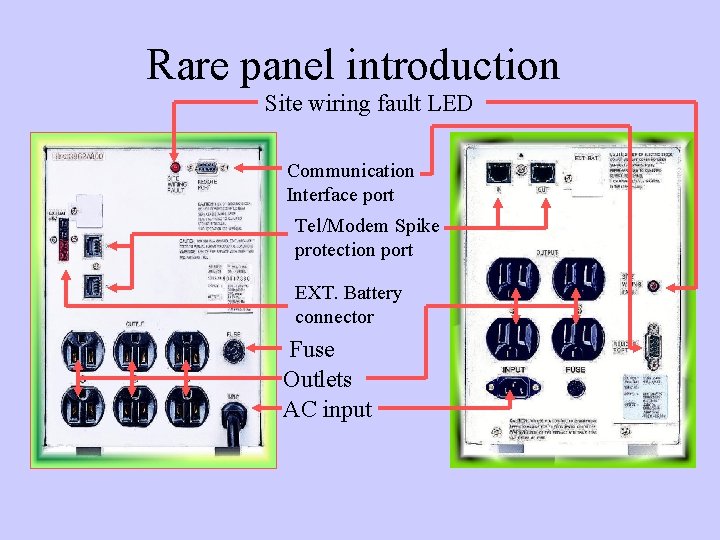

Rare panel introduction Site wiring fault LED Communication Interface port Tel/Modem Spike protection port EXT. Battery connector Fuse Outlets AC input
Smart. King Rack mount Model

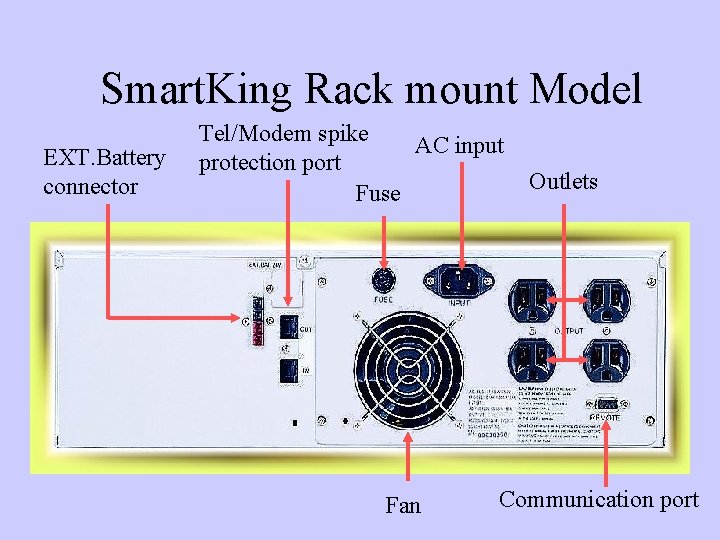

Smart. King Rack mount Model EXT. Battery connector Tel/Modem spike AC input protection port Fuse Fan Outlets Communication port
The plan in the future ® Rack mount model 600 A~1250 A 2 U size. ® Rack mount serial model LCD display . ® 60 V output and wide range of operating temperature for CATV. ® The capability to connect internal SNMP card.
