Complete domestic solutions
Folding Sliding Door System

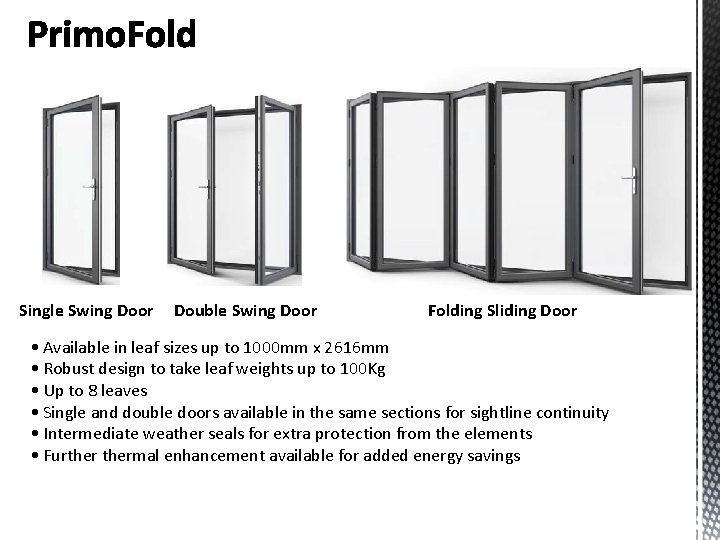

Single Swing Door Double Swing Door Folding Sliding Door • Available in leaf sizes up to 1000 mm x 2616 mm • Robust design to take leaf weights up to 100 Kg • Up to 8 leaves • Single and double doors available in the same sections for sightline continuity • Intermediate weather seals for extra protection from the elements • Furthermal enhancement available for added energy savings

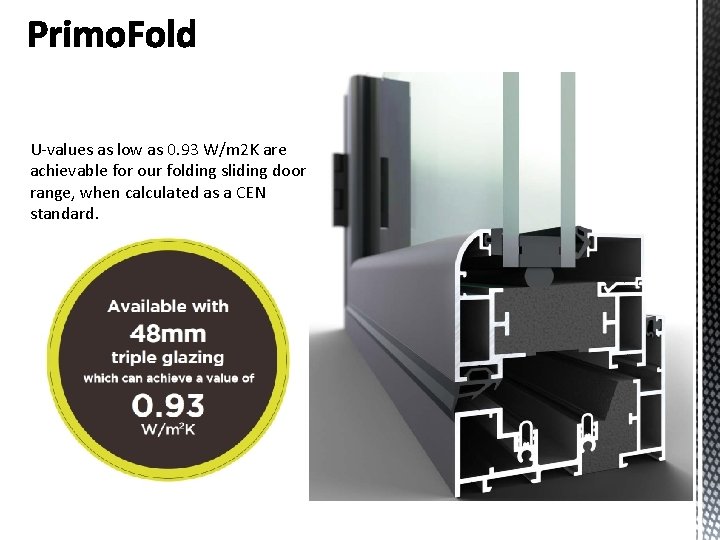

U-values as low as 0. 93 W/m 2 K are achievable for our folding sliding door range, when calculated as a CEN standard.

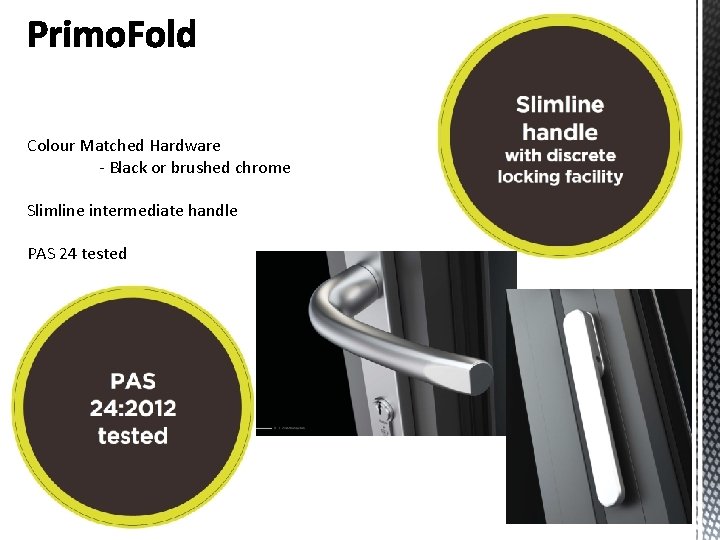

Colour Matched Hardware - Black or brushed chrome Slimline intermediate handle PAS 24 tested

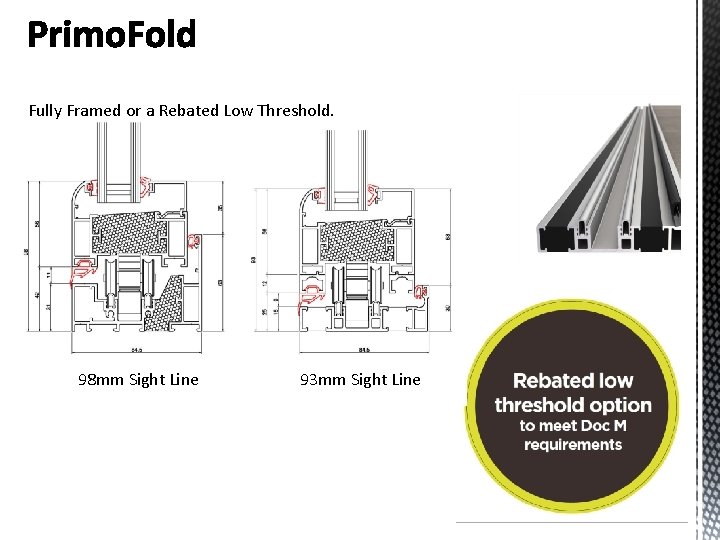

Fully Framed or a Rebated Low Threshold. 98 mm Sight Line 93 mm Sight Line

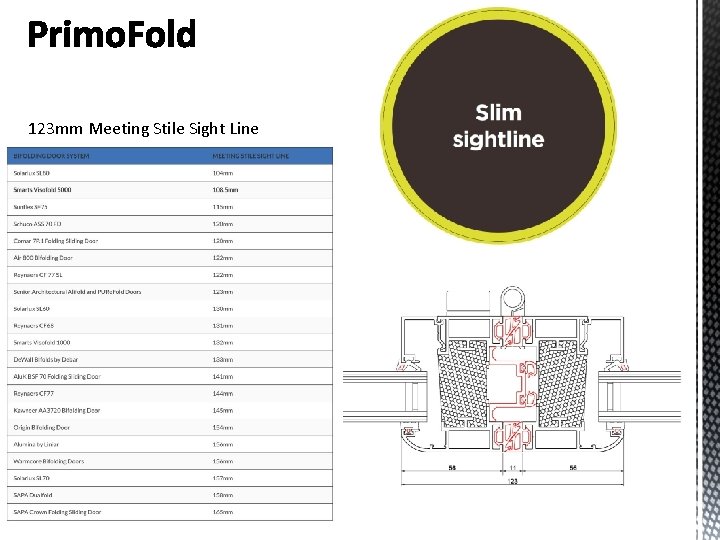

123 mm Meeting Stile Sight Line

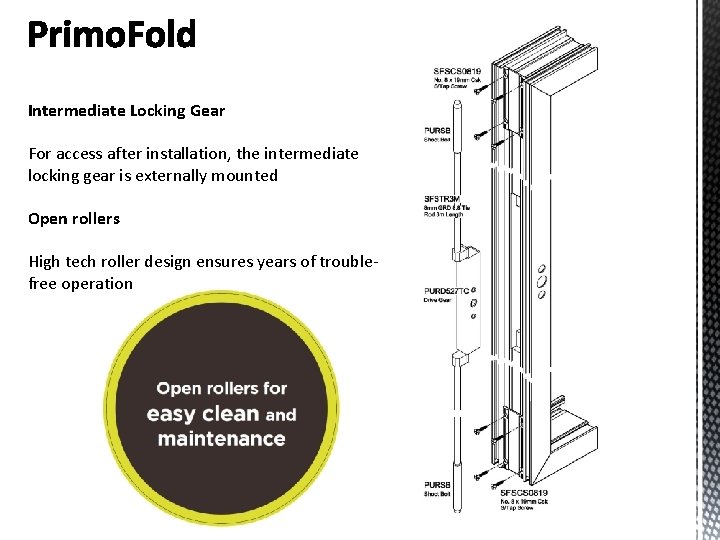

Intermediate Locking Gear For access after installation, the intermediate locking gear is externally mounted Open rollers High tech roller design ensures years of troublefree operation

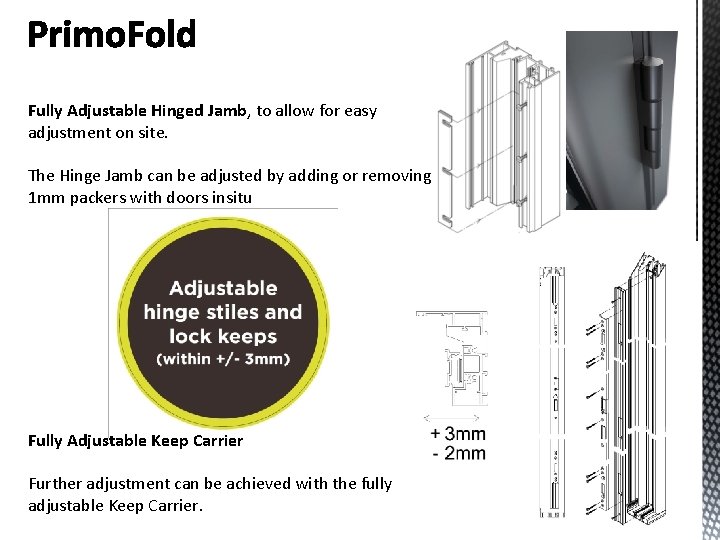

Fully Adjustable Hinged Jamb, to allow for easy adjustment on site. The Hinge Jamb can be adjusted by adding or removing 1 mm packers with doors insitu Fully Adjustable Keep Carrier Further adjustment can be achieved with the fully adjustable Keep Carrier.

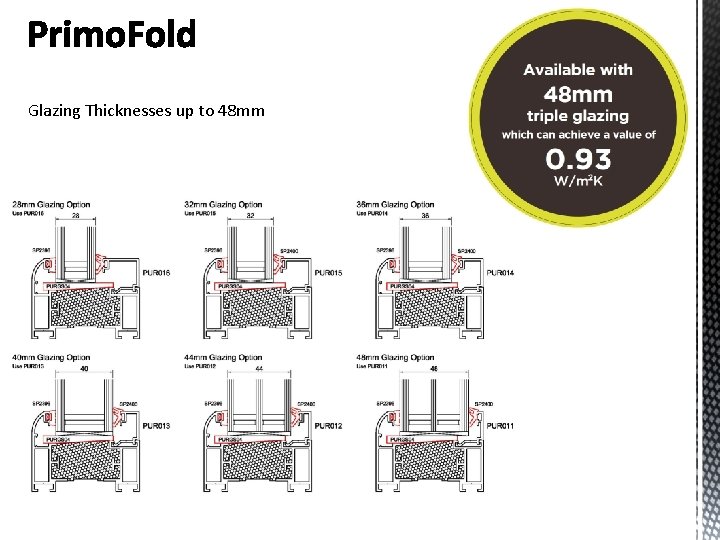

Glazing Thicknesses up to 48 mm

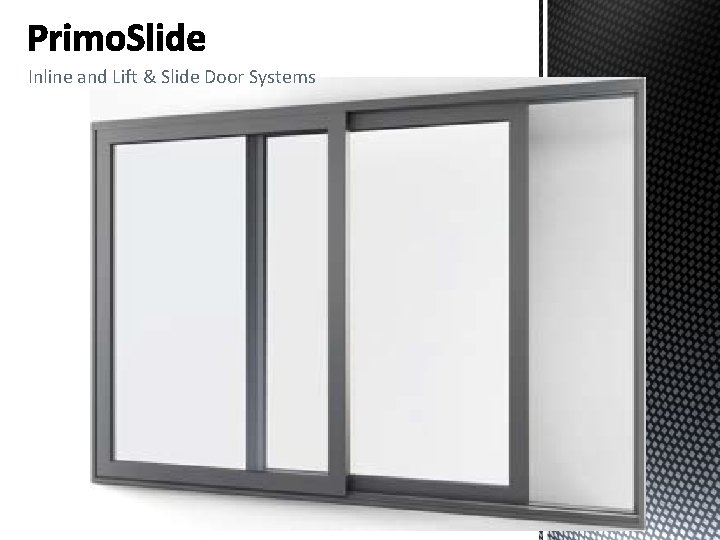

Inline and Lift & Slide Door Systems

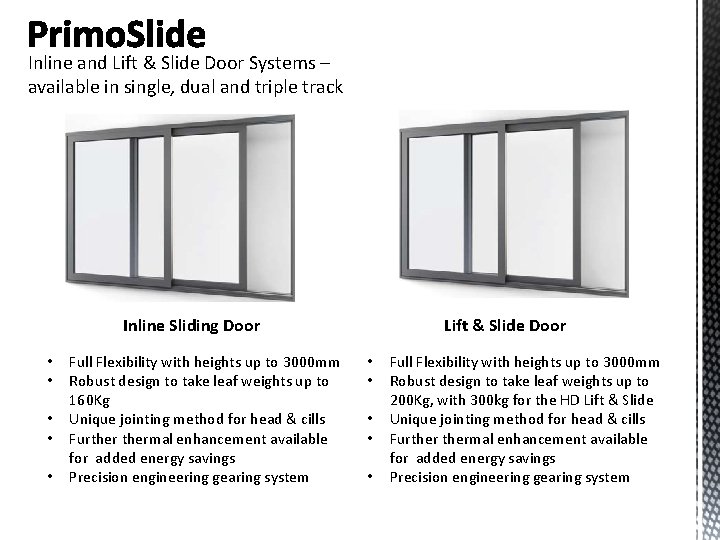

Inline and Lift & Slide Door Systems – available in single, dual and triple track Inline Sliding Door • • • Full Flexibility with heights up to 3000 mm Robust design to take leaf weights up to 160 Kg Unique jointing method for head & cills Furthermal enhancement available for added energy savings Precision engineering gearing system Lift & Slide Door • • • Full Flexibility with heights up to 3000 mm Robust design to take leaf weights up to 200 Kg, with 300 kg for the HD Lift & Slide Unique jointing method for head & cills Furthermal enhancement available for added energy savings Precision engineering gearing system

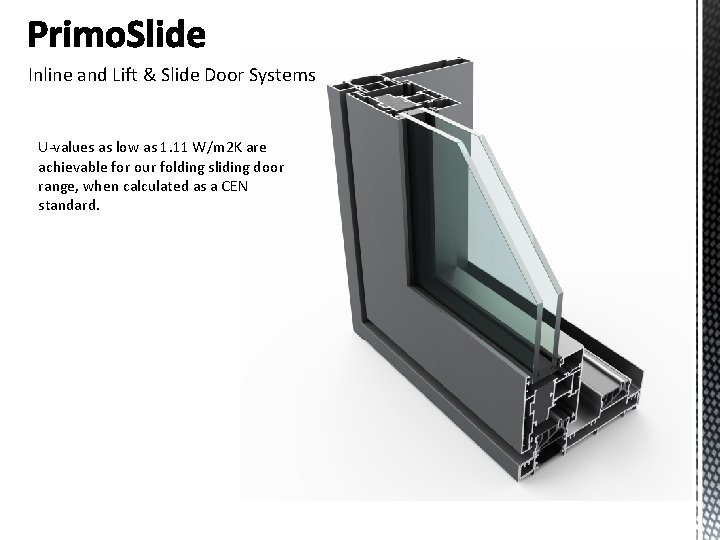

Inline and Lift & Slide Door Systems U-values as low as 1. 11 W/m 2 K are achievable for our folding sliding door range, when calculated as a CEN standard.

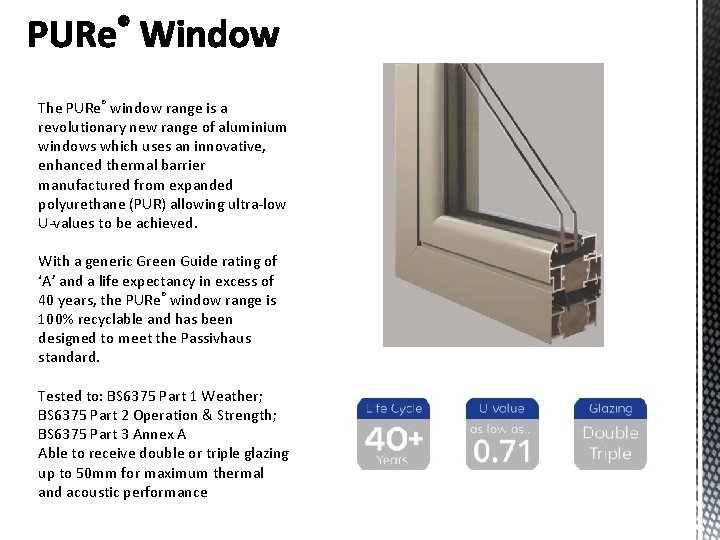

The PURe® window range is a revolutionary new range of aluminium windows which uses an innovative, enhanced thermal barrier manufactured from expanded polyurethane (PUR) allowing ultra-low U-values to be achieved. With a generic Green Guide rating of ‘A’ and a life expectancy in excess of 40 years, the PURe® window range is 100% recyclable and has been designed to meet the Passivhaus standard. Tested to: BS 6375 Part 1 Weather; BS 6375 Part 2 Operation & Strength; BS 6375 Part 3 Annex A Able to receive double or triple glazing up to 50 mm for maximum thermal and acoustic performance
As we are committed to our industry’s future, we are constantly researching and developing new products. Our next development, due out this year, will be an ultra slimline window. This window will: - Achieve a WER A - Be available in both a bevelled and ovolo finish - Have a range of bespoke and contemporary hardware - Be available from stock in white, anthracite grey and black
