BACKGROUND CCS Occasionally a low temperature storage tank must be removed from service for repair or upgrade. If the tank is equipped with column mounted (in-tank) pumps the last 250 mm of liquid can not be pumped out. Waiting for the remainder to boil away results in unacceptable delays to project schedule.
CC S PROBLEM Most in-Tank pumps can not pump the liquid level below 250 mm. When the tank is removed from service up to six weeks may be required for the remaining liquid to boil away 300 mm remaining

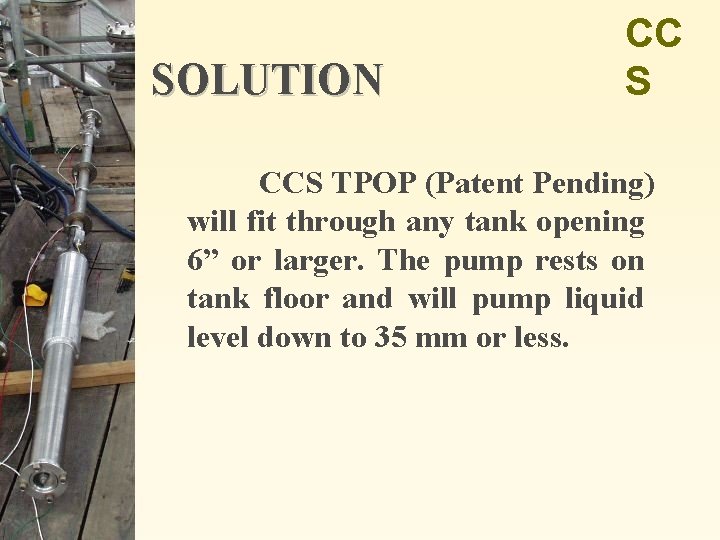

SOLUTION CC S CCS TPOP (Patent Pending) will fit through any tank opening 6” or larger. The pump rests on tank floor and will pump liquid level down to 35 mm or less.

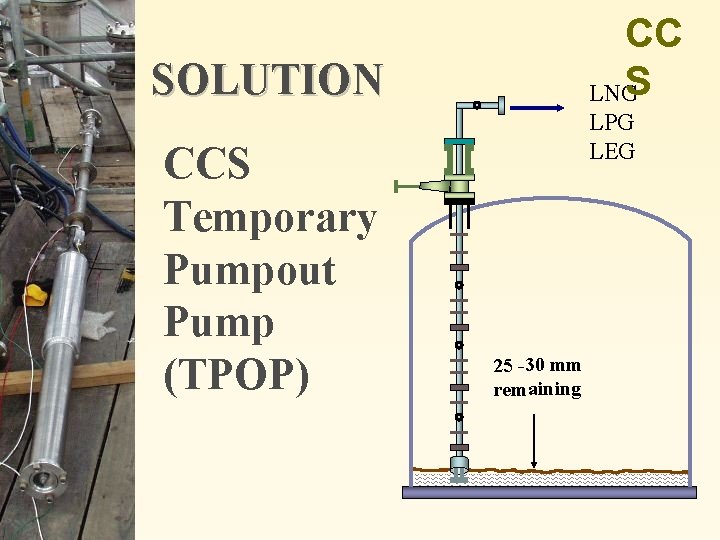

CC S LNG SOLUTION CCS Temporary Pumpout Pump (TPOP) LPG LEG 25 -30 mm remaining
CC S TPOP Adaptor
Pump CC S TPOP Adaptor
Power cables Ball valve CC S 10 Feet 1. 5” Discharge Pipe Insertion tube Seal Disk with O-Ring Seal Pump (2 on each section) TPOP Adaptor

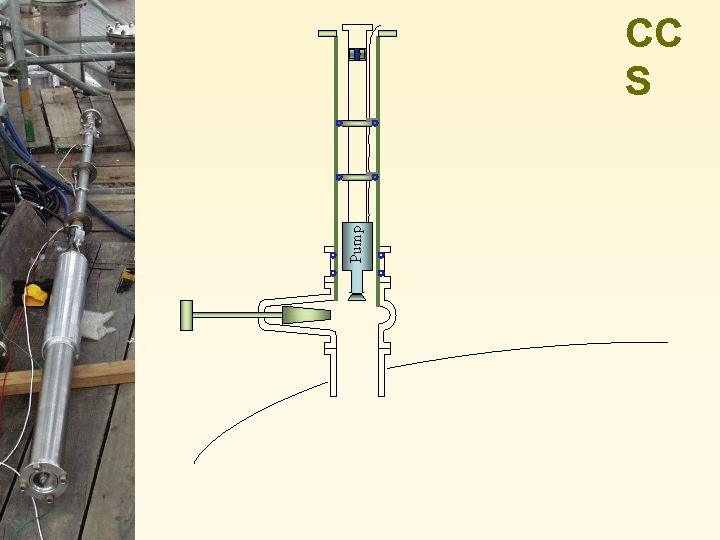

Pump CC S
Pump CC S
Pump CC S
Pump CC S
Pump CC S
Pump CC S
Pump CC S
Pump CC S
CC S Pump Flange Connection
Pump CC S

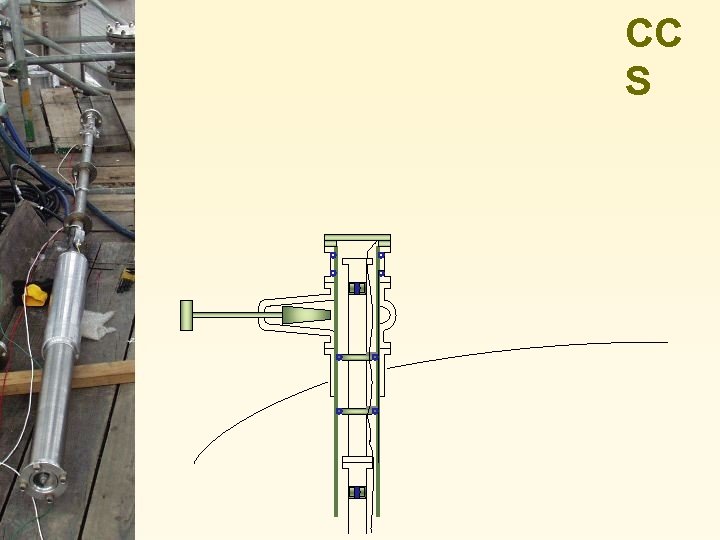

CC S

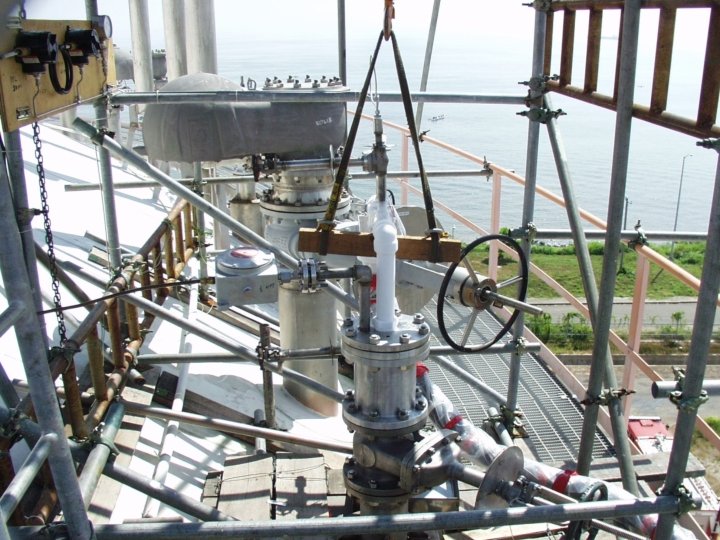

CC S Control Valve Pressure Gage Gland Seal Headplate LNG LEG LPG Junction Box Electrical Seal

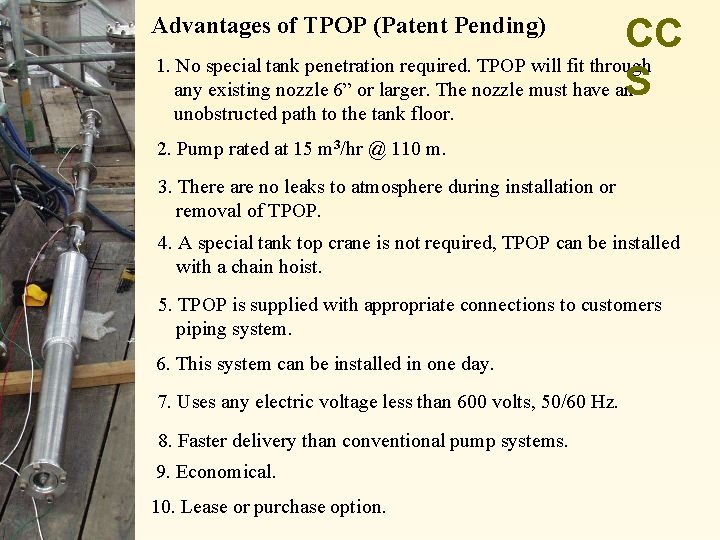

CC 1. No special tank penetration required. TPOP will fit through any existing nozzle 6” or larger. The nozzle must have an. S Advantages of TPOP (Patent Pending) unobstructed path to the tank floor. 2. Pump rated at 15 m 3/hr @ 110 m. 3. There are no leaks to atmosphere during installation or removal of TPOP. 4. A special tank top crane is not required, TPOP can be installed with a chain hoist. 5. TPOP is supplied with appropriate connections to customers piping system. 6. This system can be installed in one day. 7. Uses any electric voltage less than 600 volts, 50/60 Hz. 8. Faster delivery than conventional pump systems. 9. Economical. 10. Lease or purchase option.
CC S Henry A. Smith III President Patrick N. Davis Vice President
