Competency 203 00 Kitchen Plans Objective 203 02

Competency: 203. 00 Kitchen. Plans Objective: 203. 02 Analyze accepted principles of single-view residential space planning.

Service Areas ■ Kitchen ■ Laundry ■ Garage or Carport

Kitchen ■ Food preparation ■ May include ■ Dining ■ Laundry ■ Storage

Kitchen ■ Three work centers ■ Food storage and preparation ■ Refrigerator, cabinets, pantry, countertop ■ Cooking ■ Range, oven, microwave, countertops ■ Clean-up ■ Sink, dishwasher, countertops

Kitchen ■ Work Triangle ■ Line from center front of each work center ■ ■ ■ Range Refrigerator Sink

Kitchen ■ Work Triangle ■ Sum of all sides should not exceed 22’-0” ■ ■ Keep “legs” of triangle close to 3’-0” min. & 9’-0” max. Traffic lanes (where others walk) should not impede work centers ■ Don’t have a kitchen that is a “hallway”

Kitchen ■ Counters & Cabinets ■ Sufficient for operations and storage ■ Base cabinets = 24” deep ■ Wall cabinets = 12” deep ■ Drawn as hidden lines ■ Check out this video about the basics of cabinets: https: //www. youtube. com/watch? v=a. Len. Cf. JZk. Wk

Layouts of Kitchens

Kitchen Layout ■ Straight line ■ Ideal for small spaces ■ Apartments ■ Cottages ■ Limited amount of cabinets

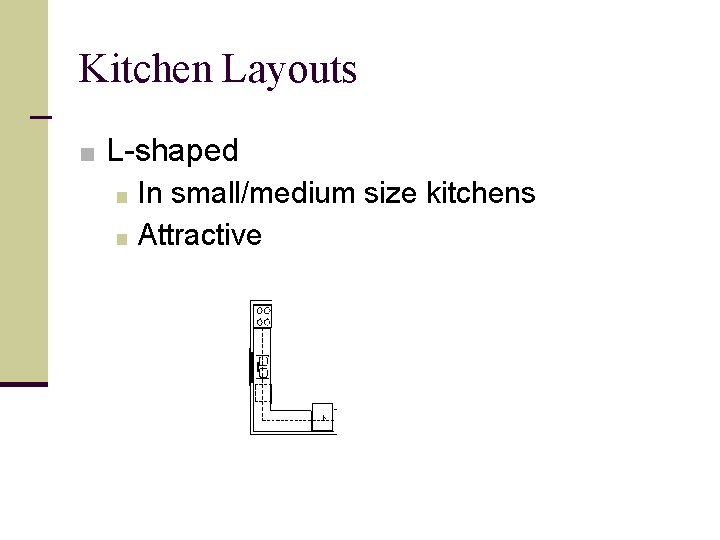

Kitchen Layouts ■ L-shaped ■ In small/medium size kitchens ■ Attractive

Kitchen Layouts ■ Corridor ■ Small/medium size kitchens ■ Efficient for long narrow space ■ Not for heavy traffic areas ■ 4’-0” minimum across

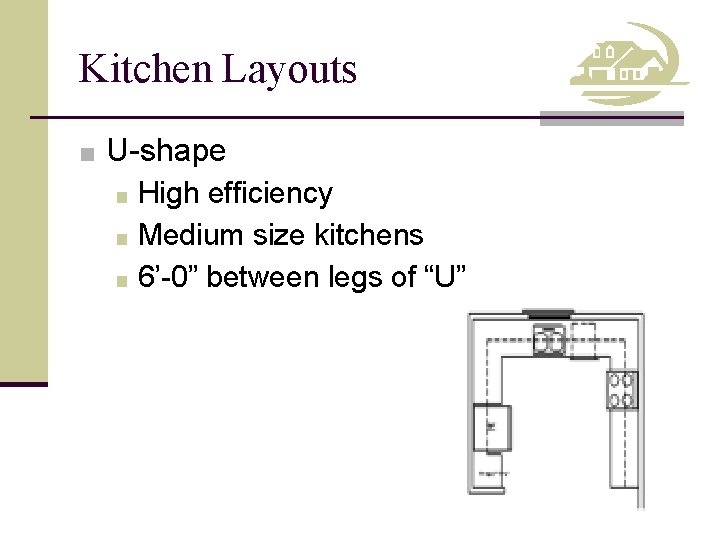

Kitchen Layouts ■ U-shape ■ High efficiency ■ Medium size kitchens ■ 6’-0” between legs of “U”

Kitchen Layouts ■ Island ■ Larger kitchens ■ Stand-alone cabinets in center ■ 42” clearance on all sides

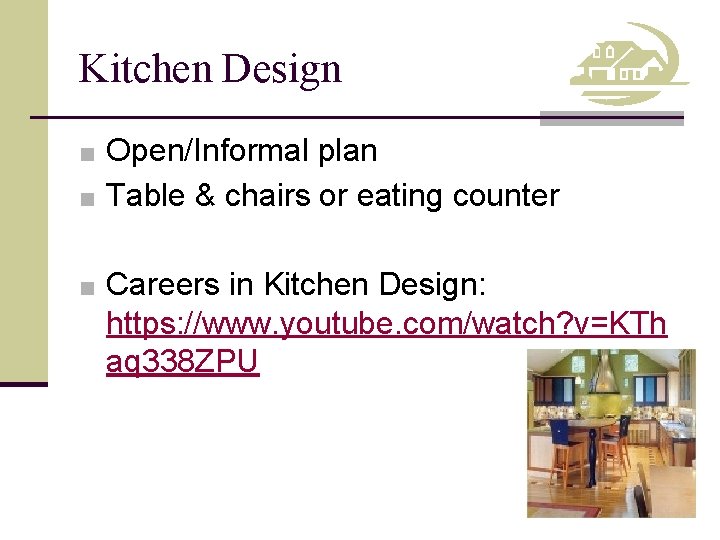

Kitchen Design ■ Open/Informal plan ■ Table & chairs or eating counter ■ Careers in Kitchen Design: https: //www. youtube. com/watch? v=KTh aq 338 ZPU

Stop & Design ■ Using the Kitchen Layout Revit file provided, layout standard appliances and cabinets in each of the typical kitchen layouts. ■ Design notes: ■ ■ ■ Cabinets can be found under components in Revit You may need to modify an individual cabinet’s element properties. You may watch the following tutorial and see if you can figure this out: https: //www. youtube. com/watch? v=7 r 1 Pg-tzxt. Y If you are still having issues, you may sign up to meet with or ask your teacher for help with this. At this time you are not required to add a countertop, however if you have extra time you may research how to add one.

Stop & Design ■ Be sure to follow all of the requirements ■ Regular interior walls should be 4 -1/2” ■ Water Walls should be 6”

Stop & Design ■ Save your file as: 8. KITCHENS. LASTNAME. COM ■ Email your file as an attachment to your teacher. Please put your name and the title of the assignment in the Subject Line. The contents of your email should serve kind of like a cover letter. You will not have a header or footer, but you should explain what is attached. Only emails with proper grammar, spelling, & organization will be accepted.
