Competency 203 00 Draw Floor Plans Objective 203

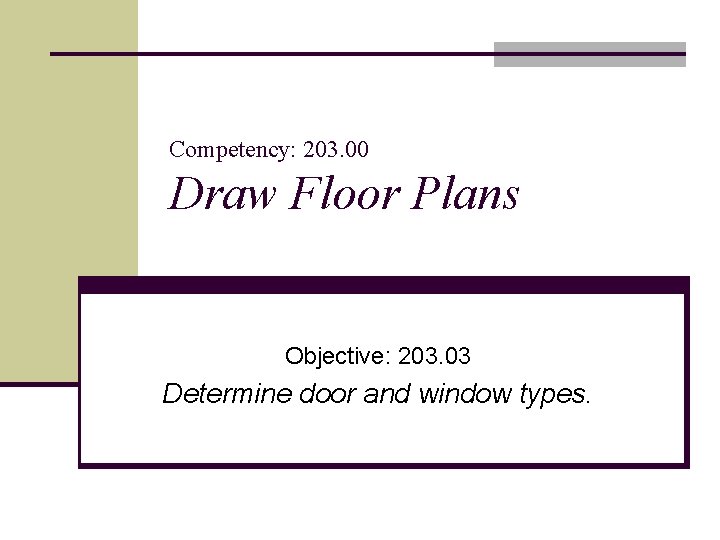

Competency: 203. 00 Draw Floor Plans Objective: 203. 03 Determine door and window types.
Doors n General Classifications n Flush doors n n n Smooth on both sides Mahogany or birch plywood Panel doors n n Heavy frame around perimeter Parts § § Stiles Rails Panels Louvers
Exterior Doors n Typical sizes n 6’-8” tall by 1 -3/4” thick n Entry door minimum 3’-0” n Insulated n Sloping sills to shed water
Exterior Doors n Swinging doors n Hinged n Swing into the house n Sliding doors n Wood or metal frames n Tempered glass n Access to deck/patio n Common widths n 6’-0” n 8’-0” n French doors n Mullions and muntins between glass panes n One large glass panes n Individual, pairs, groups n Garage doors n Overhead n One piece or sectional n Widths n Singles: 8’, 9’, 10’ n Doubles: 15’, 16’, 18’ n Height generally 7’-0”
Interior Doors n Standard sizes n Height: 6’-8” n Thickness: 1 -3/8” n Width: Varies based on 2” module n Standard widths n Entry: 3’-0” n Bedrooms: 2’-6” n Baths: 2’-0” or 2’-4” n Closets: As large as possible
Interior Doors n Bi-fold n Set of two doors make up one unit n Hung on a track n Popular for closets n Sliding/Bypass n Hung on a track n Popular for closets n Used in wide openings
Interior Doors n Pocket doors n Hung on a track n Slides into a wall cavity n Frees floor space n Packaged with framed pocket n Double-action n Spring hinge mounted n Swings two ways n One or two doors
Windows n Purpose n Admits light n Provides fresh air and ventilation n Adds detail, balance, interest n Visually enlarges interior space
Window Types n Double-hung n Two sashes slide up and down n Most commonly used n Horizontal sliding/gliding n Two or more sashes slide horizontally n Operates on a track n Casement n Hinged sashes; outward swing
Window Types n Awning n Sash hinged on top; swings outward n Allows open unit during rain n Hopper n Hinged sash on bottom; swings inward n Allows for unusual shapes n Fixed n Do not open n Combined with other windows
Window Types n Bay and Bow n Fixed or casement n Project from structure n Bay windows offer traditional style n n Sides drawn @ 450 or 300 Depth between 18” and 24” Roof structure Bow windows are in a circular pattern n Skylights n Built into roof n Admit light

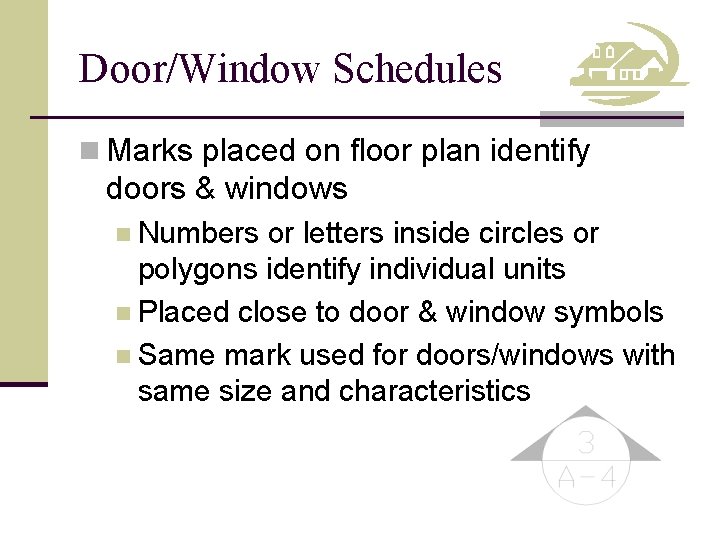

Door/Window Schedules n Marks placed on floor plan identify doors & windows n Numbers or letters inside circles or polygons identify individual units n Placed close to door & window symbols n Same mark used for doors/windows with same size and characteristics
Door/Window Schedules n Arrange all information about doors and windows in a chart n Repeat marks on floor plans n List number of doors/windows n List size of individual and multiple units n Identify types n Includes material notes and special remarks n May include elevation drawings near chart
