Competency: 203. 00 Draw Floor Plans Objective: 203. 06 Demonstrate the rules and standards for electrical fixture placement.

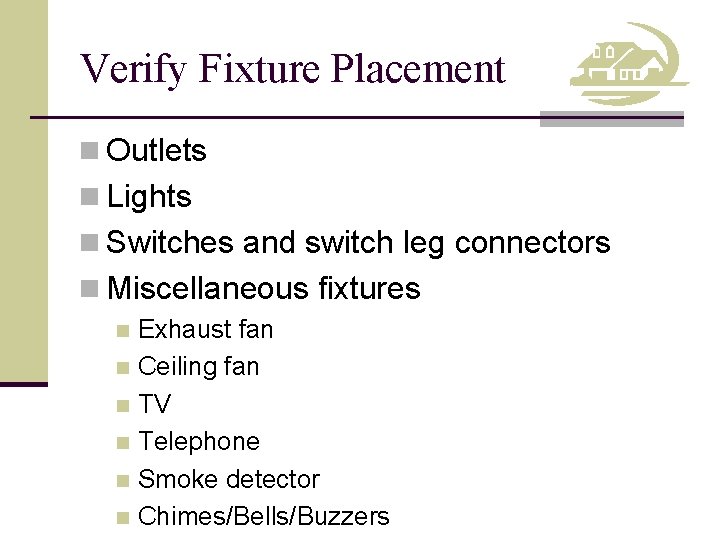

Verify Fixture Placement n Outlets n Lights n Switches and switch leg connectors n Miscellaneous fixtures Exhaust fan n Ceiling fan n TV n Telephone n Smoke detector n Chimes/Bells/Buzzers n
Placement of Switches n Each room MUST have at least one light controlled by a switch n Latch side of door/entrance n Outside of closets n Hallways, stairs, garage lighting controlled from both ends n Multiple switches for large rooms
Placement of Outlets n Furniture/Appliance Considerations n Living & Service areas n One outlet per 6’ of wall n No further than 6’ from each corner n Kitchen area n One outlet per 4’ of wall n Each appliance should have an outlet n Hallways n Every 15’ of wall
Placement of Outlets n Bathrooms n At least two outlets n One above sink or counter n Weatherproof outlets n Each side of exterior n Position for decorative lighting n At least one outlet in attic & crawl space n Ground Fault outlets n Near water sources

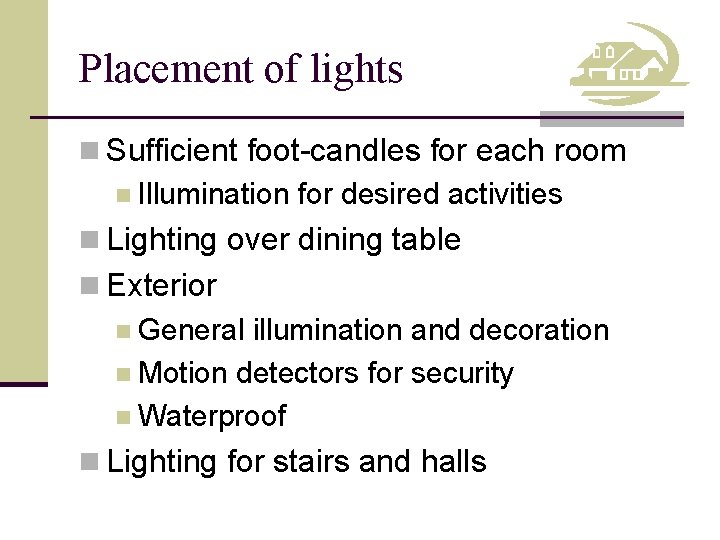

Placement of lights n Sufficient foot-candles for each room n Illumination for desired activities n Lighting over dining table n Exterior n General illumination and decoration n Motion detectors for security n Waterproof n Lighting for stairs and halls
Electrical Fixture Plan n Shows approximate fixture placement n Circuit design not included n Electrical loads not considered n Fixtures may be shown on Floor Plan n Avoid crowding n Using CAD n Layers created for various details
Electrical Symbols n Drawn in approximate locations n Standard placement n Switches n Outlets = 48” high = 12” high n Note dimensional changes with symbol when placement varies from standard
Electrical Symbols n Connect symbols for switches to fixtures with switch leg connector symbol n Provide symbol legend n Dimensions not provided except in special situations
