Comparison of the SCS Curve Number Method to the Baseflow Separation Method My Rainfall Runoff Project for Determining Runoff over the San Marcos Basin Lauren Schneider CE 394 K. 2 Surface Water Hydrology Dr. Maidment 4/28/05

Overview n n Purpose and Goals Background – What are Curve Numbers? Data Gathered Methodology – – – Curve Number Calculation Base Flow Separation Derivation of CN from real data Results n Conclusions and Future Work n

Purpose and Goals n Purpose – to compare the SCS CN method for calculating runoff to runoff data n Goals – Determine CNs for each watershed from land cover and hydrologic soil group data – Separate base flow for stream gage data to get runoff data – Derive CNs from runoff data – Compare CNs

What are Curve Numbers? n. A curve number is an indicator of land impermeability n Uses Land Use and hydrologic soil data n Used to relate rainfall (in. ) to runoff (in. ) n CN can be weighted for a watershed n Generally used for small areas

Data Collection: San Marcos Basin

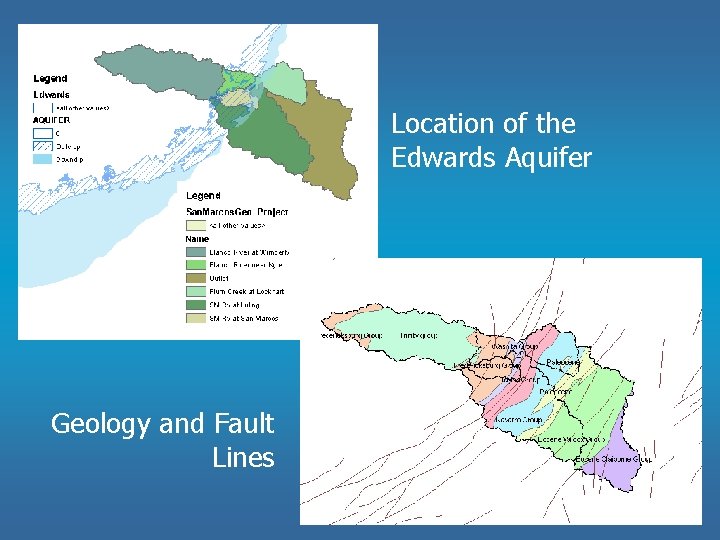

Location of the Edwards Aquifer Geology and Fault Lines

Land Cover/Land Use Raster Hydrologic Soil Group

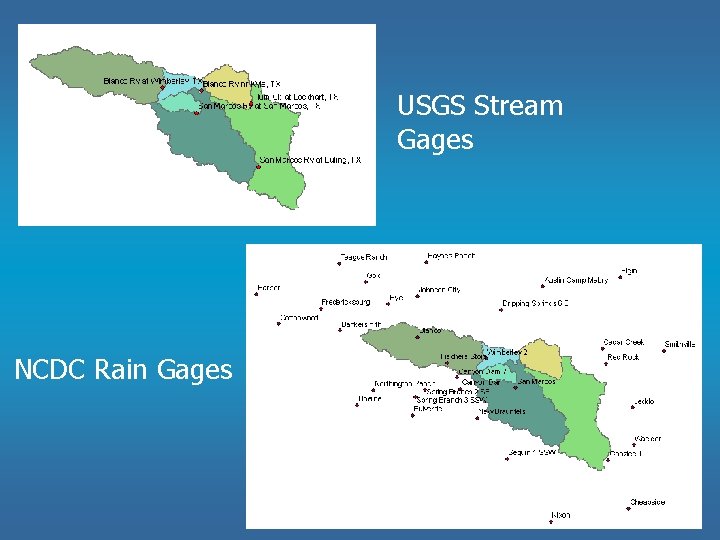

USGS Stream Gages NCDC Rain Gages

Goal 1: Determine Watershed CN Blanco River at Wimberley

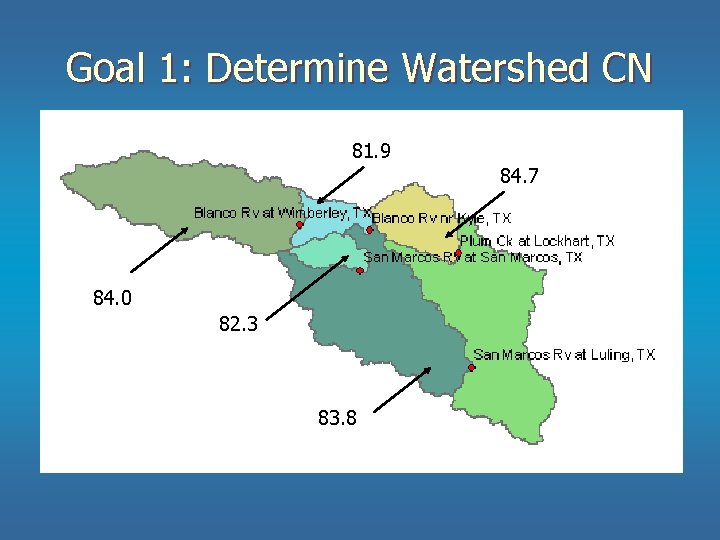

Goal 1: Determine Watershed CN 81. 9 84. 7 84. 0 82. 3 83. 8

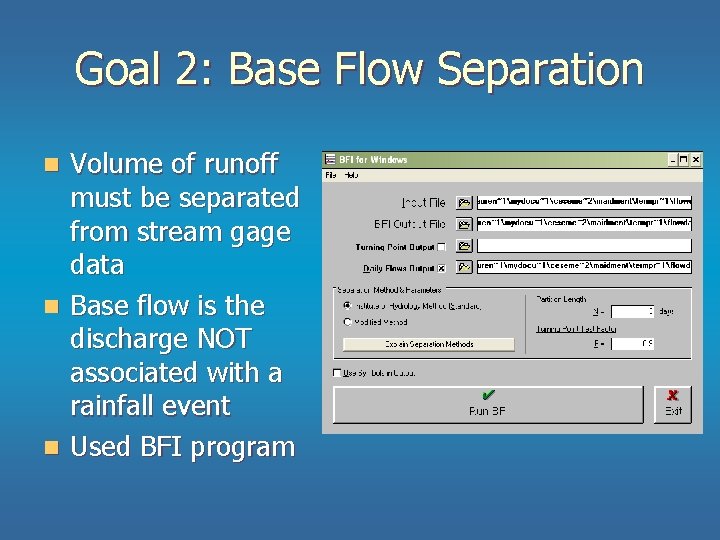

Goal 2: Base Flow Separation Volume of runoff must be separated from stream gage data n Base flow is the discharge NOT associated with a rainfall event n Used BFI program n

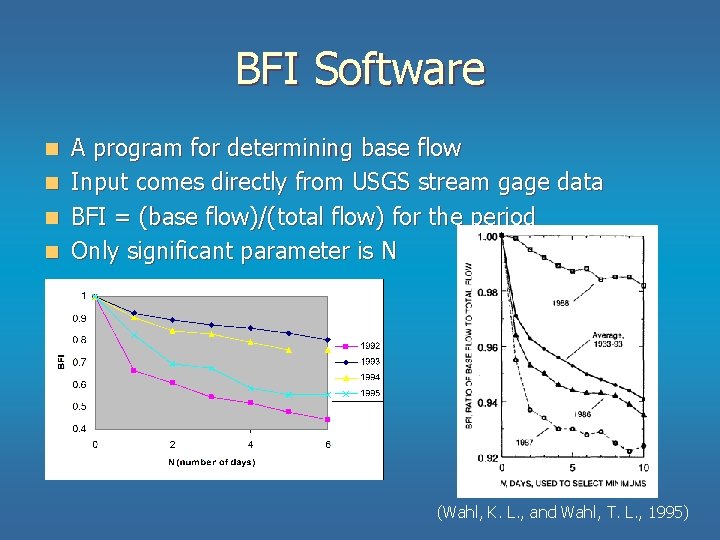

BFI Software A program for determining base flow n Input comes directly from USGS stream gage data n BFI = (base flow)/(total flow) for the period n Only significant parameter is N n (Wahl, K. L. , and Wahl, T. L. , 1995)

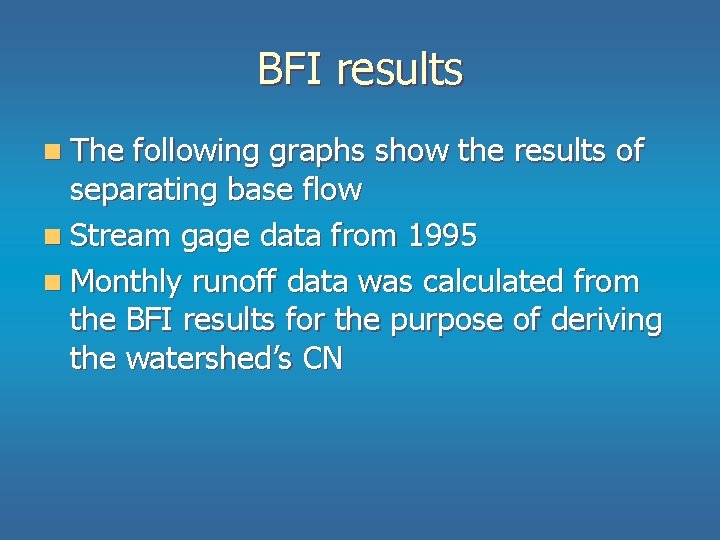

BFI results n The following graphs show the results of separating base flow n Stream gage data from 1995 n Monthly runoff data was calculated from the BFI results for the purpose of deriving the watershed’s CN

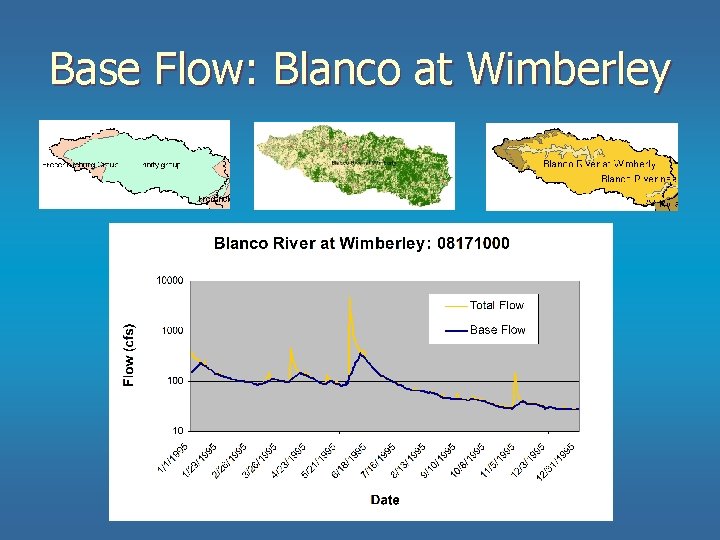

Base Flow: Blanco at Wimberley

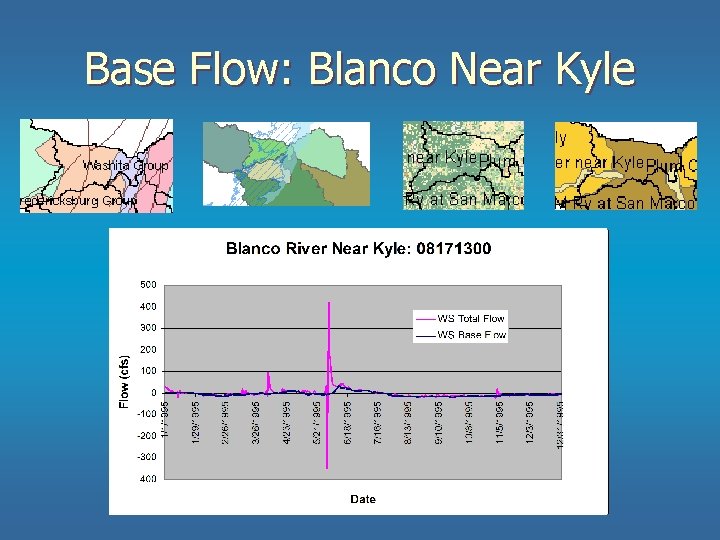

Base Flow: Blanco Near Kyle

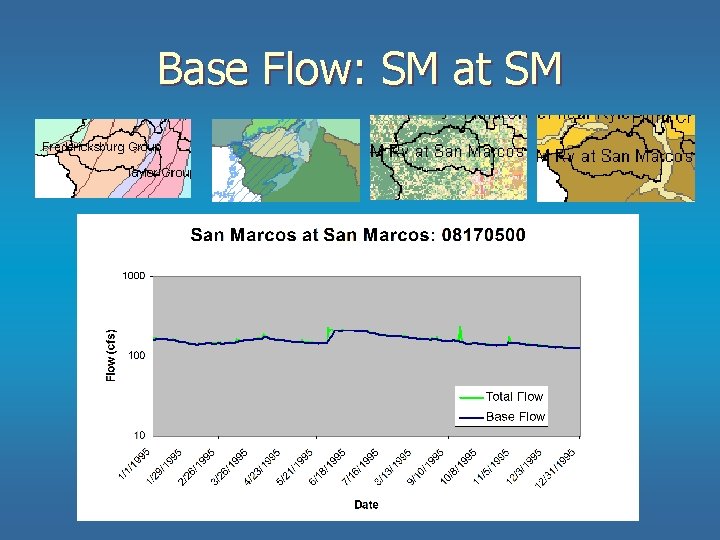

Base Flow: SM at SM

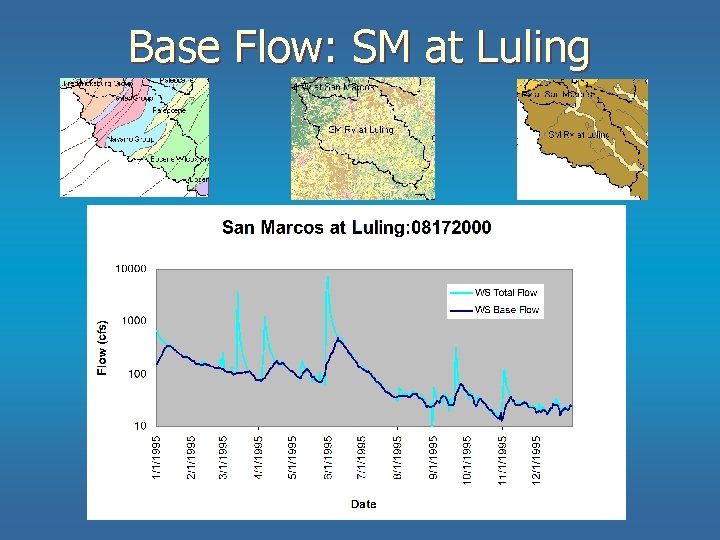

Base Flow: SM at Luling

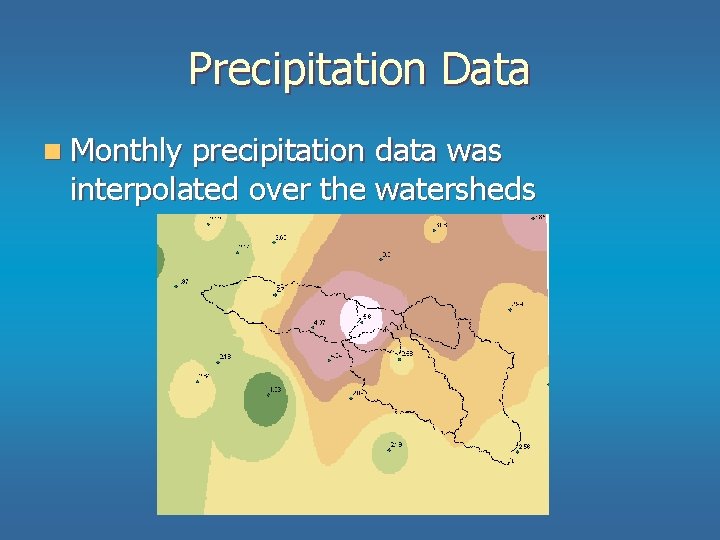

Precipitation Data n Monthly precipitation data was interpolated over the watersheds

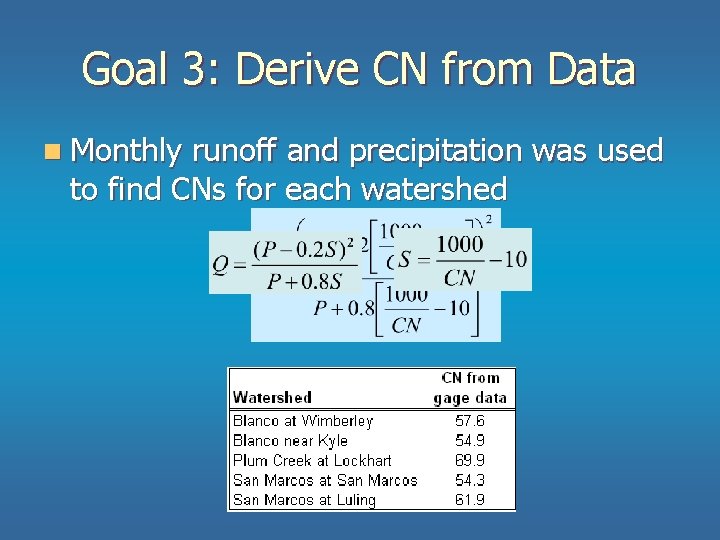

Goal 3: Derive CN from Data n Monthly runoff and precipitation was used to find CNs for each watershed

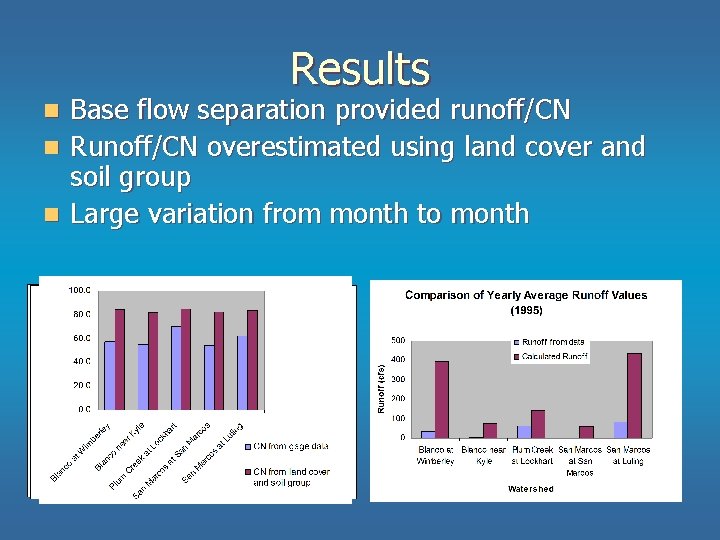

Results Base flow separation provided runoff/CN n Runoff/CN overestimated using land cover and soil group n Large variation from month to month n

Conclusions n Using CN to predict runoff for a large watershed might give significant error n CN table used might overestimate n Runoff data from base flow separation not dependable for losing streams

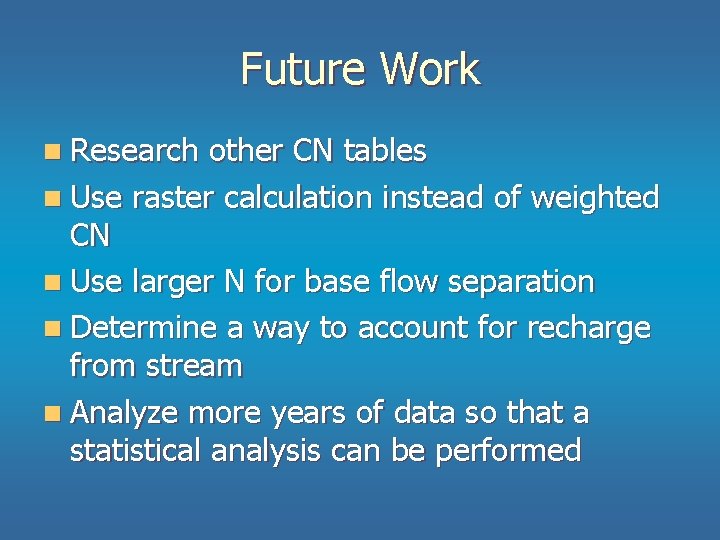

Future Work n Research other CN tables n Use raster calculation instead of weighted CN n Use larger N for base flow separation n Determine a way to account for recharge from stream n Analyze more years of data so that a statistical analysis can be performed
