Comparison of Next. Gen and SESAR Modernisation Initiatives ASAS TN 2 Paris By: Don Ward Date: April 2008 Federal Aviation Administration

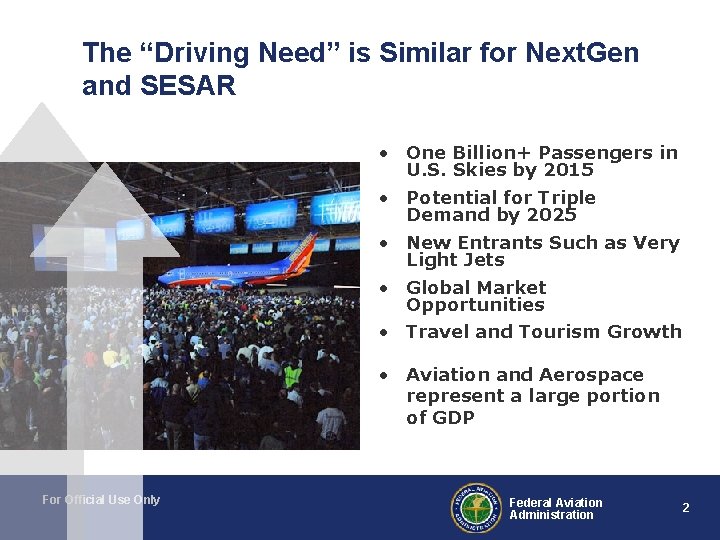

The “Driving Need” is Similar for Next. Gen and SESAR • One Billion+ Passengers in U. S. Skies by 2015 • Potential for Triple Demand by 2025 • New Entrants Such as Very Light Jets • Global Market Opportunities • Travel and Tourism Growth • Aviation and Aerospace represent a large portion of GDP For Official Use Only Federal Aviation Administration 2

But, There Are Problems • Aging, Inefficient, Unreliable and Costly Air Transportation Infrastructure • Reaching the Limits of Capacity • Rapidly growing concern over environmental impact For Official Use Only Federal Aviation Administration 3

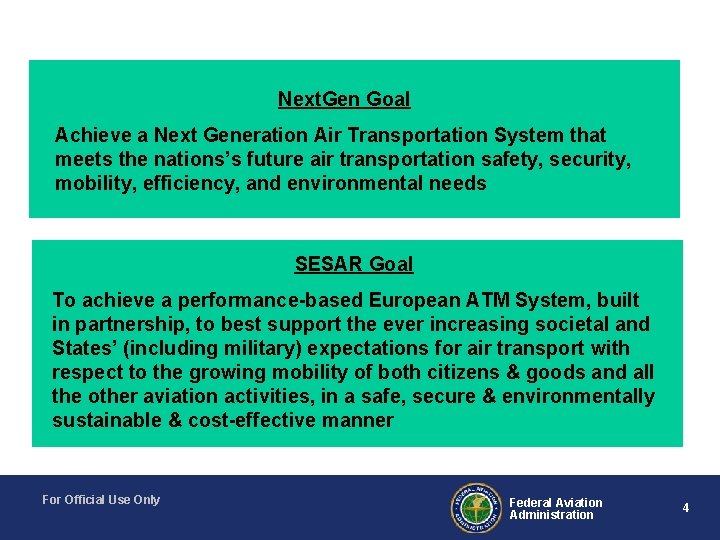

Next. Gen Goal Achieve a Next Generation Air Transportation System that meets the nations’s future air transportation safety, security, mobility, efficiency, and environmental needs SESAR Goal To achieve a performance-based European ATM System, built in partnership, to best support the ever increasing societal and States’ (including military) expectations for air transport with respect to the growing mobility of both citizens & goods and all the other aviation activities, in a safe, secure & environmentally sustainable & cost-effective manner For Official Use Only Federal Aviation Administration 4

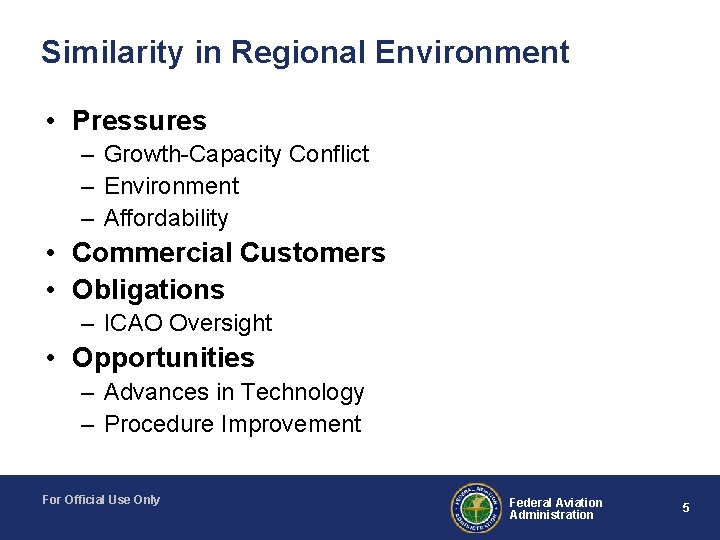

Similarity in Regional Environment • Pressures – Growth-Capacity Conflict – Environment – Affordability • Commercial Customers • Obligations – ICAO Oversight • Opportunities – Advances in Technology – Procedure Improvement For Official Use Only Federal Aviation Administration 5

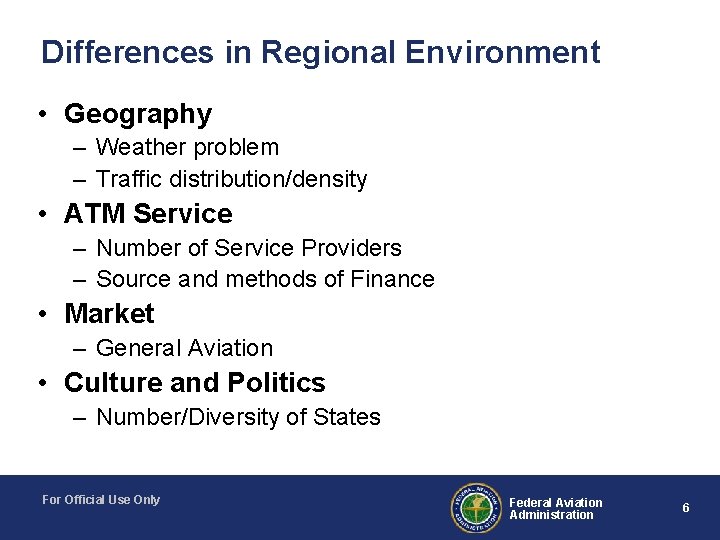

Differences in Regional Environment • Geography – Weather problem – Traffic distribution/density • ATM Service – Number of Service Providers – Source and methods of Finance • Market – General Aviation • Culture and Politics – Number/Diversity of States For Official Use Only Federal Aviation Administration 6

Next. Gen & SESAR Objectives are Similar • • • Expand Capacity Global Aviation Harmonization Ensure Safety (with increasing capacity) Protect the Environment Improve Service for Aviation Customers For Official Use Only Federal Aviation Administration 7

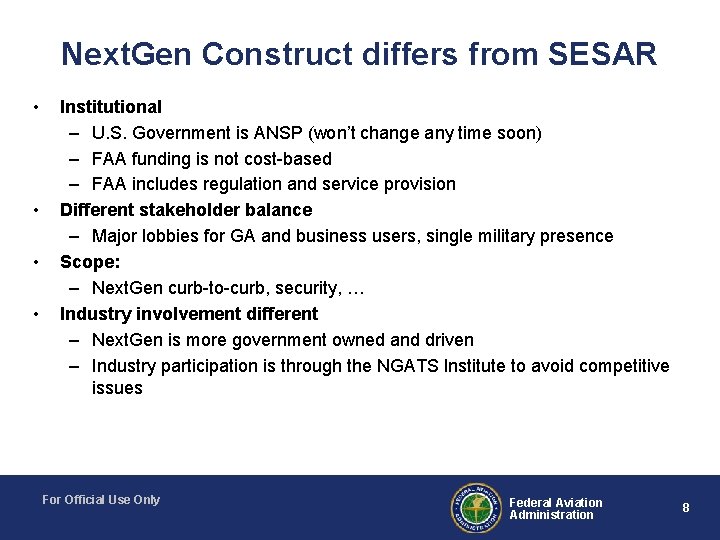

Next. Gen Construct differs from SESAR • • Institutional – U. S. Government is ANSP (won’t change any time soon) – FAA funding is not cost-based – FAA includes regulation and service provision Different stakeholder balance – Major lobbies for GA and business users, single military presence Scope: – Next. Gen curb-to-curb, security, … Industry involvement different – Next. Gen is more government owned and driven – Industry participation is through the NGATS Institute to avoid competitive issues For Official Use Only Federal Aviation Administration 8

Next. Gen: A Look Under the Hood For Official Use Only Federal Aviation Administration 9

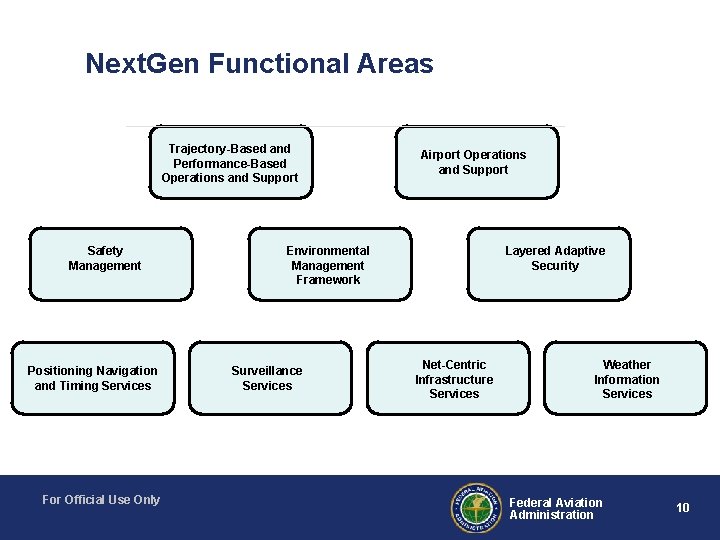

Next. Gen Functional Areas Trajectory-Based and Performance-Based Operations and Support Safety Management Positioning Navigation and Timing Services For Official Use Only Airport Operations and Support Environmental Management Framework Surveillance Services Layered Adaptive Security Net-Centric Infrastructure Services Weather Information Services Federal Aviation Administration 10

Trajectory-Based and Performance-Based Operations and Support Services and Operations based on precise trajectory execution User preferences are accommodated as best possible 4 D-/Business Trajectories are digitally exchanged among aircraft, operators, and service providers Use four-dimensional trajectories to analyze and predict system behavior For Official Use Only Federal Aviation Administration 11

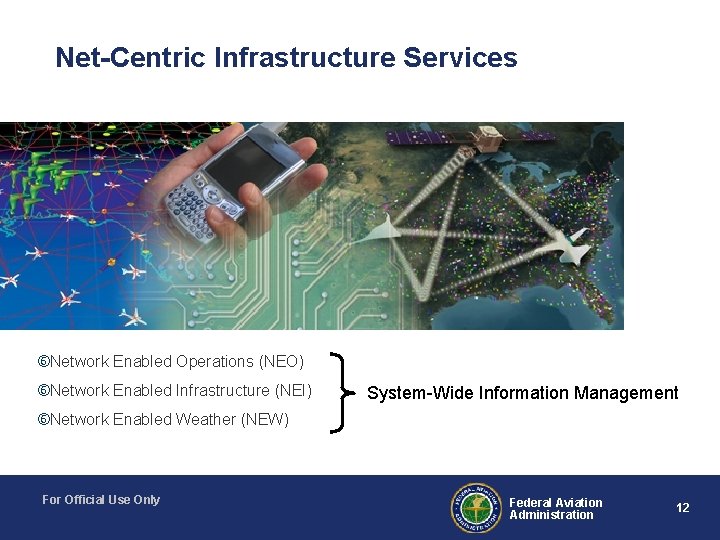

Net-Centric Infrastructure Services Network Enabled Operations (NEO) Network Enabled Infrastructure (NEI) System-Wide Information Management Network Enabled Weather (NEW) For Official Use Only Federal Aviation Administration 12

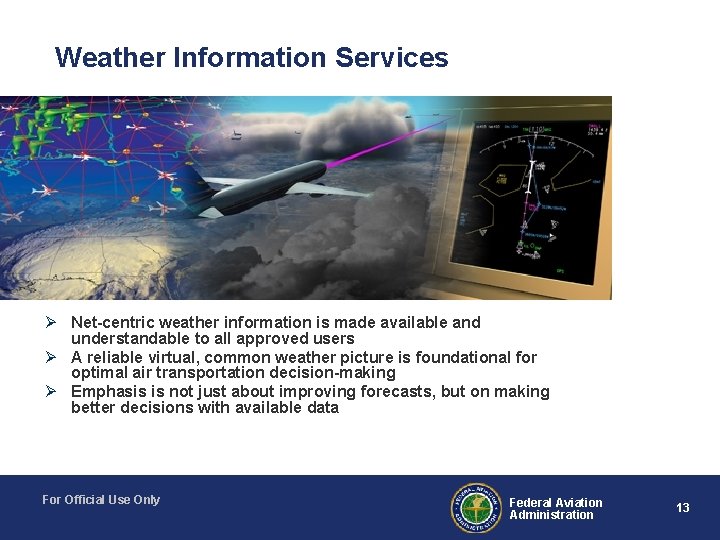

Weather Information Services Ø Net-centric weather information is made available and understandable to all approved users Ø A reliable virtual, common weather picture is foundational for optimal air transportation decision-making Ø Emphasis is not just about improving forecasts, but on making better decisions with available data For Official Use Only Federal Aviation Administration 13

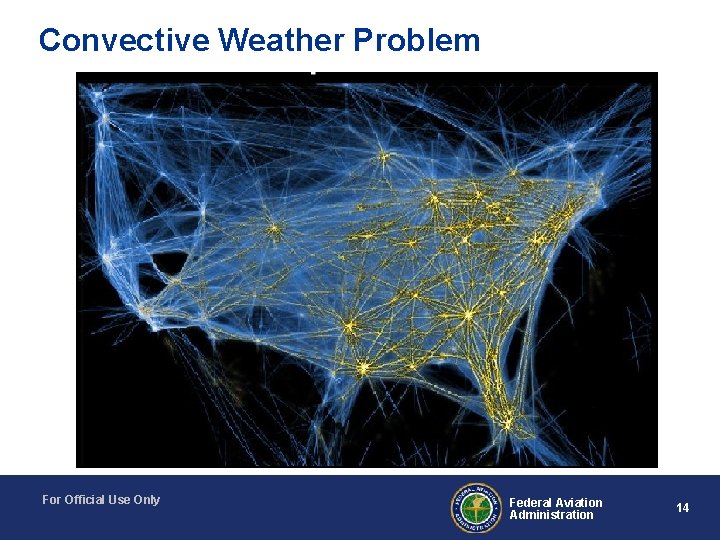

Convective Weather Problem For Official Use Only Federal Aviation Administration 14

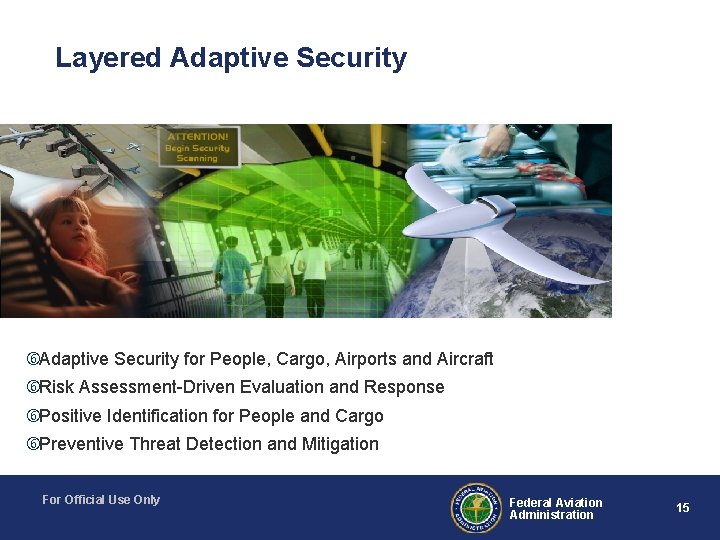

Layered Adaptive Security for People, Cargo, Airports and Aircraft Risk Assessment-Driven Evaluation and Response Positive Identification for People and Cargo Preventive Threat Detection and Mitigation For Official Use Only Federal Aviation Administration 15

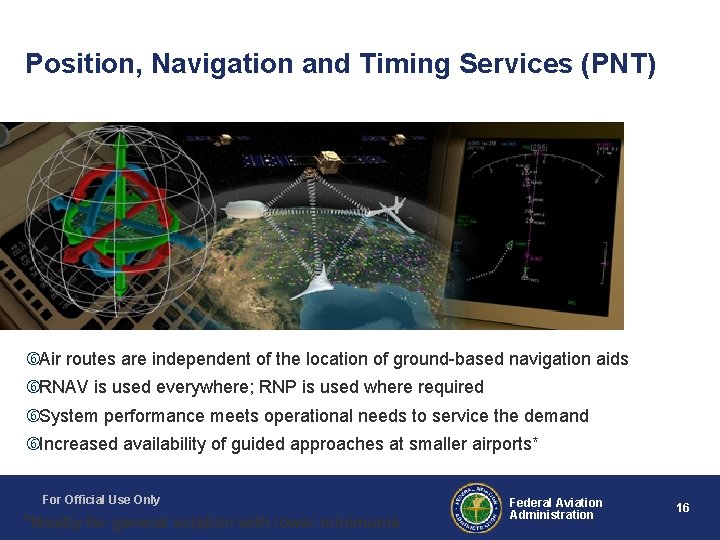

Position, Navigation and Timing Services (PNT) Air routes are independent of the location of ground-based navigation aids RNAV is used everywhere; RNP is used where required System performance meets operational needs to service the demand Increased availability of guided approaches at smaller airports* For Official Use Only *Mostly for general aviation with lower minimums Federal Aviation Administration 16

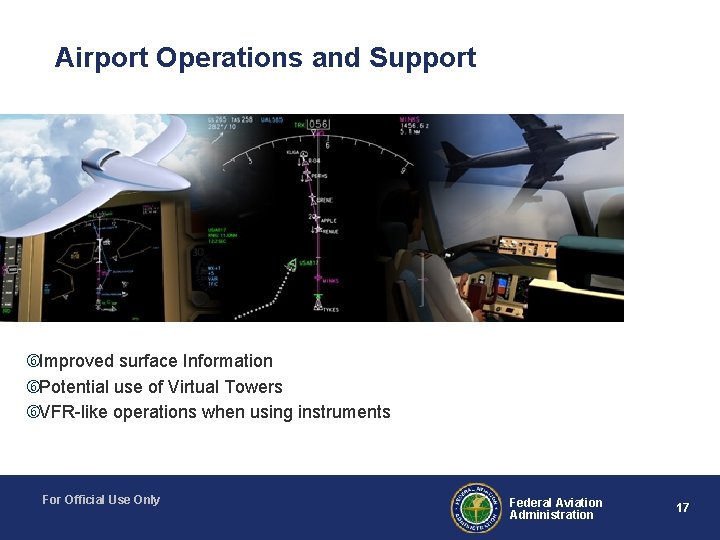

Airport Operations and Support Improved surface Information Potential use of Virtual Towers VFR-like operations when using instruments For Official Use Only Federal Aviation Administration 17

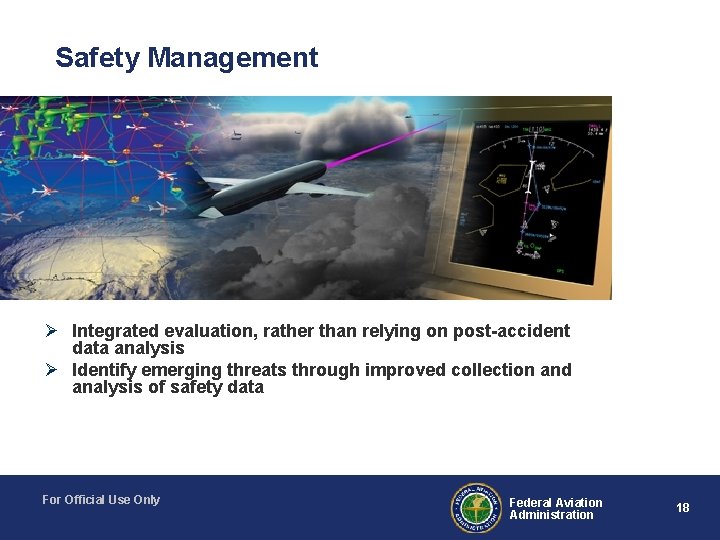

Safety Management Ø Integrated evaluation, rather than relying on post-accident data analysis Ø Identify emerging threats through improved collection and analysis of safety data For Official Use Only Federal Aviation Administration 18

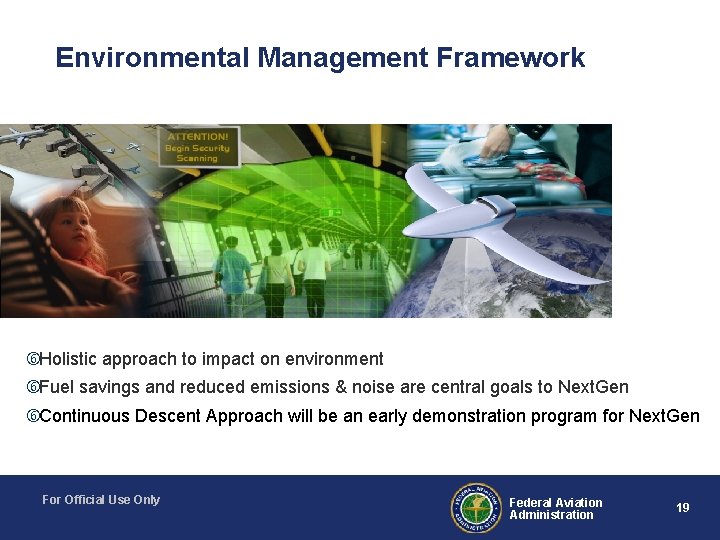

Environmental Management Framework Holistic approach to impact on environment Fuel savings and reduced emissions & noise are central goals to Next. Gen Continuous Descent Approach will be an early demonstration program for Next. Gen For Official Use Only Federal Aviation Administration 19

Surveillance Services Migration from ground-based surveillance to satellite-based systems For Official Use Only Federal Aviation Administration 20

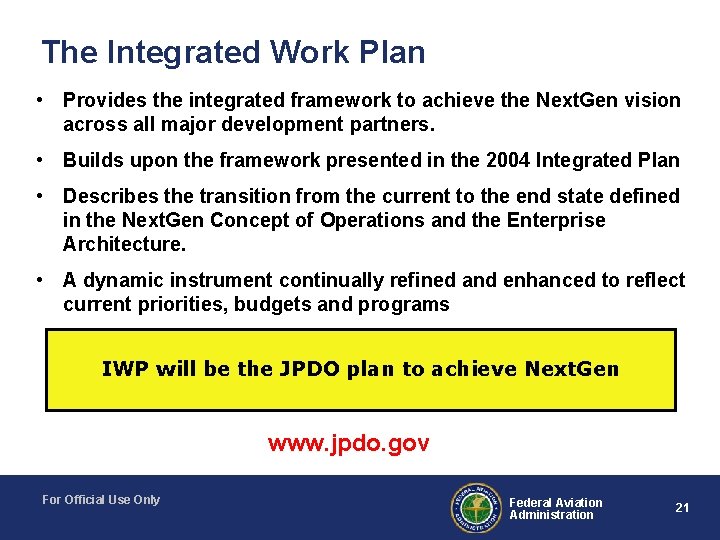

The Integrated Work Plan • Provides the integrated framework to achieve the Next. Gen vision across all major development partners. • Builds upon the framework presented in the 2004 Integrated Plan • Describes the transition from the current to the end state defined in the Next. Gen Concept of Operations and the Enterprise Architecture. • A dynamic instrument continually refined and enhanced to reflect current priorities, budgets and programs IWP will be the JPDO plan to achieve Next. Gen www. jpdo. gov For Official Use Only Federal Aviation Administration 21

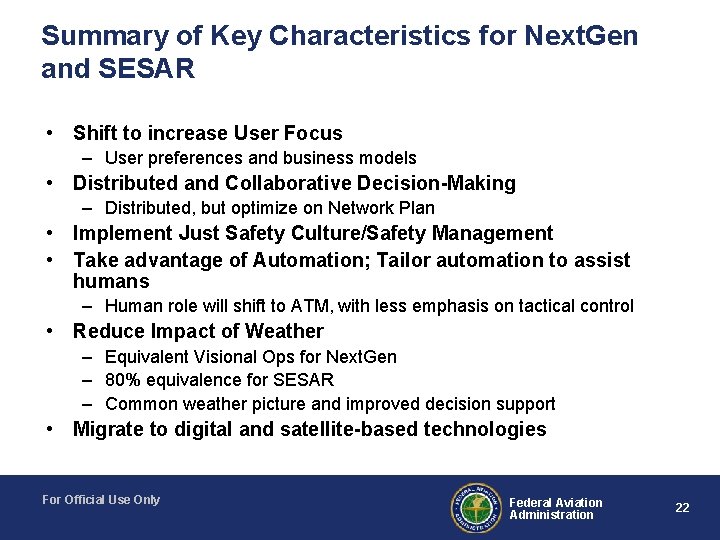

Summary of Key Characteristics for Next. Gen and SESAR • Shift to increase User Focus – User preferences and business models • Distributed and Collaborative Decision-Making – Distributed, but optimize on Network Plan • Implement Just Safety Culture/Safety Management • Take advantage of Automation; Tailor automation to assist humans – Human role will shift to ATM, with less emphasis on tactical control • Reduce Impact of Weather – Equivalent Visional Ops for Next. Gen – 80% equivalence for SESAR – Common weather picture and improved decision support • Migrate to digital and satellite-based technologies For Official Use Only Federal Aviation Administration 22

Next. Gen ATM Evolution Research Building Next. Gen FY 07 – 11 4 DT Management Performance-Based Ops & Services Equivalent Visual Ops (CDTI) Roles of Pilots & Controllers Core Technologies, Capabilities & Sys Eng Epoch 1 • • • Complete R&D leading to mid-term Continue R&D that address long-term Next. Gen challenges Develop & implement known & new procedures, infrastructure, technologies Develop Next. Gen systems integration plan for mid-term transition to Next. Gen Complete infrastructure and systems engineering for mid-term Mid-Term Transition to Next. Gen FY 12 – 18 Super Density Operations Time-Based Surface Ops Right Sizing of Facilities FY 19 – 25 Research for Transformed Next. Gen State FY 07 -11 Epoch 2 • • FY 12 -18 Aircraft equipped for the mid-term & upgradeable to Next. Gen target Deliver Next. Gen services & capabilities across domains Complete “hard” infrastructure – airports, runways, terminals, security Management & operating models support transition to Next. Gen and long-term sustainability Next. Gen Solutions Fully Integrated & Operating Epoch 3 FY 19 -25 • Next. Gen solutions fully-integrated & operating across air transportation system • Services managed & operating in ways that achieve transformational outcomes across air transportation system For Official Use Only Federal Aviation Administration 23

SESAR ATM Evolution For Official Use Only Federal Aviation Administration 24

SESAR Implementation For Official Use Only Federal Aviation Administration 25

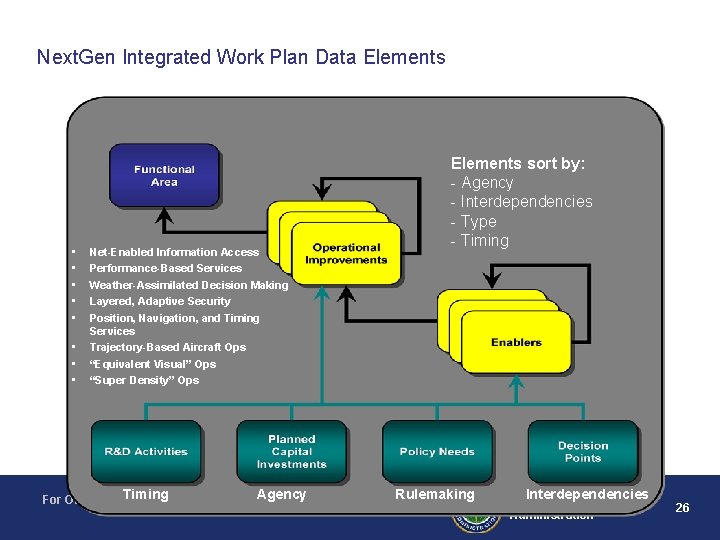

Next. Gen Integrated Work Plan Data Elements • • Net-Enabled Information Access Performance-Based Services Weather-Assimilated Decision Making Layered, Adaptive Security Elements sort by: - Agency - Interdependencies - Type - Timing Position, Navigation, and Timing Services Trajectory-Based Aircraft Ops “Equivalent Visual” Ops “Super Density” Ops Timing For Official Use Only Agency Rulemaking Interdependencies Federal Aviation Administration 26

SESAR Operational Improvement Construct For Official Use Only Federal Aviation Administration 27

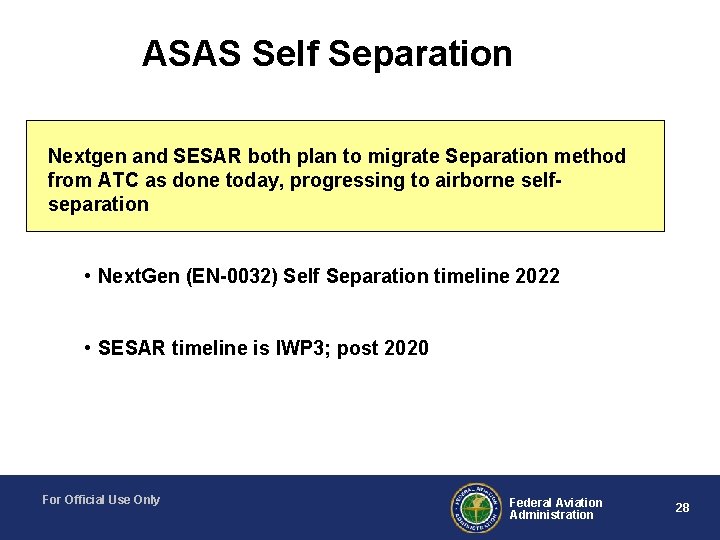

ASAS Self Separation Nextgen and SESAR both plan to migrate Separation method from ATC as done today, progressing to airborne selfseparation • Next. Gen (EN-0032) Self Separation timeline 2022 • SESAR timeline is IWP 3; post 2020 For Official Use Only Federal Aviation Administration 28

How We are Working Together • JPDO Global Harmonisation Work Group • Memorandum of Cooperation between FAA and Eurocontrol • Memorandum of Understanding between FAA and EC • Joint Participation on numerous Global Work Groups • Joint agreement on Atlantic Interoperability Initiative to Reduce Emissions (AIRE) For Official Use Only Federal Aviation Administration 29
