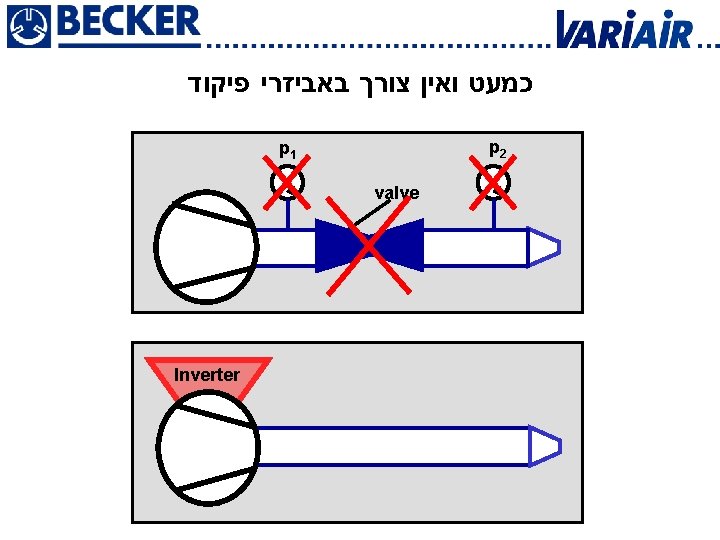

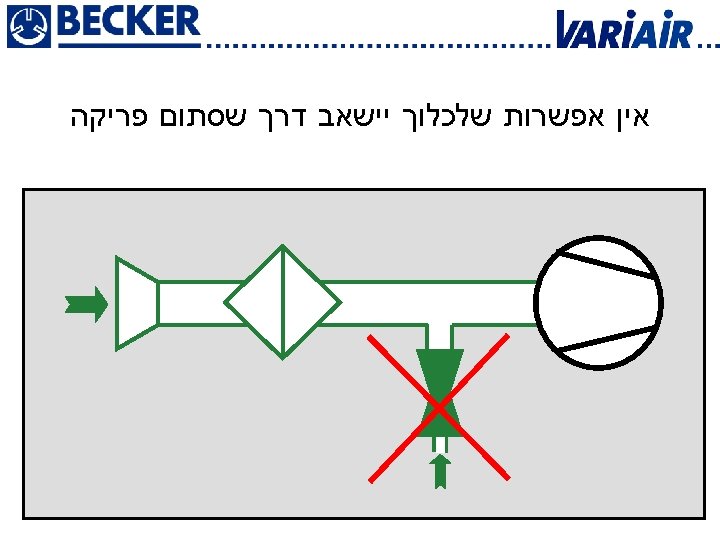

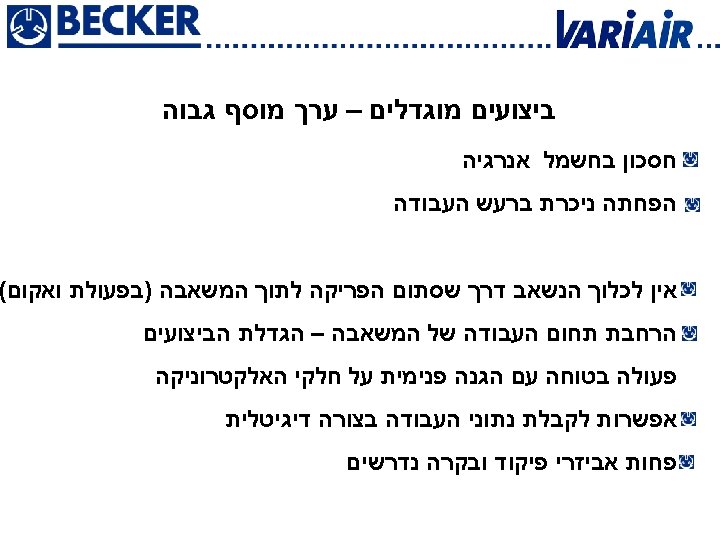

Comparison of methods for regulating throttle suction and blast air השוואה בין שיטות ויסות לחץ וואקום שסתום ביניקה n שסתום עוקף n Variair פיקוד n

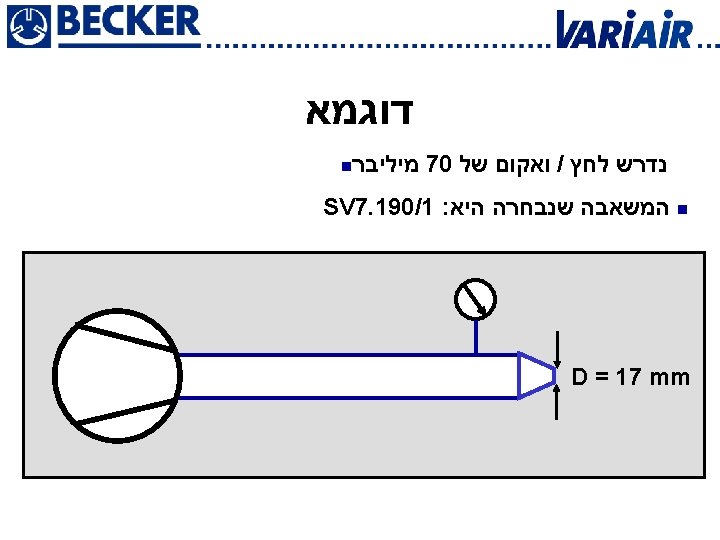

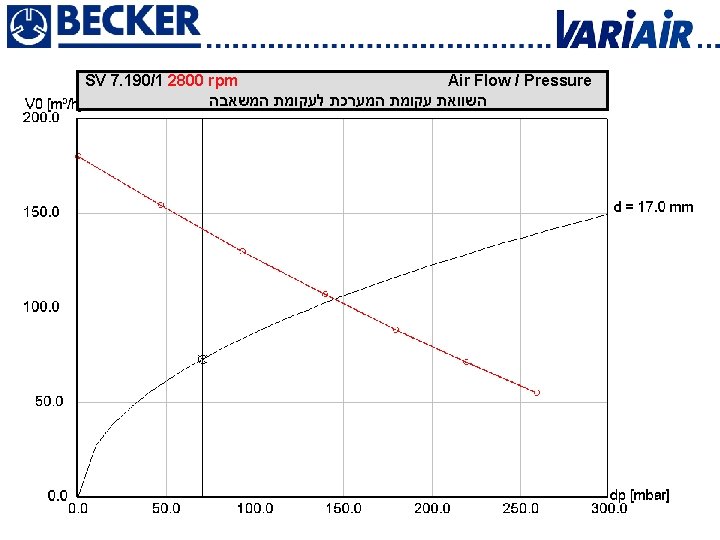

דוגמה Example Throttle sketch ברז הצרה בקו p 1 p 2 D = 17 mm
SV 7. 190/1 2800 rpm Motor Power / Pressure 1. 68 המשך הדוגמה של הצרת הקו – ניתן לראות שההספק החשמלי הנדרש הוא ק" ו with throttle valve required power (blower at 50 Hz) = 0, 68 KW actual rated power = 1, 6 KW

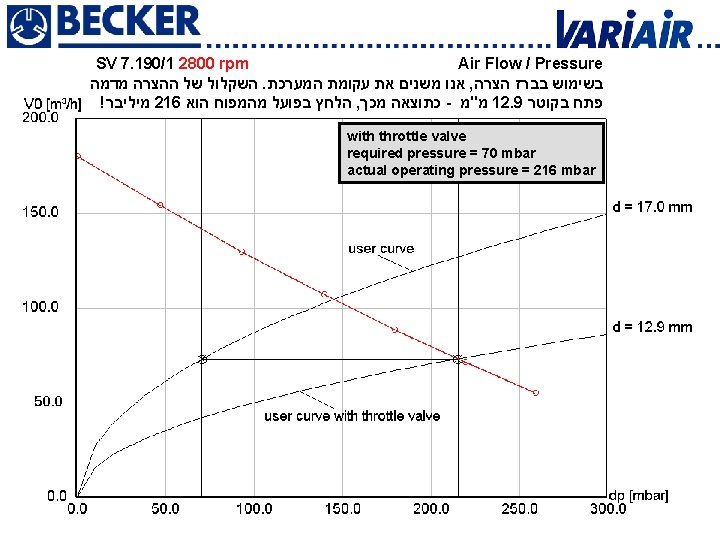

SV 7. 190/1 2800 rpm Blast Air Temperature / Pressure מעלות 69 – גבוהה מאד , המשך הדוגמה של ההצרה – טמפרטורת האויר היוצא with throttle valve blast air temperature (blower at 50 Hz) = 33°C actual blast air temperature = 69°C

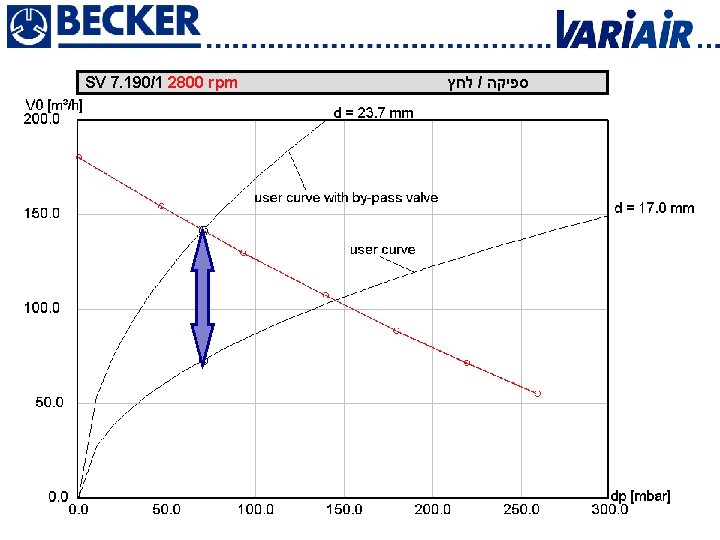

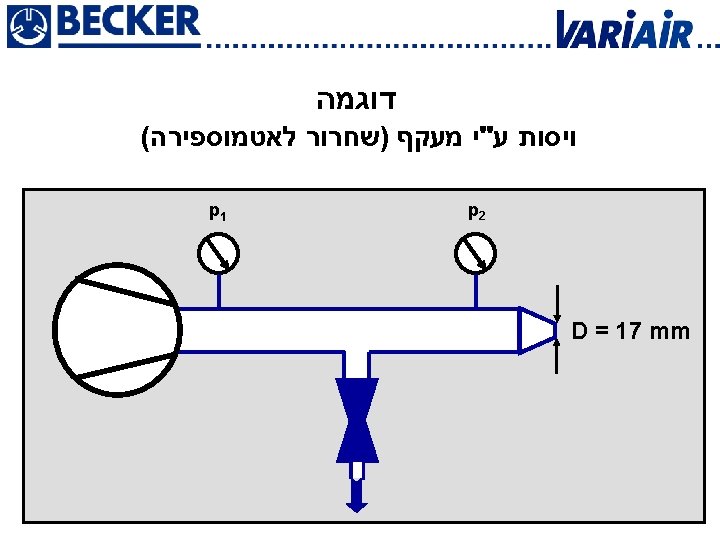

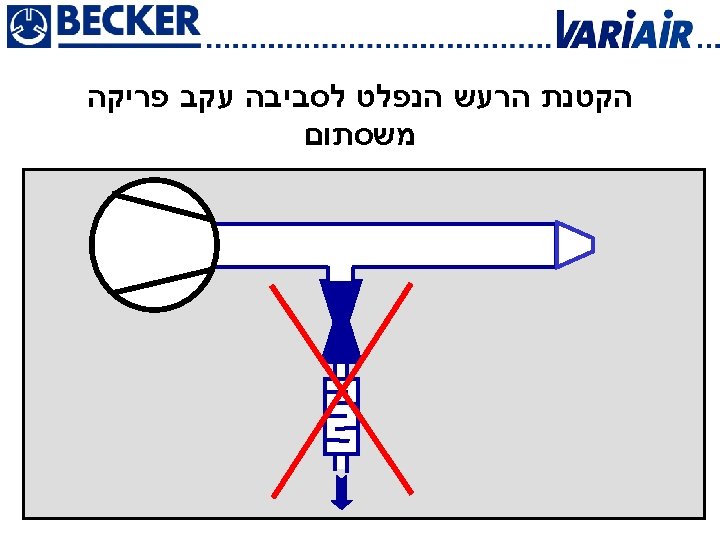

SV 7. 190/1 2800 rpm Air Flow / Pressure מק"ש 142 אנו משנים את עקומת המערכת והספיקה הנדרשת היא , ' בשחרור אויר לאט with by-pass valve required air flow = 73 m³/h actual air flow = 142 m³/h
SV 7. 190/1 2800 rpm Motor Power / Pressure ק"ו 0. 68 – המשך דוגמת המעקף – ההספק החשמלי הנדרש נותר כפי שהיה with by-pass valve required power (blower 50 Hz) = 0, 68 KW = actual rated power = 0, 68 KW

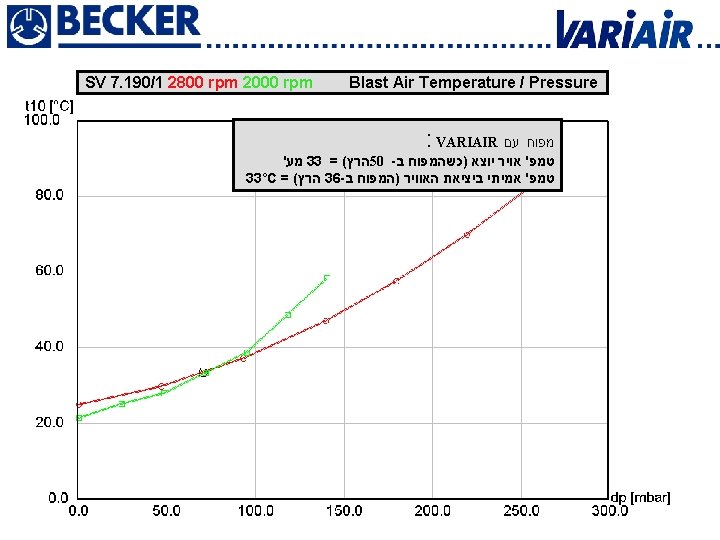

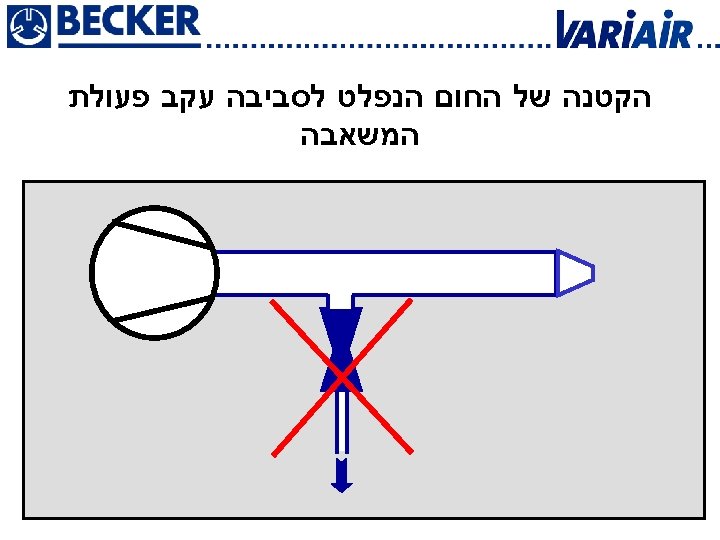

SV 7. 190/1 2800 rpm Blast Air Temperature / Pressure מעלות 33 – המשך דוגמת המעקף – טמפרטורת האויר נותרת כפי שהיתה with by-pass valve blast air temperature (blower 50 Hz) = 33°C = actual blast air temperature = 33°C

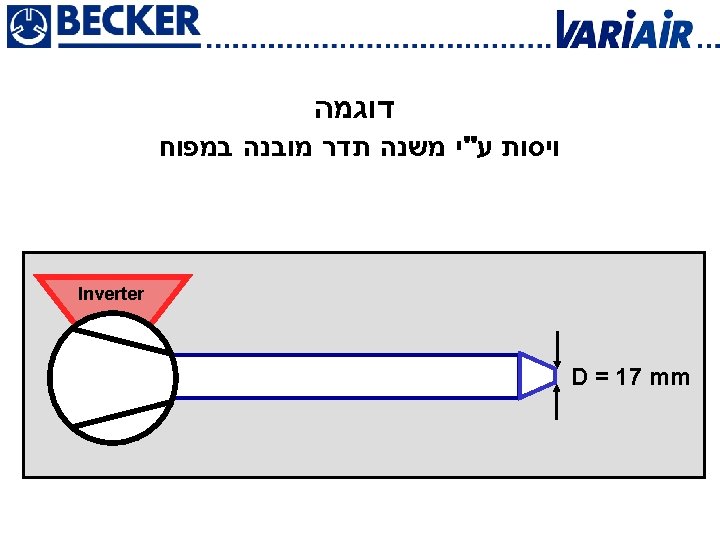

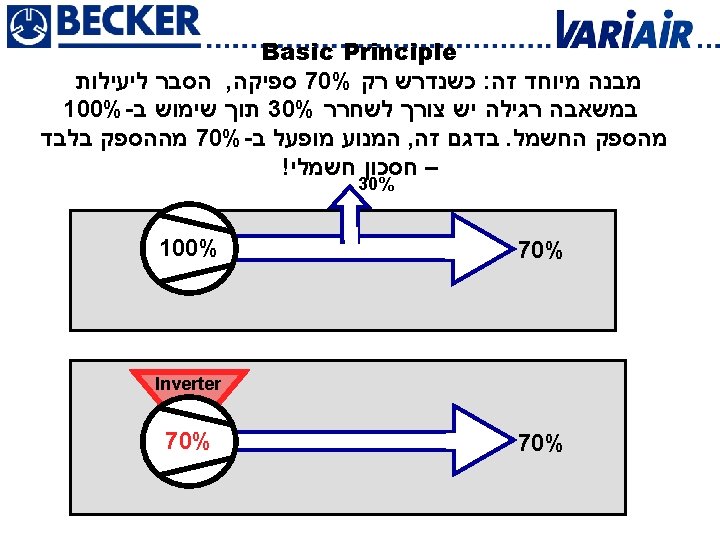

SV 7. 190/1 2800 rpm 2000 rpm Air Flow / Pressure אנו משנים את עקומת המפוח ולא את עקומת המערכת , בשימוש ע"י משנה תדר with VARIAIR blower required pressure = actual operating pressure = 70 mbar required air flow = actual air flow = 73 m³/h
SV 7. 190/1 2800 rpm 2000 rpm Motor Power / Pressure ! המשך דוגמת הויסות ע"י משנה תדר – ההספק החשמלי הנדרש נמוך מאד with VARIAIR blower required power (blower 50 Hz) = 0, 68 KW actual rated power (blower 36 Hz) = 0, 38 KW

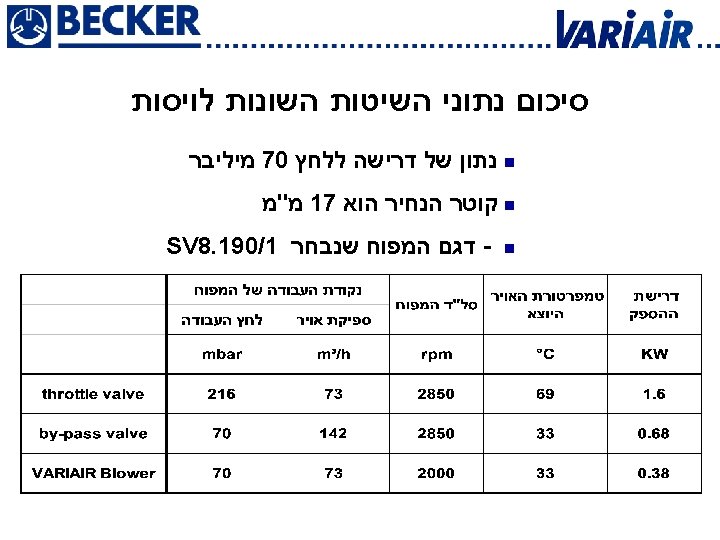

DTLF 250 950 rpm 600 rpm Air Flow / Pressure 81 m³/h with 118°C
ספיקה / לחץ SV 7. 190/1 2800 rpm
VTLF 250 950 rpm 600 rpm Air Flow / Pressure

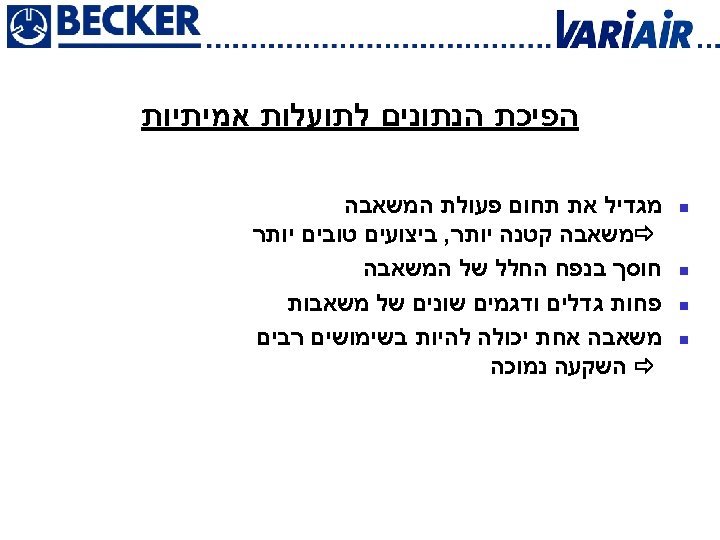

תחום פעולת המפוח air flow [m³/h] 600 500 400 300 200 100 0 0 100 200 300 400 pressure [mbar] e. g. VAU SV 7. 330/1 - 401

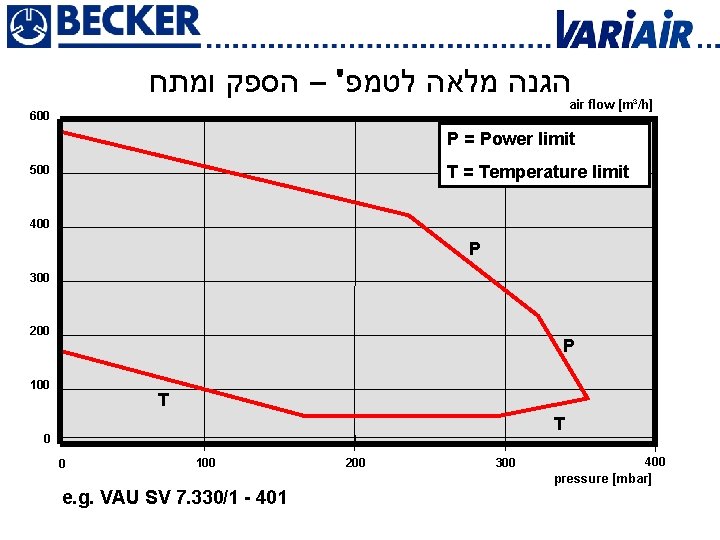

הגנה מלאה לטמפ' – הספק ומתח air flow [m³/h] 600 P = Power limit T = Temperature limit 500 400 P 300 200 P 100 T T 0 0 100 200 300 400 pressure [mbar] e. g. VAU SV 7. 330/1 - 401
ואקום קבוע / אפשרות ויסות ללחץ air flow [m³/h] 600 500 400 300 200 100 0 0 100 e. g. VAU SV 7. 330/1 - 401 200 300 400 pressure [mbar]
אפשרות ויסות לספיקה קבועה air flow [m³/h] 600 500 400 300 200 100 0 0 100 e. g. VAU SV 7. 330/1 - 401 200 300 400 pressure [mbar]
