Comparison Networks Sorting Sorting binary values Sorting arbitrary

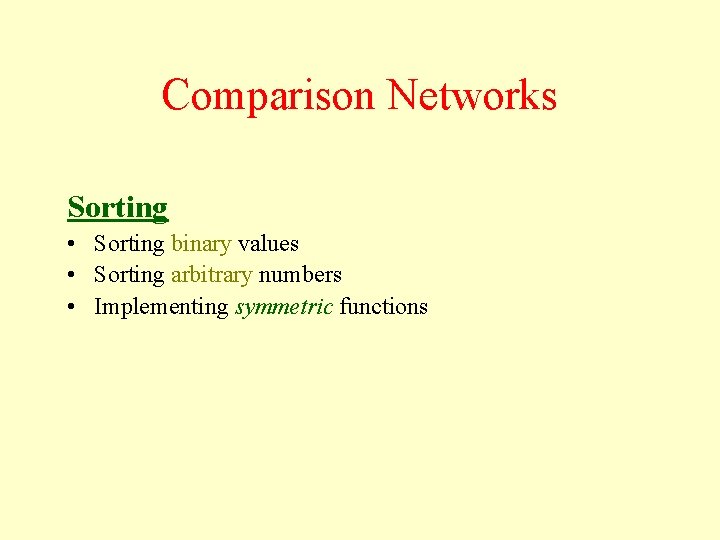

Comparison Networks Sorting • Sorting binary values • Sorting arbitrary numbers • Implementing symmetric functions
Sorting Algorithms Example Mergesort(array[1, …, n] of Integers): begin Mergesort(array[1, …, n/2]); Mergesort(array[n/2+1, …, n]); Merge(array[1, …, n/2], array[n/2+1, …, n]); end comparisons required to merge two arrays of size m/2 comparisons to sort n elements Order of comparisons not fixed in advance. Not readily implementable in hardware.
Sorting Networks C D B A Sorting Network Order of comparisons fixed in advance. Readily implementable in hardware. A B C D
Sorting Networks (binary values) inputs outputs 1 0 0 1 1 Sorting Network 0 0 1 1 sorted
Comparator (2 -sorter) outputs inputs x y C min(x, y) max(x, y)
Comparator (2 -sorter) inputs outputs x min(x, y) y max(x, y)
Comparison Network 1 0 0 1 1 0 1 1 1 width n depth d
Comparison Network n/2 comparisons per stage 1 0 0 1 1 0 1 1 1 d stages
Sorting Network Any ideas?
Sorting Network inputs . . . outputs . . . Sorting Network . . . n 1 n
Insertion Sort Network inputs outputs depth 2 n 3

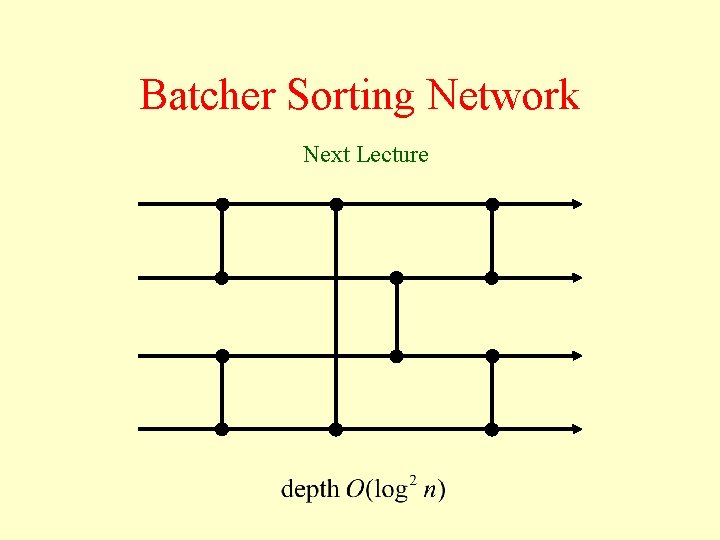

Batcher Sorting Network Next Lecture
Sorting Arbitrary Numbers inputs outputs x min(x, y) y max(x, y) x, y can be values from any linearly ordered set, e. g. , integers, reals, etc.
Integer Comparator X, Y: integers represented as m-bit binary strings. Comparison function: C(X, Y) = 1 if X > Y, 0 otherwise. Idea: use C(X, Y) to select the min and the max of X and Y.
Sorting Arbitrary Numbers 9 2 2 9 6 6 9 9 sorted
Sorting Arbitrary Numbers 1 1 5 5 4 4 5 5 sorted
Sorting Arbitrary Numbers 3 3 7 7 0 0 7 7 not sorted How can we verify if a network sorts all possible input sequences?

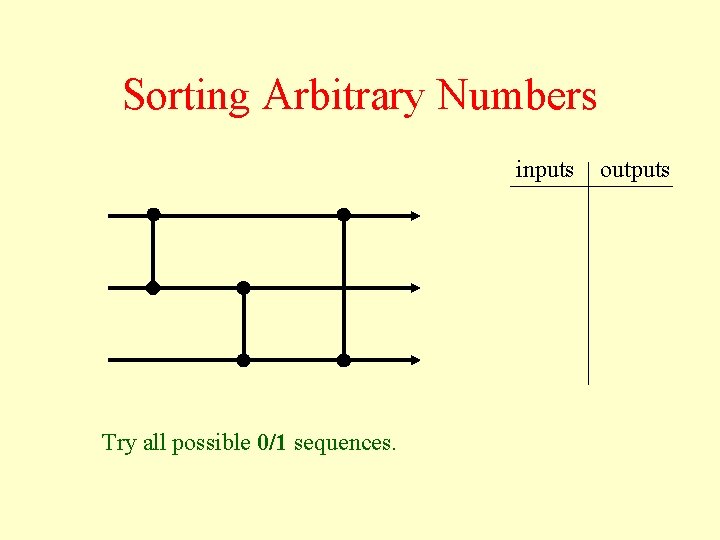

Sorting Arbitrary Numbers inputs Try all possible 0/1 sequences. outputs

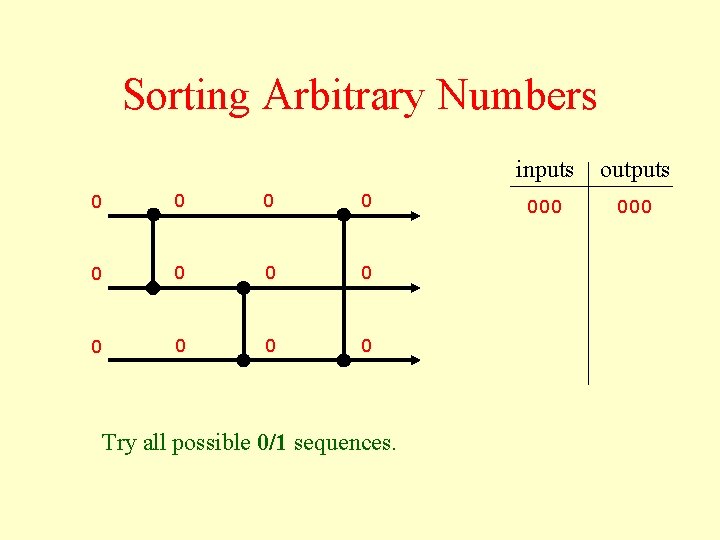

Sorting Arbitrary Numbers 0 0 0 Try all possible 0/1 sequences. inputs outputs 000
Sorting Arbitrary Numbers 0 0 0 0 1 1 Try all possible 0/1 sequences. inputs outputs 000 001
Sorting Arbitrary Numbers 0 0 0 0 1 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 001 001
Sorting Arbitrary Numbers 0 0 1 1 1 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 011 000 001 011
Sorting Arbitrary Numbers 1 0 0 0 0 1 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 011 100 001 011 001
Sorting Arbitrary Numbers 1 0 0 1 1 1 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 011 100 101 000 001 011
Sorting Arbitrary Numbers 1 1 1 0 0 1 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 011 100 101 110 001 001 011 101 not sorted!
Sorting Arbitrary Numbers 1 1 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 011 100 101 110 111 000 001 011 101 111 not sorted!
Sorting Arbitrary Numbers
Sorting Arbitrary Numbers inputs Try all possible 0/1 sequences. outputs

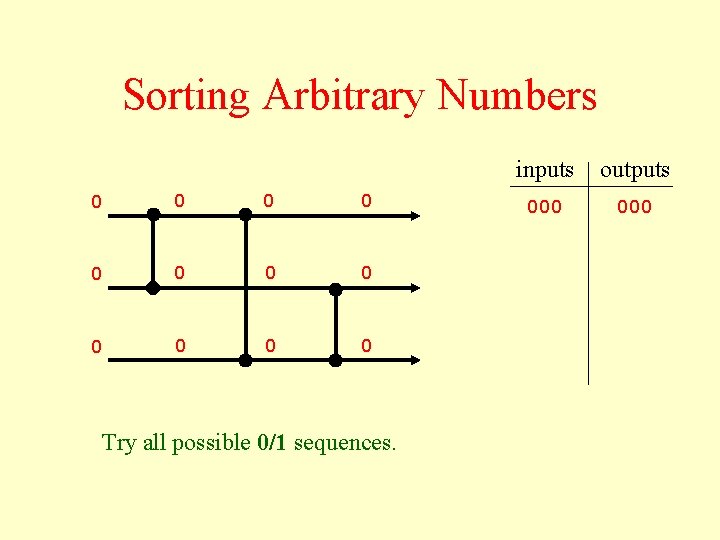

Sorting Arbitrary Numbers 0 0 0 Try all possible 0/1 sequences. inputs outputs 000
Sorting Arbitrary Numbers 0 0 0 0 1 1 Try all possible 0/1 sequences. inputs outputs 000 001

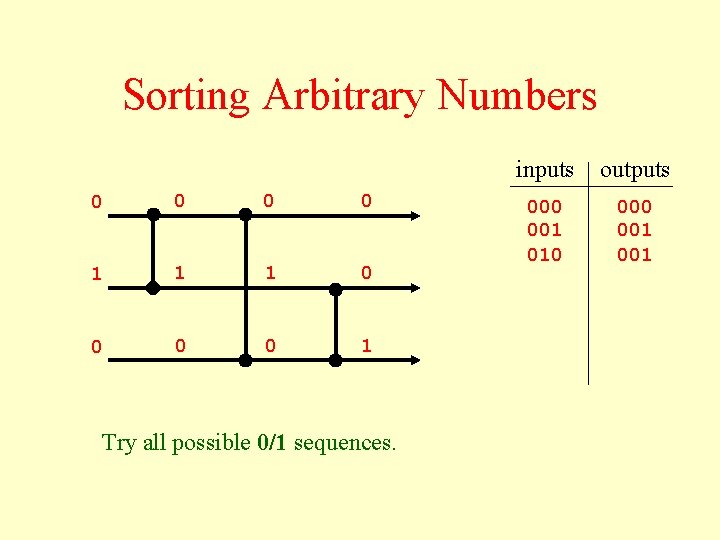

Sorting Arbitrary Numbers 0 0 1 1 1 0 0 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 001 001

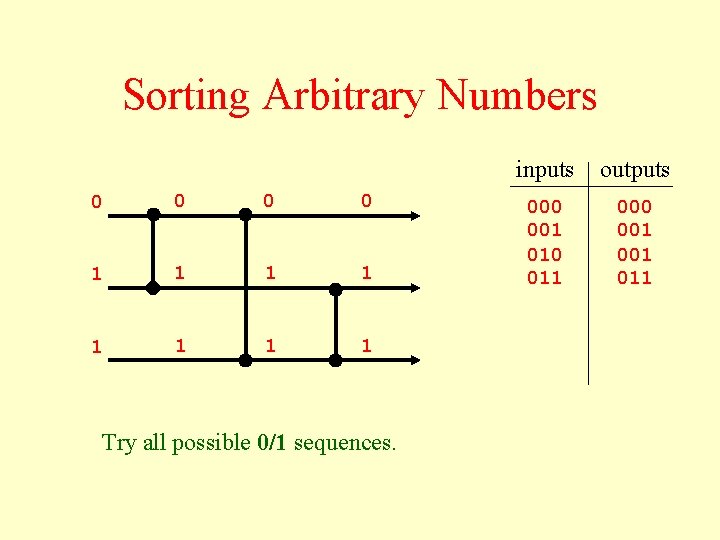

Sorting Arbitrary Numbers 0 0 1 1 1 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 011 000 001 011

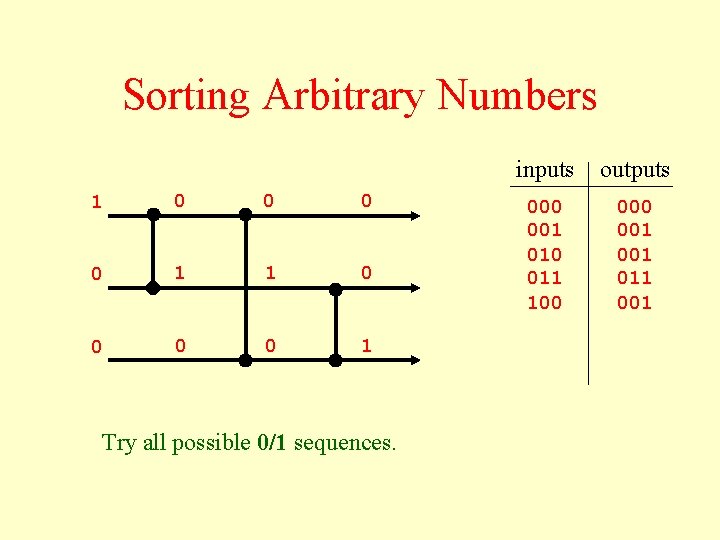

Sorting Arbitrary Numbers 1 0 0 0 0 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 011 100 001 011 001
Sorting Arbitrary Numbers 1 0 0 1 1 1 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 011 100 101 000 001 011
Sorting Arbitrary Numbers 1 1 0 0 1 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 011 100 101 110 001 001 011 011
Sorting Arbitrary Numbers 1 1 1 Try all possible 0/1 sequences. inputs outputs 000 001 010 011 100 101 110 111 000 001 011 111
Sorting Arbitrary Numbers Try all possible 0/1 sequences. inputs outputs 000 001 010 011 100 101 110 111 000 001 011 111 all sorted!
Zero-One Principle If a comparison network sorts all possible sequences of 0’s and 1’s correctly, then it sorts all sequences of arbitrary numbers correctly.
Lemma Given For a monotonically increasing function f,
Lemma Given For a monotonically increasing function f,
Proof: Lemma
Proof: Lemma

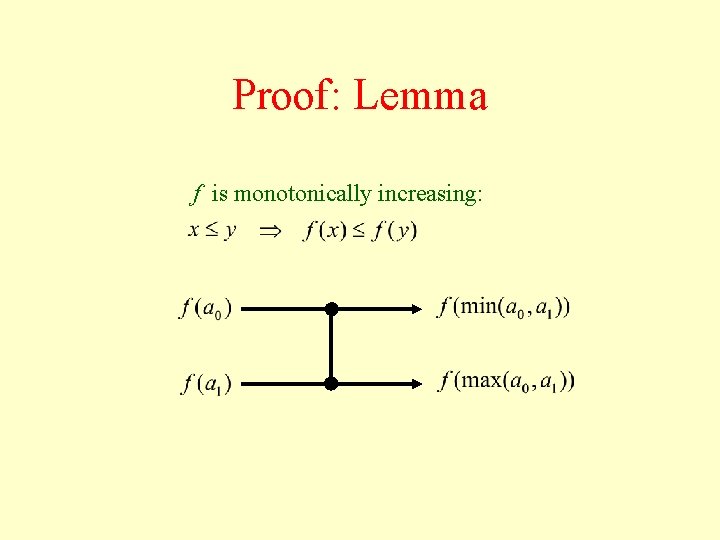

Proof: Lemma f is monotonically increasing:
Proof: Lemma f is monotonically increasing:
Proof: Lemma f is monotonically increasing:
Generalization Given
Generalization For a monotonically increasing function f, (by induction)

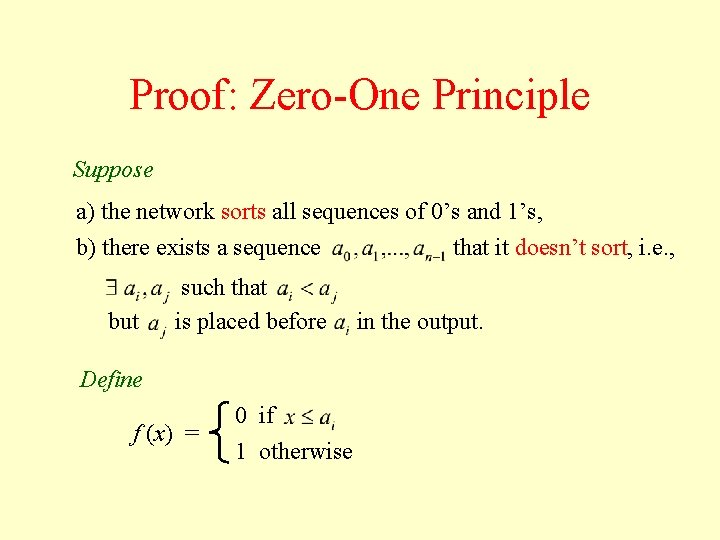

Proof: Zero-One Principle Suppose a) the network sorts all sequences of 0’s and 1’s, b) there exists a sequence that it doesn’t sort, i. e. , but such that is placed before Define f (x) = 0 if 1 otherwise in the output.
Proof: Zero-One Principle . . . Sorting Network . . .
Proof: Zero-One Principle . . . Sorting Network . . .

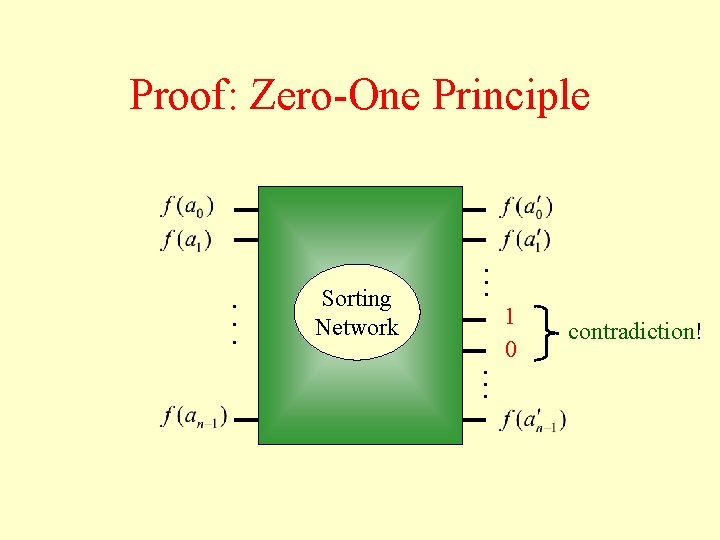

Proof: Zero-One Principle . . . Sorting Network . . . 1 0 contradiction!

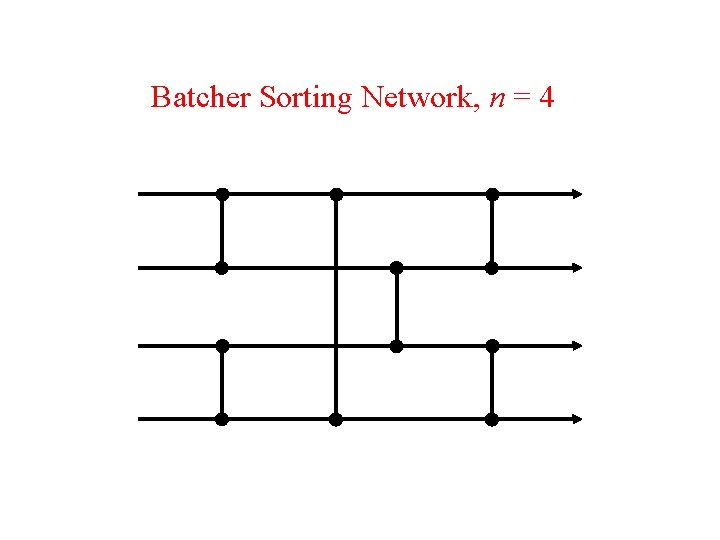

Batcher Sorting Network, n = 4
Batcher Sorting Network, n = 8 n=4
Lemma 1 Any subsequence of a sorted sequence is a sorted sequence. sorted 0 0 0 1 1 1 sorted
Lemma 2 For a sorted sequence, the number of 0’s in the even subsequence is either equal to, or one greater than, the number of 0’s in the odd subsequence. sorted 0 0 0 0 0 1 1 1 even odd
Lemma 3 For two sorted sequences and : denotes the number of 0’s in denotes the even subsequence of denotes the odd subsequence of
Lemma 3 0 0 0 0 0 1 1 1 0 x¢ x¢E 0 0 1 1 1 x. O¢
Lemma 3 For two sorted sequences and (by Lemma 2) :
Merge Network sorted Merge[4]

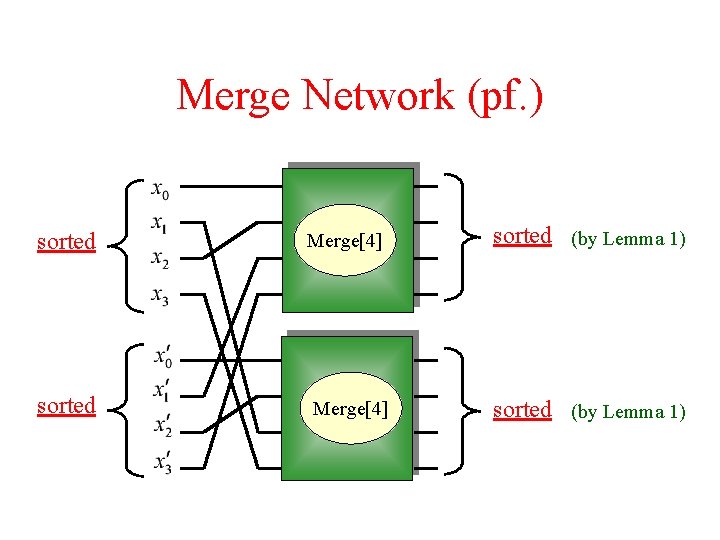

Merge Network (pf. ) sorted Merge[4] sorted (by Lemma 1)
Merge Network (pf. ) Merge[4] sorted By Lemma 3 and differ by at most 1
Merge Network (pf. ) Merge[4] By Lemma 3 and differ by at most 1 sorted Merge[4]
Merge Network (pf. ) 0 0 Merge[4] 1 1 By Lemma 3 and differ by at most 1 0 0 Merge[4] 0 1 0 0 0 1 1 1
Batcher Sorting Network Sort[4] Merge[8] Sort[4] sorted
Batcher Sorting Network, n = 4 Sort[2] Merge[4]
Sort[4] Batcher Sorting Network, n = 8 Merge[8]
Sorting Networks AKS (Ajtai, Komlós, Szemerédi) Network: based on expander graphs. AKS (Chvátal) AKS better for Batcher
Balancer Asynchronous token routing device inputs outputs 1 bit of memory
Balancer Asynchronous token routing device inputs outputs 1 bit of memory
Balancer Asynchronous token routing device inputs outputs 1 bit of memory
Balancer Asynchronous token routing device inputs outputs 1 bit of memory
Balancer Asynchronous token routing device inputs outputs 1 bit of memory
Balancer Asynchronous token routing device inputs outputs 1 bit of memory
Balancer Asynchronous token routing device inputs outputs 1 bit of memory
Balancer Asynchronous token routing device inputs outputs 1 bit of memory
Balancer Asynchronous token routing device inputs outputs 1 bit of memory
Balancer Asynchronous token routing device inputs outputs 1 bit of memory
Balancer Asynchronous token routing device inputs outputs balanced token counts 1 bit of memory

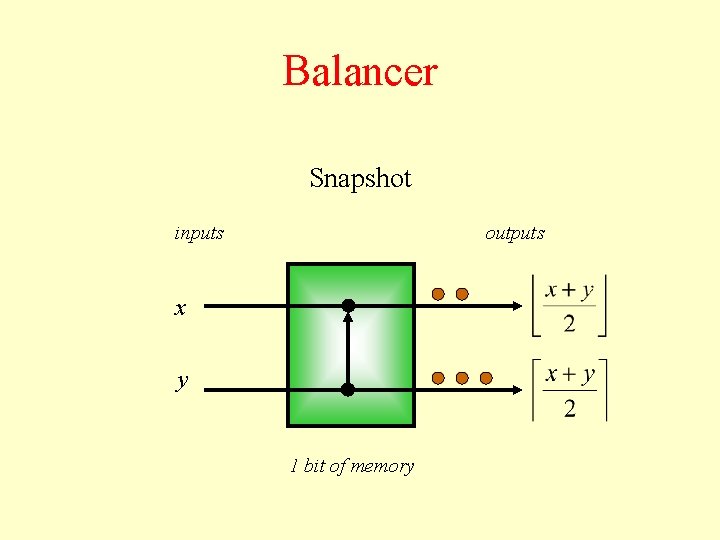

Balancer Snapshot inputs outputs x y 1 bit of memory
Counting Network Data structure for multiprocessor coordination c d c a d f e g g e b b f d d g a e b f c g b f a e step sequence
Counting Network Execution trace: token counts on all wires 0 1 1 1 3 2 2 2 1 2 2 2 3 2 2 2 step sequence
Counting Network Tokens are assigned value based on the output wire number. 4, 8, 12, 16, . . . Counting Network 3, 7, 11, 15, . . . Advantages 2, 6, 10, 14, . . . • High throughput • Low contention 1, 5, 9, 13, . . .

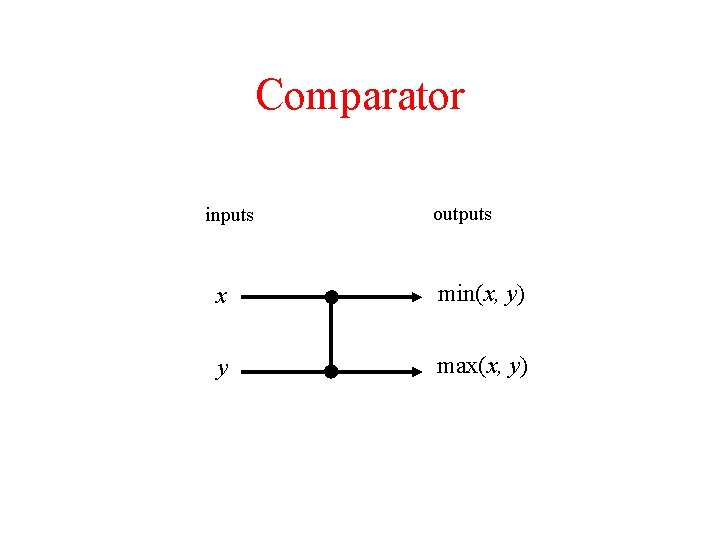

Comparator inputs outputs x min(x, y) y max(x, y)
Balancer inputs x y outputs
Balancer inputs outputs 7 4 2 5
Balancing Network 0 1 1 1 3 2 2 2 1 2 2 2 3 2 2 2 width n depth d
Smooth Sequences smooth property: . . . Balancing Network for any . . .
Smooth Sequences smooth property: for any 3 . . . Balancing Network 4 3 3 3 4 3 3
Step Sequences step property: . . . for any Balancing Network . . .
Step Sequences step property: for any 3 . . . Balancing Network 3 3 3 4 4
Counting Network Balancing network with step output sequences: for all inputs . . . Counting Network . . . for any
Sorting vs. Counting ? Counts . . . Balancing Network Sorts . . . isomorphic . . . Comparison Network . . .
Sorting vs. Counting ? Counts . . . Balancing Network Sorts . . . isomorphic . . . Comparison Network . . .
Sorting vs. Counting ? Counts . . . Balancing Network Sorts . . . isomorphic . . . Comparison Network . . .
Sorting vs. Counting Theorem If a balancing network counts, then its isomorphic comparison network sorts, but not vice-versa.
Sorting vs. Counting Counts Sorts • By 0/1 principle, we need only consider 0/1 inputs. x x min(x, y) y y max(x, y) balancer comparator
Sorting vs. Counting Counts Sorts • By 0/1 principle, we need only consider 0/1 inputs. • A step sequence of 0’s and 1’s is a sorted sequence of 0’s and 1’s. 1 0 0 1 balancer comparator
Sorting vs. Counting Sorts Counts Insertion Sort: a network which sorts but doesn’t count. 0 0 0 0 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4
Sorting vs. Counting Sorts Counts 32 16 16 12 12 10 10 8 0 16 8 12 8 10 7 9 0 0 8 4 8 5 8 8 0 0 0 4 2 5 5 5 0 0 2 2
Counting Network Data structure for multiprocessor coordination c d c a d f e g g e b b f d d g a e b f c g b f a e step sequence
Counting Network Execution trace: token counts on all wires 0 1 1 1 3 2 2 2 1 2 2 2 3 2 2 2 step sequence
Counting Network Tokens are assigned value based on the output wire number. 4, 8, 12, 16, . . . Counting Network 3, 7, 11, 15, . . . Advantages 2, 6, 10, 14, . . . • High throughput • Low contention 1, 5, 9, 13, . . .

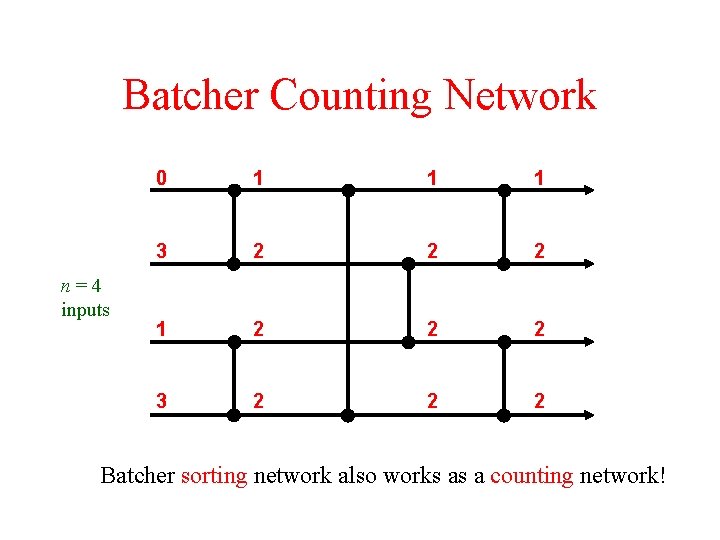

Batcher Counting Network n=4 inputs 0 1 1 1 3 2 2 2 1 2 2 2 3 2 2 2 Batcher sorting network also works as a counting network!
Lemma 1 Any subsequence of a step sequence is a step sequence. step 3 3 3 4 4 4 step
Lemma 2 For a step sequence, the sum of the even subsequence is either equal to, or one less than, the sum of the odd subsequence. step 3 3 3 4 4 4 4 4 even odd Sum of even subseq. : 3+3+4+4=14 Sum of odd subseq. : 3+4+4+4=15
Lemma 3 For two step sequences and : denotes the sum of denotes the even subsequence of denotes the odd subsequence of Follows from: (by Lemma 2)
Lemma 3 3 4 4 4 3 3 3 4 4 4 9 9 9 9 9 x¢ x¢E 9 9 9 9 x. O¢
Merge Network step Merge[4]
Merge Network (pf. ) step Merge[4] step
Merge Network (pf. ) Merge[4] step By Lemma 3 and differ by at most 1
Merge Network (pf. ) Merging two step sequences whose sums differ by at most one: 3 3 3 4 4 4 4 4 step
Merge Network (pf. ) Merging two step sequences whose sums differ by at most one: 3 3 4 3 4 4 4 4 not quite step
Merge Network (pf. ) Merge[4] step Merge[4]
Batcher Counting Network Count[4] Merge[8] Count[4] step
Verifying that a Network Counts Theorem A balancing network with m balancers is a counting network if and only if it satisfies the step property for all input sequences with sum.
