Comparing the Sheep Brain to the Human Brain
![Comparing the Sheep Brain to the Human Brain – A Visual Guide to Use Comparing the Sheep Brain to the Human Brain – A Visual Guide to Use](https://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-1.jpg)
Comparing the Sheep Brain to the Human Brain – A Visual Guide to Use During Sheep Brain Dissection Laboratories Margarita Bracamonte, Ph. D. Northland Community & Technical College, East Grand Forks, MN
![I have edited Dr. Bracamonte’s presentation to better fit our Cameron Human Anatomy course. I have edited Dr. Bracamonte’s presentation to better fit our Cameron Human Anatomy course.](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-2.jpg)
I have edited Dr. Bracamonte’s presentation to better fit our Cameron Human Anatomy course. - Ron Gaines
![Human Brain Sheep Brain Cerebellum Spinal Cord Human Brain Sheep Brain Cerebellum Spinal Cord](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-3.jpg)

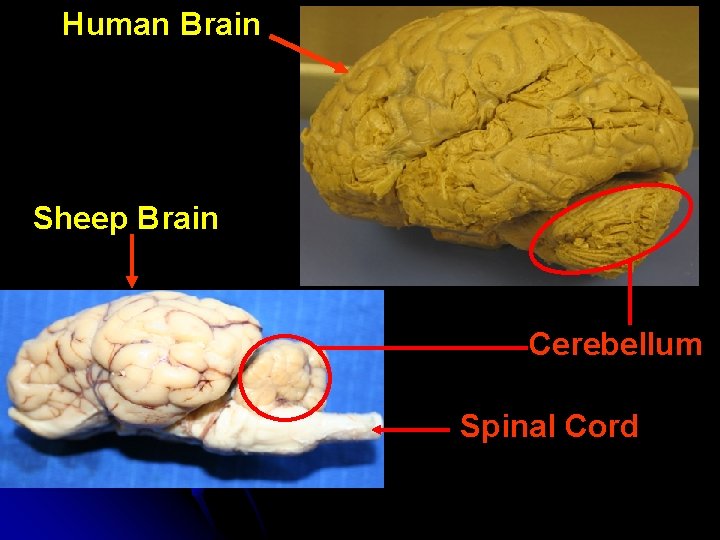

Human Brain Sheep Brain Cerebellum Spinal Cord
![The human brain (and sheep brain) is made up of four parts: 1. Cerebrum The human brain (and sheep brain) is made up of four parts: 1. Cerebrum](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-4.jpg)
The human brain (and sheep brain) is made up of four parts: 1. Cerebrum Human Brain 2. Cerebellum Sheep Brain Continues…
![Midsagittal Section 3. Diencephalon 4. Brainstem Human Brain Sheep Brain 4. Brainstem Midsagittal Section 3. Diencephalon 4. Brainstem Human Brain Sheep Brain 4. Brainstem](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-5.jpg)

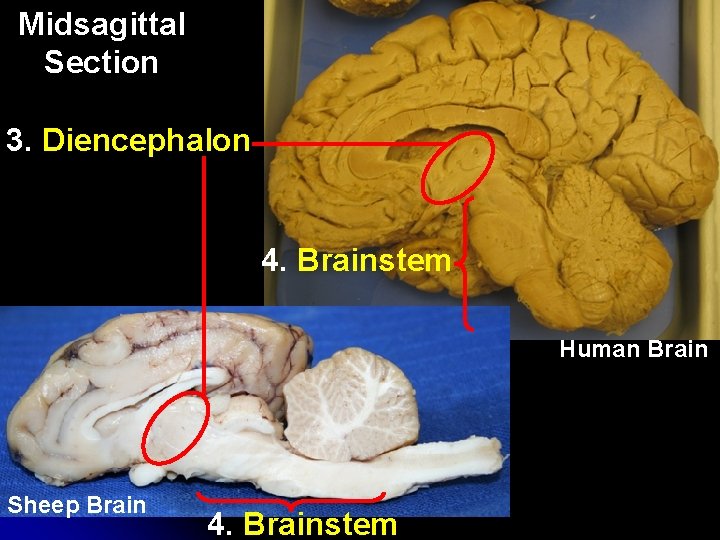

Midsagittal Section 3. Diencephalon 4. Brainstem Human Brain Sheep Brain 4. Brainstem
![Ventral View Sheep Brain Human Brain Spinal Cord Brainstem Ventral View Sheep Brain Human Brain Spinal Cord Brainstem](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-6.jpg)
Ventral View Sheep Brain Human Brain Spinal Cord Brainstem
![Structures found in the Cerebrum Sheep Brain Cerebrum Superior View Human Brain Structures found in the Cerebrum Sheep Brain Cerebrum Superior View Human Brain](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-7.jpg)

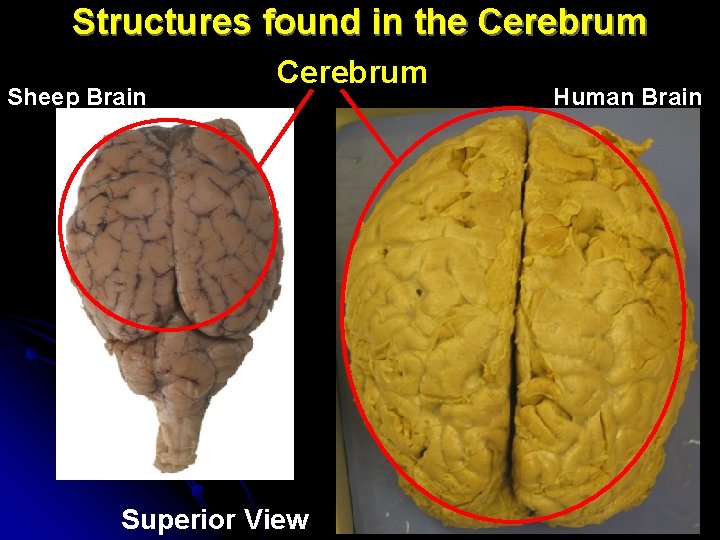

Structures found in the Cerebrum Sheep Brain Cerebrum Superior View Human Brain
![Cerebrum – Superior View Longitudinal Fissure Sheep Brain Human Brain Cerebrum – Superior View Longitudinal Fissure Sheep Brain Human Brain](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-8.jpg)
Cerebrum – Superior View Longitudinal Fissure Sheep Brain Human Brain
![Cerebrum Human Brain – Right Lateral View Transverse Fissure Sheep Brain – Superior View Cerebrum Human Brain – Right Lateral View Transverse Fissure Sheep Brain – Superior View](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-9.jpg)
Cerebrum Human Brain – Right Lateral View Transverse Fissure Sheep Brain – Superior View
![Cerebrum Gyri (Gyrus – Singular) Sheep Brain – Superior View Human Brain – Lateral Cerebrum Gyri (Gyrus – Singular) Sheep Brain – Superior View Human Brain – Lateral](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-10.jpg)
Cerebrum Gyri (Gyrus – Singular) Sheep Brain – Superior View Human Brain – Lateral View
![Cerebrum Sulci (Sulcus – Singular) Sheep Brain - Superior Human Brain – Left Lateral Cerebrum Sulci (Sulcus – Singular) Sheep Brain - Superior Human Brain – Left Lateral](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-11.jpg)
Cerebrum Sulci (Sulcus – Singular) Sheep Brain - Superior Human Brain – Left Lateral View
![Cerebrum – Midsagittal View Sulci - shallow groves between gyri Human Brain Cerebrum – Midsagittal View Sulci - shallow groves between gyri Human Brain](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-12.jpg)
Cerebrum – Midsagittal View Sulci - shallow groves between gyri Human Brain
![Human Brain (Right Lateral View)-Cerebral Lobes Frontal Lobe Parietal Lobe Temporal Lobe Occipital Lobe Human Brain (Right Lateral View)-Cerebral Lobes Frontal Lobe Parietal Lobe Temporal Lobe Occipital Lobe](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-13.jpg)
Human Brain (Right Lateral View)-Cerebral Lobes Frontal Lobe Parietal Lobe Temporal Lobe Occipital Lobe
![Gray & White Matter of the Cerebrum Sheep Brain (Anterior) Human Brain Gray Matter Gray & White Matter of the Cerebrum Sheep Brain (Anterior) Human Brain Gray Matter](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-14.jpg)
Gray & White Matter of the Cerebrum Sheep Brain (Anterior) Human Brain Gray Matter White Matter (Posterior)
![Gray Matter = Cerebral Cortex Human Brain Cerebral Cortex What parts of a neuron Gray Matter = Cerebral Cortex Human Brain Cerebral Cortex What parts of a neuron](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-15.jpg)
Gray Matter = Cerebral Cortex Human Brain Cerebral Cortex What parts of a neuron are found at the cerebral cortex?
![Human Brain White Matter What parts of a neuron are found in cerebral white Human Brain White Matter What parts of a neuron are found in cerebral white](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-16.jpg)
Human Brain White Matter What parts of a neuron are found in cerebral white mater?
![Structures found at the Cerebrum Corpus Callosum Human Brain Sheep Brain Midsagittal Section Structures found at the Cerebrum Corpus Callosum Human Brain Sheep Brain Midsagittal Section](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-17.jpg)
Structures found at the Cerebrum Corpus Callosum Human Brain Sheep Brain Midsagittal Section
![Structures found at the Cerebrum Fornix Human Brain Sheep Brain Midsagittal Section Structures found at the Cerebrum Fornix Human Brain Sheep Brain Midsagittal Section](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-18.jpg)
Structures found at the Cerebrum Fornix Human Brain Sheep Brain Midsagittal Section
![Structures found at the Cerebrum Lateral Ventricles Human Brain Sheep Brain Midsagittal Section Structures found at the Cerebrum Lateral Ventricles Human Brain Sheep Brain Midsagittal Section](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-19.jpg)

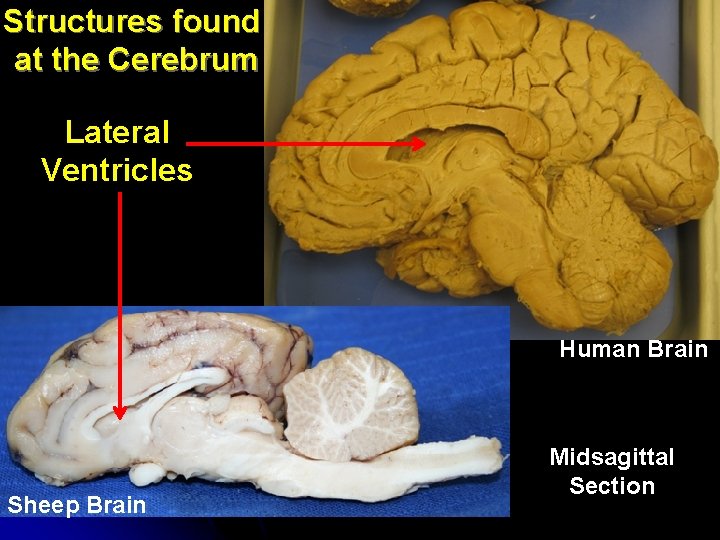

Structures found at the Cerebrum Lateral Ventricles Human Brain Sheep Brain Midsagittal Section
![Structures found at the Cerebrum Third Ventricle Human Brain Sheep Brain Midsagittal Section Structures found at the Cerebrum Third Ventricle Human Brain Sheep Brain Midsagittal Section](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-20.jpg)

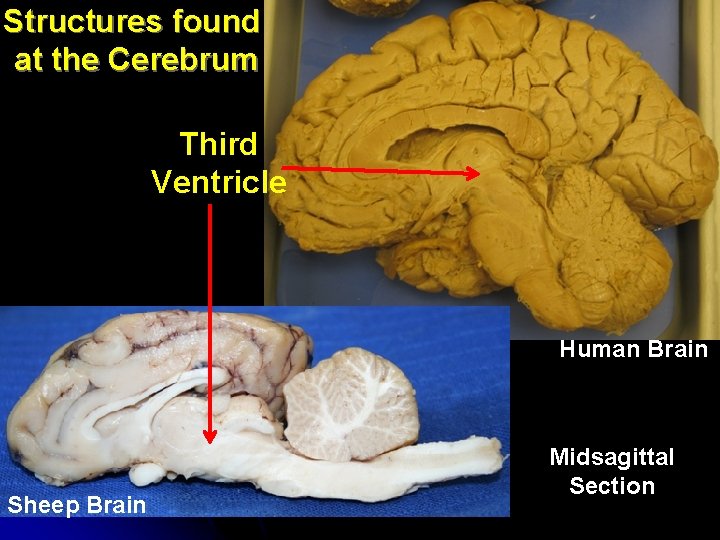

Structures found at the Cerebrum Third Ventricle Human Brain Sheep Brain Midsagittal Section
![Structures found at the Cerebrum Fourth Ventricle Human Brain Sheep Brain Midsagittal Section Structures found at the Cerebrum Fourth Ventricle Human Brain Sheep Brain Midsagittal Section](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-21.jpg)
Structures found at the Cerebrum Fourth Ventricle Human Brain Sheep Brain Midsagittal Section
![Structures found at the Cerebellum Human Brain Cerebellum Sheep Brain Structures found at the Cerebellum Human Brain Cerebellum Sheep Brain](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-22.jpg)
Structures found at the Cerebellum Human Brain Cerebellum Sheep Brain
![Midsagittal Section Human Brain Cerebellar Cortex (Gray matter) Sheep Brain What parts of a Midsagittal Section Human Brain Cerebellar Cortex (Gray matter) Sheep Brain What parts of a](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-23.jpg)
Midsagittal Section Human Brain Cerebellar Cortex (Gray matter) Sheep Brain What parts of a neuron are found in the cerebellar cortex?
![Midsagittal Section Human Brain Cerebellar white matter (arbor vitae) Sheep Brain What parts of Midsagittal Section Human Brain Cerebellar white matter (arbor vitae) Sheep Brain What parts of](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-24.jpg)
Midsagittal Section Human Brain Cerebellar white matter (arbor vitae) Sheep Brain What parts of a neuron are found in the arbor vitae?
![Structures found at the Brainstem Sheep Brain Human Brain Spinal Cord Brainstem Ventral View Structures found at the Brainstem Sheep Brain Human Brain Spinal Cord Brainstem Ventral View](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-25.jpg)
Structures found at the Brainstem Sheep Brain Human Brain Spinal Cord Brainstem Ventral View
![Structures found at the Brainstem Pons Spinal Cord Sheep Brain Human Brain Structures found at the Brainstem Pons Spinal Cord Sheep Brain Human Brain](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-26.jpg)

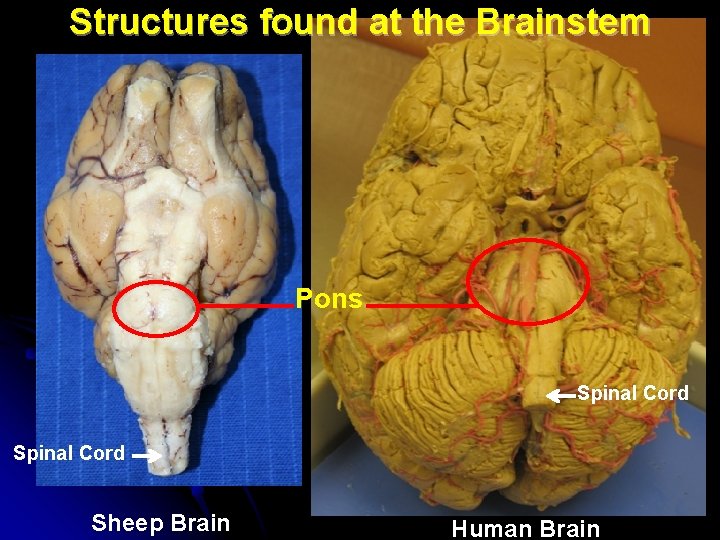

Structures found at the Brainstem Pons Spinal Cord Sheep Brain Human Brain
![Structures found at the Brainstem Medulla Oblongata Spinal Cord Sheep Brain Human Brain Structures found at the Brainstem Medulla Oblongata Spinal Cord Sheep Brain Human Brain](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-27.jpg)
Structures found at the Brainstem Medulla Oblongata Spinal Cord Sheep Brain Human Brain
![Structures found at the Brainstem Midsagittal Section Human Brain Midbrain Sheep Brain Structures found at the Brainstem Midsagittal Section Human Brain Midbrain Sheep Brain](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-28.jpg)
Structures found at the Brainstem Midsagittal Section Human Brain Midbrain Sheep Brain
![Structures found at the Diencephalon Human Brain Sheep Brain Midsagittal Section Structures found at the Diencephalon Human Brain Sheep Brain Midsagittal Section](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-29.jpg)

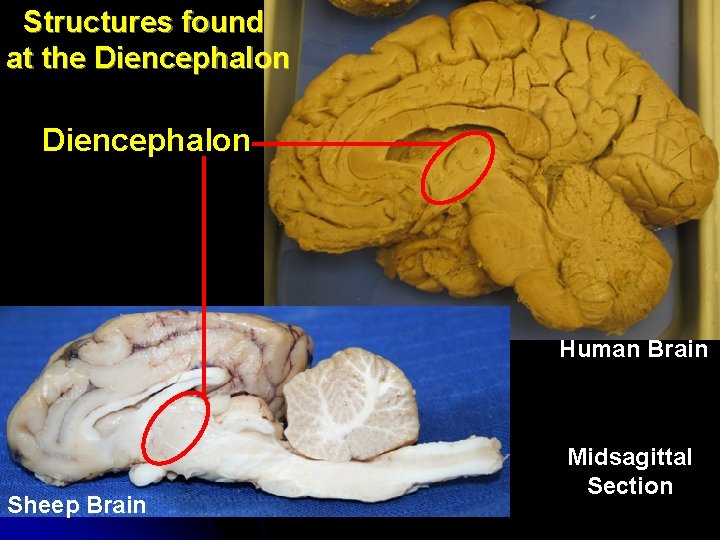

Structures found at the Diencephalon Human Brain Sheep Brain Midsagittal Section
![Structures found at the Diencephalon Thalamus (mostly intermediate mass) Human Brain Sheep Brain Midsagittal Structures found at the Diencephalon Thalamus (mostly intermediate mass) Human Brain Sheep Brain Midsagittal](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-30.jpg)
Structures found at the Diencephalon Thalamus (mostly intermediate mass) Human Brain Sheep Brain Midsagittal Section
![Structures found at the Diencephalon Hypothalamus Human Brain Sheep Brain Midsagittal Section Structures found at the Diencephalon Hypothalamus Human Brain Sheep Brain Midsagittal Section](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-31.jpg)

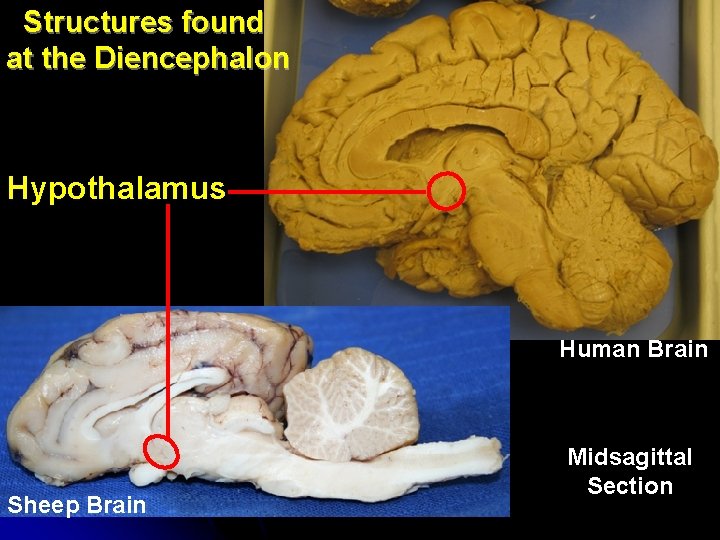

Structures found at the Diencephalon Hypothalamus Human Brain Sheep Brain Midsagittal Section
![Cranial Nerves – Olfactory Nerve connections Olfactory Bulbs Spinal Cord Sheep Brain – Ventral Cranial Nerves – Olfactory Nerve connections Olfactory Bulbs Spinal Cord Sheep Brain – Ventral](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-32.jpg)
Cranial Nerves – Olfactory Nerve connections Olfactory Bulbs Spinal Cord Sheep Brain – Ventral View Human Brain – Ventral View
![Cranial Nerves – Olfactory Nerves Olfactory Tracts Spinal Cord Sheep Brain – Ventral View Cranial Nerves – Olfactory Nerves Olfactory Tracts Spinal Cord Sheep Brain – Ventral View](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-33.jpg)
Cranial Nerves – Olfactory Nerves Olfactory Tracts Spinal Cord Sheep Brain – Ventral View Human Brain – Ventral View
![Cranial Nerves – Optic Nerves Spinal Cord Sheep Brain Human Brain Cranial Nerves – Optic Nerves Spinal Cord Sheep Brain Human Brain](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-34.jpg)
Cranial Nerves – Optic Nerves Spinal Cord Sheep Brain Human Brain
![Optic Nerves Cross at Optic Chiasm Spinal Cord Sheep Brain Human Brain Optic Nerves Cross at Optic Chiasm Spinal Cord Sheep Brain Human Brain](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-35.jpg)
Optic Nerves Cross at Optic Chiasm Spinal Cord Sheep Brain Human Brain
![Cranial Nerves – Optic Nerves Optic Tracts Spinal Cord Sheep Brain Human Brain Cranial Nerves – Optic Nerves Optic Tracts Spinal Cord Sheep Brain Human Brain](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-36.jpg)
Cranial Nerves – Optic Nerves Optic Tracts Spinal Cord Sheep Brain Human Brain
![Practice your Knowledge of Human Brain Anatomy…. 1. Name the cerebral lobe Anterior Posterior Practice your Knowledge of Human Brain Anatomy…. 1. Name the cerebral lobe Anterior Posterior](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-37.jpg)
Practice your Knowledge of Human Brain Anatomy…. 1. Name the cerebral lobe Anterior Posterior
![Practice your Knowledge About the Human Brain Anatomy…. 2. Name this part of the Practice your Knowledge About the Human Brain Anatomy…. 2. Name this part of the](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-38.jpg)
Practice your Knowledge About the Human Brain Anatomy…. 2. Name this part of the human brain. Anterior Posterior
![Practice your Knowledge About the Human Brain Anatomy…. Anterior 3. Name this part of Practice your Knowledge About the Human Brain Anatomy…. Anterior 3. Name this part of](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-39.jpg)
Practice your Knowledge About the Human Brain Anatomy…. Anterior 3. Name this part of the human cerebrum Posterior
![Practice your Knowledge About the Human Brain Anatomy…. Inferior view of the human brain. Practice your Knowledge About the Human Brain Anatomy…. Inferior view of the human brain.](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-40.jpg)
Practice your Knowledge About the Human Brain Anatomy…. Inferior view of the human brain. 4. Name this part of the brainstem
![Practice your Knowledge About the Human Brain Anatomy…. Inferior view of the human brain. Practice your Knowledge About the Human Brain Anatomy…. Inferior view of the human brain.](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-41.jpg)
Practice your Knowledge About the Human Brain Anatomy…. Inferior view of the human brain. 5. Name these nerves
![Practice your Knowledge About the Human Brain Anatomy…. 6. Name this fissure Anterior Posterior Practice your Knowledge About the Human Brain Anatomy…. 6. Name this fissure Anterior Posterior](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-42.jpg)
Practice your Knowledge About the Human Brain Anatomy…. 6. Name this fissure Anterior Posterior 7. What fills this fissure?
![Answers 1. 2. 3. 4. 5. 6. 7. Temporal lobe Cerebellum Corpus callosum Pons Answers 1. 2. 3. 4. 5. 6. 7. Temporal lobe Cerebellum Corpus callosum Pons](http://slidetodoc.com/presentation_image_h/09e3f750b24501fe7f2b2158760a7c6d/image-43.jpg)
Answers 1. 2. 3. 4. 5. 6. 7. Temporal lobe Cerebellum Corpus callosum Pons Optic nerves Transverse fissure Tentorium cerebelli
