Compared to an empty ship will a ship

  • Slides: 16
Download presentation
Compared to an empty ship, will a ship loaded with a cargo of Styrofoam

Compared to an empty ship, will a ship loaded with a cargo of Styrofoam float lower in water or higher in water? 1. Lower in water 2. Higher in water

Compared to an empty ship, will a ship loaded with a cargo of Styrofoam

Compared to an empty ship, will a ship loaded with a cargo of Styrofoam float lower in water or higher in water? 1. Lower in water 2. Higher in water

Everybody knows that “water seeks its own level, ” but very few people know

Everybody knows that “water seeks its own level, ” but very few people know why water seeks its own level. The reason has most to do with 1. atmospheric pressure. 2. water pressure depending on depth. 3. water’s density.

Everybody knows that “water seeks its own level, ” but very few people know

Everybody knows that “water seeks its own level, ” but very few people know why water seeks its own level. The reason has most to do with 1. atmospheric pressure 2. water pressure depending on depth. 3. water’s density

The density of the block of wood floating in water is 1. 2. 3.

The density of the block of wood floating in water is 1. 2. 3. 4. 5. greater than the density of water. equal to the density of water. less than half that of water. more than half the density of water. … not enough information is given.

The density of the block of wood floating in water is 1. greater than

The density of the block of wood floating in water is 1. greater than the density of water. 2. equal to the density of water. 3. less than half that of water. 4. more than half the density of water. 5. … not enough information is given.

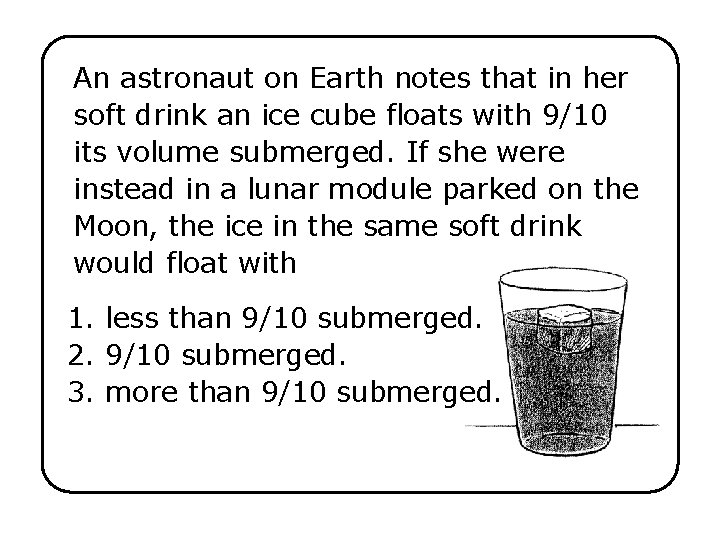

An astronaut on Earth notes that in her soft drink an ice cube floats

An astronaut on Earth notes that in her soft drink an ice cube floats with 9/10 its volume submerged. If she were instead in a lunar module parked on the Moon, the ice in the same soft drink would float with 1. less than 9/10 submerged. 2. 9/10 submerged. 3. more than 9/10 submerged.

An astronaut on Earth notes that in her soft drink an ice cube floats

An astronaut on Earth notes that in her soft drink an ice cube floats with 9/10 its volume submerged. If she were instead in a lunar module parked on the Moon, the ice in the same soft drink would float with 1. less than 9/10 submerged. 2. 9/10 submerged. 3. more than 9/10 submerged.

Consider a boat loaded with scrap iron in a swimming pool. If the iron

Consider a boat loaded with scrap iron in a swimming pool. If the iron is thrown overboard into the pool, will the water level at the edge of the pool rise, fall, or remain unchanged? 1. Rise 2. Fall 3. Remain unchanged

Consider a boat loaded with scrap iron in a swimming pool. If the iron

Consider a boat loaded with scrap iron in a swimming pool. If the iron is thrown overboard into the pool, will the water level at the edge of the pool rise, fall, or remain unchanged? 1. Rise 2. Fall 3. Remain unchanged

The weight of the stand suspended solid iron ball is equal to the weight

The weight of the stand suspended solid iron ball is equal to the weight of the container of water as shown above. When the ball is lowered into the water the balance is upset. The amount of weight that must be added to the left side to restore balance, compared to the weight of water displaced by the ball, would be 1. half. 3. twice. 2. the same. 4. more than twice.

The weight of the stand suspended solid iron ball is equal to the weight

The weight of the stand suspended solid iron ball is equal to the weight of the container of water as shown above. When the ball is lowered into the water the balance is upset. The amount of weight that must be added to the left side to restore balance, compared to the weight of water displaced by the ball, would be 1. half. 3. twice. 2. the same. 4. more than twice.

Gently push down on the pan of the scale and the display shows an

Gently push down on the pan of the scale and the display shows an increase in force. Likewise if you do the same on the rim of the beaker. But what if you immerse your fingertip in the water, without touching the beaker? Then the scale reading 1. doesn’t change. 2. shows an increase. 3. shows a decrease.

Gently push down on the pan of the scale and the display shows an

Gently push down on the pan of the scale and the display shows an increase in force. Likewise if you do the same on the rim of the beaker. But what if you immerse your fingertip in the water. without touching the beaker? Then the scale reading 1. doesn’t change. 2. shows an increase. 3. shows a decrease.

Consider a solid brass cube and a solid brass sphere that have equal surface

Consider a solid brass cube and a solid brass sphere that have equal surface areas. When both are completely submerged in water, the one experiencing the greater buoyant force is the 1. 2. 3. 4. cube. sphere. … both the same. … not enough information to say.

Consider a solid brass cube and a solid brass sphere that have equal surface

Consider a solid brass cube and a solid brass sphere that have equal surface areas. When both are completely submerged in water, the one experiencing the greater buoyant force is the 1. cube. 2. sphere. 3. … both the same. 4. … not enough information to say.
