Compact and Broadband Microstrip Antennas Broadband Microstrip Antennas

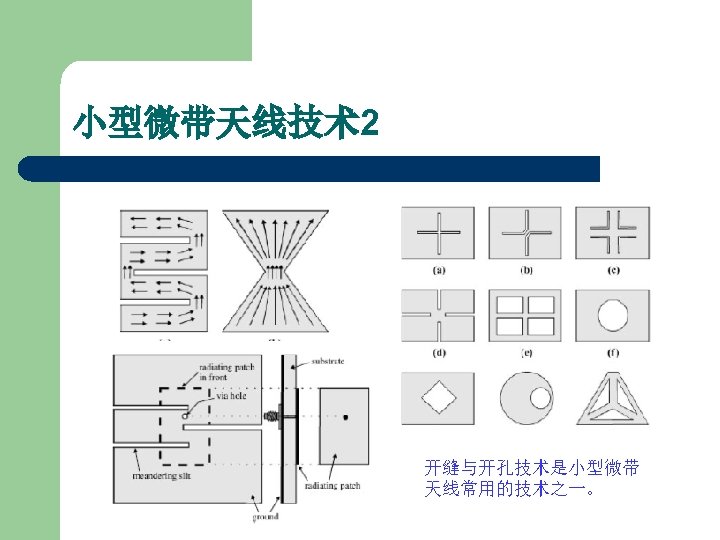

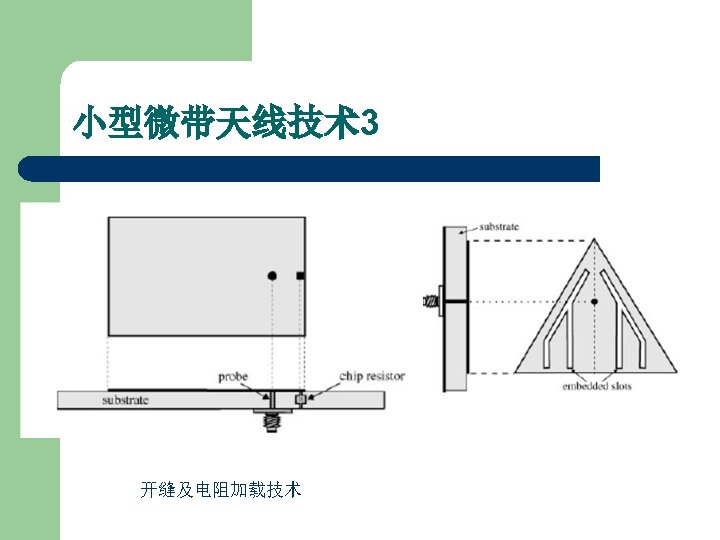

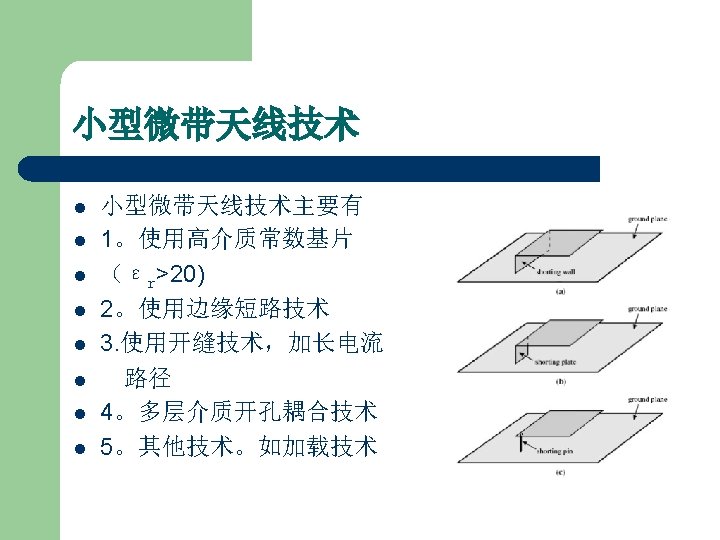

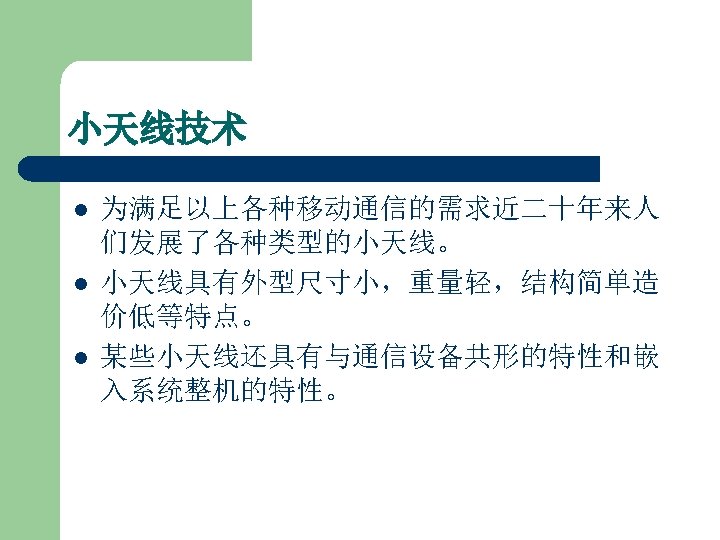

小型天线技术 *Compact and Broadband Microstrip Antennas *Broadband Microstrip Antennas

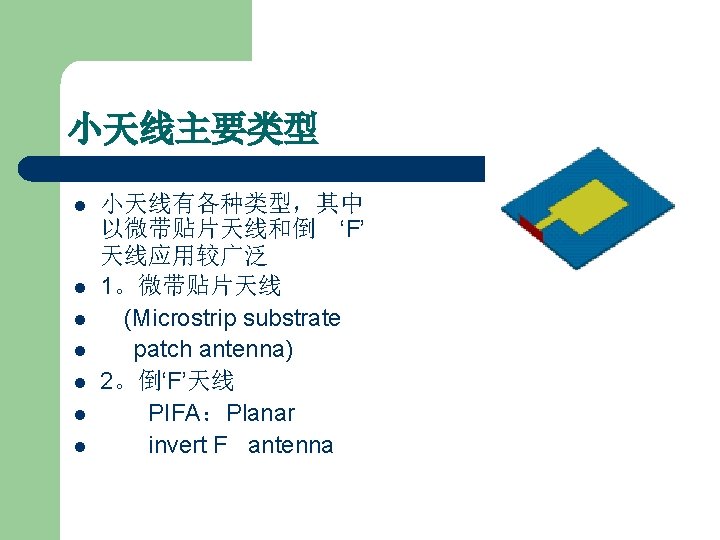

微带贴片天线 l l 微带贴片天线是 1953年由 Deschamps, G. A. 在他所发表的论文, ‘‘Microstrip Microwave Antennas, ’’ Proc. 3 rd USAF Symposium on Antennas, 1953. 首先提出来的,文献中又简 写为MSA(Microstrip Antenna). 1970年Munson 和 Howell对微带小天线的发 展作出了重要的贡献。

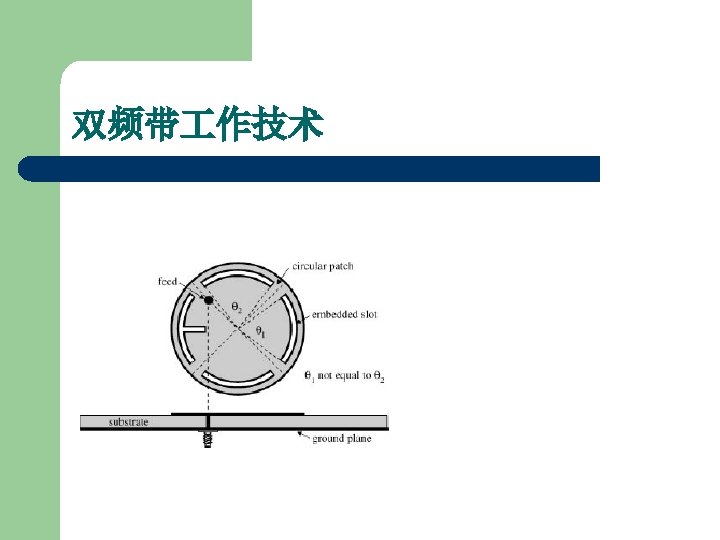

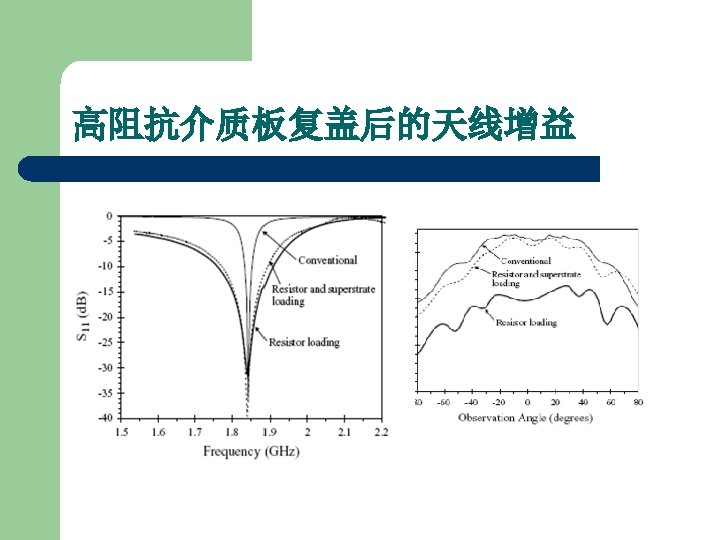

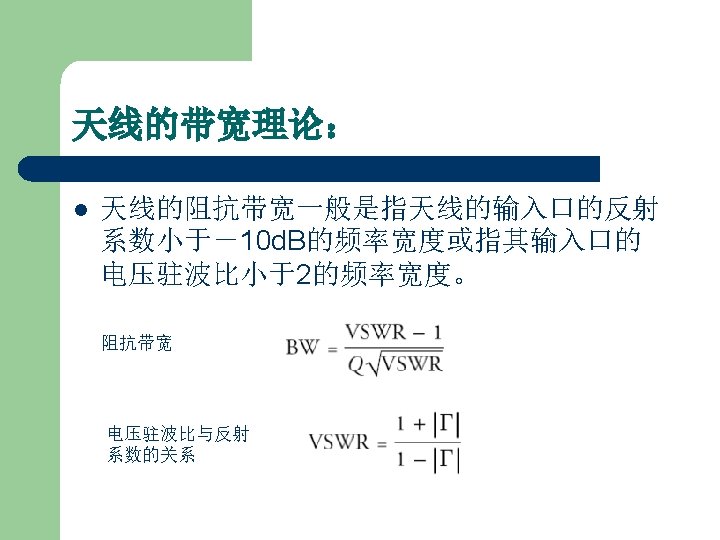

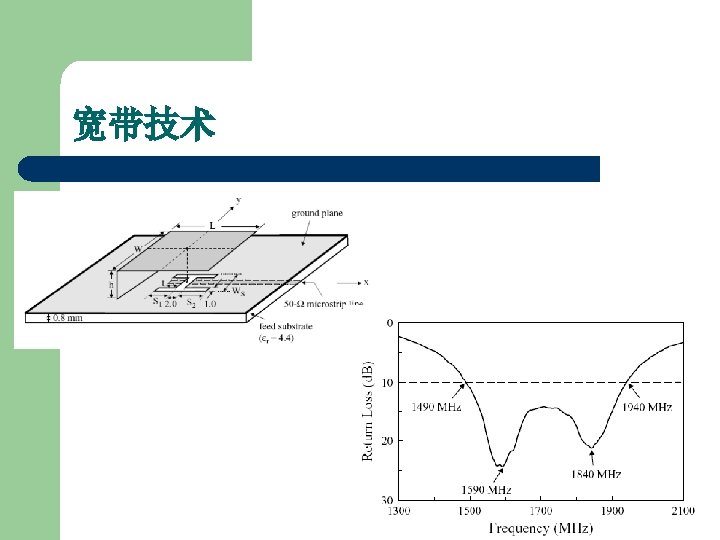

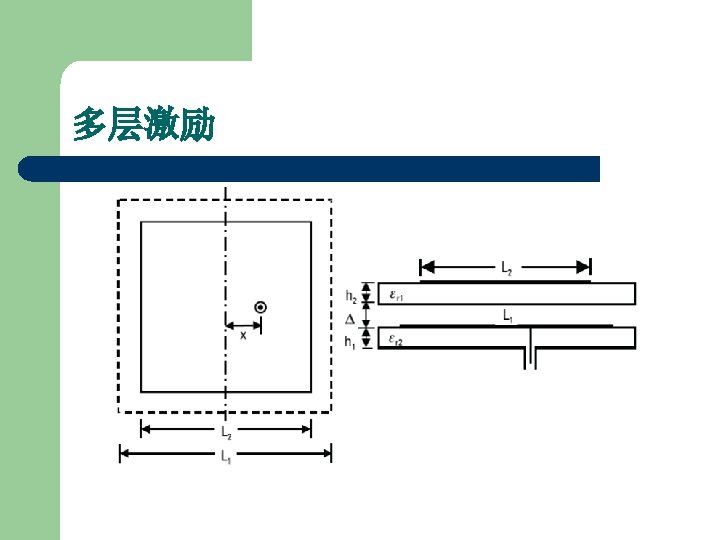

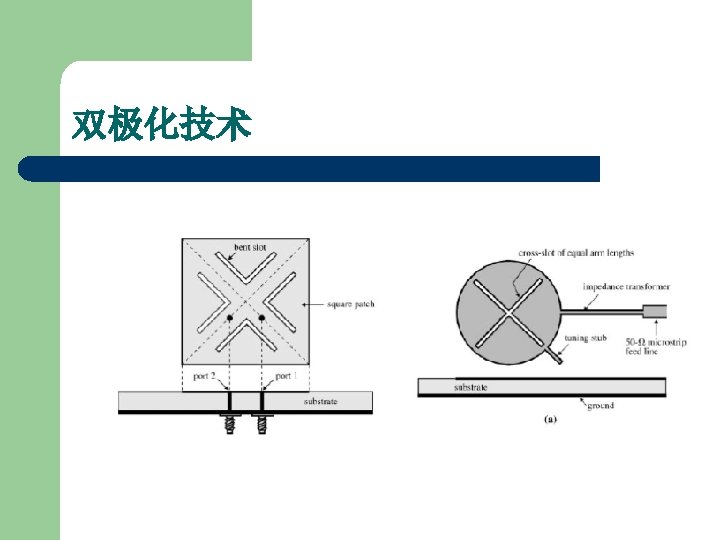

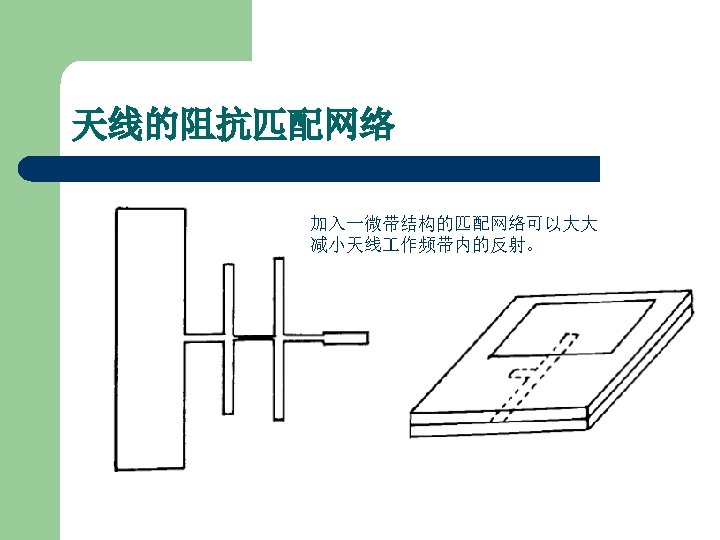

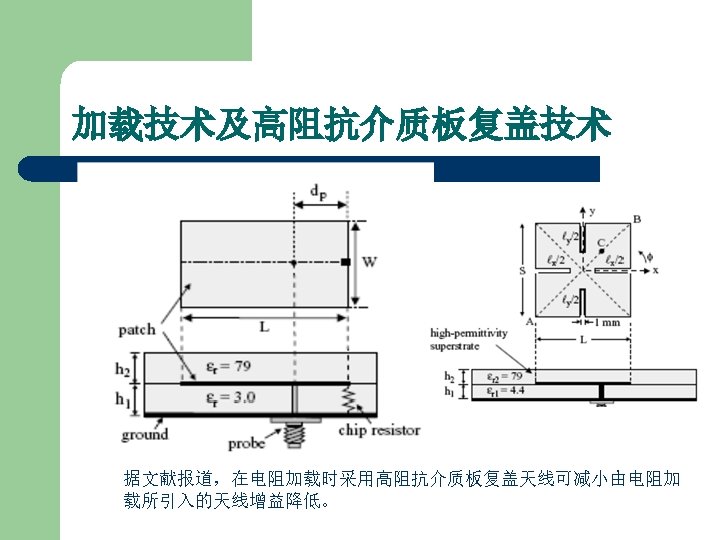

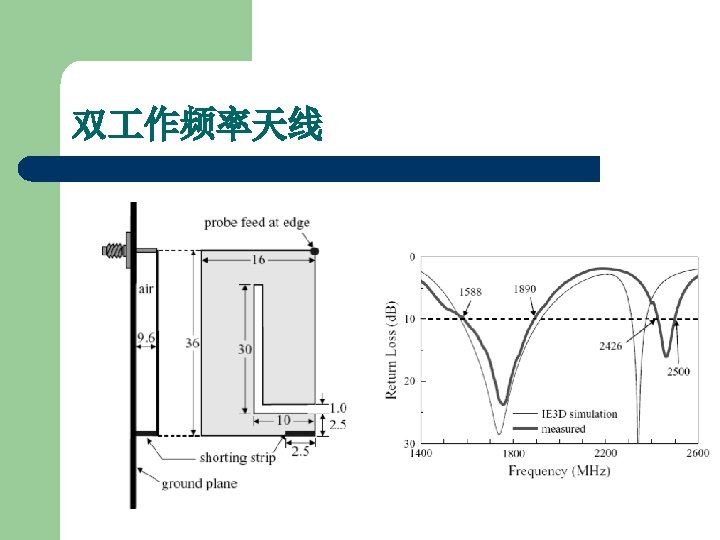

宽带 作的微带天线的例子 IEEE ANTENNAS AND WIRELESS PROPAGATION LETTERS, VOL. 4, 2005 237 IEEE MICROWAVE AND WIRELESS COMPONENTS LETTERS, VOL. 15, NO. 6, JUNE 2005 395

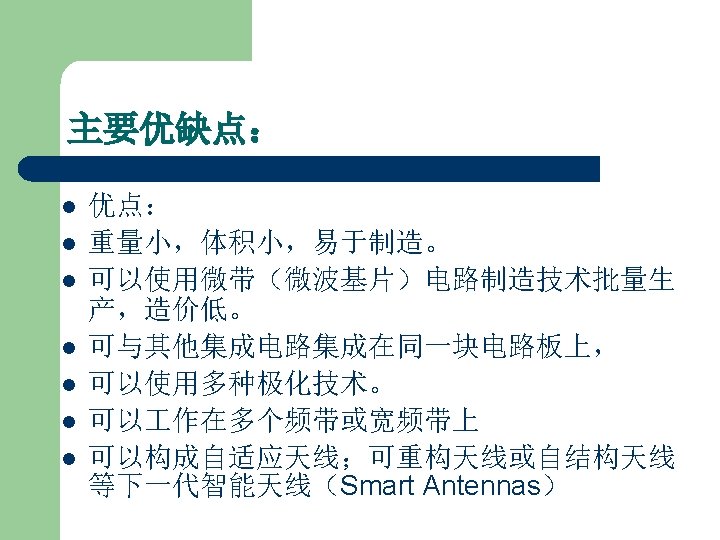

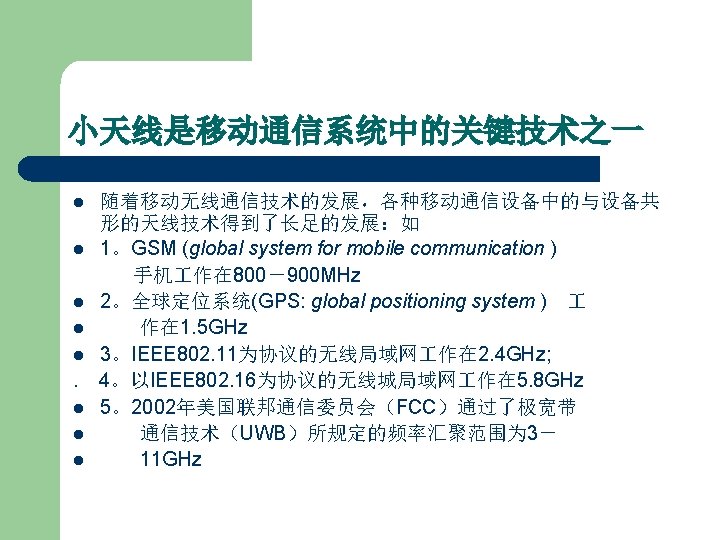

Applications of MSA Proximity fuses: 接近引信;Pagers: A public-address system used for summoning purposes. microwave hyperthermia微波加热; Intruder alarm 入侵报警, telemetry 遥测

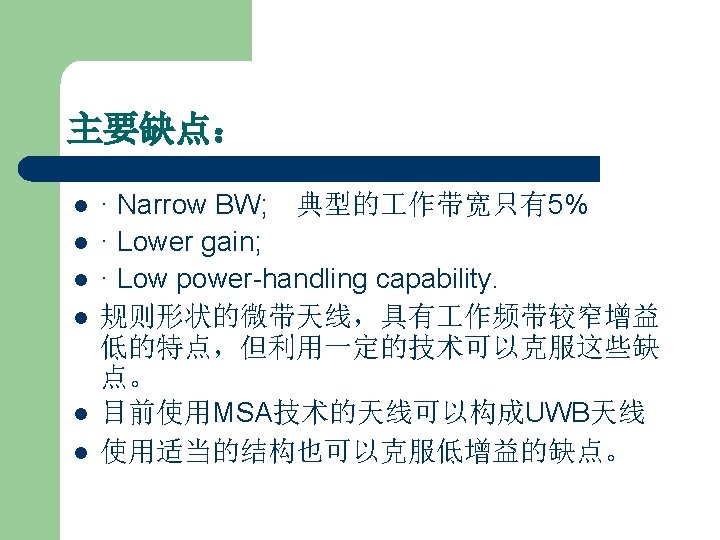

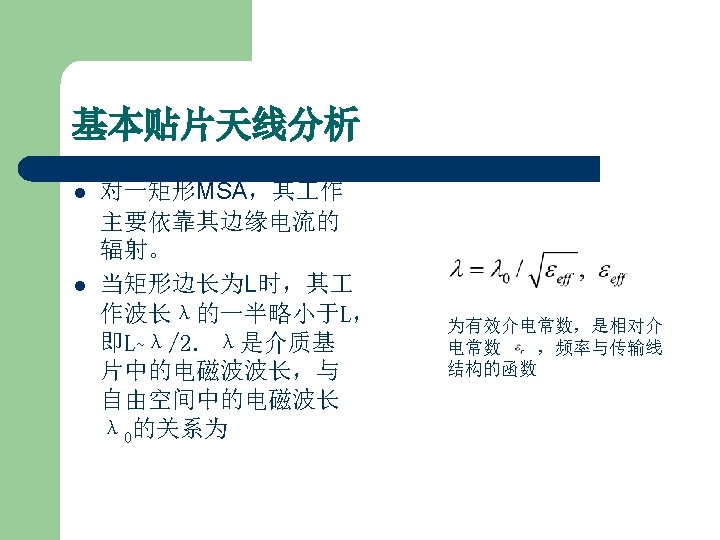

主要分析方法: · The transmission line model; · The cavity model; · The MNM. . Numerical Method 这里MNM是多口网络模型的缩写multiport network model
微带天线的分析 2 l l l l 对较复杂的微带天线的分析需采用数值分析方法。主要数值方法 有: · The method of moments (Mo. M); IE 3 D 矩量法 · The finite-element method (FEM); HFSS 有限元法 · The spectral domain technique (SDT); 谱域法 · The finite-difference time domain (FDTD) method. XFDTD 时域有限差分法. The finite-integral method (FIM) CST 有限积分法

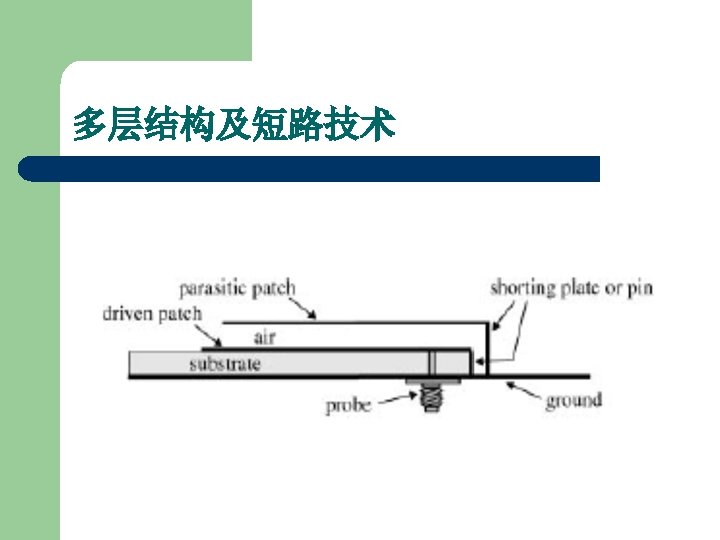

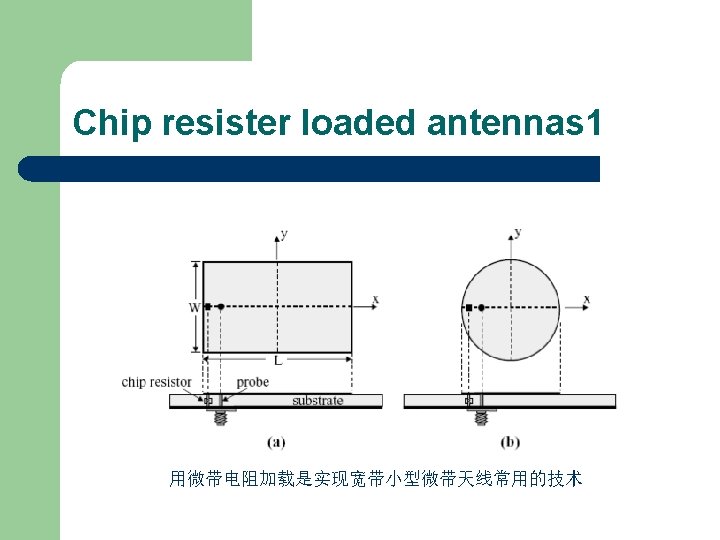

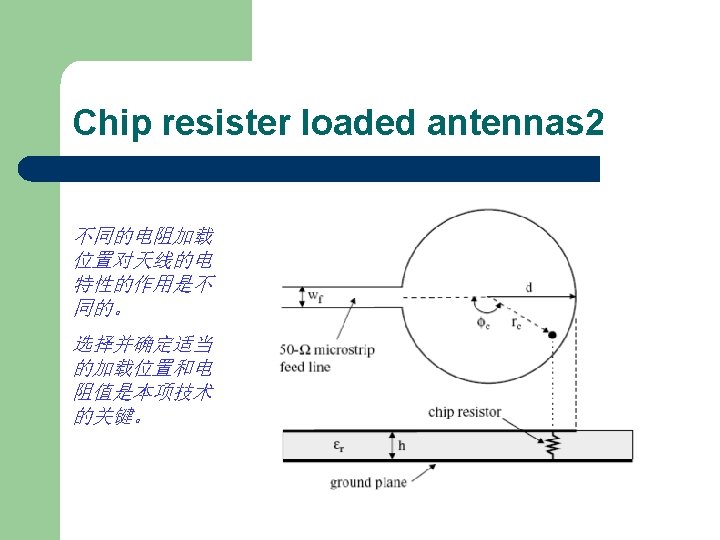

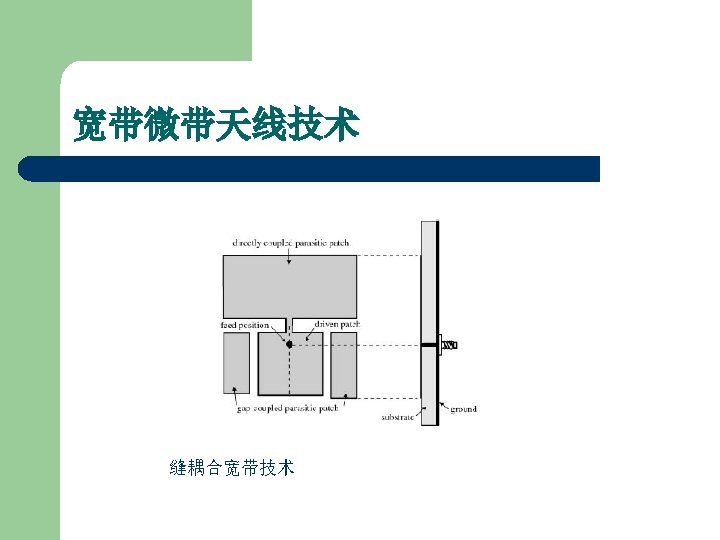

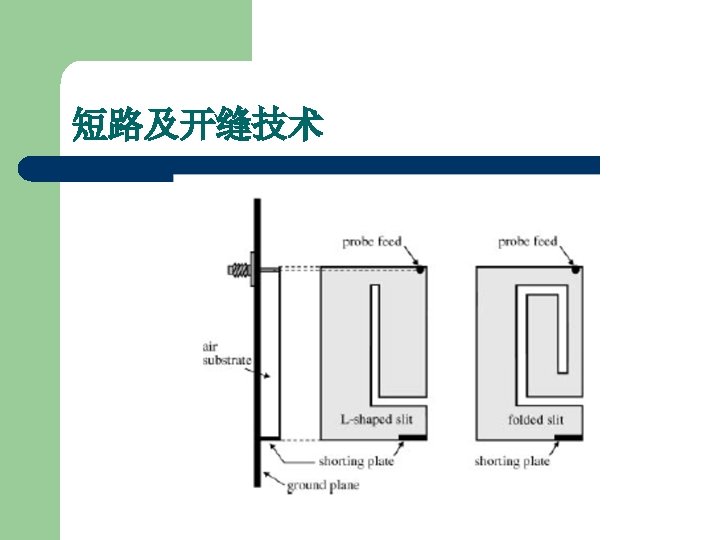

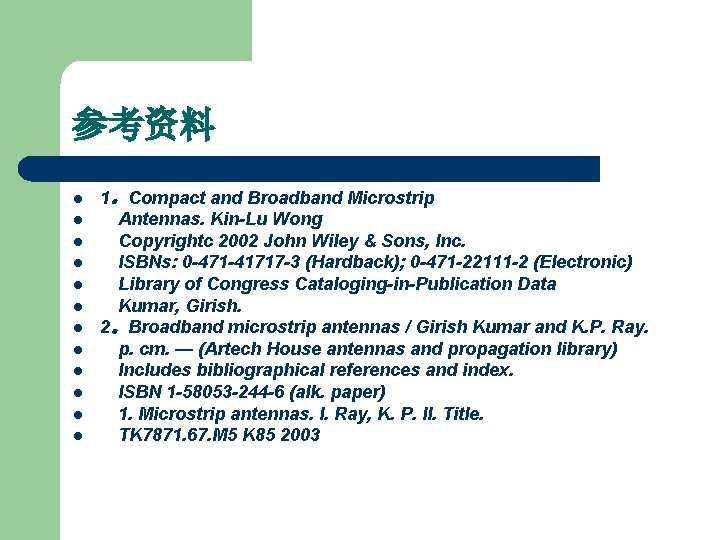

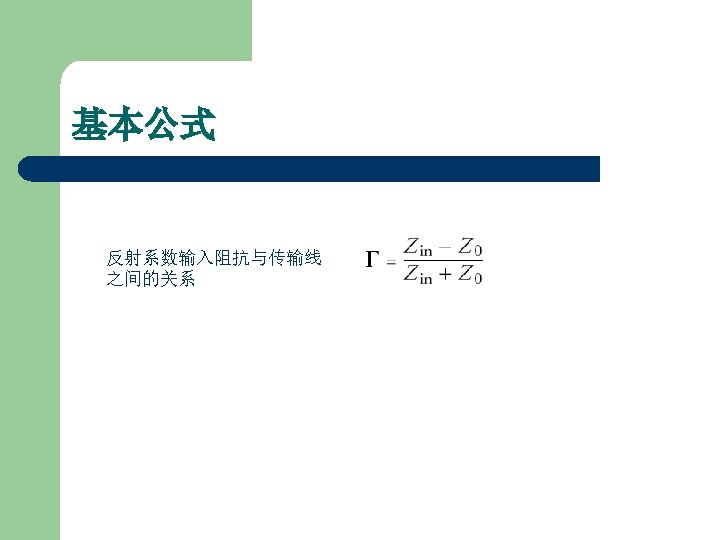

参考资料 l l l 1。Compact and Broadband Microstrip Antennas. Kin-Lu Wong Copyrightc 2002 John Wiley & Sons, Inc. ISBNs: 0 -471 -41717 -3 (Hardback); 0 -471 -22111 -2 (Electronic) Library of Congress Cataloging-in-Publication Data Kumar, Girish. 2。Broadband microstrip antennas / Girish Kumar and K. P. Ray. p. cm. — (Artech House antennas and propagation library) Includes bibliographical references and index. ISBN 1 -58053 -244 -6 (alk. paper) 1. Microstrip antennas. I. Ray, K. P. II. Title. TK 7871. 67. M 5 K 85 2003
