COMPACT 200 RAPID REACTION BRIDGE SYSTEM Modern Improvements

Modern Improvements

COMPACT 200 RAPID REACTION BRIDGE SYSTEM The design of the Mabey Compact 200 bridge allows the system to be used in a logistic role throughout the support area. As a Line of Communication bridge it can carry loads of up to Class 110 over gaps of up to 60 m (200 ft). The bridge is ideally suited for areas where speed of deployment is vital. Modern Improvements

Rapid Construction The bridge is designed to be built by hand. A 30 m bridge can be assembled and conventionally launched by 29 men in two or three hours, depending on site conditions. Where cranes or materials handling equipment is available, the total number of man hours to assemble a bridge is substantially reduced. Modern Improvements

Launching Nose Load Testing Modern Improvements

Modern Improvements

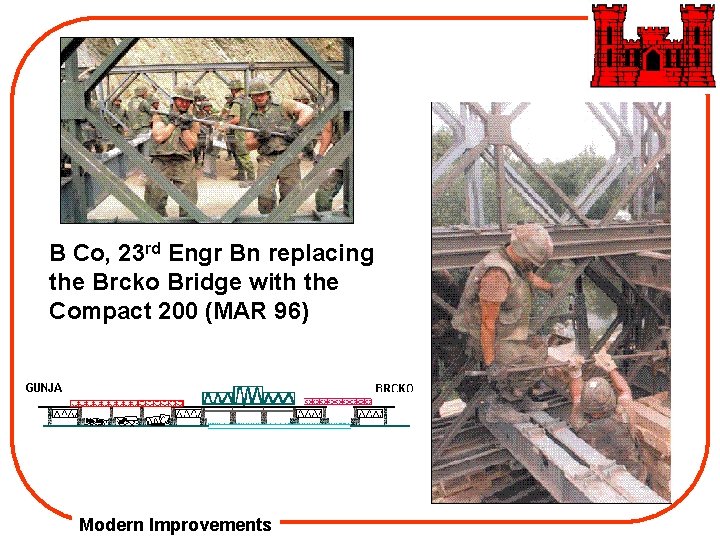

B Co, 23 rd Engr Bn replacing the Brcko Bridge with the Compact 200 (MAR 96) Modern Improvements

M 2 Bailey Mabey Compact 200 MLC 80(T) 70 (W) MLC 80 (T) 110 (W) # of Bays 13 13 Construction DT DS # of Panels 156 -- 2 ½ Sets of Bailey 52 # of Transoms 66 14 Roadway Width 12 ft. 6 in (3. 8 m) 13 ft. 9 in. (4. 2 m) Type of Deck Timber Steel Total Weight 87 t 55 t Based on the launch and erection of a 130 ft (39. 62 m) clear span, single lane bridge. Modern Improvements

M 2 Bailey Mabey Compact 200 # of Bridging Sets Required 2 ½ Sets 1 # Men Required 90 29 # of Trucks Required At Least 15 PLS (7 PLS per Set) 11 PLS # of Crane Picks Required 222 66 HOURS REQUIRED 12 -14 hours 8 -9 hours Based on the launch and erection of a 130 ft (39. 62 m) clear span, single lane bridge to carry MLC 80 (T). Note, the M 2 Bailey is unable to accommodate MLC 96 (W) Traffic. Modern Improvements
