Comp TIA A 220 801 220 802 www

Comp. TIA A+ 220 -801/ 220 -802 www. exceedgulf. com

A+ Motherboard Expansion Slots Bus speeds

PC architecture

Conventional PCI Peripheral Component Interconnect § ﺍﻻﺳﻢ ﻏﻴﺮ ﺷﺎﺋﻊ 1994 § ﺻﻨﻊ ﻋﺎﻡ Cards ﻣﻜﺎﻥ ﻟﺘﺮﻛﻴﺐ ﻭﺩﻣﺞ ﺍﻝ ﺑﺖ 64 ﺑﺖ ﻭ 32 § Bus ﻛﻤﻴﺔ ﺍﻟﻤﻌﻠﻮﻣﺎﺕ ﺗﺘﻮﻗﻒ ﻋﻠﻰ ﻧﻮﻉ ﺍﻝ 133 MB/s ( 32 bit at 33 MHz) § 266 MB/s ( 32 bit at 66 MHz or 64 bit at 33 MHz) § 533 MB/s ( 64 bit at 66 MHz) §

32 bit PCI bus

64 bit PCI bus

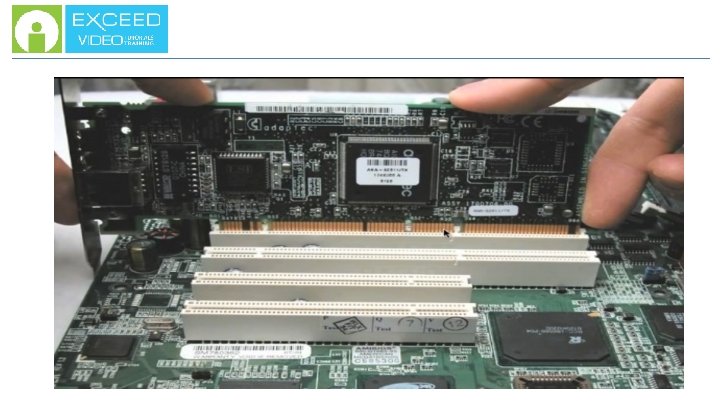

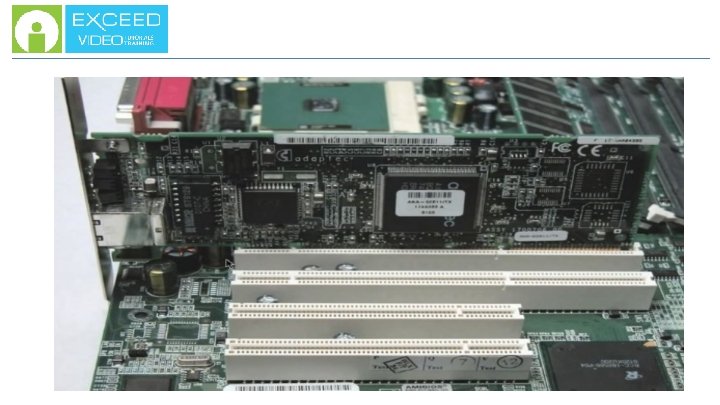

PCI 32 bit & 64 bit

PCI 32 bit expansion card

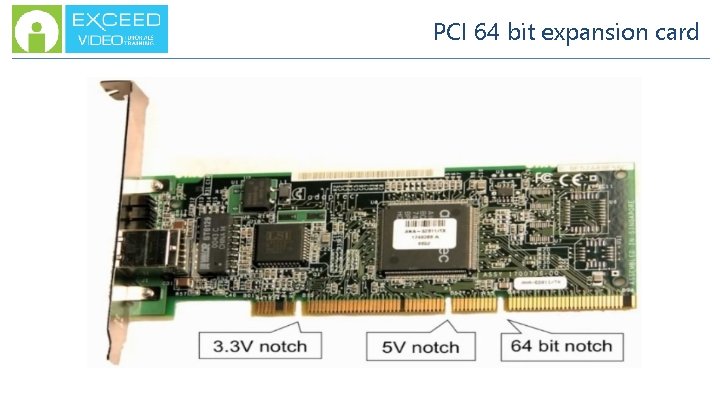

PCI 64 bit expansion card

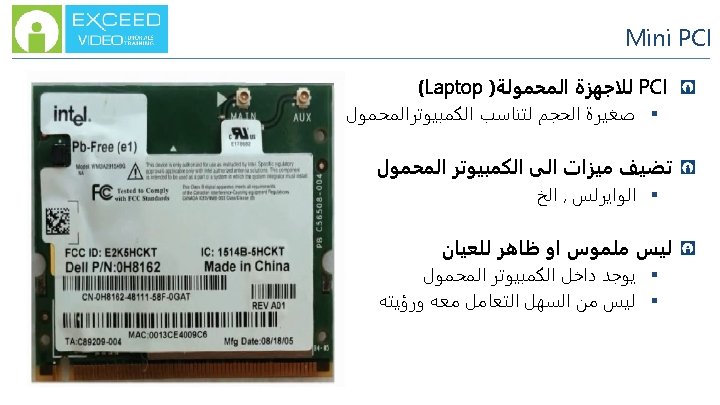

Mini PCI

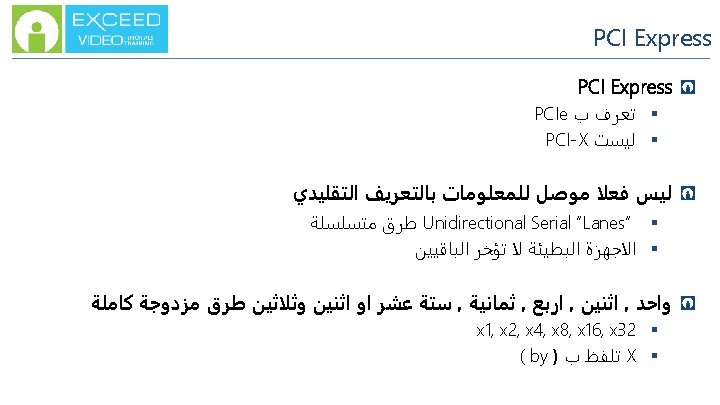

PCI Express serial communication

PCI Express Serial communication

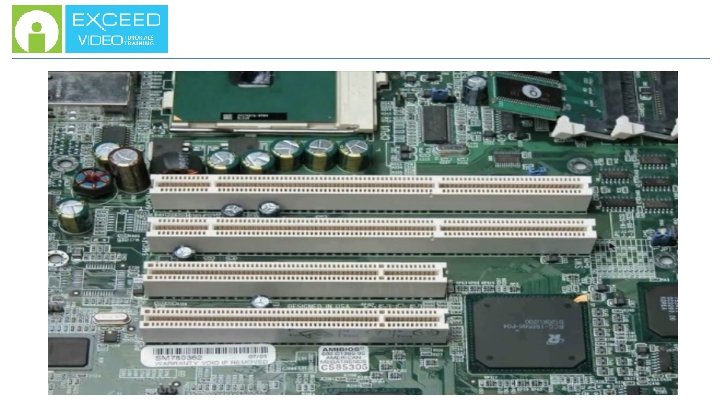

PCI Slots

AGP

AGP Versions AGP 1 x ( 266 MB/s) AGP 2 x ( 522 MB/s) AGP 1. 0, 3. 3 V § AGP 4 x ( 1. 07 GB/s) AGP 2. 0, 1. 5 V § AGP 8 x ( 2. 1 GB/s) AGP 3. 0, 0. 8 V §

AGP expansion slot

A+ Motherboard Expansion Slots Bus speeds
