Como evitar a VILI Eduardo LV Costa Valerie

Como evitar a VILI Eduardo LV Costa Valerie VILI Alt 1, 93 m Peso 120 Kg UTI Respiratória HC-FMUSP UTI Hospital Sírio Libanês

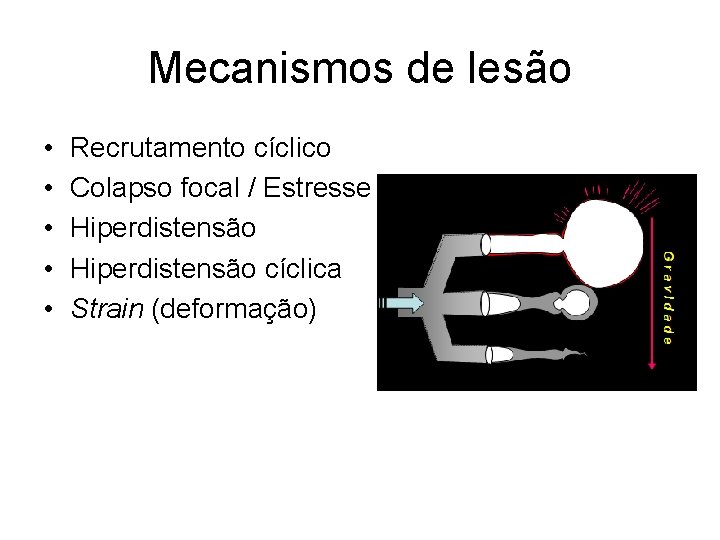

Mecanismos de lesão • • • Recrutamento cíclico Colapso focal / Estresse Hiperdistensão cíclica Strain (deformação)

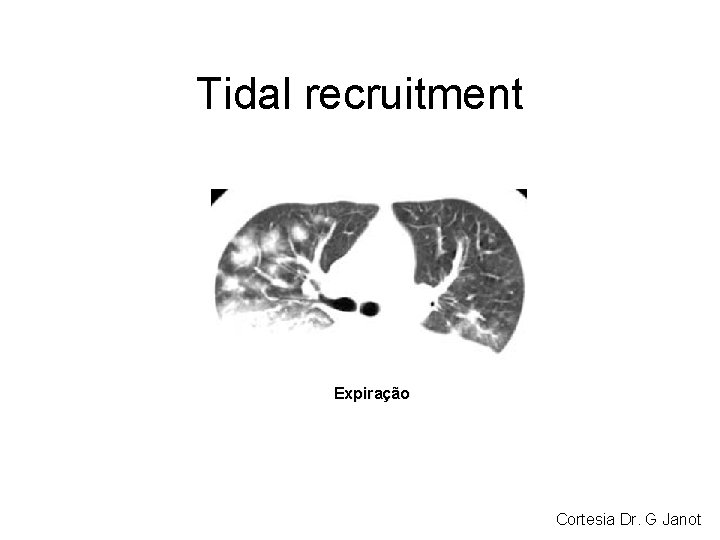

Tidal recruitment Expiração Cortesia Dr. G Janot

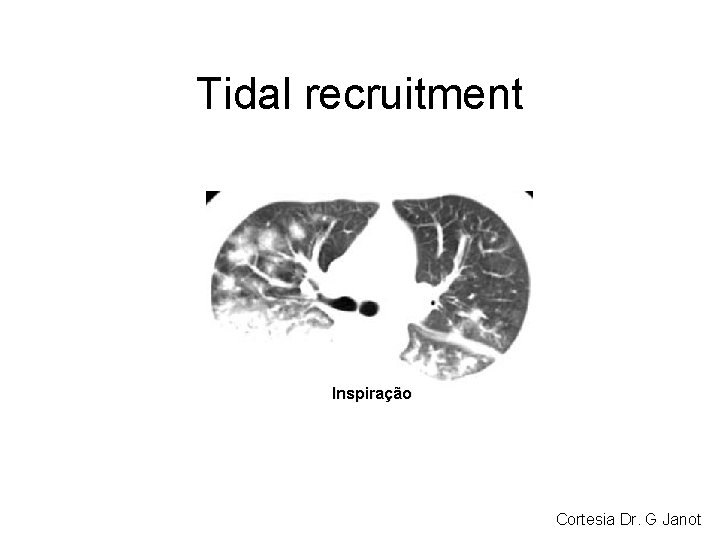

Tidal recruitment Inspiração Cortesia Dr. G Janot

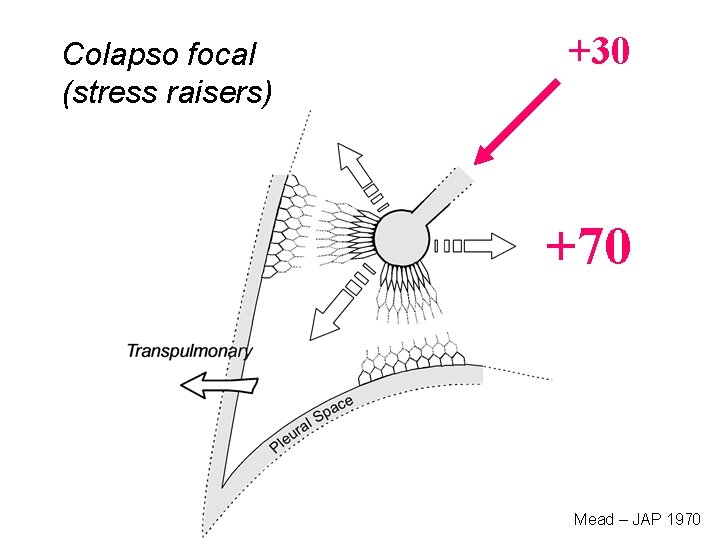

Colapso focal (stress raisers) +30 +70 Mead – JAP 1970

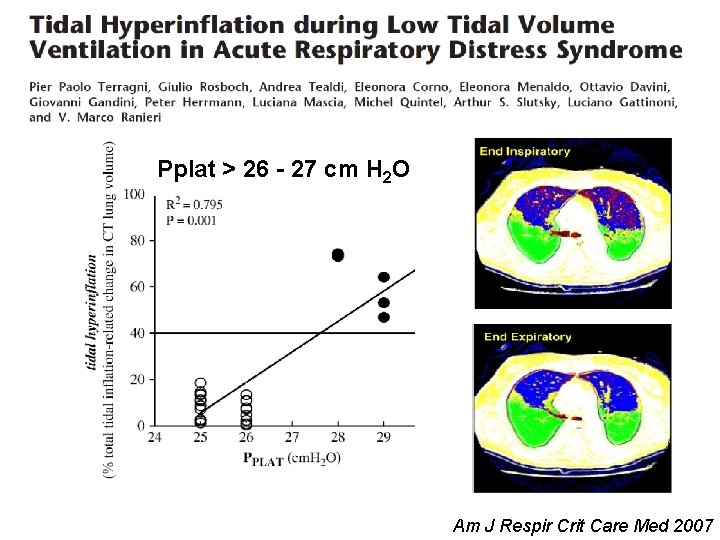

Pplat > 26 - 27 cm H 2 O Am J Respir Crit Care Med 2007

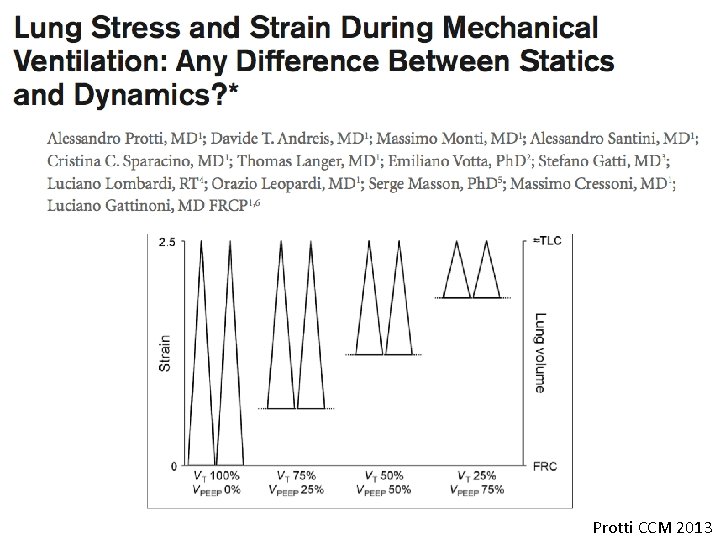

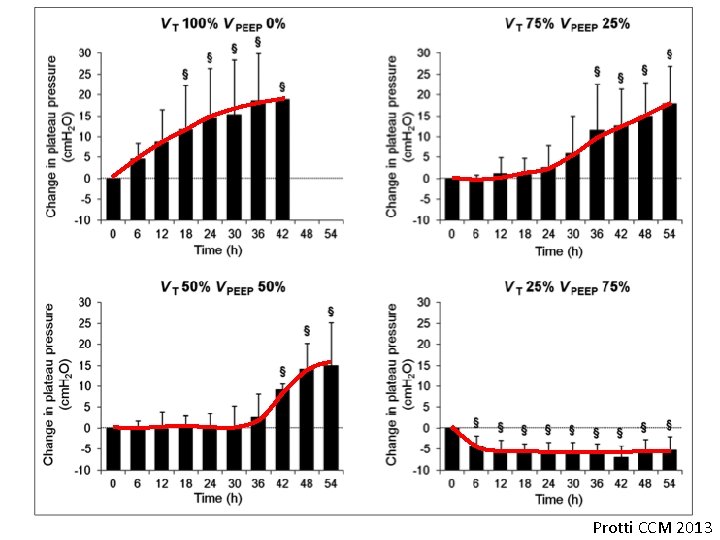

Protti CCM 2013

Protti CCM 2013

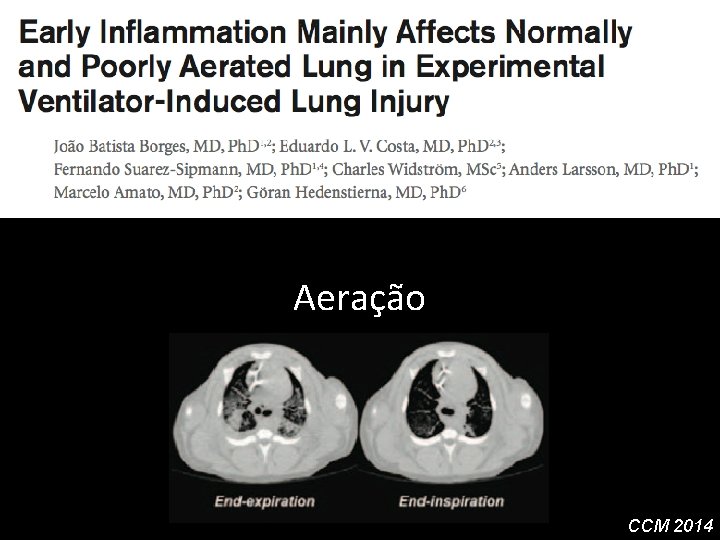

Aeração CCM 2014

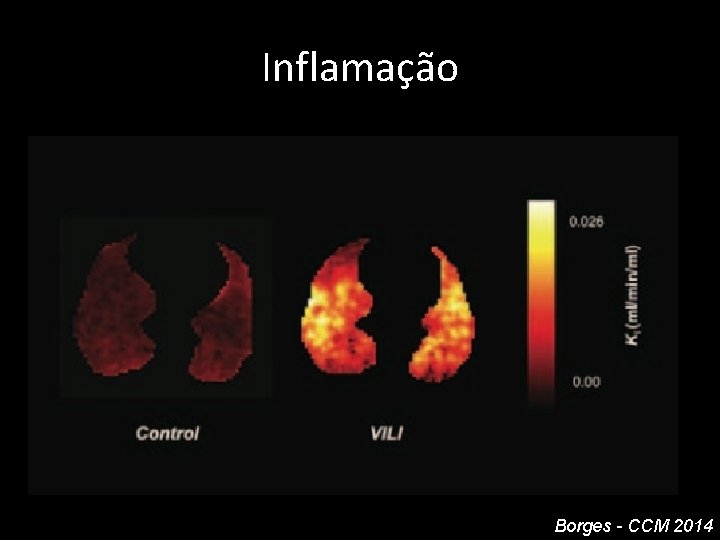

Inflamação Borges - CCM 2014

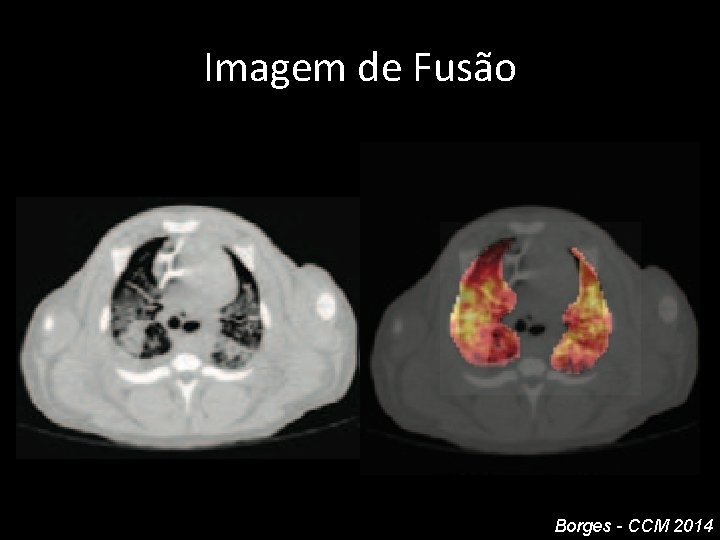

Imagem de Fusão Borges - CCM 2014

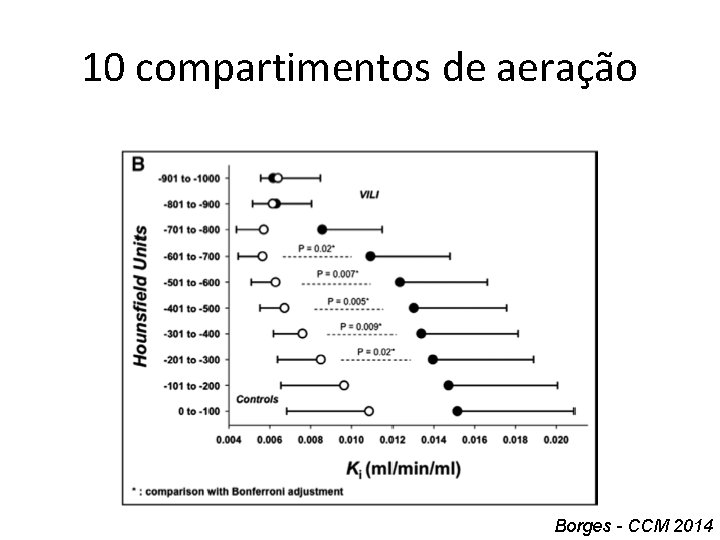

10 compartimentos de aeração Borges - CCM 2014

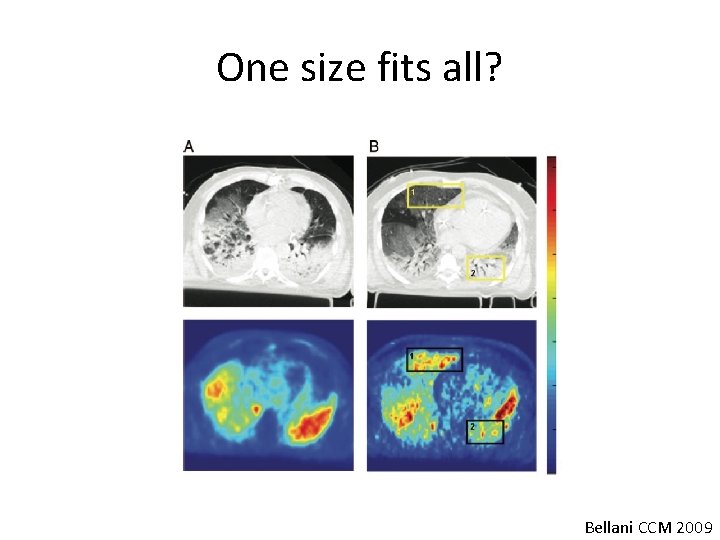

One size fits all? Bellani CCM 2009

Evolução da ventilação protetora • Volume corrente alto • Volume corrente baixo Amato NEJM 1998

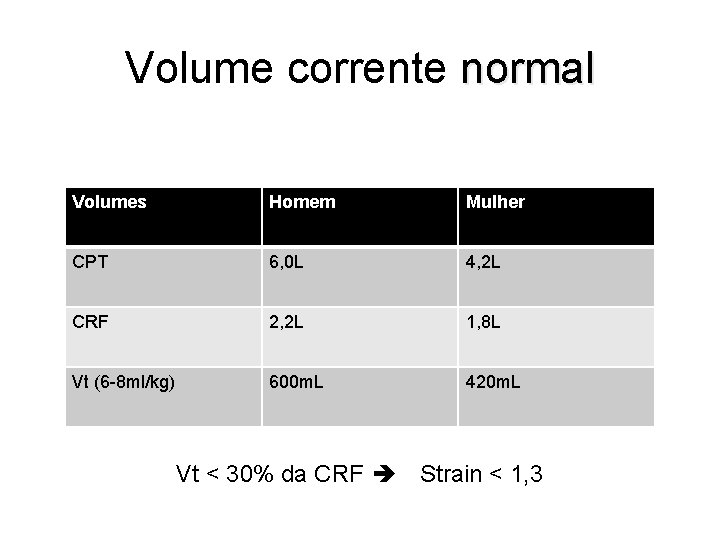

Volume corrente normal Volumes Homem Mulher CPT 6, 0 L 4, 2 L CRF 2, 2 L 1, 8 L Vt (6 -8 ml/kg) 600 m. L 420 m. L Vt < 30% da CRF Strain < 1, 3

Evolução da ventilação protetora • Volume corrente alto • Volume corrente baixo • Vt/peso ideal ARMA NEJM 2000

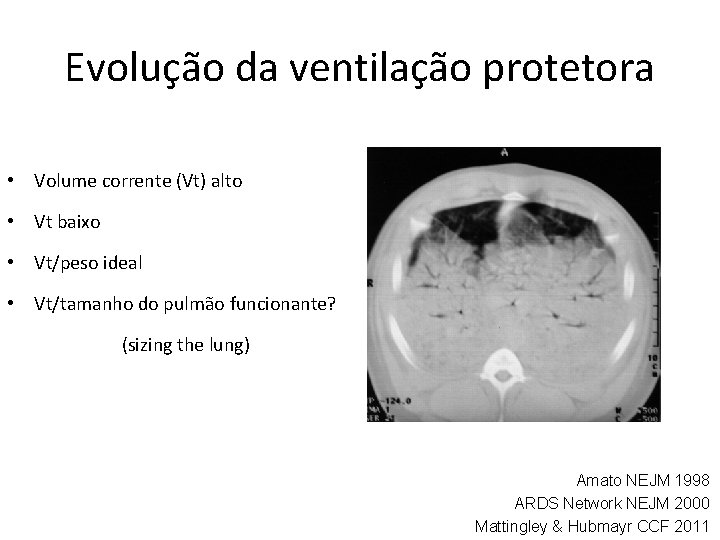

Evolução da ventilação protetora • Volume corrente (Vt) alto • Vt baixo • Vt/peso ideal • Vt/tamanho do pulmão funcionante? (sizing the lung) Amato NEJM 1998 ARDS Network NEJM 2000 Mattingley & Hubmayr CCF 2011

Como evitar a VILI • Ventilando adequadamente o baby lung • Mudando a história pulmonar Sipmann CCM 2007 Gernoth CCF 2009 Retamal CCF 2013

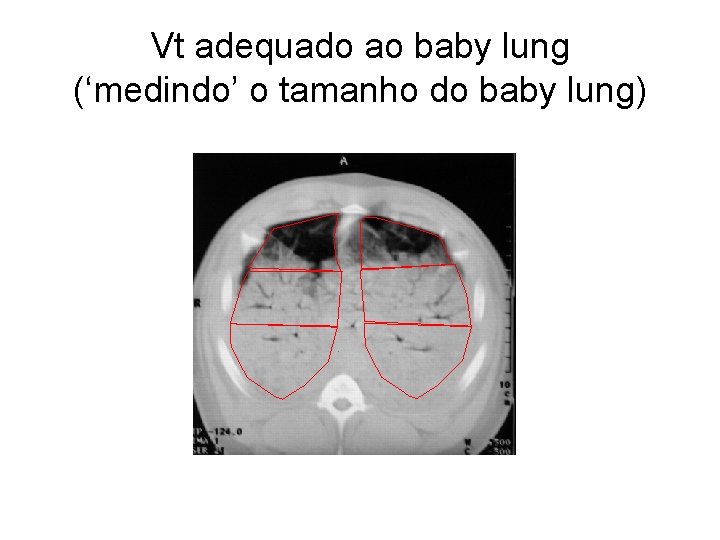

Vt adequado ao baby lung (‘medindo’ o tamanho do baby lung)

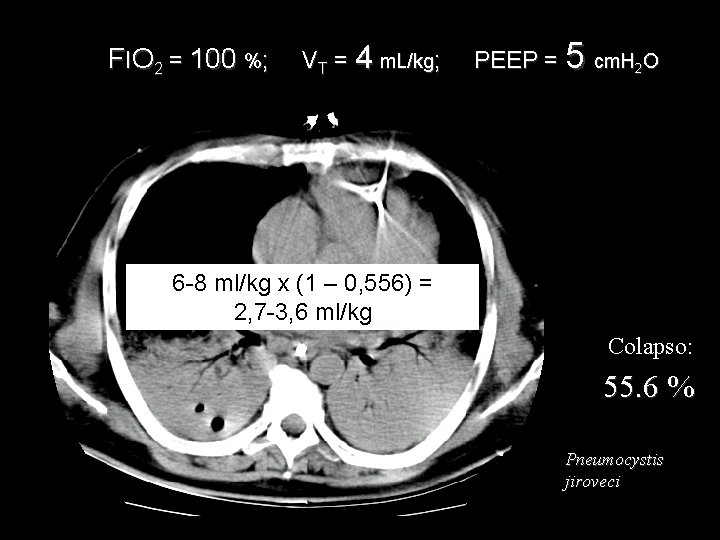

FIO 2 = 100 %; VT = 4 m. L/kg; PEEP = 5 cm. H 2 O 6 -8 ml/kg x (1 – 0, 556) = 2, 7 -3, 6 ml/kg Colapso: 55. 6 % Pneumocystis jiroveci

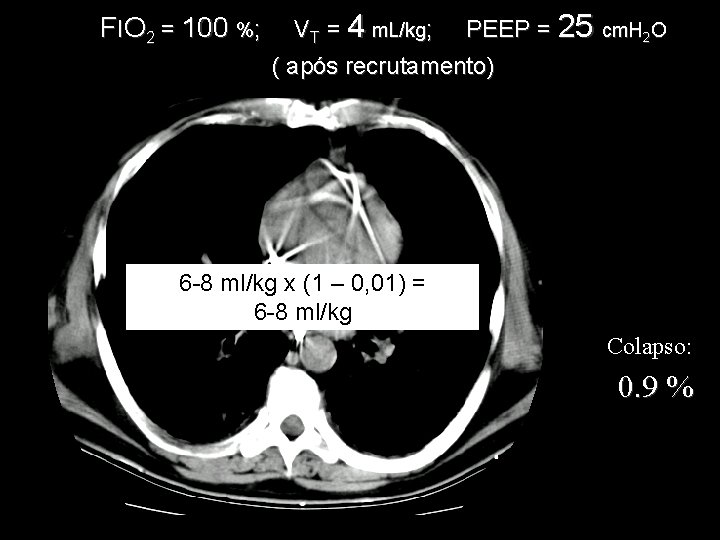

FIO 2 = 100 %; VT = 4 m. L/kg; PEEP = 25 cm. H 2 O ( após recrutamento) 6 -8 ml/kg x (1 – 0, 01) = 6 -8 ml/kg Colapso: 0. 9 %

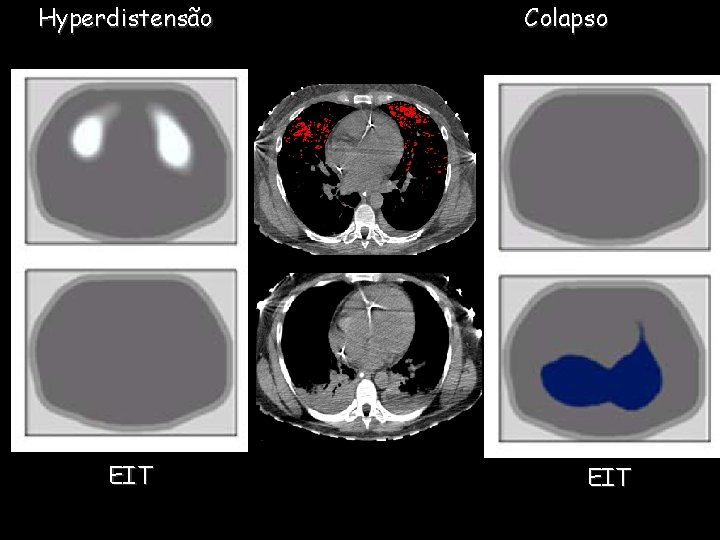

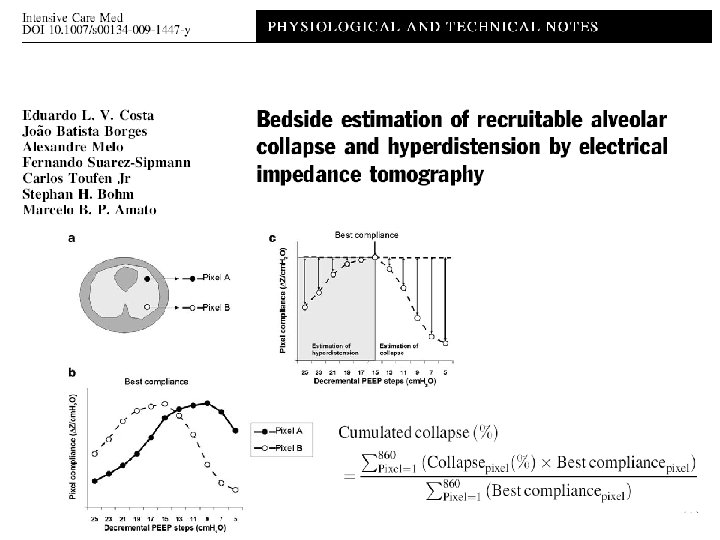

Hyperdistensão Colapso PEEP 23 decremental Collapse PEEP 07 EIT PEEP = 25 PEEP = 7 EIT

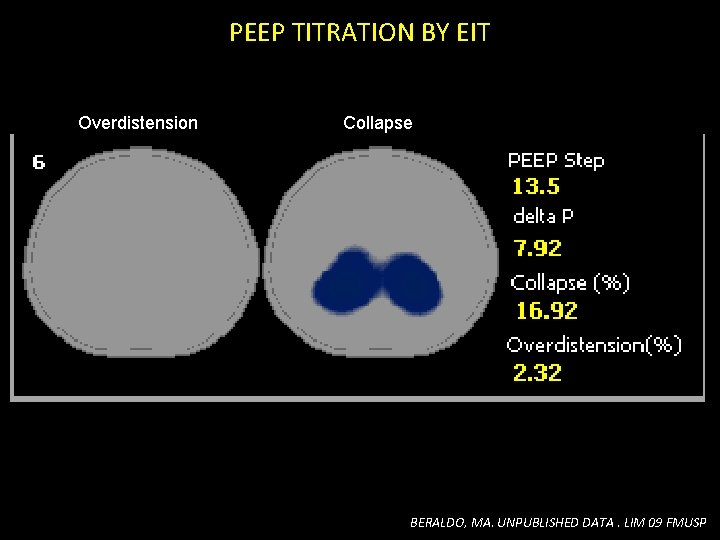

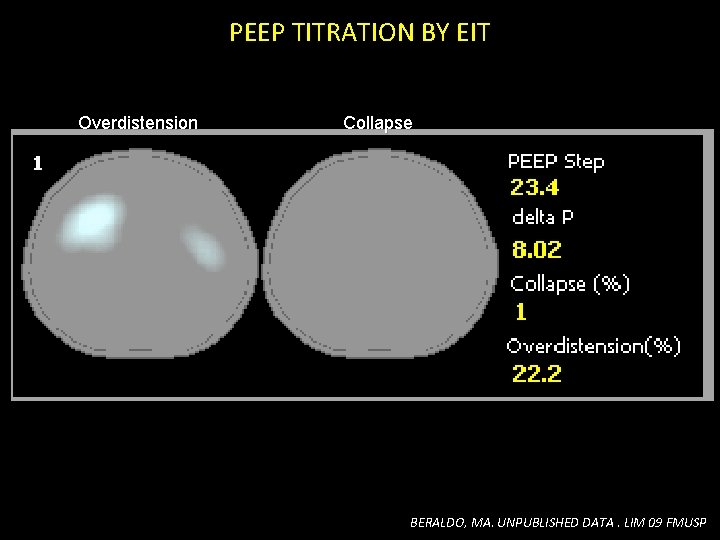

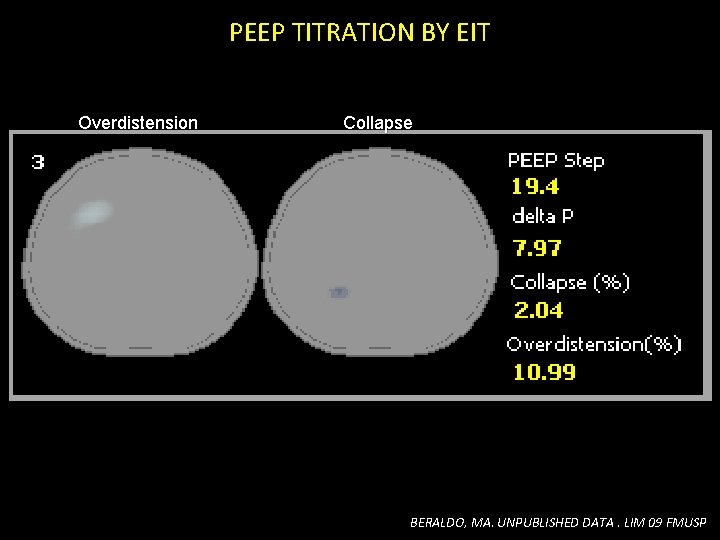

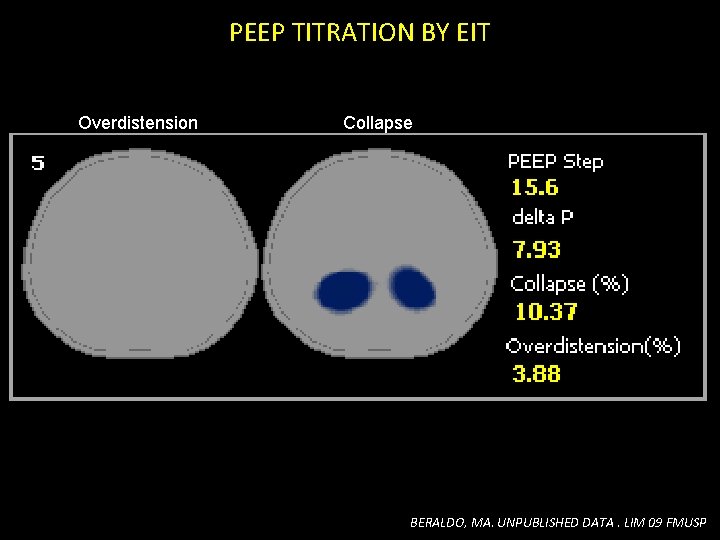

PEEP TITRATION BY EIT Overdistension Collapse BERALDO, MA. UNPUBLISHED DATA. LIM 09 FMUSP

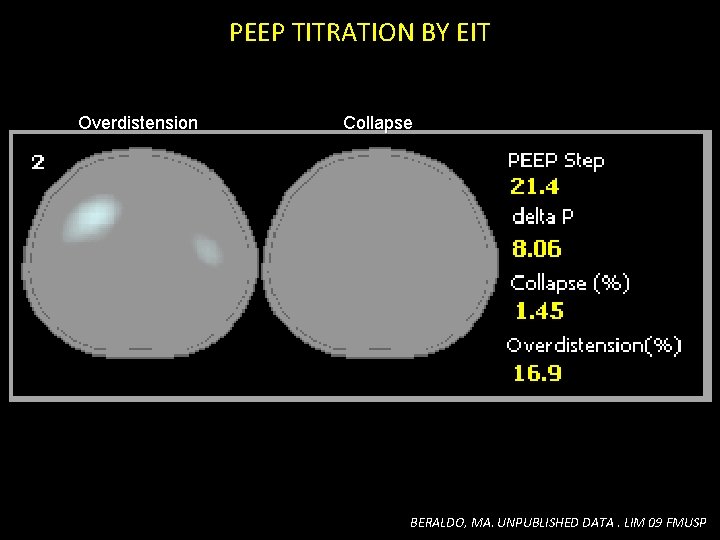

PEEP TITRATION BY EIT Overdistension Collapse BERALDO, MA. UNPUBLISHED DATA. LIM 09 FMUSP

PEEP TITRATION BY EIT Overdistension Collapse BERALDO, MA. UNPUBLISHED DATA. LIM 09 FMUSP

PEEP TITRATION BY EIT Overdistension Collapse BERALDO, MA. UNPUBLISHED DATA. LIM 09 FMUSP

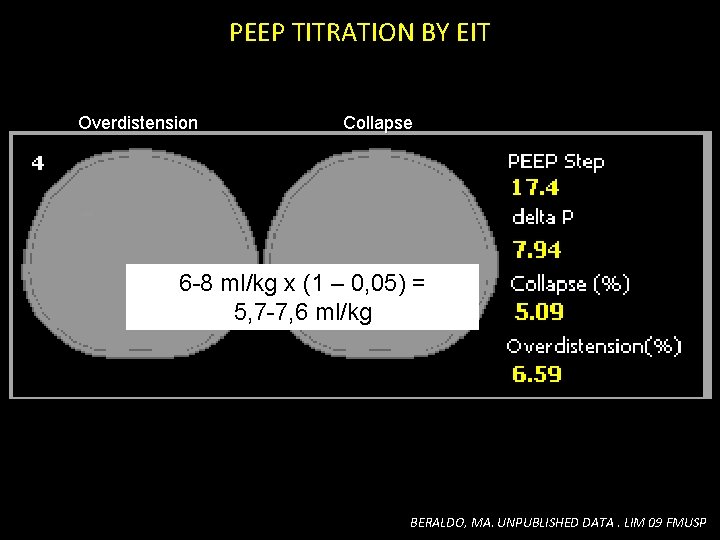

PEEP TITRATION BY EIT Overdistension Collapse 6 -8 ml/kg x (1 – 0, 05) = 5, 7 -7, 6 ml/kg BERALDO, MA. UNPUBLISHED DATA. LIM 09 FMUSP

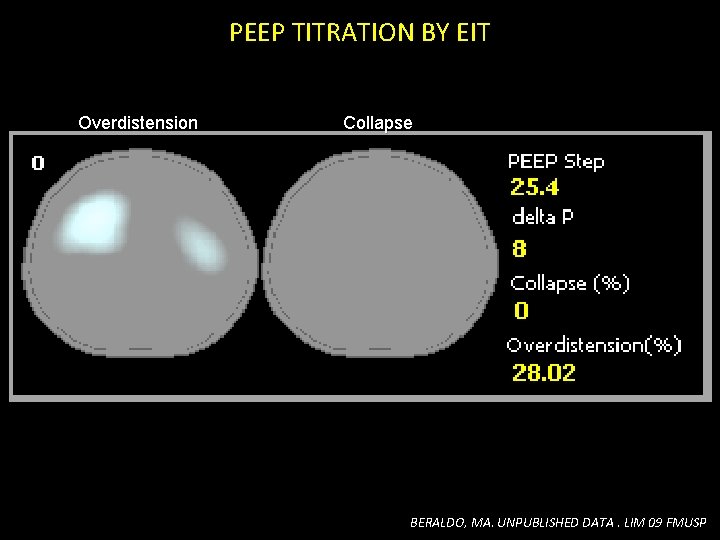

PEEP TITRATION BY EIT Overdistension Collapse BERALDO, MA. UNPUBLISHED DATA. LIM 09 FMUSP

PEEP TITRATION BY EIT Overdistension Collapse BERALDO, MA. UNPUBLISHED DATA. LIM 09 FMUSP

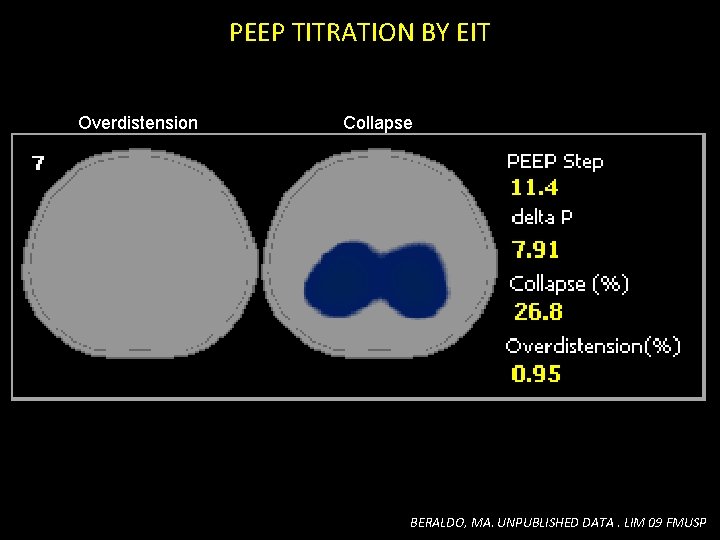

PEEP TITRATION BY EIT Overdistension Collapse BERALDO, MA. UNPUBLISHED DATA. LIM 09 FMUSP

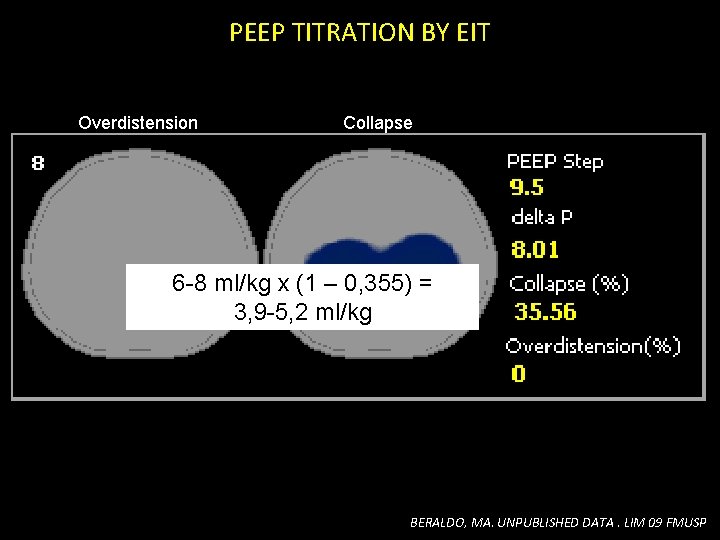

PEEP TITRATION BY EIT Overdistension Collapse 6 -8 ml/kg x (1 – 0, 355) = 3, 9 -5, 2 ml/kg BERALDO, MA. UNPUBLISHED DATA. LIM 09 FMUSP

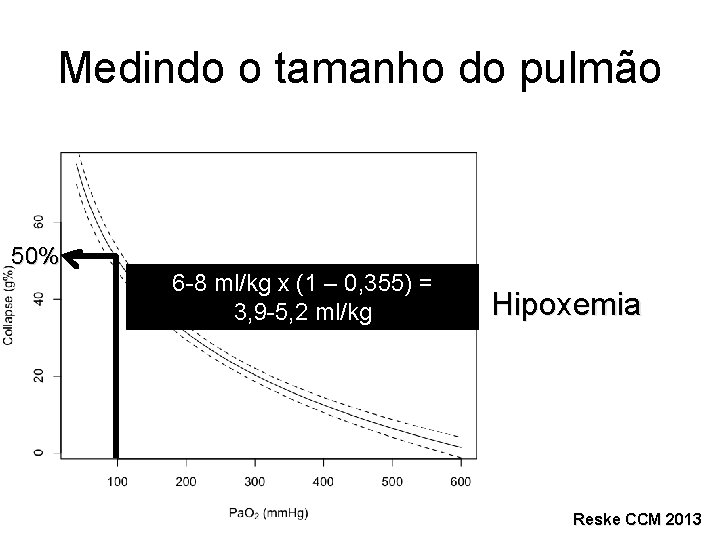

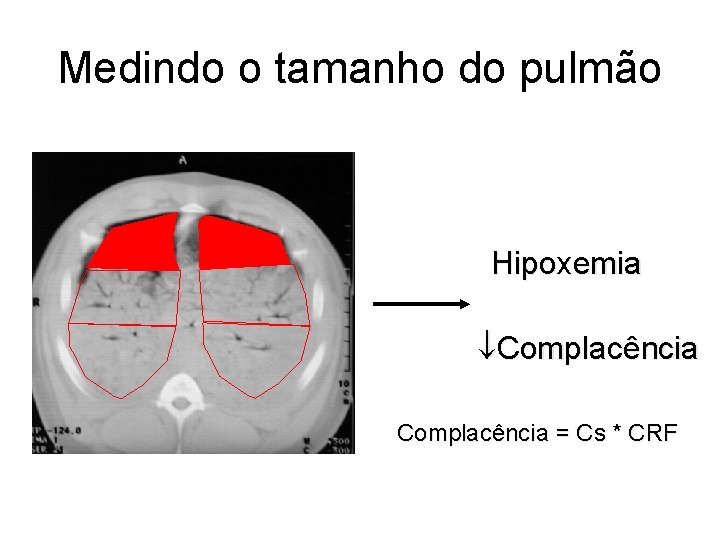

Medindo o tamanho do pulmão 50% 6 -8 ml/kg x (1 – 0, 355) = 3, 9 -5, 2 ml/kg Hipoxemia Reske CCM 2013

Medindo o tamanho do pulmão Hipoxemia Complacência = Cs * CRF

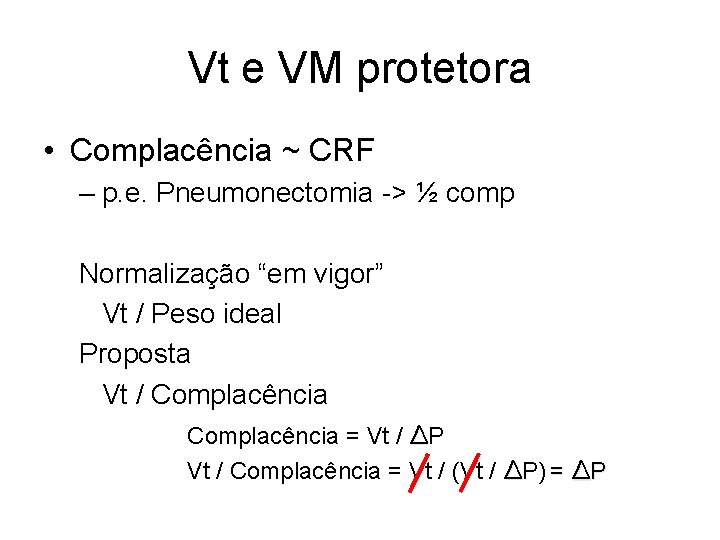

Vt e VM protetora • Complacência ~ CRF – p. e. Pneumonectomia -> ½ comp Normalização “em vigor” Vt / Peso ideal Proposta Vt / Complacência = Vt / ΔP Vt / Complacência = Vt / (Vt / ΔP) = ΔP

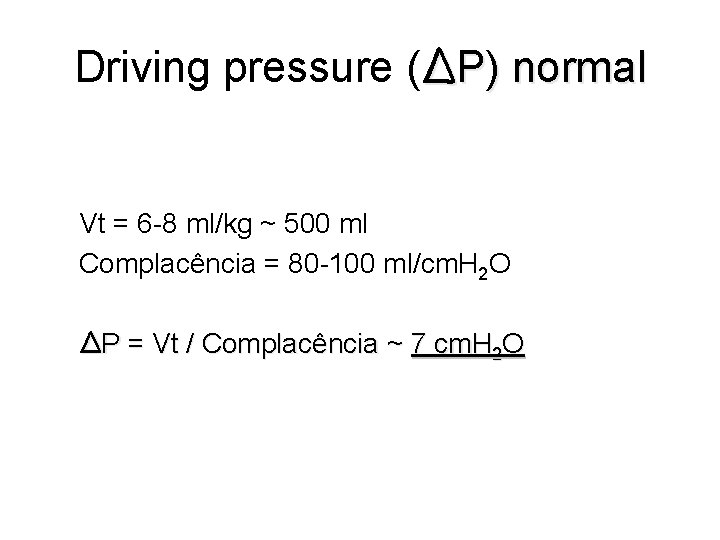

Driving pressure (ΔP) normal Vt = 6 -8 ml/kg ~ 500 ml Complacência = 80 -100 ml/cm. H 2 O ΔP = Vt / Complacência ~ 7 cm. H 2 O

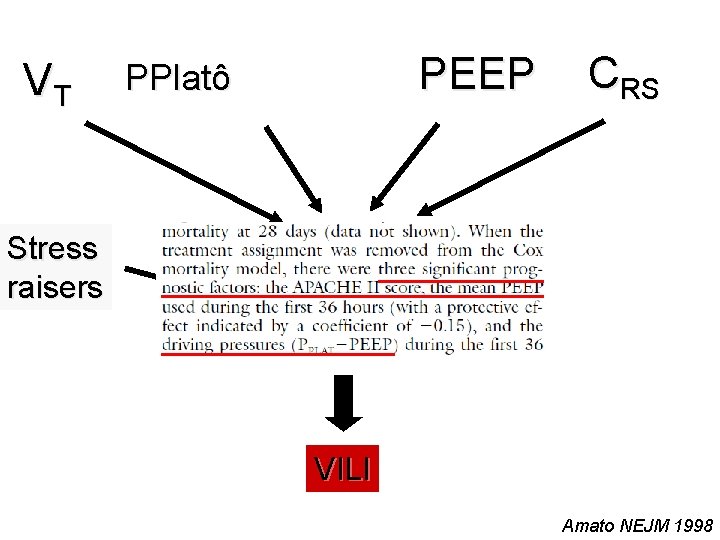

VT Stress raisers PEEP PPlatô CRS Driving Pressure (ΔP) VILI Amato NEJM 1998

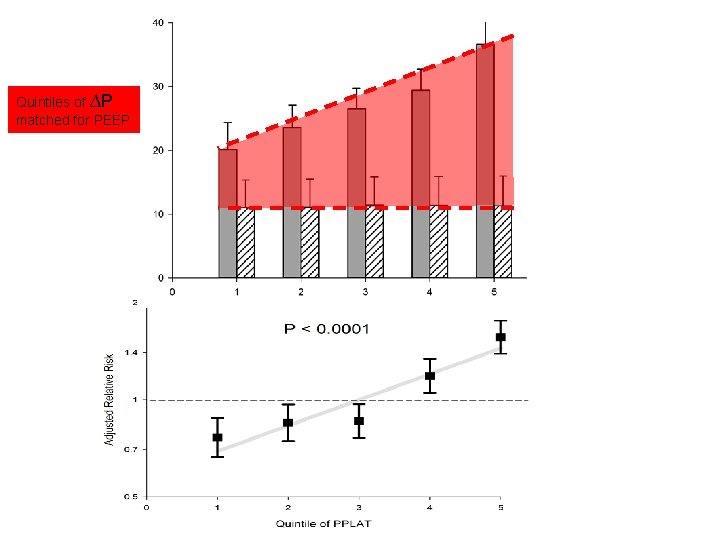

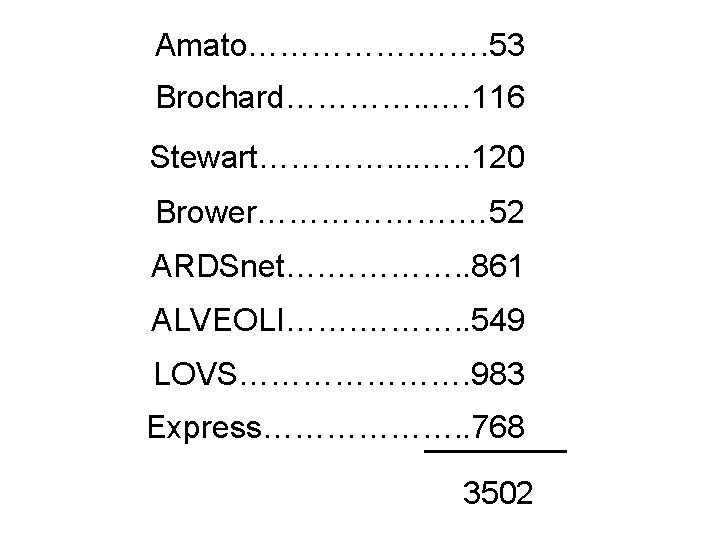

Quintiles of ∆P matched for PEEP

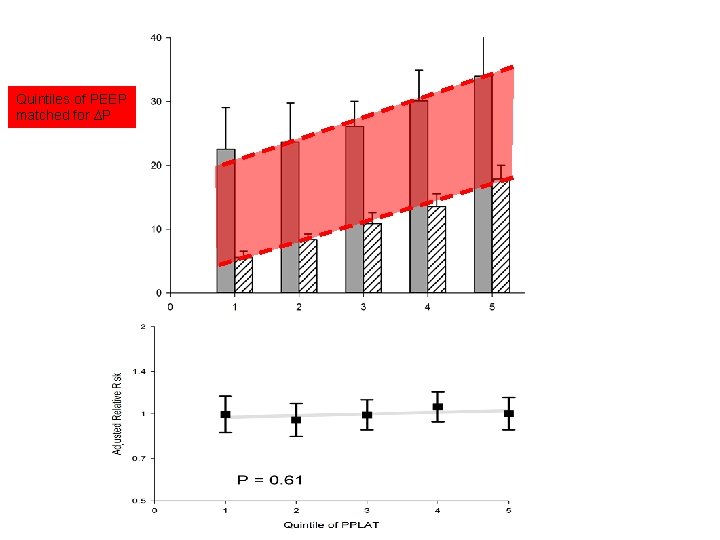

Quintiles of PEEP matched for ∆P

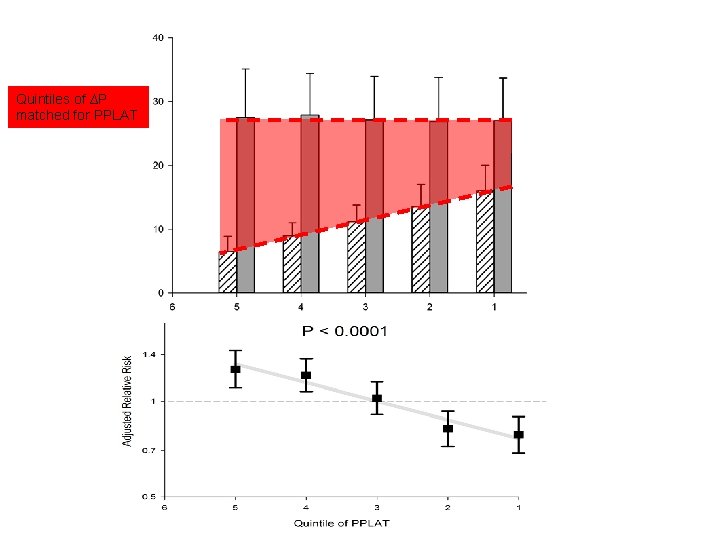

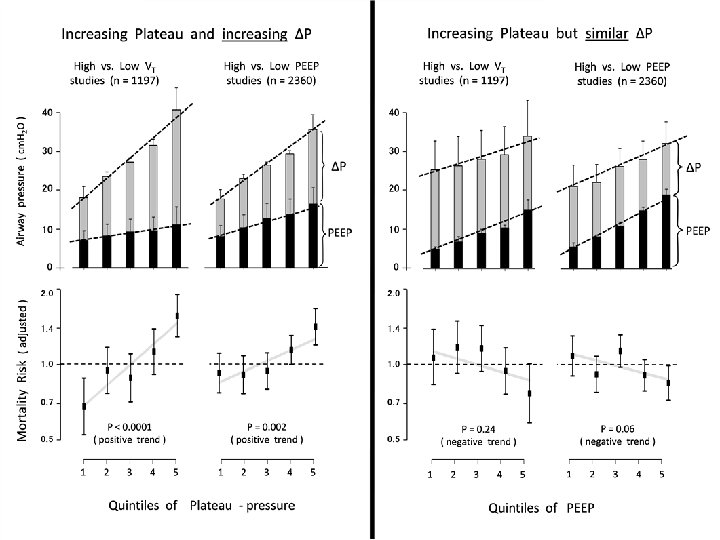

Quintiles of ∆P matched for PPLAT

Quintiles of ∆P matched for PPLAT

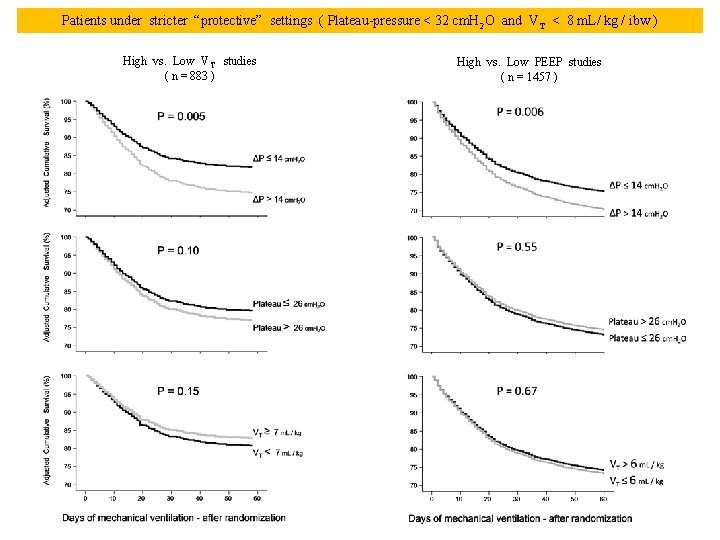

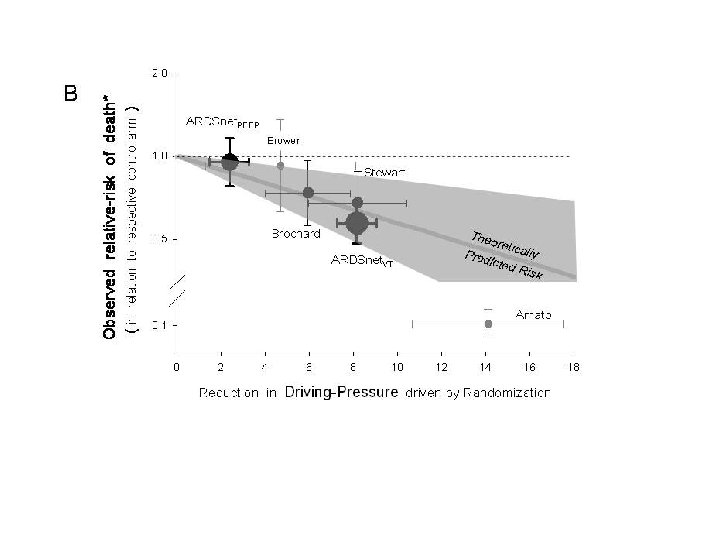

Patients under stricter “protective” settings ( Plateau-pressure < 32 cm. H 2 O and VT < 8 m. L/ kg / ibw ) High vs. Low VT studies ( n = 883 ) High vs. Low PEEP studies ( n = 1457 )

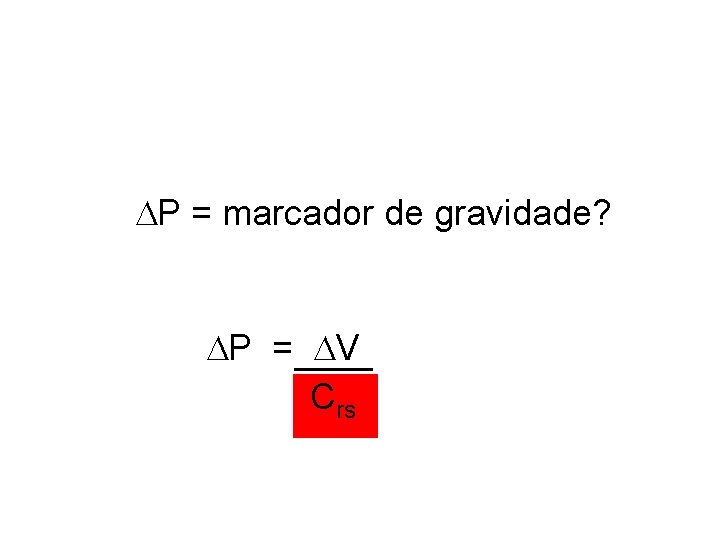

P = marcador de gravidade? P = V Crs

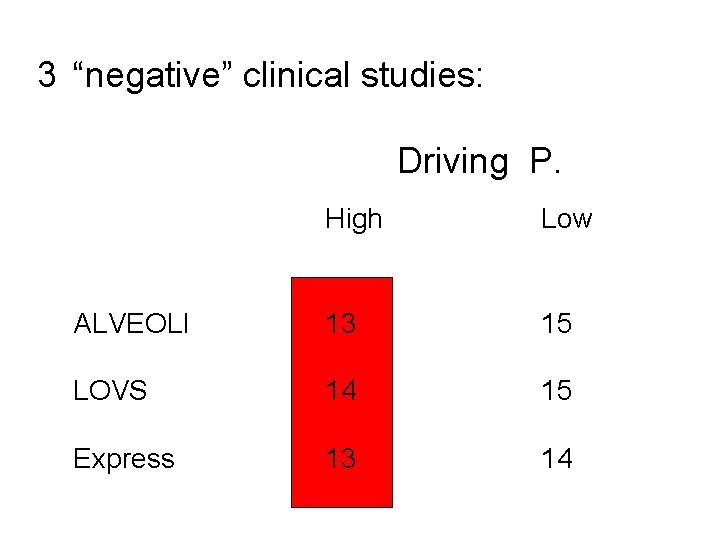

3 “negative” clinical studies: Driving P. High Low ALVEOLI 13 15 LOVS 14 15 Express 13 14

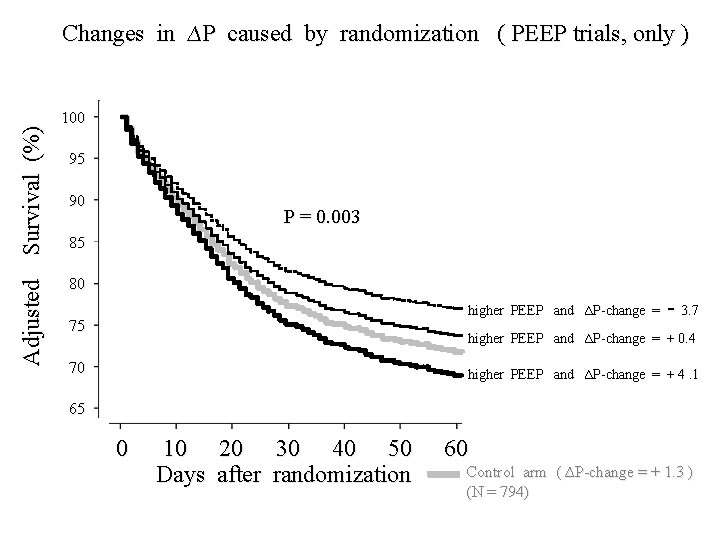

Adjusted Survival (%) Changes in ∆P caused by randomization ( PEEP trials, only ) 100 95 90 P = 0. 003 85 80 higher PEEP and ∆P-change = 75 - 3. 7 higher PEEP and ∆P-change = + 0. 4 70 higher PEEP and ∆P-change = + 4. 1 65 0 10 20 30 40 50 Days after randomization 60 Control arm ( ∆P-change = + 1. 3 ) (N = 794)

Como mudar o tamanho do pulmão funcionante PEEP e recrutamento revisitados

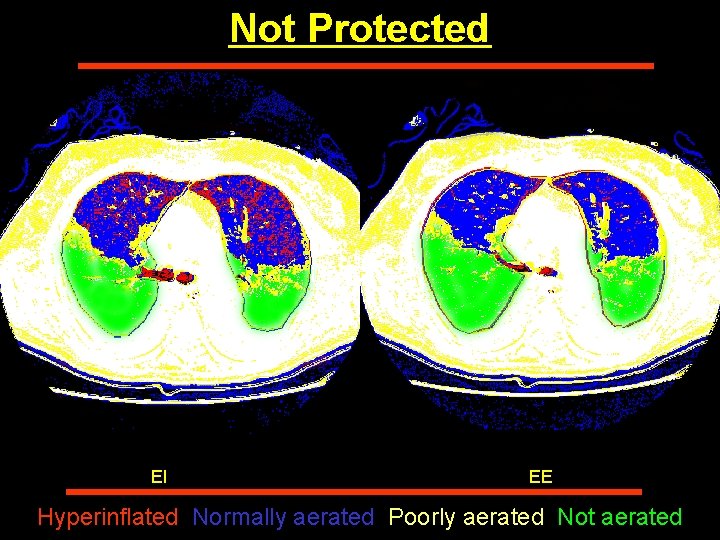

Not Protected EI EE Hyperinflated Normally aerated Poorly aerated Not aerated

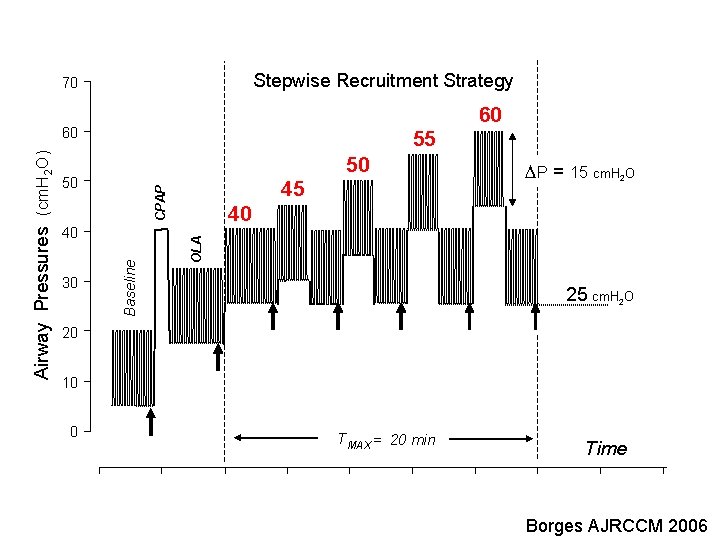

Stepwise Recruitment Strategy 70 60 55 50 P = 15 cm. H 2 O 40 OLA 40 30 45 CPAP 50 Baseline Airway Pressures (cm. H 2 O) 60 25 cm. H 2 O 20 10 0 T MAX = 20 min Time Borges AJRCCM 2006

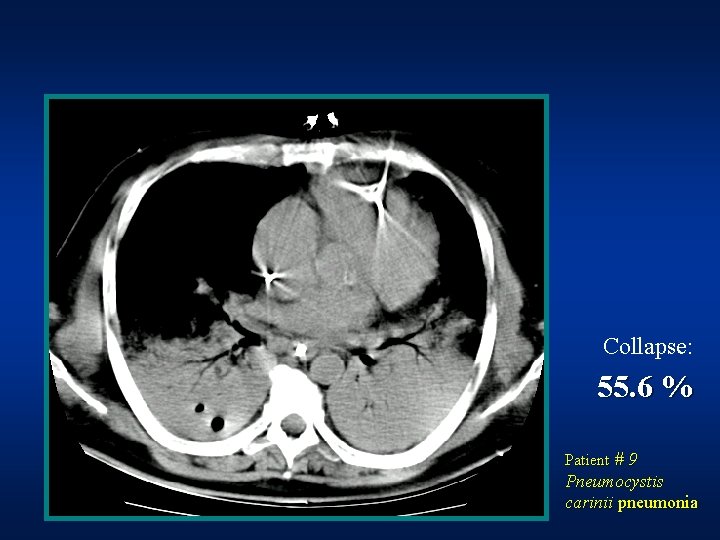

Collapse: 55. 6 % Patient # 9 Pneumocystis carinii pneumonia

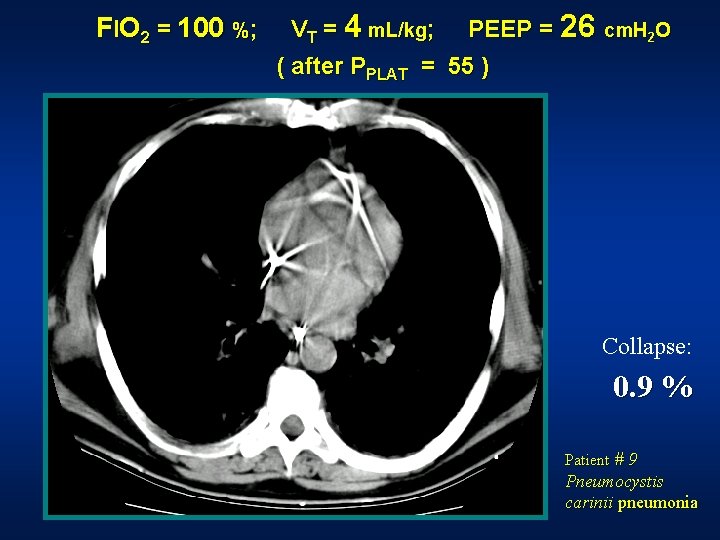

FIO 2 = 100 %; VT = 4 m. L/kg; PEEP = 26 cm. H 2 O ( after PPLAT = 55 ) Collapse: 0. 9 % Patient # 9 Pneumocystis carinii pneumonia

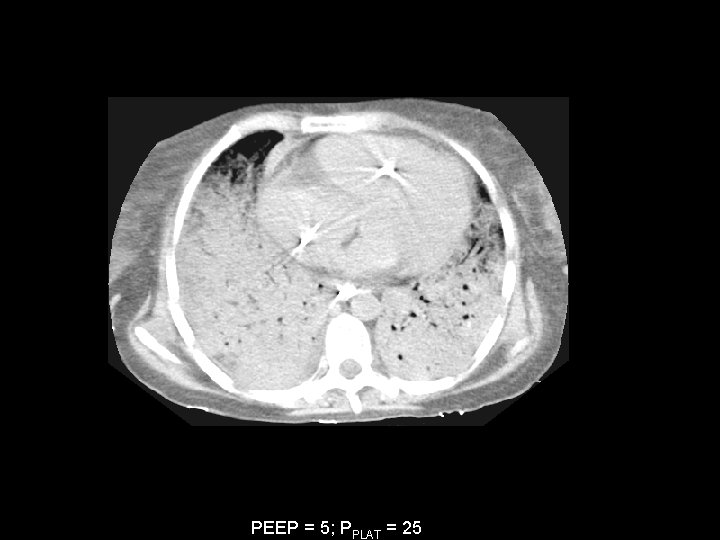

PEEP = 5; PPLAT = 25

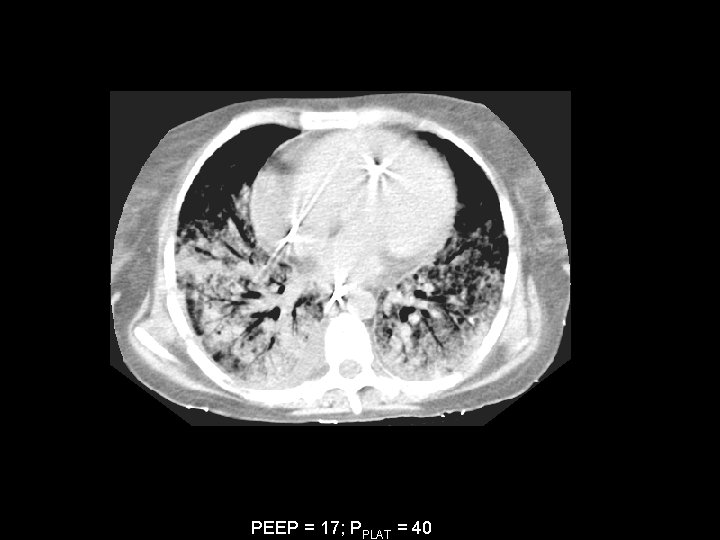

PEEP = 17; PPLAT = 40

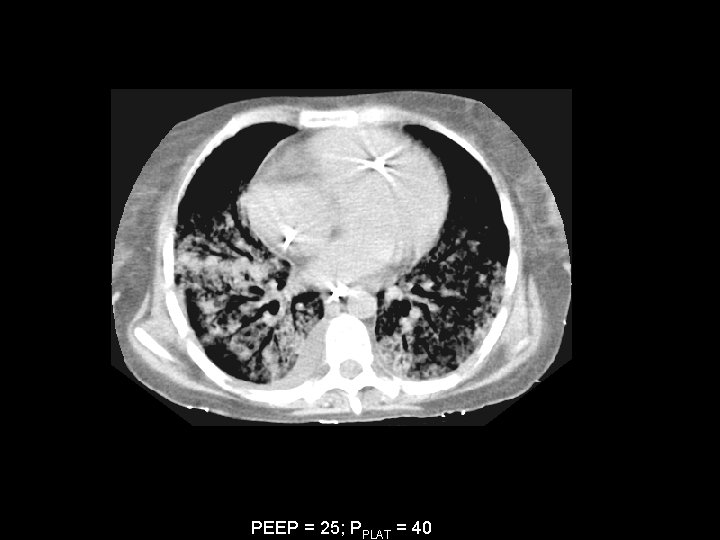

PEEP = 25; PPLAT = 40

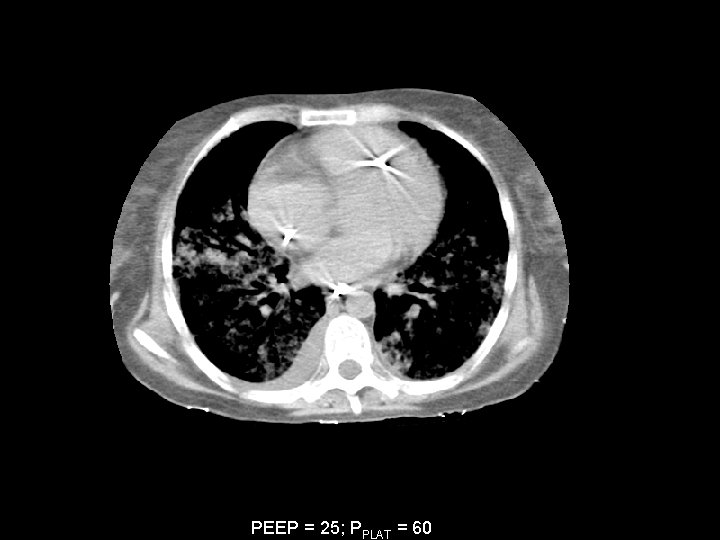

PEEP = 25; PPLAT = 60

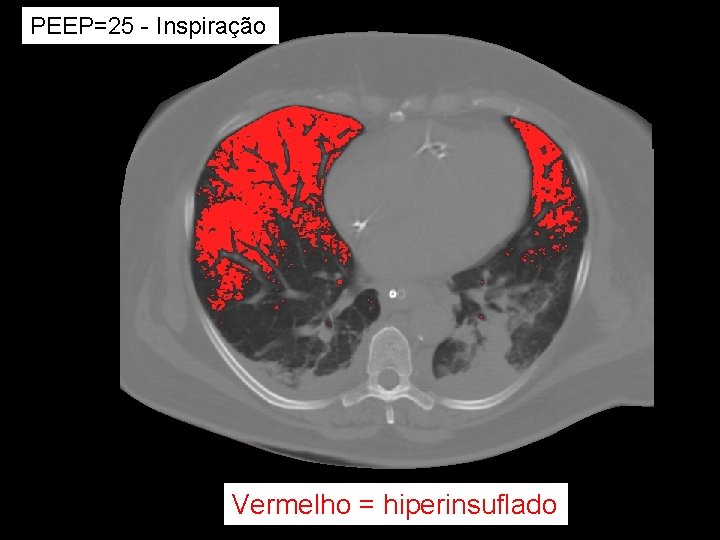

PEEP=25 - Inspiração Vermelho = hiperinsuflado

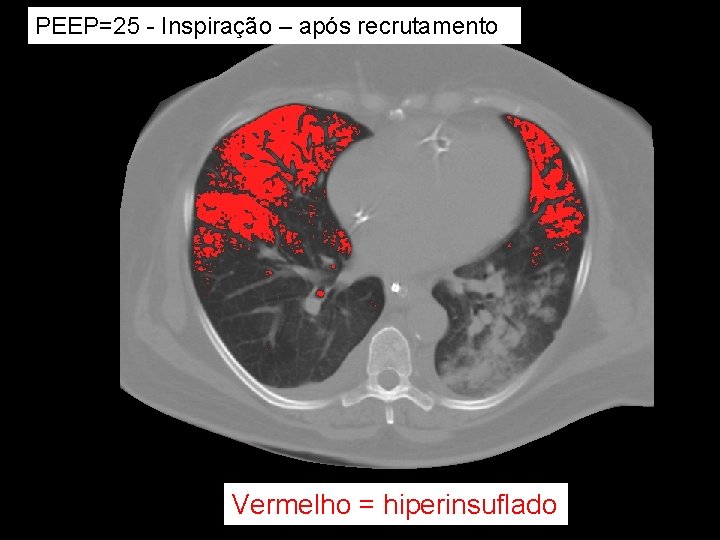

PEEP=25 - Inspiração – após recrutamento Vermelho = hiperinsuflado

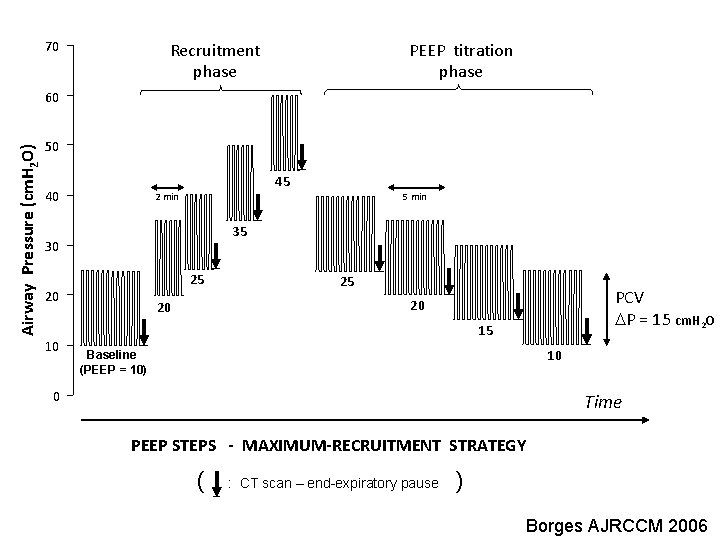

70 Recruitment phase PEEP titration phase Airway Pressure (cm. H 2 O) 60 50 45 40 2 min 5 min 35 30 25 20 10 25 PCV P = 15 cm. H 2 O 20 20 15 10 Baseline (PEEP = 10) 0 Time PEEP STEPS - MAXIMUM-RECRUITMENT STRATEGY ( : CT scan – end-expiratory pause ) Borges AJRCCM 2006

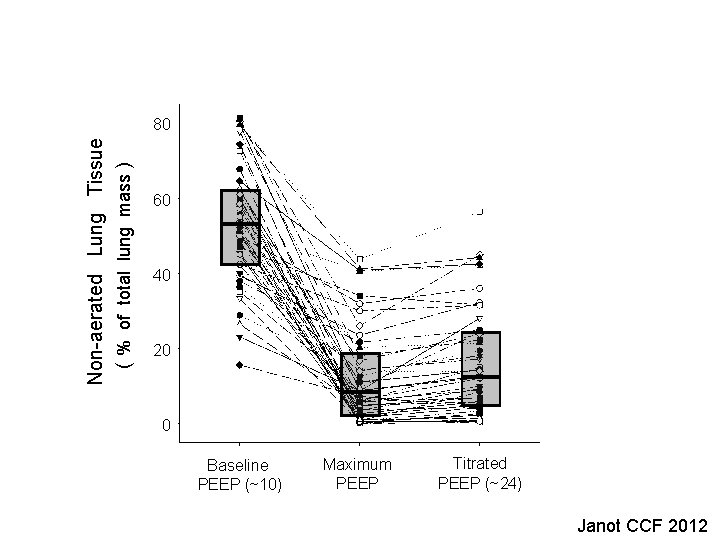

Non-aerated Lung Tissue ( % of total lung mass ) 80 60 40 20 0 Baseline PEEP (~10) Maximum PEEP Titrated PEEP (~24) Janot CCF 2012

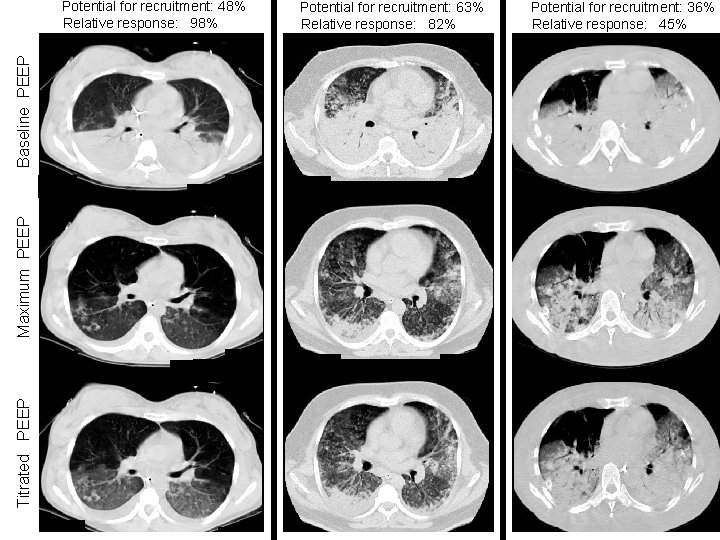

Potential for recruitment: 63% Relative response: 82% Pa. O 2/FIO 2 = 113 Titrated PEEP Maximum PEEP Baseline PEEP Potential for recruitment: 48% Relative response: 98% Pa. O 2/FIO 2 = 357 Potential for recruitment: 36% Relative response: 45%

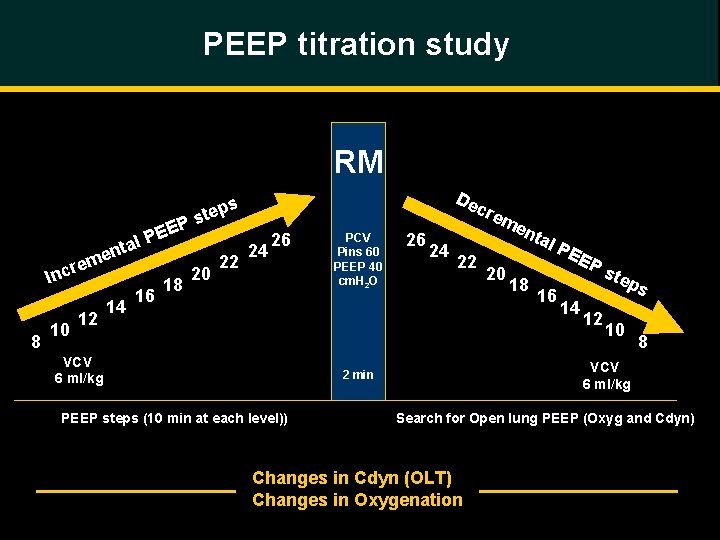

PEEP titration study RM al ent P E E P m cre In 8 10 12 14 16 18 De cr s tep em s 20 22 24 26 VCV 6 ml/kg PCV Pins 60 PEEP 40 cm. H 2 O 26 24 22 18 tal P 16 EE 14 Ps 12 tep s 10 8 VCV 6 ml/kg 2 min PEEP steps (10 min at each level)) 20 en Search for Open lung PEEP (Oxyg and Cdyn) Changes in Cdyn (OLT) Changes in Oxygenation

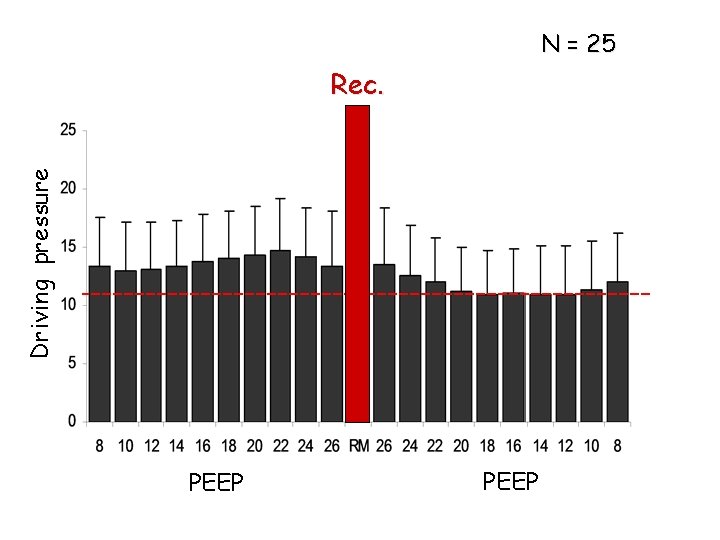

N = 25 Driving pressure Rec. PEEP

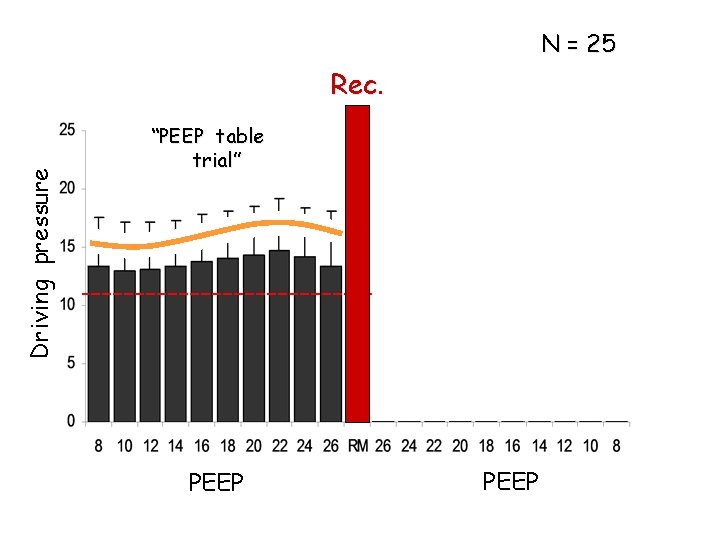

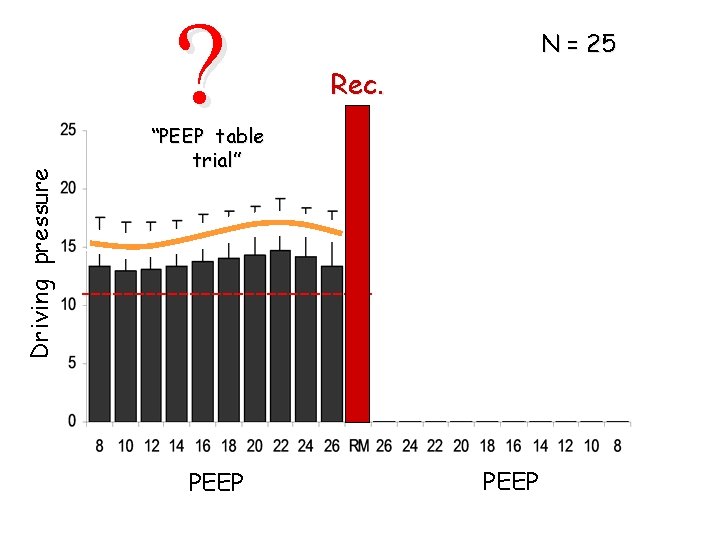

Driving pressure ? N = 25 Rec. “PEEP table trial” PEEP

N = 25 Driving pressure Rec. “PEEP table trial” PEEP

N = 25 Driving pressure Rec. “PEEP table trial” PEEP

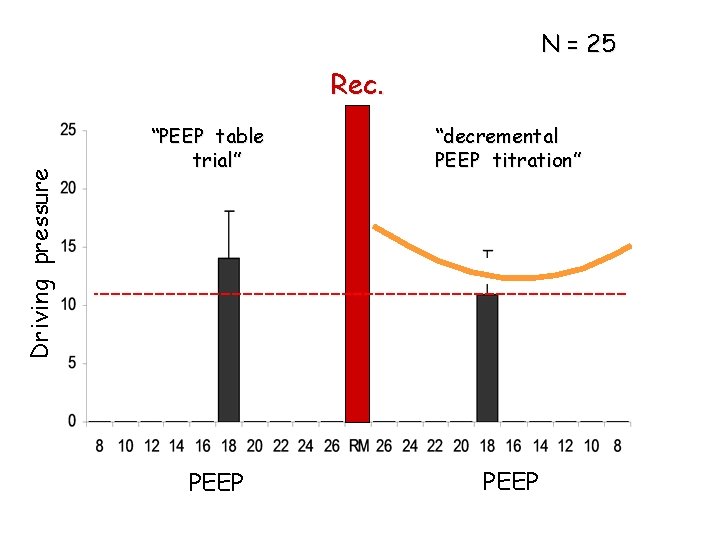

N = 25 Driving pressure Rec. “PEEP table trial” PEEP “decremental PEEP titration” PEEP

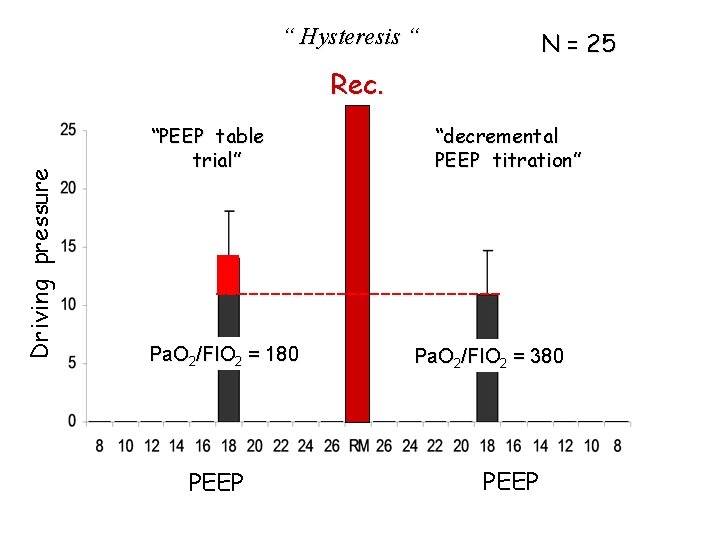

“ Hysteresis “ N = 25 Driving pressure Rec. “PEEP table trial” Pa. O 2/FIO 2 = 180 PEEP “decremental PEEP titration” Pa. O 2/FIO 2 = 380 PEEP
