Communications Ground Stations Communication Equipment Alternative Landing Method March 26, 2009 AAE 450 Spring 2009 [Trent Muller] [COM]

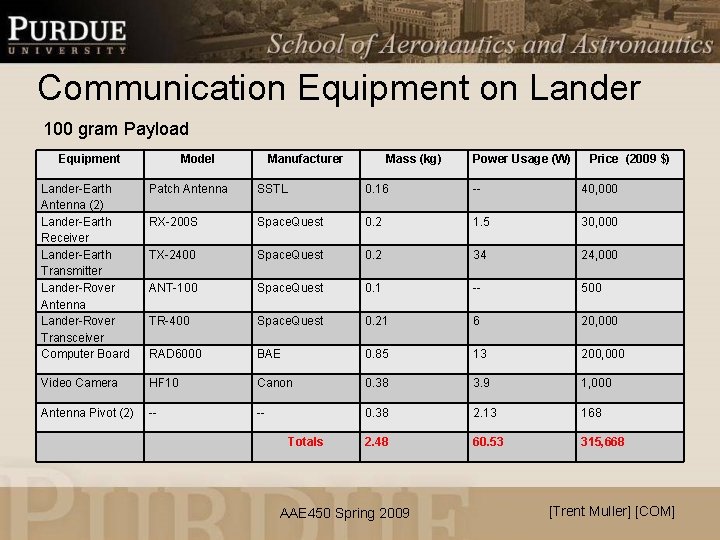

Communication Equipment on Lander 100 gram Payload Equipment Model Manufacturer Mass (kg) Power Usage (W) Price (2009 $) Lander-Earth Antenna (2) Lander-Earth Receiver Lander-Earth Transmitter Lander-Rover Antenna Lander-Rover Transceiver Computer Board Patch Antenna SSTL 0. 16 -- 40, 000 RX-200 S Space. Quest 0. 2 1. 5 30, 000 TX-2400 Space. Quest 0. 2 34 24, 000 ANT-100 Space. Quest 0. 1 -- 500 TR-400 Space. Quest 0. 21 6 20, 000 RAD 6000 BAE 0. 85 13 200, 000 Video Camera HF 10 Canon 0. 38 3. 9 1, 000 Antenna Pivot (2) -- -- 0. 38 2. 13 168 2. 48 60. 53 315, 668 Totals AAE 450 Spring 2009 [Trent Muller] [COM]

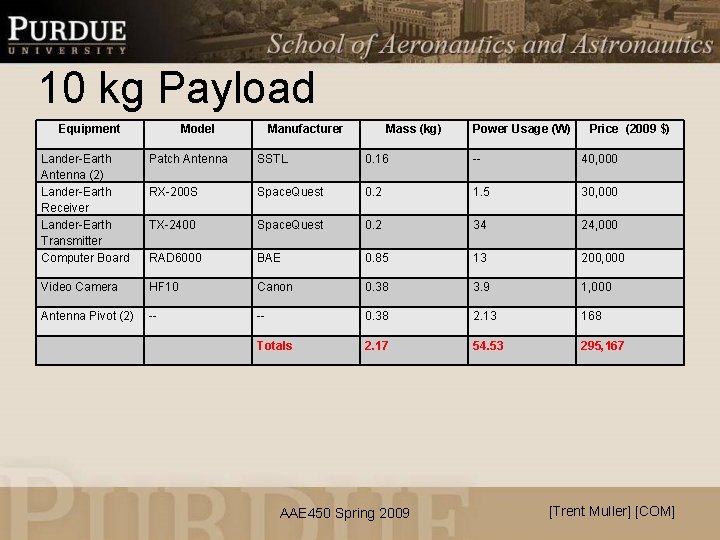

10 kg Payload Equipment Model Manufacturer Mass (kg) Power Usage (W) Price (2009 $) Lander-Earth Antenna (2) Lander-Earth Receiver Lander-Earth Transmitter Computer Board Patch Antenna SSTL 0. 16 -- 40, 000 RX-200 S Space. Quest 0. 2 1. 5 30, 000 TX-2400 Space. Quest 0. 2 34 24, 000 RAD 6000 BAE 0. 85 13 200, 000 Video Camera HF 10 Canon 0. 38 3. 9 1, 000 Antenna Pivot (2) -- -- 0. 38 2. 13 168 Totals 2. 17 54. 53 295, 167 AAE 450 Spring 2009 [Trent Muller] [COM]

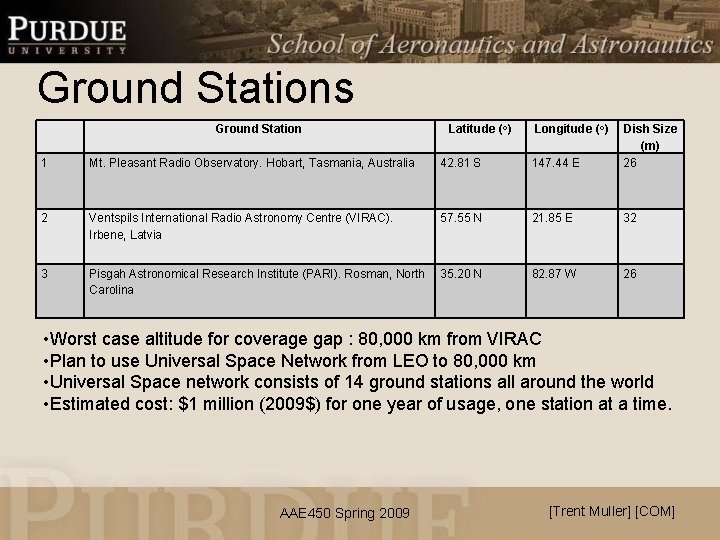

Ground Stations Ground Station Latitude (o) Longitude ( o) 1 Mt. Pleasant Radio Observatory. Hobart, Tasmania, Australia 42. 81 S 147. 44 E Dish Size (m) 26 2 Ventspils International Radio Astronomy Centre (VIRAC). Irbene, Latvia 57. 55 N 21. 85 E 32 3 Pisgah Astronomical Research Institute (PARI). Rosman, North Carolina 35. 20 N 82. 87 W 26 • Worst case altitude for coverage gap : 80, 000 km from VIRAC • Plan to use Universal Space Network from LEO to 80, 000 km • Universal Space network consists of 14 ground stations all around the world • Estimated cost: $1 million (2009$) for one year of usage, one station at a time. AAE 450 Spring 2009 [Trent Muller] [COM]

Backup Slides Top down view of Earth showing ground stations an coverage gaps 1. Mt. Pleasant 2. VIRAC 3. PARI Altitdues Altitude (km) h 1 7662. 33 h 2 3977. 22 h 3 8704. 07 AAE 450 Spring 2009 [Trent Muller] [COM]

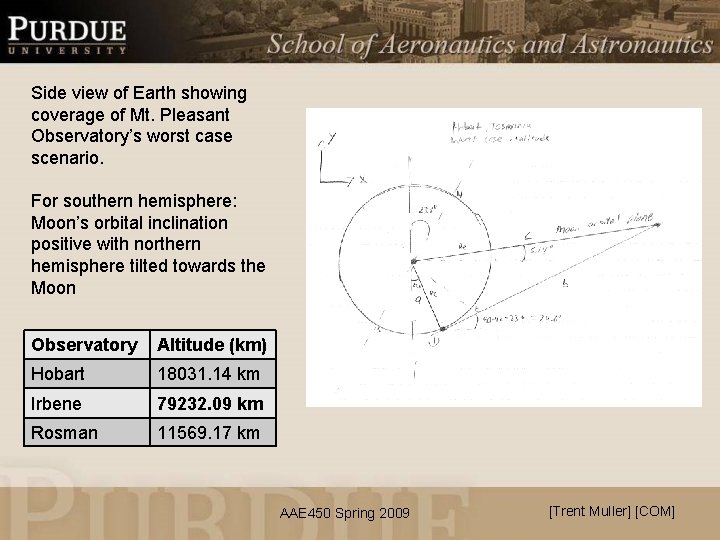

Side view of Earth showing coverage of Mt. Pleasant Observatory’s worst case scenario. For southern hemisphere: Moon’s orbital inclination positive with northern hemisphere tilted towards the Moon Observatory Altitude (km) Hobart 18031. 14 km Irbene 79232. 09 km Rosman 11569. 17 km AAE 450 Spring 2009 [Trent Muller] [COM]

High Energy Tangent Landing § Represents the Lander landing with a significant horizontal velocity and sliding on Lunar surface without skipping, digging in, or creating a crater immediately upon impact. § Assumes constant deceleration based on initial impact. § Based on an old design iteration with a dry mass of 163. 49 kg § Shows three landing cases 1) 10 g 2) 15 g 3) 20 g AAE 450 Spring 2009 [Trenten Muller] [COM]
