Communication network SETTING NETWORK BIAS AND TERMINATING RESISTORS

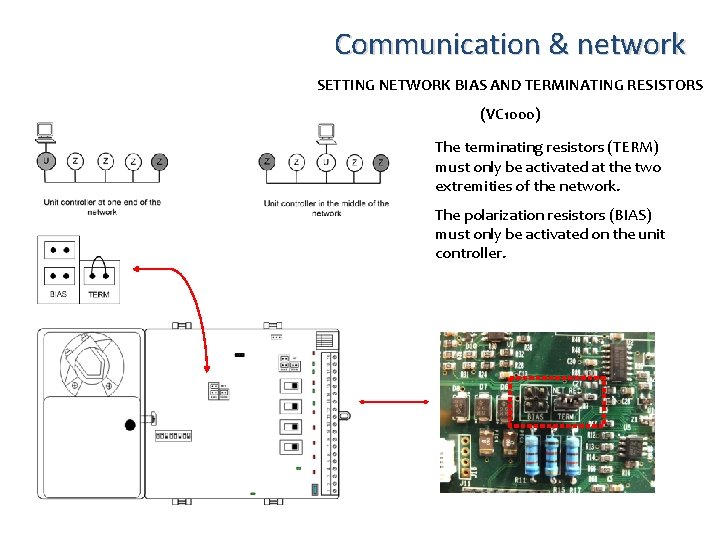

Communication & network SETTING NETWORK BIAS AND TERMINATING RESISTORS (VC 1000) The terminating resistors (TERM) must only be activated at the two extremities of the network. The polarization resistors (BIAS) must only be activated on the unit controller.

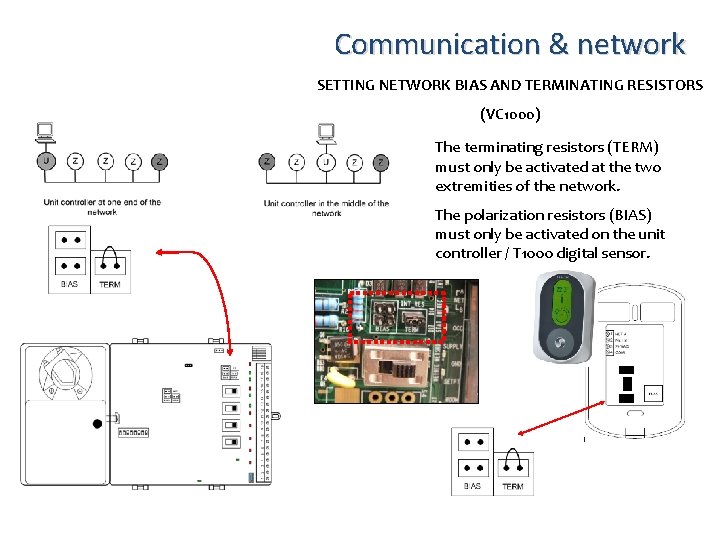

Communication & network SETTING NETWORK BIAS AND TERMINATING RESISTORS (VC 1000) The terminating resistors (TERM) must only be activated at the two extremities of the network. The polarization resistors (BIAS) must only be activated on the unit controller / T 1000 digital sensor.

Communication & network SETTING NETWORK BIAS AND TERMINATING RESISTORS (M 1000) The terminating resistors (TERM) must only be activated at the two extremities of the network. The polarization resistors (BIAS) must only be activated on the unit controller.

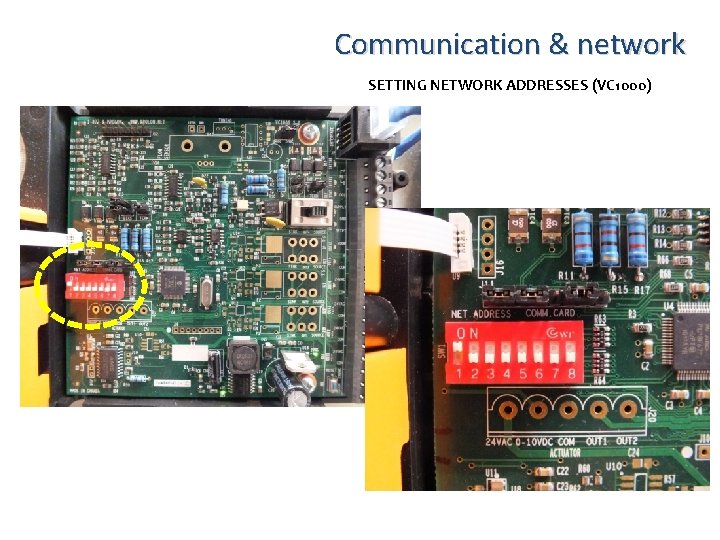

Communication & network SETTING NETWORK ADDRESSES (VC 1000)

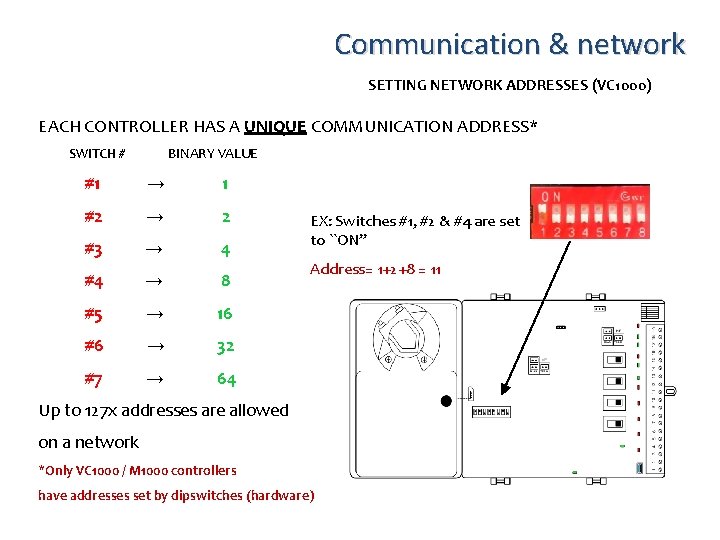

Communication & network SETTING NETWORK ADDRESSES (VC 1000) EACH CONTROLLER HAS A UNIQUE COMMUNICATION ADDRESS* SWITCH # BINARY VALUE #1 → 1 #2 → 2 #3 → 4 #4 → 8 #5 → 16 #6 → 32 #7 → 64 EX: Switches #1, #2 & #4 are set to ``ON’’ Address= 1+2+8 = 11 Up to 127 x addresses are allowed on a network *Only VC 1000 / M 1000 controllers have addresses set by dipswitches (hardware)

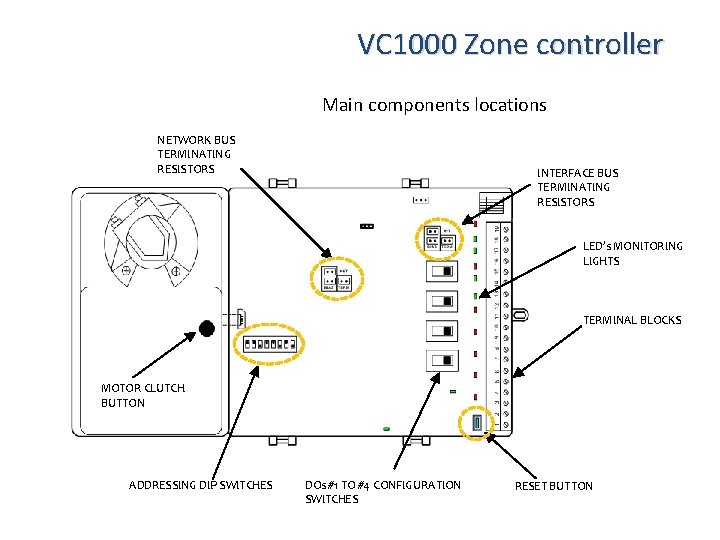

VC 1000 Zone controller Main components locations NETWORK BUS TERMINATING RESISTORS INTERFACE BUS TERMINATING RESISTORS LED’s MONITORING LIGHTS TERMINAL BLOCKS MOTOR CLUTCH BUTTON ADDRESSING DIP SWITCHES DOs #1 TO #4 CONFIGURATION SWITCHES RESET BUTTON

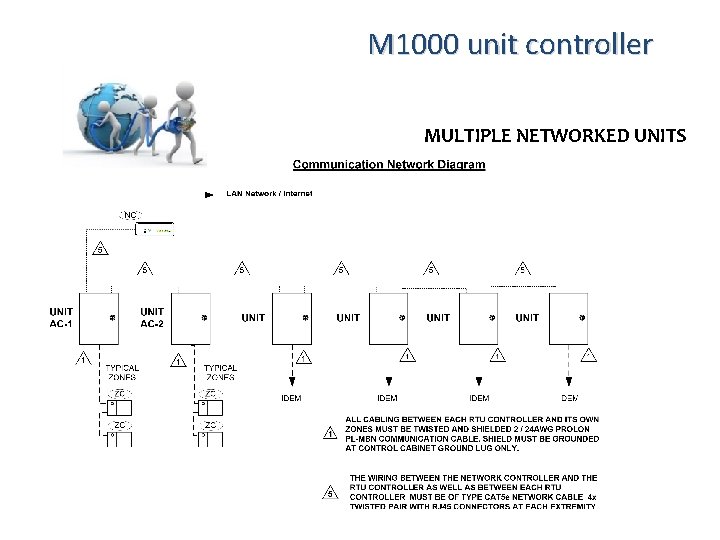

M 1000 unit controller MULTIPLE UNITS IN A NETWORK Network cable CAT 5 e PL-M 1000 UNIT CONTROLLERS NETWORK CONTROLLER

M 1000 unit controller MULTIPLE NETWORKED UNITS

Remote Access Local Area Network (LAN) I. P: 192. 168. 1. 99 (default) or DHCP ROUTER PL-NC-SCHED Static I. P. or dns PL-M 1000 PL-VC-1000
