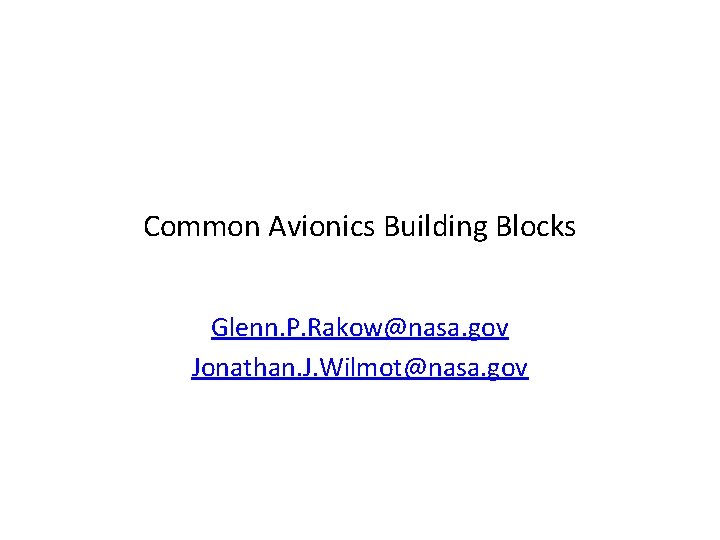

Common Avionics Building Blocks Glenn. P. Rakow@nasa. gov Jonathan. J. Wilmot@nasa. gov

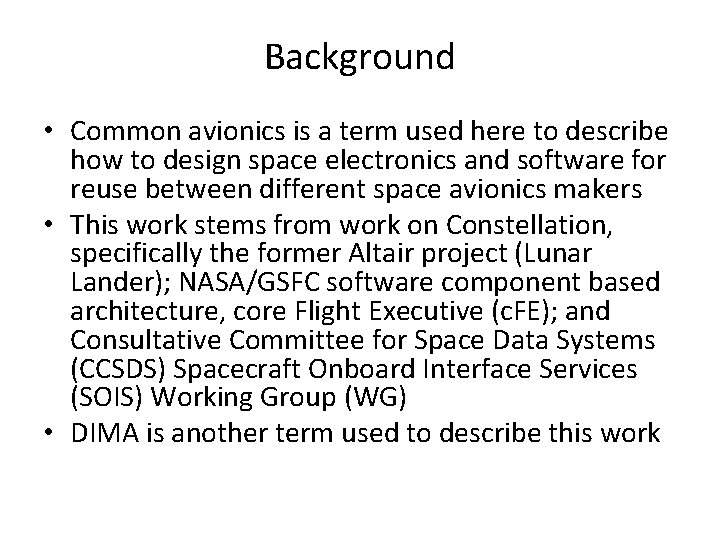

Background • Common avionics is a term used here to describe how to design space electronics and software for reuse between different space avionics makers • This work stems from work on Constellation, specifically the former Altair project (Lunar Lander); NASA/GSFC software component based architecture, core Flight Executive (c. FE); and Consultative Committee for Space Data Systems (CCSDS) Spacecraft Onboard Interface Services (SOIS) Working Group (WG) • DIMA is another term used to describe this work

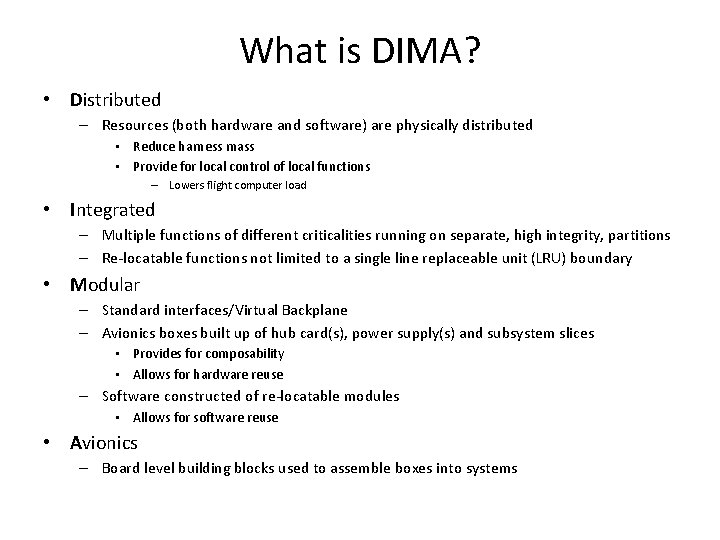

What is DIMA? • Distributed – Resources (both hardware and software) are physically distributed • Reduce harness mass • Provide for local control of local functions – Lowers flight computer load • Integrated – Multiple functions of different criticalities running on separate, high integrity, partitions – Re-locatable functions not limited to a single line replaceable unit (LRU) boundary • Modular – Standard interfaces/Virtual Backplane – Avionics boxes built up of hub card(s), power supply(s) and subsystem slices • Provides for composability • Allows for hardware reuse – Software constructed of re-locatable modules • Allows for software reuse • Avionics – Board level building blocks used to assemble boxes into systems

DIMA Rationale • Significantly reduce Non Recurring Engineering (NRE) for the development, testing and integration of avionics systems – Design systems from software & hardware building block modules – Seamless integration of modules to form units and systems • Vendors can building block products, e. g. , electronic boards and software applications that can be rapidly integrated to form avionics boxes and systems – Everyone designing to the same interfaces for compatibility and interoperability • AFRL estimates 80 -90% of mission costs are NRE

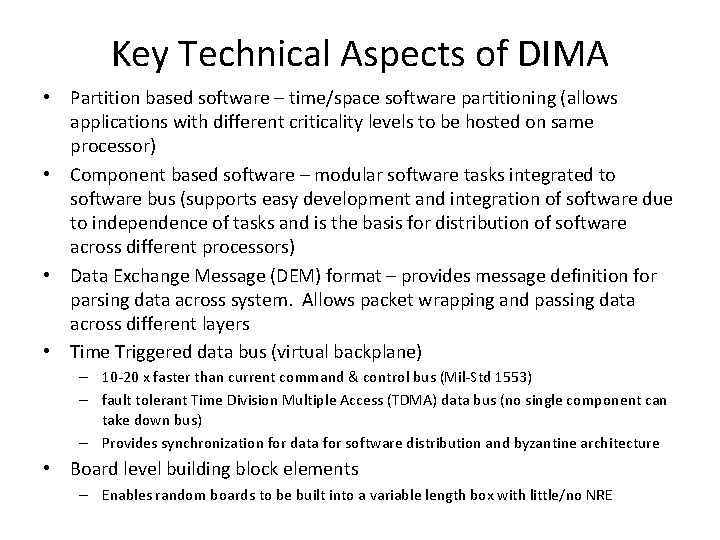

Key Technical Aspects of DIMA • Partition based software – time/space software partitioning (allows applications with different criticality levels to be hosted on same processor) • Component based software – modular software tasks integrated to software bus (supports easy development and integration of software due to independence of tasks and is the basis for distribution of software across different processors) • Data Exchange Message (DEM) format – provides message definition for parsing data across system. Allows packet wrapping and passing data across different layers • Time Triggered data bus (virtual backplane) – 10 -20 x faster than current command & control bus (Mil-Std 1553) – fault tolerant Time Division Multiple Access (TDMA) data bus (no single component can take down bus) – Provides synchronization for data for software distribution and byzantine architecture • Board level building block elements – Enables random boards to be built into a variable length box with little/no NRE

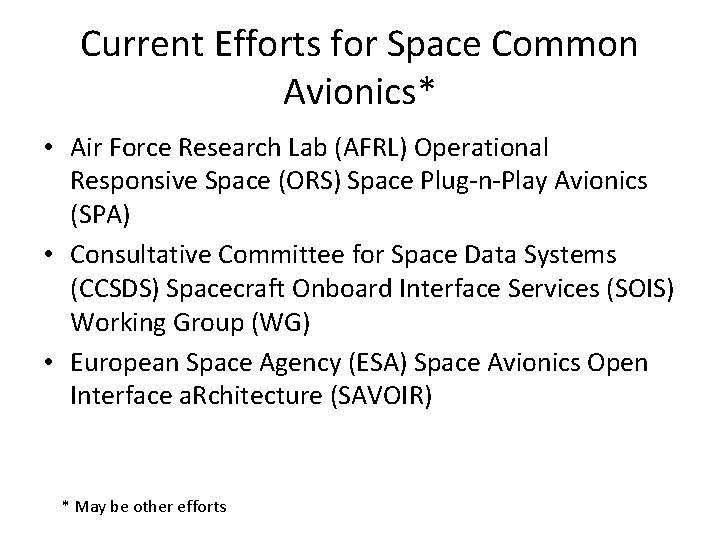

Current Efforts for Space Common Avionics* • Air Force Research Lab (AFRL) Operational Responsive Space (ORS) Space Plug-n-Play Avionics (SPA) • Consultative Committee for Space Data Systems (CCSDS) Spacecraft Onboard Interface Services (SOIS) Working Group (WG) • European Space Agency (ESA) Space Avionics Open Interface a. Rchitecture (SAVOIR) * May be other efforts

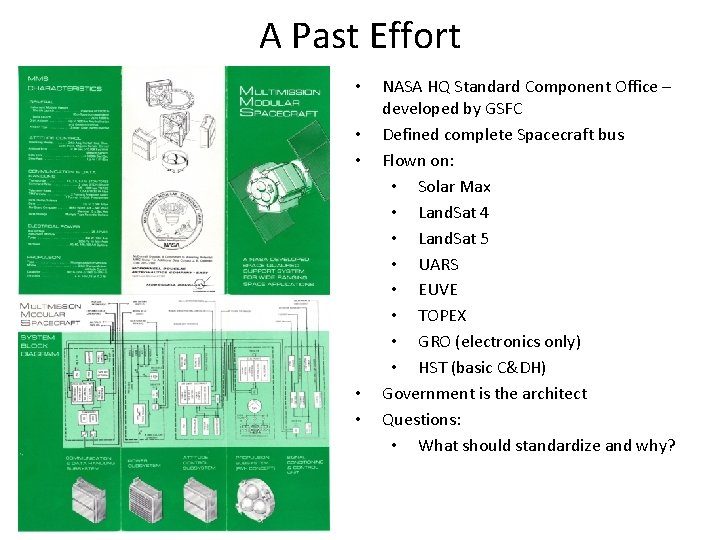

A Past Effort • • • NASA HQ Standard Component Office – developed by GSFC Defined complete Spacecraft bus Flown on: • Solar Max • Land. Sat 4 • Land. Sat 5 • UARS • EUVE • TOPEX • GRO (electronics only) • HST (basic C&DH) Government is the architect Questions: • What should standardize and why?

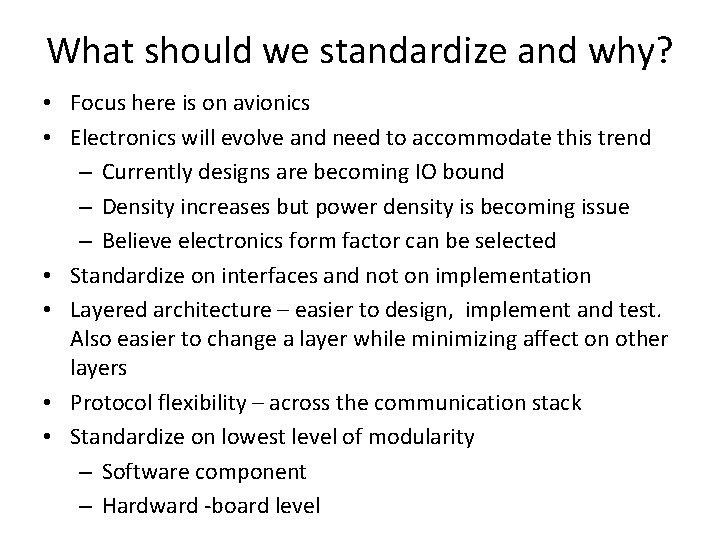

What should we standardize and why? • Focus here is on avionics • Electronics will evolve and need to accommodate this trend – Currently designs are becoming IO bound – Density increases but power density is becoming issue – Believe electronics form factor can be selected • Standardize on interfaces and not on implementation • Layered architecture – easier to design, implement and test. Also easier to change a layer while minimizing affect on other layers • Protocol flexibility – across the communication stack • Standardize on lowest level of modularity – Software component – Hardward -board level

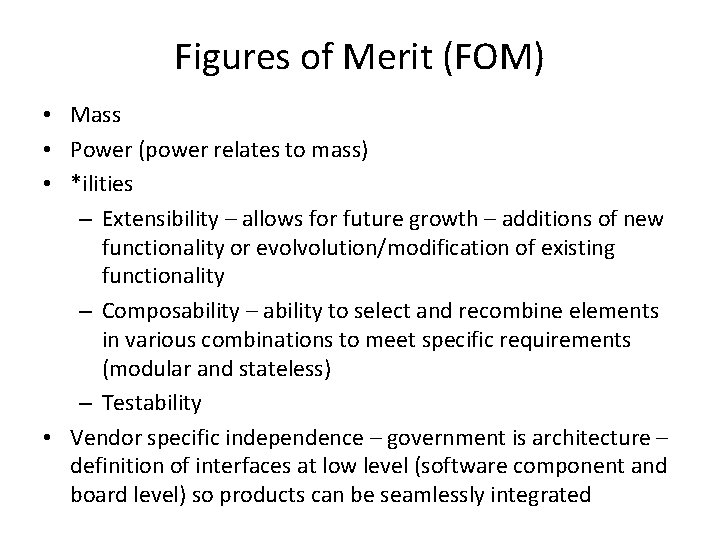

Figures of Merit (FOM) • Mass • Power (power relates to mass) • *ilities – Extensibility – allows for future growth – additions of new functionality or evolvolution/modification of existing functionality – Composability – ability to select and recombine elements in various combinations to meet specific requirements (modular and stateless) – Testability • Vendor specific independence – government is architecture – definition of interfaces at low level (software component and board level) so products can be seamlessly integrated

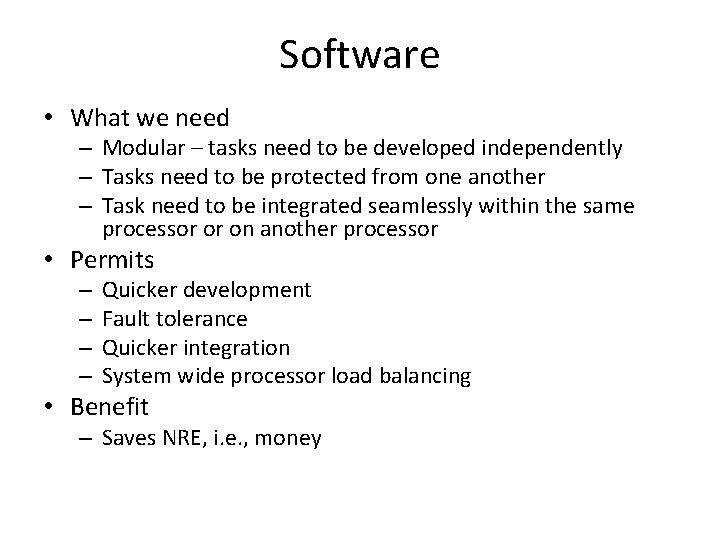

Software • What we need – Modular – tasks need to be developed independently – Tasks need to be protected from one another – Task need to be integrated seamlessly within the same processor or on another processor • Permits – – Quicker development Fault tolerance Quicker integration System wide processor load balancing • Benefit – Saves NRE, i. e. , money

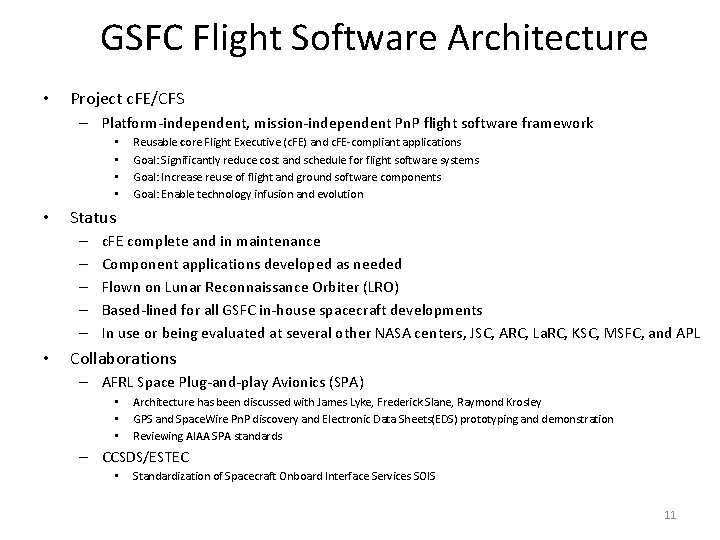

GSFC Flight Software Architecture • Project c. FE/CFS – Platform-independent, mission-independent Pn. P flight software framework • • • Status – – – • Reusable core Flight Executive (c. FE) and c. FE-compliant applications Goal: Significantly reduce cost and schedule for flight software systems Goal: Increase reuse of flight and ground software components Goal: Enable technology infusion and evolution c. FE complete and in maintenance Component applications developed as needed Flown on Lunar Reconnaissance Orbiter (LRO) Based-lined for all GSFC in-house spacecraft developments In use or being evaluated at several other NASA centers, JSC, ARC, La. RC, KSC, MSFC, and APL Collaborations – AFRL Space Plug-and-play Avionics (SPA) • • • Architecture has been discussed with James Lyke, Frederick Slane, Raymond Krosley GPS and Space. Wire Pn. P discovery and Electronic Data Sheets(EDS) prototyping and demonstration Reviewing AIAA SPA standards – CCSDS/ESTEC • Standardization of Spacecraft Onboard Interface Services SOIS 11

c. FE Layered Component Architecture • Each layer and service has a standard API • Each layer “hides” its implementation and technology details. • Internals of a layer can be changed -- without affecting other layers’ internals and components. • Small-footprint, light-weight architecture and implementation minimizes overhead. • Enables technology infusion and evolution. • Provides Middleware, OS and HW platformindependence. Files, Tables 12

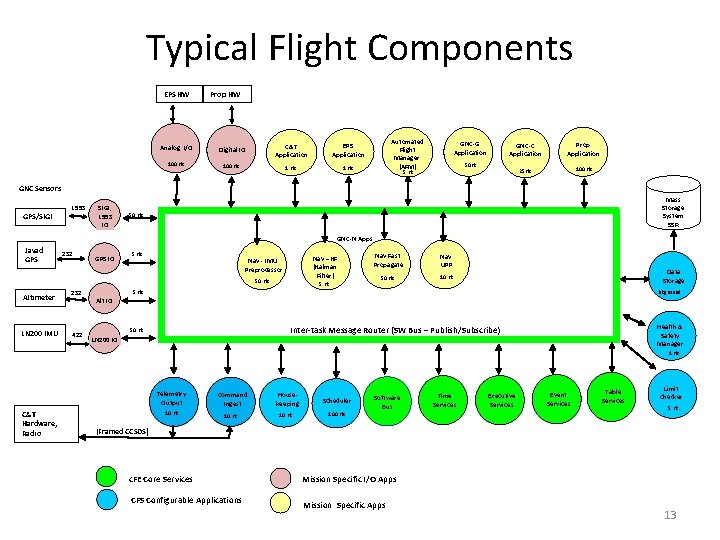

Typical Flight Components EPS HW Prop HW Analog I/O Digital IO C&T Application EPS Application 100 Hz 1 Hz Automated Flight Manager (AFM) GNC-G Application GNC-C Application Prop Application 25 Hz 100 Hz 50 Hz 5 Hz GNC Sensors GPS/SIGI 1553 SIGI, 1553 IO Mass Storage System SSR 50 Hz GNC-N Apps Javad GPS 232 GPS IO 5 Hz Nav – KF (Kalman Filter) Nav - IMU Preprocessor 50 Hz Altimeter LN 200 IMU 232 422 5 Hz Nav Fast Propagate Nav UPP 50 Hz 10 Hz Data Storage Bkground 5 Hz Alt IO Health & Safety Manager Inter-task Message Router (SW Bus – Publish/Subscribe) 50 Hz LN 200 IO 1 Hz C&T Hardware, Radio Telemetry Output Command Ingest Housekeeping Scheduler 10 Hz 100 Hz Software Bus Time Services Executive Services Event Services Table Services Limit Checker 5 Hz (Framed CCSDS) c. FE Core Services CFS Configurable Applications Mission Specific I/O Apps Mission Specific Apps 13

• Virtual partitioning: Software Support for Distributed IMA – Single CPU: • CPU failure takes down everything – Partitioned into multiple virtual CPUs: • • • Space and time partitioning ARINC-653 Requires a high-performance processor Distributed partitioning: – Multiple CPUs: • CPU failure has limited affectivity – Real partitioning: • • Space - geographical separation Time - TDMA system bus behavior – Machines can be scaled to requirements: • • Multi-core partitioning: – – – • Low-power, rad-hard A form of distributed processing Use case: Image processing for landing and docking Multi-core scenario Systems can be built from a combination of these approaches – Proper interface definition allows software and hardware components to be minimally affected by these partitioning trades 14

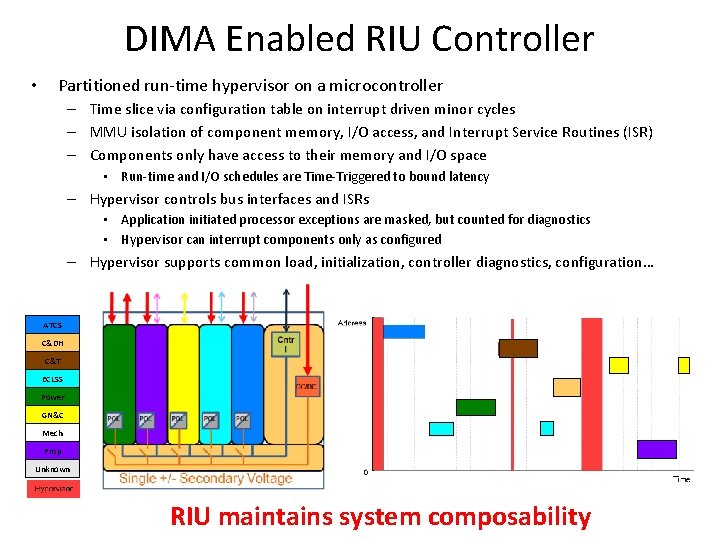

DIMA Enabled RIU Controller • Partitioned run-time hypervisor on a microcontroller – Time slice via configuration table on interrupt driven minor cycles – MMU isolation of component memory, I/O access, and Interrupt Service Routines (ISR) – Components only have access to their memory and I/O space • Run-time and I/O schedules are Time-Triggered to bound latency – Hypervisor controls bus interfaces and ISRs • Application initiated processor exceptions are masked, but counted for diagnostics • Hypervisor can interrupt components only as configured – Hypervisor supports common load, initialization, controller diagnostics, configuration… ATCS C&DH ATCS C&T ECLSS Power GN&C Mech Prop Unknown RIU maintains system composability

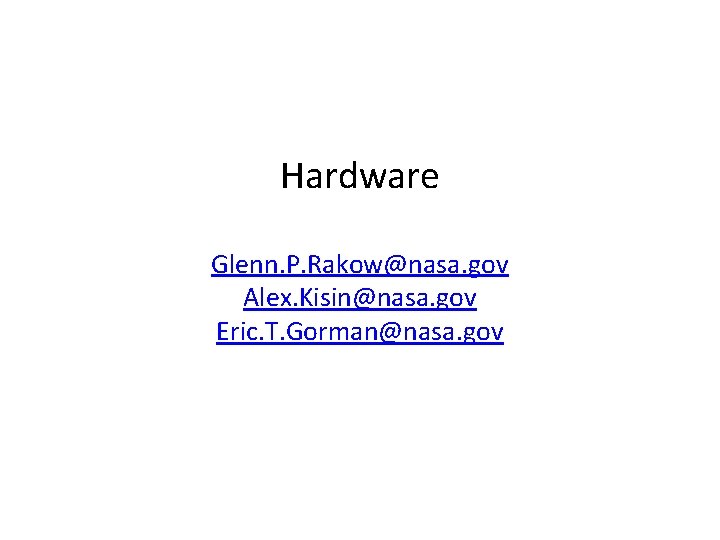

Hardware Glenn. P. Rakow@nasa. gov Alex. Kisin@nasa. gov Eric. T. Gorman@nasa. gov

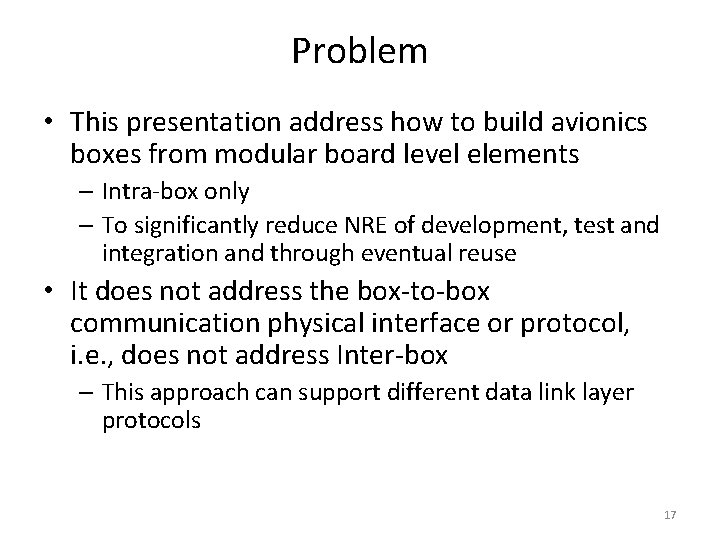

Problem • This presentation address how to build avionics boxes from modular board level elements – Intra-box only – To significantly reduce NRE of development, test and integration and through eventual reuse • It does not address the box-to-box communication physical interface or protocol, i. e. , does not address Inter-box – This approach can support different data link layer protocols 17

Focus • Need to be applicably to wide range of requirements (90% rule) – Robotic and Human rated – Centralized and Distributed – Support different redundancy schemes • Single string, Block Redundant, Cross-Strapped Redundant – Implementation agnostic (vendor agnostic) • Need to focus on interface definitions and be protocol agnostic. – Interface definitions need to be defined along the computer communication stack so that different layers may be substituted without effecting layers above and below, e. g. , 1553 can be replace by TTP/C or TTGb. E, etc. – Define Intra-box physical interfaces only and not protocol or voltage levels – let community sort this out and converge 18

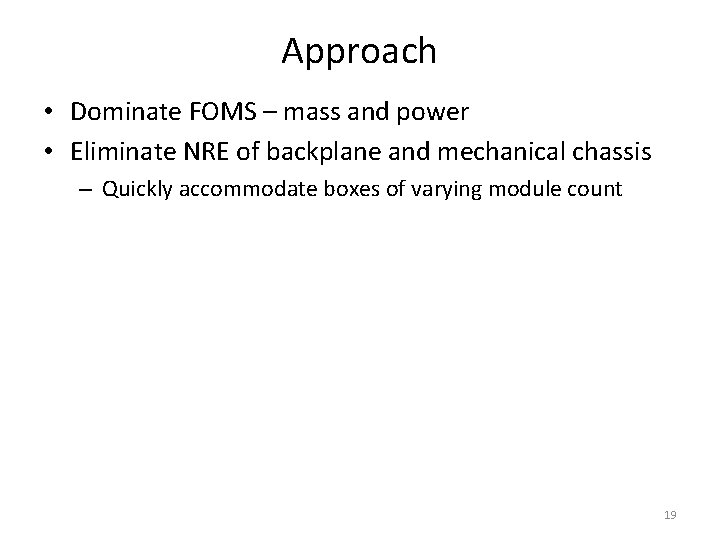

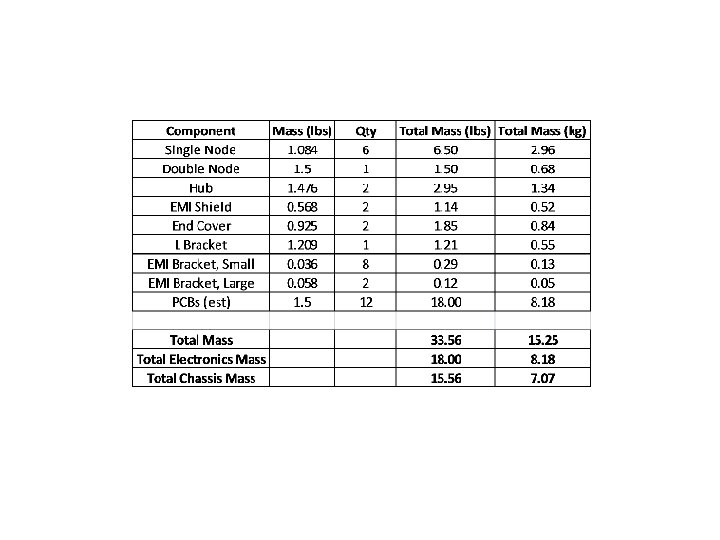

Approach • Dominate FOMS – mass and power • Eliminate NRE of backplane and mechanical chassis – Quickly accommodate boxes of varying module count 19

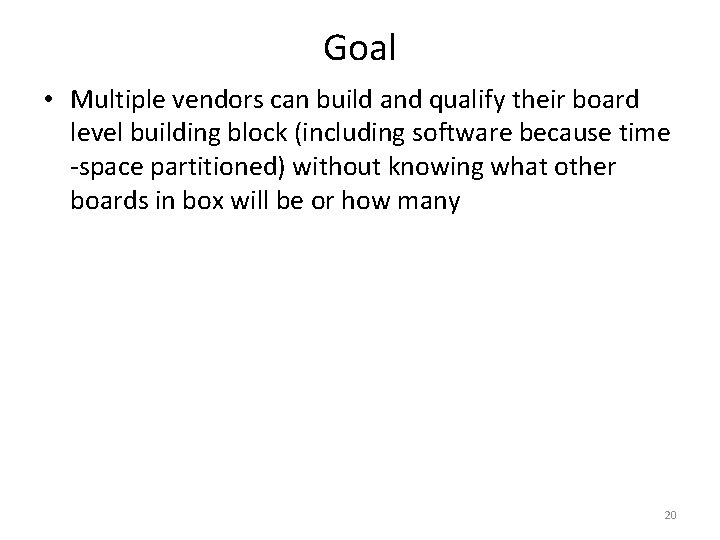

Goal • Multiple vendors can build and qualify their board level building block (including software because time -space partitioned) without knowing what other boards in box will be or how many 20

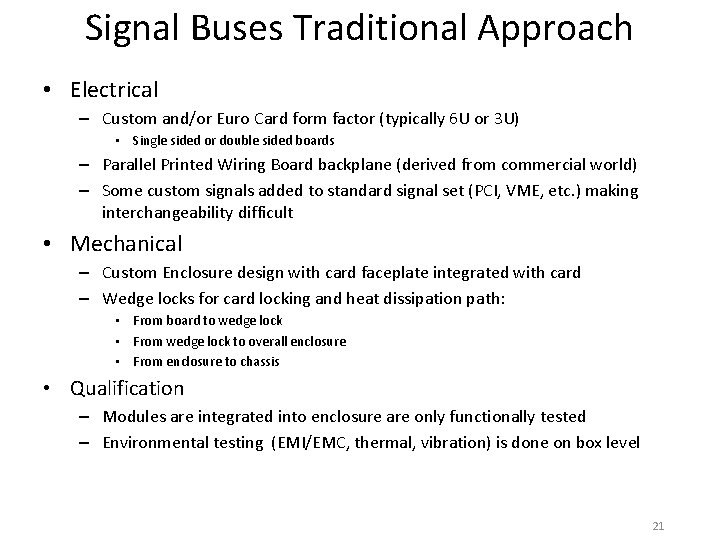

Signal Buses Traditional Approach • Electrical – Custom and/or Euro Card form factor (typically 6 U or 3 U) • Single sided or double sided boards – Parallel Printed Wiring Board backplane (derived from commercial world) – Some custom signals added to standard signal set (PCI, VME, etc. ) making interchangeability difficult • Mechanical – Custom Enclosure design with card faceplate integrated with card – Wedge locks for card locking and heat dissipation path: • From board to wedge lock • From wedge lock to overall enclosure • From enclosure to chassis • Qualification – Modules are integrated into enclosure are only functionally tested – Environmental testing (EMI/EMC, thermal, vibration) is done on box level 21

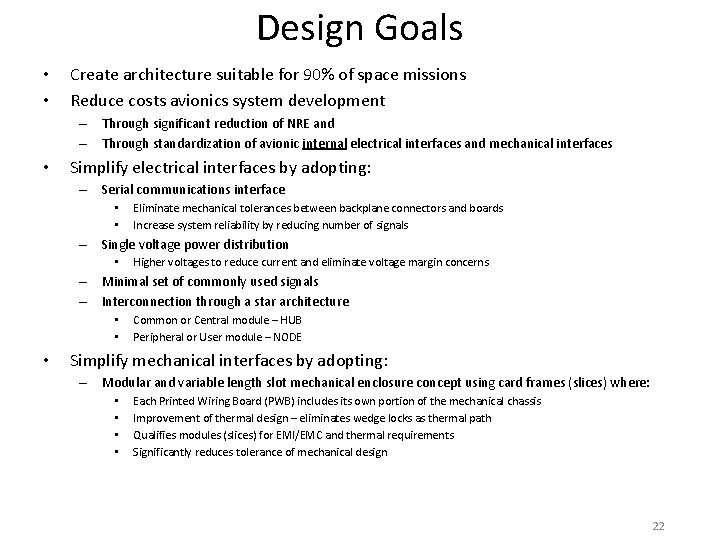

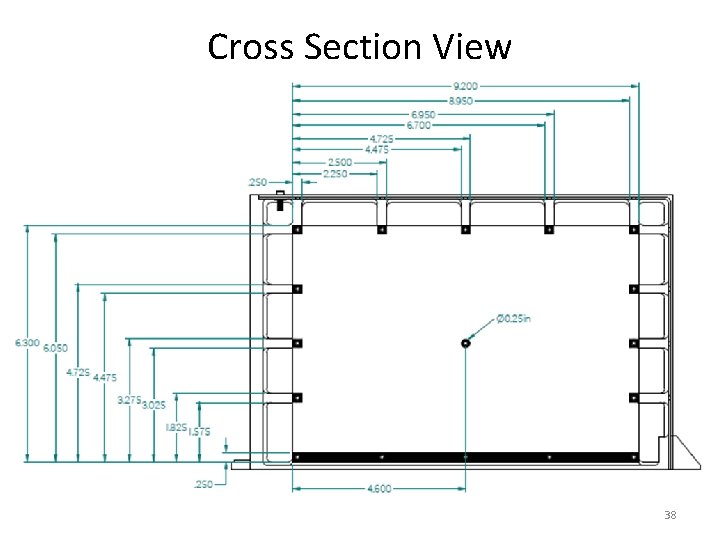

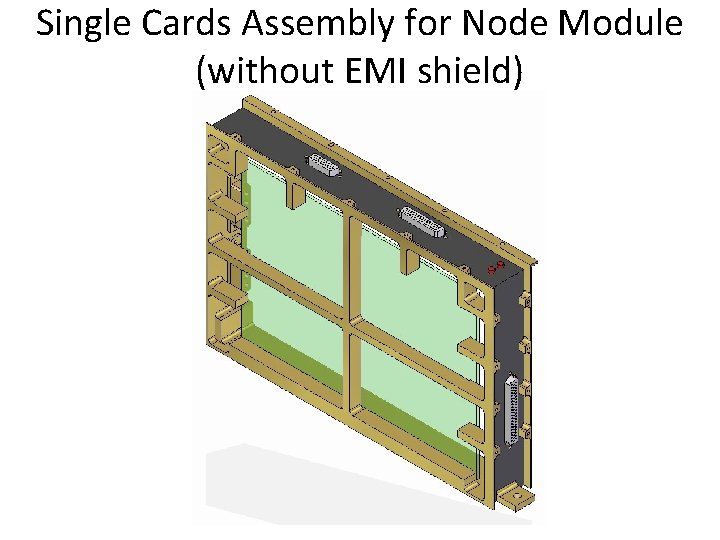

Design Goals • • Create architecture suitable for 90% of space missions Reduce costs avionics system development – Through significant reduction of NRE and – Through standardization of avionic internal electrical interfaces and mechanical interfaces • Simplify electrical interfaces by adopting: – Serial communications interface • • Eliminate mechanical tolerances between backplane connectors and boards Increase system reliability by reducing number of signals – Single voltage power distribution • Higher voltages to reduce current and eliminate voltage margin concerns – Minimal set of commonly used signals – Interconnection through a star architecture • • • Common or Central module – HUB Peripheral or User module – NODE Simplify mechanical interfaces by adopting: – Modular and variable length slot mechanical enclosure concept using card frames (slices) where: • • Each Printed Wiring Board (PWB) includes its own portion of the mechanical chassis Improvement of thermal design – eliminates wedge locks as thermal path Qualifies modules (slices) for EMI/EMC and thermal requirements Significantly reduces tolerance of mechanical design 22

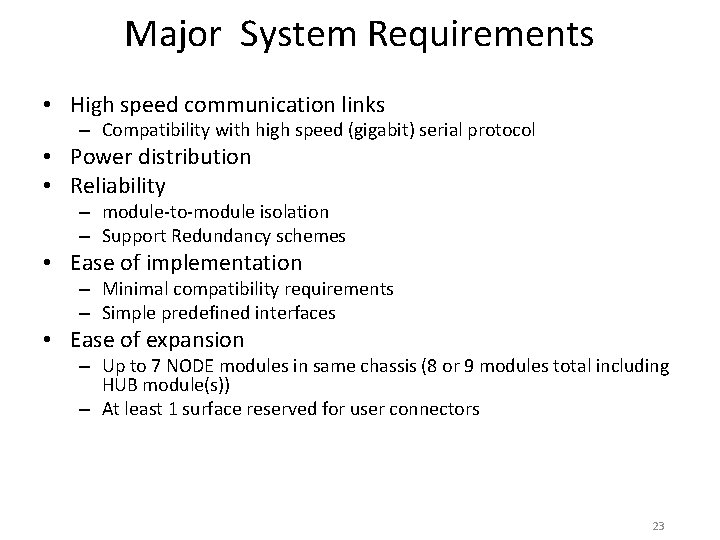

Major System Requirements • High speed communication links – Compatibility with high speed (gigabit) serial protocol • Power distribution • Reliability – module-to-module isolation – Support Redundancy schemes • Ease of implementation – Minimal compatibility requirements – Simple predefined interfaces • Ease of expansion – Up to 7 NODE modules in same chassis (8 or 9 modules total including HUB module(s)) – At least 1 surface reserved for user connectors 23

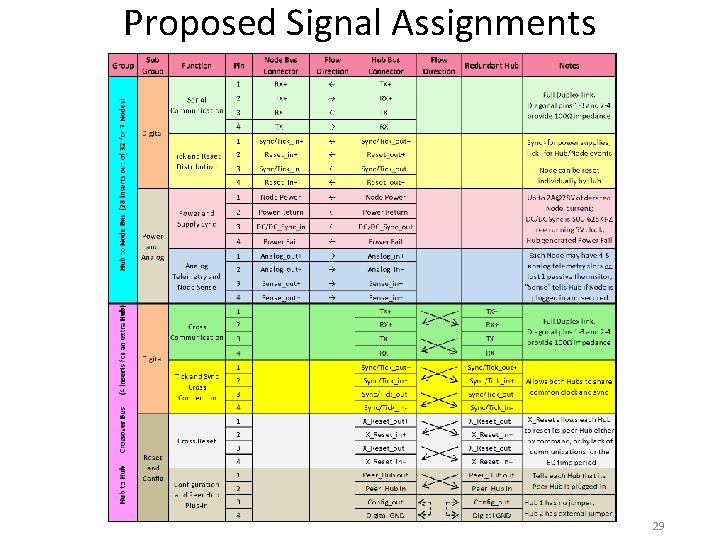

Proposed System Functions • Data – Serial communications from HUB to each NODE • • • Data rates per link: from 1 Mbps to up to 3. 125 Gbps (user configurable and programmable) Differential pairs for Full duplex operations Multiple streams: HUB can talk simultaneously to more than one NODE Flexible data transfer protocols such as Space. Wire, Space. Fibre, PCI Express, etc: all can co-exist in 1 system AC coupling for better CMV protection Power – 28 V bus switched power distribution from HUB • • • Up to 20 -30 W RMS power per NODE Electrical isolation between Hub(s) and Nodes True “hot” plugging/unplugging for all NODEs and HUBs without disturbing other system components Capability to work directly with 120 V power bus voltages Clock – Individually distributed from HUB to each NODE • • • User programmable clock distribution for S/C events synchronization Single frequency power supplies synchronization Analog telemetry – HUB will process all Node telemetry (with 0. 1% accuracy); Node requires to have: • • • Either differential multiplexer and signal scale conditioner for NODE analog signals (0. 1% accurate) , or Single thermistor, if any NODE analog circuitry is undesirable Auxiliary • • Complete all in-system functions programming and debugging Visual indication to show activity of any HUB or NODE modules 24

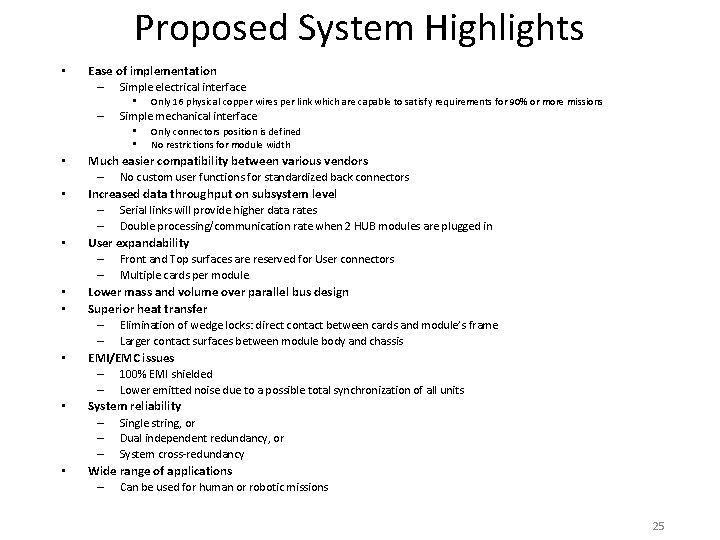

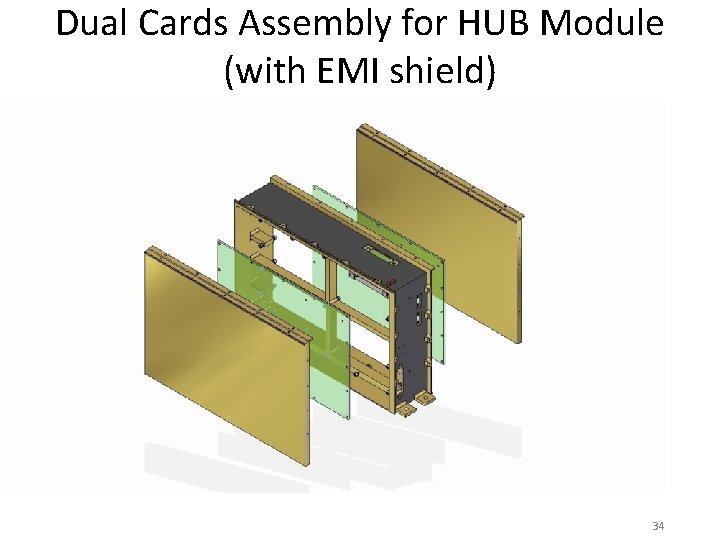

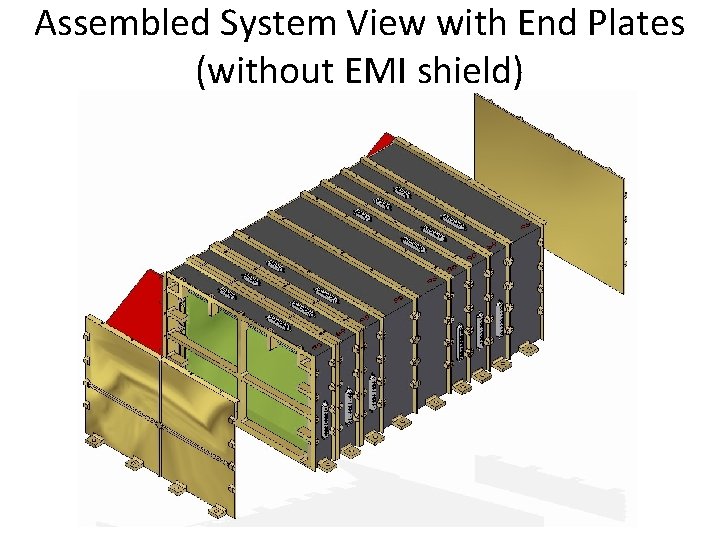

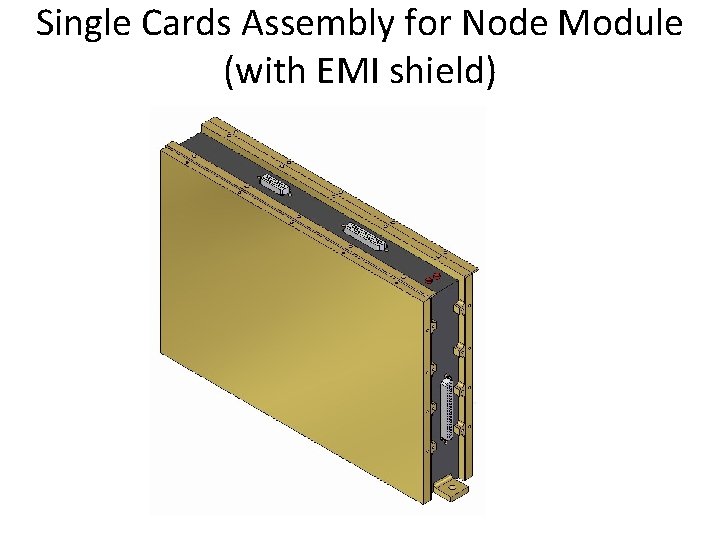

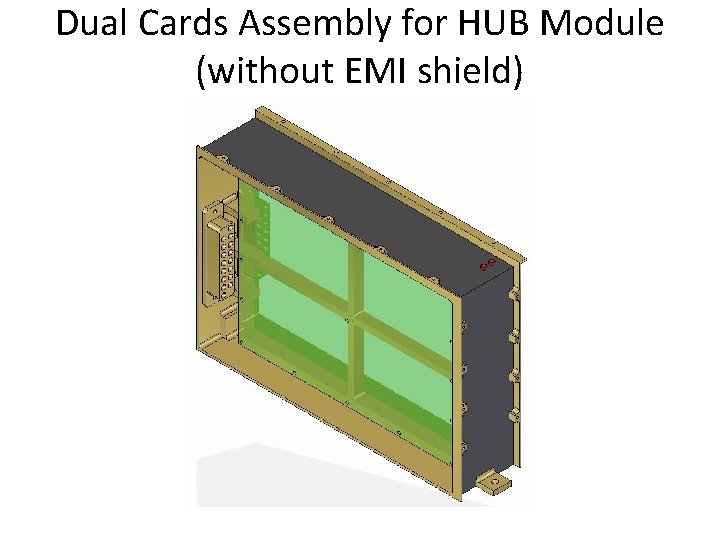

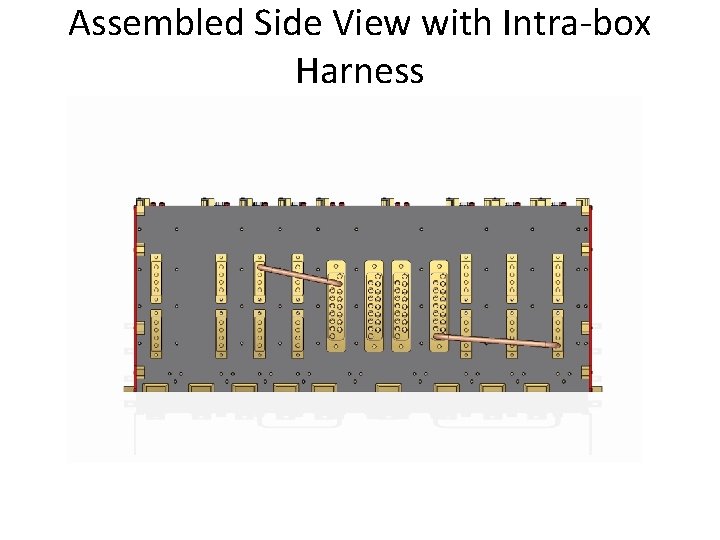

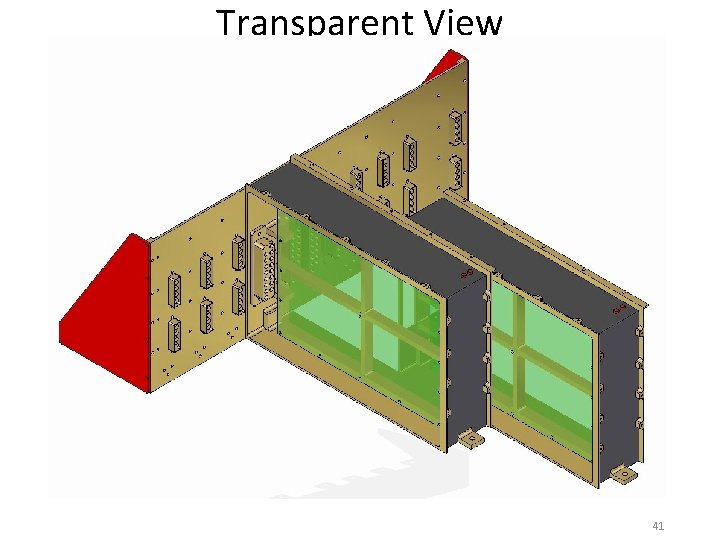

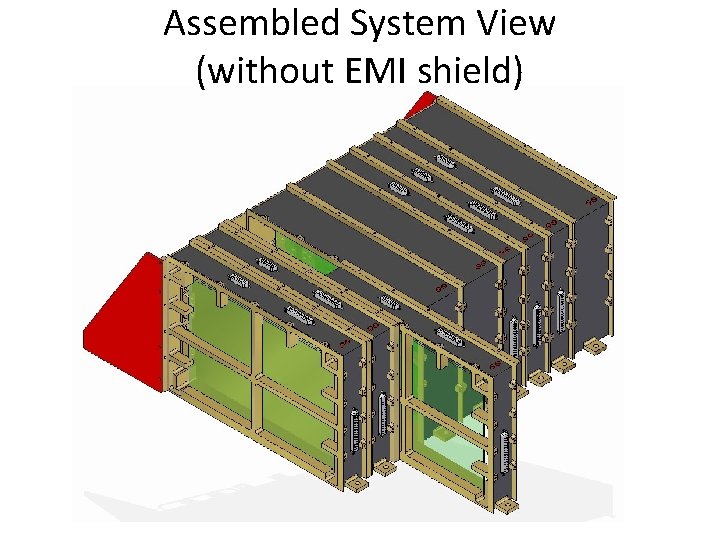

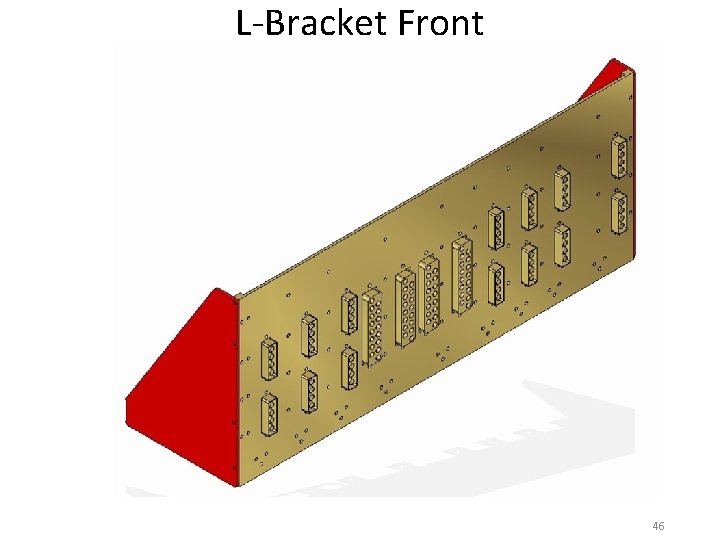

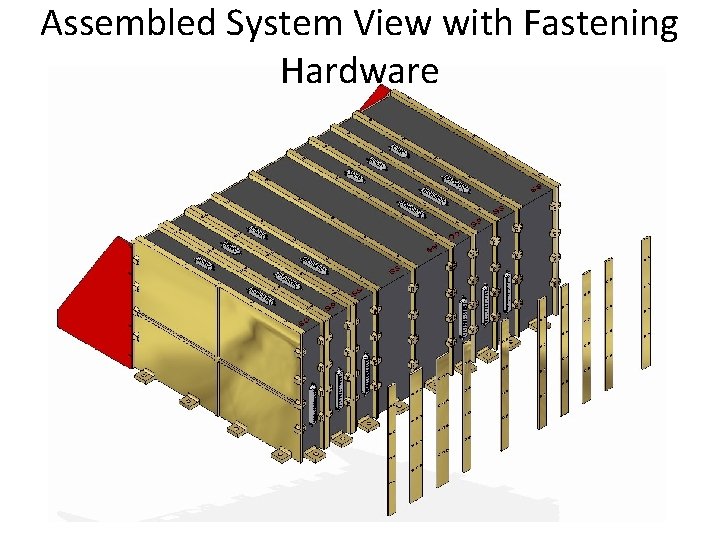

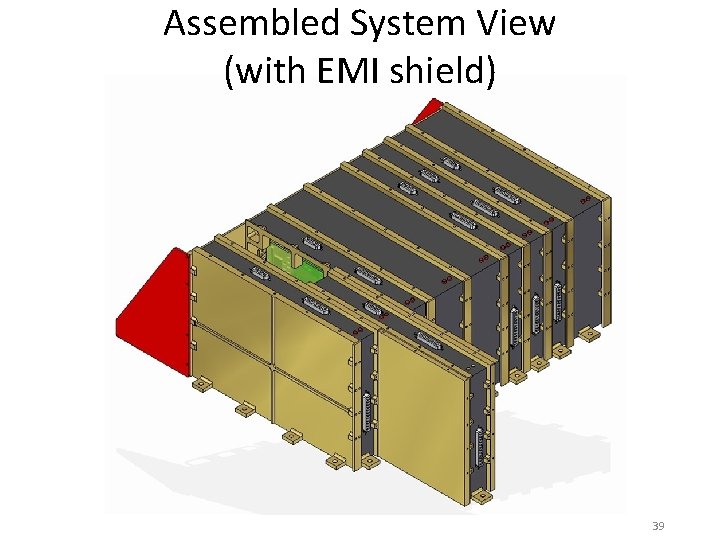

Proposed System Highlights • Ease of implementation – Simple electrical interface • – Simple mechanical interface • • • Only 16 physical copper wires per link which are capable to satisfy requirements for 90% or more missions Only connectors position is defined No restrictions for module width Much easier compatibility between various vendors – No custom user functions for standardized back connectors Increased data throughput on subsystem level – Serial links will provide higher data rates – Double processing/communication rate when 2 HUB modules are plugged in User expandability – Front and Top surfaces are reserved for User connectors – Multiple cards per module Lower mass and volume over parallel bus design Superior heat transfer – Elimination of wedge locks: direct contact between cards and module’s frame – Larger contact surfaces between module body and chassis EMI/EMC issues – 100% EMI shielded – Lower emitted noise due to a possible total synchronization of all units System reliability – Single string, or – Dual independent redundancy, or – System cross-redundancy Wide range of applications – Can be used for human or robotic missions 25

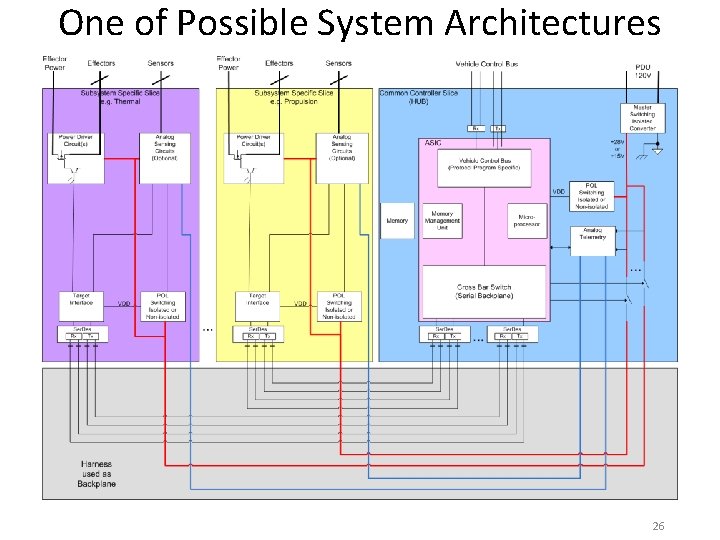

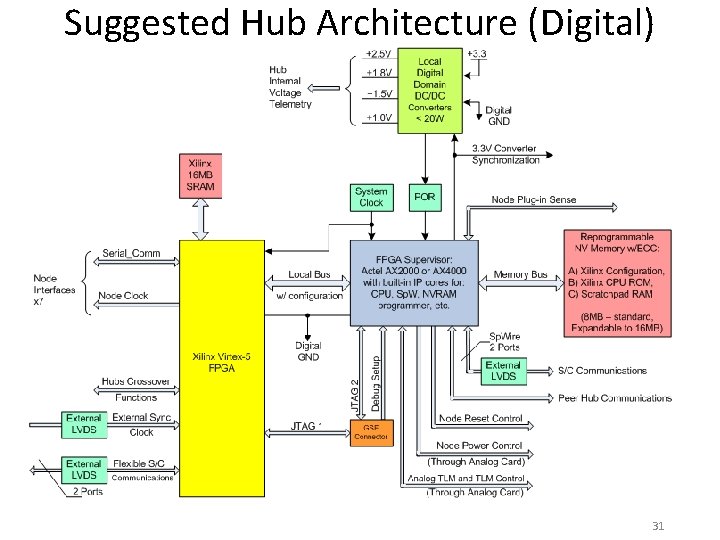

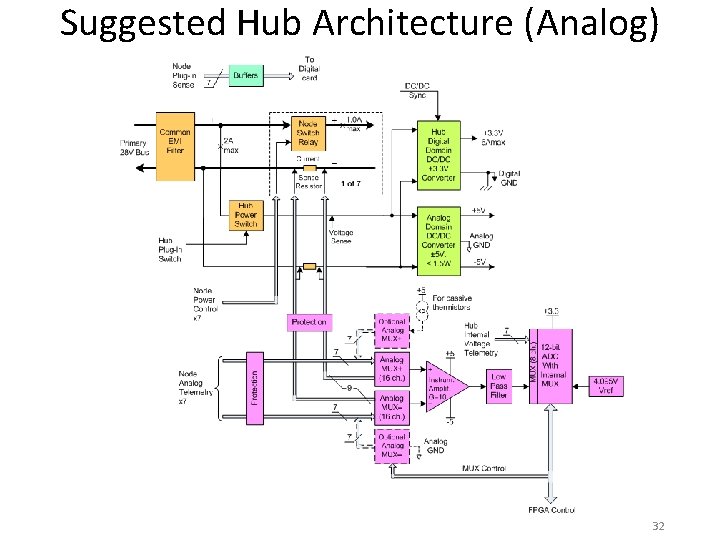

One of Possible System Architectures 26

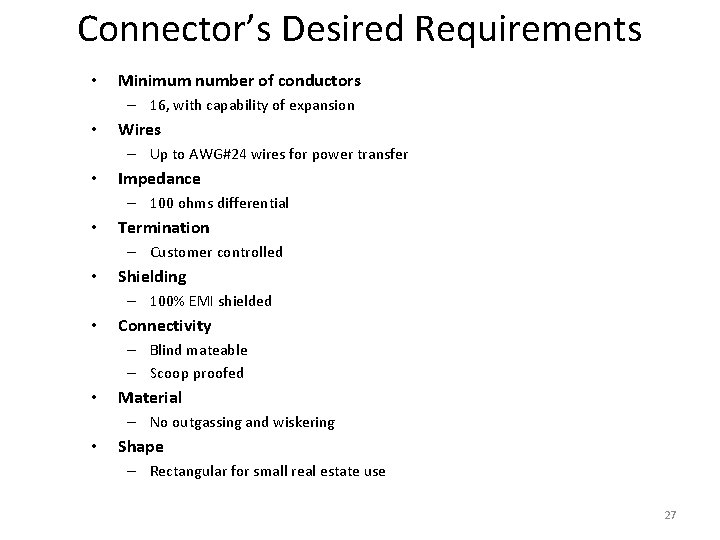

Connector’s Desired Requirements • Minimum number of conductors – 16, with capability of expansion • Wires – Up to AWG#24 wires for power transfer • Impedance – 100 ohms differential • Termination – Customer controlled • Shielding – 100% EMI shielded • Connectivity – Blind mateable – Scoop proofed • Material – No outgassing and wiskering • Shape – Rectangular for small real estate use 27

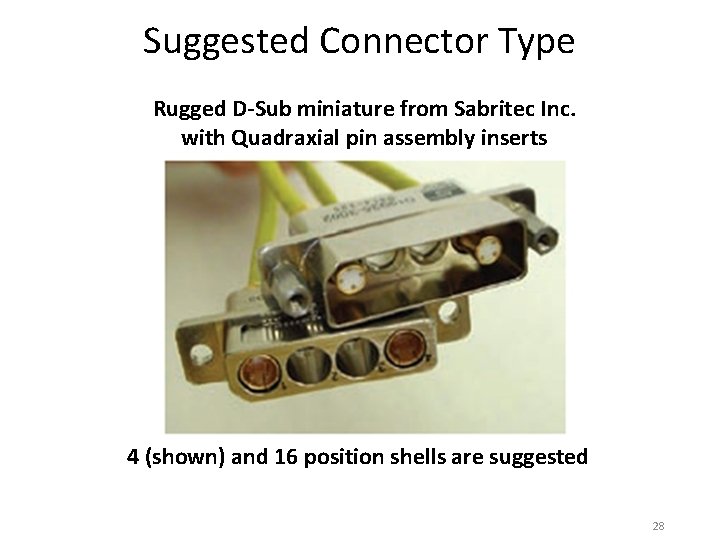

Suggested Connector Type Rugged D-Sub miniature from Sabritec Inc. with Quadraxial pin assembly inserts 4 (shown) and 16 position shells are suggested 28
