Command-line control of Terminal Services Christa Anderson

Webcast Schedule Today’s event will run one-hour long. Here are the expected times for each segment of the Webcast: • : 00 – : 05: Moderator introduces the speaker and discusses the details of the Webcast. • : 05 - : 25: Speaker delivers a Power. Point presentation on the Webcast topic. • : 25 - : 35: Moderator and speaker engage in a brief Q&A on the topic • : 35 - : 60: The speaker responds to questions submitted by the audience. You can submit questions to the speaker at any time during the event. Just click on the “Ask a Question” button in the lower left corner of your screen.

Technical FAQs Q: Why can’t I hear the audio part of the webcast? A: Try increasing the volume on your computer. Q: I just entered the webcast and do not see the slide that the speaker is referring to. What should I do? A: The slides are constantly be pushed to your screen. You’ll should refresh (hit F 5) to view the latest slide. Q: What time zone do the webcasts take place? A: The Tech. Target webcasts all occur on Eastern Daylight Saving Time (UTC/GMT - 4 hours). Q. I can’t view some of the detail on the slides. How do I enlarge the slides for a better view? A: Click the “Enlarge slide” link in the upper right corner of your presentation. This will open a new browser with a full view of the current slide. You can also visit the Broadcast Help page for more information or to test your browser compatibility. Click here: http: //audience. broadcast. yahoo. com

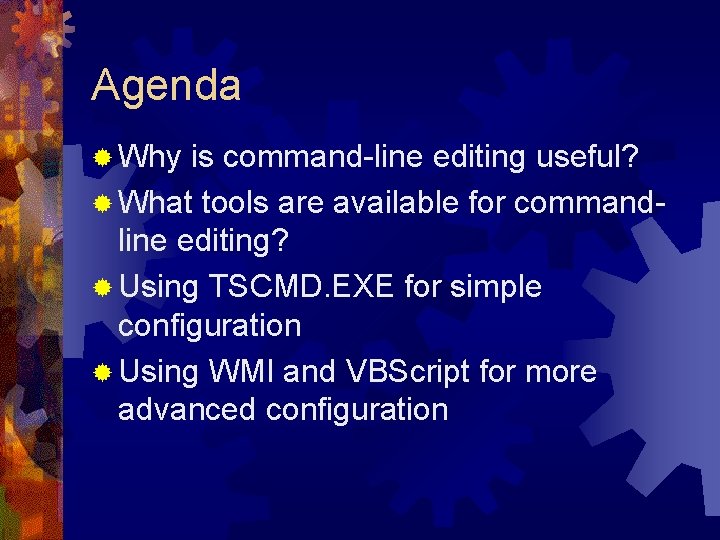

Agenda ® Why is command-line editing useful? ® What tools are available for commandline editing? ® Using TSCMD. EXE for simple configuration ® Using WMI and VBScript for more advanced configuration

Why Command-Line Editing? ® Editing settings from the GUI is timeconsuming on more than a few servers ® Command-line edits can be scripted and are therefore more consistent. ® Command-line edits don’t need to be done either at the console or by using a TSCAL to connect to the terminal server to be edited

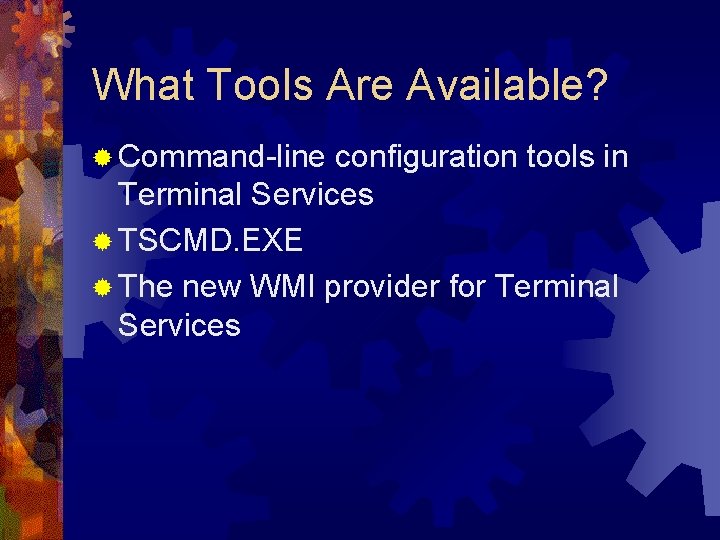

What Tools Are Available? ® Command-line configuration tools in Terminal Services ® TSCMD. EXE ® The new WMI provider for Terminal Services

Using TSCMD ® Command-line support for common Terminal Services settings, based on a WTS API ® Requires Windows 2000 or later on client and server ® Edit the settings on the server where the settings are stored (e. g. , domain controller) ® Basic TSCMD syntax: tscmd <Server> <User> <Setting> [New Value]

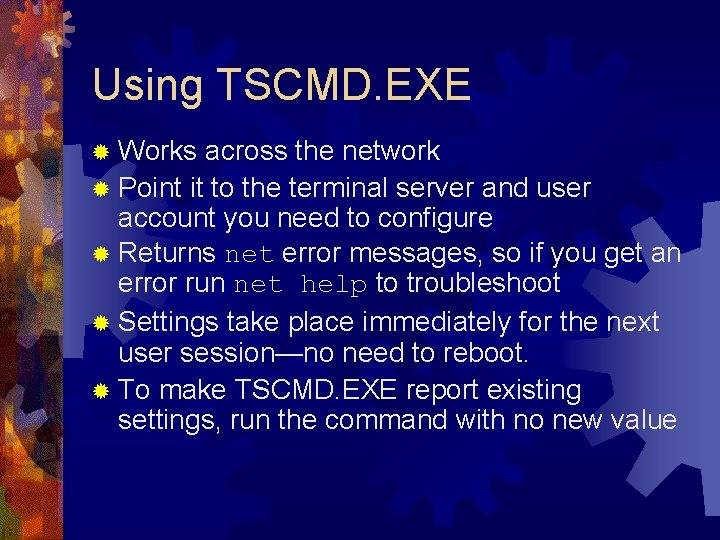

Using TSCMD. EXE ® Works across the network ® Point it to the terminal server and user account you need to configure ® Returns net error messages, so if you get an error run net help to troubleshoot ® Settings take place immediately for the next user session—no need to reboot. ® To make TSCMD. EXE report existing settings, run the command with no new value

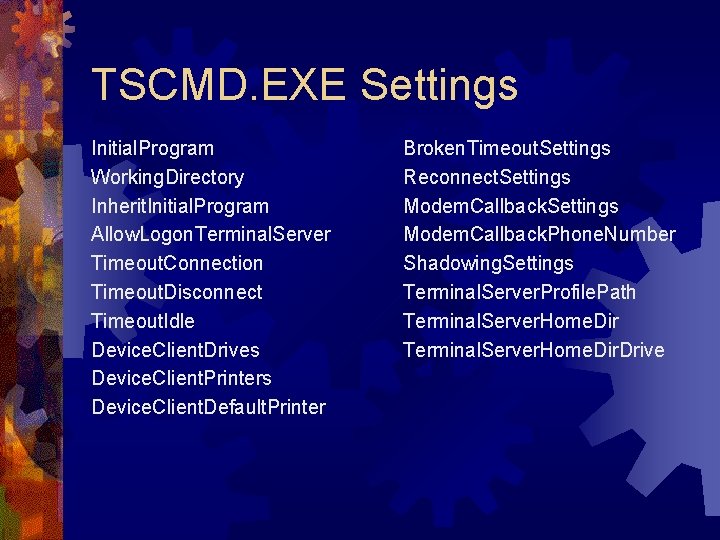

TSCMD. EXE Settings Initial. Program Working. Directory Inherit. Initial. Program Allow. Logon. Terminal. Server Timeout. Connection Timeout. Disconnect Timeout. Idle Device. Client. Drives Device. Client. Printers Device. Client. Default. Printer Broken. Timeout. Settings Reconnect. Settings Modem. Callback. Phone. Number Shadowing. Settings Terminal. Server. Profile. Path Terminal. Server. Home. Dir. Drive

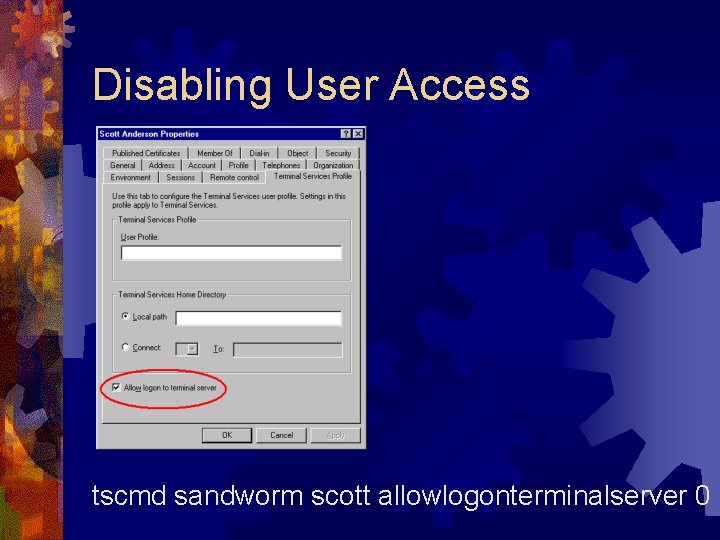

Disabling User Access tscmd sandworm scott allowlogonterminalserver 0

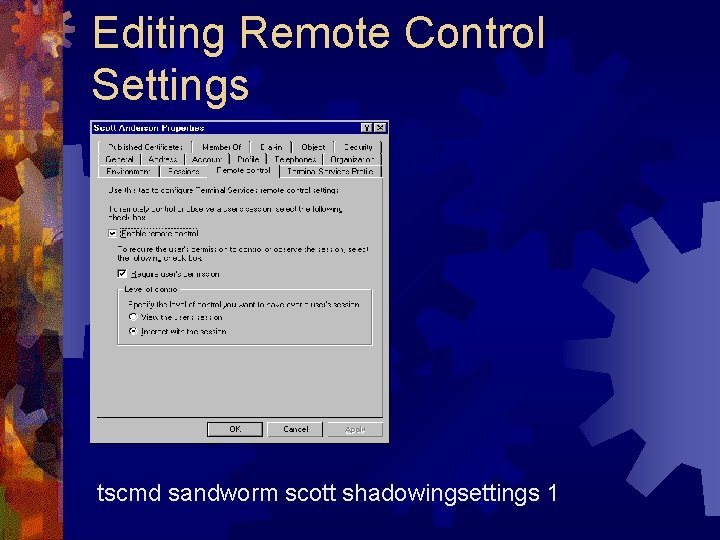

Editing Remote Control Settings tscmd sandworm scott shadowingsettings 1

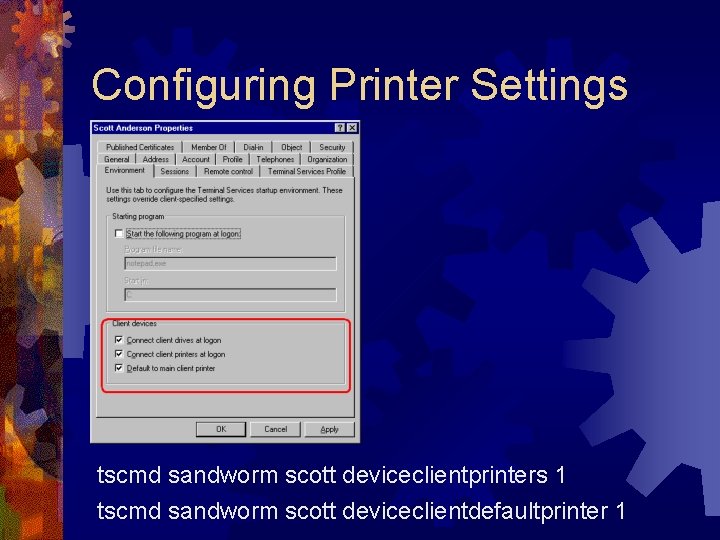

Configuring Printer Settings tscmd sandworm scott deviceclientprinters 1 tscmd sandworm scott deviceclientdefaultprinter 1

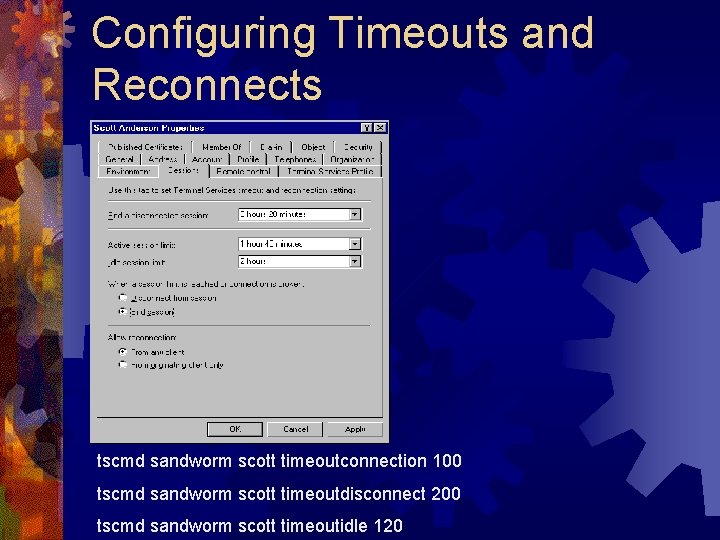

Configuring Timeouts and Reconnects tscmd sandworm scott timeoutconnection 100 tscmd sandworm scott timeoutdisconnect 200 tscmd sandworm scott timeoutidle 120

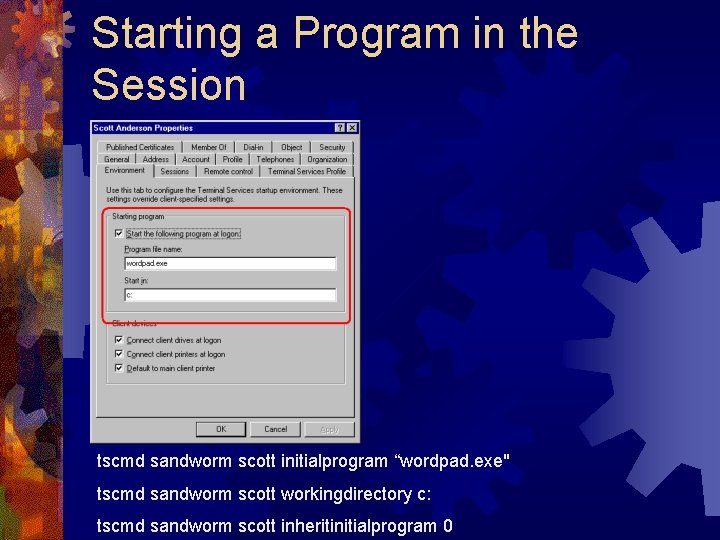

Starting a Program in the Session tscmd sandworm scott initialprogram “wordpad. exe" tscmd sandworm scott workingdirectory c: tscmd sandworm scott inheritinitialprogram 0

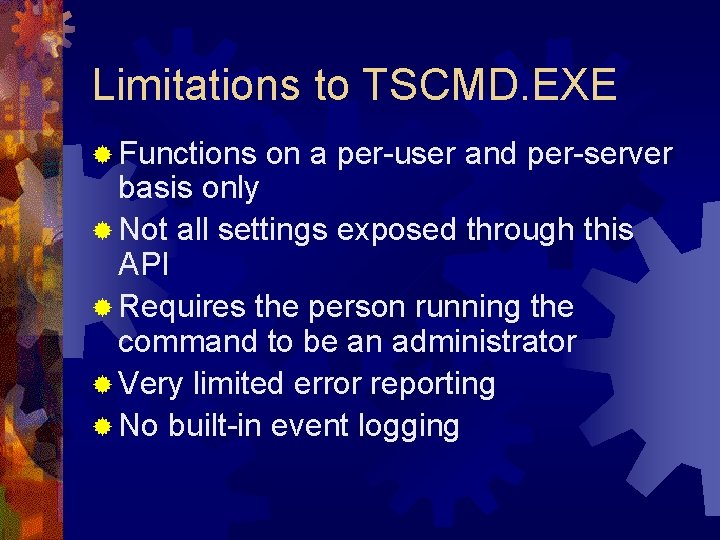

Limitations to TSCMD. EXE ® Functions on a per-user and per-server basis only ® Not all settings exposed through this API ® Requires the person running the command to be an administrator ® Very limited error reporting ® No built-in event logging

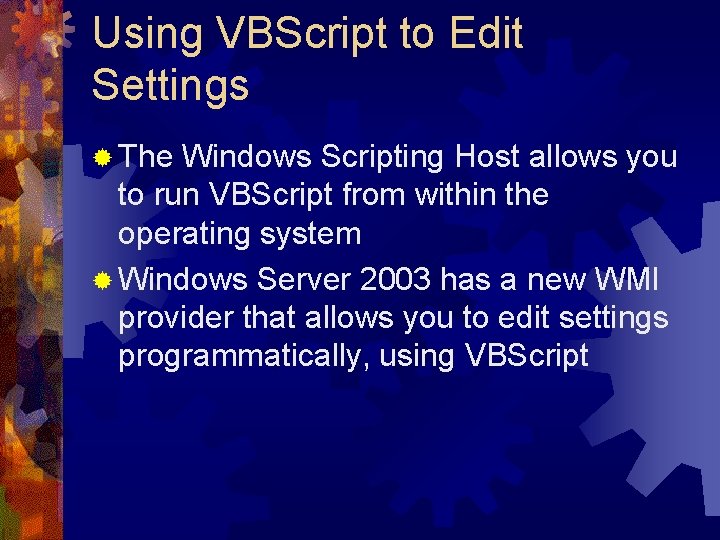

Using VBScript to Edit Settings ® The Windows Scripting Host allows you to run VBScript from within the operating system ® Windows Server 2003 has a new WMI provider that allows you to edit settings programmatically, using VBScript

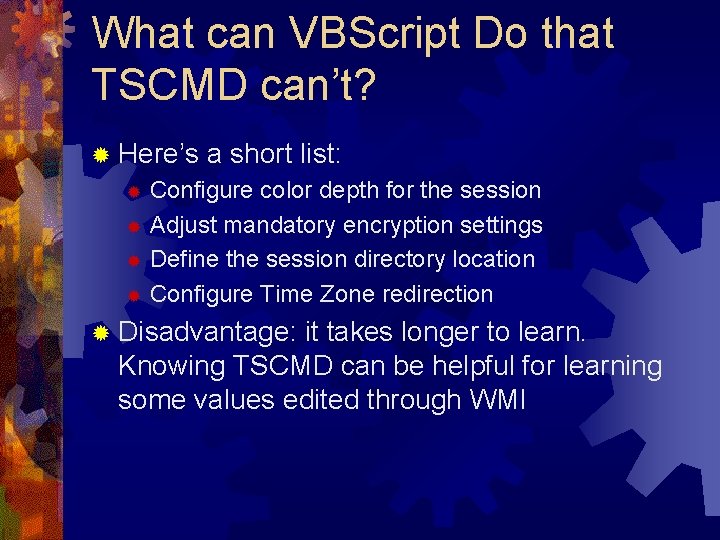

What can VBScript Do that TSCMD can’t? ® Here’s a short list: Configure color depth for the session ® Adjust mandatory encryption settings ® Define the session directory location ® Configure Time Zone redirection ® ® Disadvantage: it takes longer to learn. Knowing TSCMD can be helpful for learning some values edited through WMI

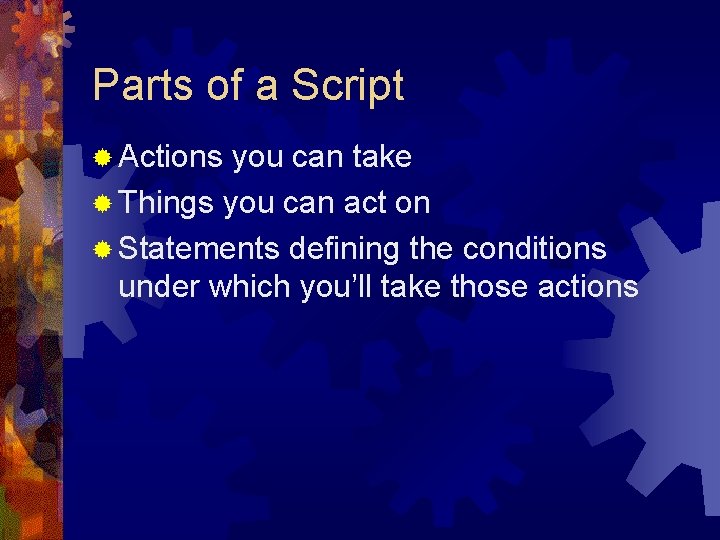

Parts of a Script ® Actions you can take ® Things you can act on ® Statements defining the conditions under which you’ll take those actions

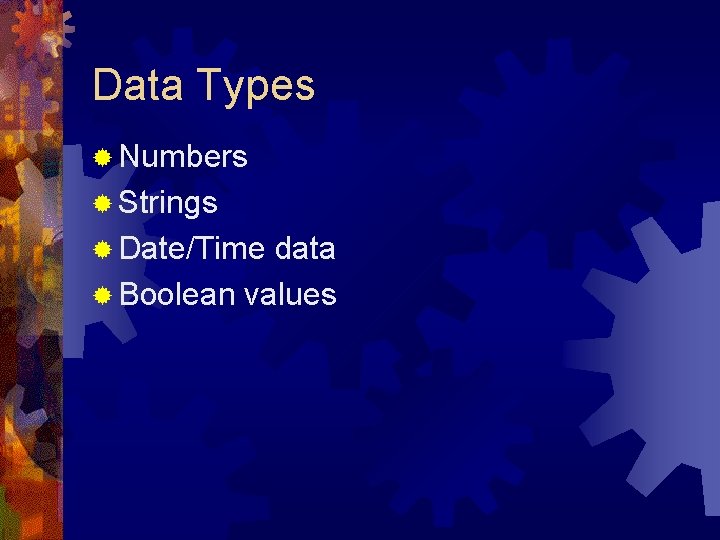

Data Types ® Numbers ® Strings ® Date/Time data ® Boolean values

Variables and Constants ® Both have assigned values—user input, object properties, or calculations from another part of the script ® Variable values may change in the course of the script ® Constant values do not change

Arrays ® Groups of variables, as many as you like when you define the array ® Array sizes may be static or dynamic ® Can contain any data type: numbers, strings, date/time information, etc. ® Find data by its index number (beginning with 0) ® Arrays may have more than one index, but more than two gets confusing

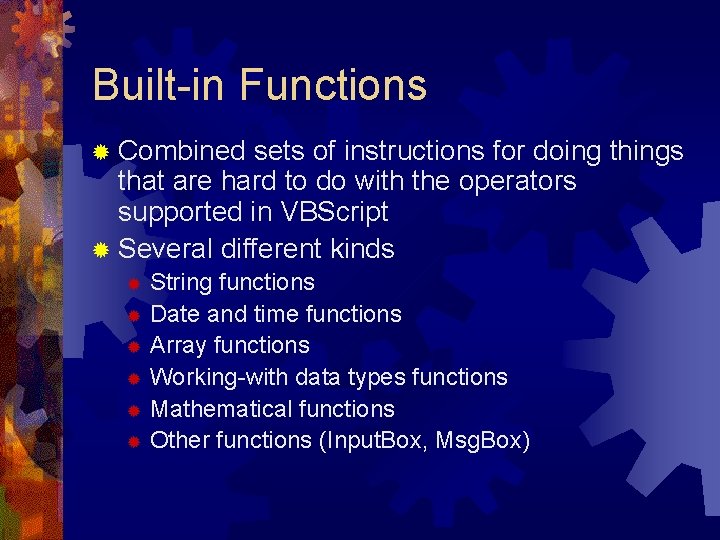

Built-in Functions ® Combined sets of instructions for doing things that are hard to do with the operators supported in VBScript ® Several different kinds String functions ® Date and time functions ® Array functions ® Working-with data types functions ® Mathematical functions ® Other functions (Input. Box, Msg. Box) ®

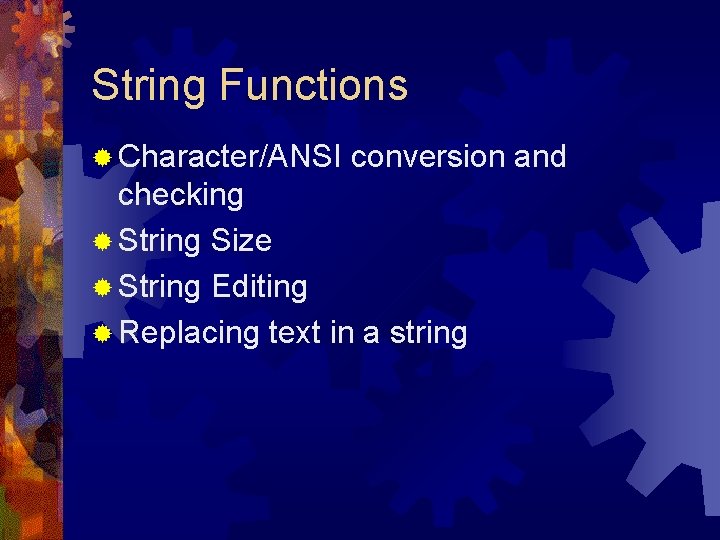

String Functions ® Character/ANSI conversion and checking ® String Size ® String Editing ® Replacing text in a string

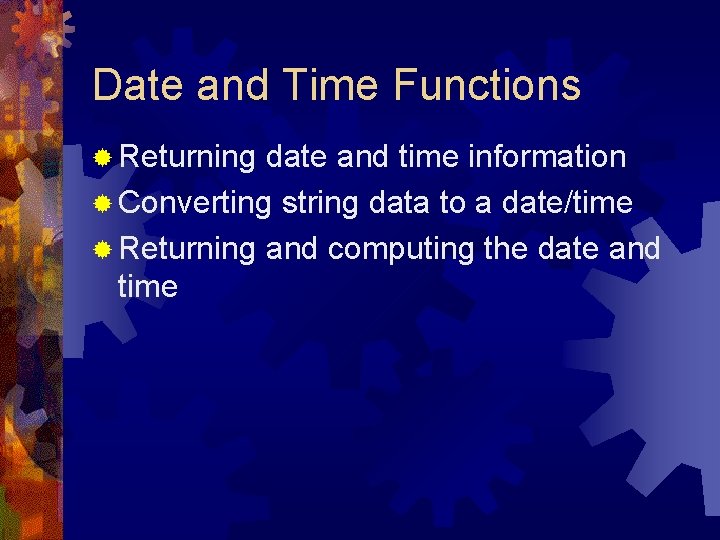

Date and Time Functions ® Returning date and time information ® Converting string data to a date/time ® Returning and computing the date and time

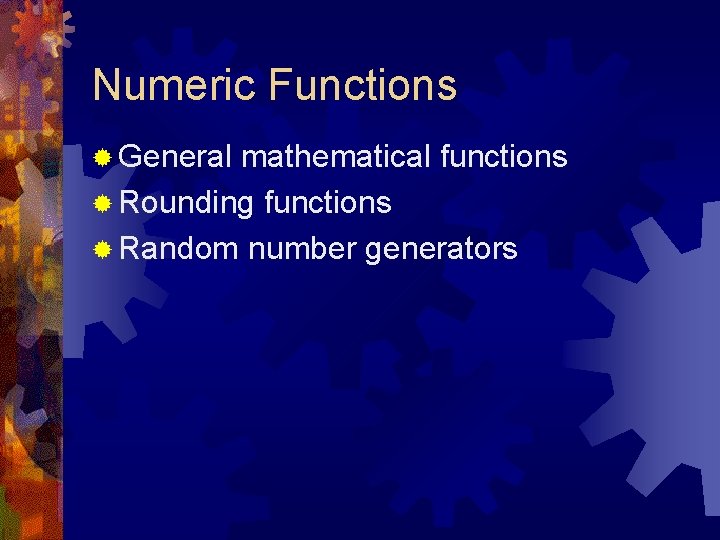

Numeric Functions ® General mathematical functions ® Rounding functions ® Random number generators

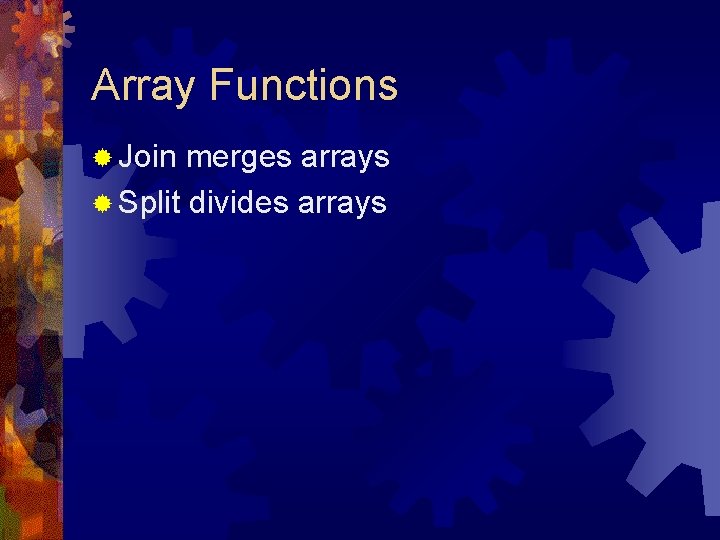

Array Functions ® Join merges arrays ® Split divides arrays

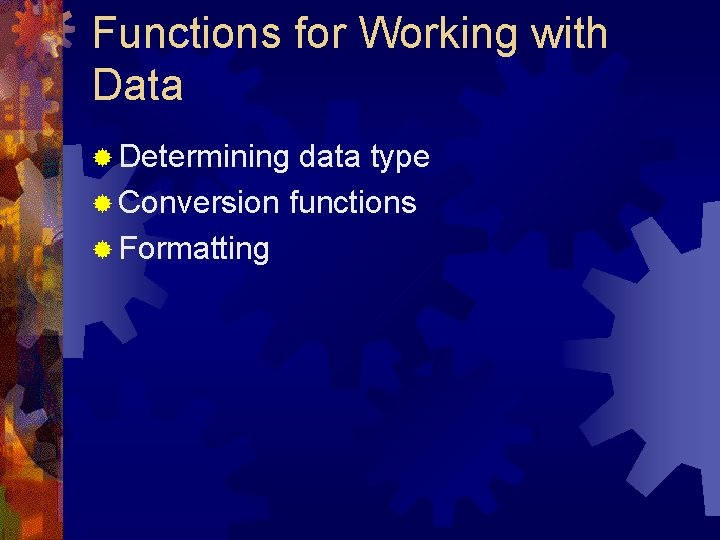

Functions for Working with Data ® Determining data type ® Conversion functions ® Formatting

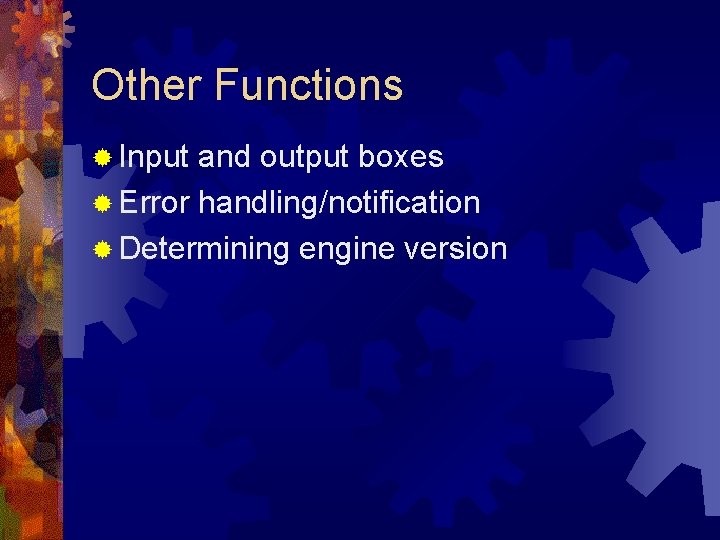

Other Functions ® Input and output boxes ® Error handling/notification ® Determining engine version

Statements ® If… Then ® Select Case ® Do… Loop ® For… Next

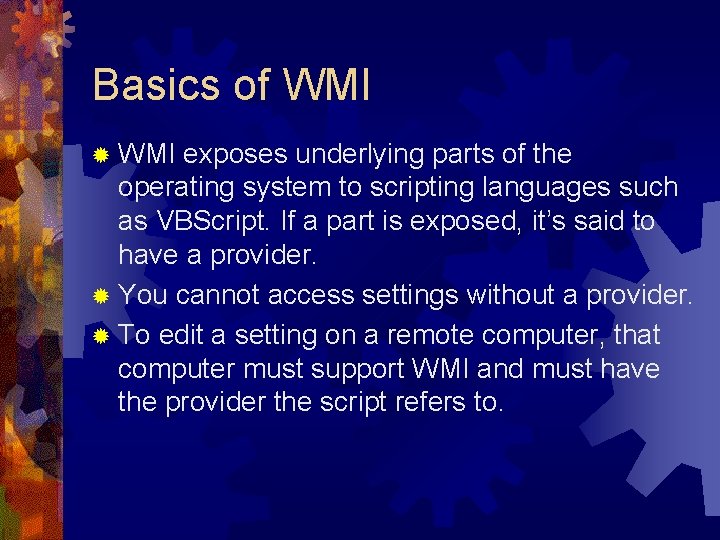

Basics of WMI ® WMI exposes underlying parts of the operating system to scripting languages such as VBScript. If a part is exposed, it’s said to have a provider. ® You cannot access settings without a provider. ® To edit a setting on a remote computer, that computer must support WMI and must have the provider the script refers to.

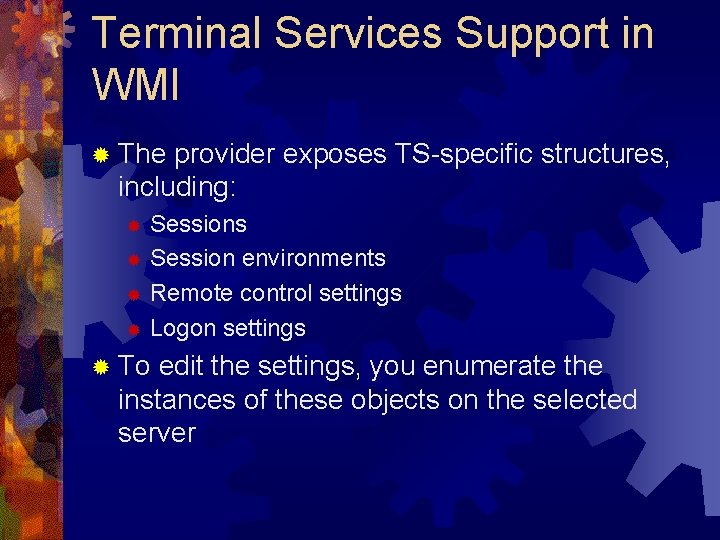

Terminal Services Support in WMI ® The provider exposes TS-specific structures, including: Sessions ® Session environments ® Remote control settings ® Logon settings ® ® To edit the settings, you enumerate the instances of these objects on the selected server

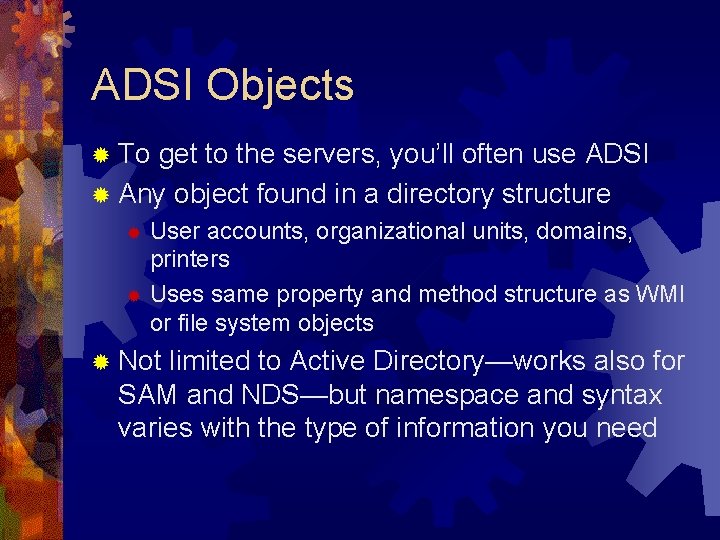

ADSI Objects ® To get to the servers, you’ll often use ADSI ® Any object found in a directory structure User accounts, organizational units, domains, printers ® Uses same property and method structure as WMI or file system objects ® ® Not limited to Active Directory—works also for SAM and NDS—but namespace and syntax varies with the type of information you need

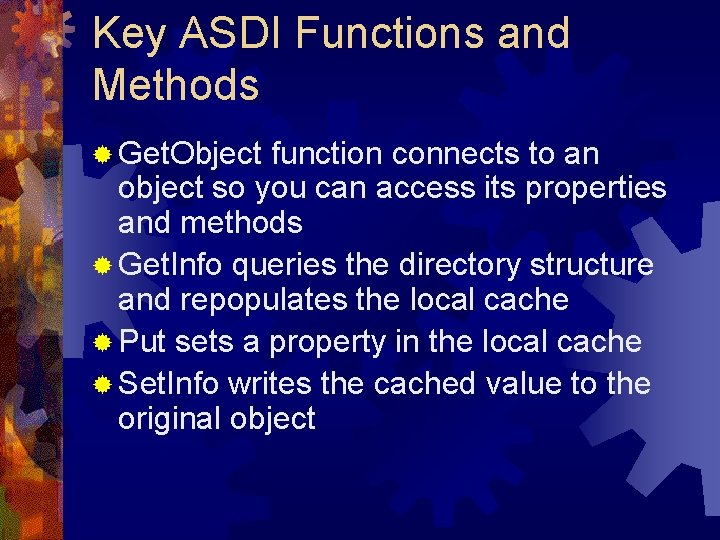

Key ASDI Functions and Methods ® Get. Object function connects to an object so you can access its properties and methods ® Get. Info queries the directory structure and repopulates the local cache ® Put sets a property in the local cache ® Set. Info writes the cached value to the original object

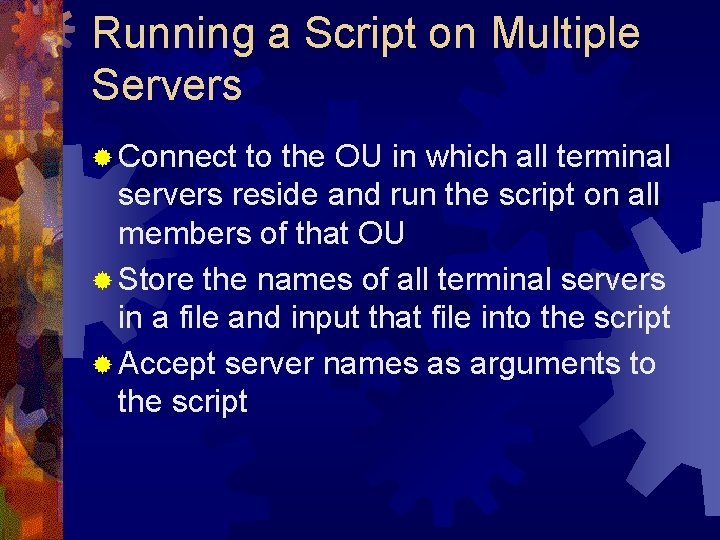

Running a Script on Multiple Servers ® Connect to the OU in which all terminal servers reside and run the script on all members of that OU ® Store the names of all terminal servers in a file and input that file into the script ® Accept server names as arguments to the script

Scripting Tips ®Keep the lines in scripts short ®Comment liberally ®Mix case in your code to enhance readability ®Use the WSH command-line environment ®Name variables and constants according to data type ®Explicitly ®Write define variables scripts in a text editor

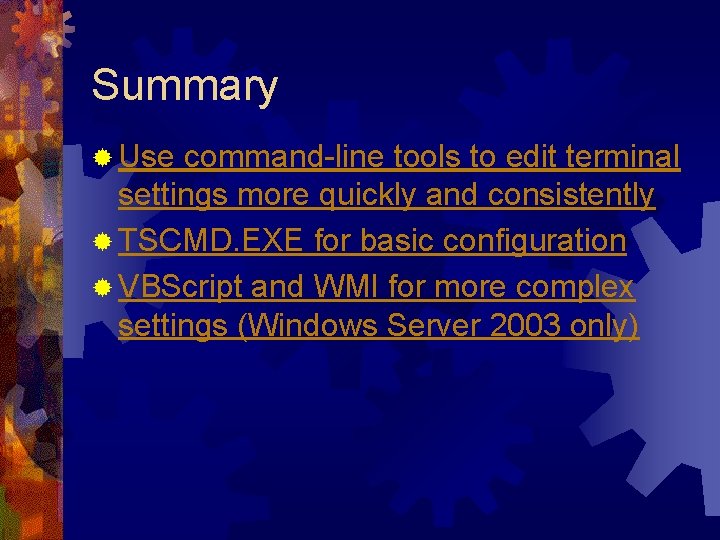

Summary ® Use command-line tools to edit terminal settings more quickly and consistently ® TSCMD. EXE for basic configuration ® VBScript and WMI for more complex settings (Windows Server 2003 only)

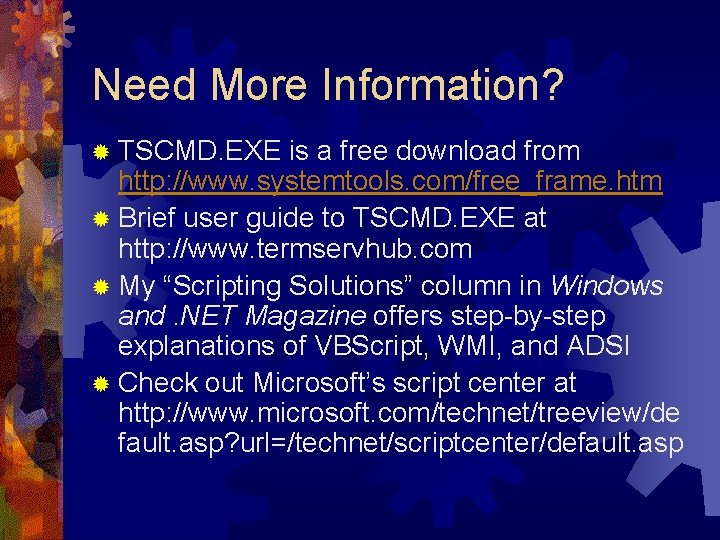

Need More Information? ® TSCMD. EXE is a free download from http: //www. systemtools. com/free_frame. htm ® Brief user guide to TSCMD. EXE at http: //www. termservhub. com ® My “Scripting Solutions” column in Windows and. NET Magazine offers step-by-step explanations of VBScript, WMI, and ADSI ® Check out Microsoft’s script center at http: //www. microsoft. com/technet/treeview/de fault. asp? url=/technet/scriptcenter/default. asp
