Combinational Logic with Verilog Materials taken from Digital
Combinational Logic with Verilog Materials taken from: Digital Design and Computer Architecture by David and Sarah Harris & The Essentials of Computer Organization and Architecture by L. Null & J. Lobur
3. 5 Combinational Circuits • Combinational logic circuits give us many useful devices. • One of the simplest is the half adder, which finds the sum of two bits. • We can gain some insight as to the construction of a half adder by looking at its truth table, shown at the right. 2

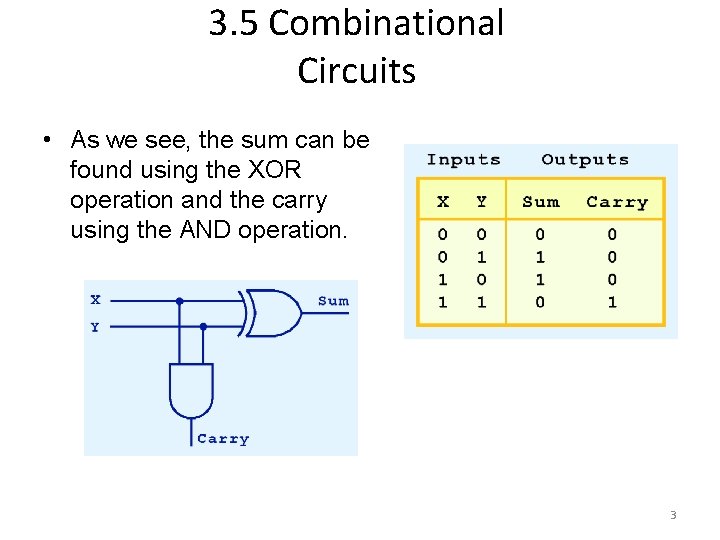

3. 5 Combinational Circuits • As we see, the sum can be found using the XOR operation and the carry using the AND operation. 3

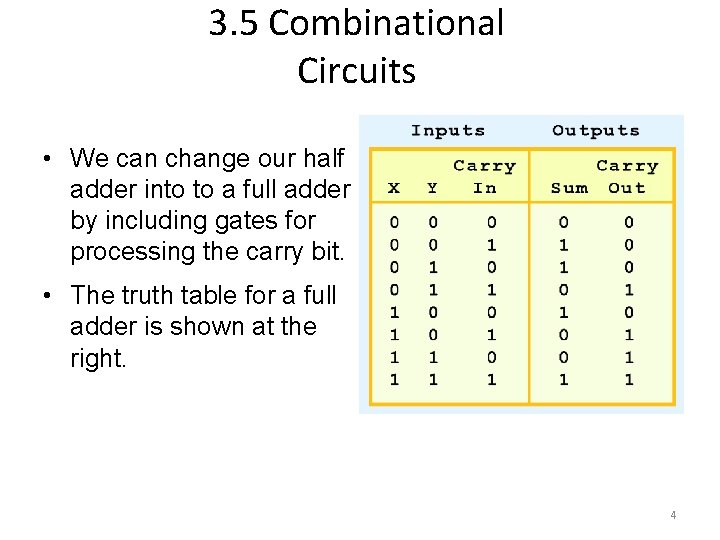

3. 5 Combinational Circuits • We can change our half adder into to a full adder by including gates for processing the carry bit. • The truth table for a full adder is shown at the right. 4

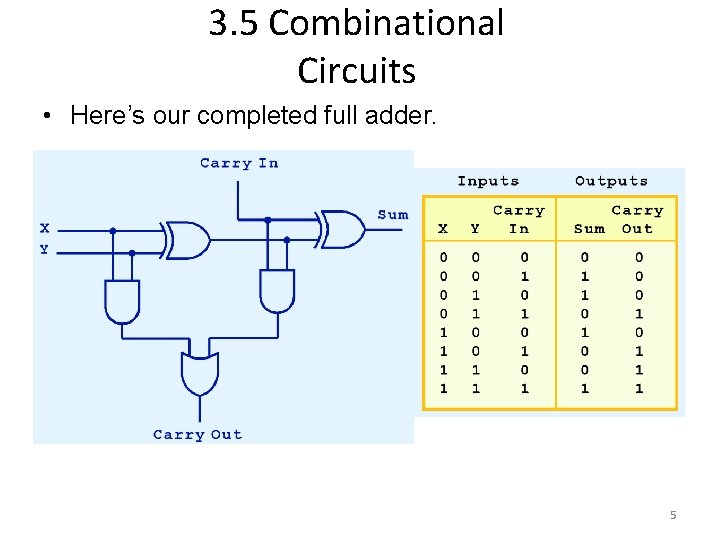

3. 5 Combinational Circuits • Here’s our completed full adder. 5

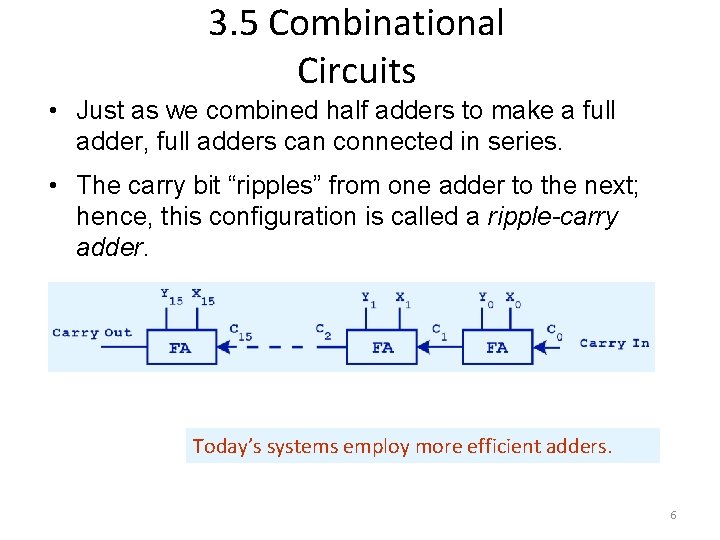

3. 5 Combinational Circuits • Just as we combined half adders to make a full adder, full adders can connected in series. • The carry bit “ripples” from one adder to the next; hence, this configuration is called a ripple-carry adder. Today’s systems employ more efficient adders. 6

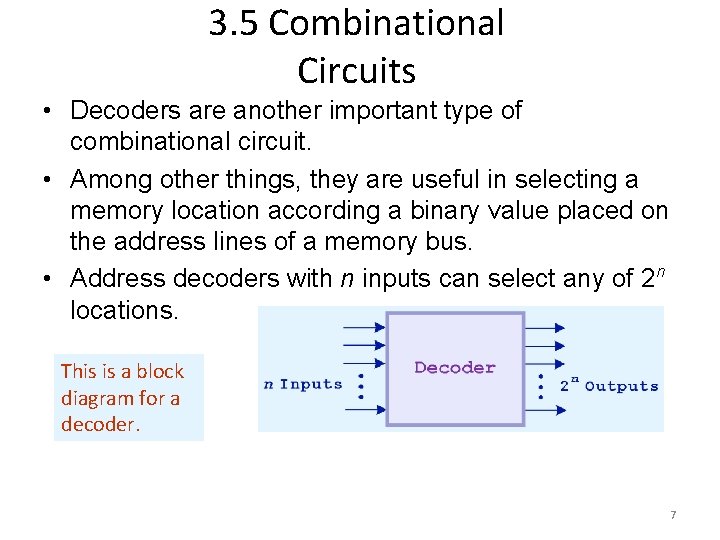

3. 5 Combinational Circuits • Decoders are another important type of combinational circuit. • Among other things, they are useful in selecting a memory location according a binary value placed on the address lines of a memory bus. • Address decoders with n inputs can select any of 2 n locations. This is a block diagram for a decoder. 7
3. 5 Combinational Circuits • This is what a 2 -to-4 decoder looks like on the inside. If x = 0 and y = 1, which output line is enabled? 8
3. 5 Combinational Circuits • A multiplexer does just the opposite of a decoder. • It selects a single output from several inputs. • The particular input chosen for output is determined by the value of the multiplexer’s control lines. • To be able to select among n inputs, log 2 n control lines are needed. This is a block diagram for a multiplexer. 9
3. 5 Combinational Circuits • This is what a 4 -to-1 multiplexer looks like on the inside. If S 0 = 1 and S 1 = 0, which input is transferred to the output? 10
3. 5 Combinational Circuits • This shifter moves the bits of a nibble one position to the left or right. If S = 0, in which direction do the input bits shift? 11
Verilog Demo: Full Adder module fadd( output co, s, input ci, a, b ); wire a_xor_b; wire a_and_b; wire ci_and_a_xor_b; // common gate for both co and s xor u 1( a_xor_b, a, b ); // remaining gates for co and u 2( a_and_b, a, b ); and u 3( ci_and_a_xor_b, ci, a_xor_b ); or u 4( co, a_and_b, ci_and_a_xor_b ); // remaining gate for s xor u 5( s, ci, a_xor_b ); endmodule 12
Demo Materials • Verilog Files: – fadd. v – fadd_tb. v – fadd_4 bit_tb. v • Model. Sim Resources: – Model. Sim. GUIIntro. pdf – Testbench. Primer. pdf – Model. Sim. Tutorial. pdf • Verilog Resource: – Verilog. Wiki – Verilog Quick Reference
Introduction HDL • Hardware description language (HDL): allows designer to specify logic function only. Then a computer-aided design (CAD) tool produces or synthesizes the optimized gates. • Most commercial designs built using HDLs • Two leading HDLs: – Verilog • developed in 1984 by Gateway Design Automation • became an IEEE standard (1364) in 1995 – VHDL • Developed in 1981 by the Department of Defense • Became an IEEE standard (1076) in 1987 Copyright © 2007 Elsevier 4 -<14>
HDL to Gates • Simulation – Input values are applied to the circuit – Outputs checked for correctness – Millions of dollars saved by debugging in simulation instead of hardware • Synthesis – Transforms HDL code into a netlist describing the hardware (i. e. , a list of gates and the wires connecting them) IMPORTANT: When describing circuits using an HDL, it’s critical to think of the hardware the code should produce. Copyright © 2007 Elsevier 4 -<15>

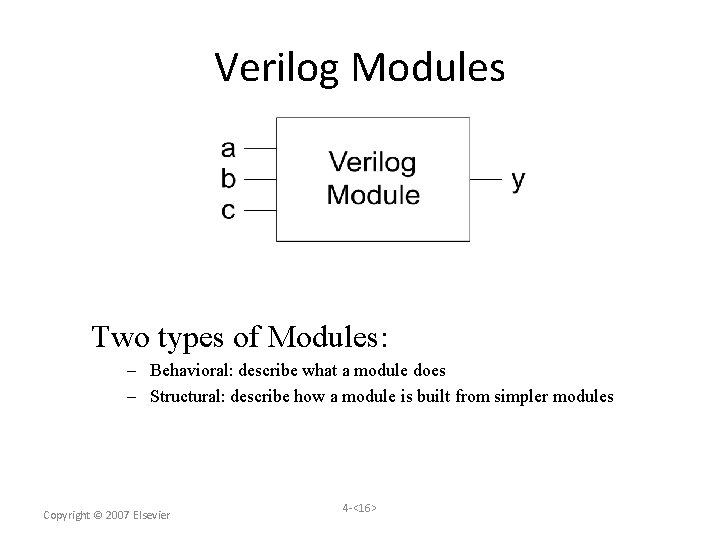

Verilog Modules Two types of Modules: – Behavioral: describe what a module does – Structural: describe how a module is built from simpler modules Copyright © 2007 Elsevier 4 -<16>
Behavioral Verilog Example Verilog: module example(input a, b, c, output y); assign y = ~a & ~b & ~c | a & ~b & endmodule Copyright © 2007 Elsevier 4 -<17> c;

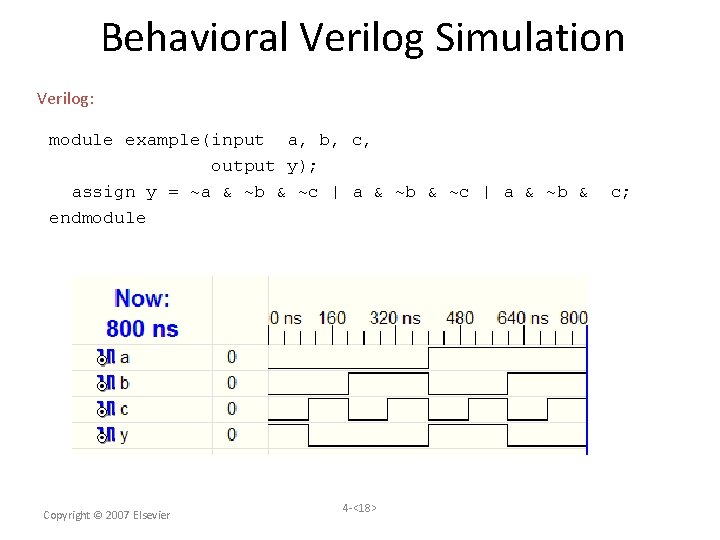

Behavioral Verilog Simulation Verilog: module example(input a, b, c, output y); assign y = ~a & ~b & ~c | a & ~b & endmodule Copyright © 2007 Elsevier 4 -<18> c;
Behavioral Verilog Synthesis Verilog: module example(input a, b, c, output y); assign y = ~a & ~b & ~c | a & ~b & endmodule Synthesis: Copyright © 2007 Elsevier 4 -<19> c;

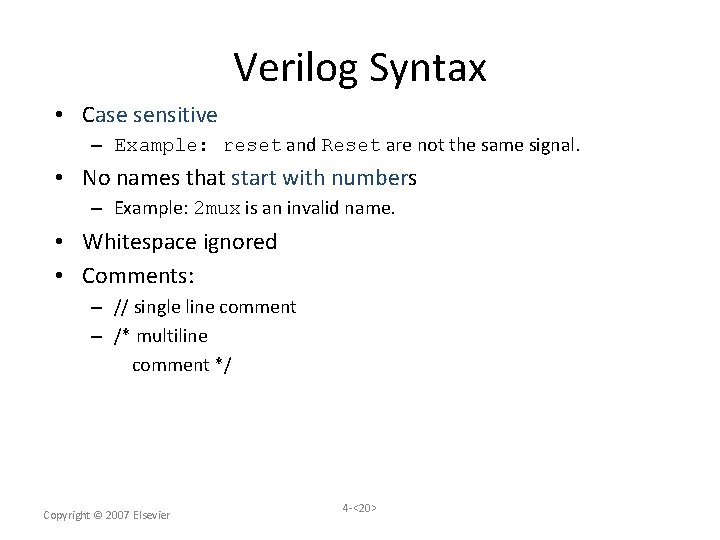

Verilog Syntax • Case sensitive – Example: reset and Reset are not the same signal. • No names that start with numbers – Example: 2 mux is an invalid name. • Whitespace ignored • Comments: – // single line comment – /* multiline comment */ Copyright © 2007 Elsevier 4 -<20>
Structural Modeling - Hierarchy module and 3(input a, b, c, output y); assign y = a & b & c; endmodule inv(input a, output y); assign y = ~a; endmodule nand 3(input a, b, c output y); wire n 1; // internal signal and 3 andgate(a, b, c, n 1); // instance of and 3 inverter(n 1, y); // instance of inverter endmodule Copyright © 2007 Elsevier 4 -<21>
Bitwise Operators module gates(input [3: 0] a, b, output [3: 0] y 1, y 2, y 3, y 4, y 5); /* Five different two-input logic gates acting on 4 bit busses */ assign y 1 = a & b; // AND assign y 2 = a | b; // OR assign y 3 = a ^ b; // XOR assign y 4 = ~(a & b); // NAND assign y 5 = ~(a | b); // NOR endmodule // single line comment /*…*/ multiline comment Copyright © 2007 Elsevier 4 -<22>

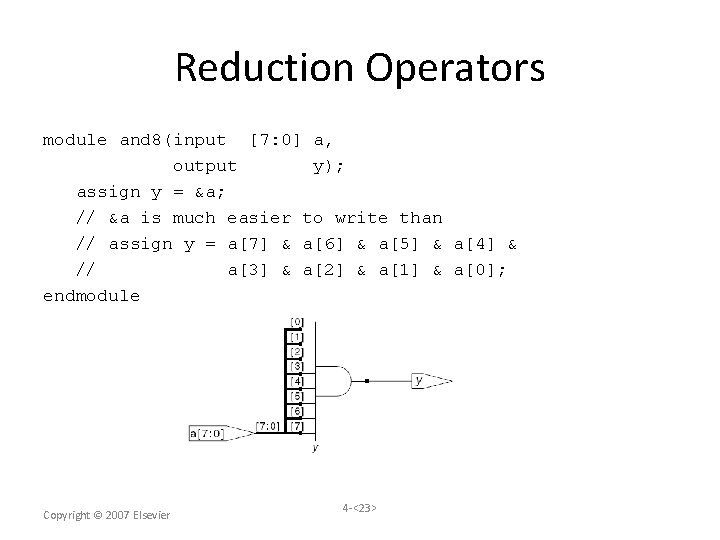

Reduction Operators module and 8(input [7: 0] a, output y); assign y = &a; // &a is much easier to write than // assign y = a[7] & a[6] & a[5] & a[4] & // a[3] & a[2] & a[1] & a[0]; endmodule Copyright © 2007 Elsevier 4 -<23>
Conditional Assignment module mux 2(input [3: 0] d 0, d 1, input s, output [3: 0] y); assign y = s ? d 1 : d 0; endmodule ? : is also called a ternary operator because it operates on 3 inputs: s, d 1, and d 0. Copyright © 2007 Elsevier 4 -<24>

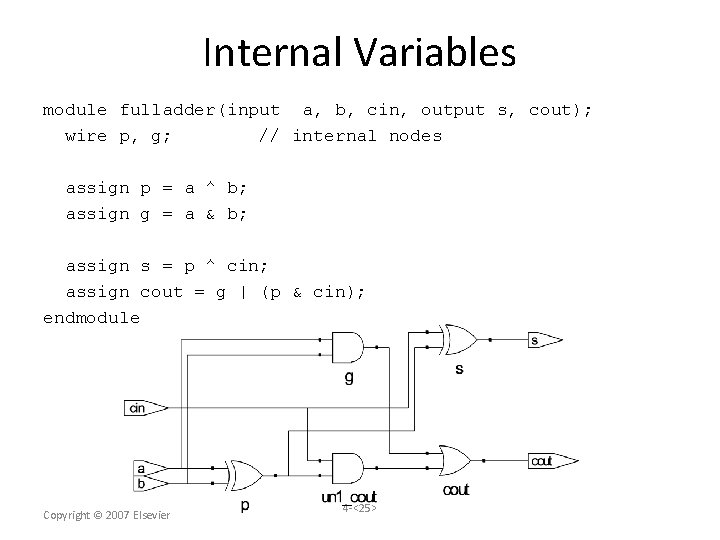

Internal Variables module fulladder(input a, b, cin, output s, cout); wire p, g; // internal nodes assign p = a ^ b; assign g = a & b; assign s = p ^ cin; assign cout = g | (p & cin); endmodule Copyright © 2007 Elsevier 4 -<25>
Precedence Defines the order of operations Highest ~ NOT *, /, % mult, div, mod +, - add, sub <<, >> shift <<<, >>> arithmetic shift <, <=, >, >= comparison Lowest ==, != equal, not equal &, ~& AND, NAND ^, ~^ XOR, XNOR |, ~| OR, XOR ? : ternary operator Copyright © 2007 Elsevier 4 -<26>
Numbers Format: N'Bvalue N = number of bits, B = base N'B is optional but recommended (default is decimal) Number # Bits Base Decimal Equivalent Stored 3’b 101 3 binary 5 101 ‘b 11 unsized binary 3 00… 0011 8’b 11 8 binary 3 00000011 8’b 1010_1011 8 binary 171 10101011 3’d 6 3 decimal 6 110 6’o 42 6 octal 34 100010 8’h. AB 8 hexadecimal 171 10101011 42 Unsized decimal 42 00… 0101010 Copyright © 2007 Elsevier 4 -<27>

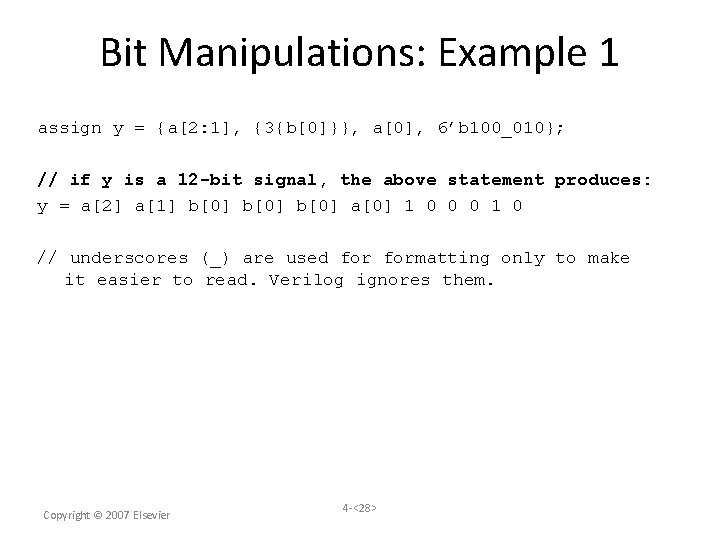

Bit Manipulations: Example 1 assign y = {a[2: 1], {3{b[0]}}, a[0], 6’b 100_010}; // if y is a 12 -bit signal, the above statement produces: y = a[2] a[1] b[0] a[0] 1 0 0 0 1 0 // underscores (_) are used formatting only to make it easier to read. Verilog ignores them. Copyright © 2007 Elsevier 4 -<28>

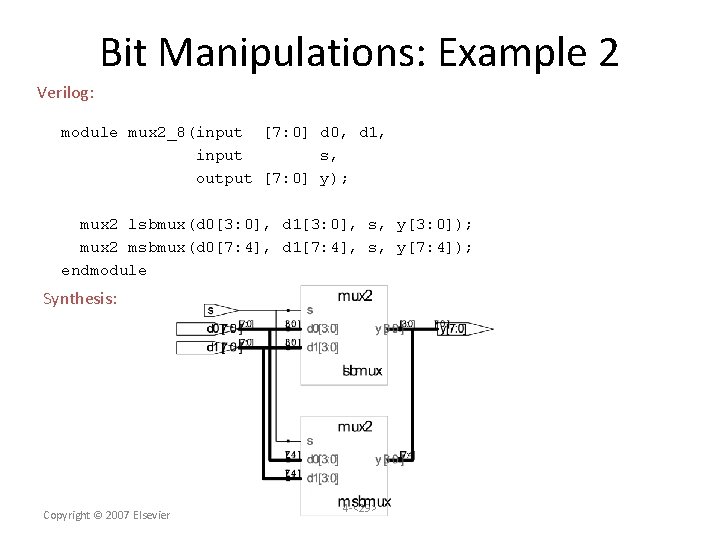

Bit Manipulations: Example 2 Verilog: module mux 2_8(input [7: 0] d 0, d 1, input s, output [7: 0] y); mux 2 lsbmux(d 0[3: 0], d 1[3: 0], s, y[3: 0]); mux 2 msbmux(d 0[7: 4], d 1[7: 4], s, y[7: 4]); endmodule Synthesis: Copyright © 2007 Elsevier 4 -<29>
Z: Floating Output Verilog: module tristate(input [3: 0] a, input en, output [3: 0] y); assign y = en ? a : 4'bz; endmodule Synthesis: Copyright © 2007 Elsevier 4 -<30>

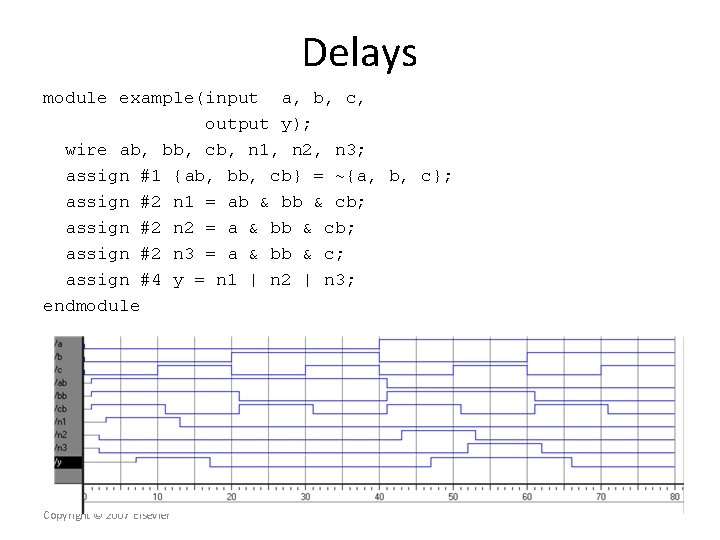

Delays module example(input a, b, c, output y); wire ab, bb, cb, n 1, n 2, n 3; assign #1 {ab, bb, cb} = ~{a, b, c}; assign #2 n 1 = ab & bb & cb; assign #2 n 2 = a & bb & cb; assign #2 n 3 = a & bb & c; assign #4 y = n 1 | n 2 | n 3; endmodule Copyright © 2007 Elsevier 4 -<31>

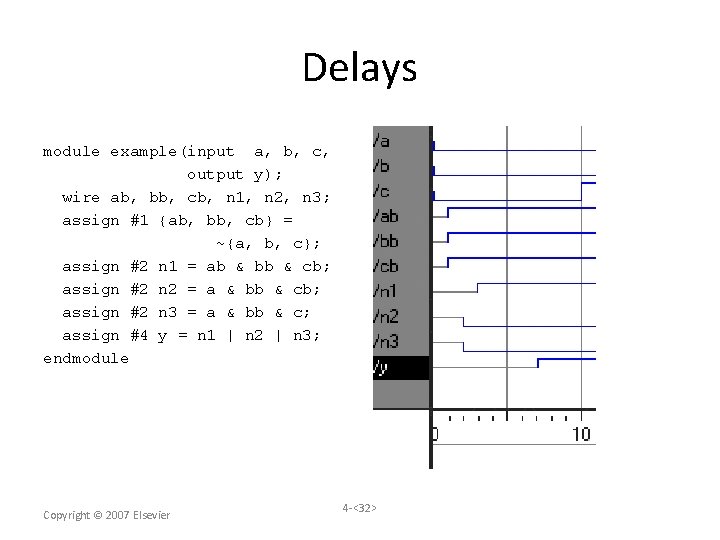

Delays module example(input a, b, c, output y); wire ab, bb, cb, n 1, n 2, n 3; assign #1 {ab, bb, cb} = ~{a, b, c}; assign #2 n 1 = ab & bb & cb; assign #2 n 2 = a & bb & cb; assign #2 n 3 = a & bb & c; assign #4 y = n 1 | n 2 | n 3; endmodule Copyright © 2007 Elsevier 4 -<32>
