. com ABC Solar Incorporated Government, Not-For-Profit, Commercial and Residential Solar Energy Systems A Step by Step Guide Prepared for South Bay Energy Fair 2006 May 20 th, Rancho Palos Verdes, CA ABC Solar Incorporated www. ABCsolar. com
What am I going to Solar on about today? Introduction Solar Power Basics The Technology The Market Stakeholders California’s New Gold Rush Residential Solar Examples You Can Make It Happen Things to ask Jobs, Jobs ABC Solar Incorporated www. ABCsolar. com
Going Solar Is A Mission n Encourage Energy Awareness n Encourage Wide Solar Participation n Encourage Job Growth ABC Solar Incorporated www. ABCsolar. com
What is today’s Solar technology? n Today’s solar technology comes in two basic forms: n Framed Solar Panels n n n 75 w to 205 w 36” x 48” to 52” x 60” 24 v to 48 v nominal DC voltage We use Sharp, Shell, BP Solar, Kyocera & Mitsubishi Flexible Solar Panels 64 w to 128 w n 15. 5” x 9’ to 15. 5” x 18’ n 12 v compatible DC voltage n We use the Unisolar peel & Stick solar panels n ABC Solar Incorporated www. ABCsolar. com
ROCKS THAT MAKE ELECTRICITY n Photovoltaic (PV) solar cells are silicon-based solid-state semiconductor devices that convert light from the sun directly into electricity. n n n There are no moving parts and no external fuel is required. The phenomenon occurs when photons of light provide the electrons enough energy to create a current flow. The current produced is DC, which is then converted to AC via an inverter ("solar electric interface") for use in your building's current electrical system. ABC Solar Incorporated www. ABCsolar. com
How do you determine what size of solar system do you need? n n n Typical home can be run with a 3 KW solar system (1400 sq. ft. ) Typical Elementary School can be run with a 60 KW Solar System 1 KW = 150 k. Wh a month in production ABC Solar Incorporated www. ABCsolar. com
What are the Incentives? n California Energy Commission n $2. 80 per ac watt. $7, 000 for a 2. 5 Kilowatt AC Solar System Federal Tax Credit n n 30% after rebate fed tax credit (max $2000) $2, 000 for a 2. 5 Kilowatt AC Solar System $9000 In Total First Year Incentives ABC Solar Incorporated www. ABCsolar. com
What is the best roof direction? Does My Building Work For Solar? Orientation Factor For Annual Energy Production in California - Source Endecon Engineering FACING Flat 4: 12 7: 12 12: 12 21: 12 Vertical 0. 89 0. 97 11 0. 97 0. 89 0. 58 0. 89 0. 97 0. 99 0. 96 0. 88 0. 59 0. 89 0. 95 0. 96 0. 93 0. 85 0. 6 0. 89 0. 92 0. 91 0. 87 0. 79 0. 57 0. 89 0. 88 0. 84 0. 78 0. 7 0. 52 South SSE, SSW SE, SW ESE, WSW E, W ABC Solar Incorporated www. ABCsolar. com
For Example: 60 KW Commercial Solar System n Commercial systems vary greatly in size and scope. For this discussion we will use a 60 KW DC solar electric system. n 6000 sq ft of roof space n 9, 000 k. Wh a month on average in solar electricity production. 10 SMA Sunnyboy Inverter 6000 W with meter Spins the meter backwards 360 – 167 w solar panels For a total of 60, 120 DC watts ABC Solar Incorporated www. ABCsolar. com
What Solar Means to You? This system will: n Produce/save 108, 000 k. Wh of electricity in the first year n n (@. 20 per k. Wh that is $21, 600 a year) Eliminate 102, 000 lbs of CO 2 emissions in the first year ABC Solar Incorporated www. ABCsolar. com
Example System Estimates n Product Total $326, 963 n Installation Est. $ 56, 753 n Before Rebate $ 383, 716 n CEC Rebate $172, 137 n Grand Total $211, 579 n Simple ROI -- 10 years. ABC Solar Incorporated www. ABCsolar. com The solar panels have a 25 year power warranty They warranty that the panels will be making energy at above 80% of what they are doing today.
60 KW Grid-Tie Commercial System Every Utility Dollar Saved Stays in Your Pocket n n n n Solar panels 360 Inverters 10 Mt hardware 1 Product Sub Total Tax Shipping Product Total $258, 937 $ 38, 940 $ 29, 086 $326, 974 $ 7, 200 $361, 137 n Installation Est. $ 70, 942 Permits $ 2, 000 Before Rebate $434, 079 CEC Rebate $172, 137 CA tax credit $ 13, 752 Fed tax credit $ 78, 582 Depreciation $ 50, 882 n Grand Total $118, 725 n n n ABC Solar Incorporated www. ABCsolar. com
How much electricity will a 60 KW system produce? System size in watts 60, 12 0 System size in KW 60 daily k. Wh 30 1 Monthly 9, 0 18 1 08, 21 ABC Solar Incorporated www. ABCsolar. com
60 KW Solar Electric System Value of your Solar Electricity Rates $0. 10 $0. 15 $0. 20 $0. 26 $0. 30 Daily $30 $45 $60 $78 $90 Monthly $902 $1, 353 $1, 804 $2, 344 $2, 705 Yearly $10, 822 $16, 232 $21, 643 $28, 129 $32, 465 Lifetime $324, 648 $486, 972 $649, 296 $843, 858 $973, 944 ABC Solar Incorporated www. ABCsolar. com
The Process What is the Rebate Process in California? n determine size of system you want n fill multi-page forms n signed sales agreement for equipment n signed construction agreement n Include copy of current electric bill n submit all papers and wait n once you get your reservation you and ABC Solar will execute binding agreements and install your system. ABC Solar Incorporated www. ABCsolar. com
Low Profile Clean Installations ABC Solar Incorporated www. ABCsolar. com
Composition Shingle Roof – 3 KW 18 Kyocera Solar 167 w Panels 1 SMA Sunnyboy SWR 2500 SBD Inverter One day install – 5 man crew ABC Solar Incorporated www. ABCsolar. com
Basic Installation Steps – Flat Roof mounts Rails Panels Inverter Fuses Meter ABC Solar Incorporated www. ABCsolar. com
Basic Installation Composition Shingle Roof mounts Rails Panels Inverter Fuses Meter ABC Solar Incorporated www. ABCsolar. com
Basic Installation – During Construction 18 Sharp Solar 167 w Panels 1 SMA Sunnyboy SWR 2500 SBD Expandable System ABC Solar Incorporated www. ABCsolar. com
Basic Installation – Concrete Shingle ABC Solar Incorporated www. ABCsolar. com
Basic Installation – Spanish Tile Remove tiles Batteries Roof attachments 24 v Bilge Pumps Rails and Panels Feng Shui Waterfall Inverters ABC Solar Incorporated www. ABCsolar. com
Why ABC Solar? We Make It Easy. ABC Solar Incorporated www. ABCsolar. com
Every Utility Dollar Saved Stays in Your Pocket ABC Solar Incorporated www. ABCsolar. com

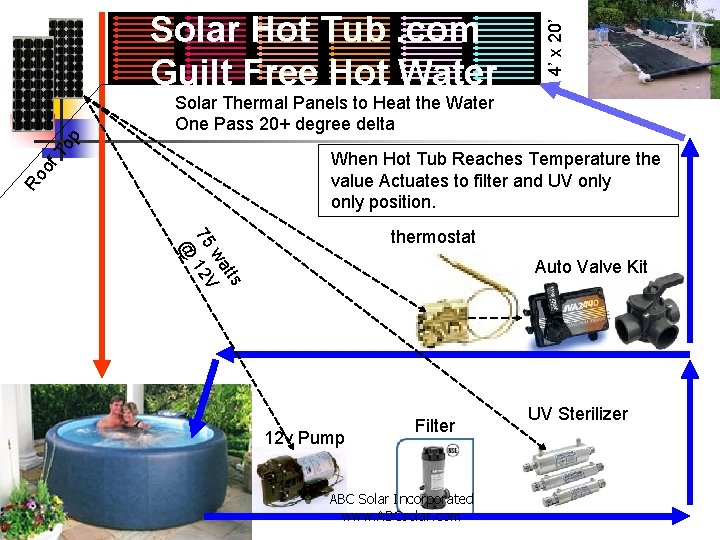

4’ x 20’ Solar Hot Tub. com Guilt Free Hot Water To p Solar Thermal Panels to Heat the Water One Pass 20+ degree delta Ro of When Hot Tub Reaches Temperature the value Actuates to filter and UV only position. tts wa 75 12 V @ thermostat Auto Valve Kit 12 v Pump Filter ABC Solar Incorporated www. ABCsolar. com UV Sterilizer
Solar Fish Pond. com 24/7/365 Systems • Batteries • Solar Panels • Backup 110 v chargers Pole Mount dual. Axis tracking Power from 7 am to 7 pm in summer. 5 GPM to 65 GPM DC Solar Pumps Cartridge Filter ABC Solar Incorporated www. ABCsolar. com UV Sterilizer Kills! • algae spores, • bacteria and • protozoa
TVexercise. com Generating Power To Power The Xbox To make a soldiers live more easy the German Bundeswehr used a special frame to mount the GN-58(*) to convert the generator into a home trainer. ABC Solar Incorporated www. ABCsolar. com
The Solar Hydrogen BBQ and Home Self-Sufficiency System Hydrogen Storage Hydrogen Generation By Solar Electrolysis Home Solar 5 KW Array Fuel Cell Stack ABC Solar Incorporated www. ABCsolar. com Home Main Electrical Panel
Sharp Solar Certified ABC Solar Incorporated www. ABCsolar. com

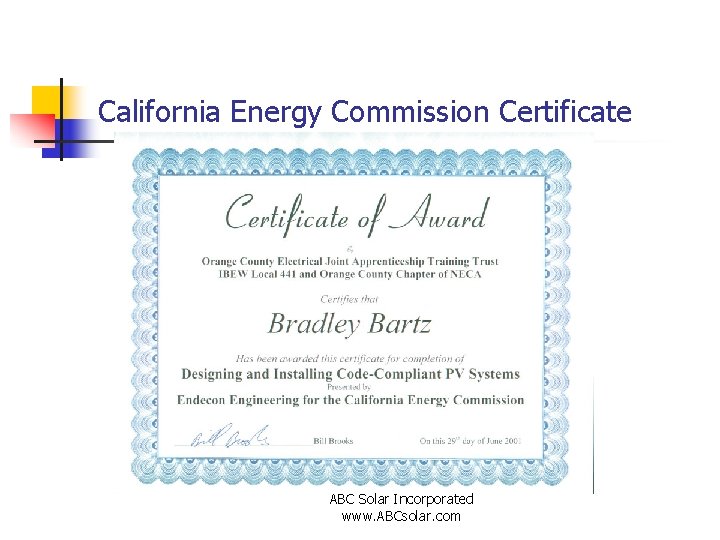

California Energy Commission Certificate ABC Solar Incorporated www. ABCsolar. com
Additional Installation Images n n The following images have not been constructed or supervised by ABC Solar Incorporated. These images are provided to give you more ideas and verification about your solar investment. Our team and sub-contractors have extensive commercial experience. ABC Solar is ready, willing and able to install and maintain your solar system. ABC Solar Incorporated www. ABCsolar. com
Example of large scale installations Solar tower To heat Oil to run turbine Photo courtesy of Hawaiian Electric Company 18 -k. W System at Hickam Air Force Base, Oahu 100 k. W PV System at Mauna Lani Resort, Hawaii ABC Solar Incorporated www. ABCsolar. com
More commercial Examples images from US Government websites ABC Solar Incorporated www. ABCsolar. com
More commercial Examples – images from US Government websites ABC Solar Incorporated www. ABCsolar. com
More commercial Examples – FORT DIX images from US Government websites One of the largest military-owned solar electric systems in the Eastern U. S. Now completed at Fort Dix Shown are Sr. Master Sergeant John Hastings, NJ DMAVA Energy Manager and Major Eric Myhre, National Guard ABC Solar Incorporated www. ABCsolar. com

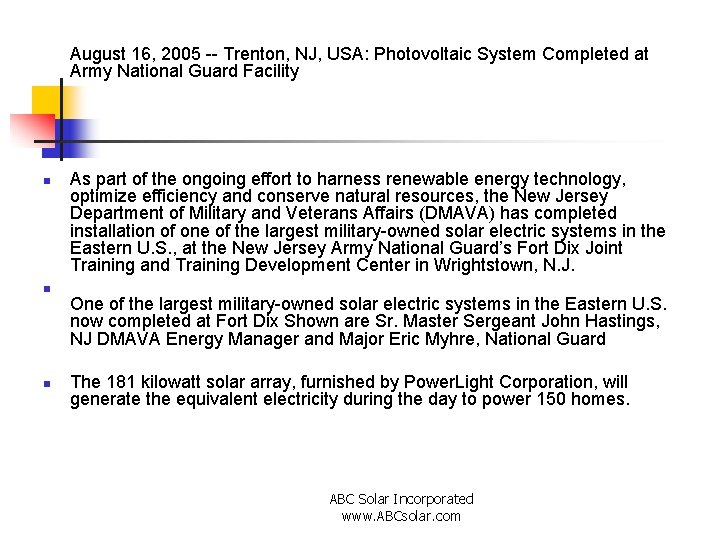

August 16, 2005 -- Trenton, NJ, USA: Photovoltaic System Completed at Army National Guard Facility n n n As part of the ongoing effort to harness renewable energy technology, optimize efficiency and conserve natural resources, the New Jersey Department of Military and Veterans Affairs (DMAVA) has completed installation of one of the largest military-owned solar electric systems in the Eastern U. S. , at the New Jersey Army National Guard’s Fort Dix Joint Training and Training Development Center in Wrightstown, N. J. One of the largest military-owned solar electric systems in the Eastern U. S. now completed at Fort Dix Shown are Sr. Master Sergeant John Hastings, NJ DMAVA Energy Manager and Major Eric Myhre, National Guard The 181 kilowatt solar array, furnished by Power. Light Corporation, will generate the equivalent electricity during the day to power 150 homes. ABC Solar Incorporated www. ABCsolar. com
