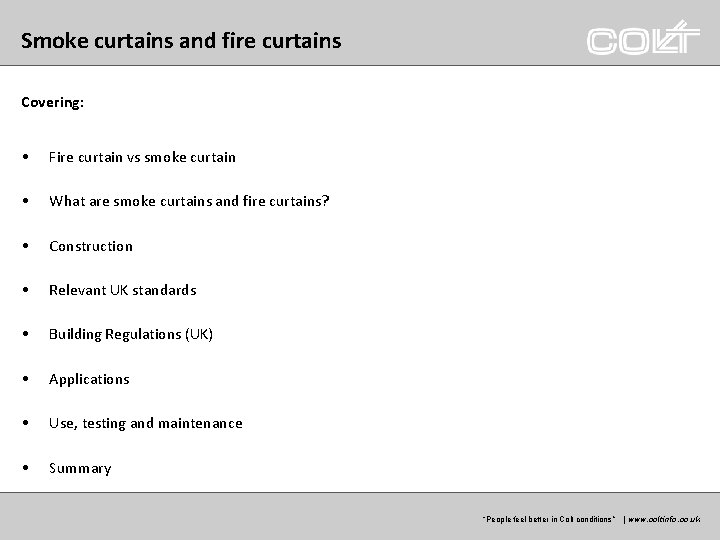

Smoke curtains and fire curtains Covering: • Fire curtain vs smoke curtain • What are smoke curtains and fire curtains? • Construction • Relevant UK standards • Building Regulations (UK) • Applications • Use, testing and maintenance • Summary “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Smoke curtains -v- fire curtains Similar products but very different properties and uses: A smoke curtain is used as part of a smoke control system to control the flow of smoke – typically as a channelling screen or a smoke reservoir screen. A fire curtain is used to provide fire separation between 2 spaces – typically to protect a lift door or an escape route through an open plan dwelling. A smoke curtain is only exposed to smoke so is rated to 600 o. C. A fire curtain is exposed to fire so is rated against the ISO fire curve, which exceeds 1000 o. C. A smoke curtain usually remains above head height. (except round atria or escalators) A fire curtain fully closes an opening. “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

What are smoke curtains and fire curtains? Smoke barriers may be conventional smoke curtains or any other product which will withstand temperatures up to 600 o. C (fire rated glazing, builder’s work, etc). Smoke curtains may be fixed or automatic. Fixed curtains are usually a lightweight fabric, rigidly fixed along the edges. Automatic curtains are usually a similar fabric, wrapped round a motorised roller. Concertina designs are also available. “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

What are smoke curtains and fire curtains? Fire curtains replace conventional fixed elements, doors, shutters or any other product providing a fire rated partition. Fire curtains are always automatic (active). Automatic curtains are usually a similar fabric to a smoke curtain but wire reinforced to withstand higher temperatures, wrapped round a motorised roller. Side guides are always required. “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Smoke curtains “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Smoke curtains Construction • Smoke curtains typically comprise: • A roller with integrated motor and bearings • A fabric fixed to and rolled round the roller • A weighted bottom bar fixed to the fabric A head box to contain the mechanism. Curtains may be gravity drop or drive down. In multiple curtains the rollers and fabric overlap. Optional side guides may be available. Control is usually from a zone control panel. Battery back up is usually provided (essential if curtains drive down). “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Smoke curtains Standards (product) Smoke barriers must comply with BS EN 12101 -1: 2006 and be CE marked. Testing includes: • Heat exposure (minimum 600 o. C/30 minutes) • Reliability (1000 cycles) • Response time • Speed of descent (0. 06 m/s to 0. 3 m/s) • Measurement of gaps. Gravity descent or powered descent is permitted. This standard applies to static barriers too • whatever they are made of. “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Smoke curtains Standards (application) There is no specific application standard. BR 368 gives guidance (out of date). BS 7346 -4 gives limited guidance in 6. 6, 6. 9 and Annex D Building Regulations Make no mention of smoke curtains “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Smoke curtains Applications There are 4 common applications for smoke curtains: • • Smoke reservoir boundaries Channelling screens Balcony edge screens Atrium balcony protection “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Smoke curtains Issues • Access for maintenance and repair • Location of controls and battery back ups • Air movement • Deflection, billowing and edge gaps • Location – not above fire source “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Smoke curtains Use, testing and maintenance Automatic smoke curtains are not designed for daily use. The 1000 operation life cycle test represents only 20 years of testing once a week. Life safety systems should be tested once a week. Annual maintenance is normally sufficient. • Access “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Fire curtains “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Fire curtains Construction Fire curtains typically comprise: • A roller with integrated motor and bearings • A fabric fixed to and rolled round the roller • A weighted bottom bar fixed to the fabric • A head box to contain the mechanism • Side guides to retain the fabric and bottom bar. In multiple curtains the rollers and fabric overlap. Control is usually from a zone control panel. Battery back up is usually provided (essential if emergency access or egress controls fitted). “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Fire curtains Standards (product) Fire curtains should comply with BS 8524 -1: 2013. Gravity descent is required (except for horizontal units). Testing includes: • Fire resistance (EN 1634 -1 or BS 476 -22) (integrity, optional radiation/insulation) • Reliability (impact and cycle test) • Response time • Speed of descent (0. 06 m/s to 0. 15 or 0. 3 m/s) • Smoke containment (optional) • Accessories Under EU rules, curtains replacing a fire door or shutter should instead be CE marked to EN 16034 once this is harmonised. “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Fire curtains Standards (application) The application standard is BS 8524 -2: 2013. This has replaced PAS 121 Building Regulations There is no mention of fire curtains. Fire curtains are a fairly recent development ADB is old. “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Fire curtains Applications Example applications for fire curtains: • As direct replacements for fire doors or fire shutters • To protect lift doors • To close voids used as smoke shafts • To protect Mo. E in open plan dwellings • To protect counters, serveries, service shafts • To allow escape along narrow atrium balconies “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Fire curtains Insulation and radiation Most basic fire curtains have no insulation rating. Where an insulation rating is wanted: • If available, insulation rating should be used • Alternatively BS 8524 -2 provides ways to use radiation data instead: - Simple table for small dwellings - Fire engineered approach “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Fire curtains Optional controls: Multi position deployment • Curtain drops part way and holds for set period before full deployment Emergency access switch • Allows fire service to raise the curtain to enter Emergency egress switch • Allows occupants to raise the curtain to escape Obstruction warning • Provides audible and visual alarm if an obstruction remains in place for a set period “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Fire curtains Issues • Close before starting smoke extract fans • Deflection • Access for maintenance and repair • Location of controls and battery back ups • Obstruction • When should a fire curtain close? Fire Service access “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Smoke curtains and fire curtains Use, testing and maintenance Automatic fire curtains may be designed for daily use. Most are intended for emergency use only. Reliability classes from 0 to 200, 000 cycles are available in BS 8524 -1; most curtains are likely to be rated C 1 (500 cycles). Maintenance should be to manufacturer’s instructions – annual is normally sufficient. • Access “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Fire curtains “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk

Summary Smoke curtains and fire curtains • Are different and not interchangeable • Fire curtains restrict the spread of fire (and smoke) • Smoke curtains only restrict the spread of smoke • All smoke curtains sold in the UK should be CE marked to EN 12101 -1 • Fire curtains cannot currently be CE marked to the CPR • Both products enhance architectural flexibility and, used properly, form important parts of a building’s fire safety strategy. “Peoplefeelbetterinin. Coltconditions” ” | |www. coltgroup. com www. coltinfo. co. uk
