Colorectal Cancer Surgery MR ZEEV DUIEB GP DINNER PRESENTATION 06 AU GUST 2013 @6. 30 PM CLOVER COTTAGE Duieb Colorectal Suite 9, 1 st Floor, 50 Kangan Drive Berwick Ph 9709 6666 St J of G Suite 4 Gibb St Berwick 3806 Colorectal Surgeon Monash Health Ph 9768 9331

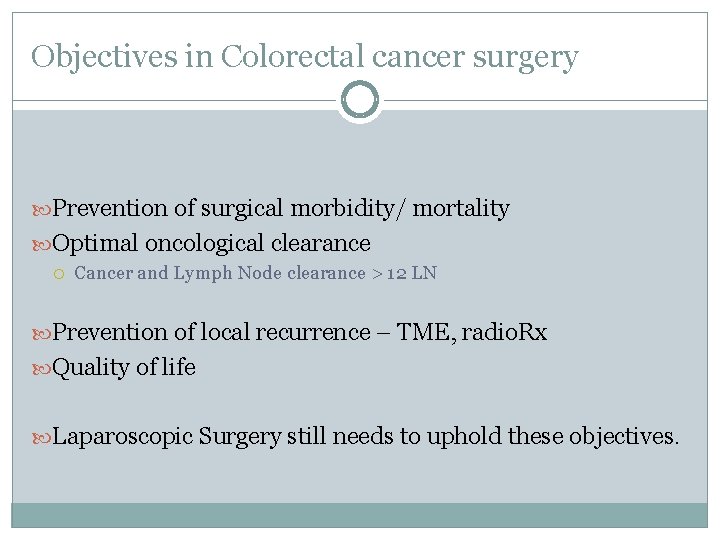

Objectives in Colorectal cancer surgery Prevention of surgical morbidity/ mortality Optimal oncological clearance Cancer and Lymph Node clearance > 12 LN Prevention of local recurrence – TME, radio. Rx Quality of life Laparoscopic Surgery still needs to uphold these objectives.

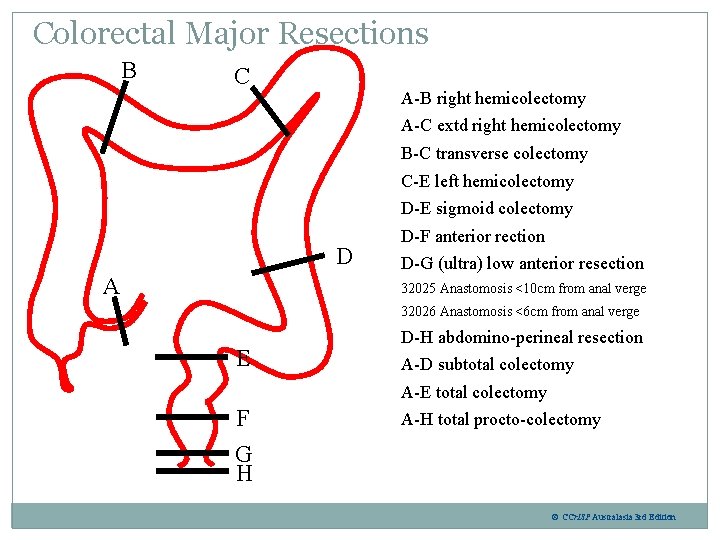

Colorectal Major Resections B C A-B right hemicolectomy A-C extd right hemicolectomy B-C transverse colectomy C-E left hemicolectomy D-E sigmoid colectomy D A D-F anterior rection D-G (ultra) low anterior resection 32025 Anastomosis <10 cm from anal verge 32026 Anastomosis <6 cm from anal verge E D-H abdomino-perineal resection A-D subtotal colectomy A-E total colectomy F G H A-H total procto-colectomy © CCr. ISP Australasia 3 rd Edition

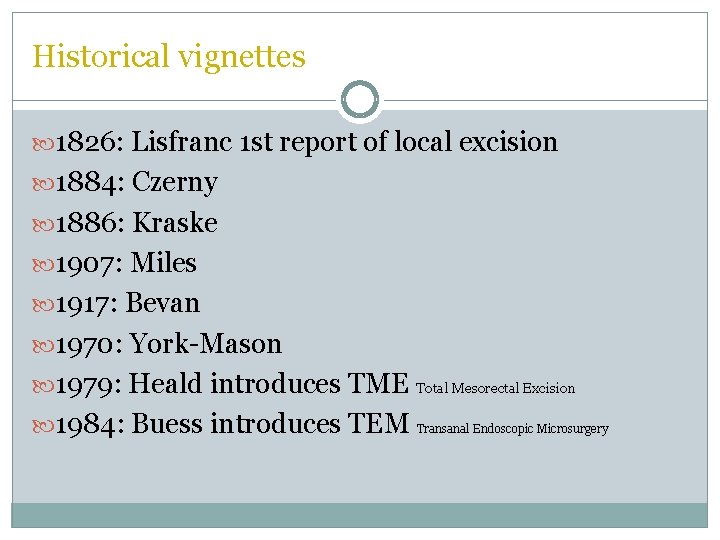

Historical vignettes 1826: Lisfranc 1 st report of local excision 1884: Czerny 1886: Kraske 1907: Miles 1917: Bevan 1970: York-Mason 1979: Heald introduces TME Total Mesorectal Excision 1984: Buess introduces TEM Transanal Endoscopic Microsurgery

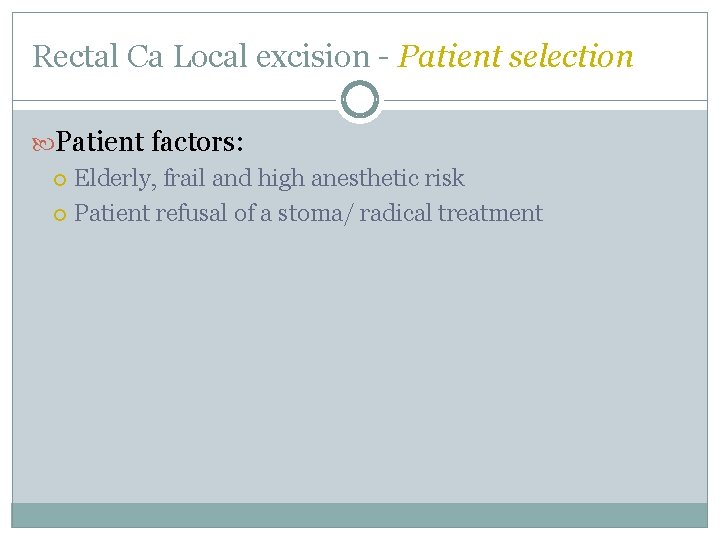

Rectal Ca Local excision - Patient selection Patient factors: Elderly, frail and high anesthetic risk Patient refusal of a stoma/ radical treatment

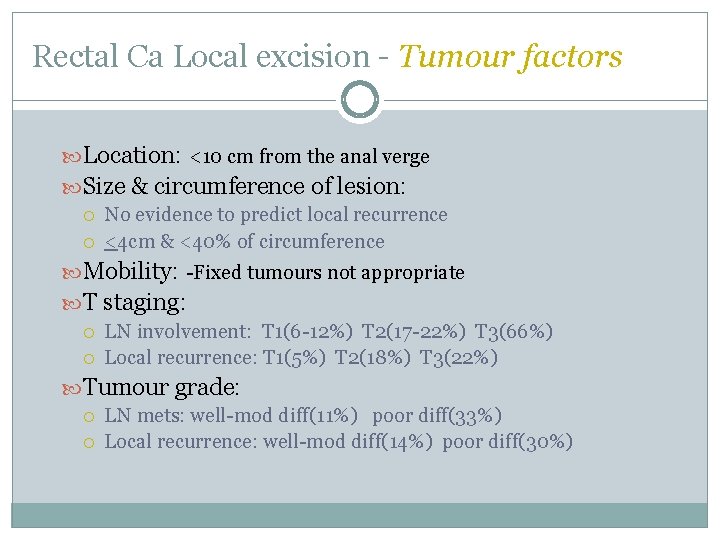

Rectal Ca Local excision - Tumour factors Location: <10 cm from the anal verge Size & circumference of lesion: No evidence to predict local recurrence <4 cm & <40% of circumference Mobility: -Fixed tumours not appropriate T staging: LN involvement: T 1(6 -12%) T 2(17 -22%) T 3(66%) Local recurrence: T 1(5%) T 2(18%) T 3(22%) Tumour grade: LN mets: well-mod diff(11%) poor diff(33%) Local recurrence: well-mod diff(14%) poor diff(30%)

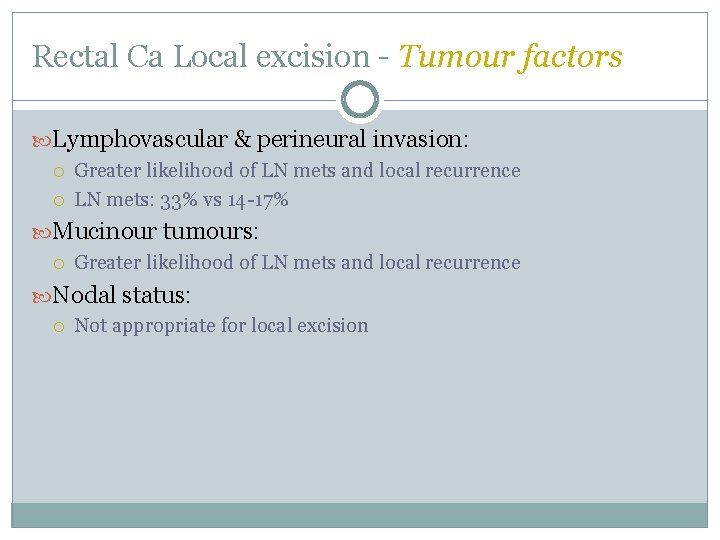

Rectal Ca Local excision - Tumour factors Lymphovascular & perineural invasion: Greater likelihood of LN mets and local recurrence LN mets: 33% vs 14 -17% Mucinour tumours: Greater likelihood of LN mets and local recurrence Nodal status: Not appropriate for local excision

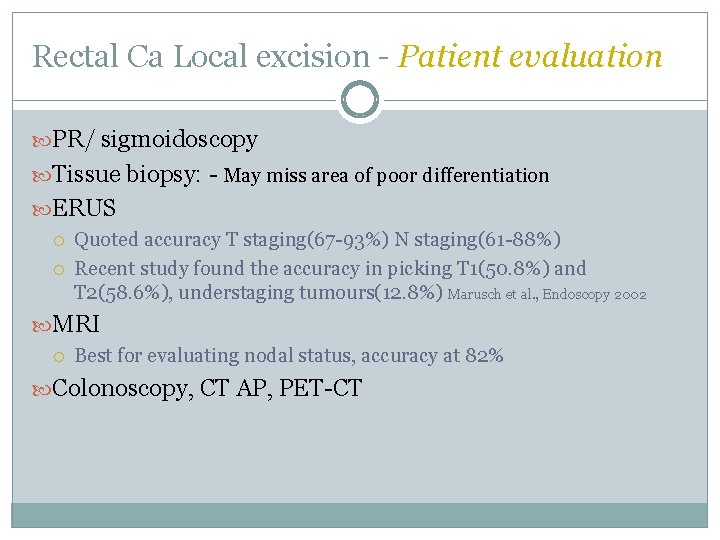

Rectal Ca Local excision - Patient evaluation PR/ sigmoidoscopy Tissue biopsy: - May miss area of poor differentiation ERUS Quoted accuracy T staging(67 -93%) N staging(61 -88%) Recent study found the accuracy in picking T 1(50. 8%) and T 2(58. 6%), understaging tumours(12. 8%) Marusch et al. , Endoscopy 2002 MRI Best for evaluating nodal status, accuracy at 82% Colonoscopy, CT AP, PET-CT

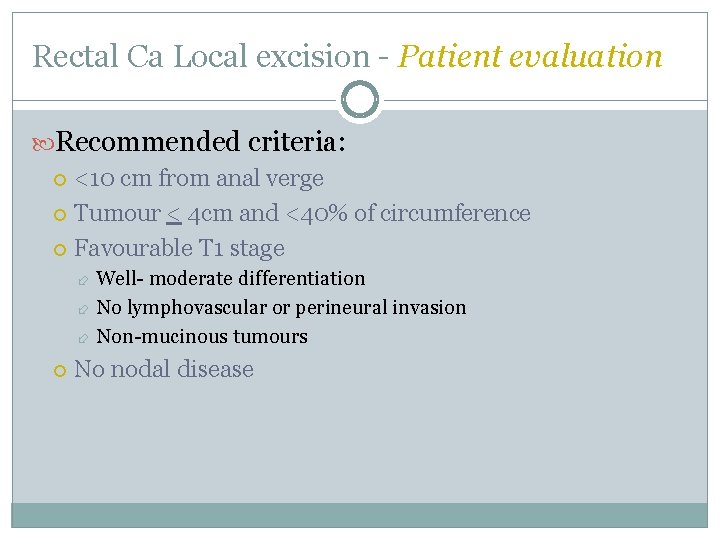

Rectal Ca Local excision - Patient evaluation Recommended criteria: <10 cm from anal verge Tumour < 4 cm and <40% of circumference Favourable T 1 stage Well- moderate differentiation No lymphovascular or perineural invasion Non-mucinous tumours No nodal disease

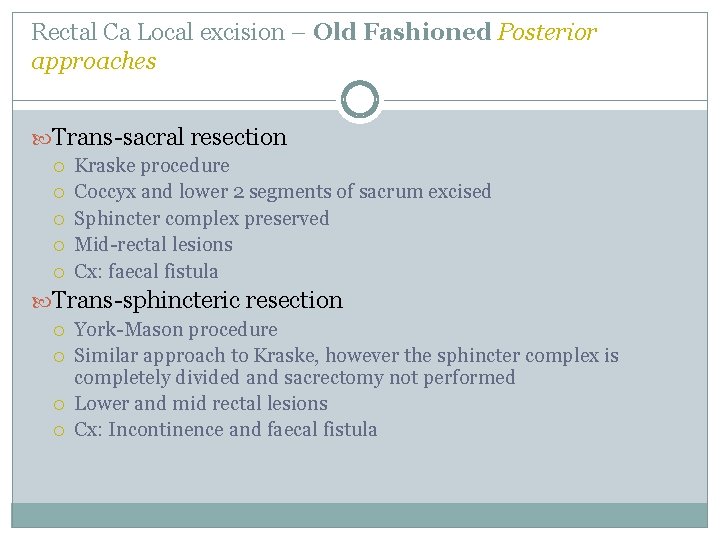

Rectal Ca Local excision – Old Fashioned Posterior approaches Trans-sacral resection Kraske procedure Coccyx and lower 2 segments of sacrum excised Sphincter complex preserved Mid-rectal lesions Cx: faecal fistula Trans-sphincteric resection York-Mason procedure Similar approach to Kraske, however the sphincter complex is completely divided and sacrectomy not performed Lower and mid rectal lesions Cx: Incontinence and faecal fistula

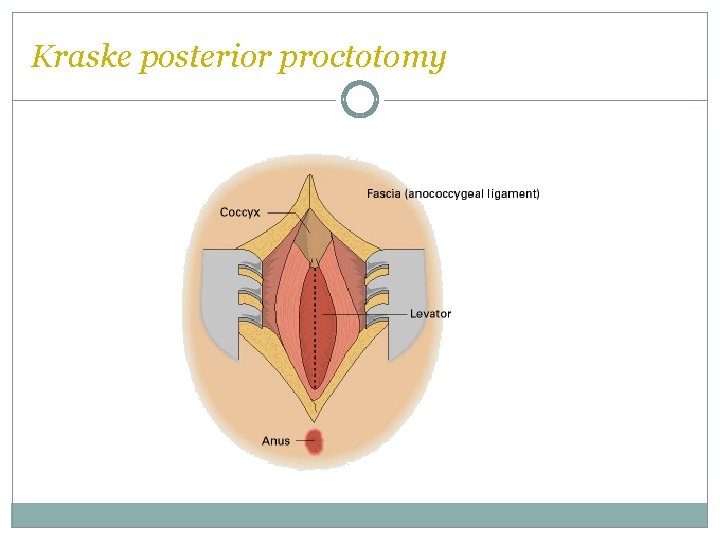

Kraske posterior proctotomy

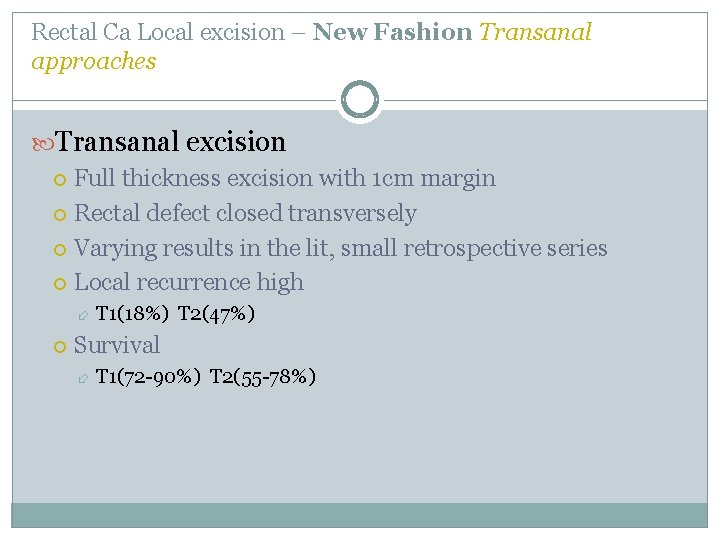

Rectal Ca Local excision – New Fashion Transanal approaches Transanal excision Full thickness excision with 1 cm margin Rectal defect closed transversely Varying results in the lit, small retrospective series Local recurrence high T 1(18%) T 2(47%) Survival T 1(72 -90%) T 2(55 -78%)

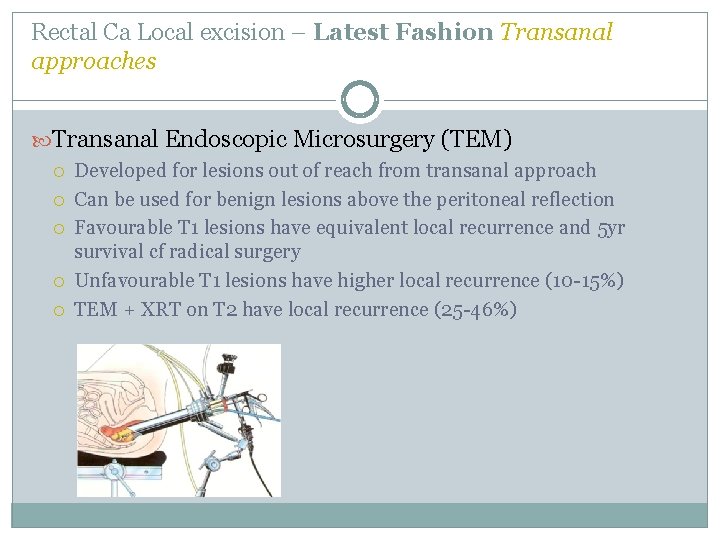

Rectal Ca Local excision – Latest Fashion Transanal approaches Transanal Endoscopic Microsurgery (TEM) Developed for lesions out of reach from transanal approach Can be used for benign lesions above the peritoneal reflection Favourable T 1 lesions have equivalent local recurrence and 5 yr survival cf radical surgery Unfavourable T 1 lesions have higher local recurrence (10 -15%) TEM + XRT on T 2 have local recurrence (25 -46%)

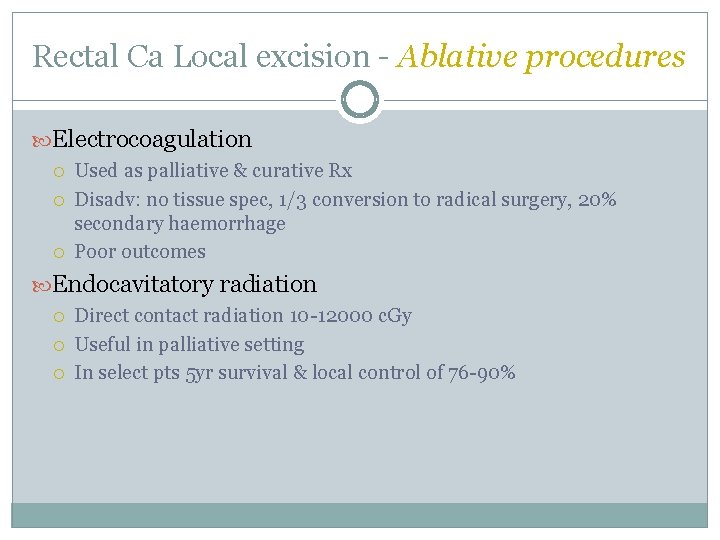

Rectal Ca Local excision - Ablative procedures Electrocoagulation Used as palliative & curative Rx Disadv: no tissue spec, 1/3 conversion to radical surgery, 20% secondary haemorrhage Poor outcomes Endocavitatory radiation Direct contact radiation 10 -12000 c. Gy Useful in palliative setting In select pts 5 yr survival & local control of 76 -90%

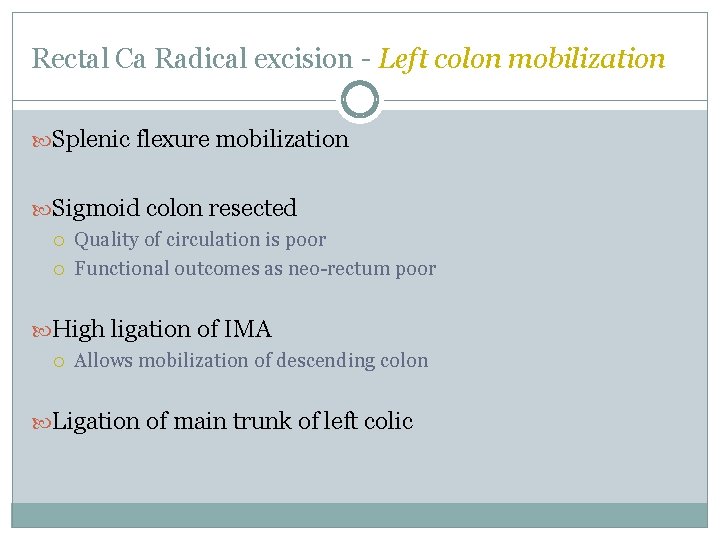

Rectal Ca Radical excision - Left colon mobilization Splenic flexure mobilization Sigmoid colon resected Quality of circulation is poor Functional outcomes as neo-rectum poor High ligation of IMA Allows mobilization of descending colon Ligation of main trunk of left colic

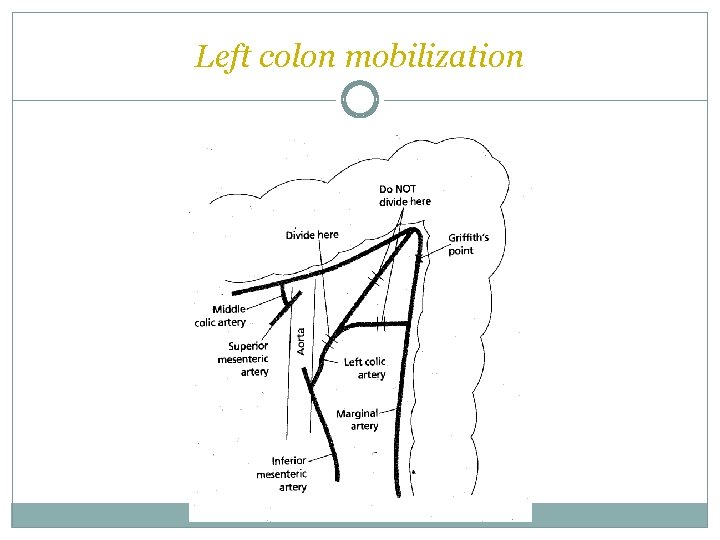

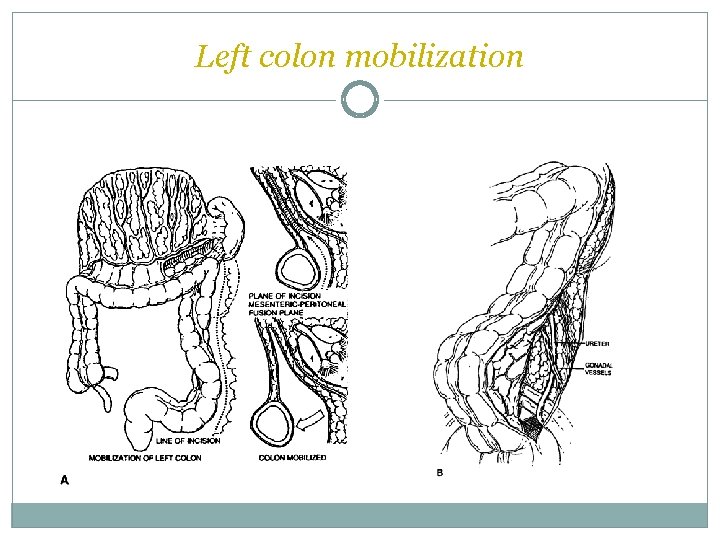

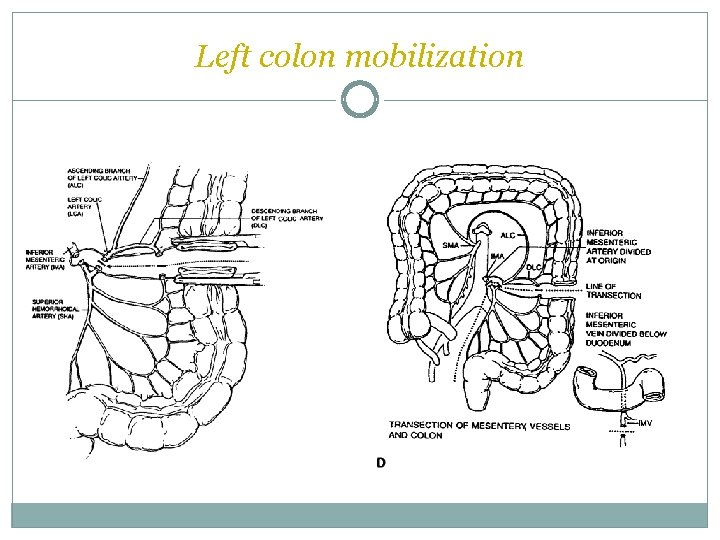

Left colon mobilization

Left colon mobilization

Left colon mobilization

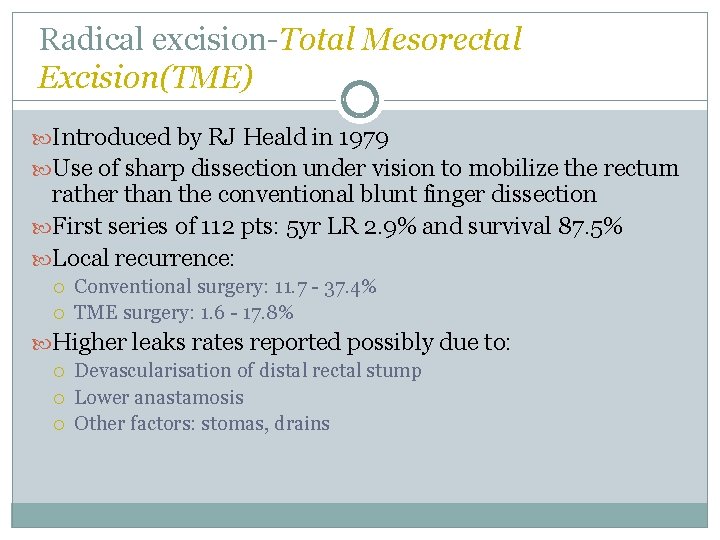

Radical excision-Total Mesorectal Excision(TME) Introduced by RJ Heald in 1979 Use of sharp dissection under vision to mobilize the rectum rather than the conventional blunt finger dissection First series of 112 pts: 5 yr LR 2. 9% and survival 87. 5% Local recurrence: Conventional surgery: 11. 7 - 37. 4% TME surgery: 1. 6 - 17. 8% Higher leaks rates reported possibly due to: Devascularisation of distal rectal stump Lower anastamosis Other factors: stomas, drains

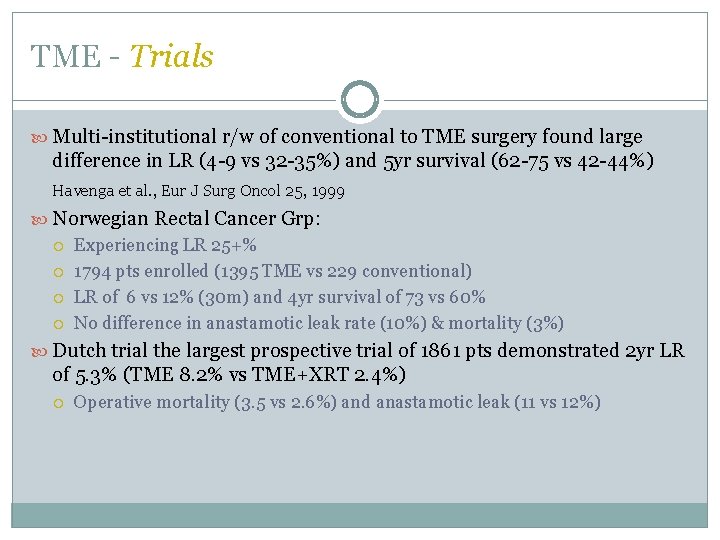

TME - Trials Multi-institutional r/w of conventional to TME surgery found large difference in LR (4 -9 vs 32 -35%) and 5 yr survival (62 -75 vs 42 -44%) Havenga et al. , Eur J Surg Oncol 25, 1999 Norwegian Rectal Cancer Grp: Experiencing LR 25+% 1794 pts enrolled (1395 TME vs 229 conventional) LR of 6 vs 12% (30 m) and 4 yr survival of 73 vs 60% No difference in anastamotic leak rate (10%) & mortality (3%) Dutch trial the largest prospective trial of 1861 pts demonstrated 2 yr LR of 5. 3% (TME 8. 2% vs TME+XRT 2. 4%) Operative mortality (3. 5 vs 2. 6%) and anastamotic leak (11 vs 12%)

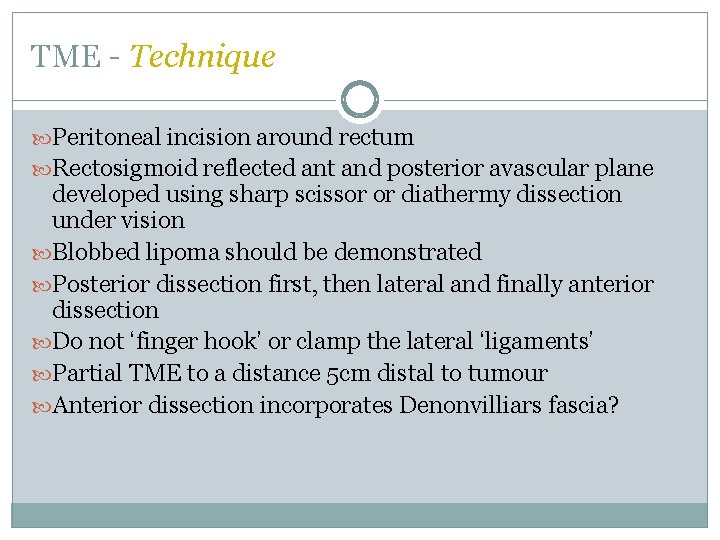

TME - Technique Peritoneal incision around rectum Rectosigmoid reflected ant and posterior avascular plane developed using sharp scissor or diathermy dissection under vision Blobbed lipoma should be demonstrated Posterior dissection first, then lateral and finally anterior dissection Do not ‘finger hook’ or clamp the lateral ‘ligaments’ Partial TME to a distance 5 cm distal to tumour Anterior dissection incorporates Denonvilliars fascia?

TME - Technique

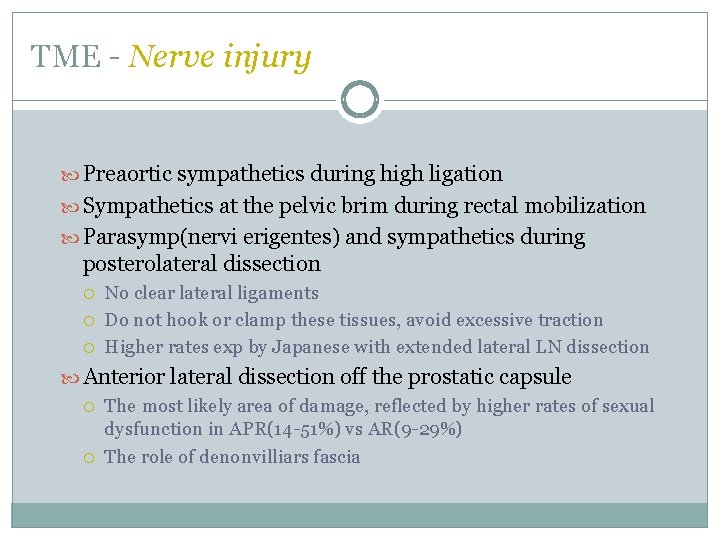

TME - Nerve injury Preaortic sympathetics during high ligation Sympathetics at the pelvic brim during rectal mobilization Parasymp(nervi erigentes) and sympathetics during posterolateral dissection No clear lateral ligaments Do not hook or clamp these tissues, avoid excessive traction Higher rates exp by Japanese with extended lateral LN dissection Anterior lateral dissection off the prostatic capsule The most likely area of damage, reflected by higher rates of sexual dysfunction in APR(14 -51%) vs AR(9 -29%) The role of denonvilliars fascia

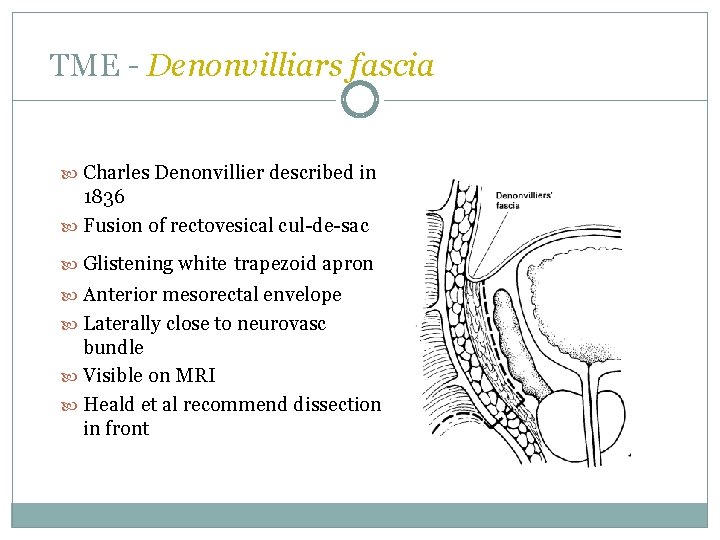

TME - Denonvilliars fascia Charles Denonvillier described in 1836 Fusion of rectovesical cul-de-sac Glistening white trapezoid apron Anterior mesorectal envelope Laterally close to neurovasc bundle Visible on MRI Heald et al recommend dissection in front

TME - Fascial envelope

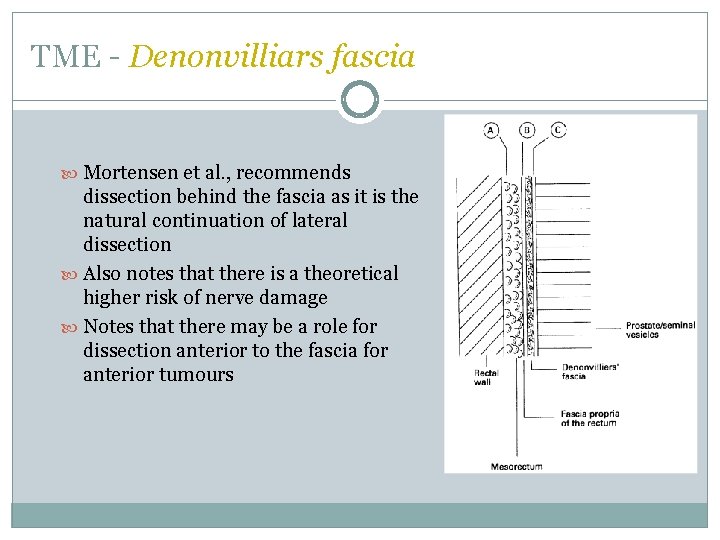

TME - Denonvilliars fascia Mortensen et al. , recommends dissection behind the fascia as it is the natural continuation of lateral dissection Also notes that there is a theoretical higher risk of nerve damage Notes that there may be a role for dissection anterior to the fascia for anterior tumours

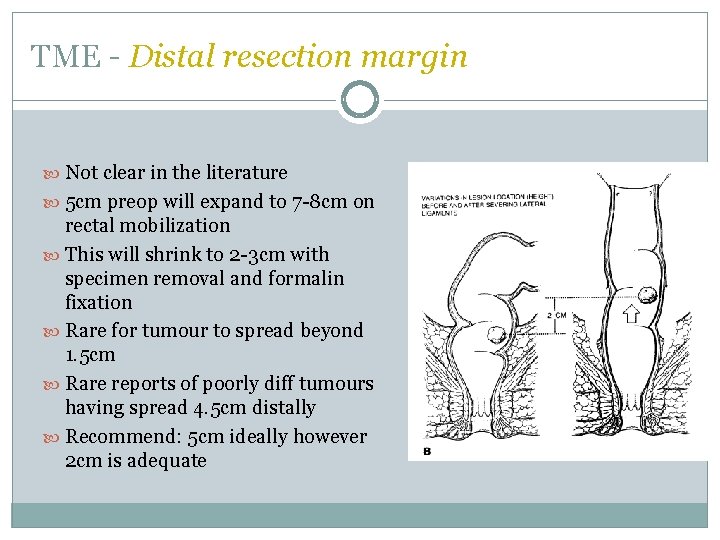

TME - Distal resection margin Not clear in the literature 5 cm preop will expand to 7 -8 cm on rectal mobilization This will shrink to 2 -3 cm with specimen removal and formalin fixation Rare for tumour to spread beyond 1. 5 cm Rare reports of poorly diff tumours having spread 4. 5 cm distally Recommend: 5 cm ideally however 2 cm is adequate

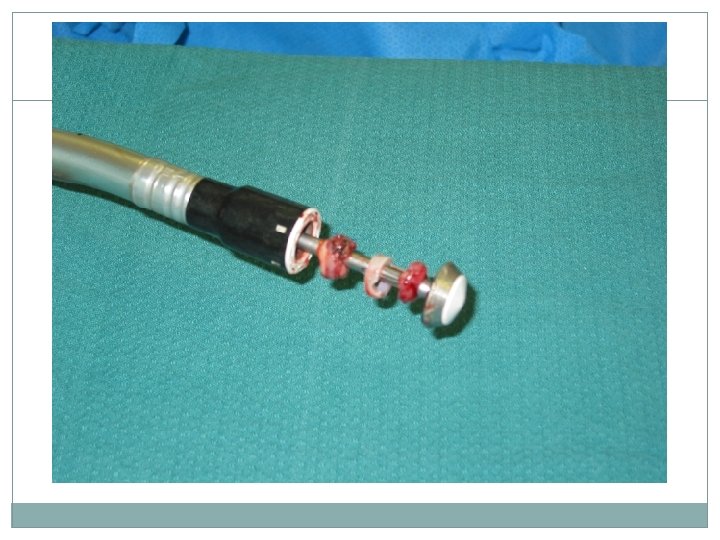

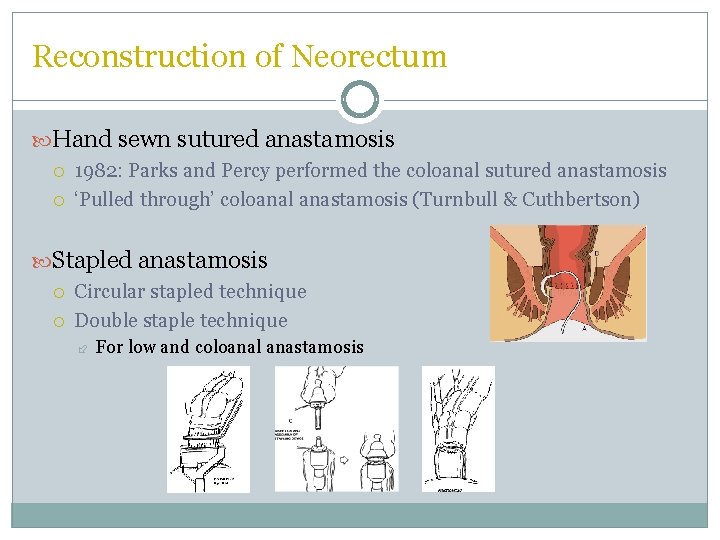

Reconstruction of Neorectum Hand sewn sutured anastamosis 1982: Parks and Percy performed the coloanal sutured anastamosis ‘Pulled through’ coloanal anastamosis (Turnbull & Cuthbertson) Stapled anastamosis Circular stapled technique Double staple technique For low and coloanal anastamosis

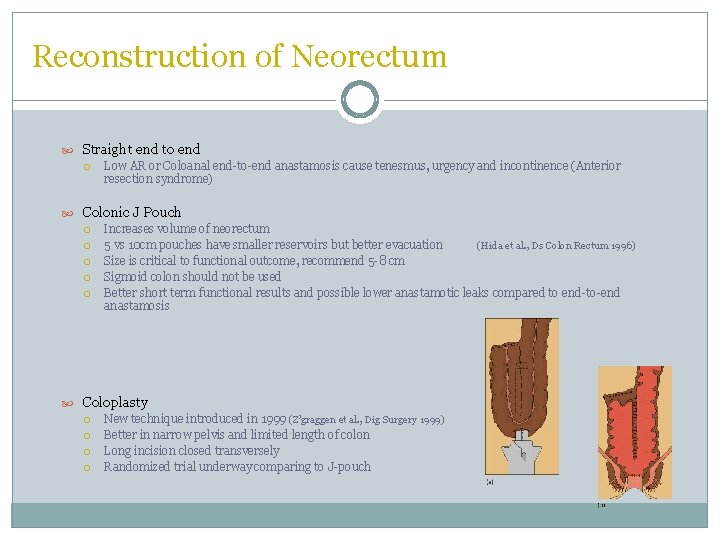

Reconstruction of Neorectum Straight end to end Low AR or Coloanal end-to-end anastamosis cause tenesmus, urgency and incontinence (Anterior resection syndrome) Colonic J Pouch Increases volume of neorectum 5 vs 10 cm pouches have smaller reservoirs but better evacuation (Hida et al. , Ds Colon Rectum 1996) Size is critical to functional outcome, recommend 5 -8 cm Sigmoid colon should not be used Better short term functional results and possible lower anastamotic leaks compared to end-to-end anastamosis Coloplasty New technique introduced in 1999 (Z’graggen et al. , Dig Surgery 1999) Better in narrow pelvis and limited length of colon Long incision closed transversely Randomized trial underway comparing to J-pouch

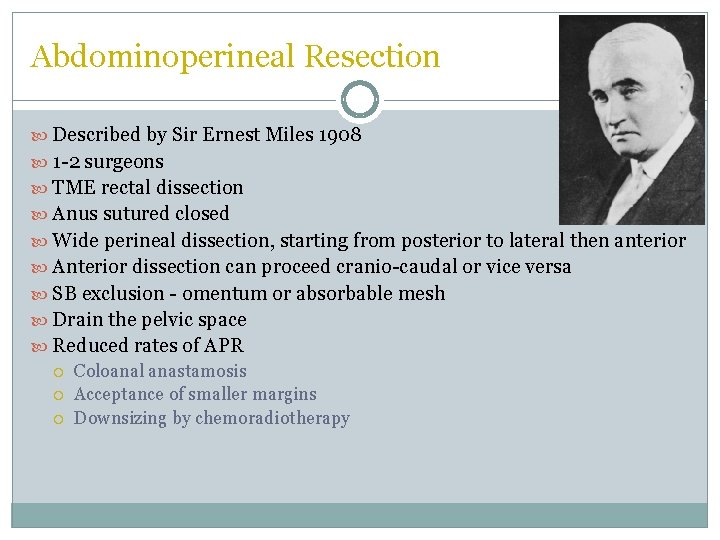

Abdominoperineal Resection Described by Sir Ernest Miles 1908 1 -2 surgeons TME rectal dissection Anus sutured closed Wide perineal dissection, starting from posterior to lateral then anterior Anterior dissection can proceed cranio-caudal or vice versa SB exclusion - omentum or absorbable mesh Drain the pelvic space Reduced rates of APR Coloanal anastamosis Acceptance of smaller margins Downsizing by chemoradiotherapy

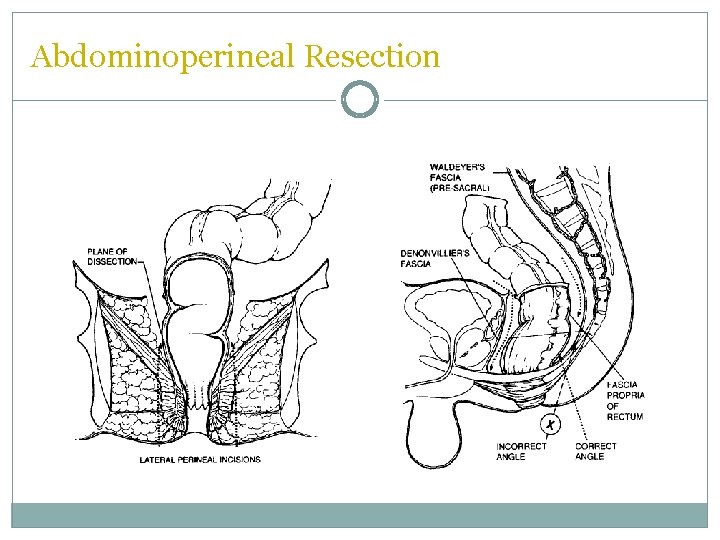

Abdominoperineal Resection

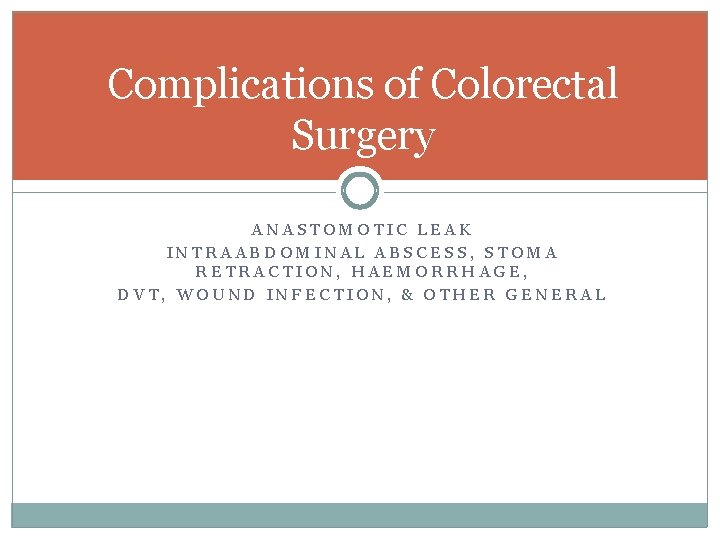

Complications of Colorectal Surgery ANASTOMOTIC LEAK INTRAABDOMINAL ABSCESS, STOMA RETRACTION, HAEMORRHAGE, DVT, WOUND INFECTION, & OTHER GENERAL

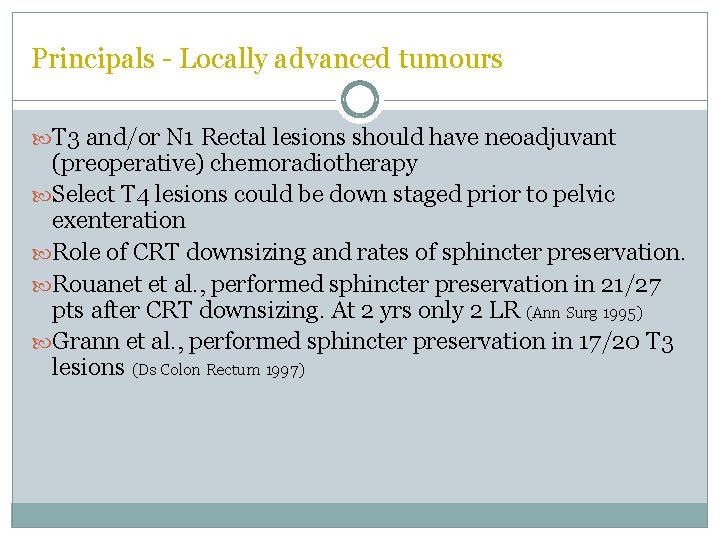

Principals - Locally advanced tumours T 3 and/or N 1 Rectal lesions should have neoadjuvant (preoperative) chemoradiotherapy Select T 4 lesions could be down staged prior to pelvic exenteration Role of CRT downsizing and rates of sphincter preservation. Rouanet et al. , performed sphincter preservation in 21/27 pts after CRT downsizing. At 2 yrs only 2 LR (Ann Surg 1995) Grann et al. , performed sphincter preservation in 17/20 T 3 lesions (Ds Colon Rectum 1997)

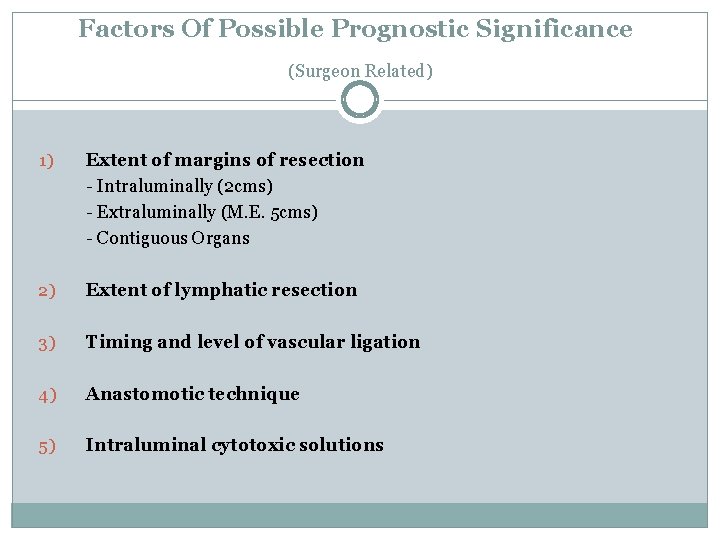

Factors Of Possible Prognostic Significance (Surgeon Related) 1) Extent of margins of resection - Intraluminally (2 cms) - Extraluminally (M. E. 5 cms) - Contiguous Organs 2) Extent of lymphatic resection 3) Timing and level of vascular ligation 4) Anastomotic technique 5) Intraluminal cytotoxic solutions

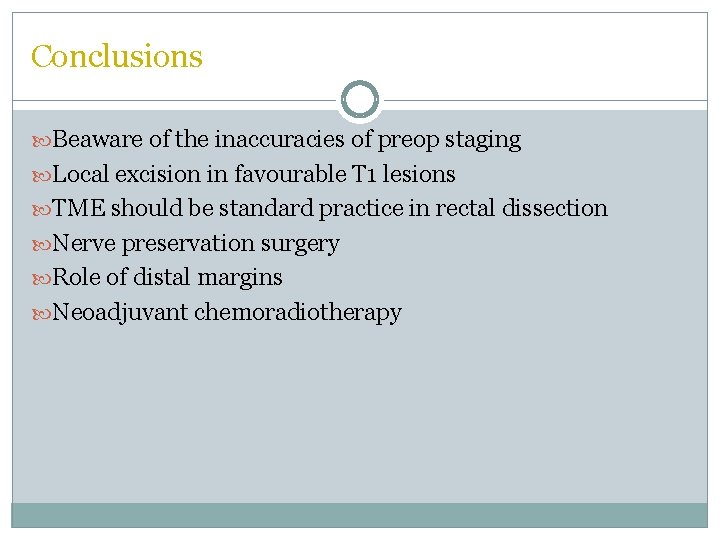

Conclusions Beaware of the inaccuracies of preop staging Local excision in favourable T 1 lesions TME should be standard practice in rectal dissection Nerve preservation surgery Role of distal margins Neoadjuvant chemoradiotherapy

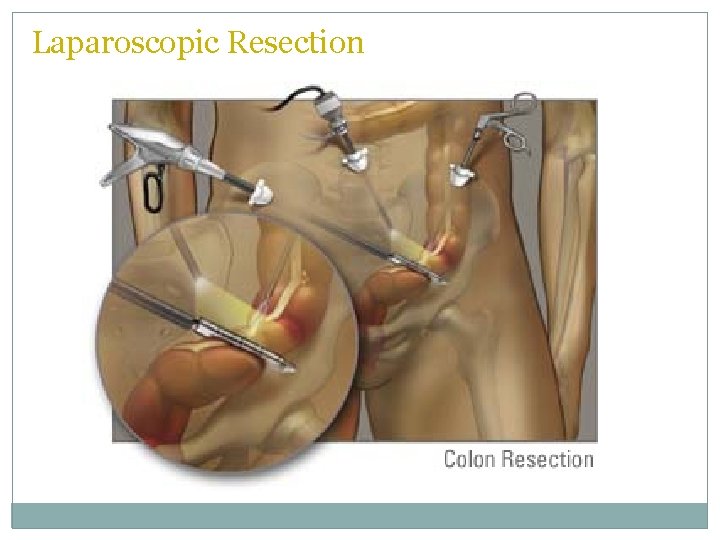

Laparoscopic Resection

Sacro-coccygectomy with APR

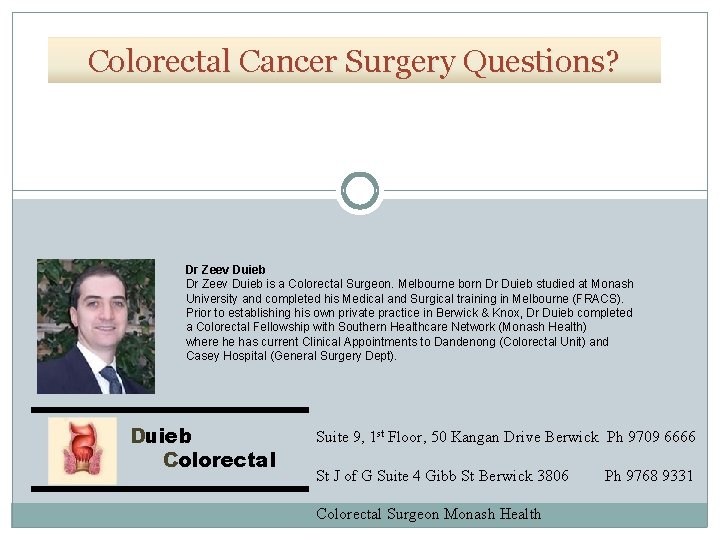

Colorectal Cancer Surgery Questions? Dr Zeev Duieb is a Colorectal Surgeon. Melbourne born Dr Duieb studied at Monash University and completed his Medical and Surgical training in Melbourne (FRACS). Prior to establishing his own private practice in Berwick & Knox, Dr Duieb completed a Colorectal Fellowship with Southern Healthcare Network (Monash Health) where he has current Clinical Appointments to Dandenong (Colorectal Unit) and Casey Hospital (General Surgery Dept). Duieb Colorectal Suite 9, 1 st Floor, 50 Kangan Drive Berwick Ph 9709 6666 St J of G Suite 4 Gibb St Berwick 3806 Colorectal Surgeon Monash Health Ph 9768 9331
