Coloplast Titan inflatable penile prosthesis with One Touch

Coloplast Titan inflatable penile prosthesis with One Touch Release pump: initial results Bruce B. Garber, MD, FACS Clinical Associate Professor Drexel University College of Medicine Philadelphia, PA 215 -247 -3082 Website: www. garber-online. com Email: bgarber@comcast. net

Ø Ø The Coloplast Titan inflatable penile prosthesis (IPP) was recently modified with a One Touch Release (OTR) pump, to facilitate deflation The OTR pump became available in September of 2008 OTR pumps are now available as separate units, or pre-connected to cylinders The objectives of this investigation were to assess the ease of implantation of this new pump, and to assess it’s functionality and ease of patient use, compared to the prior (Genesis) pump.

Coloplast Titan with Genesis pump

Coloplast Titan with One Touch Release (OTR) pump

25 November 2020 Engineering changes: Genesis pump vs. OTR pump 5

Methods Ø Ø Ø Ø 50 consecutive patients were implanted with a Titan IPP containing an OTR pump; some received a primary implant, others received an OTR pump during an IPP replacement procedure Implantation was either via standard trans-scrotal or infrapubic technique All procedures were done as an outpatient, by an experienced (>1000 cases) surgeon All patients received IV vancomycin and gentamicin pre-op Intra-op antibiotic irrigation and device soaking was carried out with rifampin and gentamicin, 1. 0 mg. of each per ml of sterile water Follow-up was obtained by retrospective chart review The control group consisted of 50 consecutive patients implanted with a Titan IPP containing a Genesis pump, immediately prior to the availability of the OTR pump

Objective results Mean follow up (mos. ) % follow-up # of IPP infections Average # of teaching visits (p=. 0004) Range of teaching visits # of pump malfunctions Control Group (N=50) 13. 5 100 0 1. 9 1 -4 0 OTR group (N=50) 4. 8 100 0 1. 1 1 -3 0

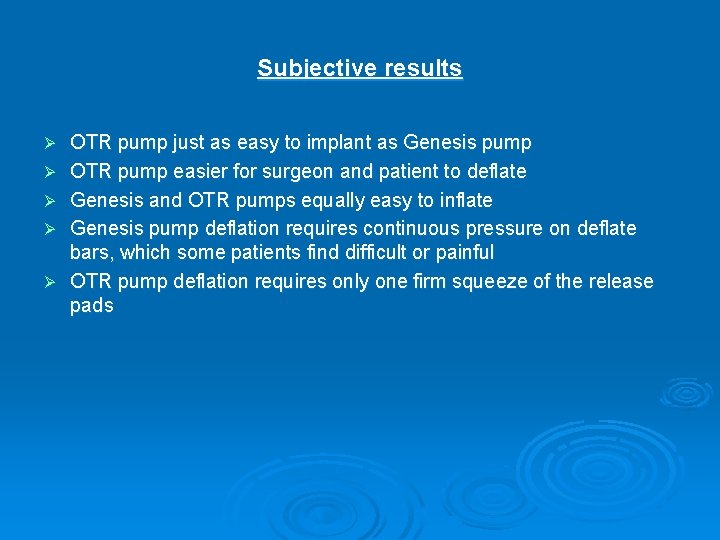

Subjective results Ø Ø Ø OTR pump just as easy to implant as Genesis pump OTR pump easier for surgeon and patient to deflate Genesis and OTR pumps equally easy to inflate Genesis pump deflation requires continuous pressure on deflate bars, which some patients find difficult or painful OTR pump deflation requires only one firm squeeze of the release pads

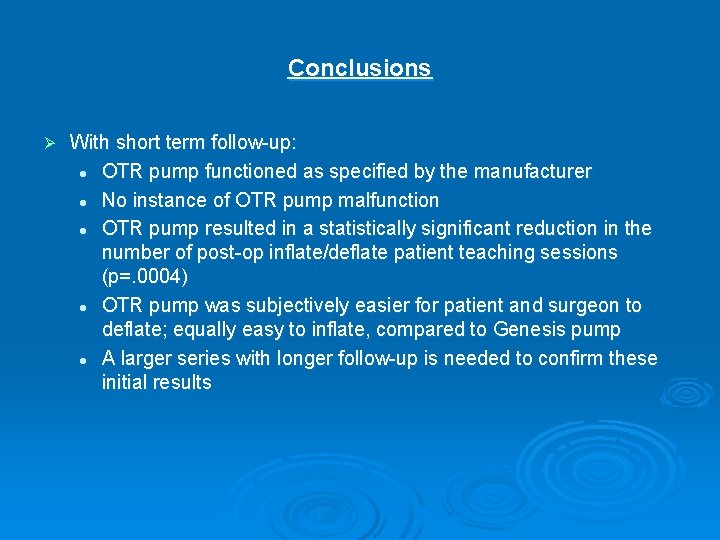

Conclusions Ø With short term follow-up: l OTR pump functioned as specified by the manufacturer l No instance of OTR pump malfunction l OTR pump resulted in a statistically significant reduction in the number of post-op inflate/deflate patient teaching sessions (p=. 0004) l OTR pump was subjectively easier for patient and surgeon to deflate; equally easy to inflate, compared to Genesis pump l A larger series with longer follow-up is needed to confirm these initial results
