Collisions Chapter 4 Chapter Objectives Use the impulsemomentum
Collisions Chapter 4
Chapter Objectives • Use the impulse-momentum principle and the principle of conservation of linear momentum in vector form • Apply conservation of linear momentum and Newton’s Law of Restitution to solve problems involving direct impact • Model and solve problems involving successive impacts

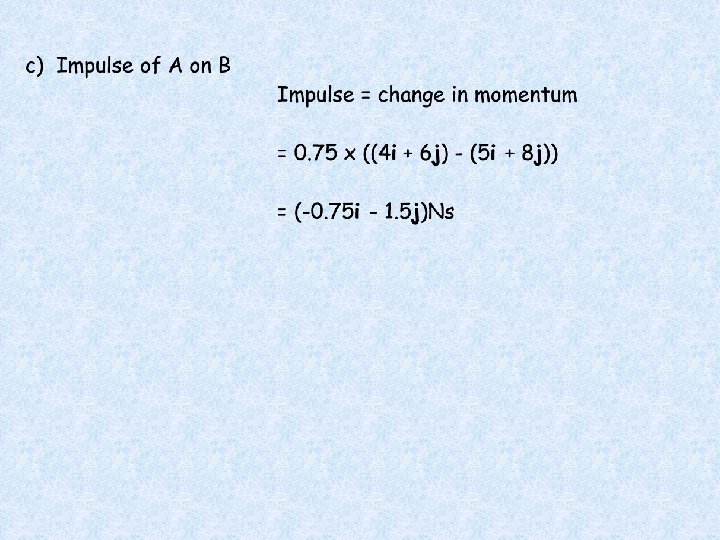

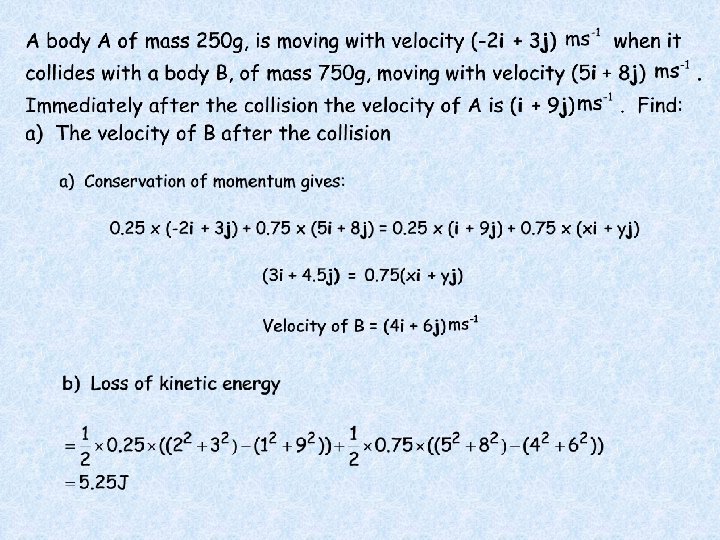

Use the impulse-momentum principle and the principle of conservation of linear momentum in vector form You met these principles in M 1 I = mv – mu the impulse of a force is equal to the change in momentum produced m 1 u 1 + m 2 u 2 = m 1 v 1 + m 2 v 2 the total momentum before impact equals the total momentum after impact
4. 1
4. 2 Apply conservation of linear momentum and Newton’s Law of Restitution to solve problems involving direct impact a direct impact is a collision between particles, of the same size, which are moving along the same straight line. The speeds of the particles after the impact depend on the materials they are made of.

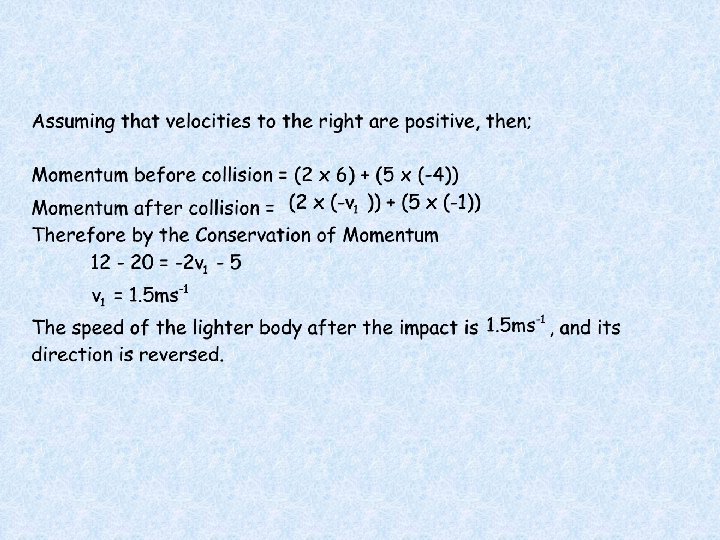

DRAW DIAGRAMS FOR BEFORE AND AFTER It is worth remembering that at this point one could not be certain of the direction of v 1.

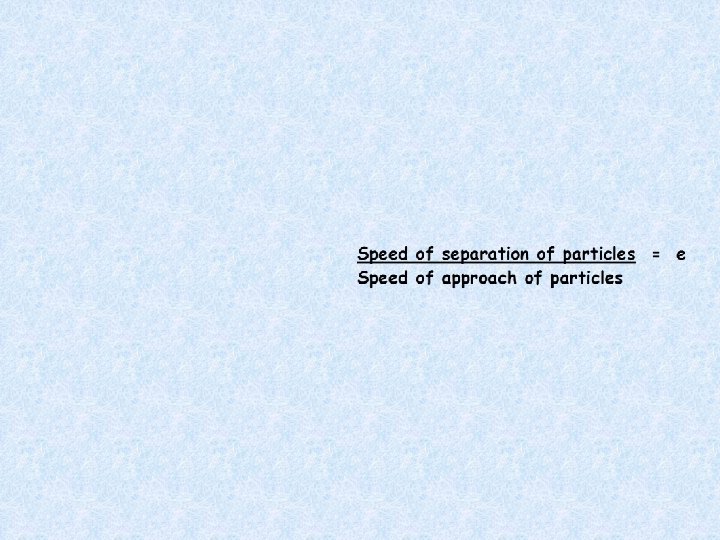

unlike this example please state Newton’s law
DRAW DIAGRAMS FOR BEFORE AND AFTER 2 ms- 4 ms-1 Before A 200 g 1 B 150 g SET UP THE TWO EQUATIONS ( NEWTON AND CONSERVATION)
Impact of a particle with a fixed surface. 4. 3 It is assumed that the collisions occur normally (i. e. along a perpendicular line) Newton’s Law becomes: Speed of rebound = e Speed of approach As well as horizontal collisions with fixed surfaces one can also be asked to consider particles falling from a height and rebounding to a new height.
A small smooth ball falls from a height of 3 m above a fixed smooth horizontal surface. It rebounds to a height 1. 2 m. Find the coefficient of restitution between the ball and the plane. The first task is to calculate the time it takes to fall to the surface and the speed at the time of contact.
DRAW DIAGRAMS FOR BEFORE AND AFTER SET UP THE TWO EQUATIONS ( NEWTON AND CONSERVATION)

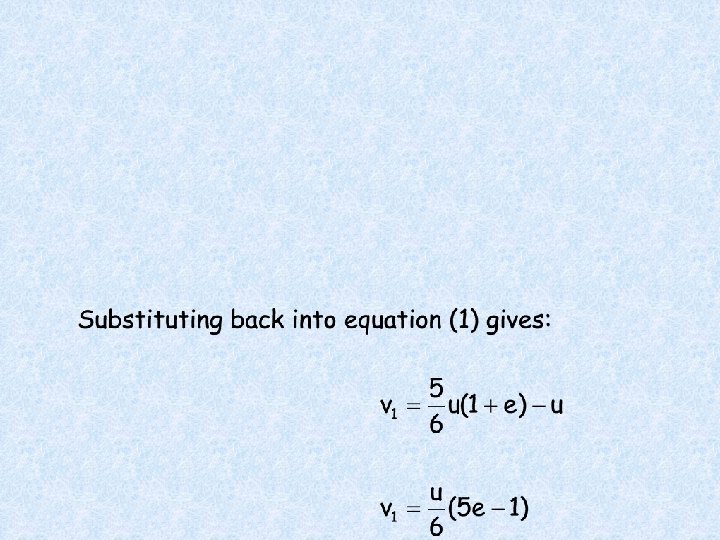

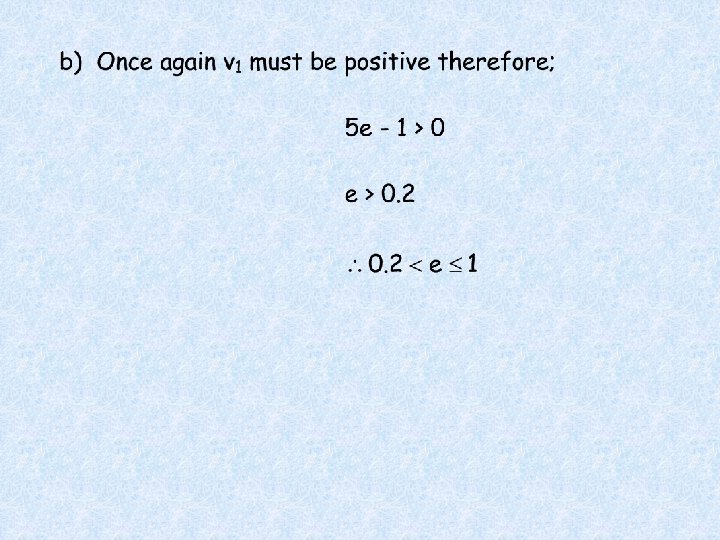

Two small smooth spheres, A and B, of equal radius, have masses m and 5 m respectively. The sphere A is moving with speed u on a smooth horizontal table when it collides directly with B, which is at rest on the table. As a result of the collision the direction of motion of A is reversed The coefficient of restitution between A and B is e. a) Find the speed of A and B immediately after the collision b) Find the range of possible values of e.
DRAW DIAGRAMS FOR BEFORE AND AFTER SET UP THE TWO EQUATIONS ( NEWTON AND CONSERVATION)

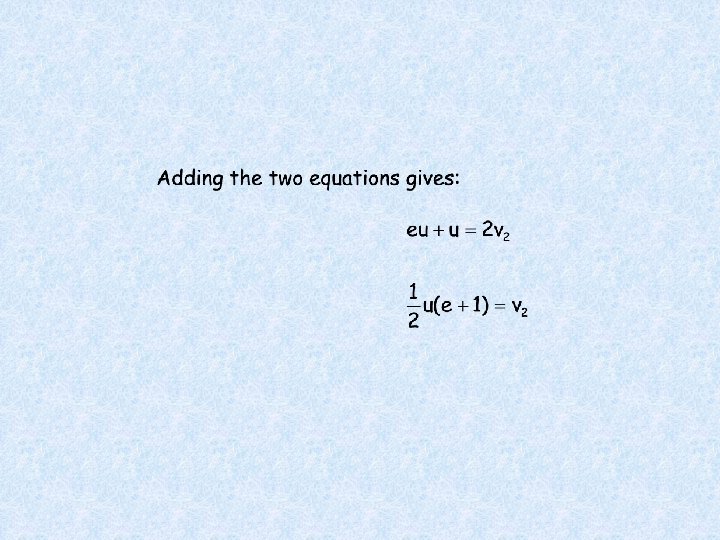

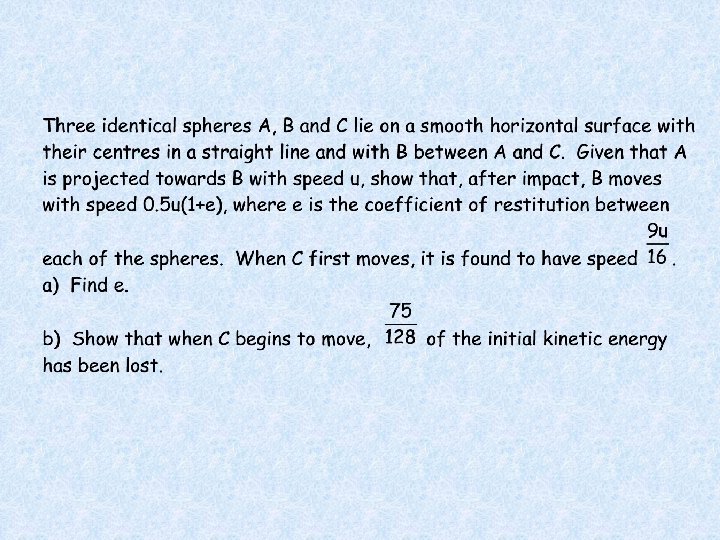

. 4. 4 Multiple collisions and problems involving three particles. Once again these questions only require the same approach as before, you should be able to set up the first set of simultaneous equations and find the values for v 1 and v 2. Lets look at some examples to see what goes on.

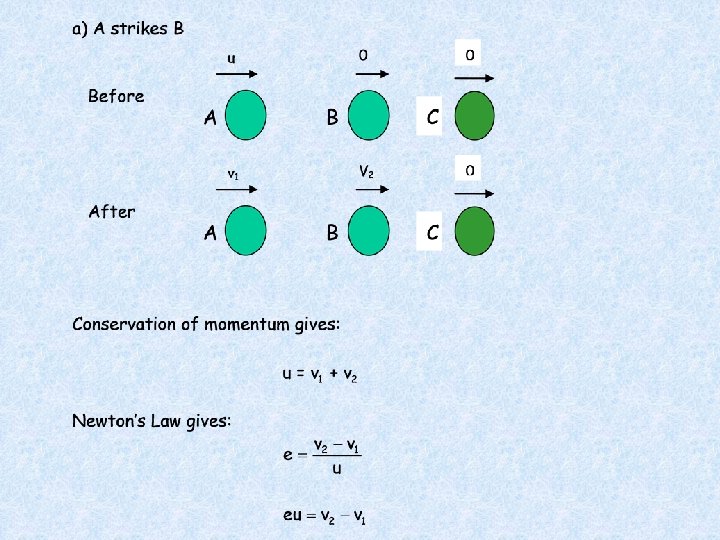

DRAW DIAGRAMS FOR BEFORE AND AFTER SET UP THE TWO EQUATIONS ( NEWTON AND CONSERVATION)
Conservation of momentum gives:

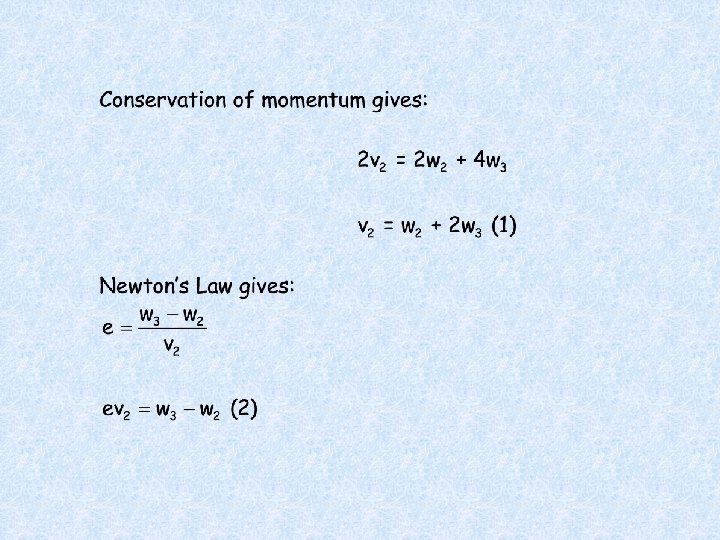

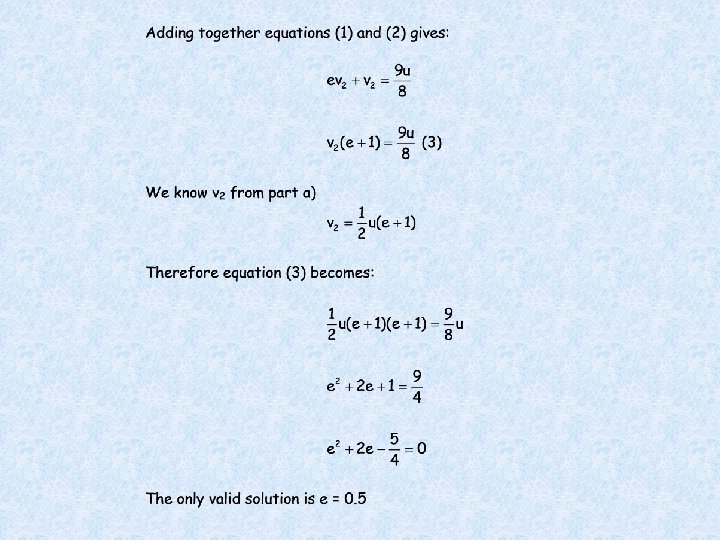

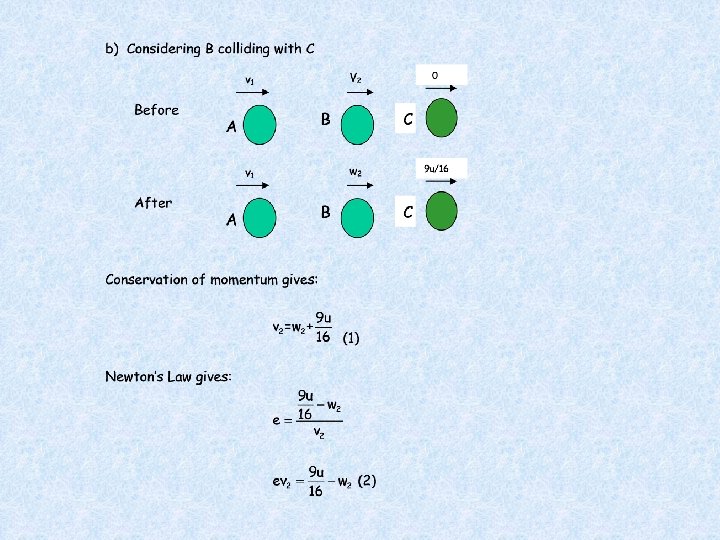

Considering B going on to strike C DRAW DIAGRAMS FOR BEFORE AND AFTER SET UP THE TWO EQUATIONS ( NEWTON AND CONSERVATION)
4. 5 change in energy due to an impact or the application of an impulse
DRAW DIAGRAMS FOR BEFORE AND AFTER SET UP THE TWO EQUATIONS ( NEWTON AND CONSERVATION)
End
