Collecting Performance Metrics By Tracy Boggiano About Me

Collecting Performance Metrics By Tracy Boggiano

About Me SQL EXPERIENCE • 19+ years experience on SQL Server dating back to 6. 5 • Idera Ace 2018 and Idera Superstar 2018 PASS INVOLVEMENT • Co-leader of SIG Advanced DBA of Tri. Pass In Raleigh • Leading getting Linux content in the existing Virtual Groups TRACY BOGGIANO Database Superhero Broadvine VOLUNTEER WORK • Founder of We. Speak. Linux. com • Member of Speaking. Mentors. com • Volunteer with abused and neglected foster children through the NC Guardian ad Litem (volunteerforgal. org) also known as CASA nationwide (casaforchildren. org) Database Superhero 2018 3

Agenda • Why • When • What • How

Why Database Superhero 2018

Why Having Performance Metrics is Important • Understanding the trends in your environment • You can find a problem before someone complains • Proactive tuning • Makes troubleshooting easier • Capacity planning

Why Having Performance Metrics is Important • Gives you a baseline to show normal performance • • What’s the normal CPU Utilization How much memory is used for Buffer Pool vs. Plan Cache What is the PLE (Page Life Expectancy) Shows you abnormalities that need to be investigated • • CPU suddenly increases by 10% • PLE is lower than normal Is the Buffer Pool lower than normal or Plan Cache higher than normal

When Database Superhero 2018

When Should You Collect Performance Metrics • All the time • Collect samples on a regular interval such as every 30 seconds • Some things that we don’t cover such as table space less frequently

What Database Superhero 2018

What Systems Should You Collect Metrics On • Production is most important • But your test environment is “production” to your developers • Answer “ALL OF THEM”

How Database Superhero 2018

sp_whoisactive • Captures what is occurring now on the server • Can setup to capture to a table for later troubleshooting • http: //whoisactive. com/docs/25_capturing/ • EXEC DBA. DBMaint. Who. Is. Active @get_plans = 1, @get_full_inner_text = 1, @format_output = 0, @get_task_info = 2, @destination_table = 'dbo. Who. Is. Active. Output’; • Setup a job to cleanup the data

Query Store • • • Fix queries that have recently regressed Identify top queries Audit the history of query plans for a given query Analyze the resource usage patterns for a particular database In 2017 • It shows us wait stats for each query • Auto plan correction

Open Query Store • For those who can’t upgrade to 2016/2017 (yet) • Come with reports integrate with SSMS • Backwards compatible to 2008 • Opensource

Telegraf Solution Database Superhero 2018

Influx. DB • Open Source • Time Series Database • Name implies optimized for time-stamped or time series data • So it’s created for storing monitoring data • Tracks events tracked, monitored, downsampled, and aggregated over time

Grafana • Provides a graphical interface for our data we are going to collect • Very interactive • Provides the ability to create alerts • Provides the ability to add links to charts 20% improvement in CPU after turning on Query Store Auto Plan Correction

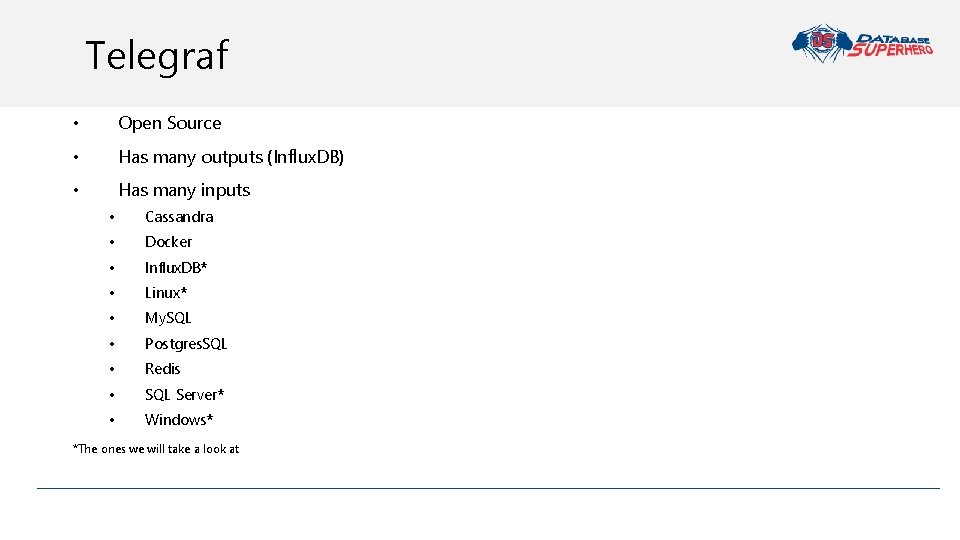

Telegraf • Open Source • Has many outputs (Influx. DB) • Has many inputs • Cassandra • Docker • Influx. DB* • Linux* • My. SQL • Postgres. SQL • Redis • SQL Server* • Windows* *The ones we will take a look at

What Data is Collected • Azure. DB: sys. dm_db_resource_stats • Database IO: sys. dm_io_virtual_file_stats • Memory Clerk: sys. dm_os_memory_clerks • Performance Counters: sys. dm_os_performance_counters • Server properties • Wait stats

Installation Database Superhero 2018

Install and Configure Influx. DB • Go to website and use commands for operating system • Using Linux a few extra steps • Start the service • Set to auto start • Add ports to firewall • Create database • Set retention policy

Install and Configure Grafana • Go to website and use commands for operating system • Using Linux a few extra steps • Start the service • Set to auto start • Add ports to firewall • Add Influx. DB as data source • Import dashboards

Setup a Login in SQL Server • Setup user on SQL Server USE master; GO CREATE LOGIN [telegraf] WITH PASSWORD = N'mystrongpassword'; GO GRANT VIEW SERVER STATE TO [telegraf]; GO GRANT VIEW ANY DEFINITION TO [telegraf]; GO

How to Setup Telegraf • Download from website from nightly builds (https: //dl. influxdata. com/telegraf/nightlies/tel egraf-nightly_windows_amd 64. zip) • Unzip to a network folder • Later we will Power. Shell to install on Windows • Then let’s setup the config file(s)

Demo Go through conf file Database Superhero 2018

Install Telegraf on SQL Server on Windows • Power. Shell Script $servers = @( 'server 1', 'server 2' ) $servers | % { Write-Host "$($_). . . " New-Item -Path "\$($_)c$Program Filestelegraf" -Item. Type Directory -Force Copy-Item -Path "\servertelegraf. *" -Destination "\$($_)c$Program Filestelegraf" -Force Invoke-Command -Computer. Name $_ -Script. Block { Stop-Service -Name telegraf -Error. Action Silently. Continue & "c: program filestelegraf. exe" --service install -config "c: program filestelegraf. conf" Start-Service -Name telegraf } }

Install Telegraf on SQL Server on Linux • Go to website and use commands for operating system • Using Linux a few extra steps • • Create config file Edit config file Start the service Set to auto start

Setup Grafana Datasource • Give it a Name • Check off the Default box • Change to Influx. DB Type • Fill out your URL • Then fill out your Influx. DB Details • Save to test it

Setup Grafana Dashboards • • • Click on Dashboards then Import Copy and paste the JSON in the big box Rename the dashboard if so choose Then click Load All dashboards I use will be available for download

Demo Datasources Check load dashboards and checkout stats Query Store Database Superhero 2018

Resource Governor

Demo What Interrupted My Nap One Saturday? #On. Call. Selfie Database Superhero 2018

The Page

Memory Clerk and PLE Buffer Pool Dropped 44 GBs PLE Dropped from 19 hours to 0 ms

sp_whoisactive Output

#On. Call. Selfie

Cost of Telegraf Setup Influx. DB is costing ~$3000 a year for ~500 servers (t 4. micro in AWS) • • 8 CPUs • 32 GBs RAM • 600 GBs of disk space Grafana cost $5. 26 a month on a year contract (t 2. micro in AWS) • • 1 CPU • 1 GB RAM • No space requirements

Resources • Capture sp_showisactive to table - http: //whoisactive. com/docs/25_capturing/ • Monitoring Performance By Using the Query Store - https: //docs. microsoft. com/en -us/sql/relational-databases/performance/monitoring-performance-by-using-thequery-store • Open Query Store - https: //github. com/Open. Query. Store • Query Store Primer Presentation - http: //tracyboggiano. com/download/querystore-primer/ • Install SQL on Linux - https: //docs. microsoft. com/en-us/sql/linux/quickstart-installconnect-red-hat

Resources • Telegraf Plugin - https: //github. com/influxdata/telegraf/ • Influx. DB – http: //influxdb. com • Grafana – http: //Grafana. com • Guide for Setting up Telegraf - http: //tracyboggiano. com/archive/2018/02/setup-oftelegraf • SQLskills Waits Library - https: //www. sqlskills. com/help/waits/ • Wait Stats - https: //docs. microsoft. com/en-us/sql/relational-databases/system-catalogviews/sys-query-store-wait-stats-transact-sql • Mark’s Announcement - https: //m 82 labs. com/news-01 • Mark’s Podcasts on Resource Governor http: //sqldatapartners. com/2017/03/15/episode-87 -resource-governor/

Questions?

Contact Info EMAIL tracy@tracyboggiano. com TWITTER @Tracy. Boggiano MY WEBSITE databasesuperhero. com
