Data Productivity • Nobeyama Radio ：~1 TB/yr • Subaru@Hawaii ：~20 TB/yr • ALMA（planned） ：~PB/yr Flood of excellent data (survey data) Digitized & Archived 2003/03/25 天文学会春季年会

HPC + High Speed NETWORK +GRID Technology → it is possible to connect and seamlessly use remote DBs and computing facilities for data analyses → Virtual Observatory 2003/03/25 天文学会春季年会

JVO (will) consists of • • Seamless Access to Federated DBs Various Data Analysis tools Advanced Analysis such as Data Mining Federation with Real Telescopes → crucial to control data quality in VO 2003/03/25 天文学会春季年会

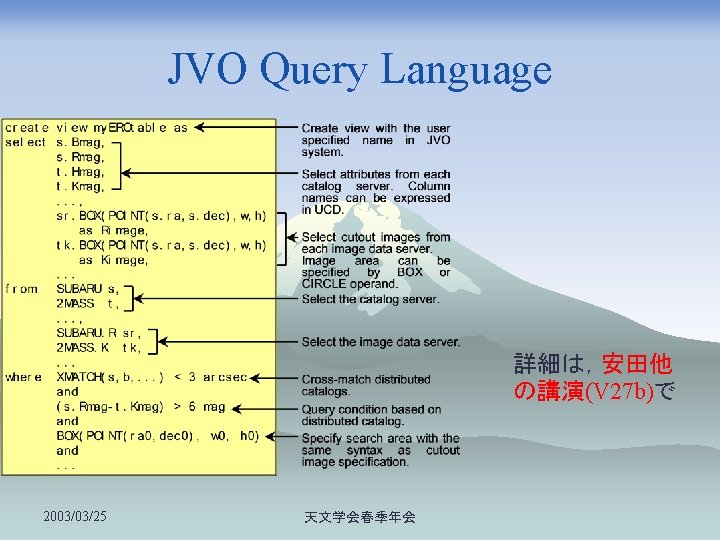

JVO prototype : Ver. 1 • Establish seamless access to federated DBs by using the Grid technology • Define JVO Query Language, and implement its parser • Test environment is in a closed subnet 2003/03/25 天文学会春季年会

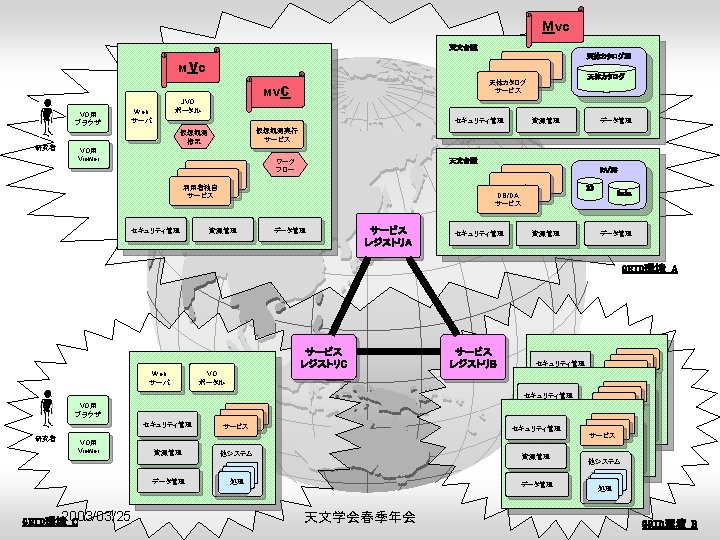

Query request Web Broser サービス JVO Browser ASTRONOMER JVO Query Language 利用者独自 Parse JVO QL into each query sequence JVO Portal JVO Viewer skycat Catalog Query Service Commands callable from the GT 2 JVO Contoroller Catalog DB Data Archive Service Globus Toolokit V 2 Data Management DB UDDI Server （Free. Soft) Globus Toolkit Service Registry Security Service Resource Management Data Management Grid. FTP each query Resolve servers to request queries 2003/03/25 Data 天文学会春季年会 Data Analysis Services

Redhat Linux JVO Prototype System Architecture GSDL UDDI Maintenance Tool JVO Client Apache Tomcat Netscape Communicator JVO Service (X match) Maintenance Tool UDDI 4 J soapuddi Apache ＳＯＡＰ ① Servlet Down. Load Globus Toolkit (Server) Java 2 SE 1. 4 Hypertext contents Redhat Linux JVO Service Gb Ether Solaris 8 (Possible at Linux) JVO Controller UDDI Registory / Servlet Engine 2 Mass Data. Base JVO Service (select) • register • update • delete JDBC SQL library Java 2 Plugin JVO Client (servlet) ③ Find Service ② Request Observation JVO Controller DB Service Java 2 SE 1. 4 Postgre. SQL (DBMS) UDDI 4 J ⑤ execute Service ⑤’ execute Service Image Data SUBARU Sup. Cam z-band UDDI Data • get & parse GSDL • pre condition check • execute Service • post condition check Internet ③ get GSDL Check status ④’ Get GSDL by Grid. FTP ⑥’ spawn Service Grid. FTP SQL library JVO Service (select) SQL library JVO Service (image) Image Data Free Software Commercial Software 2003/03/25 GSDL ⑥ spawn Service JVO Service (count) In House Software Function JVO Service (image) JVO Service (X match) Globus Toolkit (Server) Globus Toolkit GSDL Globus Toolkit (Server) JVO Service SUBARU Data. Base JVO Service ⑦ issue SQL GSDL (copy) ④ Get GSDL by Grid. FTP AVO 2 Mass DB Redhat Linux Globus Toolkit (Client) NVO Postgre. SQL JVO Server Monitoring Globus Toolkit DB Service Image Data (copy) JVO Service (X match) Image Data (copy) The following free software is included by globus toolkit. • Open. SSL (Secure Socket Library) • Open. LDAP (LDAP Server) • wu-ftpd (ftp server) 天文学会春季年会 JVO Service (select) SQL library JVO Service (count) SQL library ⑦’ issue SQL Copy imate data by Grid. FTP Image Data (copy) Image Data DB Service ORACLE SUBARU Sup. Cam i-band

How it works ? • Read JVO QL • Create “Work Flow”, and execute each step • When necessary, access to the registry to expand the step of the work flow • Thus the steps increases dynamically 2003/03/25 天文学会春季年会

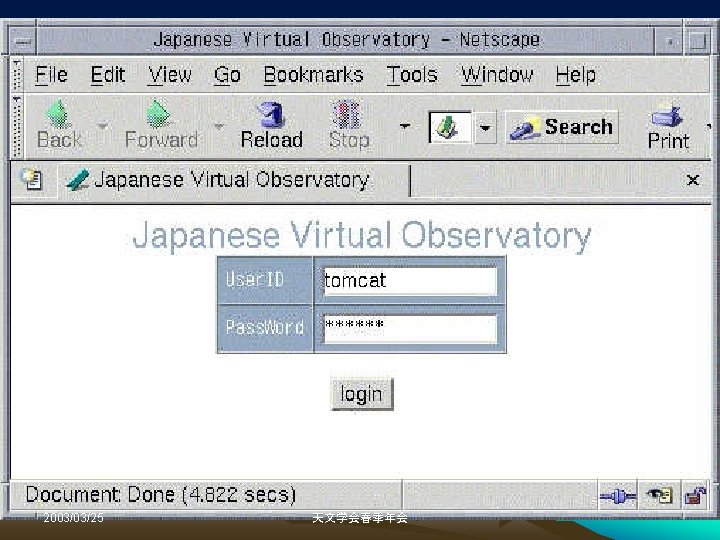

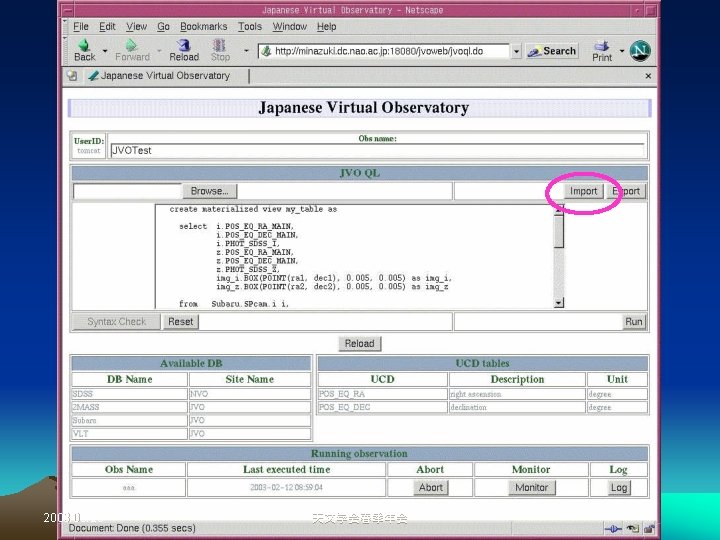

Query Files can be stored in a local PC (WS) 2003/03/25 天文学会春季年会

Monitor Window: Refreshed automatically in every 15 seconds 2003/03/25 天文学会春季年会

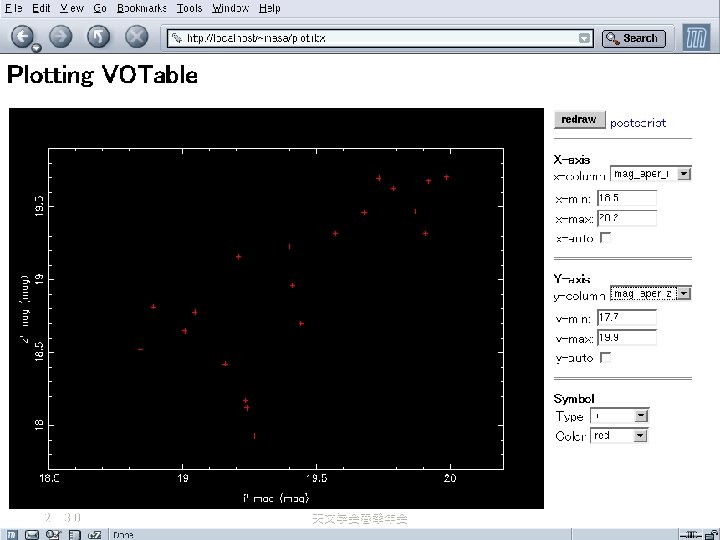

VOTable as output • XML • Standard data exchange format among VOs defined by the IVOA (see below) 2003/03/25 天文学会春季年会

Sample Outputs 2003/03/25 天文学会春季年会

FAQs on our Prototype Q) Contents of environment variables are not passed to the executing machines. A) Prepare a shell script to get environment variables and another script to execute the command. Then Grid. FTP these shell scripts , and execute the shells in the remote machine. Q) It is impossible to prepare all users’ account to all relevant machines. A) Map all accounts on a portal to a single representative one, such as globus. 2003/03/25 天文学会春季年会

FAQs Q) GT 2 has too large overhead before starting actual jobs !! They are several seconds. Request) Overheads must be < 0. 1 seconds excluding the network delays. A) Use NMI (NSF Middleware Initiative) where each key generation is quite fast through assembler. 2003/03/25 天文学会春季年会

Future • Prototype version 2 (in progress) implement data analysis tools add more data (SXDF, SDSS, etc. ) • Interoperation with VOs in the world We have joined the International Virtual Observatory Alliance, and are contributing standardizing protocols for interoperability. 2003/03/25 天文学会春季年会

VOs in the World • NVO (USA), AVO (EU), Astro. Grid (UK) • Germany, Canada, Russia, Australia • India, China, JAPAN Protocols to interconnect VOs → International Virtual Observatory Alliance (IVOA) 2003/03/25 天文学会春季年会
