Cold Chain Equipment Specification 1 WIC WIF Model
- Slides: 28
Cold Chain Equipment Specification 1
WIC WIF Model Manufacturer Capacity Refrigerant Gas PQS No. Zanoti Zhendre 30 m 3(cooler) 20 m 3(freezer) R 404 a E 001/002 Euromon 3 Hurree 40 m 3(cooler) 20 m 3(freezer) R 404 a E 003/011 Fridgabohn Hurree R 404 a 2
HURREE WIC/WIF 3

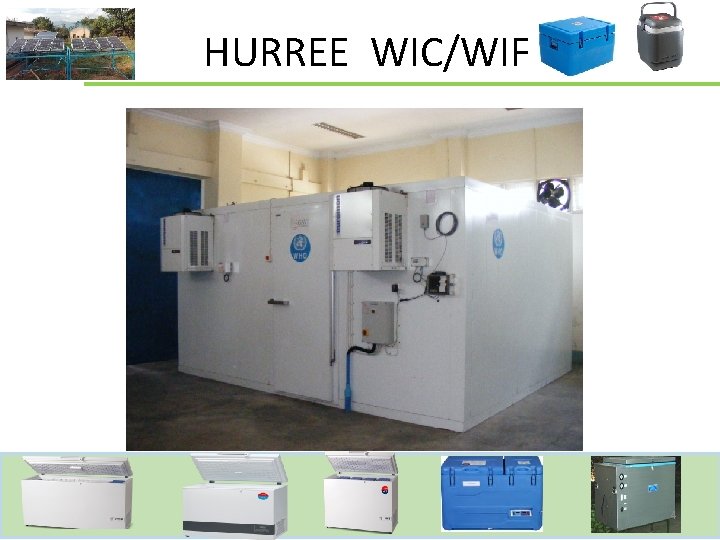

HURREE WIC/WIF 4
HURREE WIC/WIF 5

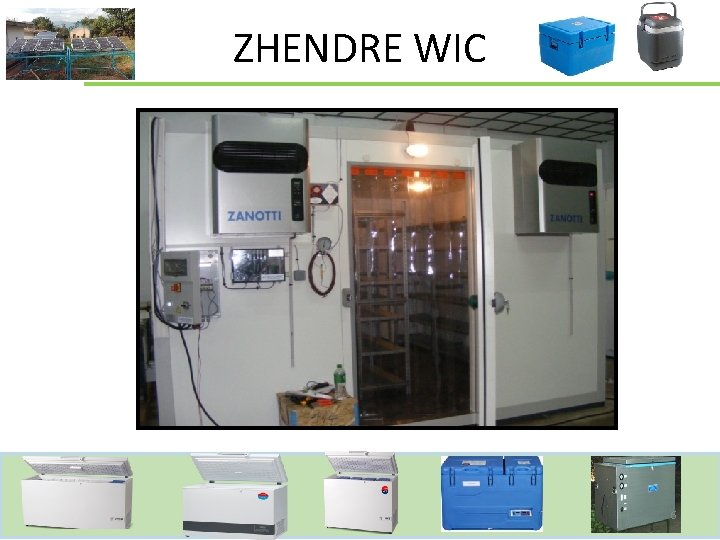

ZHENDRE WIC 6
ZHENDRE WIF 7
Ice-lined Refrigerator Model Brand Manufacture Capacity r Refrigerant Gas PQS No. MK 304 Vestfrost Denmark 105 L R 134 a E 003/007 VLS 350 Vestfrost Denmark 127 L R 600 a E 003/033 TCW 1152 electrolu x 169 L R 134 a E 003/24 M Swedish 8
MK 304 • Gross volume, litres(cu. ft. ) 218 (7. 7) • Net volume, litres(cu. ft. ) 105 (3. 7) • Temperature range, at 32° AMB +2 to +8 • Power consumption per 24 h, k. Wh 3. 20 • Hold-over time during power cut at 43°C AMB, hr 25 • Refrigerant R 134 a • Company Vestfrost • Manufacturer Denmark • PQS No. E 003/007 9
TCW 1152 • Net volume, litres 169 • Temperature range, at 32° AMB +2 to +8 • Hold-over time during power cut at 43°C AMB, hr 1. 6 • Refrigerant R 134 a • Company electrolux • Manufacturer Swedish • PQS No. E 003/24 M 10
VLS 350 • Temperature range, C° +2 to +8 • Power consumption per 24 h, k. Wh 0. 61 • Hold-over time during power cut at 43°C AMB, hrs 31. 5 Net volume, litres(cu. ft. ) 127 (4. 5) • Gross volume, litres(cu. ft. ) 209 (7. 4) • Refrigerant • Company R 600 a Vestfrost • Manufacturer Denmark • PQS No. E 003/033 11
FREEZER Model Brand Manufacturer Capacity Refrigerant PQS No. Gas MF 314 Vestfrost Denmark Icepack 256× 0. 6 L R 134 a E 003/023 TFW 800 Dometic luxembourg 187 pcs x 0. 6 L R 134 a E 003/004 12
MF 314 Gross volume, litres(cu. ft. ) 281 (9. 9) Net volume, litres(cu. Ft) 271 (9. 6) Temperature range, C° -18 to -28 Power consumption per 24 h, k. Wh 4. 23 Hold-over time during power cut at 43°C AMB, hrs 4 Refrigerant R 134 a Icepack freezing capacity, per 24 hrs. 7. 2 • Company Vestfrost • Manufacturer Denmark • PQS No. E 003/023 13
TFW 800 Total volume (l) 290 Frozen icepack storage capacity (0. 6 l) 187 Energy consump. @ambient temp 43°C (k. Wh/24 h) 5. 77 WHO specifications E 3 / FR. 2 • Company manufacturer electrolux luxembourg 14
Solar Refrigerators Model Brand Manufact urer Capacity Freezing capacity VC 150 SDD Dulas UK 102 L R 600 a E 003/048 VC 150 -2 Dulas UK 86 L R 134 a E 003/027 VC 150 F Dulas UK 85 L R 134 a E 003/79 M VC 65 -2 Dulas UK 37. 5 L R 134 a E 003/026 VC 65 F Dulas UK 37. 5 L R 134 a E 003/103 24 pcsx 0. 6 Refrigeran PQS No. t Gas 15
Solar-2 Model Brand Manufactur er Capacity TCW 2043 SDD Dometic Luxembourg MKS 044 SDD Vestforst RFVB 134 Freezing capacity Refrigerant Gas PQS No. 70 L R 600 a E 003/043 Denmark 19. 5 L R 600 a E 003/009 Sumfrost USA 38. 7 L R 134 a E 003/77 -M XL-2100 Kyocera USA 21 L R 134 a PIS E 3/104 -M NRC 30 -10 Northcoast Australia E 003/65 M R 134 a E 003/65 M SSE 60 Northcoast Australia E 003/65 M R 134 a E 003/65 M 32. 5 L 16
COLD BOX Model Brand Manufactur er RCW 12 Dometic Luxembourg 9. 23 L E 004/004 RCW 25 Dometic Luxembourg 20. 66 L E 004/005 ACB 444 L AOV India International 22 L E 004/014 CB-20 -CF Blowkings 24. 38 L E 004/025 India Capacit y PQS No. 17
VC 150 SDD Manufacturer Dulas Solar Model VC 15 PQS code E 003/048 Vaccine storage capacity: (Liters) 102; • Water pack storage capacity: 20 x 0. 6 L Water pack freezing capacity: up to 2. 4 kg per 24 hours • +5°C to +43°C temperate zone rated • Works at WHO solar reference period 3. 5 k. Wh/m 2/24 h • 83. 7 hours holdover at +43°C (122. 57 hours holdover at +32°C) • 77. 95 hours autonomy at +43°C (118. 85 hours holdover at +32°C) 18
VC 150 -2 Manufacturer Dulas Solar Model VC 150 -2 PQS code E 003/027 Vaccine storage capacity: (Liters) 86 Waterpack freezing capacity: 2. 4 kg per day ; Waterpack storage capacity: 26 x 0. 76 Autonomy as per WHO/PQS protocols 77. 99 At a solar radiation reference period of: 3. 5 k. Wh/m 2/day 19
VC 65 -2 Vaccine storage capacity: (Litres) 37. 5 L Gross volume (Litres): 48. 3 L Gross volume: 24. 3 L Holdover time (hours): 3 hours 8 min Waterpack freezing capacity: 2. 4 kg/24 h Waterpack storage capacity: 18 x 0. 6 L Manufacturer Dulas Solar Model VC 65 -2 PQS code E 003/026 20
TCW 2043 SDD Vaccine storage capacity (l): 70 Ice pack storage capacity: 16 x 0. 6 L Autonomy time (+2°C to +8°C): 73 h 54 min. at +43°C ambient temperature Minimum solar radiation for continuous running: 250 W/m²/PQS ref. 3. 5 KWh / 24 h / m² Hold over time: 79 h at +43°C ambient temperature PQS-Code: E 003/043 Manufacturer luxembourg Model Dometic PQS code E 003/043 21
MKS 044 Gross volume, litres(cu. ft. )48 (1. 7) Net volume, litres(cu. ft. )19. 5 (0. 7) Temperature range, at 32° AMB+2 to +8 Hold-over time during power cut at 32°C AMB, hrs 114 Refrigerant R 600 a Manufacturer Demark Model vestfrost PQS code E 003/009 22
RFVB 134 a Vaccine Storage Capacity: 38. 7 liters Freezer dimensions: Volume 34 liters Refrigerator dimensions: Volume 51 liters. Manufacturer USA Brand Sunfrost PQS code E 003/77 M 23

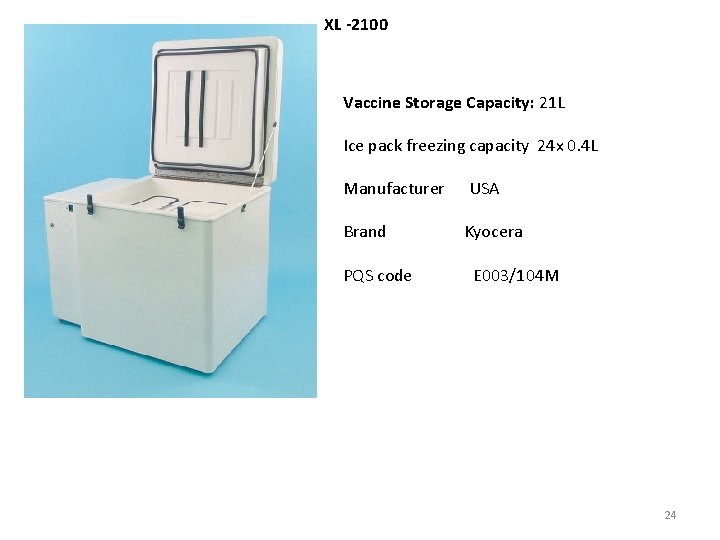

XL -2100 Vaccine Storage Capacity: 21 L Ice pack freezing capacity 24 x 0. 4 L Manufacturer USA Brand Kyocera PQS code E 003/104 M 24
NRC 30 -10 Vaccine storage capacity 15. 5 L Ice pack storage capacity 8 x 0. 4 l Manufacturer Australia Brand northcoast PQS : E 003/65 M 25
Temperature monitoring devices Model company Manufacturer PQS No. Description Fridge-tag Berlinger & Co, AG Switzerland E 006/003 30 -day electronic temperature logger Fridge-tag 2® Berlinger & Co, AG Switzerland E 006/020 1. 30 -day electronic temperature logger 2. Has a USB interface 3. Can connect a PC, laptop, Mac. 4. Generate PDF document with a 60 day report Logtag recoders China E 006/006 User prg temperature data logger Freeze-tag Berlinger & Co, AG Switzerland Eoo 6/007 Electronic freeze-tag Rueger TFVI RUEHER SA 00 BI switzerland E 006/012 Dail thermometer 26
Cold/Freezer rooms + Freezers Central Vaccine Store Yangon Cold Boxes Cold/Freezer rooms + Freezers Cold Boxes Distribution Cold Boxes ILR + Freeze r Cold Stores reezer Sub Depots Cold Boxes ILR + Freezer some Solar Vaccine Carrier Ice Pack Cold Boxes ILR + F Cold Boxes Townships ILR + Freezer some Solar RHC/UHC Midwives Fixed Sessions Outreach Session Outreach Session Outreach Session Outreach Session Vaccine Carrier Ice Pack
