Coil Method of Construction
Coil Method technique of building ceramic forms by rolling out coils of clay & joining them together with fingers or a tool to create a form
Parts of a Vessel MOUTH -----> LIP/RIM -----> NECK -----> SHOULDER -----> BODY/BELLY -----> FOOT

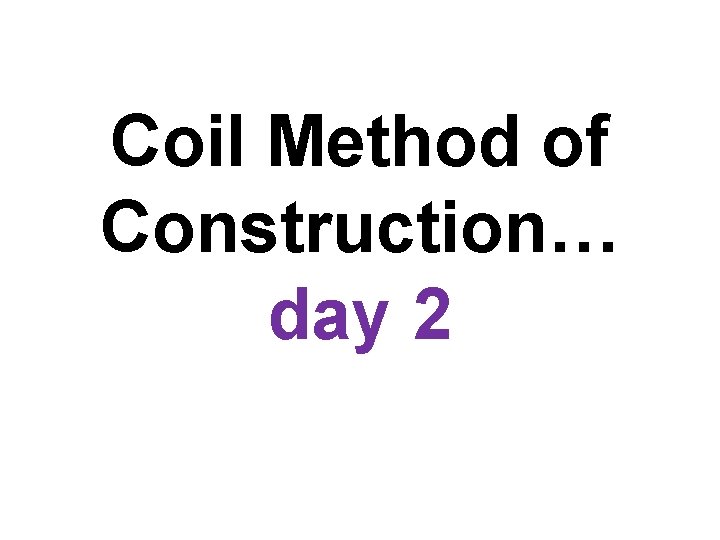

Coil Method of Construction… day 2
Creating Coils: **Clay must be very plastic!!!!!!!** 1. Use even pressure when rolling OR squeeze hanging vertically 2. Uniform shape & long enough to fit around edge 3. Thumb Thick

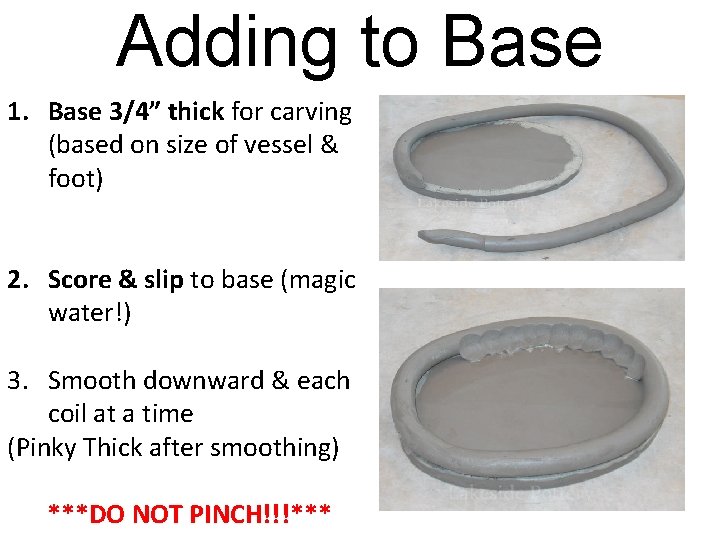

Adding to Base 1. Base 3/4” thick for carving (based on size of vessel & foot) 2. Score & slip to base (magic water!) 3. Smooth downward & each coil at a time (Pinky Thick after smoothing) ***DO NOT PINCH!!!***
How do you create a shape like this using coils? ? ?

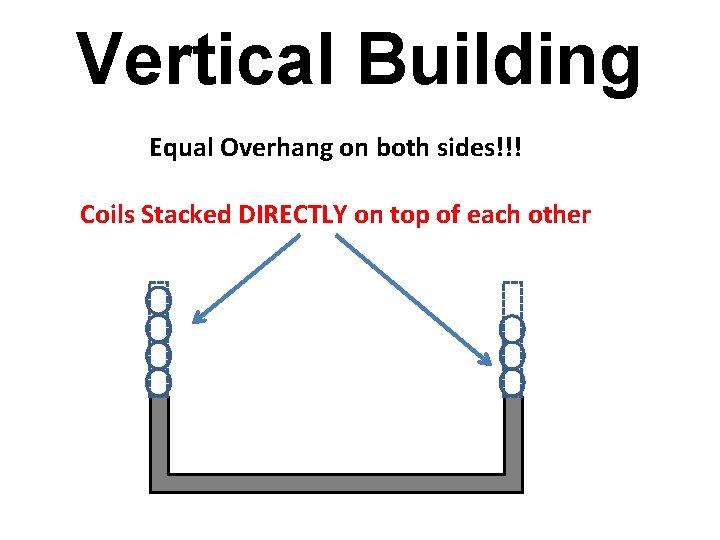

Vertical Building Equal Overhang on both sides!!! Coils Stacked DIRECTLY on top of each other
How would we create curves like this? ? ?

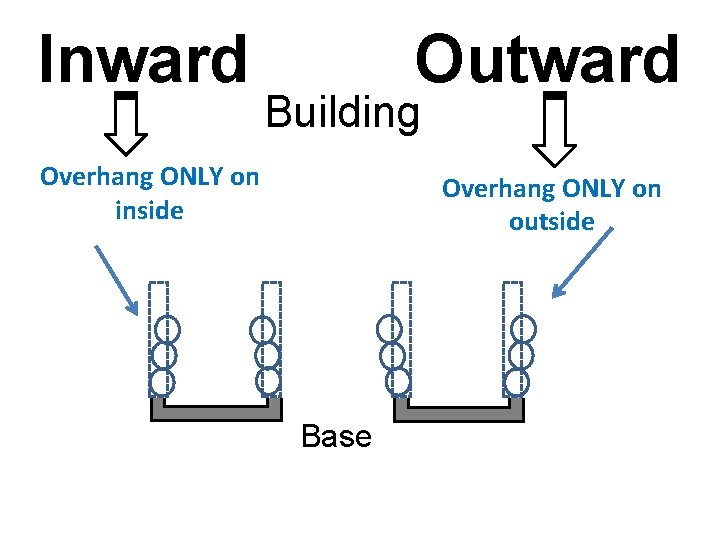

Inward Outward Building Overhang ONLY on inside Overhang ONLY on outside Base

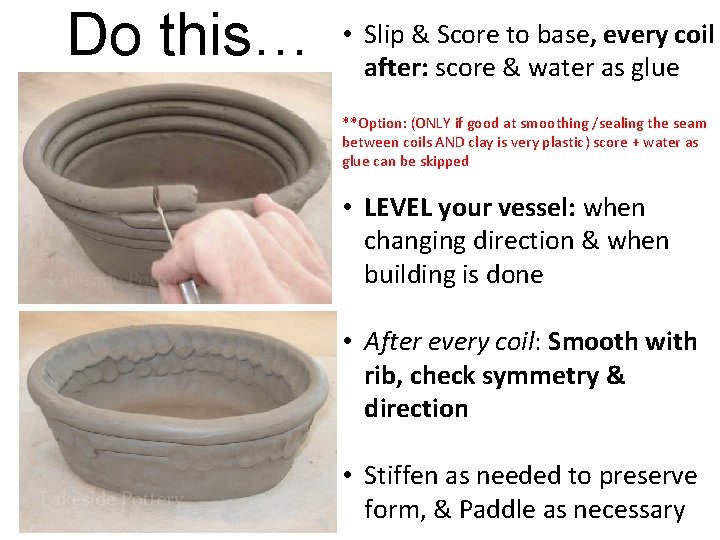

Do this… • Slip & Score to base, every coil after: score & water as glue **Option: (ONLY if good at smoothing /sealing the seam between coils AND clay is very plastic) score + water as glue can be skipped • LEVEL your vessel: when changing direction & when building is done • After every coil: Smooth with rib, check symmetry & direction • Stiffen as needed to preserve form, & Paddle as necessary

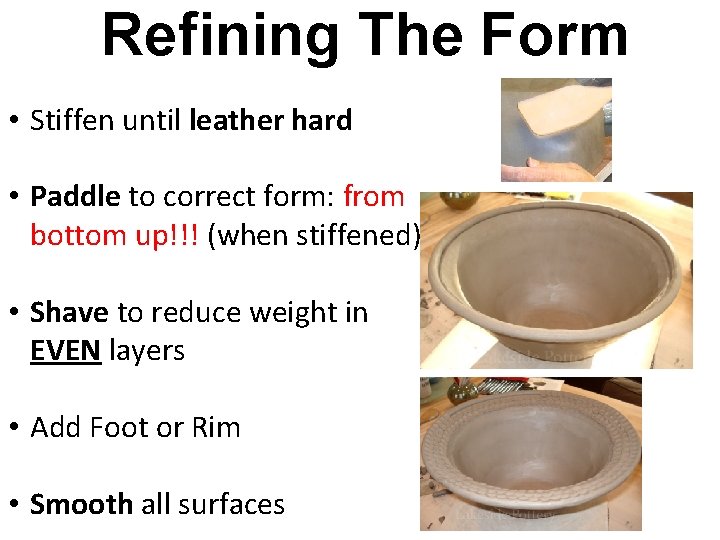

Refining The Form • Stiffen until leather hard • Paddle to correct form: from bottom up!!! (when stiffened) • Shave to reduce weight in EVEN layers • Add Foot or Rim • Smooth all surfaces
FOOT
